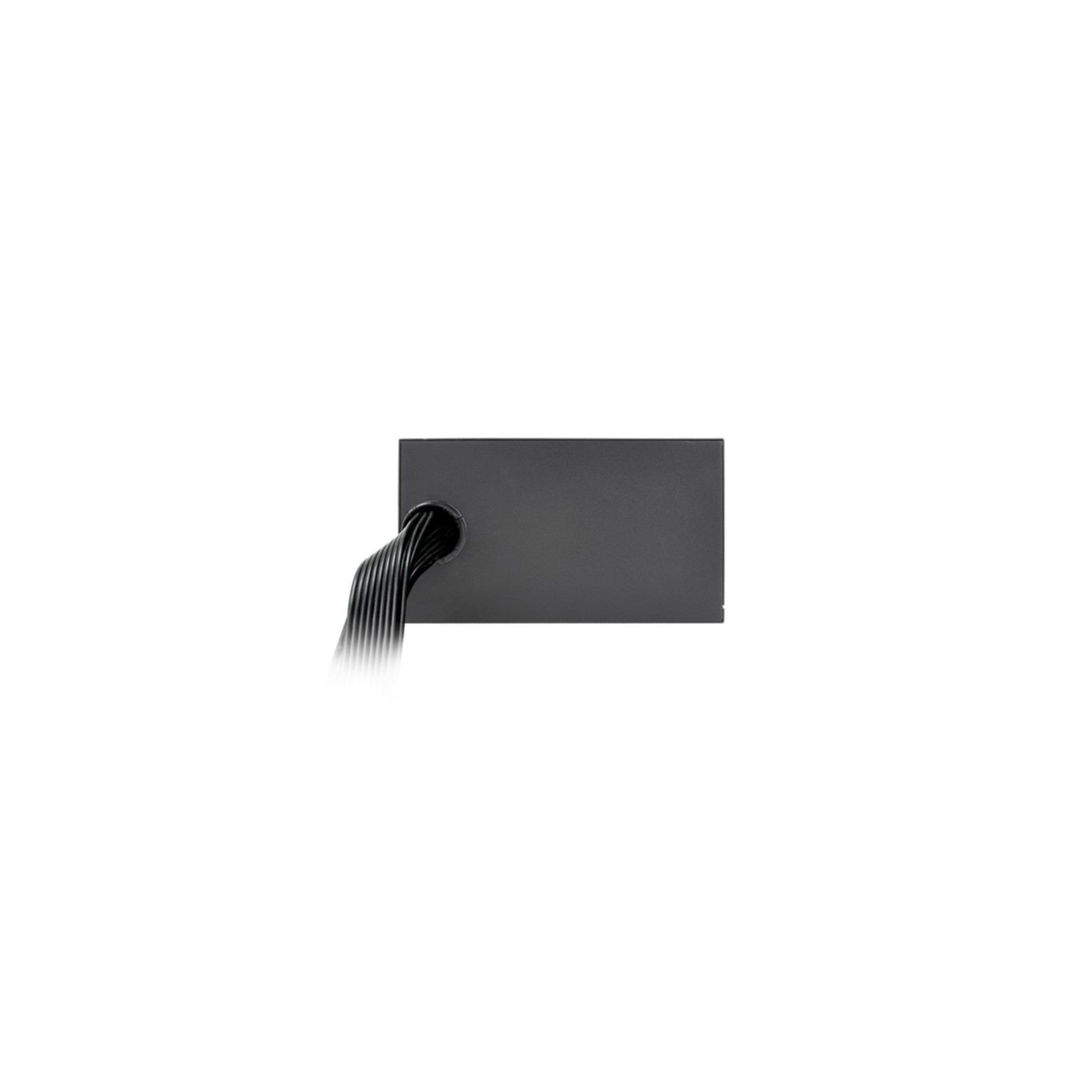

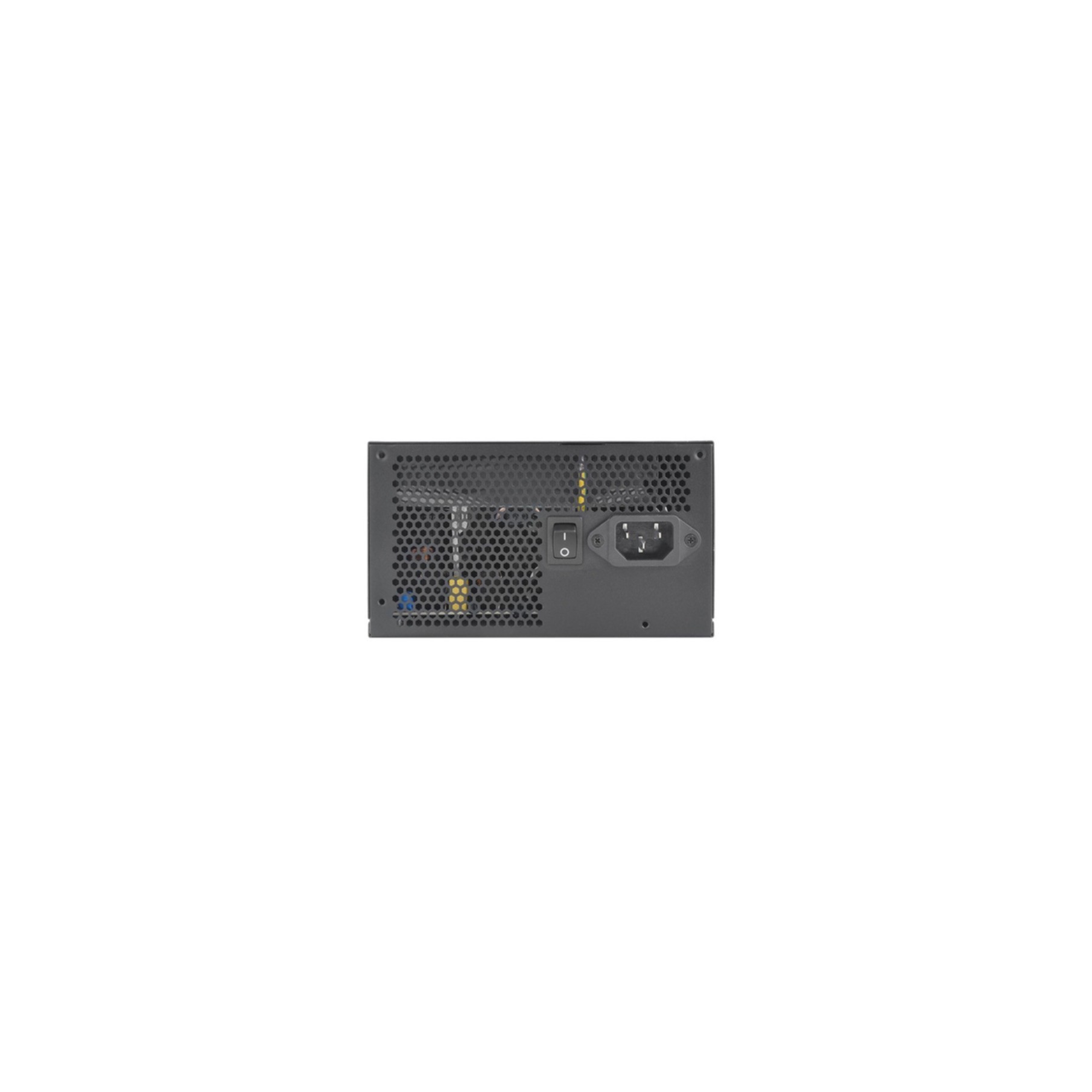

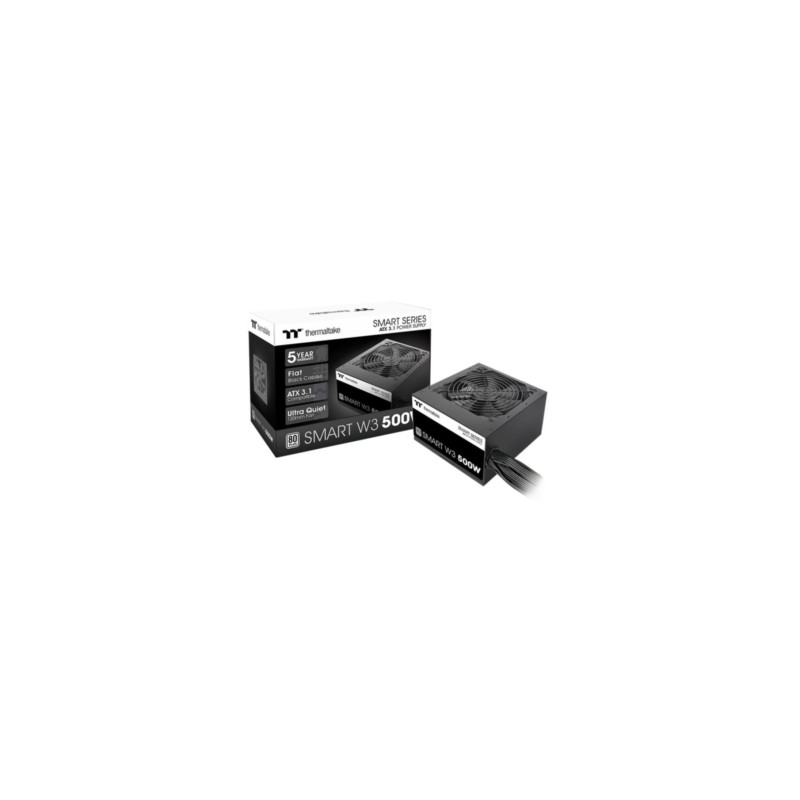

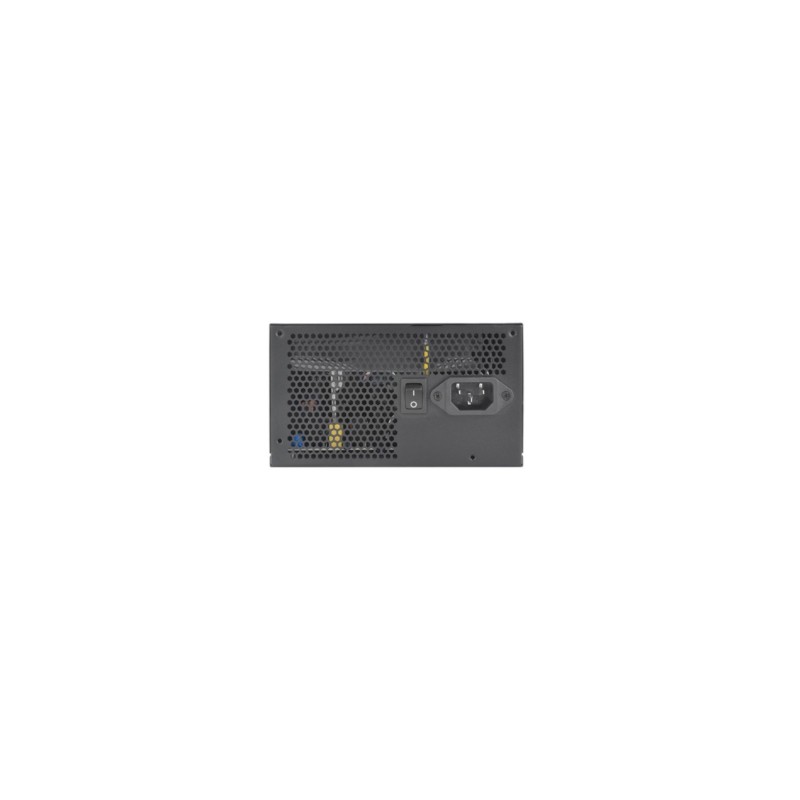

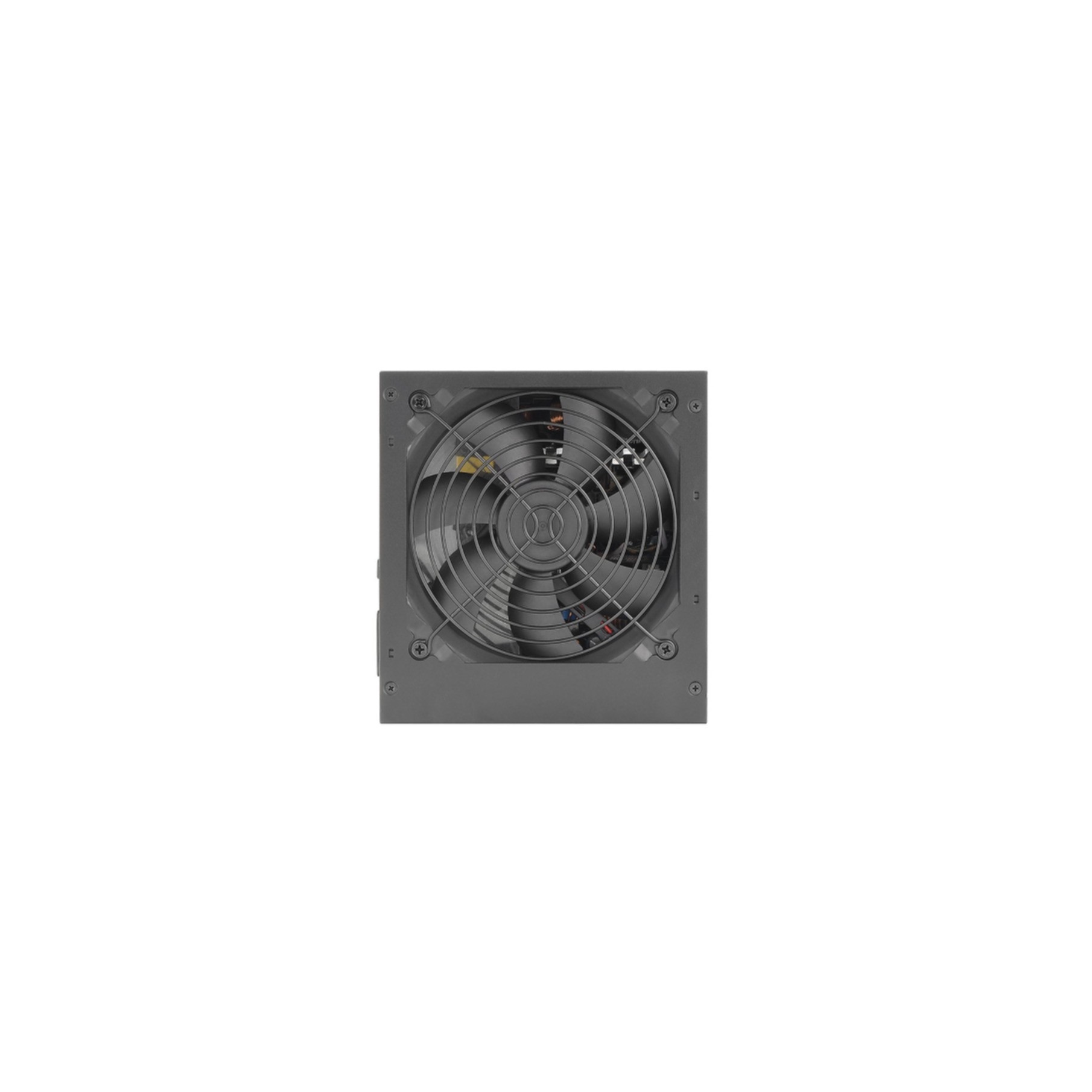

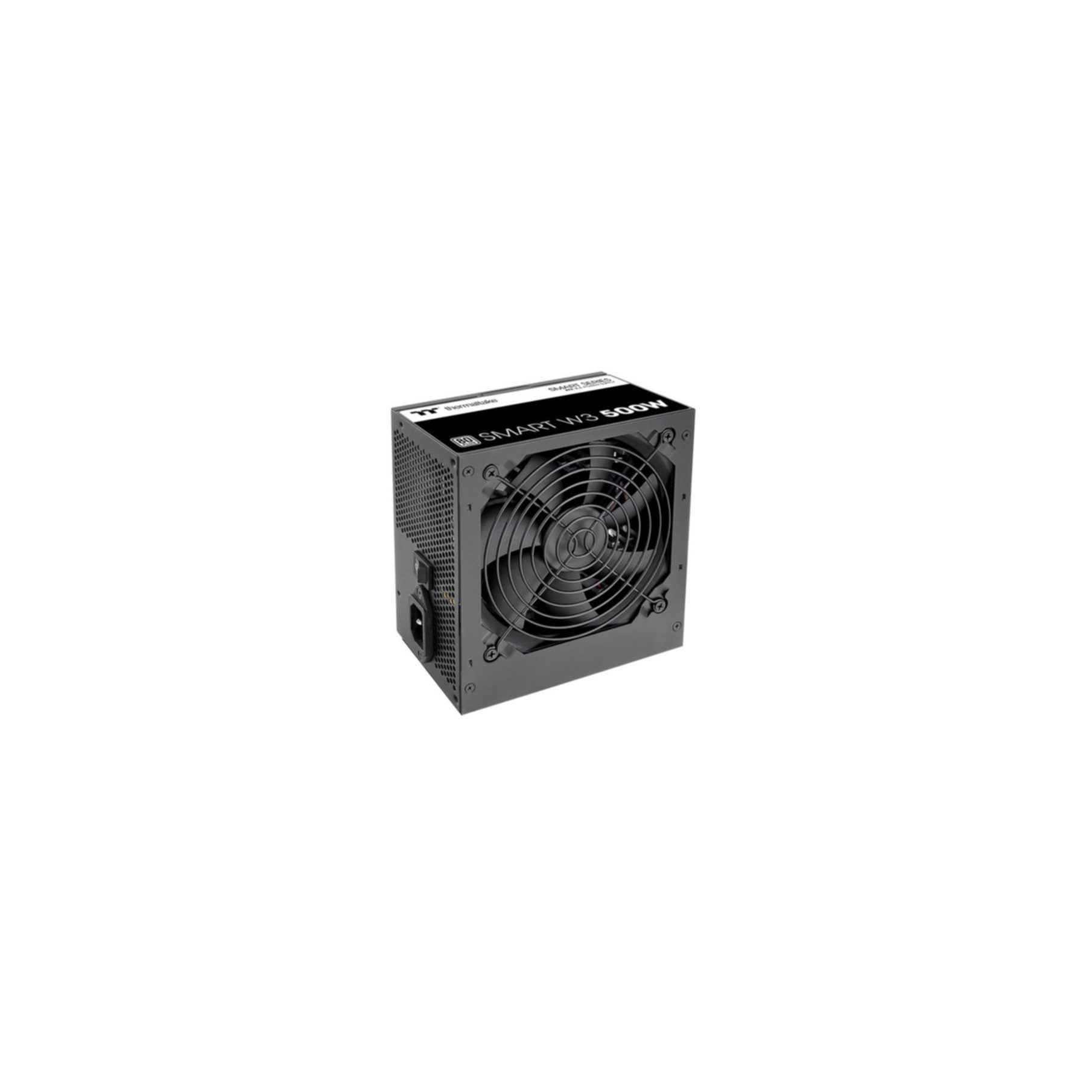

Thermaltake Smart W3 500W - Non-Modular ATX 3.1 PSU, Black
500W Thermaltake Smart W3 non-modular ATX 3.1 PSU, 80 PLUS certified, 24-pin ATX, 4x SATA, 2x 6+2 PCIe, 4+4 EPS, 120mm FDB fan, multi-protection
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - ATX Standard | ATX 3.1 |
|---|---|
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x8-pin |
| PSU (Power Supplies) - EPS CPU Connectors | 1x8-pin |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 500 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V) | 41.67 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 500, 650, 800, 950 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500, 650, 800, 950 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 65 cm |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CB/FCC/cTUVus/ICES |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
