Fractal Design Meshify C FD-CA-MESH-C-BKO-TG - Mid Tower ATX Case - Black (Retail)
Compact mid-tower PC case in black with angular mesh front for superior airflow. Supports ATX/mATX/ITX mobos, 315mm GPUs, 170mm CPU coolers. Includes 2x120mm fans, 2x USB 3.2 Gen1 Type-A. Tempered glass side.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm |
| PC Cases - Included Fans | 2 |
| PC Cases - Front I/O | Audio Jacks USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 301–330 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 166-170 mm |

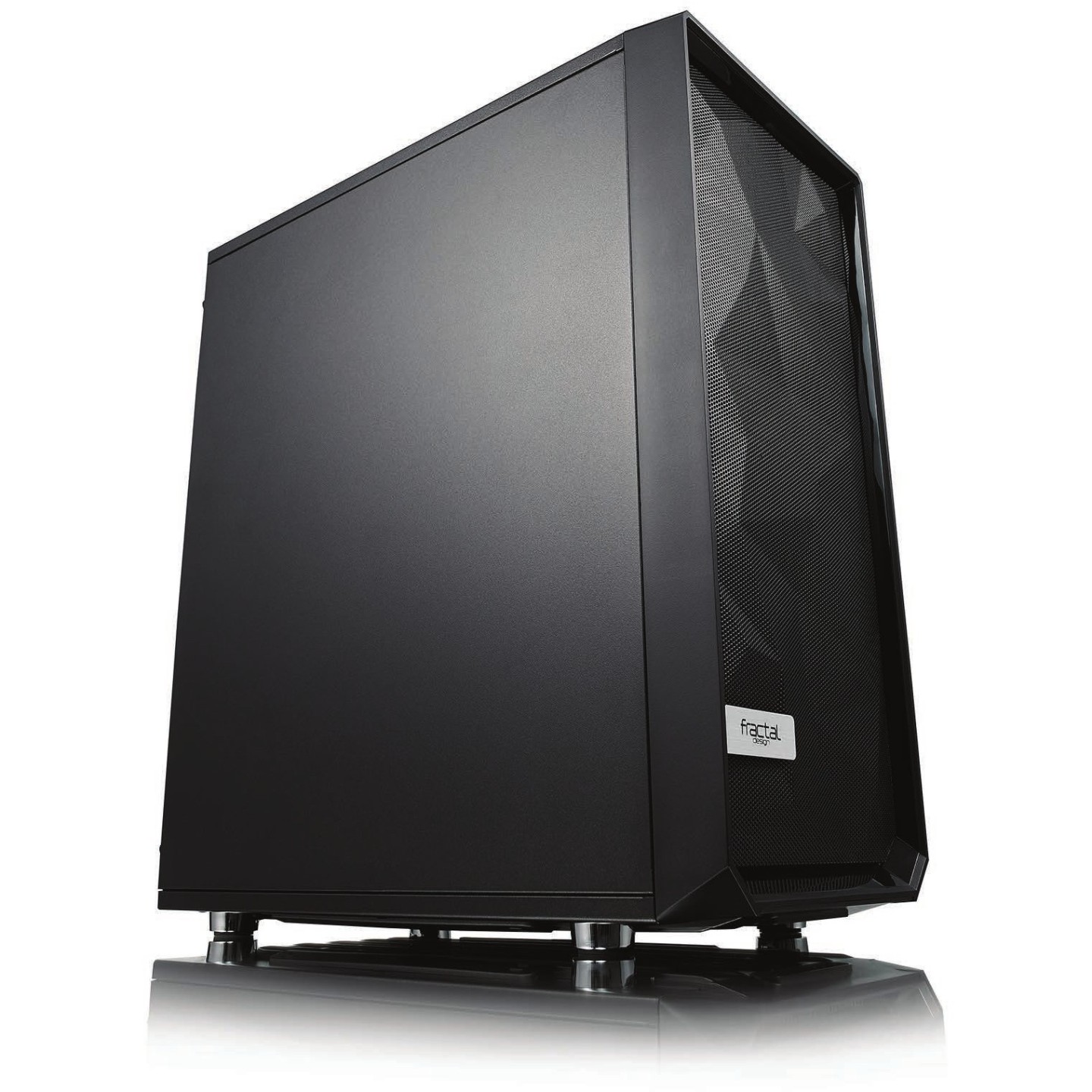

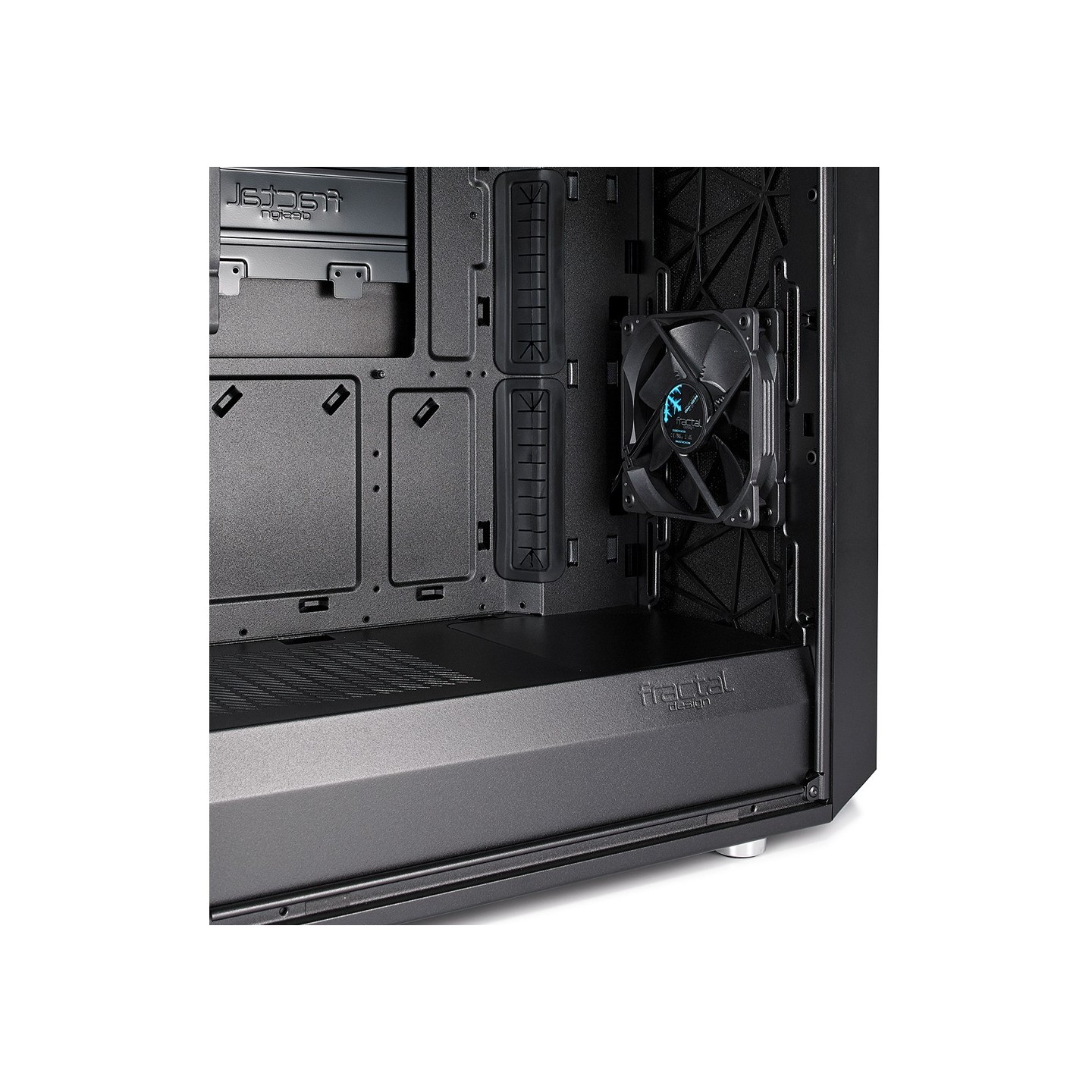

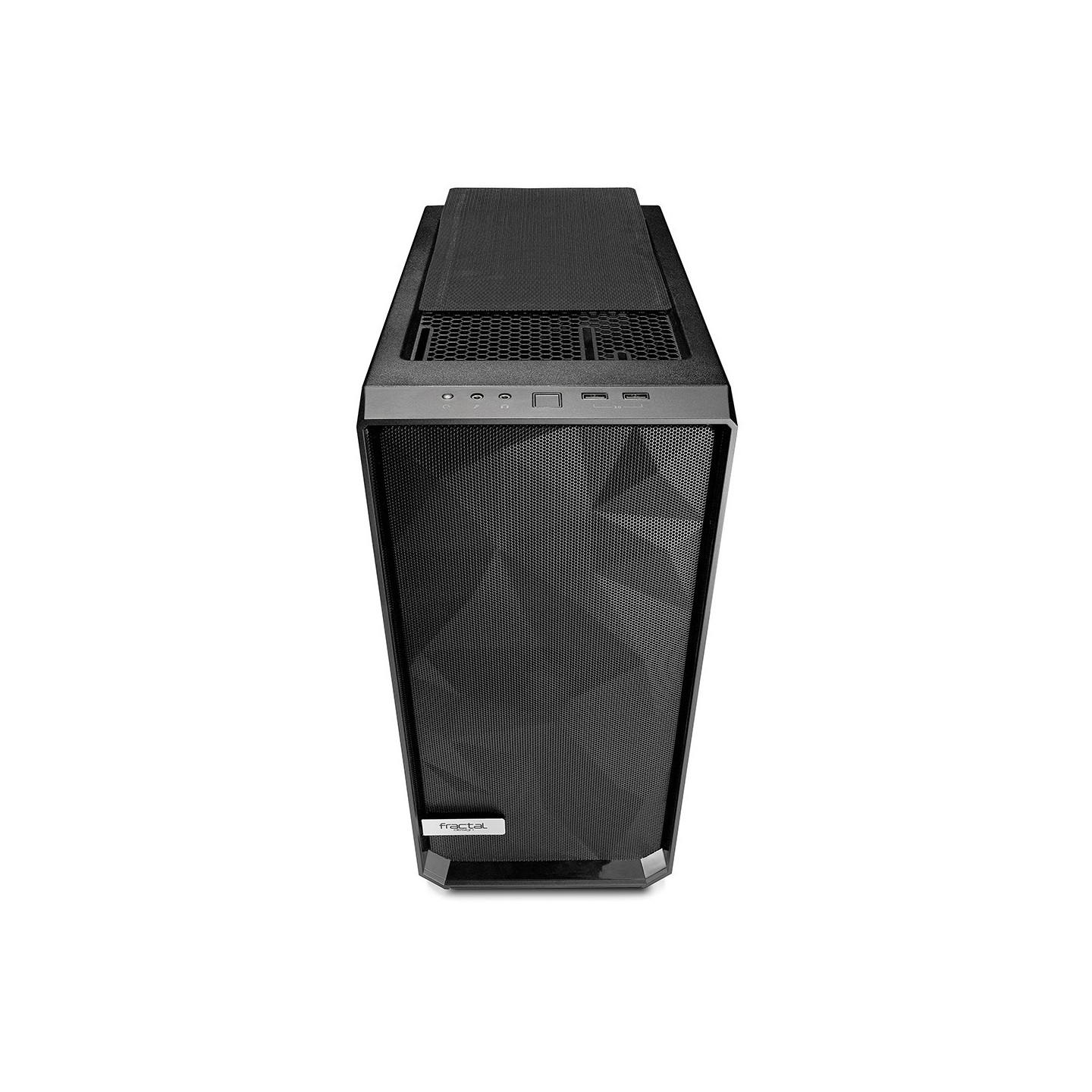

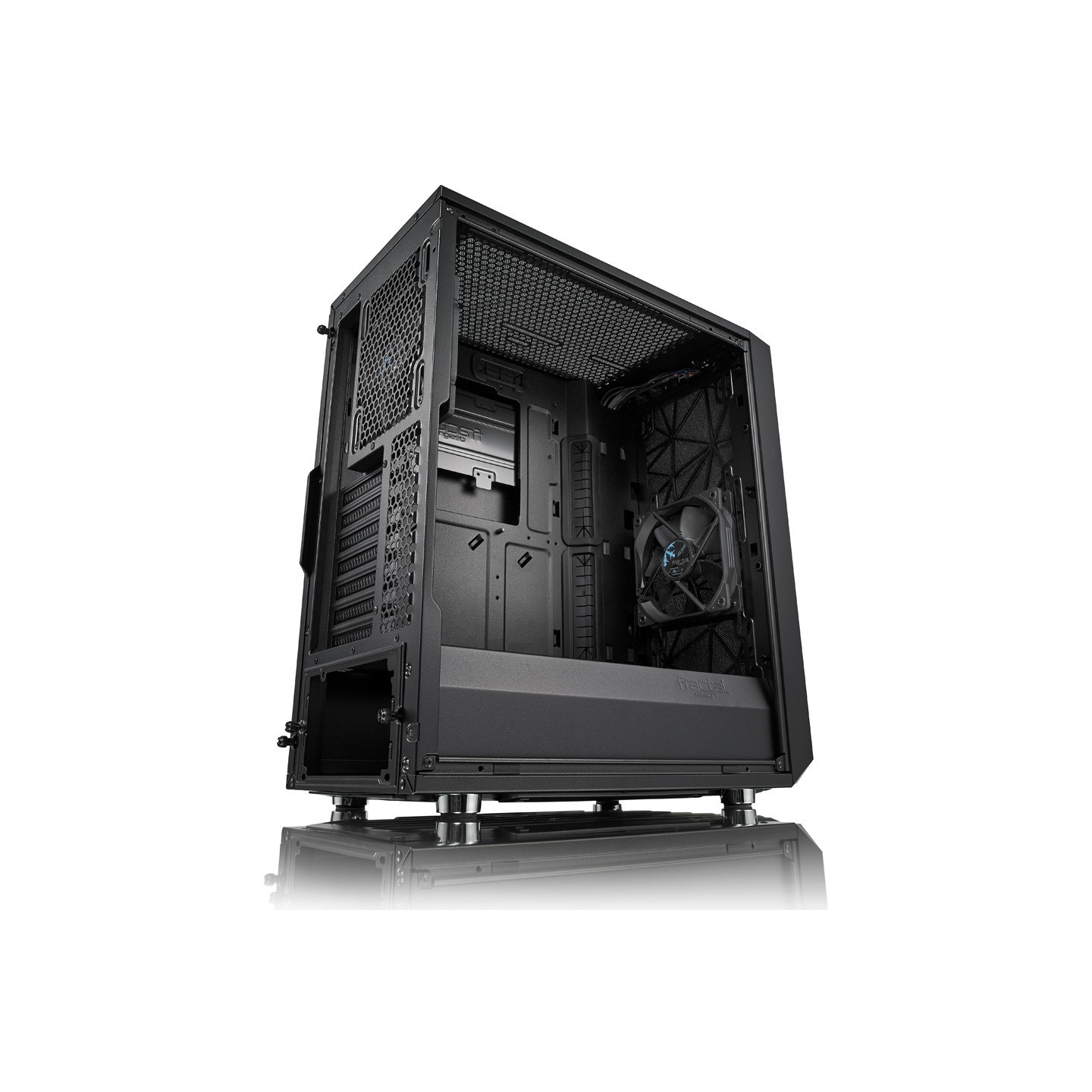

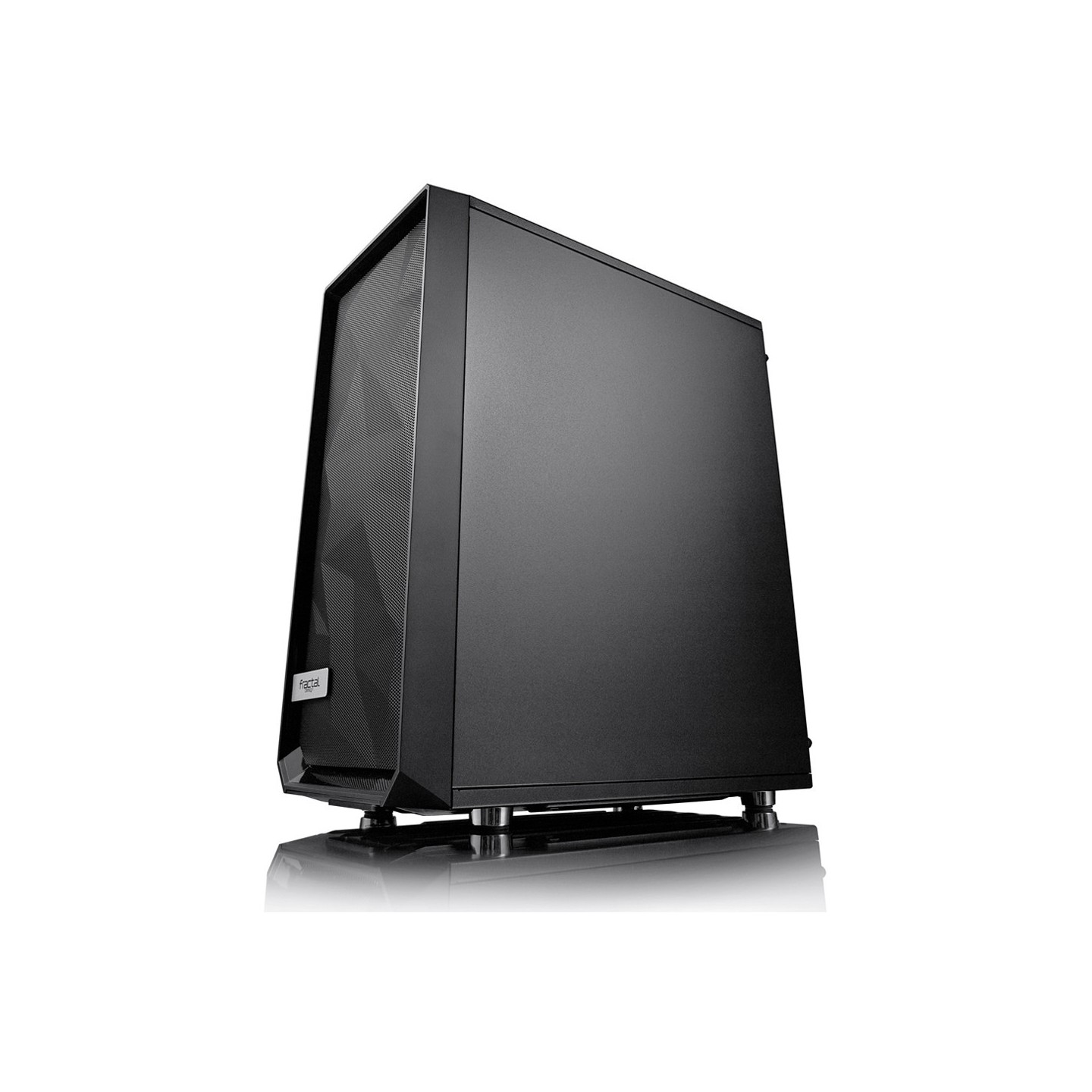

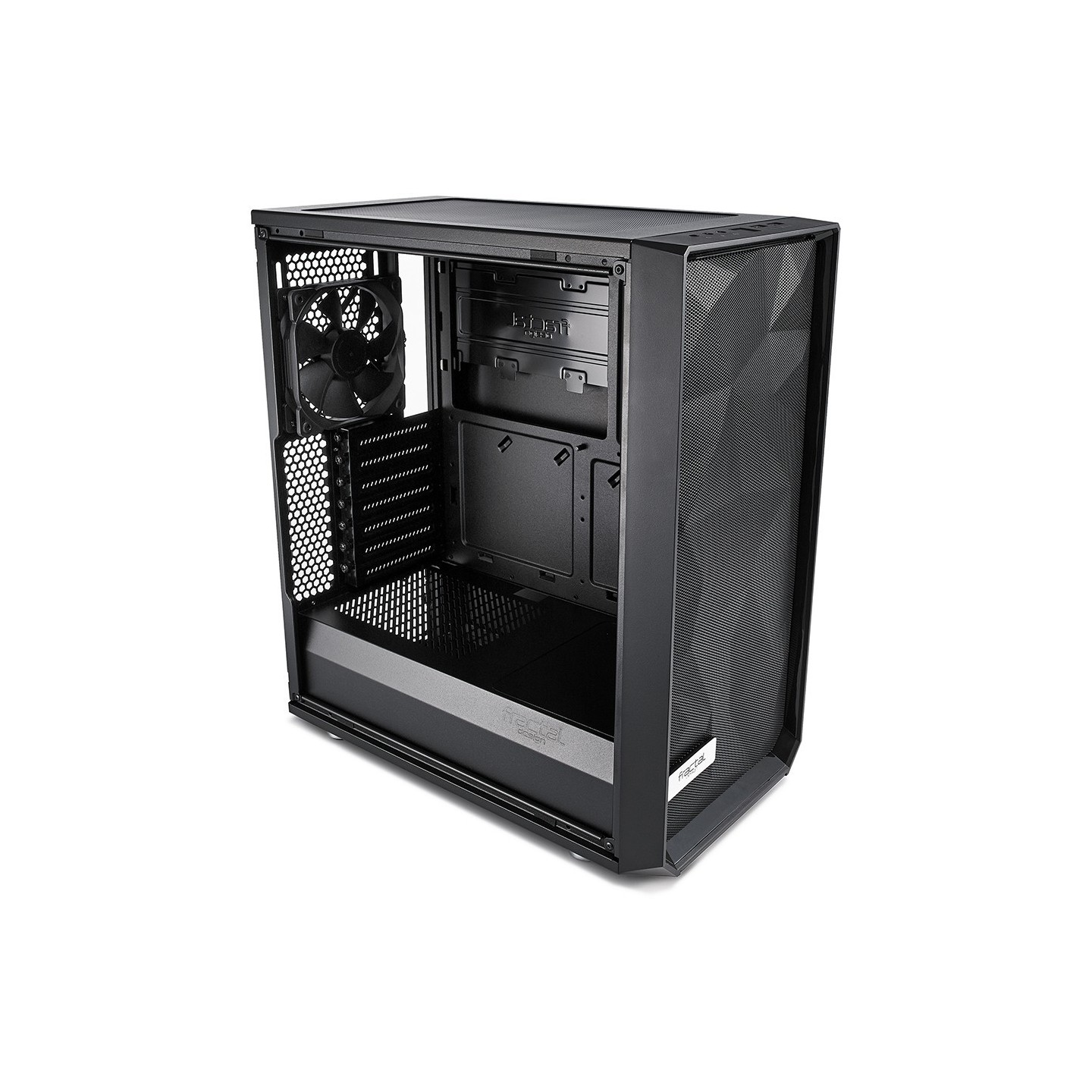

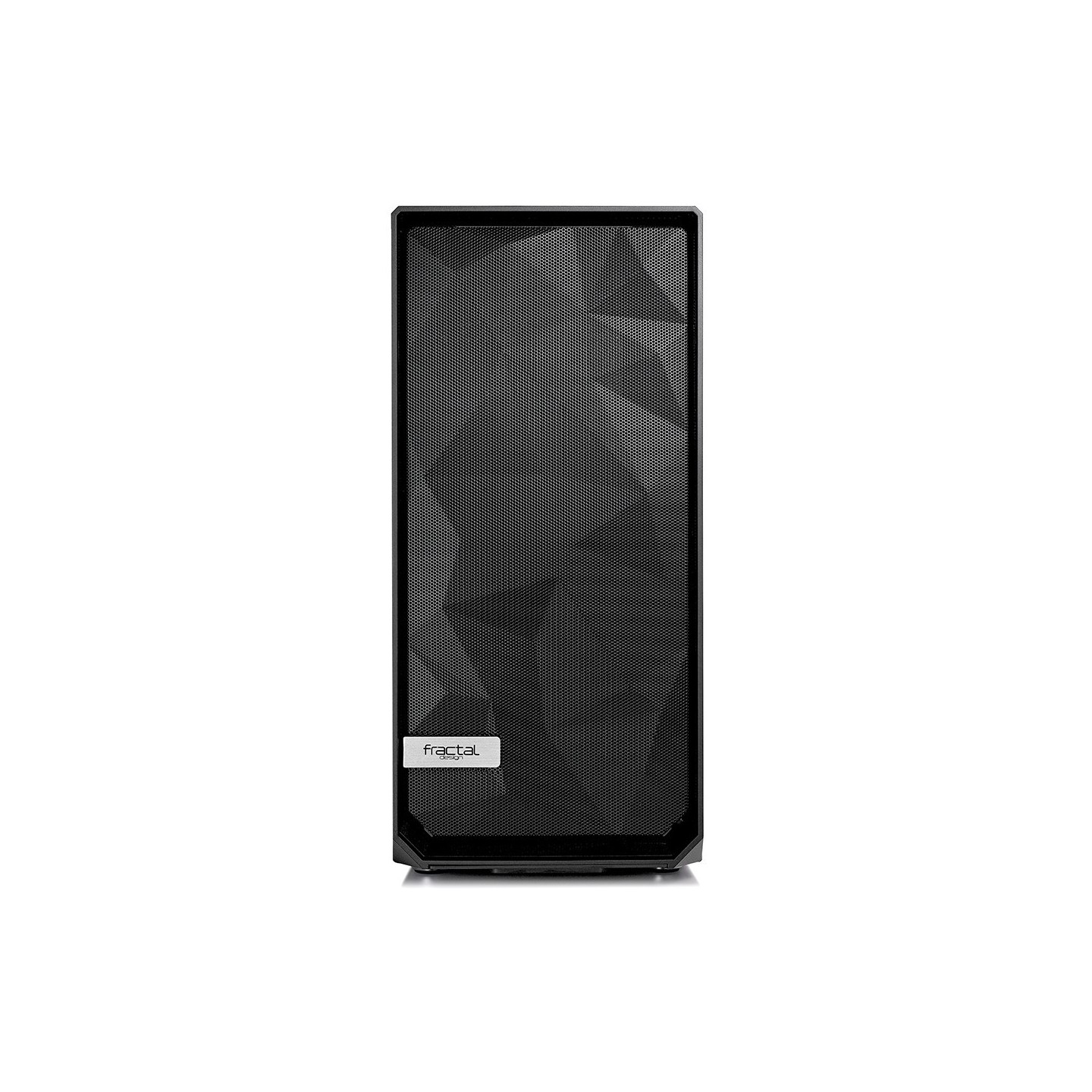

The Fractal Design Meshify C (MPN: FD-CA-MESH-C-BKO-TG) is a compact mid-tower ATX case renowned for its aggressive angular mesh front panel that maximizes airflow while maintaining a sleek, modern aesthetic. This black steel chassis supports ATX, Micro-ATX, and Mini-ITX motherboards, accommodating GPUs up to 315mm and CPU coolers up to 170mm. It arrives with two pre-installed 120mm Dynamic X2 GP-12 fans (one front intake, one rear exhaust) for immediate cooling performance.

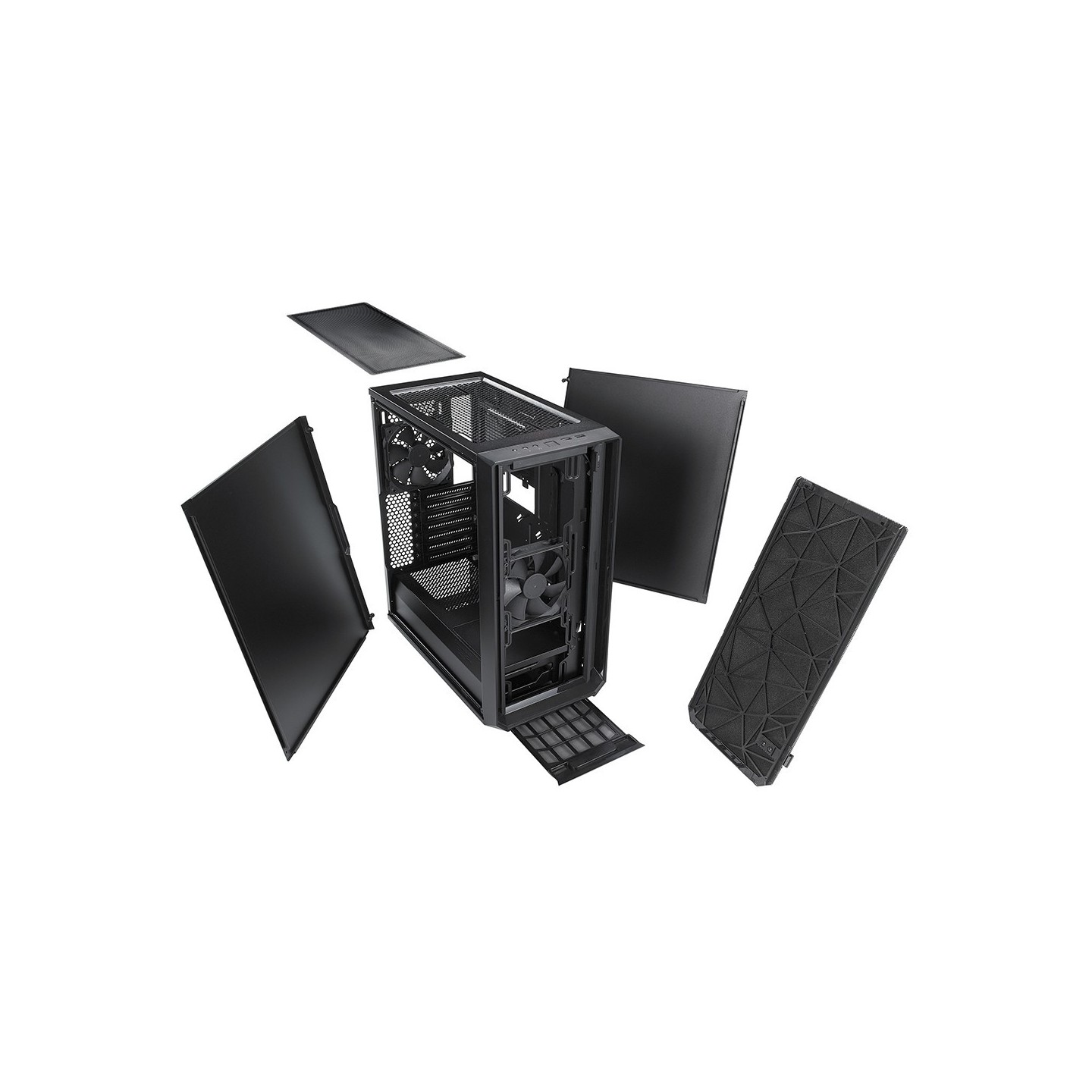

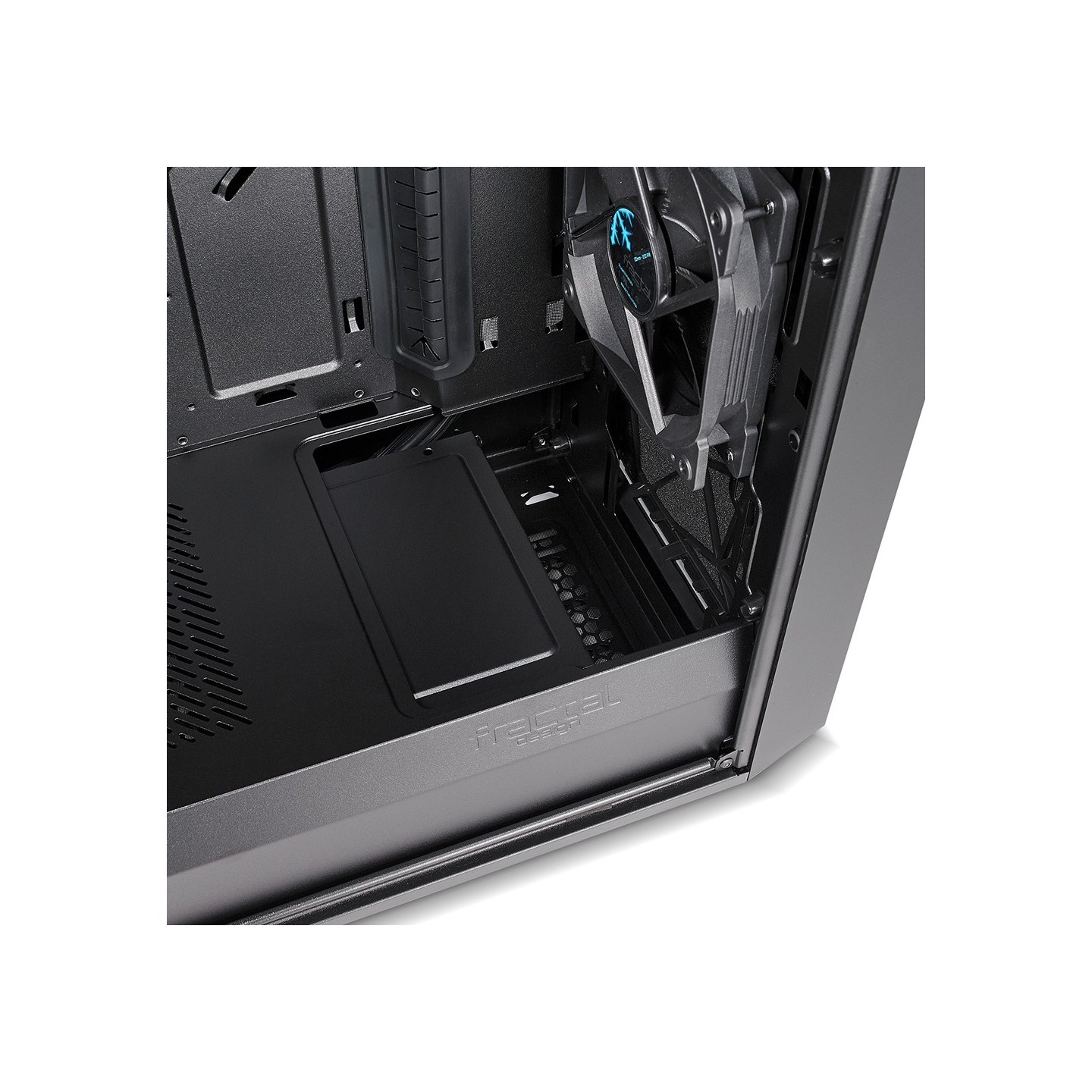

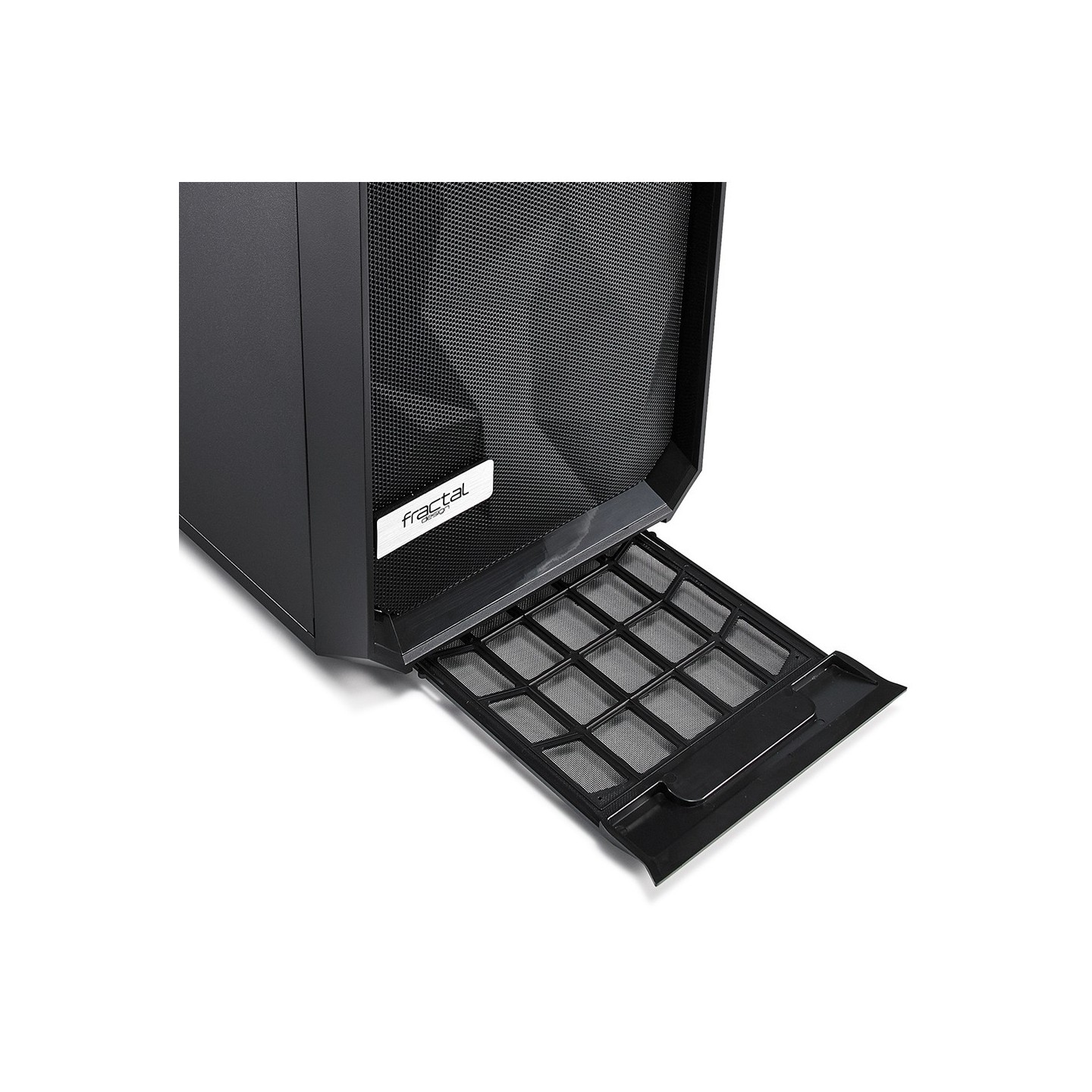

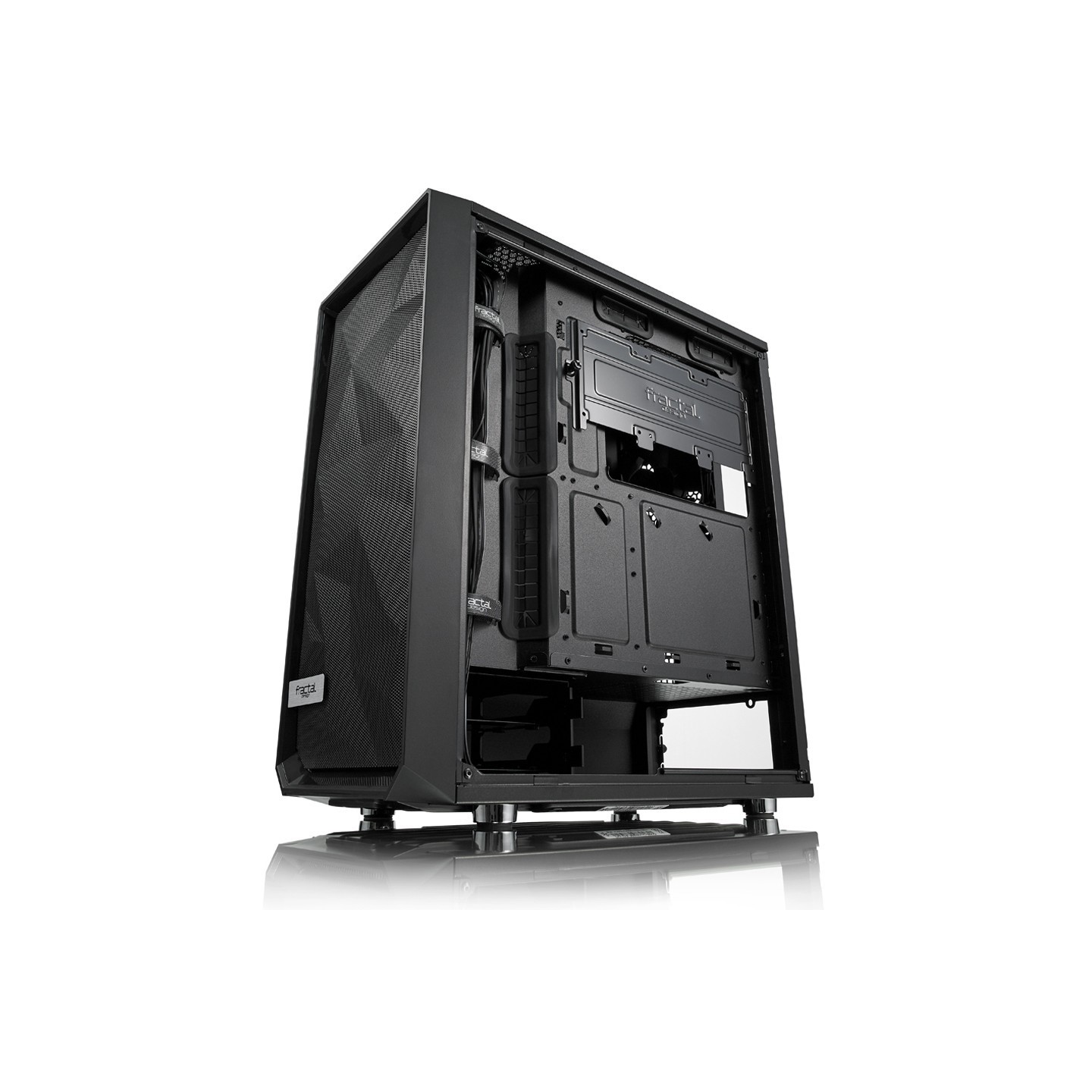

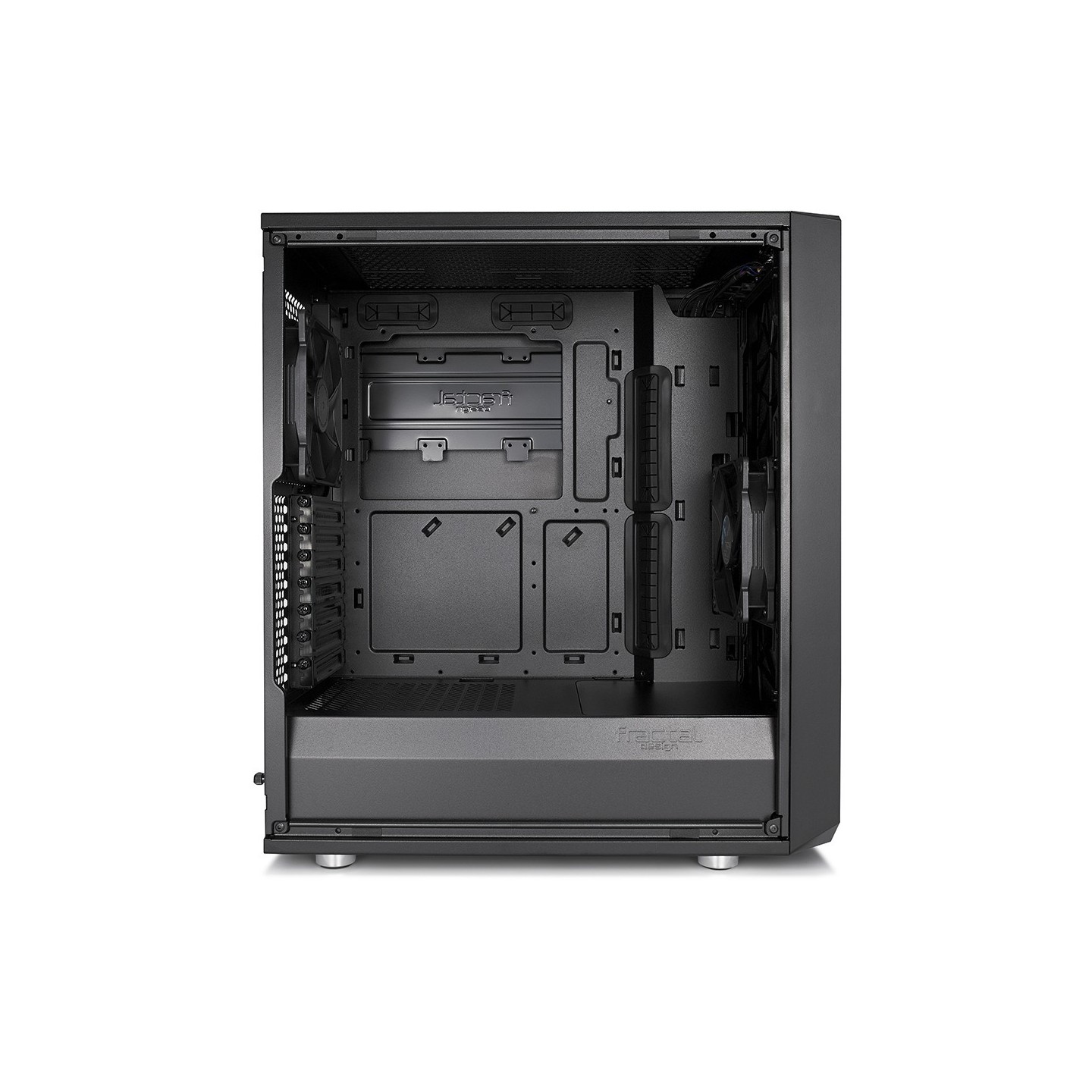

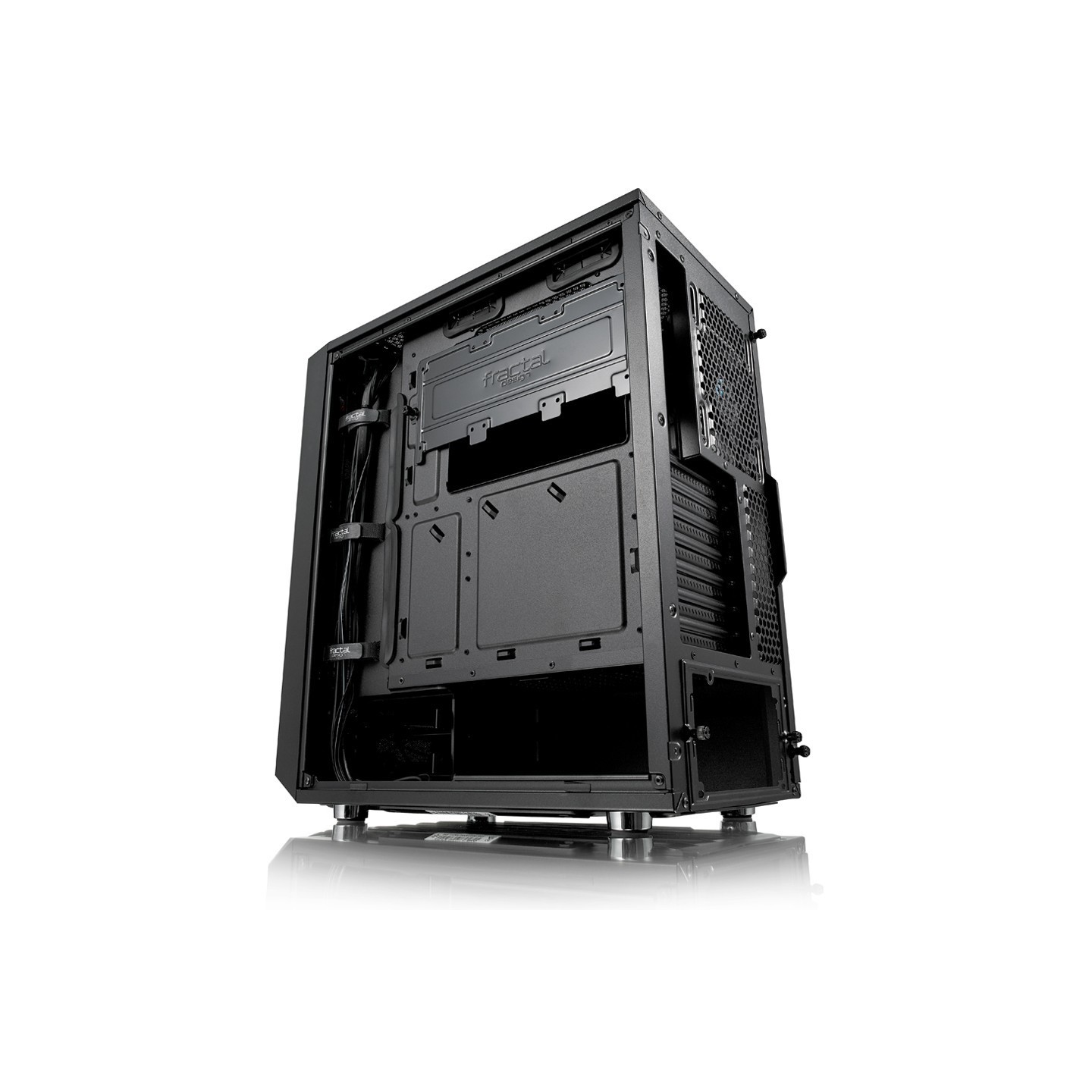

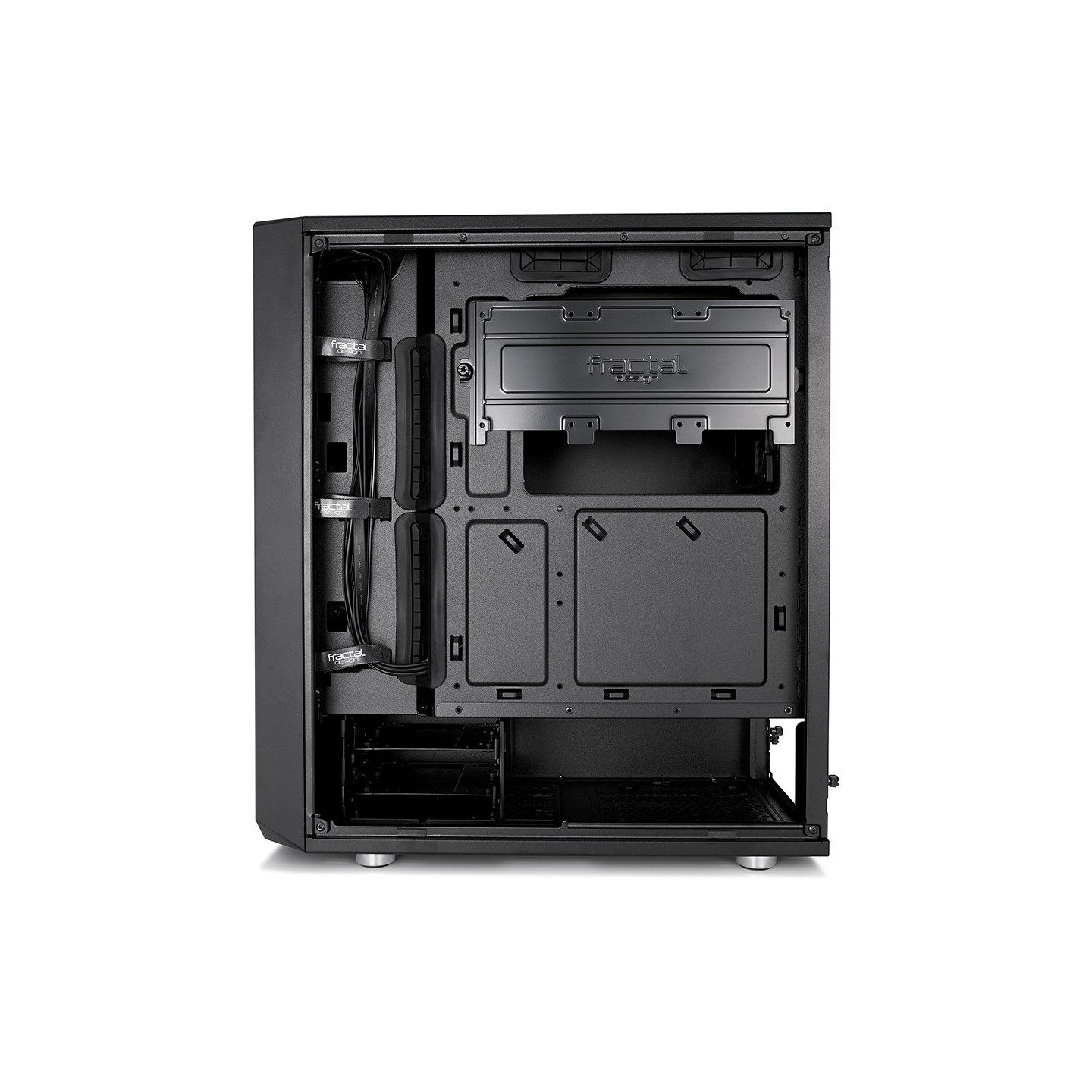

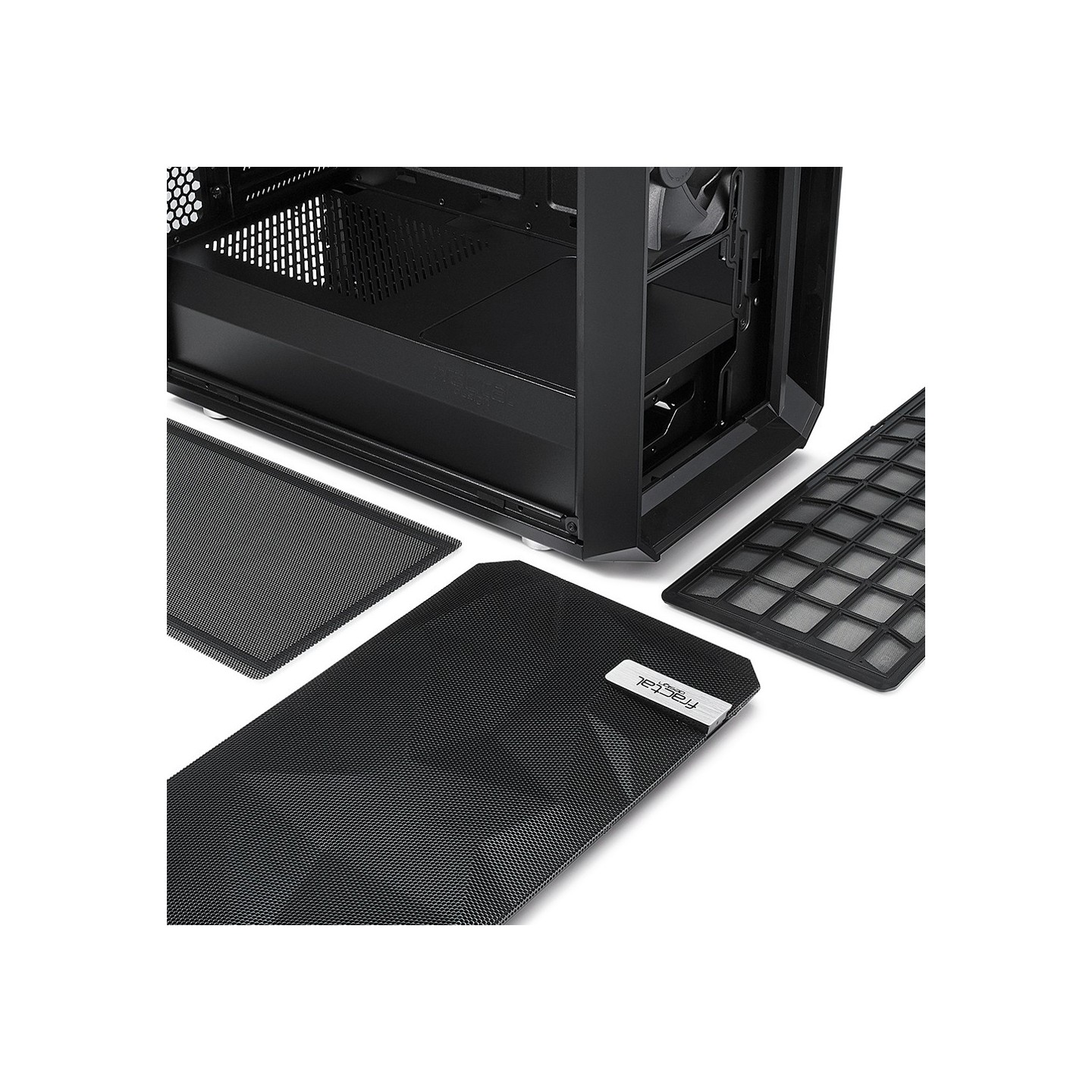

Inside, you'll find excellent cable management features including Velcro straps, angled grommets, and dedicated cutouts behind the PSU shroud. Storage options include 2x 3.5" and up to 3x 2.5" drives, with modular cages for flexibility. The tempered glass side panel showcases your components, while fine mesh filters on front, top, and bottom keep dust at bay. Dimensions: 212x440x395mm (6.16kg net).
- Key Features: Angular mesh front for high airflow

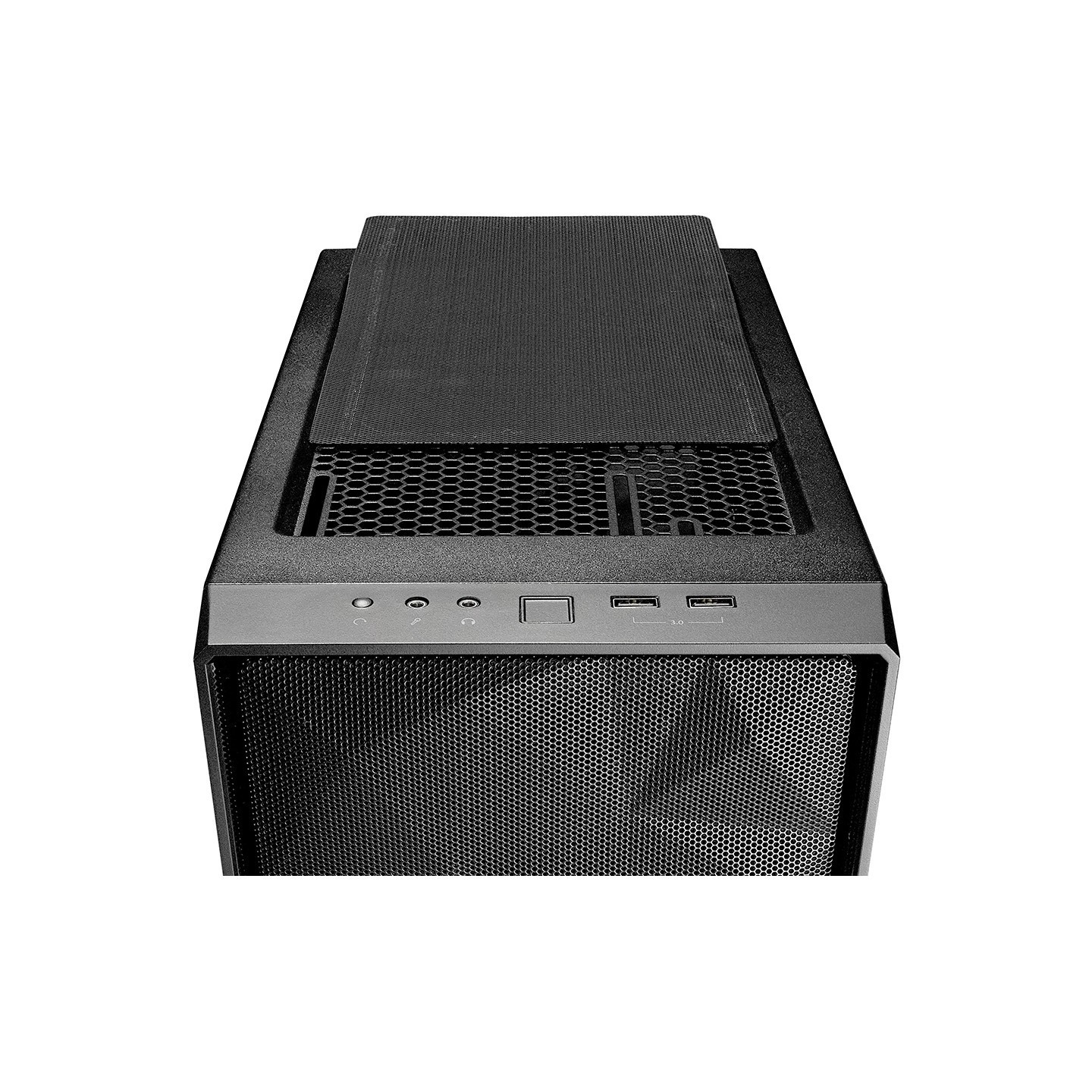

- 2x USB 3.2 Gen1 Type-A + audio front I/O
- Supports front radiators up to 360mm (remove drive cage)

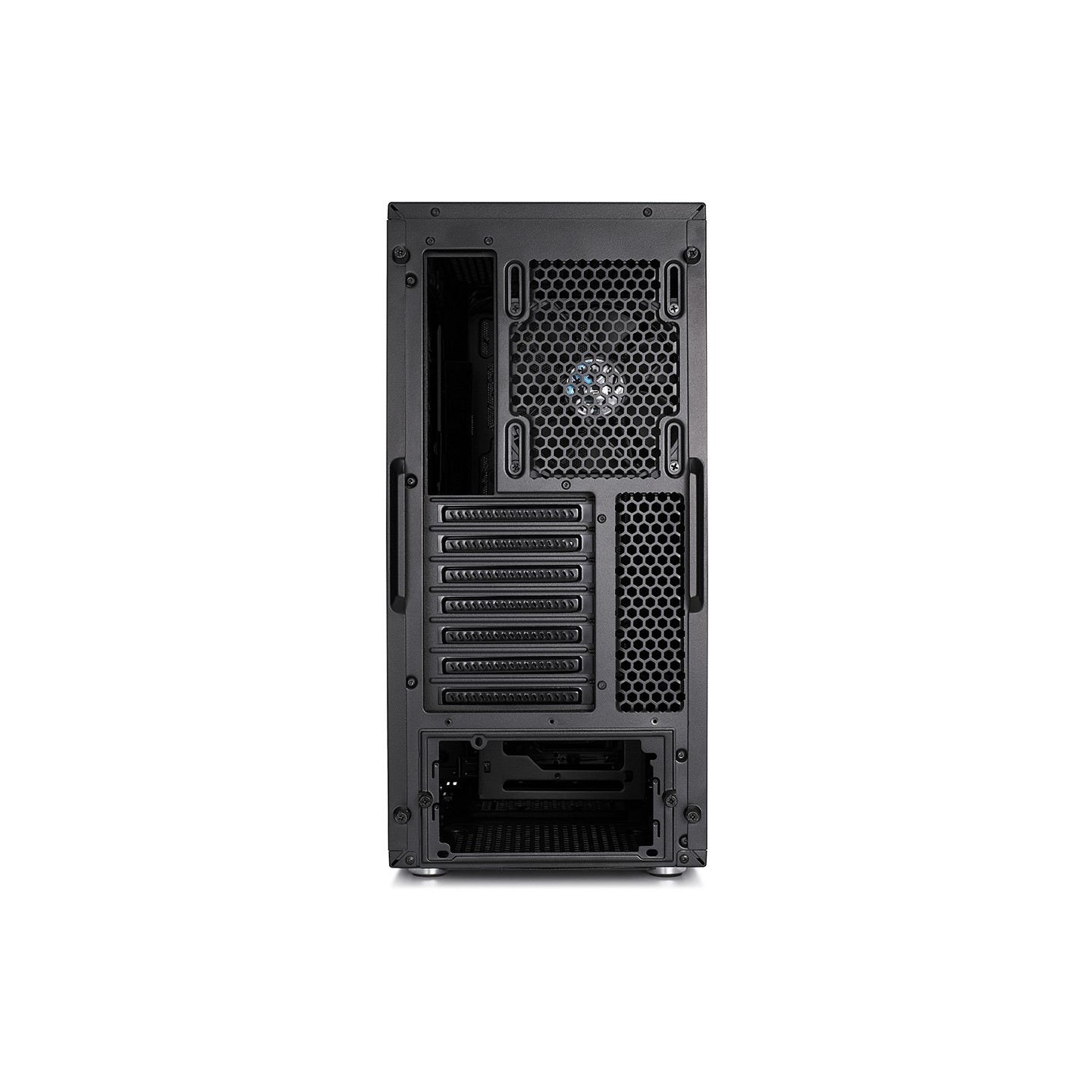

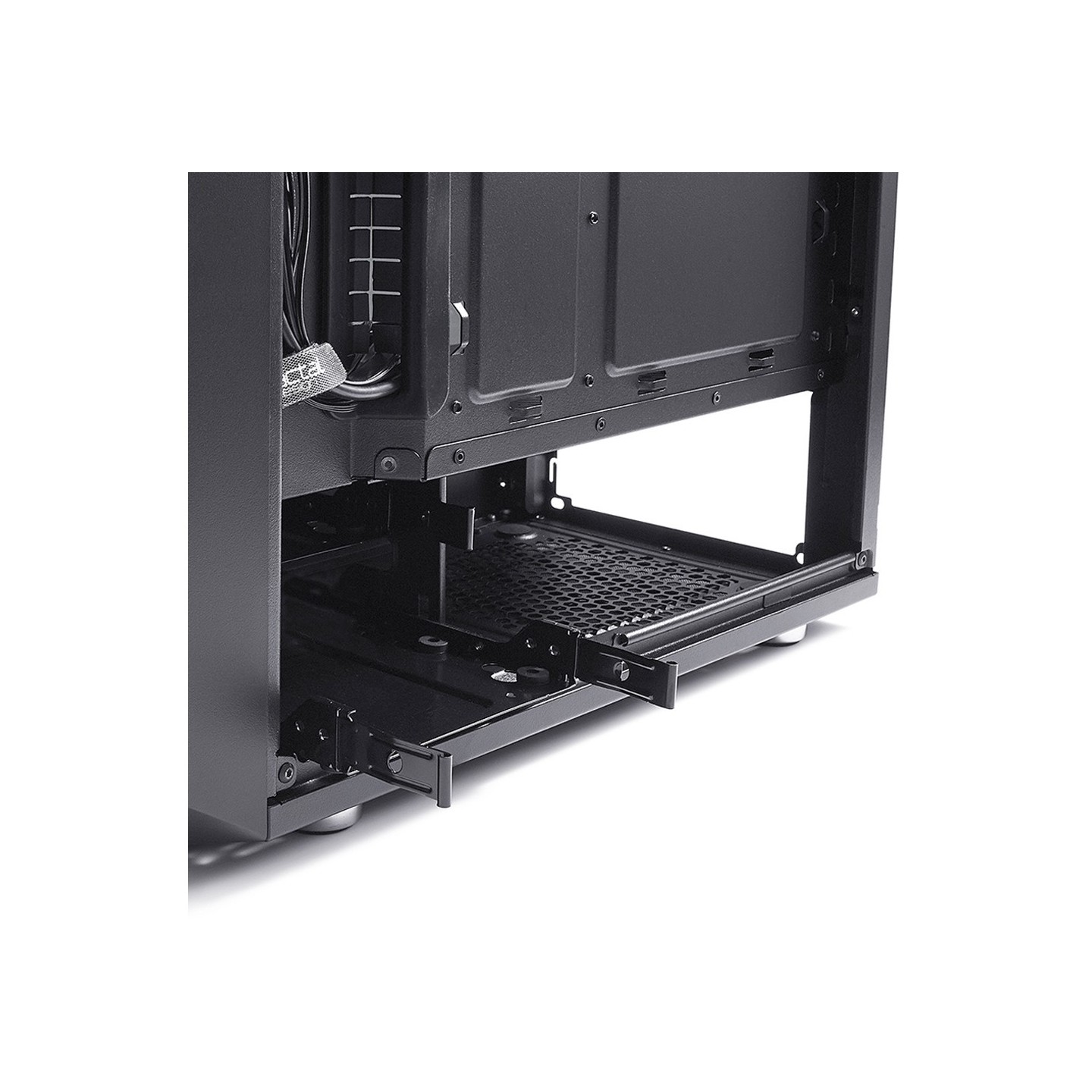

- 7 expansion slots, bottom ATX PSU mount (up to 175mm)

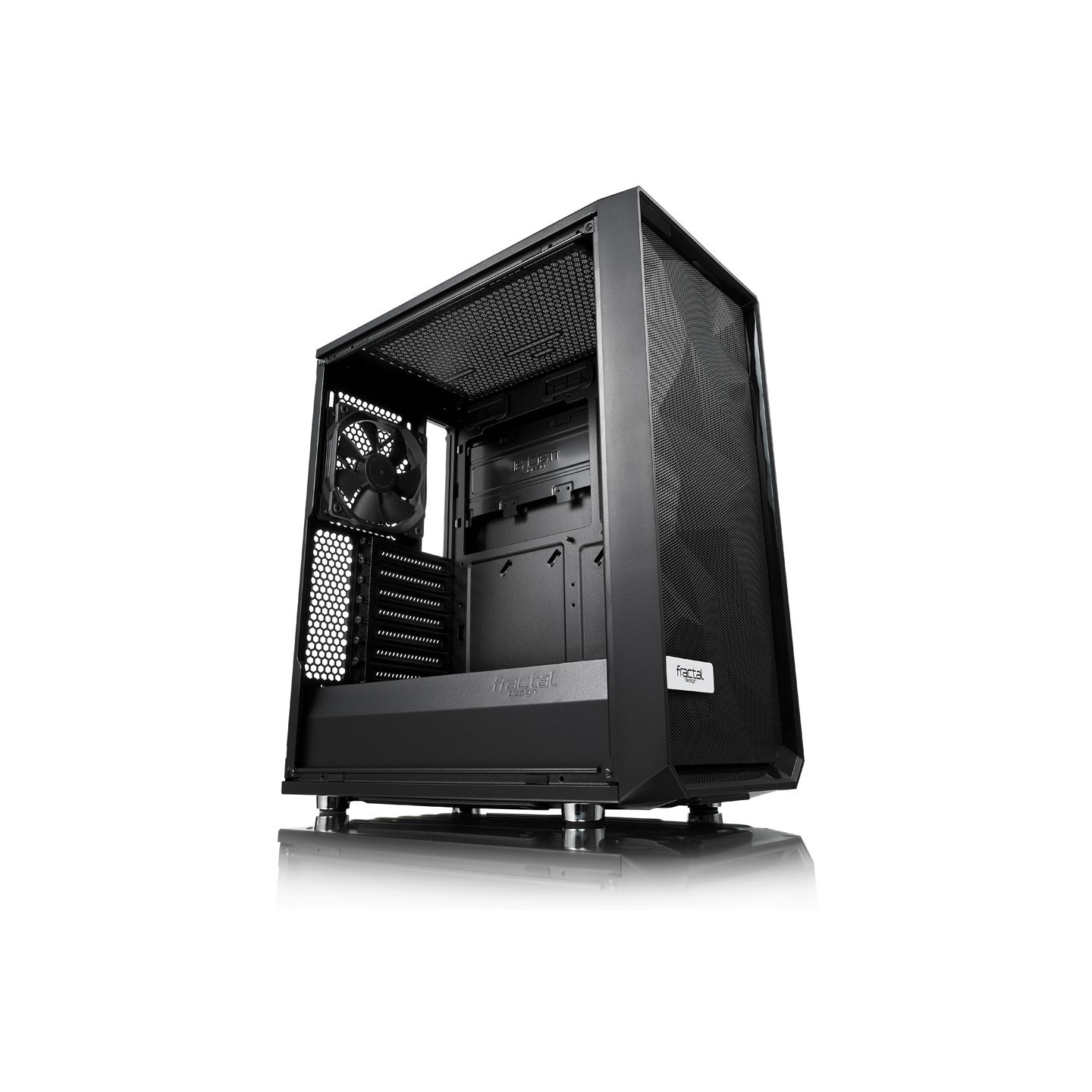

- Tempered glass side panel option standard

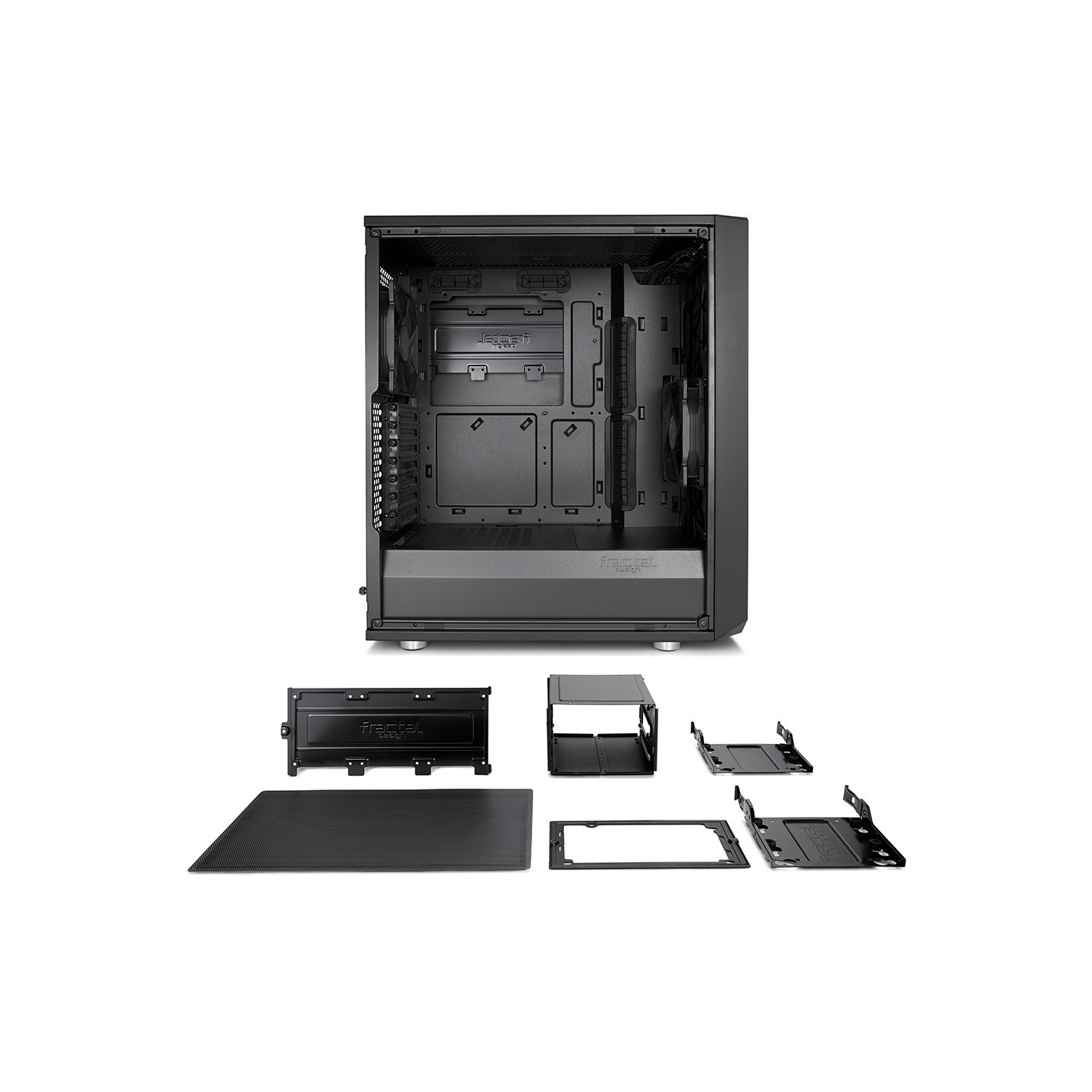

- Modular drive bays and easy-build layout
| MPN | FD-CA-MESH-C-BKO-TG |
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, Micro ATX, Mini-ITX |
| Number of 3.5 | 2 |
| Number of 2.5 | 3 |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 170 mm |
| Maximum graphics card length | 315 mm |
| Maximum PSU length | 175 mm |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 Type-A ports quantity | 2 |
| Front fans installed | 1x 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140 mm |
| Supported HDD sizes | 2.5 |
| Width | 212 mm |
| Depth | 395 mm |
| Height | 440 mm |
| Weight | 6.16 kg |
| Package width | 298 mm |
| Package depth | 542 mm |
| Package height | 493 mm |
| Package weight | 7.52 kg |
| Included Fans | 2x Dynamic X2 GP-12 120mm |
| Side Panel | Tempered Glass |
