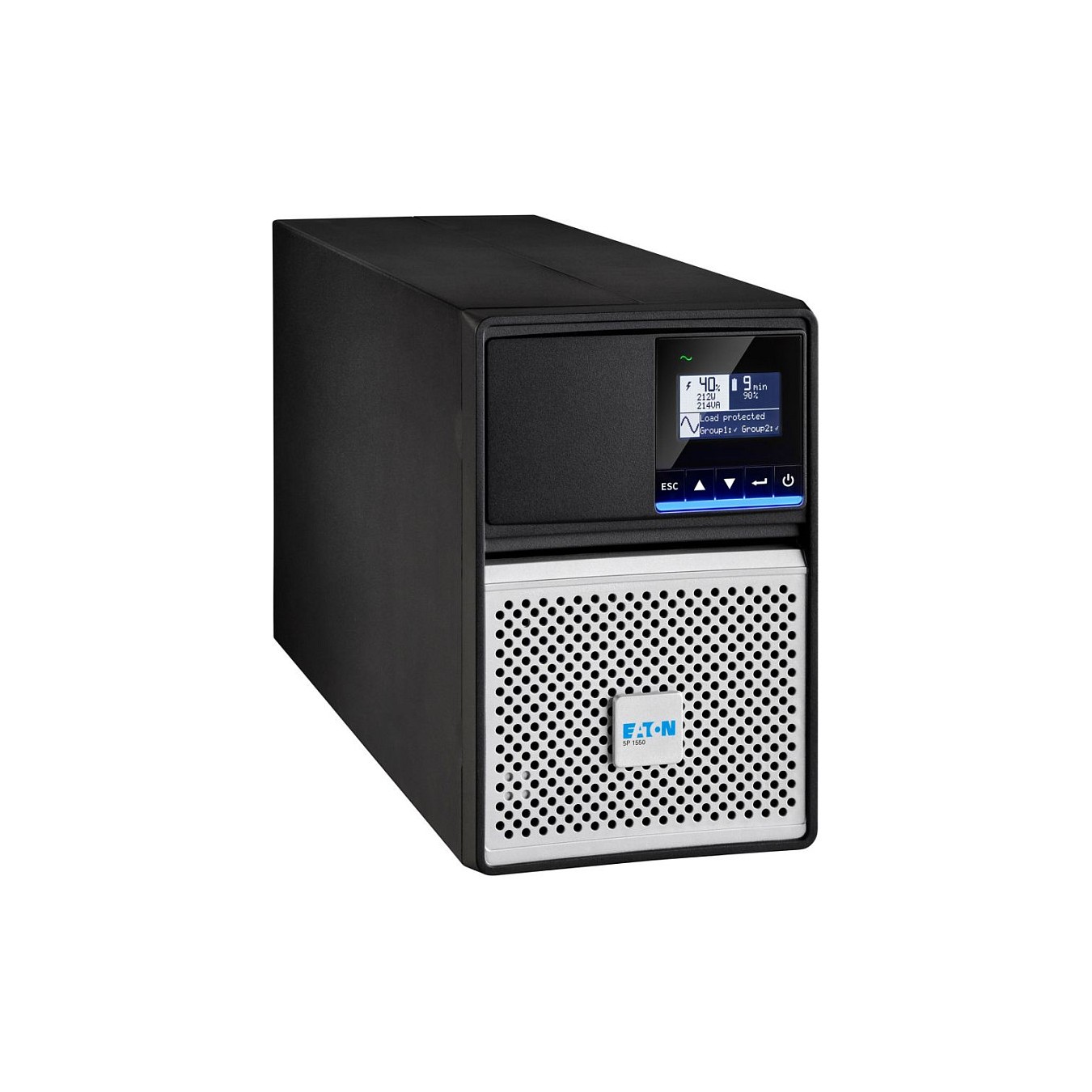

Eaton Tower 5P1550IG2 Line-Interactive USB 8x IEC C13 - opt. Netzwerkkarte
Eaton 5P Gen2, Line-Interaktiv, 1350 W, Sine, 160 V, 294 V, 47/70 Hz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Eaton 5P Gen2. USV-Topologie: Line-Interaktiv, Ausgangsleistung: 1350 W, Wellenform: Sine. AC-Steckertypen: C13-Koppler, Stecker: C14-Koppler, Anzahl der AC-Ausgänge: 8 AC-Ausgänge. Akku-/Batterietechnologie: Bleisäure, Batteriekapazität: 9 Ah, Akku-/Batteriespannung: 12 V. Formfaktor: Tower, Produktfarbe: Schwarz, Silber, Display-Typ: LCD. Konformitätsbescheinigungen: Elektromagnetische Verträglichkeit (EMV), Niederspannungsrichtlinie (LVD), RoHS, WEEE, Zertifizierung: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
| USV-Topologie | Line-Interaktiv |
| Ausgangsleistung | 1350 W |
| Wellenform | Sine |
| Eingangs-Betriebsspannung (min) | 160 V |
| Eingangs-Betriebsspannung (max) | 294 V |
| Eingangsfrequenz | 47/70 Hz |
| Ausgangs-Betriebsspannung (max) | 230 V |
| Output Frequenz | 50/60 Hz |
| Anzahl der Eingangs-Phasen | 1 |
| Anzahl der Ausgangs-Phasen | 1 |
| Effizienz | 98,2% |
| Geräuschpegel | 35 dB |
| Automatische Abschaltung | Ja |

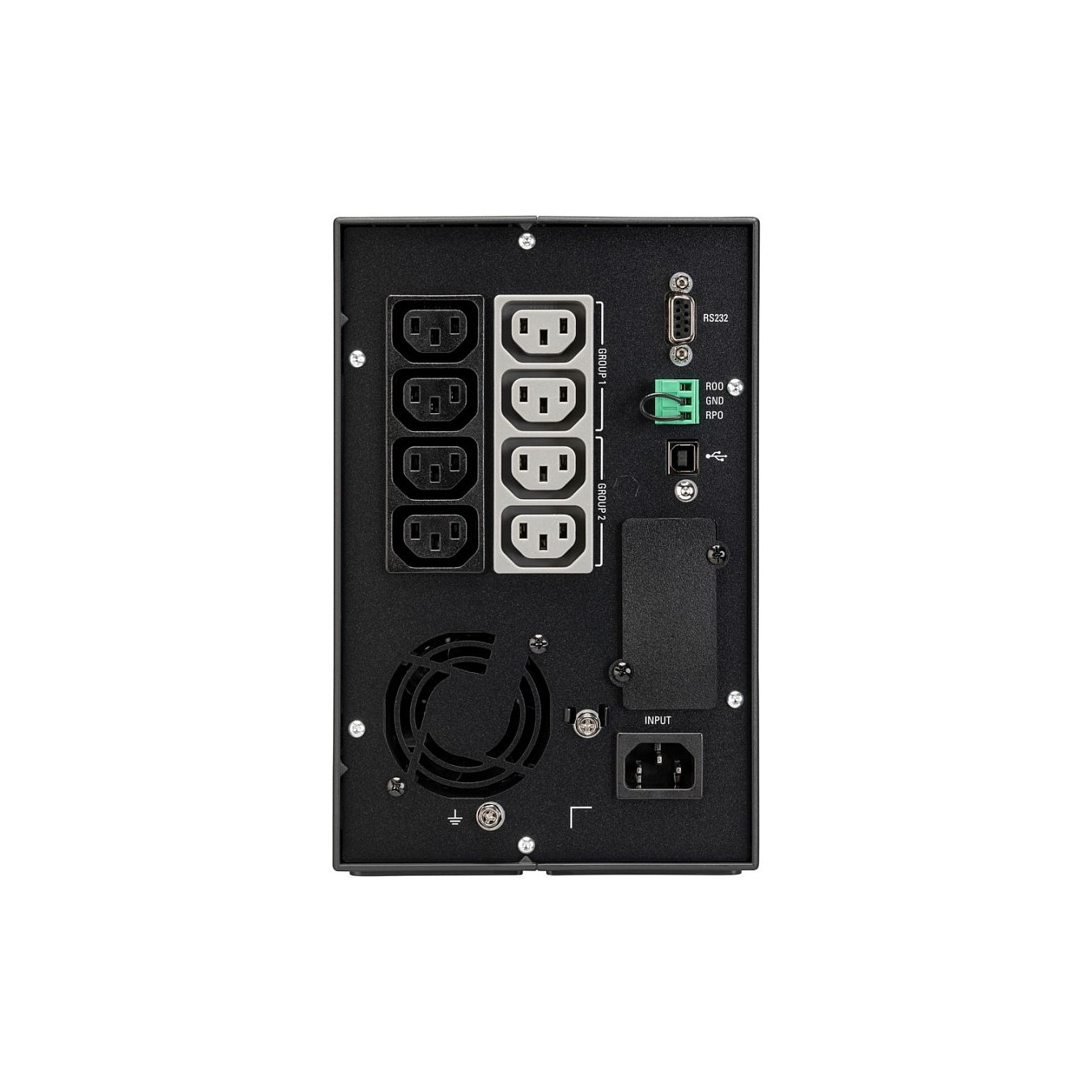

| AC-Steckertypen | C13-Koppler |
| Stecker | C14-Koppler |
| Anzahl der AC-Ausgänge | 8 AC-Ausgänge |
| USB Anschluss | Ja |
| Serielle Schnittstelle | RS-232 |
| Anzahl serielle Anschlüsse | 1 |
| Akku-/Batterietechnologie | Bleisäure |
| Batteriekapazität | 9 Ah |
| Akku-/Batteriespannung | 12 V |
| Anzahl unterstützter Akkus/Batterien | 3 |
| Formfaktor | Tower |
| Produktfarbe | Schwarz, Silber |

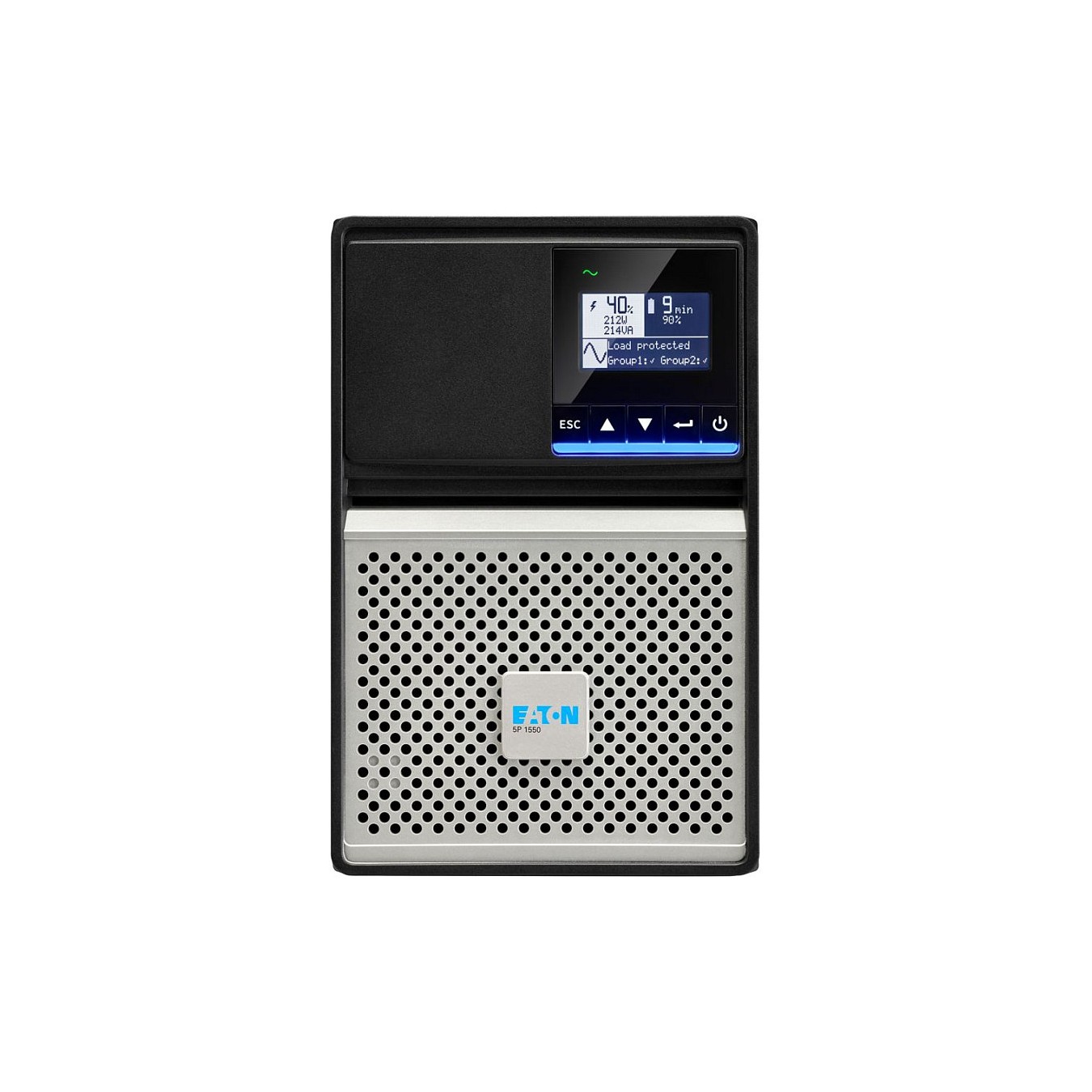

| Display-Typ | LCD |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 90% |
| Höhe bei Betrieb | 0 - 3000 m |
| Konformitätsbescheinigungen | Elektromagnetische Verträglichkeit (EMV), Niederspannungsrichtlinie (LVD), RoHS, WEEE |
| Zertifizierung | IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS |
| Schnellinstallationsanleitung | Ja |
| Breite | 150 mm |
| Tiefe | 445 mm |
| Höhe | 233 mm |
| Gewicht | 15,1 kg |
