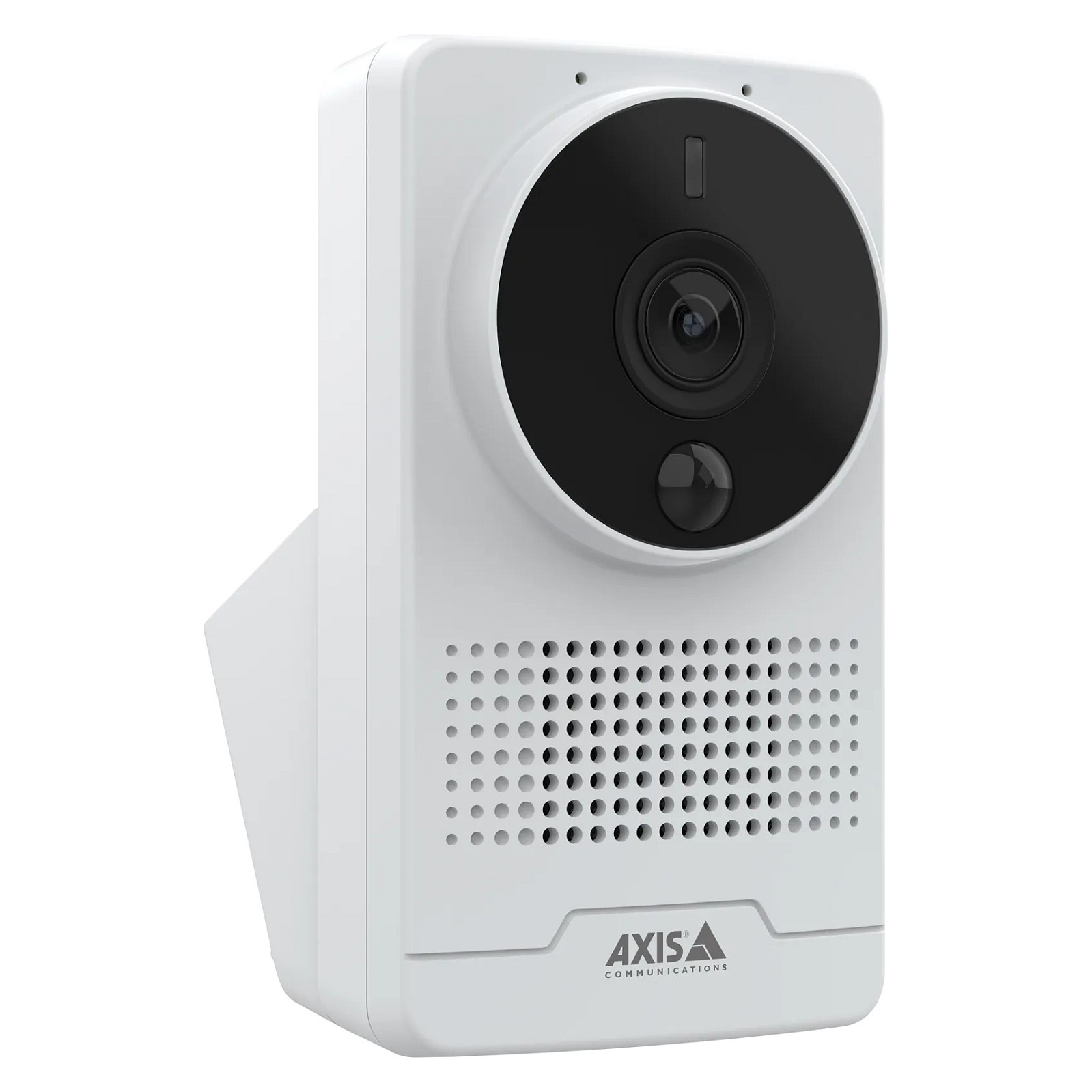

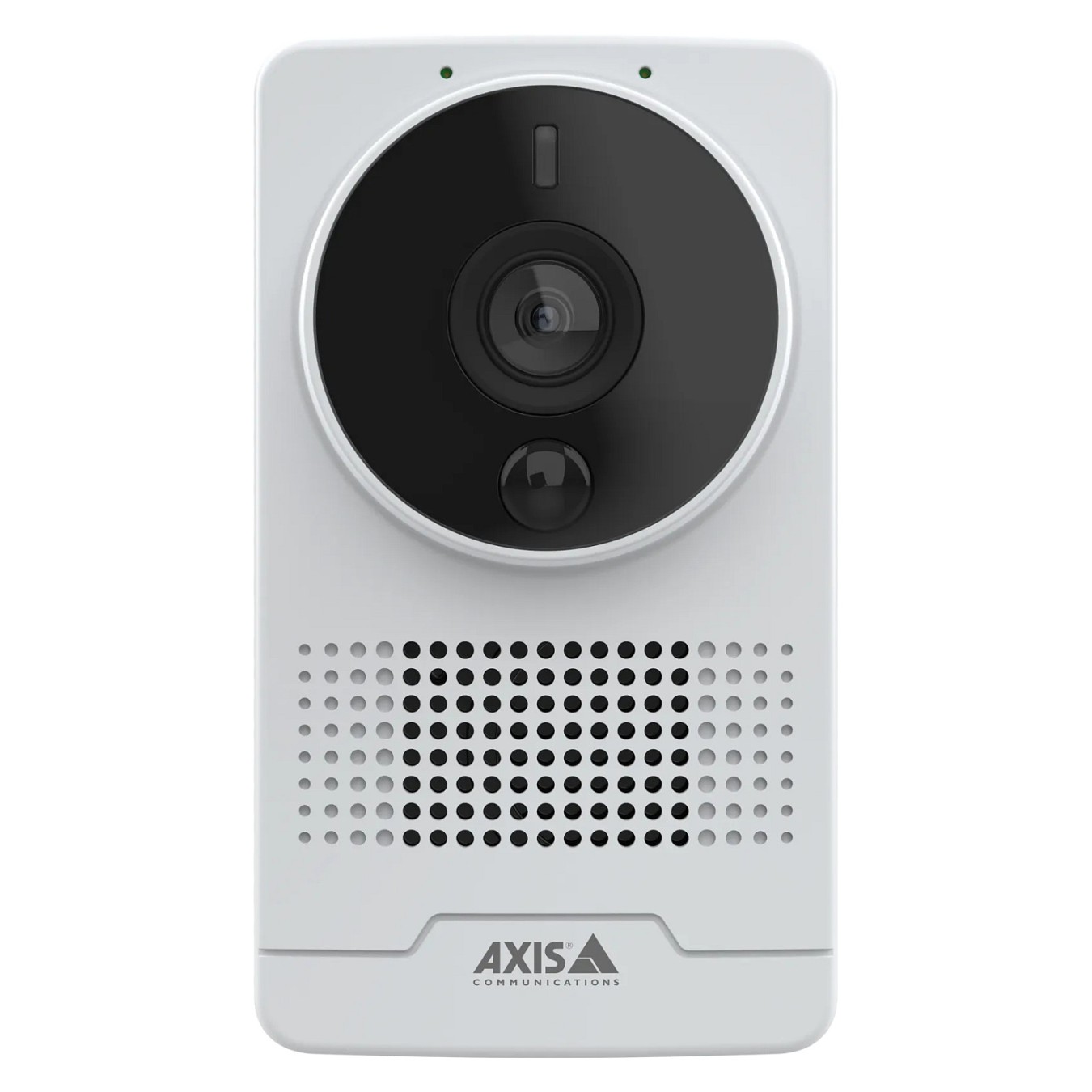

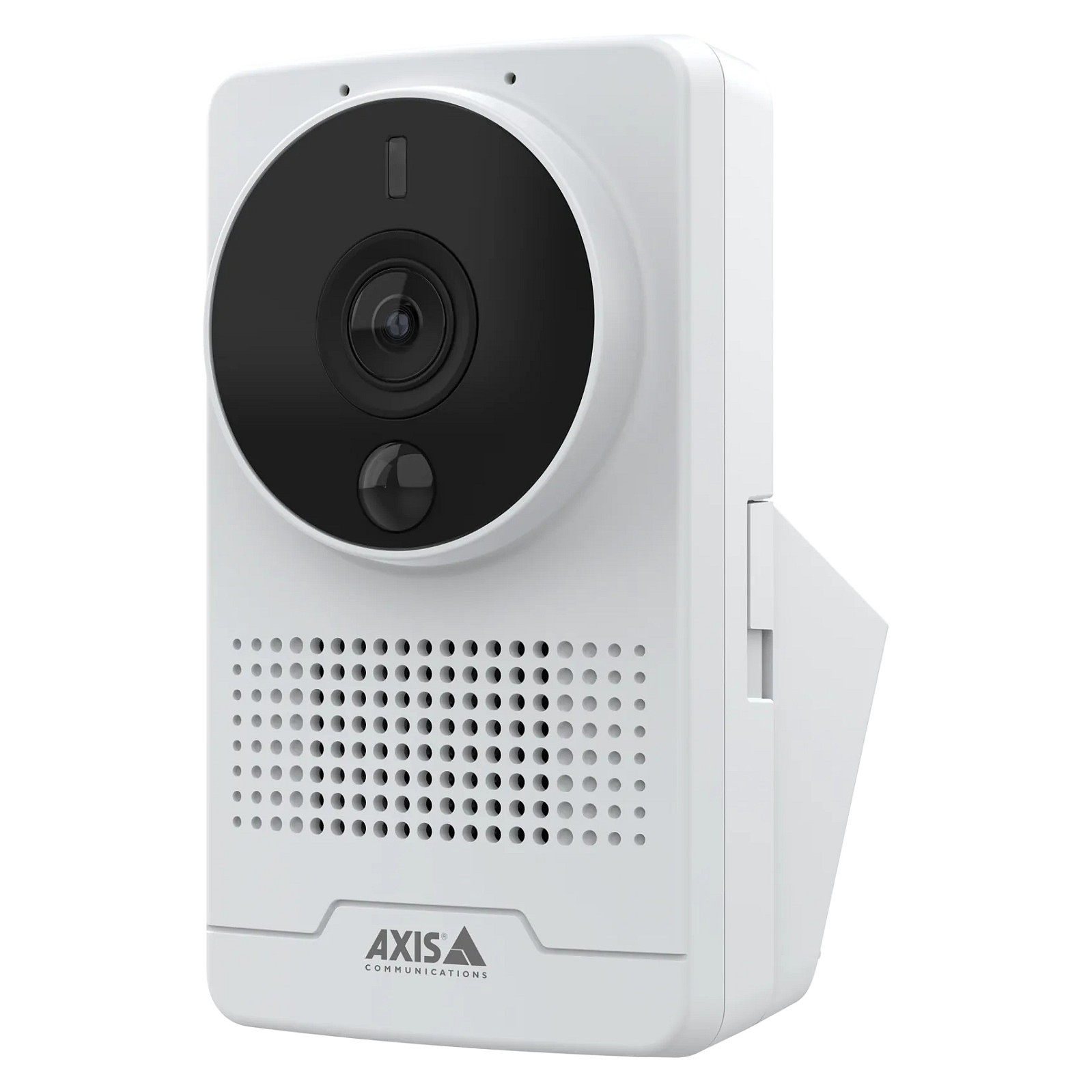

AXIS Netzwerkkamera Cube M1075-L MK II Box Camera 2 MP
Axis M1075-L Mk II, IP-Sicherheitskamera, Drinnen, Kabelgebunden, Ambarella CV25, 120 dB, Decke/Wand
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis M1075-L Mk II. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Drinnen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Decke/Wand, Produktfarbe: Weiß, Formfaktor: Box. Mindestbeleuchtung: 0,18 Lux, Betrachtungswinkel (horizontal): 103°, Betrachtungswinkel (vertikal): 55°. Sensor-Typ: CMOS, Größe des Bildsensors: 25,4 / 2,9 mm (1 / 2.9"). Abstandsfeststellung: 42 m, Abstandsbeobachtung: 16 m, Abstandserkennung: 8 m
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Drinnen |
| Übertragungstechnik | Kabelgebunden |
| Personenzählfunktion | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Tag/ Nachtmodus | Ja |
| Infrarot (IR)-Abschaltfilter | Ja |
| Alarmeingabe/-ausgabe | Ja |
| Prozessor | Ambarella CV25 |
| Eingebauter Prozessor | Ja |
| Dynamischer Bereich | 120 dB |
| Formfaktor | Box |
| Befestigungstyp | Decke/Wand |
| Produktfarbe | Weiß |
| LED-Anzeigen | Ja |
| Gehäusematerial | Aluminium, Kunststoff |
| Internationale Schutzart (IP-Code) | IP40 |
| Mindestbeleuchtung | 0,18 Lux |
| Betrachtungswinkel (horizontal) | 103° |
| Betrachtungswinkel (vertikal) | 55° |
| Pixelgröße Kamera | 2,8 µm |
| Kamera Verschlusszeit | 1/19000 - 1/5 s |
| Größe des Bildsensors | 25,4 / 2,9 mm (1 / 2.9") |
| Vollbildverfahren | Ja |
| Sensor-Typ | CMOS |
| Zoom-Fähigkeit | Ja |
| Abstandsfeststellung | 42 m |
| Abstandsbeobachtung | 16 m |
| Abstandserkennung | 8 m |
| Maximale Blendenzahl | 2 |
| Abstandsermittlung | 4 m |
| Feste Brennweite | 3,16 mm |
| Nachtsicht | Ja |
| Nachtsichtdistanz | 18 m |
| LED Typ | IR |
| Infrarot-Wellenlänge | 850 nm |
| Maximale Auflösung | 1920 x 1080 Pixel |
| Megapixel insgesamt | 2 MP |
| Videokompressionsformate | H.264H, H.264M, H.265 |
| Videoaufnahme | Ja |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Videostreaming | Ja |
| Bildqualitätsanpassung | Farbsättigung, Kontrast, Helligkeit, Schärfe, Weißabgleich |
| Eingebaute Lautsprecher | Ja |
| Audio-System | 2-Wege |
| Unterstützte Audioformate | AAC-LC, LPCM, G.711, PCM, ADPCM, OPUS |
| Eingebautes Mikrofon | Ja |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Netzstandard | IEEE 802.1x, IEEE 802.1AE, IEEE 802.1ar, IEEE 802.3af, IEEE 802.3at |
| WLAN | Nein |
| Bluetooth | Ja |
| Quality of Service (QoS) Support | Ja |
| Eingebaute HDD | Nein |
| Integrierter Kartenleser | Ja |
| Kompatible Speicherkarten | MicroSD (TransFlash) |
| Flash-Speicher | 1024 MB |
| RAM-Kapazität | 2048 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| Terminalblock-Anschluss | Ja |
| Alarm-Eingangskanäle | 1 |
| Alarm-Ausgangskanäle | 1 |
| Video-Bewegungsmelder | Ja |
| Aktiver Fälschungsalarm | Ja |
| HTTPS-Verschlüsselung | Ja |
| Netzwerkzugriffsspeicher (NAS) | Ja |
| Cloud-verwaltet | Ja |
| Energiequelle | PoE |
| Stromverbrauch (Standardbetrieb) | 5,4 W |
| Stromverbrauch (max.) | 12,95 W |
| Betriebstemperatur | 0 - 35 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 85% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 60 mm |
| Tiefe | 93 mm |
| Höhe | 105 mm |
| Gewicht | 153 g |
| Anzahl der Kameras | 1 |
| Montageset | Ja |
| Betriebsanleitung | Ja |
