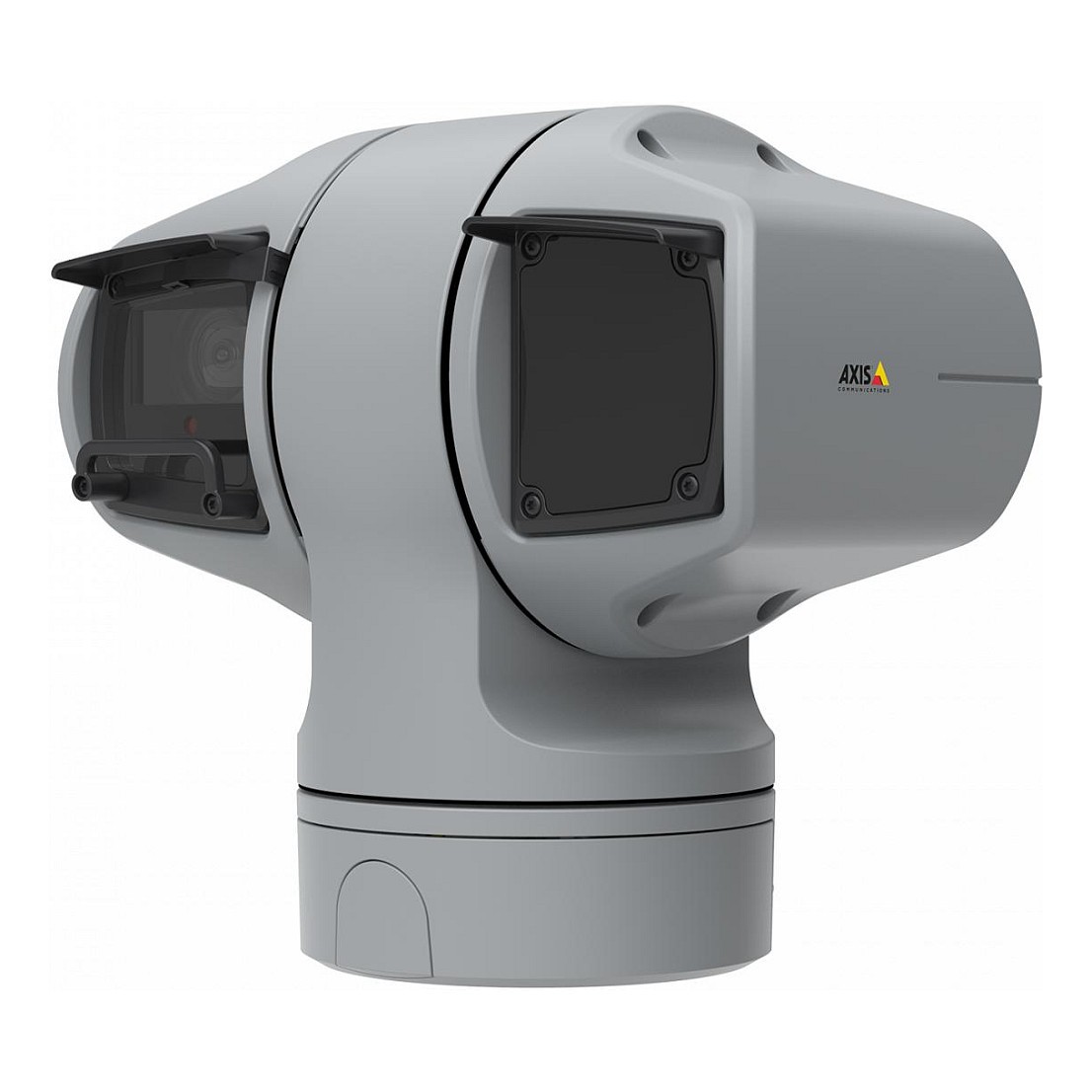

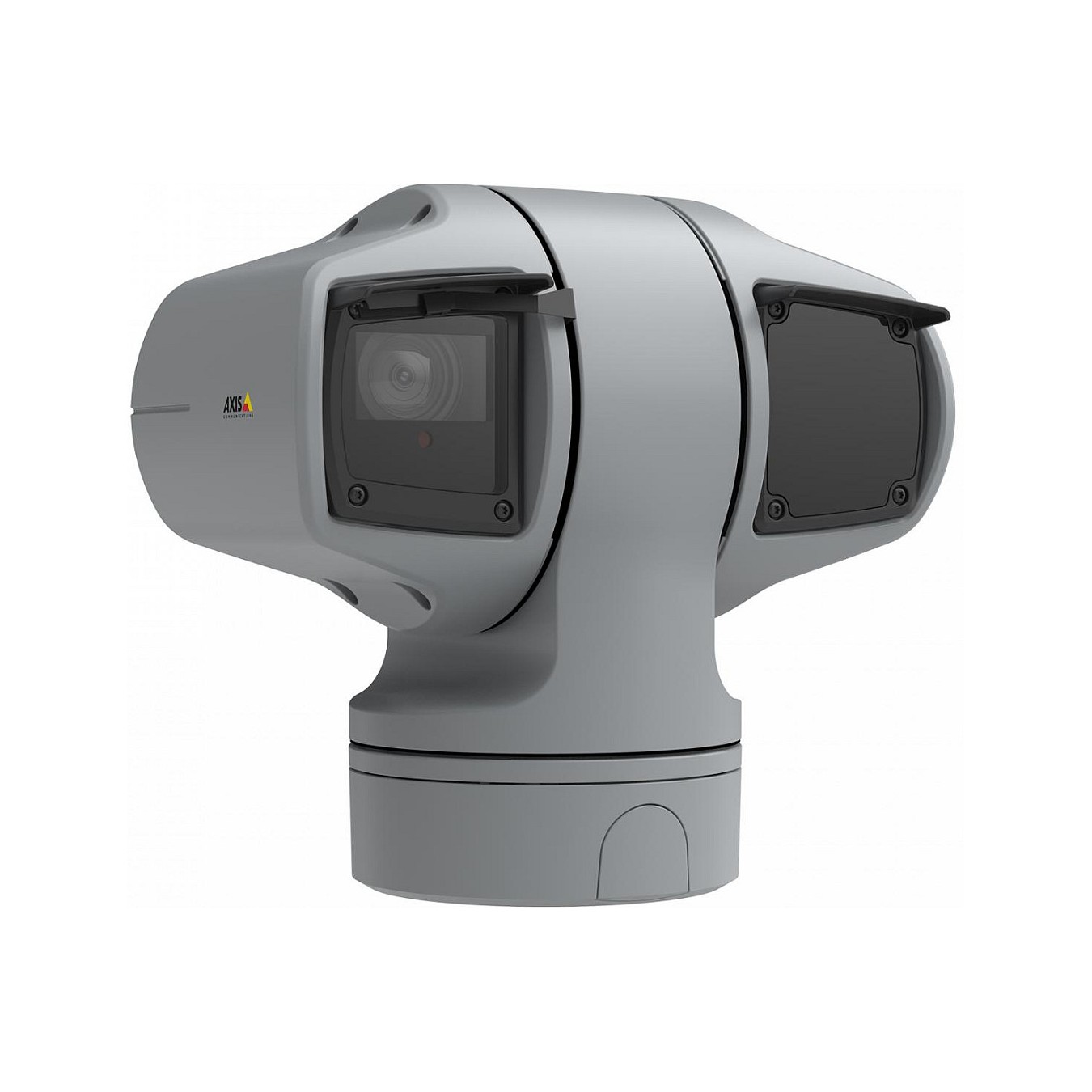

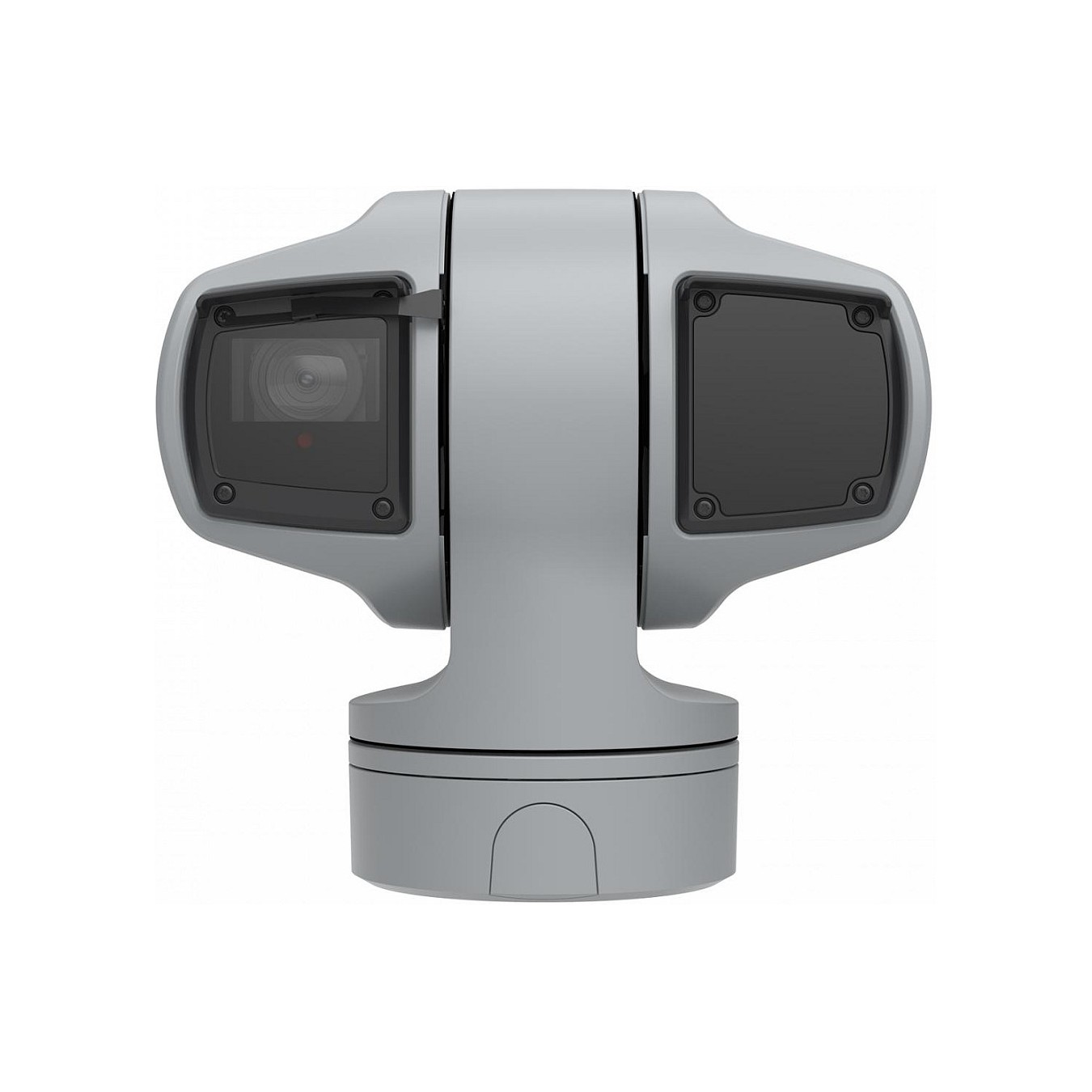

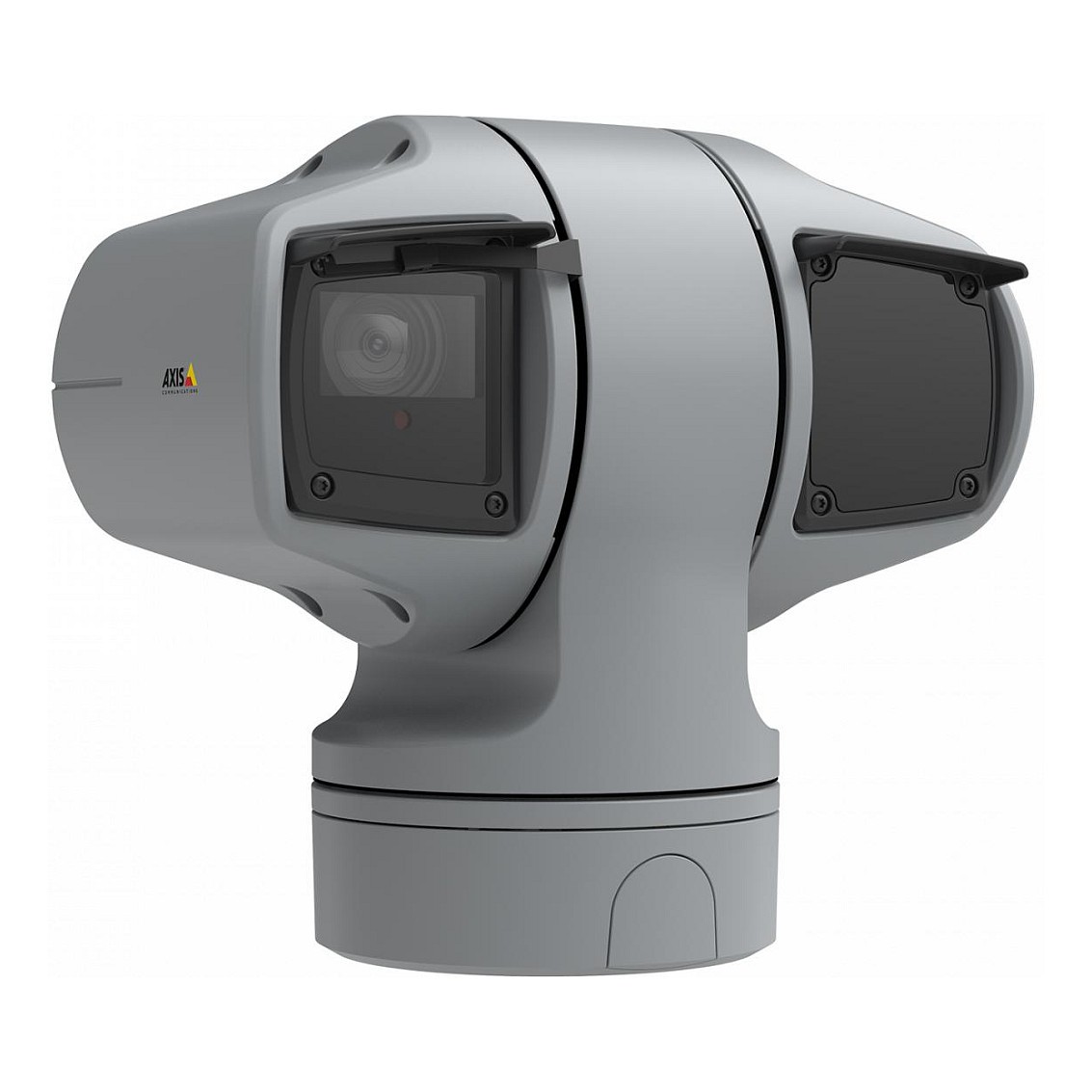

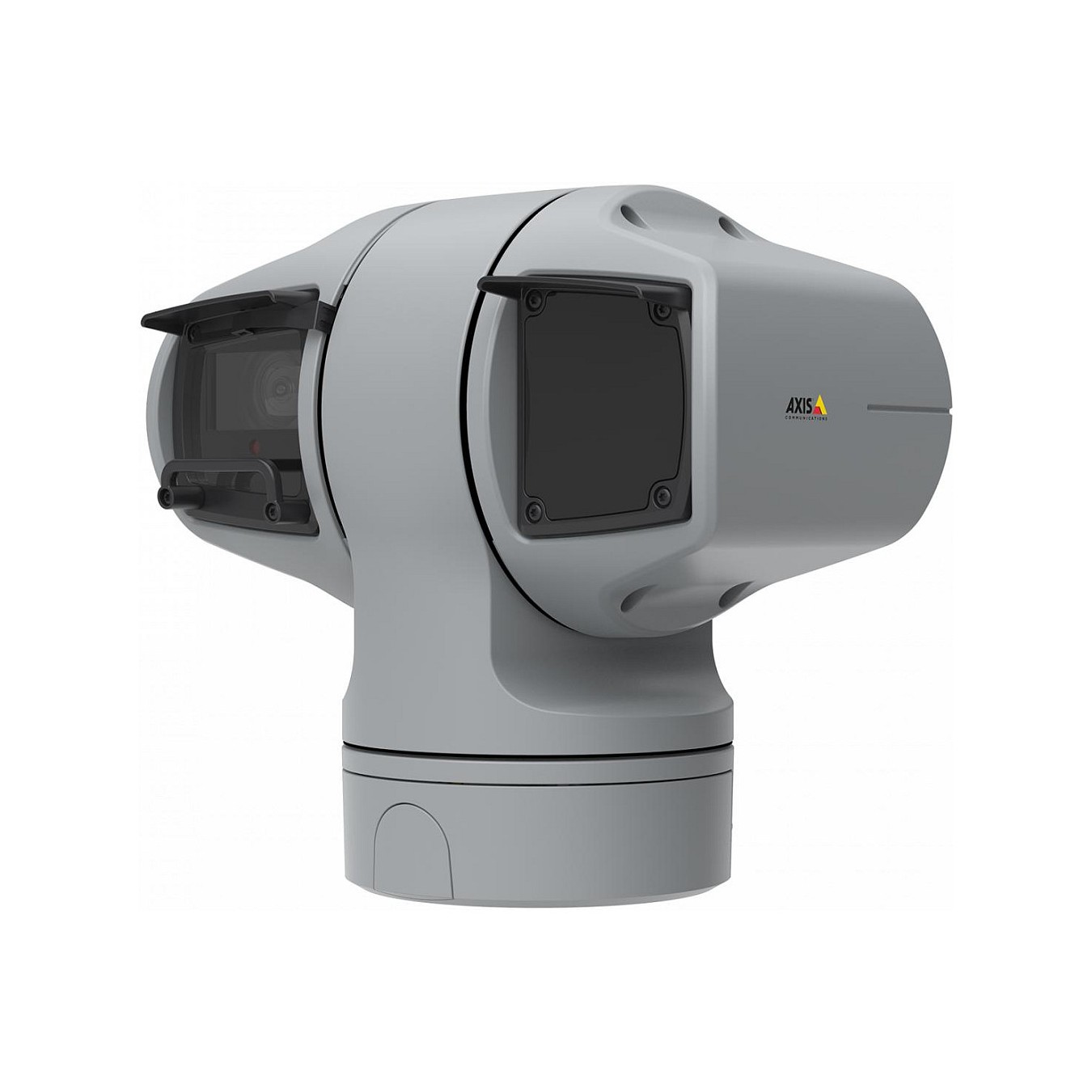

AXIS Q6225-LE 50 HZ UK PTZ FOR
Axis 02316-003, IP-Sicherheitskamera, Draußen, Kabelgebunden, ARTPEC-7, Vereinfachtes Chinesisch, Traditionelles Chinesisch, Tschechisch, Deutsch, Niederländisch,..., EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2,...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis 02316-003. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Draußen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand, Produktfarbe: Grau, Formfaktor: Box. Mindestbeleuchtung: 0,05 Lux, Betrachtungswinkel (horizontal): 63.8°, Betrachtungswinkel (vertikal): 37°. Sensor-Typ: CMOS, Größe des Bildsensors: 25,4 / 2 mm (1 / 2"). Optischer Zoom: 31x, Digitaler Zoom: 12x, Brennweitenbereich: 6.91 - 214.64 mm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| PTZ Kontrolle | Ja |
| Auto-Suche | Ja |
| Tour-Aufnahme | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Tag/ Nachtmodus | Ja |
| Infrarot (IR)-Abschaltfilter | Ja |
| Prozessor | ARTPEC-7 |
| Eingebauter Prozessor | Ja |
| Anzahl der Sprachen | 18 |
| Unterstützte Sprachen | Vereinfachtes Chinesisch, Traditionelles Chinesisch, Tschechisch, Deutsch, Niederländisch, Englisch, Spanisch, Finnisch, Französisch, Italienisch, Japanisch, Koreanisch, Portugiesisch, Russisch, Schwedisch, Thailändisch, Türkisch, Vietnamesisch |
| Zertifizierung | EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(B), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Formfaktor | Box |
| Befestigungstyp | Wand |
| Produktfarbe | Grau |
| Gehäusematerial | Aluminium |
| Internationale Schutzart (IP-Code) | IP66, IP68 |
| IK-Kodex | IK10 |
| Kameraschwenkkontrolle | Ja |
| Kamera-Schwenksteuerung | Ja |
| Mindestbeleuchtung | 0,05 Lux |
| Betrachtungswinkel (horizontal) | 63.8° |
| Betrachtungswinkel (vertikal) | 37° |
| Neigungswinkelbereich | -90 - 90° |
| Neigunggeschwindigkeit | 150 °/Sekunde |
| Webcam - Pan Geschwindigkeit | 150 °/Sekunde |
| Kamera Verschlusszeit | 1/111000 - 1/2 s |
| Größe des Bildsensors | 25,4 / 2 mm (1 / 2") |
| Vollbildverfahren | Ja |
| Sensor-Typ | CMOS |
| Zoom-Fähigkeit | Ja |
| Optischer Zoom | 31x |
| Digitaler Zoom | 12x |
| Brennweitenbereich | 6.91 - 214.64 mm |
| Autofokus | Ja |
| Maximale Blendenzahl | 4,6 |
| Minimale Blendenzahl | 1,36 |
| Nachtsicht | Ja |
| Nachtsichtdistanz | 400 m |
| LED Typ | IR |
| Infrarot-Wellenlänge | 850 nm |
| Maximale Auflösung | 1920 x 1080 Pixel |
| Videokompressionsformate | H.264, H.265, M-JPEG |
| Videoaufnahme | Ja |
| Bis zu 30 Frames pro Sekunde | 50 fps |
| Videostreaming | Ja |
| Datenschutz-Maskierung | Ja |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Netzstandard | IEEE 802.1x, IEEE 802.3bt |
| Unterstützte Netzwerkprotokolle | IPv4/v6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSb, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, NTCIP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| WLAN | Nein |
| Bluetooth | Nein |
| Quality of Service (QoS) Support | Ja |
| Eingebaute HDD | Nein |
| Integrierter Kartenleser | Ja |
| Kompatible Speicherkarten | SD, SDHC, SDXC |
| Flash-Speicher | 512 MB |
| Speicherkapazität | 1024 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Passwortschutz | Ja |
| Video-Bewegungsmelder | Ja |
| IP-Adressen Filter | Ja |
| HTTPS-Verschlüsselung | Ja |
| Pixelzähler | Ja |
| Digest-Authentifizierung | Ja |
| Netzwerkzugriffsspeicher (NAS) | Ja |
| Energiequelle | PoE |
| AC Eingangsspannung | 100 - 240 V |
| Stromverbrauch (Standardbetrieb) | 25 W |
| Stromverbrauch (max.) | 71 W |
| Betriebstemperatur | -50 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 100% |
| Breite | 313 mm |
| Tiefe | 210 mm |
| Höhe | 330 mm |
| Gewicht | 8,7 kg |
| Anzahl der Kameras | 1 |
| Mitgelieferte Kabel | LAN (RJ-45) |
| Betriebsanleitung | Ja |
