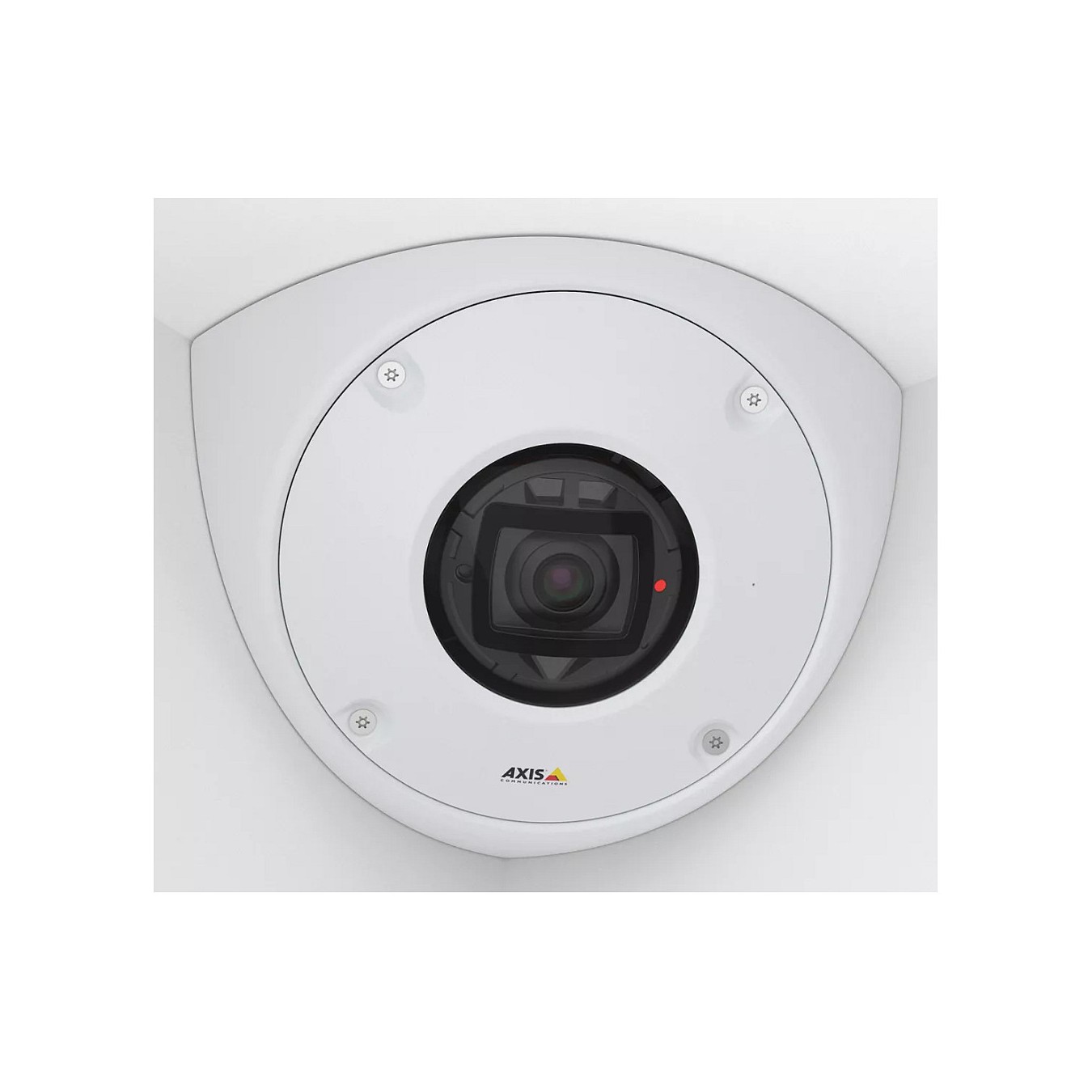

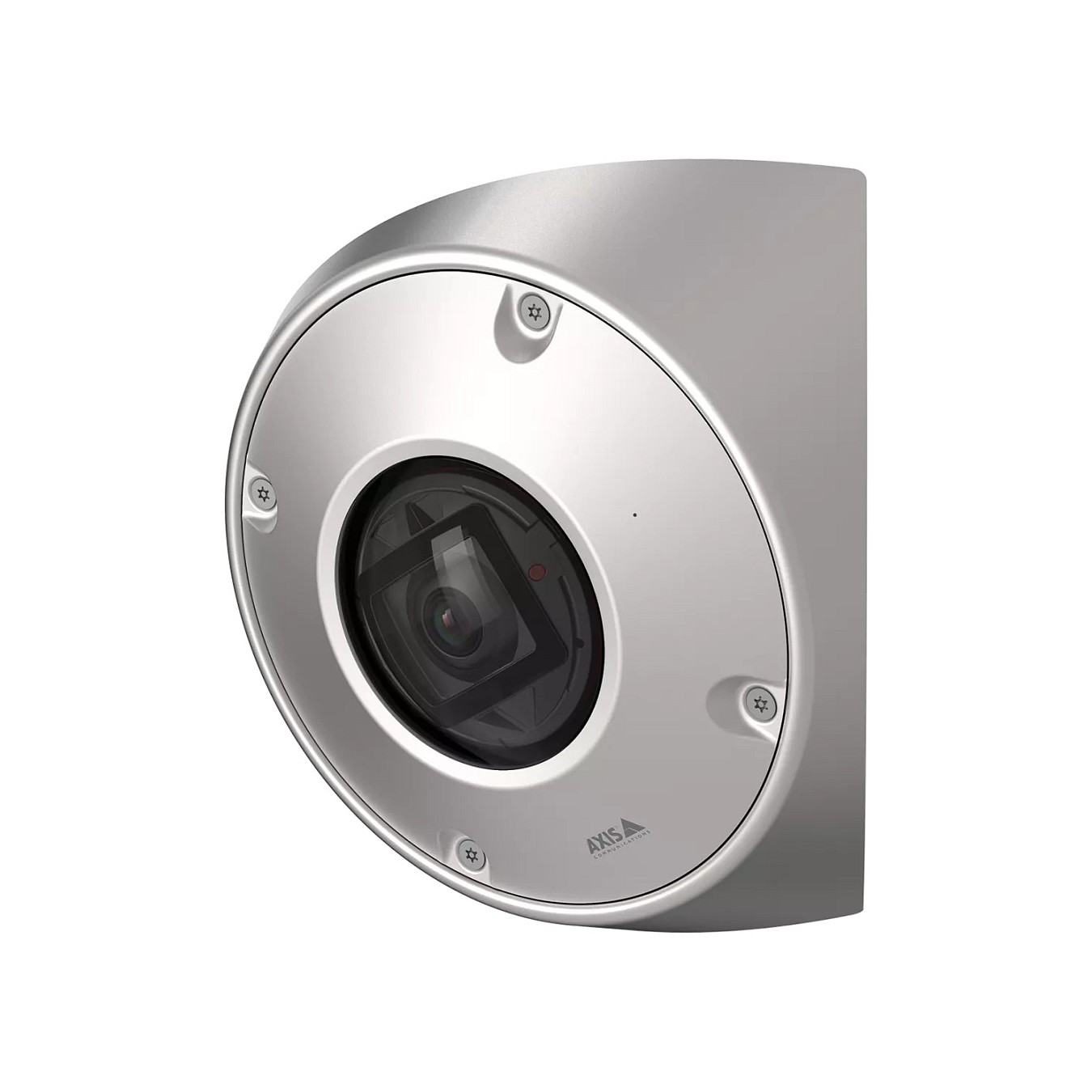

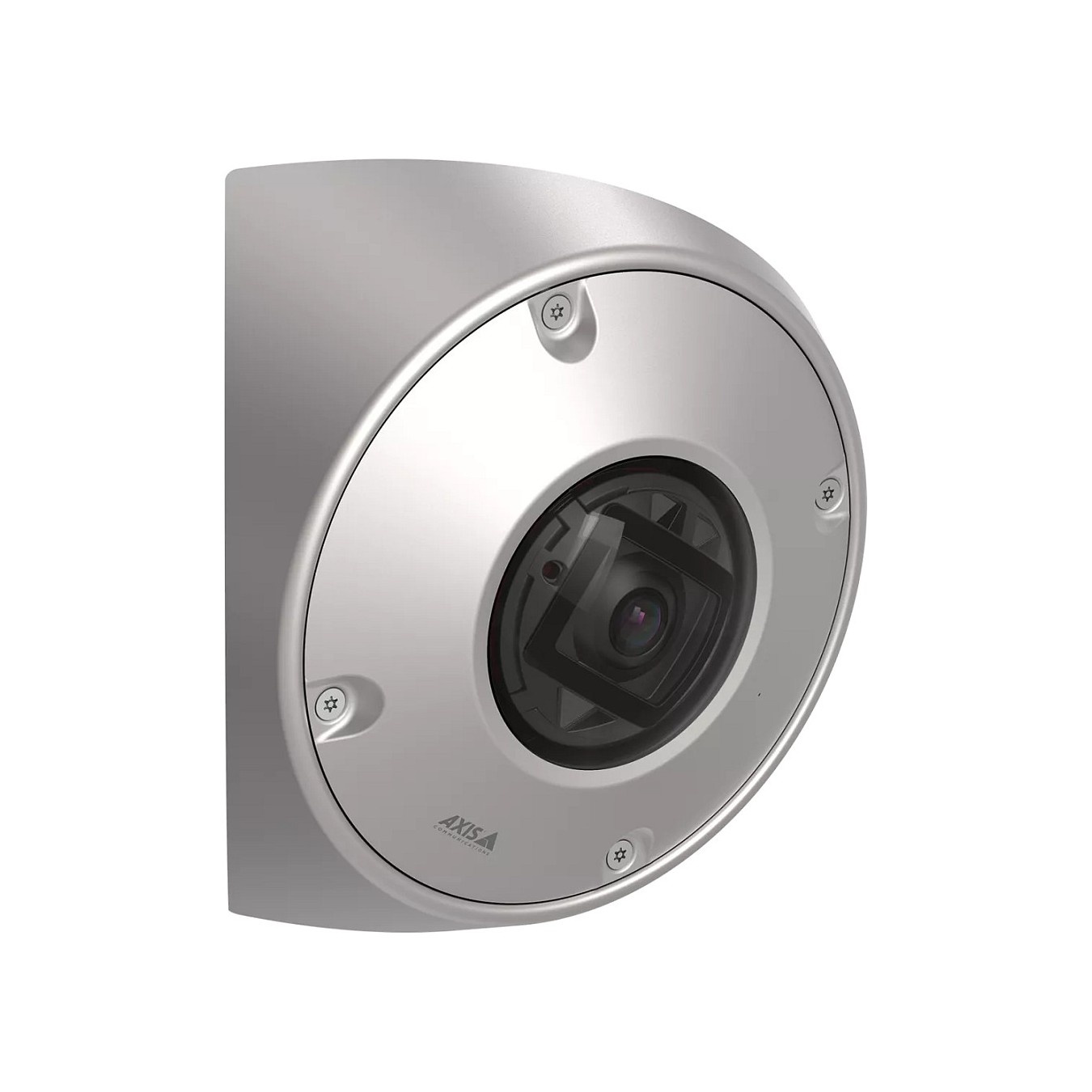

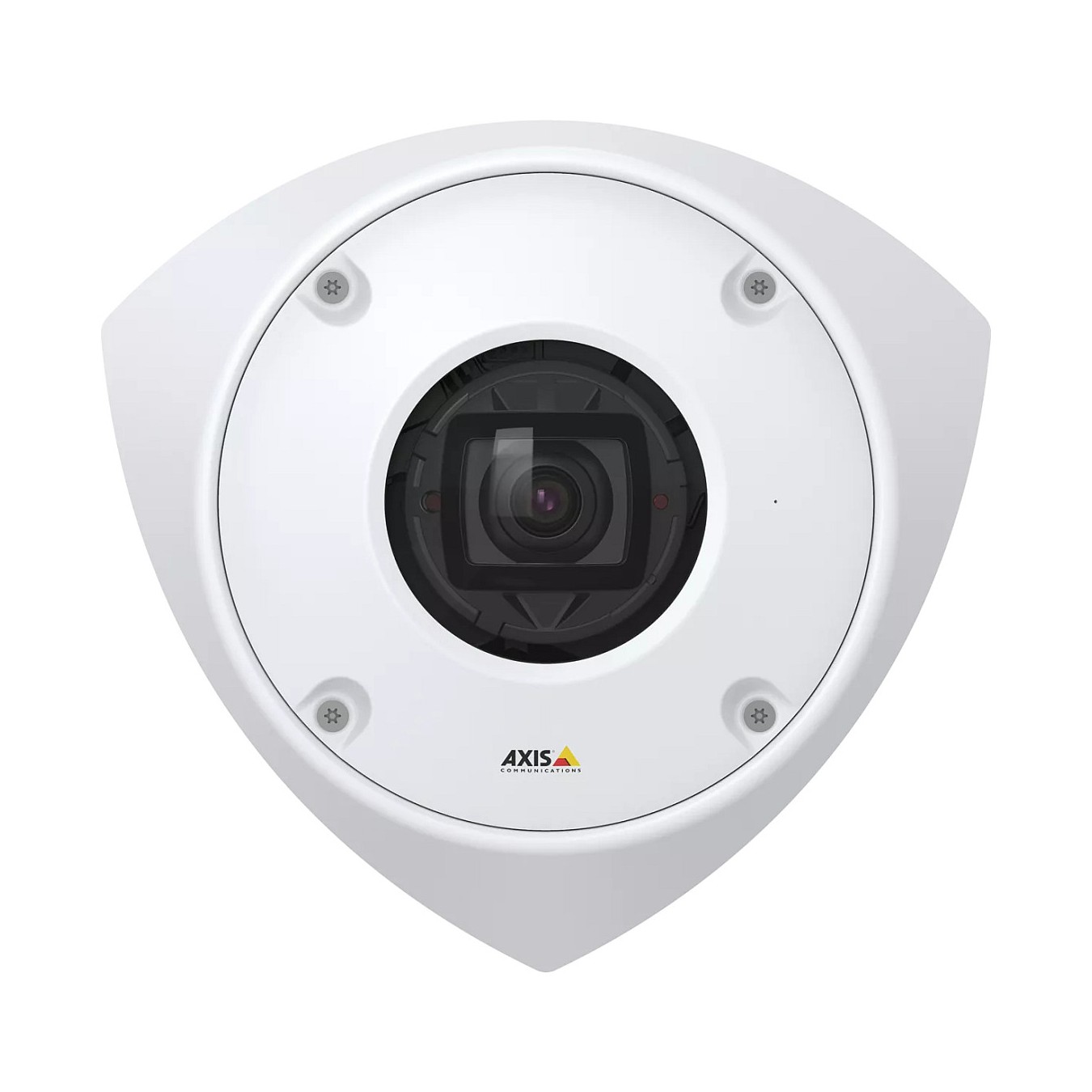

Axis Netzwerkkamera Fix Dome Q9216-SLV Metal Eckmontage 4MP
Axis 01766-001, IP-Sicherheitskamera, Draußen, Kabelgebunden, EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A,..., Decke/Wand, Edelstahl
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis 01766-001. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Draußen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Decke/Wand, Produktfarbe: Edelstahl, Formfaktor: Dome. Betrachtungswinkel (horizontal): 125°, Betrachtungswinkel (vertikal): 95°, Kamera Verschlusszeit: 1/32500 - 1/5 s. Sensor-Typ: CMOS, Größe des Bildsensors: 25,4 / 2,5 mm (1 / 2.5"). Feste Brennweite: 2,4 mm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| PTZ Kontrolle | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Tag/ Nachtmodus | Ja |
| Infrarot (IR)-Abschaltfilter | Ja |
| Zertifizierung | EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1,IEC/EN 61000-6-2, FCC 15 B A,ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471EN 50130–5 I, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69,ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4XNIST SP500-267 |
| Formfaktor | Dome |
| Befestigungstyp | Decke/Wand |
| Produktfarbe | Edelstahl |
| Gehäusematerial | Edelstahl |
| Internationale Schutzart (IP-Code) | IP66, IP69, IP69K |
| IK-Kodex | IK10+ |
| Mindestbeleuchtung | 0 Lux |
| Betrachtungswinkel (horizontal) | 125° |
| Betrachtungswinkel (vertikal) | 95° |
| Kamera Verschlusszeit | 1/32500 - 1/5 s |
| Anzahl der Sensoren | 1 |
| Größe des Bildsensors | 25,4 / 2,5 mm (1 / 2.5") |
| Vollbildverfahren | Ja |
| Sensor-Typ | CMOS |
| Anzahl der Linsen | 1 |
| Fester Fokus | Ja |
| Maximale Blendenzahl | 2 |
| Feste Brennweite | 2,4 mm |
| Nachtsicht | Ja |
| Nachtsichtdistanz | 15 m |
| LED Typ | IR |
| Infrarot-Wellenlänge | 940 nm |
| Maximale Auflösung | 2304 x 1728 Pixel |
| Videokompressionsformate | AVC, H.264, H.265, HEVC, M-JPEG |
| Unterstützte Grafik-Auflösungen | 320 x 240, 2304 x 1728 |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Videostreaming | Ja |
| Bildqualitätsanpassung | Helligkeit, Kontrast, Farbsättigung, Schärfe |
| Textüberlagerung | Ja |
| Bitratenkontrolle | Variable Bitrate (VBR) |
| Audio-System | 2-Wege |
| Audio-System - voll Duplex | Ja |
| Samplerate | 48 kHz |
| Eingebautes Mikrofon | Ja |
| Sprachcodec | G.711, G.726, OPUS |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Netzstandard | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Unterstützte Netzwerkprotokolle | IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP |
| WLAN | Nein |
| Bluetooth | Nein |
| Eingebaute HDD | Nein |
| Integrierter Kartenleser | Ja |
| Kompatible Speicherkarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash-Speicher | 512 MB |
| Speicherkapazität | 1024 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Mikrofon-Eingang | Ja |
| Anzahl HDMI-Anschlüsse | 1 |
| Terminalblock-Anschluss | Ja |
| Passwortschutz | Ja |
| Video-Bewegungsmelder | Ja |
| IP-Adressen Filter | Ja |
| Unterstützte Sicherheitsalgorithmen | EAP-TLS, FIPS 140-2 |
| HTTPS-Verschlüsselung | Ja |
| Energiequelle | PoE |
| Stromverbrauch (Standardbetrieb) | 4,7 W |
| Stromverbrauch (max.) | 10,8 W |
| Breite | 209 mm |
| Tiefe | 176 mm |
| Höhe | 131 mm |
| Gewicht | 1,6 kg |
| Anzahl der Kameras | 1 |
| Warentarifnummer (HS) | 85258900 |
