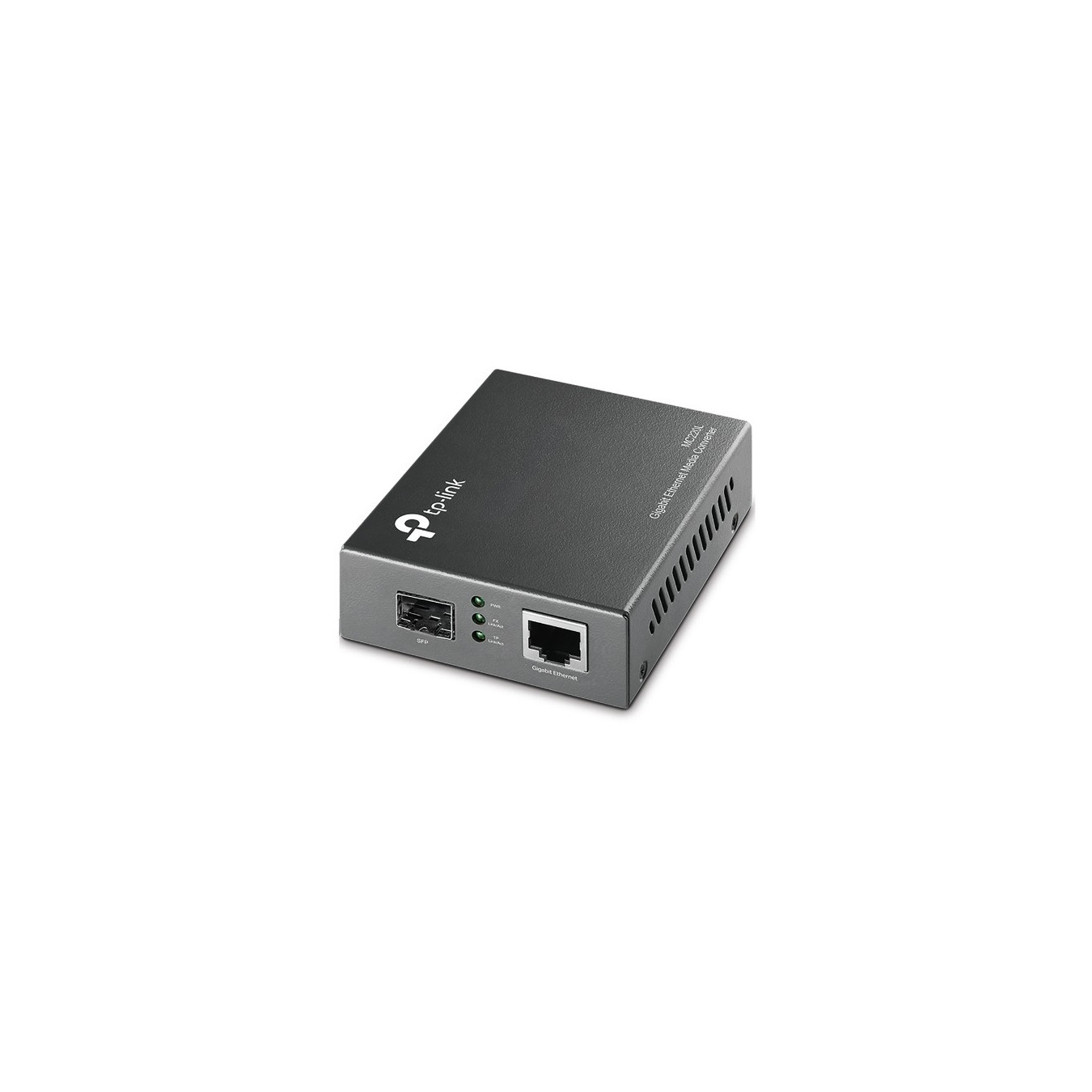

Omada Nek MC220L - Gigabit SFP Fiber Media Converter, 1 Gbps, Black
1 Gbps Gigabit SFP media converter (MC220L). 1×RJ45, 1×SFP; supports single-mode & multimode fiber up to 10,000 m; wired; low power (~1.7 W); black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| SFP/SFP+ Modules - Interface | Other |
|---|---|
| SFP/SFP+ Modules - Fiber Type | Singlemode (SMF) |
| SFP/SFP+ Modules - Coding/Brand | Generic |
TP-Link Gigabit SFP Media Converter. Maximum data transfer rate: 1000 Mbit/s. Networking standards: IEEE 802.1ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3z. Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 10000 m. Fiber mode structure: Multi-mode. Single-mode. LED indicators: Link. Product colour: Black. Compliance industry standards: IEEE 802.3ab. IEEE 802.3z. IEEE 802.3x. Fiber optic connector: SFP. Connectivity technology: Wired. Power consumption (max): 1.7 W
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1ab. IEEE 802.3i. IEEE 802.3u. IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Feature | Full duplex |
| Cabling technology | UTP 5e. 5 |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Multi-mode. Single-mode |
| LED indicators | Link |
| Product colour | Black |
| Compliance industry standards | IEEE 802.3ab. IEEE 802.3z. IEEE 802.3x |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power consumption (max) | 1.7 W |
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Package width | 204 mm |
| Package depth | 165 mm |
| Package height | 65 mm |
| Package weight | 420 g |
| Certification | FCC. CE |
| Harmonized System (HS) code | 85176990 |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| I/O ports | 1x 1000M SC1x 1000M RJ45 |
