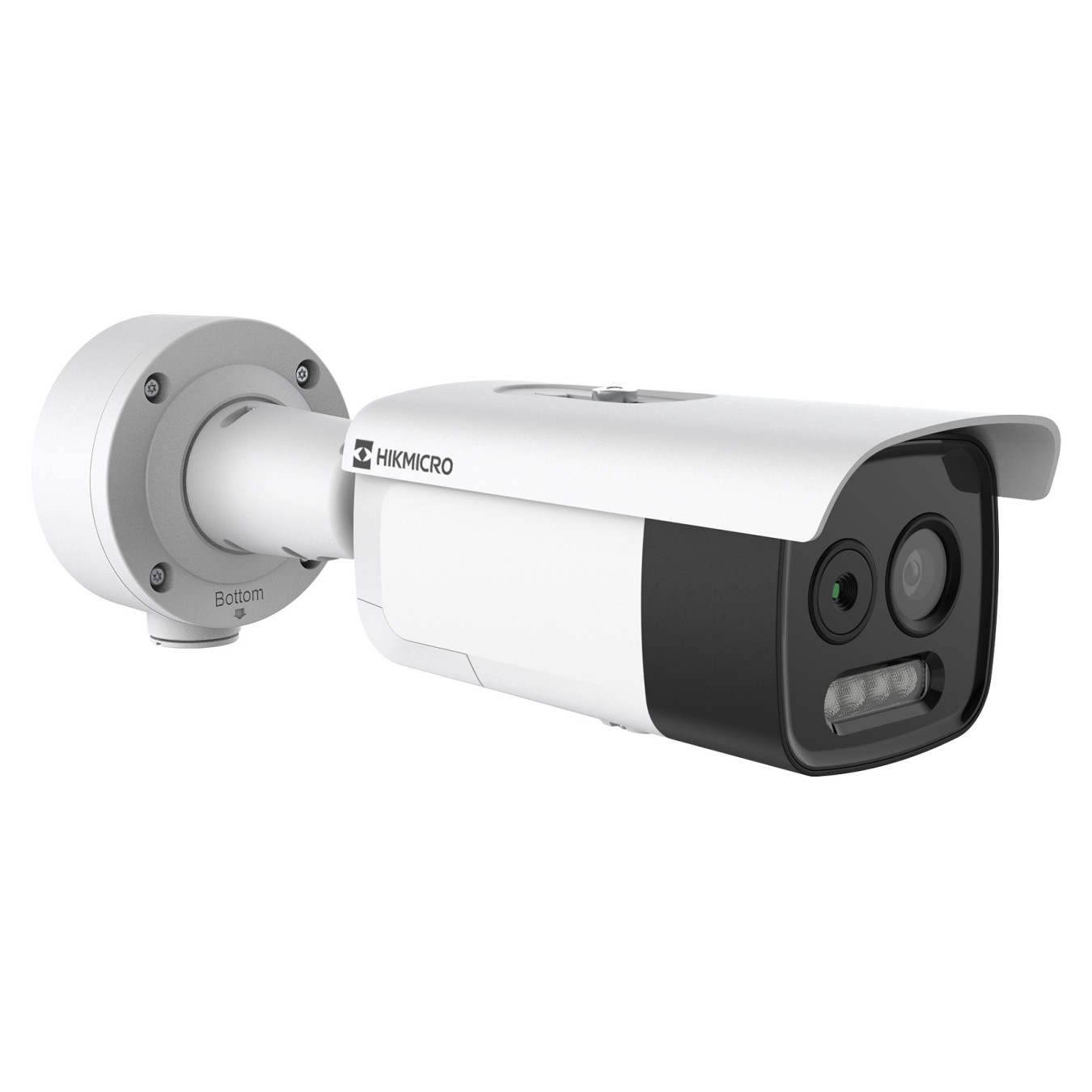

HIKVISION HM-TD2628-3 G1 T3A Thermal 256x192 Bi spectrum
Hikvision HM-TD2628-3/G1/T3A, IP-Sicherheitskamera, Draußen, Kabelgebunden, Multi, 25 mK, 3,33 mRad
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision HM-TD2628-3/G1/T3A. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Draußen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand, Produktfarbe: Schwarz, Weiß, Formfaktor: Patrone (Form). Vertikales Sichtfeld (thermisches Modul): 37,3°, Horizontales Sichtfeld (thermisches Modul): 50°, Betrachtungswinkel (horizontal): 84°. Sensor-Typ: CMOS, Sensortyp (Thermomodul): Vanadium Oxide Uncooled Focal Plane Arrays, Effektive Sensorauflösung (thermisches Modul): 256 x 192 Pixel. Digitaler Zoom: 4x, Feste Brennweite: 4,3 mm, Abstandsfeststellung (wide): 150 m
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| Wärmemodul | Ja |
| Wide Dynamic Range (WDR) | Ja |
| Tag/ Nachtmodus | Ja |
| Alarmeingabe/-ausgabe | Ja |
| Anzahl der Sprachen | 32 |
| Unterstützte Sprachen | Multi |
| Thermische Empfindlichkeit (NETD) | 25 mK |
| IFOV (räumliche Auflösung) | 3,33 mRad |
| Dynamischer Bereich | 120 dB |
| Formfaktor | Patrone (Form) |
| Befestigungstyp | Wand |
| Produktfarbe | Schwarz, Weiß |
| Internationale Schutzart (IP-Code) | IP67 |
| IK-Kodex | IK10 |
| Mindestbeleuchtung | 0 Lux |
| Vertikales Sichtfeld (thermisches Modul) | 37,3° |
| Horizontales Sichtfeld (thermisches Modul) | 50° |
| Betrachtungswinkel (horizontal) | 84° |
| Betrachtungswinkel (vertikal) | 43.1° |
| Pixelabstand (Thermomodul) | 12 µm |
| Kamera Verschlusszeit | 1 - 1/100000 s |
| Sensortyp (Thermomodul) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Effektive Sensorauflösung (thermisches Modul) | 256 x 192 Pixel |
| Vollbildverfahren | Ja |
| Sensor-Typ | CMOS |
| Zoom-Fähigkeit | Ja |
| Digitaler Zoom | 4x |
| Maximale Blendenzahl | 1,6 |
| Feste Brennweite | 4,3 mm |
| Abstandsfeststellung (wide) | 150 m |
| Abstandsfeststellung (tele) | 460 m |
| Abstandserkennung (wide) | 37 m |
| Abstandserkennung (tele) | 112 m |
| Abstandsermittlung (wide) | 15 m |
| Abstandsermittlung (tele) | 56 m |
| Naheinstellgrenze | 0,3 m |
| Feste Brennweite (thermisches Modul) | 3,6 mm |
| Infrarot-Spektralband | 8 - 14 µm |
| Blendenzahl (thermisches Modul) | 1 |
| Nachtsicht | Ja |
| Nachtsichtdistanz | 30 m |
| S-/W-Nachtsichtweite | 30 m |
| LED Typ | IR/Weiß |
| Maximale Auflösung | 2688 x 1944 Pixel |
| Megapixel insgesamt | 5 MP |
| Videokompressionsformate | H.264, H.265, M-JPEG |
| Unterstützte Grafik-Auflösungen | 342 x 240, 352 x 288, 640 x 512, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520 |
| Bis zu 30 Frames pro Sekunde | 25 fps |
| Audio input Kanäle | 1.0 Kanäle |
| Unterstützte Audioformate | G.711 A-law, G.711 μ-law, G.722, G.726, MP2L2, PCM |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Unterstützte Netzwerkprotokolle | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP, RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP |
| WLAN | Nein |
| Bluetooth | Nein |
| Zahl der Benutzer | 32 Benutzer |
| Benutzer-Zugriffsebene | Administrator, Operator, Benutzer |
| Quality of Service (QoS) Support | Ja |
| Live-View | Ja |
| Anzahl der gleichzeitigen Live-View-Kanäle | 20 Kanäle |
| Eingebaute HDD | Nein |
| Integrierter Kartenleser | Ja |
| Kompatible Speicherkarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Max. Speicherkartengröße | 512 GB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| RS-485-Anschlüsse | 1 |
| Terminalblock-Anschluss | Ja |
| Alarm-Eingangskanäle | 2 |
| Alarm-Ausgangskanäle | 2 |
| Temperatursensor | Ja |
| Temperaturmessbereich | -20 - 150 °C |
| Temperaturmessgenauigkeit | 8 °C |
| Branderkennung | Ja |
| Anzahl der erkennbaren Brandherde | 10 |
| Passwortschutz | Ja |
| IP-Adressen Filter | Ja |
| HTTPS-Verschlüsselung | Ja |
| Automatische Netzauffüllung (ANR) | Ja |
| Netzwerkzugriffsspeicher (NAS) | Ja |
| Web-basiertes Management | Ja |
| Webbrowser | Ja |
| Energiequelle | Gleichstrom, PoE |
| Stromverbrauch (max.) | 24 W |
| Stromverbrauch (Power over Ethernet (PoE)) | 24 W |
| DC-Ausgang Volt | 12, 24, 42.5, 57 |
| DC Ausgangssstrom | 2,5 A |
| Betriebstemperatur | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 113 mm |
| Höhe | 105 mm |
| Länge (mm) | 349,1 mm |
| Gewicht | 1,71 kg |
| Konformitätsbescheinigungen | BIS, CB, CE, Elektromagnetische Verträglichkeit (EMV), KC, Niederspannungsrichtlinie (LVD), RCM, REACH, RoHS, WEEE |
| Anzahl der Kameras | 1 |
| Audioanschlüsse | 3.5 mm |
| Output Widerstand | 600 Ohm |
