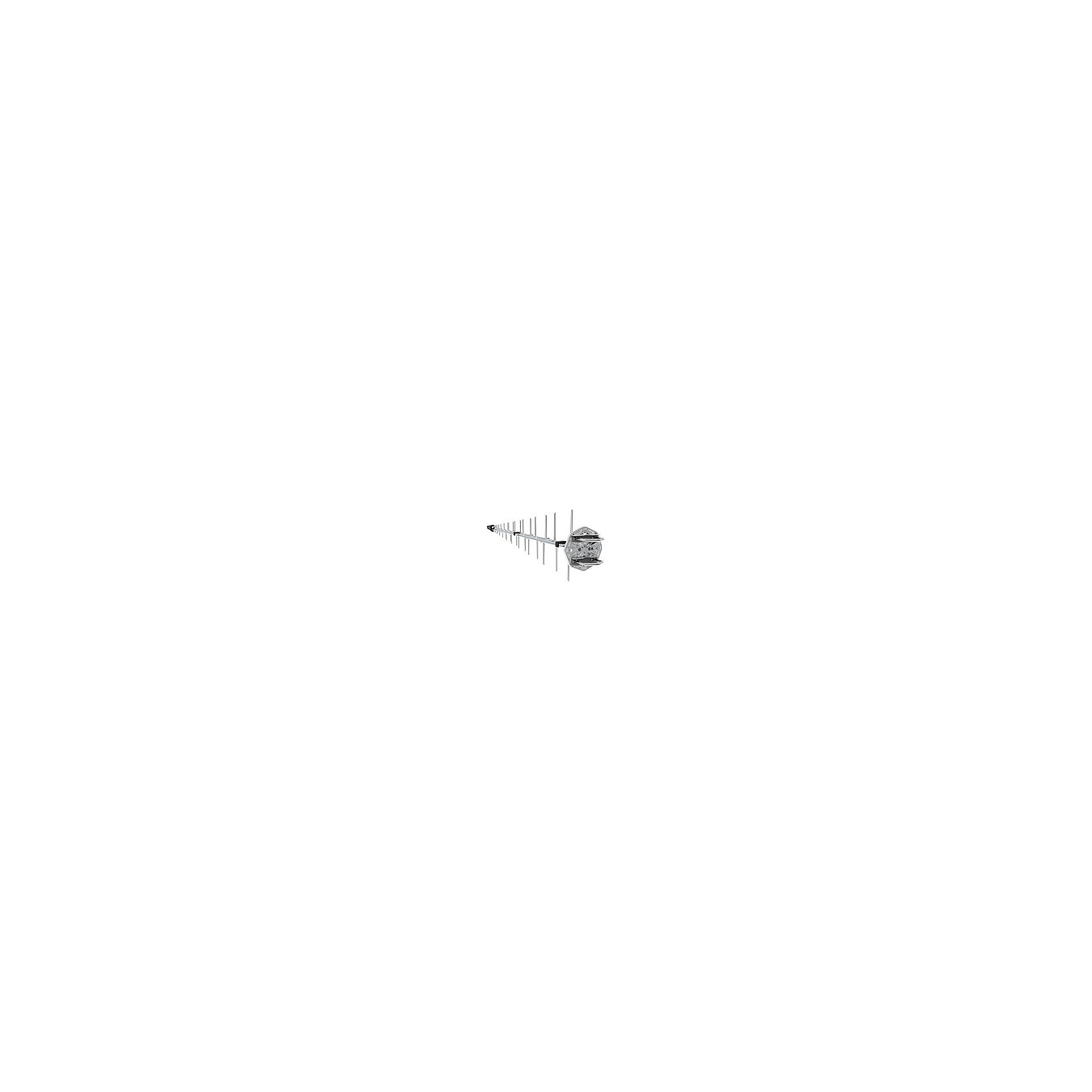

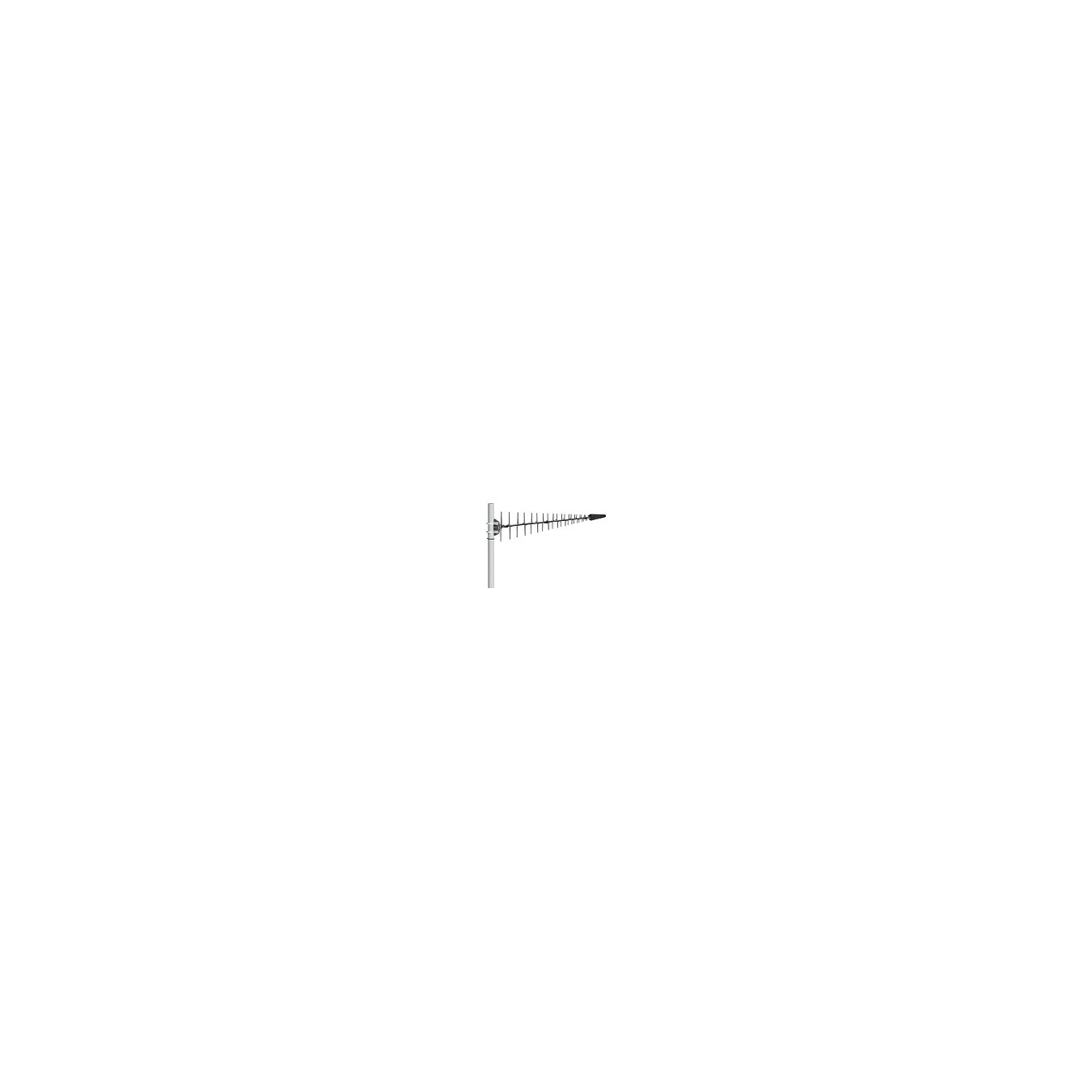

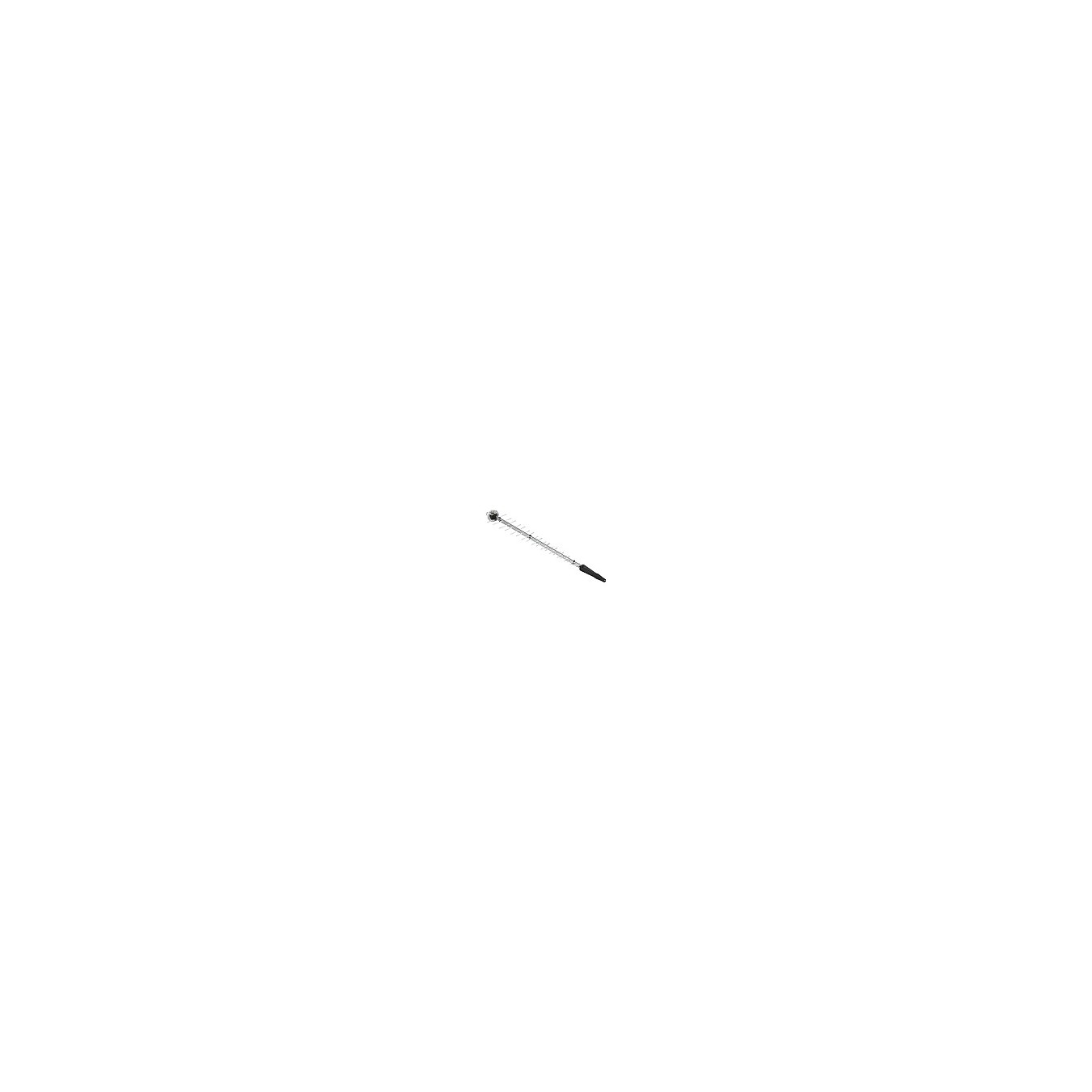

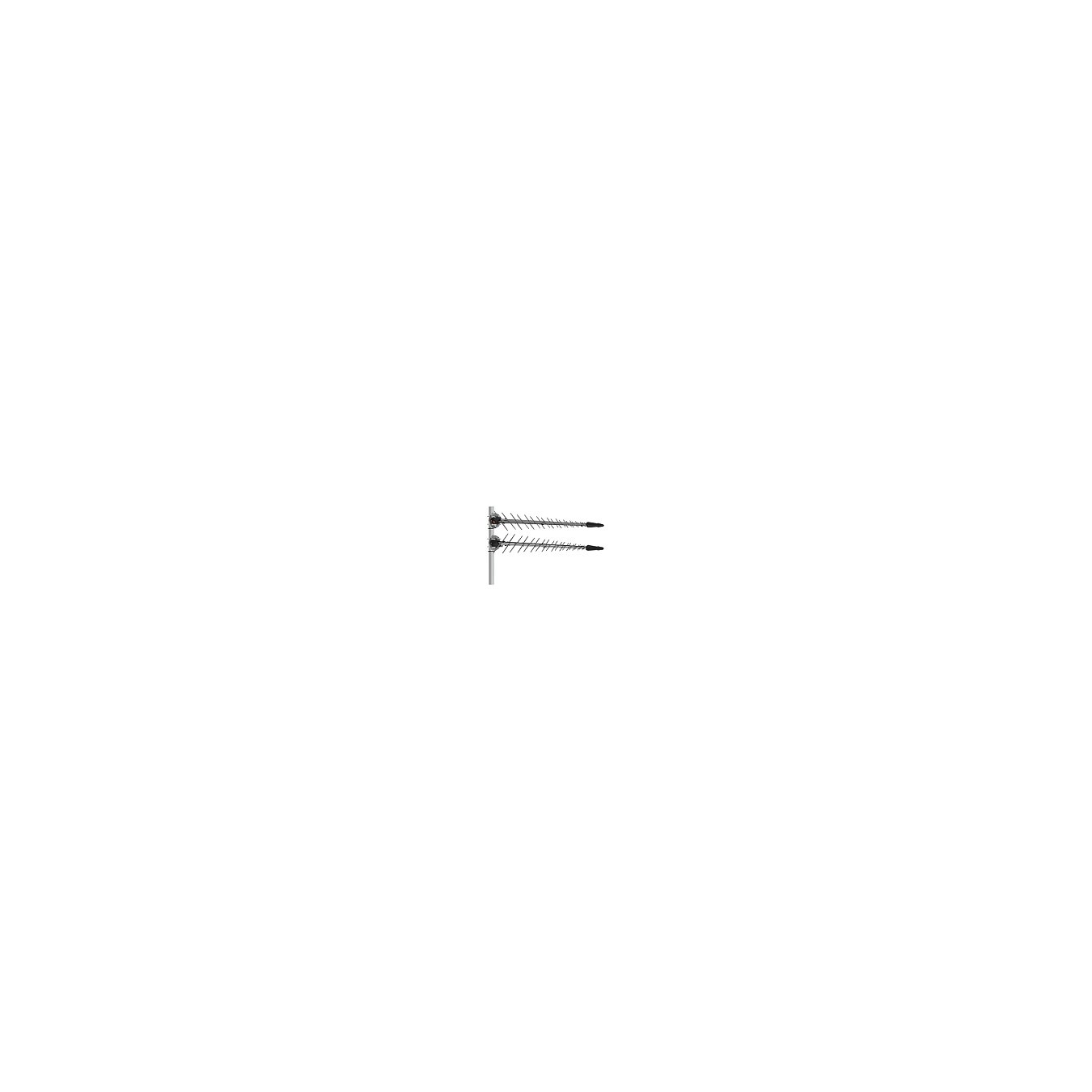

Poynting Antennas 5G LTE Mast A-LPDA-0500-V1-01 silber N-Type WiFi 6 LoRa Helium 11dbi Yagi Mast
Poynting LPDA-500, 11,5 dBi, 0.617-7.2 GHz, 50 Ohm, Richtantenne, N-Typ, Weiblich
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Poynting LPDA-500. Antenne Zunahmeniveau (max): 11,5 dBi, Frequenzband: 0.617-7.2 GHz, Impedanz: 50 Ohm. Antennentyp: Richtantenne, Antenne Steckertyp: N-Typ, Steckerverbindergeschlecht: Weiblich. Konformitätsbescheinigungen: CE, RoHS, Zertifizierung: MIL-STD 810G/ASTM B117. Breite: 250 mm, Tiefe: 1385 mm, Höhe: 175 mm. Verpackungsbreite: 280 mm, Verpackungstiefe: 1430 mm, Verpackungshöhe: 160 mm
| Frequenzband | 0.617-7.2 GHz |
| Impedanz | 50 Ohm |
| Antenne Zunahmeniveau (max) | 11,5 dBi |
| Antennentyp | Richtantenne |
| Antenne Steckertyp | N-Typ |
| Steckerverbindergeschlecht | Weiblich |
| Polarisation | Lineare Polarisation |
| Produktfarbe | Grau |
| Internationale Schutzart (IP-Code) | IP65 |
| Überlebens-Windgeschwindigkeit | 160 km/h |
| Maximale Eingangsleistung | 10 W |
| Montage | Stange |
| Zweck | Innen & Außen |
| Konformitätsbescheinigungen | CE, RoHS |
| Zertifizierung | MIL-STD 810G/ASTM B117 |
| Betriebstemperatur | -40 - 80 °C |
| Temperaturbereich bei Lagerung | -40 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 98% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 250 mm |
| Tiefe | 1385 mm |
| Höhe | 175 mm |
| Gewicht | 1,52 kg |
| Verpackungsbreite | 280 mm |
| Verpackungstiefe | 1430 mm |
| Verpackungshöhe | 160 mm |
| Paketgewicht | 3,34 kg |
| Menge pro Packung | 1 Stück(e) |
