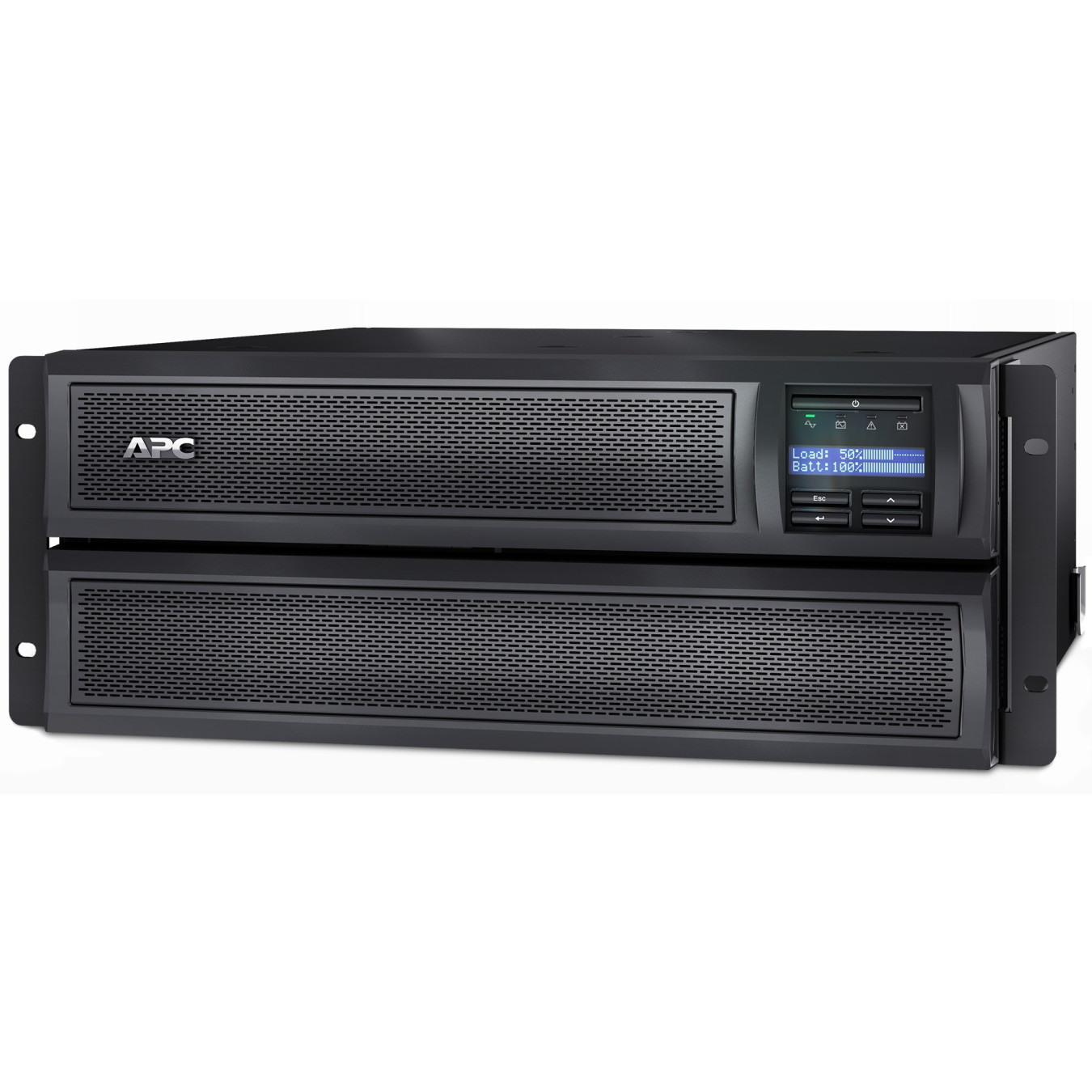

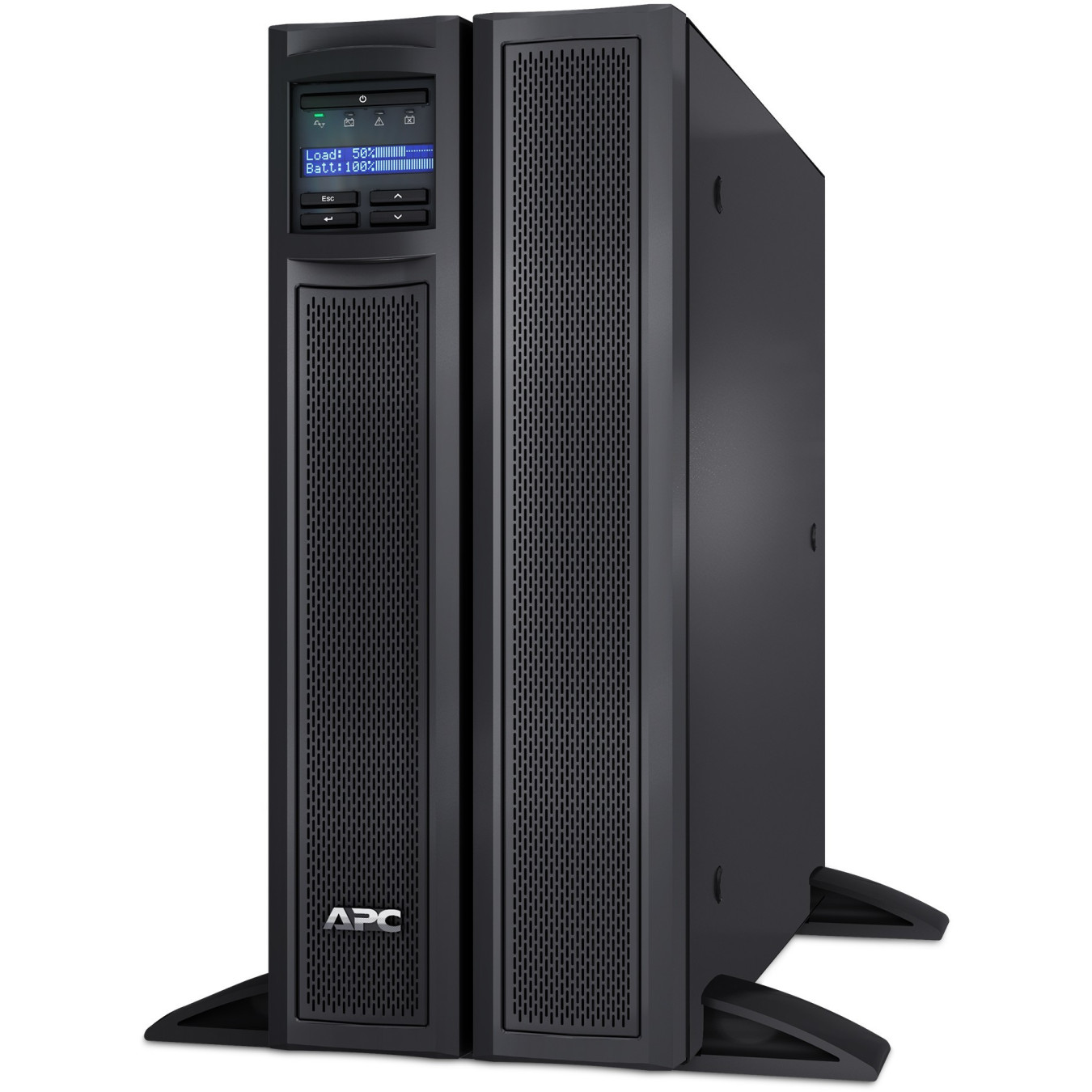

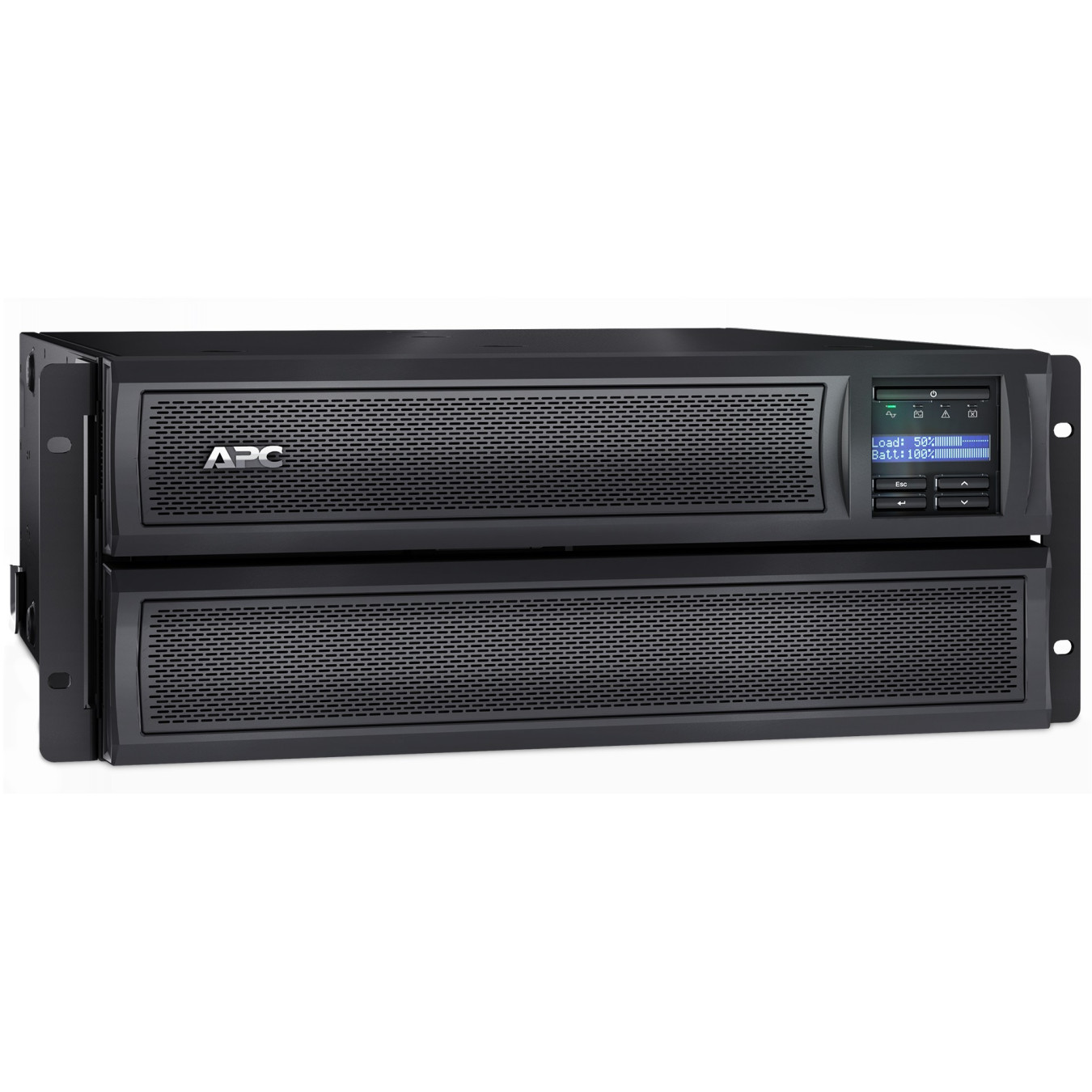

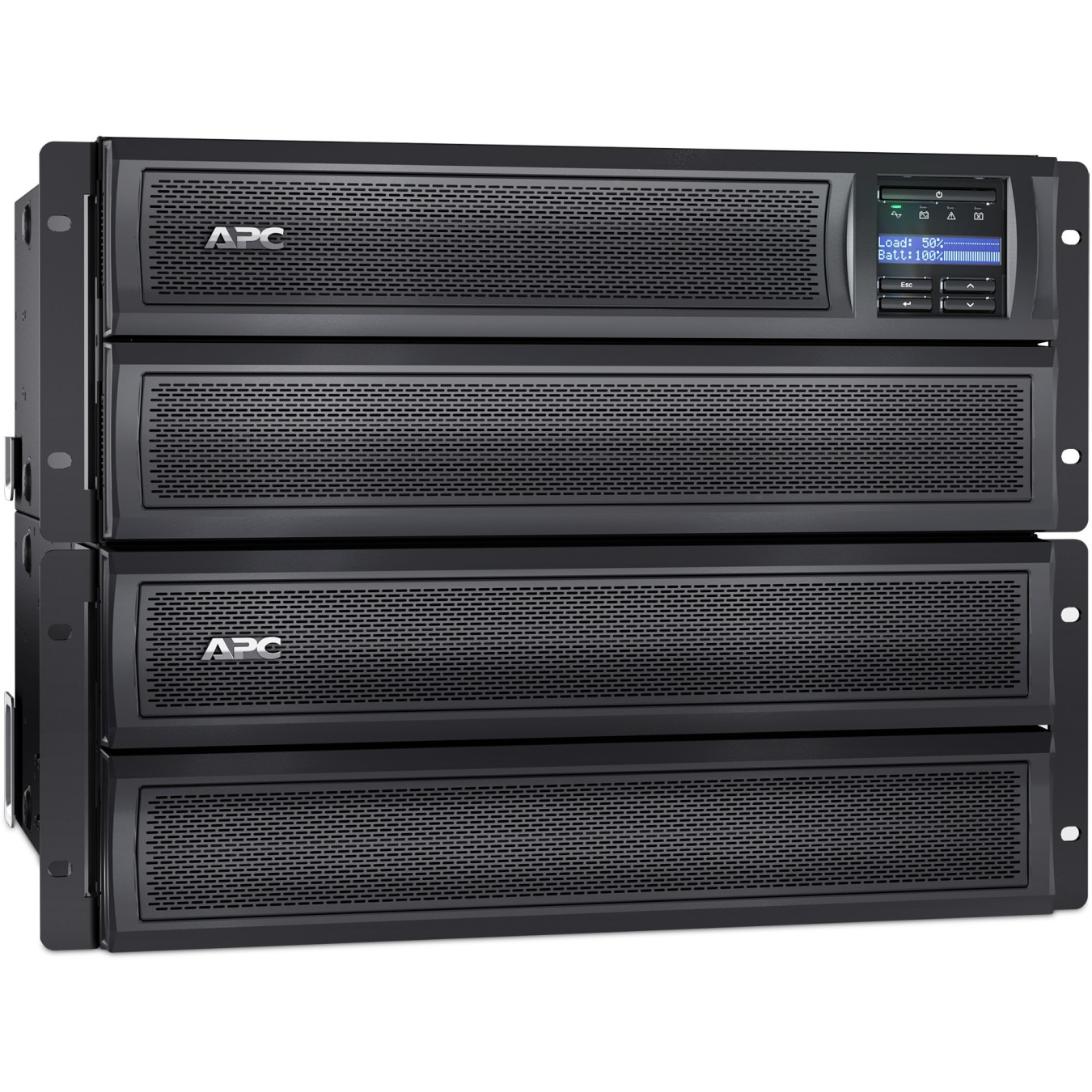

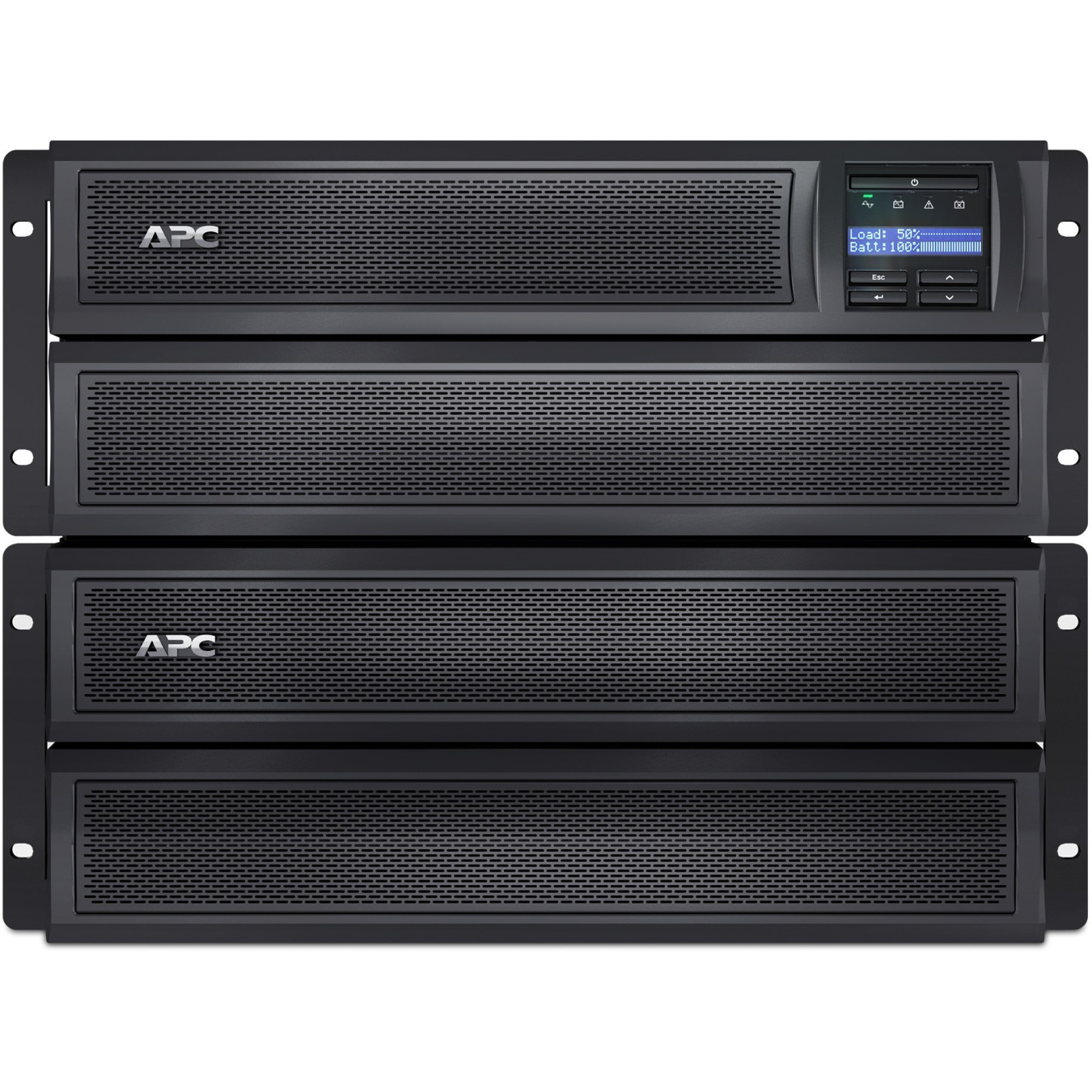

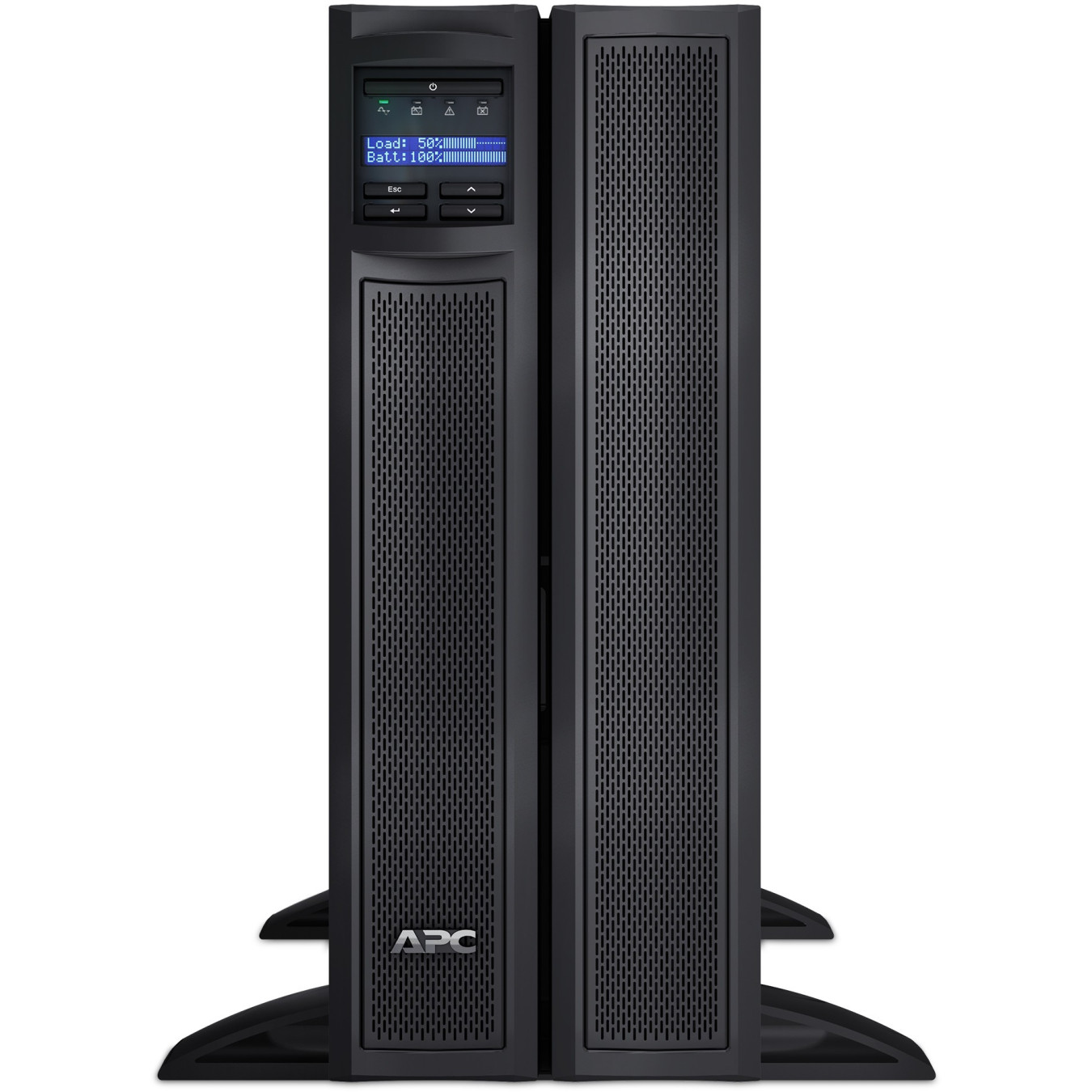

APC Smart-UPS SMX3000HVNC - 3000 VA / 2700 W Line-Interactive Rack/Tower UPS, Black
3 kVA (2700 W) APC Smart-UPS SMX3000HVNC — Line-Interactive UPS with 8×IEC C13 + 2×IEC C19 outlets, IEC C20 input, USB, network management card, expandable runtime, 4U rack/tower
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| UPS & Power Backup - Type | Line-Interactive |
|---|---|
| UPS & Power Backup - Capacity (VA) | 3000 VA |
| UPS & Power Backup - Output Power (W) | 2700 W |
| UPS & Power Backup - Form Factor | Rack/Tower Convertible |
| UPS & Power Backup - Input Plug | IEC C20 |
| UPS & Power Backup - Output Receptacles | Mixed |
| UPS & Power Backup - Outlets (Qty) | 10 |

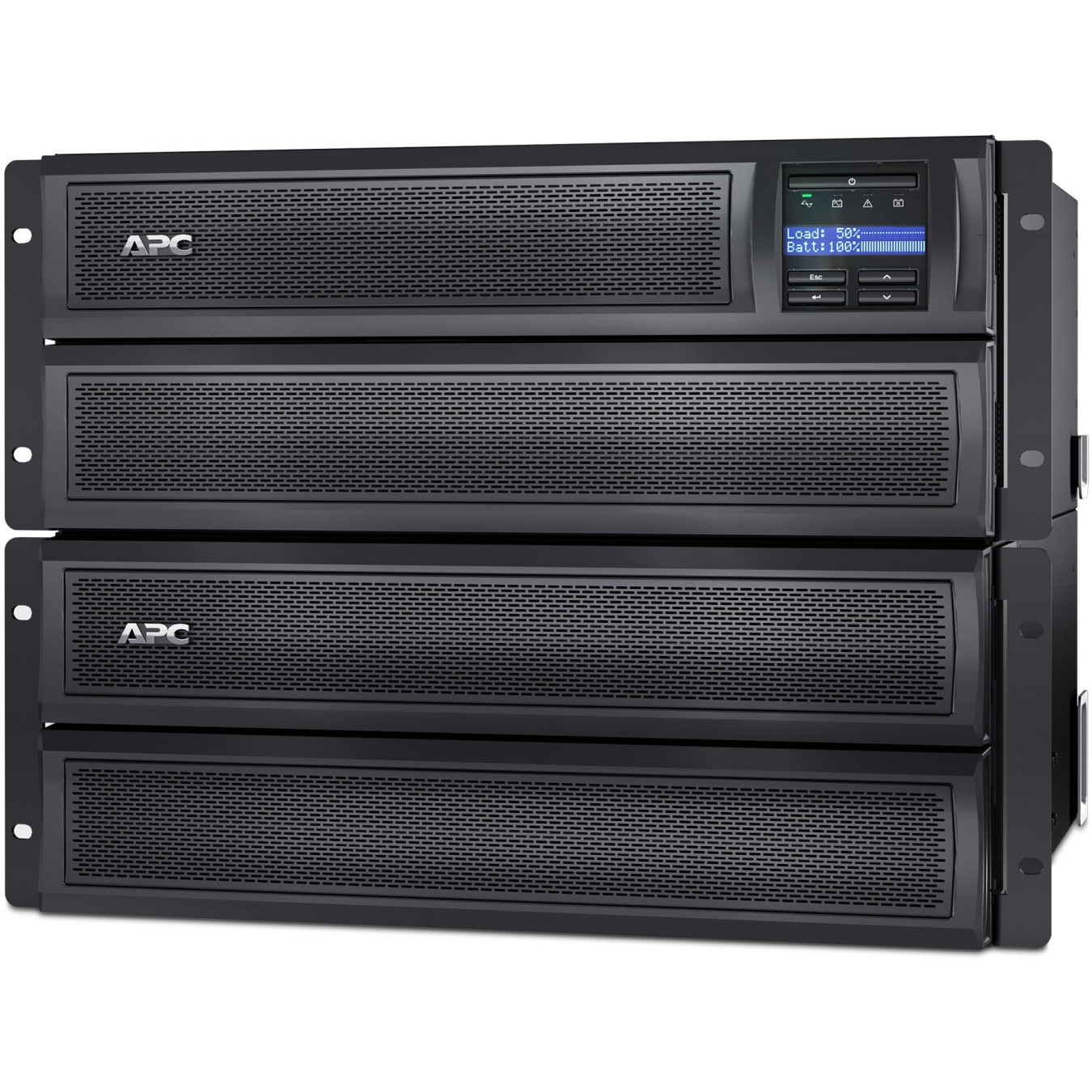

| UPS & Power Backup - External Battery Pack Support | Yes |
APC Smart-UPS X SMX3000HVNC - 3000VA. 8x C13 + 2x C19 outlet. USB. expandable runtime. short depth. NMC. UPS topology: Line-Interactive. Output power capacity: 3 kVA. Output power: 2700 W. AC outlet types: C13 coupler. C19 coupler. Power plug: C20 coupler. AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Battery capacity: 738 VAh. Typical backup time at full load: 6.25 min. Form factor: Rackmount/Tower. Product colour: Black. Rack capacity: 4U. Compliance certificates: RoHS. Certification: C-tick. CE. CSA. EN 50091-1. EN 50091-2. EN 55022 Class A. EN 60950. FCC Part 15 Class A. GOST....
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Feature | Software CD |
| Surge energy rating | 645 J |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| Efficiency | 98.5% |
| Noise level | 55 dB |

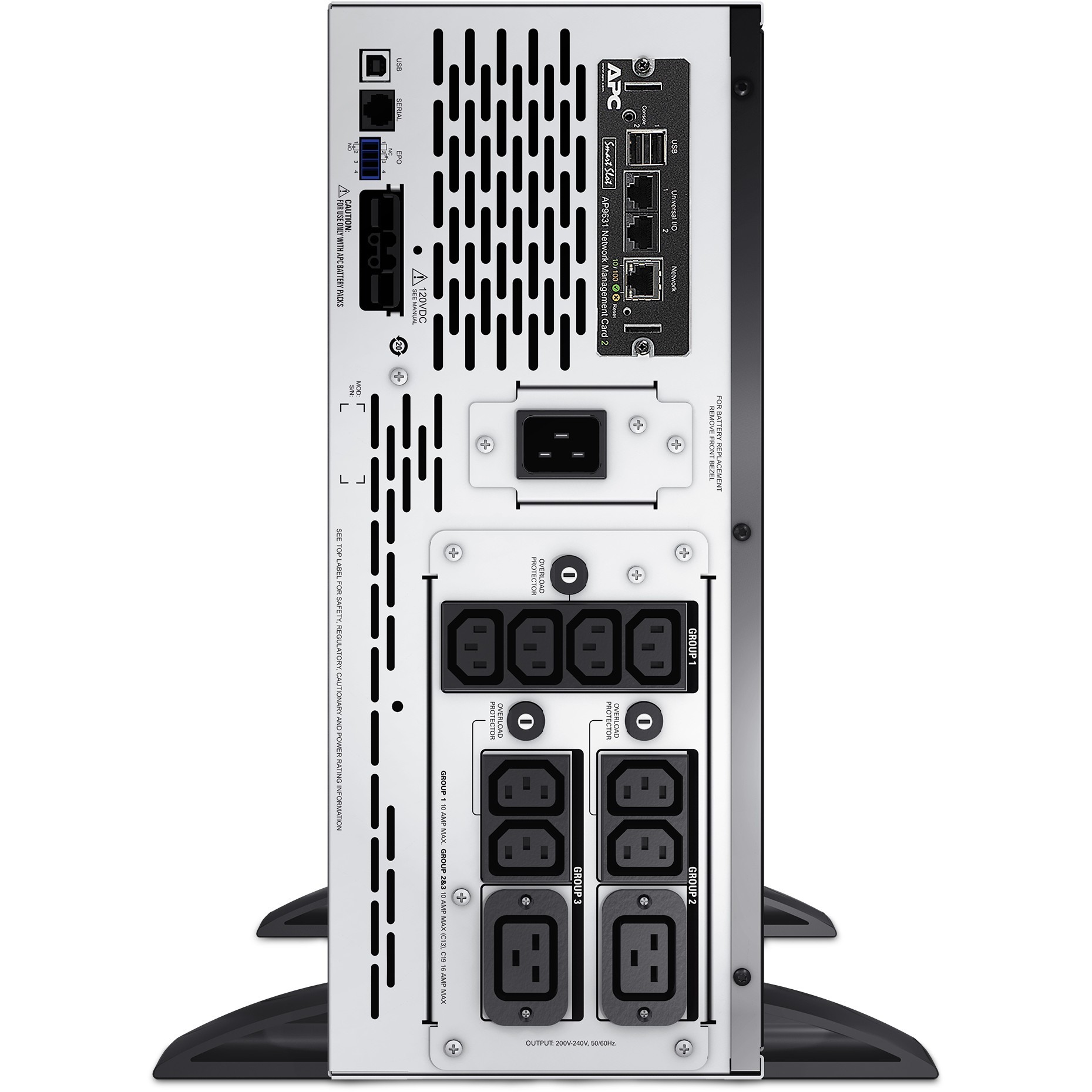

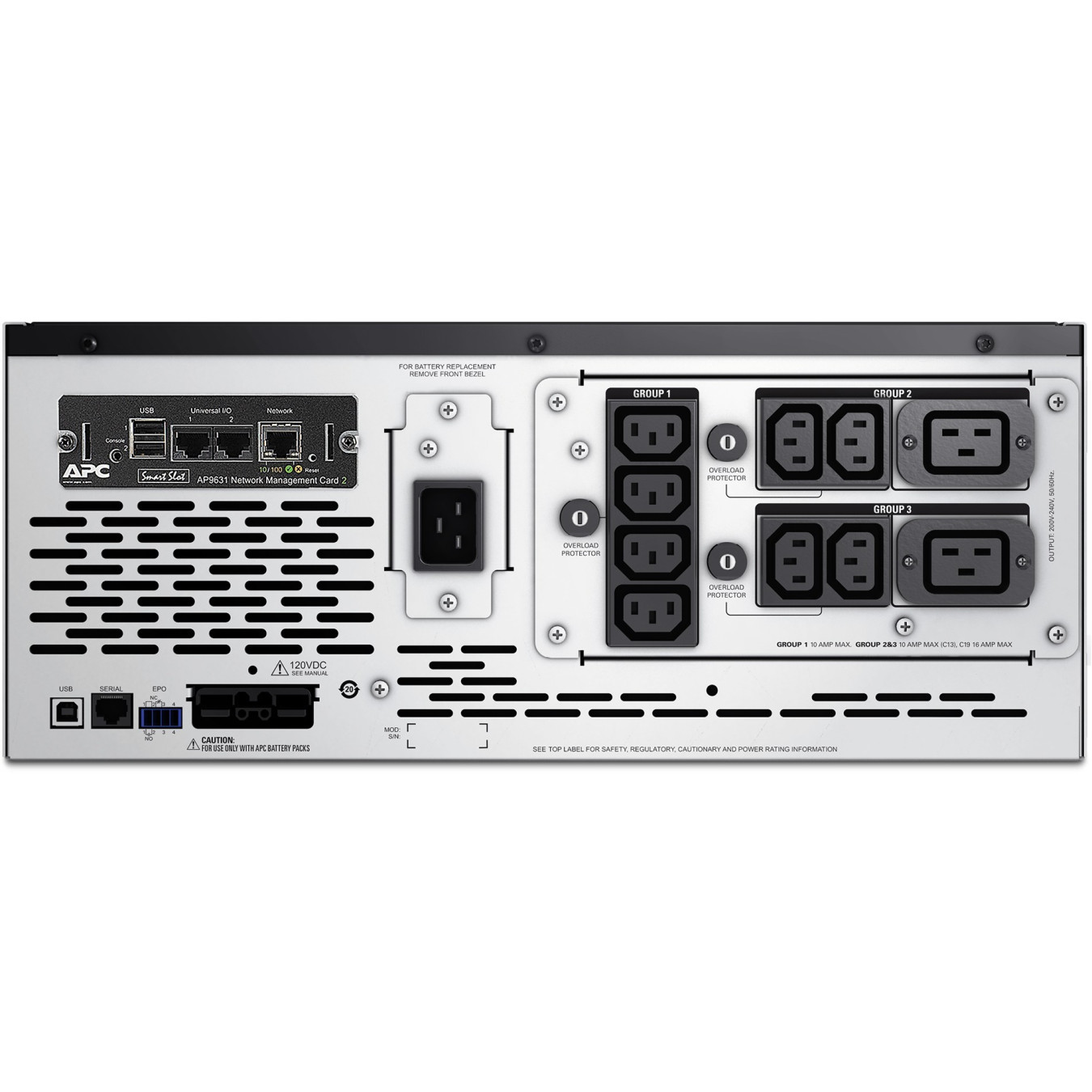

| AC outlet types | C13 coupler. C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 738 VAh |

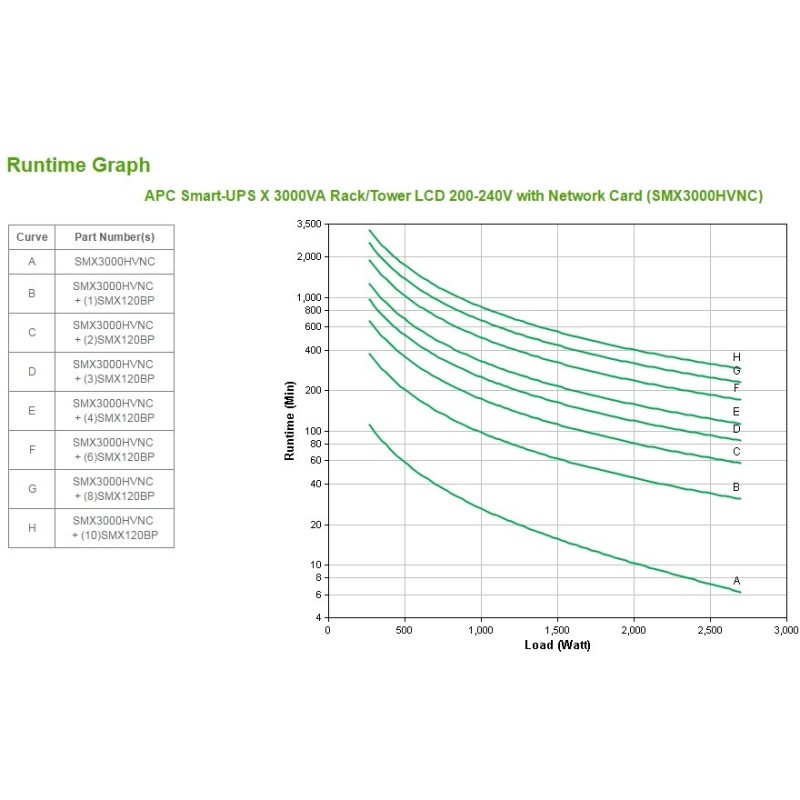

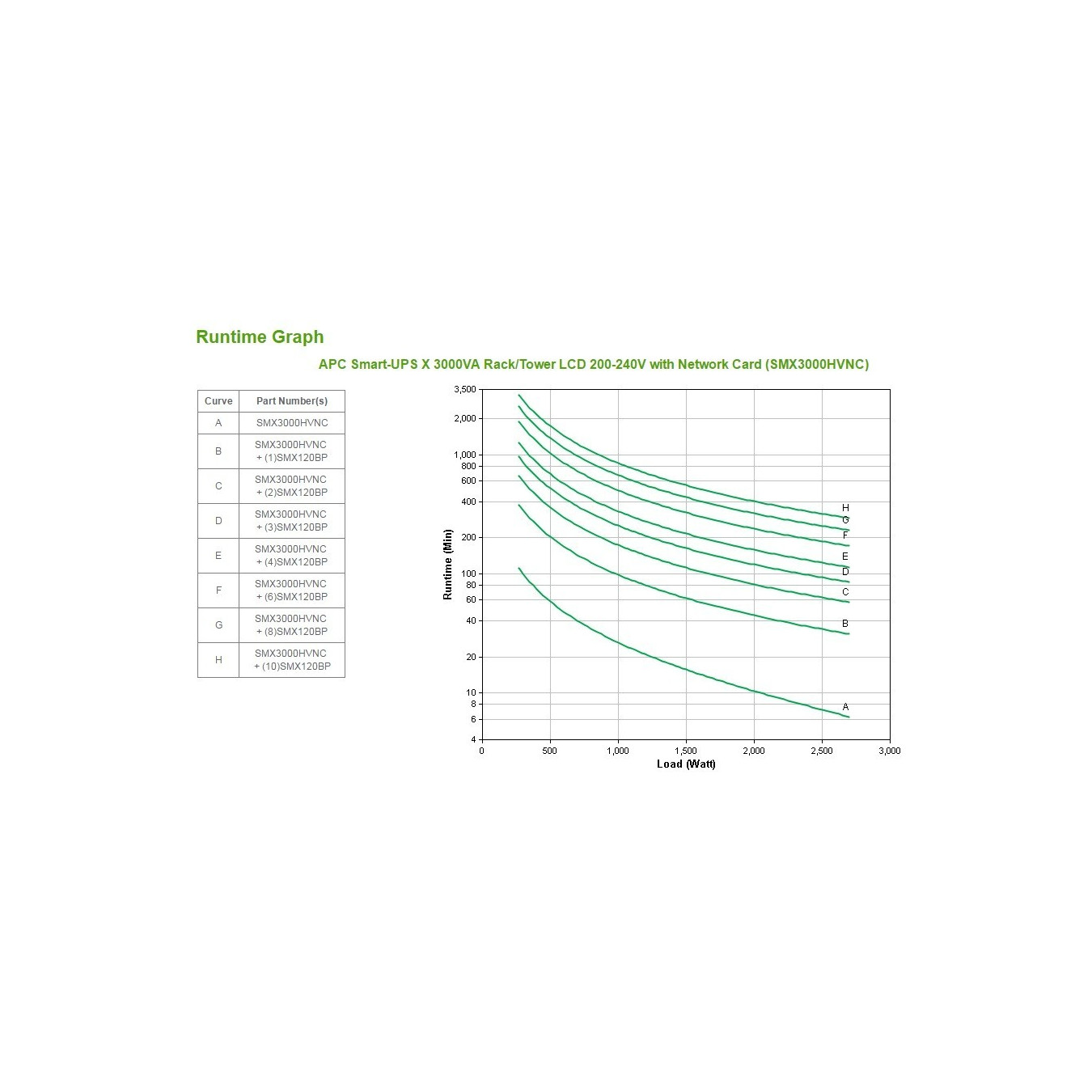

| Typical backup time at full load | 6.25 min |
| Typical backup time at half load | 18 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |

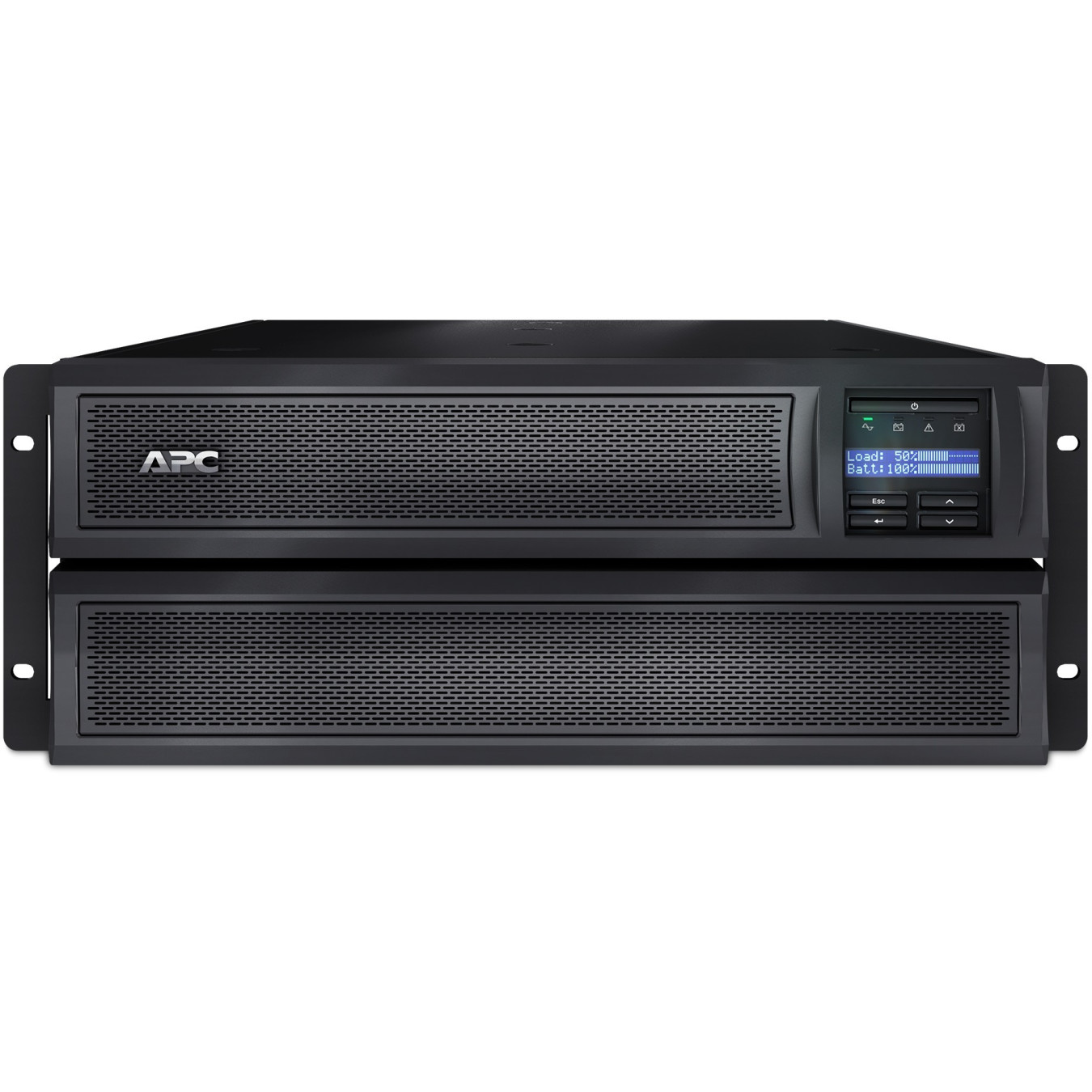

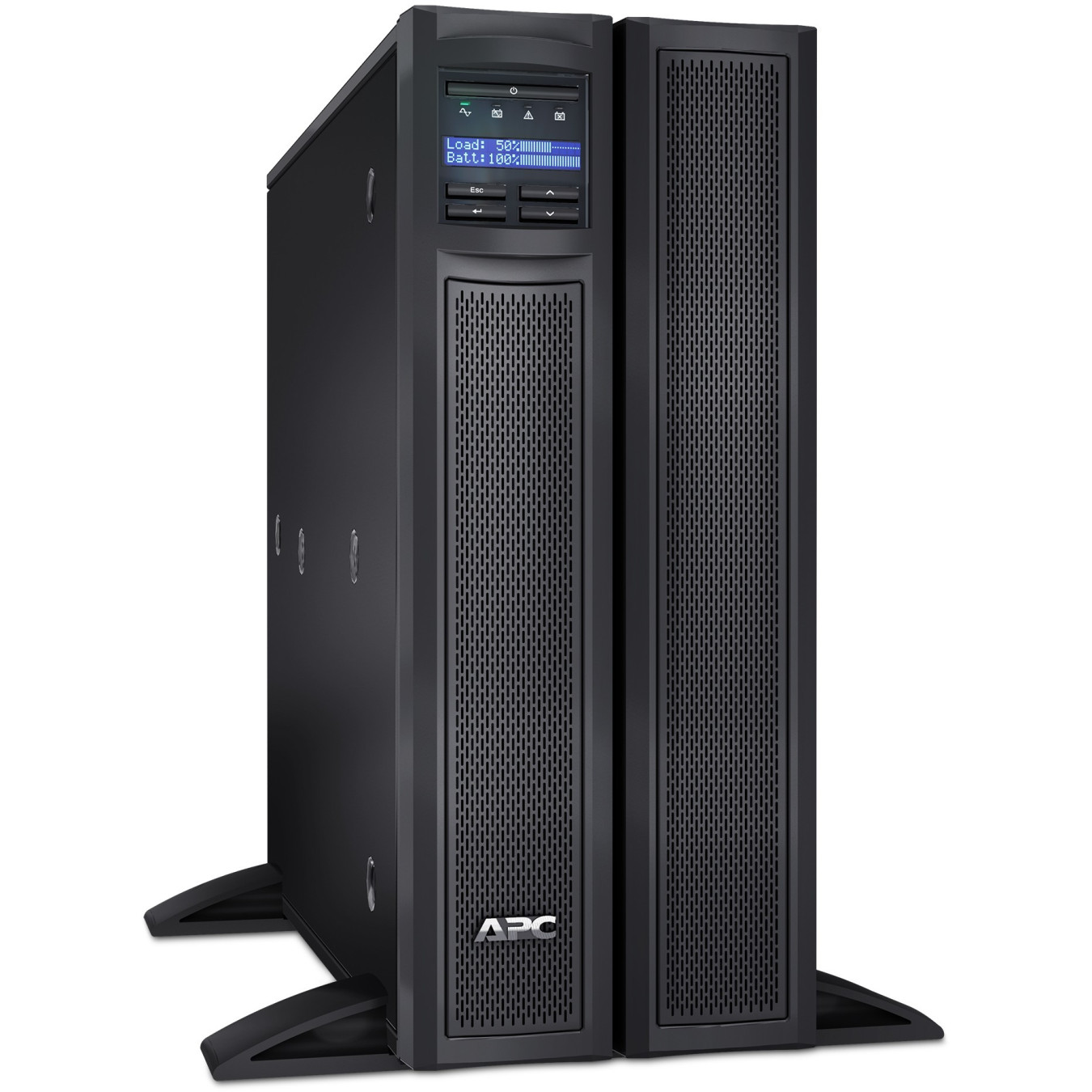

| Form factor | Rackmount/Tower |
| Rack capacity | 4U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Status. Battery replacement |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | C-tick. CE. CSA. EN 50091-1. EN 50091-2. EN 55022 Class A. EN 60950. FCC Part 15 Class A. GOST. IRAM. UL 1778. VDE. REACH |
| Cables included | RS-232 |
| Width | 178 mm |
| Depth | 483 mm |
| Height | 432 mm |
| Weight | 38.6 kg |
| Package width | 586 mm |
| Package depth | 633 mm |
| Package height | 330 mm |
| Package weight | 47.7 kg |
| Products per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2790.64 |
| Nominal output voltage | 230 V |
