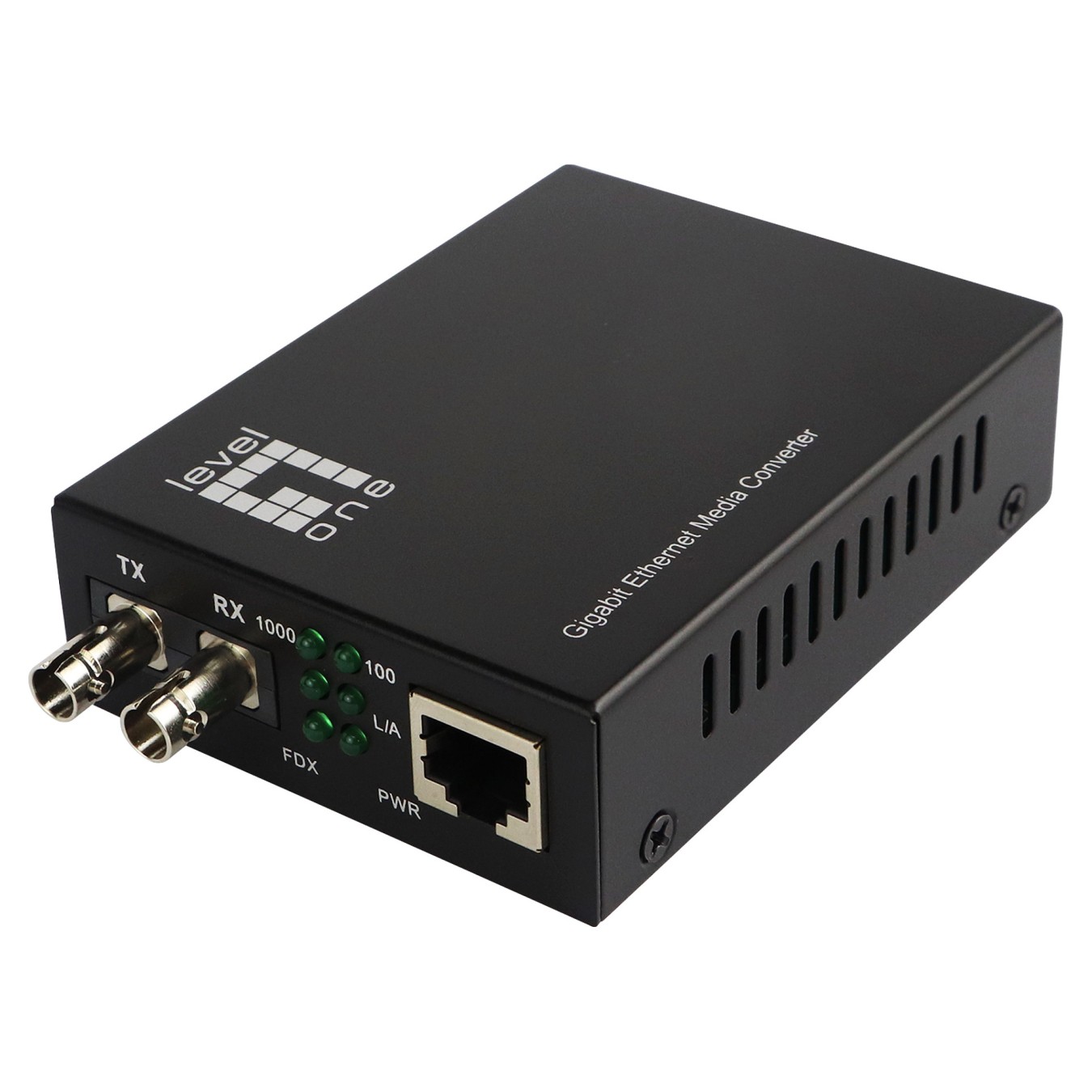

Konverter GVT-2003 10 100 1000T to IEEE 802.3x Flow
LevelOne Gigabit RJ45 zu ST Mediakonverter, Single-Mode Glasfaser, 20km, 1000 Mbit/s, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Schnelles Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, 10BASE-T, 100BASE-TX, 1000BASE-T
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne Gigabit RJ45 zu ST Mediakonverter, Single-Mode Glasfaser, 20km. Maximale Datenübertragungsrate: 1000 Mbit/s, Converter Eingangsschnittstelle: 1000Base-LX, 1000Base-SX, Netzstandard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z. Maximal mögliche Übertragungsstrecke: 20000 m, Wellenlänge: 1310 nm, Kabel mode struktur: Einzelmodus. LED-Anzeigen: Link, Leistung, Produktfarbe: Schwarz. Optischer Kabelverbinder: ST, Übertragungstechnik: Kabelgebunden. Stromverbrauch (Standardbetrieb): 5 W
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Converter Eingangsschnittstelle | 1000Base-LX, 1000Base-SX |
| Netzstandard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet Schnittstellen Typ | Schnelles Ethernet, Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10,100,1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9000 |
| Unterstützung Datenflusssteuerung | Ja |
| Duplex-System | Voll, Halb |
| Link Loss Carry Forward (LLCF) unterstützt | Ja |
| Link Loss Return (LLR) unterstützt | Ja |
| Link Fault Pass-Through (LFP) | Ja |
| Maximal mögliche Übertragungsstrecke | 20000 m |
| Wellenlänge | 1310 nm |
| Kabel mode struktur | Einzelmodus |
| Eingebaut | Nein |
| LED-Anzeigen | Link, Leistung |
| Produktfarbe | Schwarz |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Optischer Kabelverbinder | ST |
| Gleichstrom-Anschluss (DC) | Ja |
| Stromverbrauch (Standardbetrieb) | 5 W |
| Nachhaltigkeitskonformität | Ja |
| Breite | 71 mm |
| Tiefe | 94 mm |
| Höhe | 26 mm |
| Gewicht | 200 g |
| Betriebstemperatur | -10 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| AC-Netzadapter | Ja |
| Schnellinstallationsanleitung | Ja |
| Verpackungsbreite | 235 mm |
| Verpackungstiefe | 120 mm |
| Verpackungshöhe | 55 mm |
| Paketgewicht | 840 g |
| Verpackungsart | Box |
| Konformitätsbescheinigungen | CE |
| Ursprungsland | China |
| Anzahl der Kartons pro Palette (Luft) | 16 Stück(e) |
| Palettenlänge (brutto) | 80 cm |
| Palettenbreite (brutto) | 120 cm |
| Palettenhöhe (Luft) | 158,4 cm |
| Breite des Versandkartons | 360 mm |
| Länge des Versandkartons | 390 mm |
| Höhe des Versandkartons | 480 mm |
| Gewicht Versandkarton | 31,2 kg |
| Anzahl Produkte pro Versandkarton | 36 Stück(e) |
