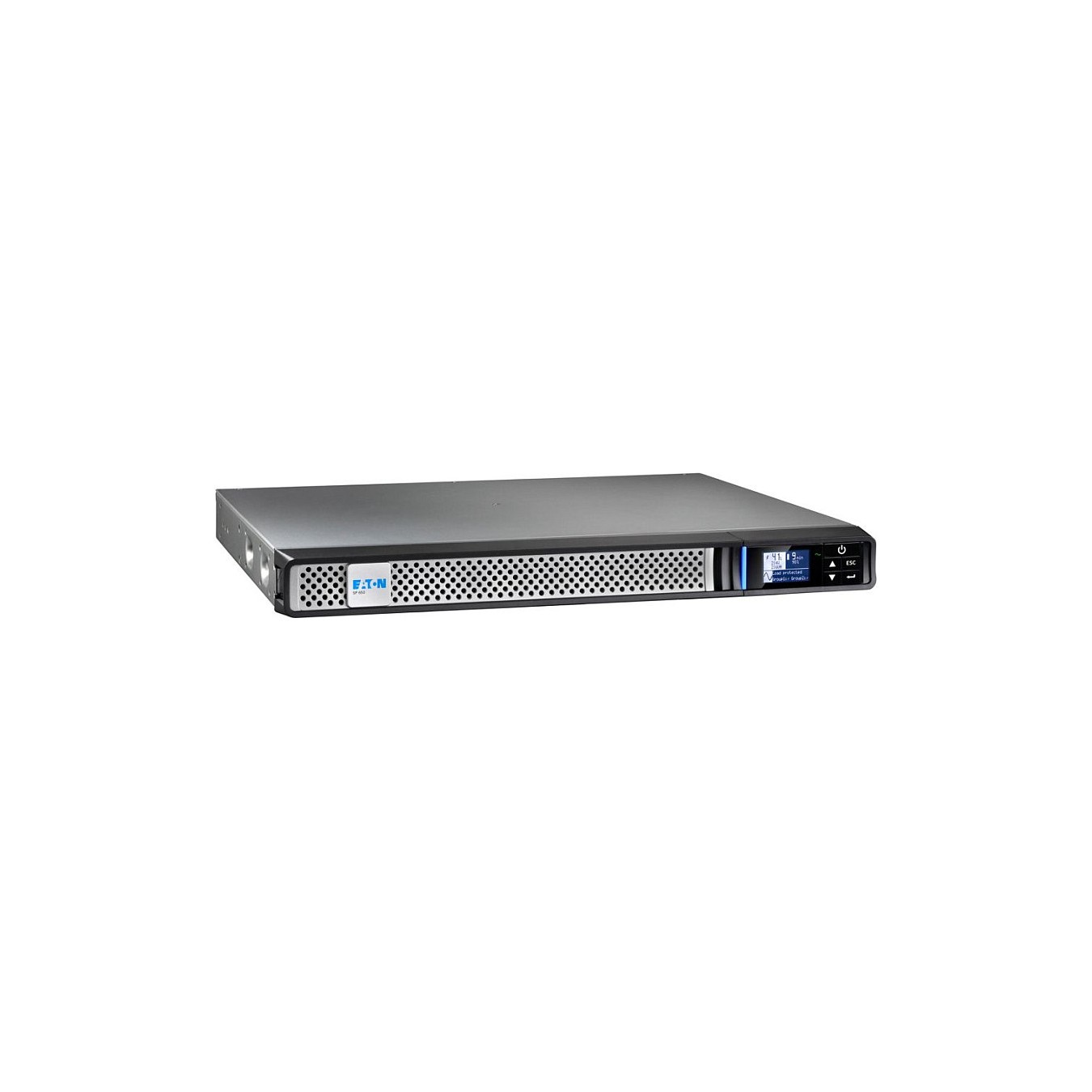

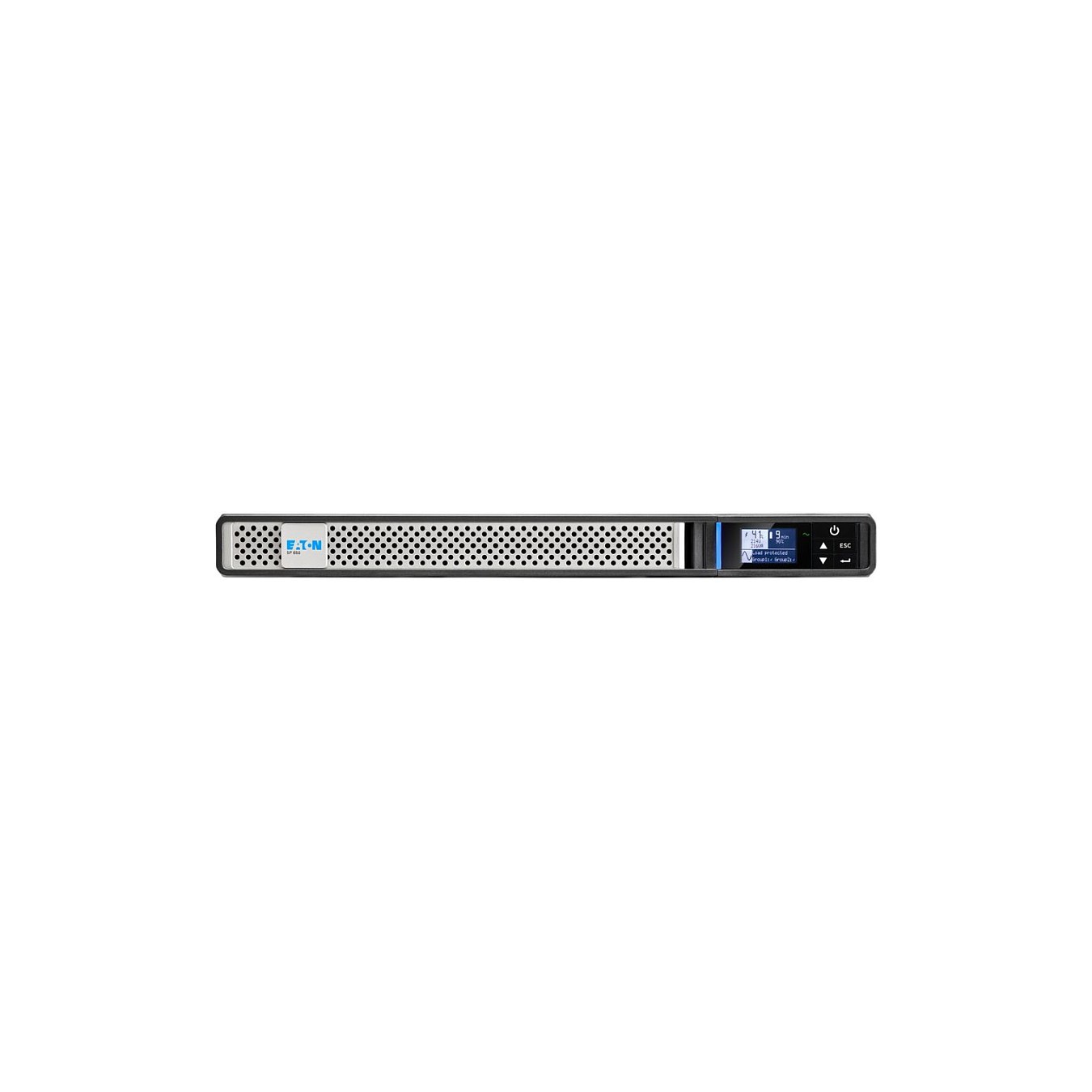

EATON 5P650IRNG2 Rackmount 650VA 1HE mit Netzwerkkarte
Eaton 5P650IRNG2, Line-Interaktiv, 0,65 kVA, 520 W, Sine, 150 V, 294 V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Eaton 5P650IRNG2. USV-Topologie: Line-Interaktiv, Ausgangskapazität: 0,65 kVA, Ausgangsleistung: 520 W. AC-Steckertypen: C13-Koppler, Stecker: C14-Koppler, Anzahl der AC-Ausgänge: 4 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäure (VRLA), Batteriekapazität: 9 Ah, Akku-/Batteriespannung: 6 V. Formfaktor: Rackmount, Produktfarbe: Schwarz, Silber, Display-Typ: LCD. Konformitätsbescheinigungen: Elektromagnetische Verträglichkeit (EMV), Niederspannungsrichtlinie (LVD), RoHS, Zertifizierung: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
| USV-Topologie | Line-Interaktiv |
| Ausgangskapazität | 0,65 kVA |
| Ausgangsleistung | 520 W |
| Wellenform | Sine |
| Eingangs-Betriebsspannung (min) | 150 V |
| Eingangs-Betriebsspannung (max) | 294 V |
| Eingangsfrequenz | 47/70 Hz |
| Ausgangs-Betriebsspannung (min) | 200 V |
| Ausgangs-Betriebsspannung (max) | 240 V |
| Output Frequenz | 50/60 Hz |
| Automatische Spannungsregulierung | Ja |
| Wärmeableitung | 461 BTU/h |
| Anzahl der Eingangs-Phasen | 1 |
| Anzahl der Ausgangs-Phasen | 1 |
| Effizienz | 97% |
| Leistungsfaktor | 0,8 |
| Geräuschpegel | 35 dB |

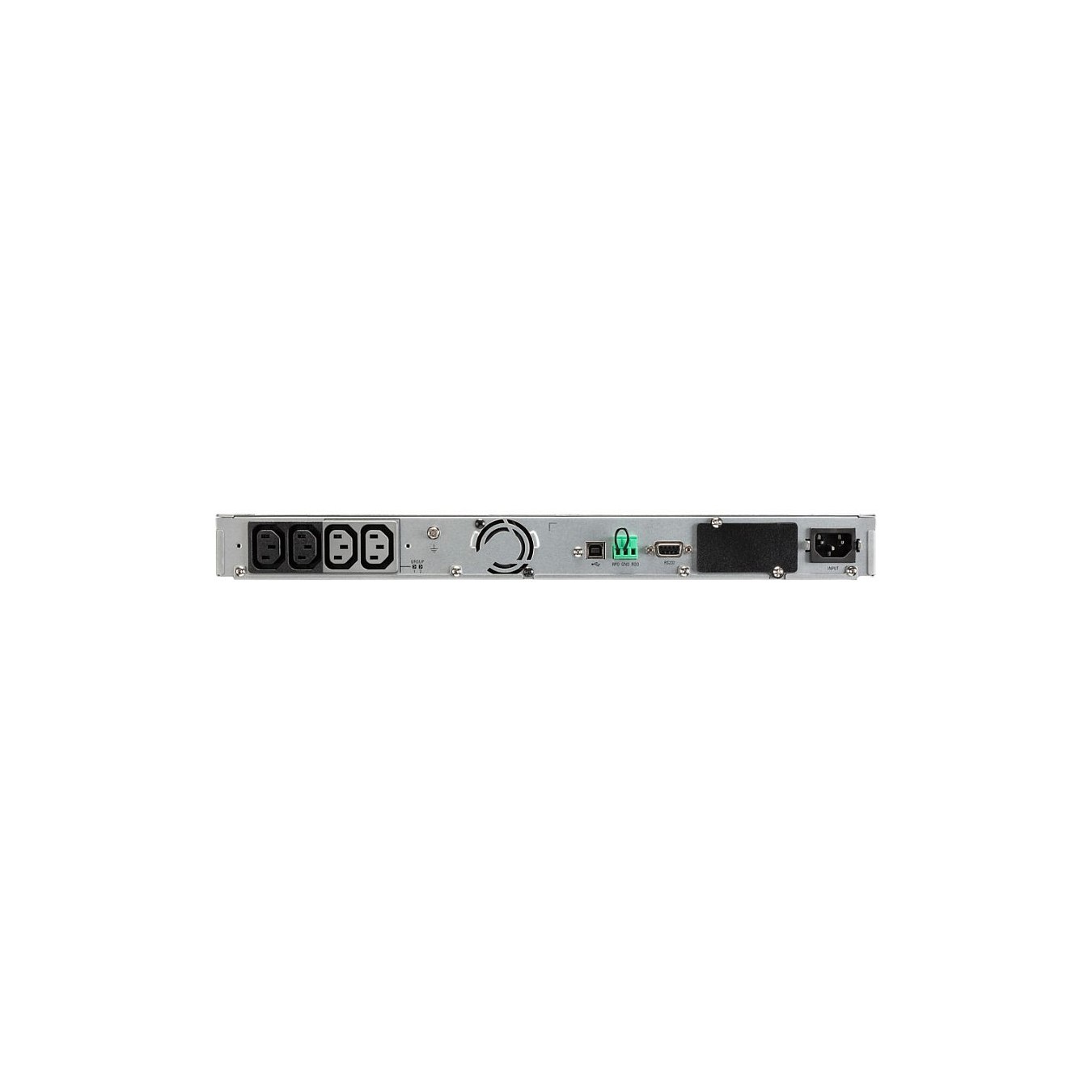

| AC-Steckertypen | C13-Koppler |
| Stecker | C14-Koppler |
| Anzahl der AC-Ausgänge | 4 AC-Ausgänge |
| USB Anschluss | Ja |
| USB-Port-Typ | USB Typ-B |
| Serielle Schnittstelle | RS-232 |
| Anzahl serielle Anschlüsse | 1 |
| RS-232 port | 1 |

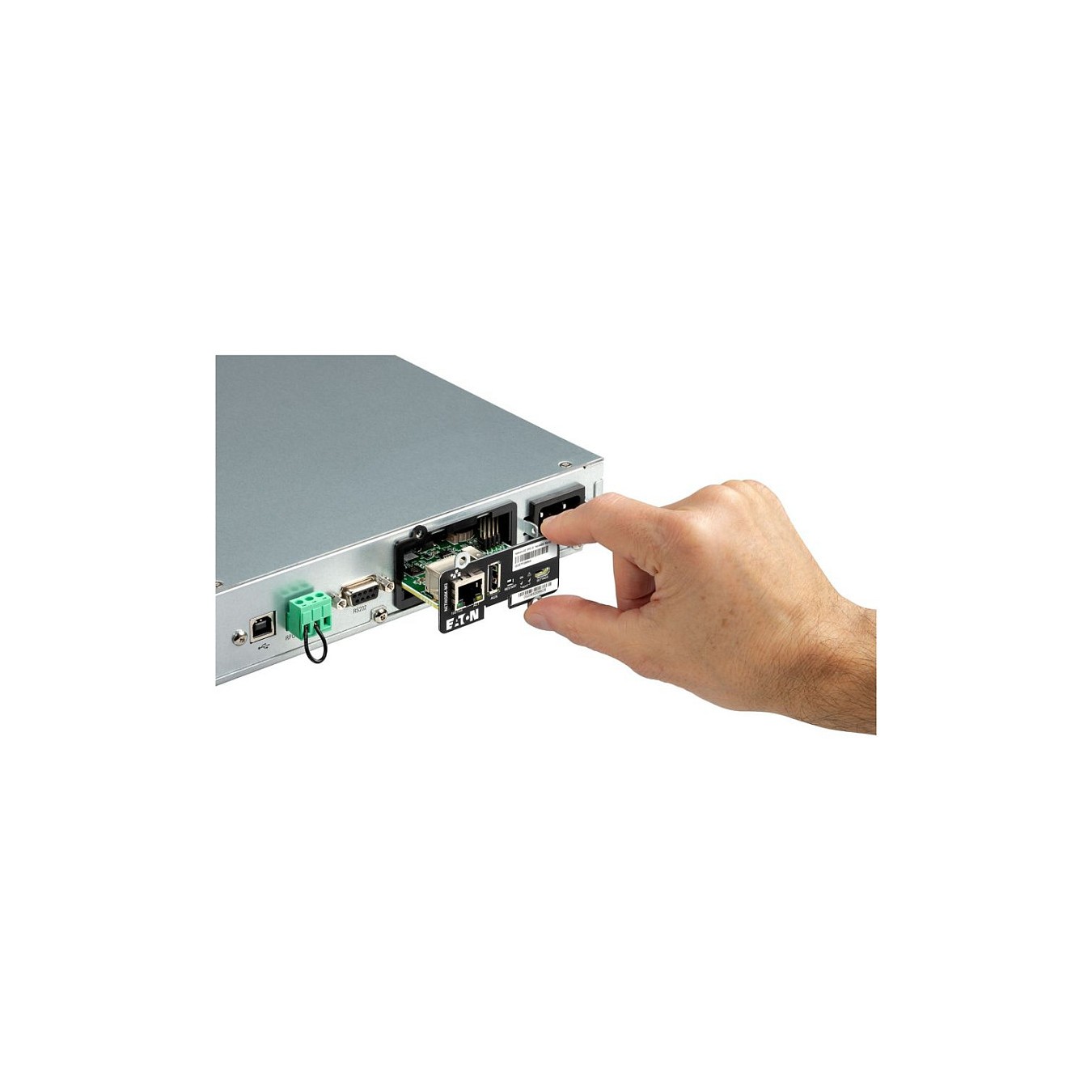

| Netzwerkkartensteckplatz | Ja |
| Akku-/Batterietechnologie | Plombierte Bleisäure (VRLA) |
| Batteriekapazität | 9 Ah |
| Akku-/Batteriespannung | 6 V |
| Anzahl Batteriezellen | 2 |
| Typische Backup-Zeit bei halber Belastung | 7 min |
| Hot-Swap-Batterie | Ja |
| Formfaktor | Rackmount |
| Produktfarbe | Schwarz, Silber |
| Display-Typ | LCD |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 90% |
| Höhe bei Betrieb | 0 - 3000 m |
| Konformität von Elektro- und Elektronik-Altgeräten (WEEE) | Ja |
| Konformitätsbescheinigungen | Elektromagnetische Verträglichkeit (EMV), Niederspannungsrichtlinie (LVD), RoHS |
| Zertifizierung | IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS |
| Rackmontageset | Ja |
| Mitgelieferte Kabel | USB-Kabel |
| Schnellinstallationsanleitung | Ja |
| Breite | 438 mm |
| Tiefe | 361 mm |
| Höhe | 43,2 mm |
| Gewicht | 8,68 kg |
