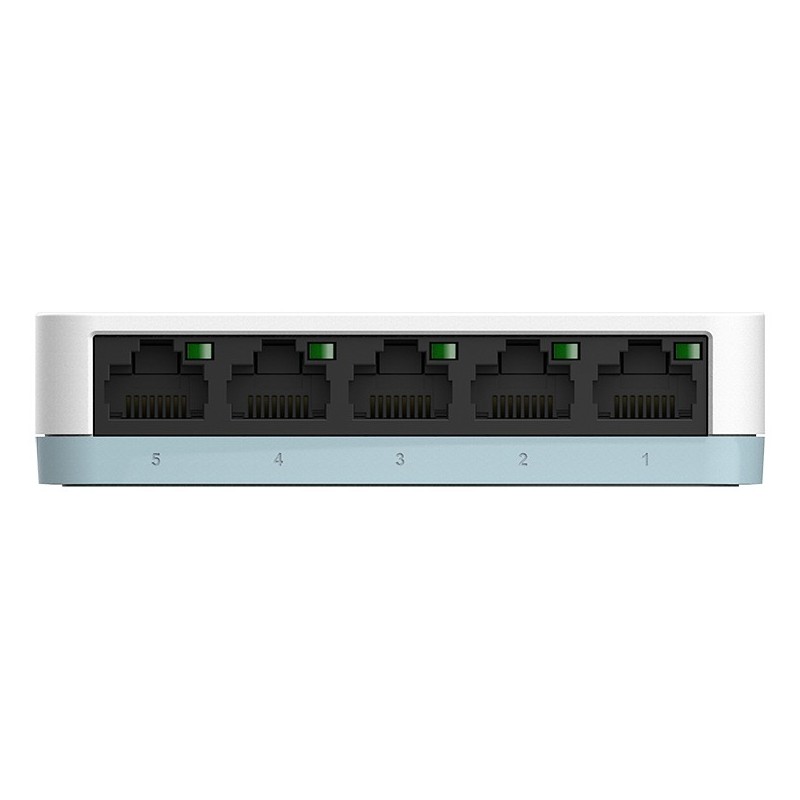

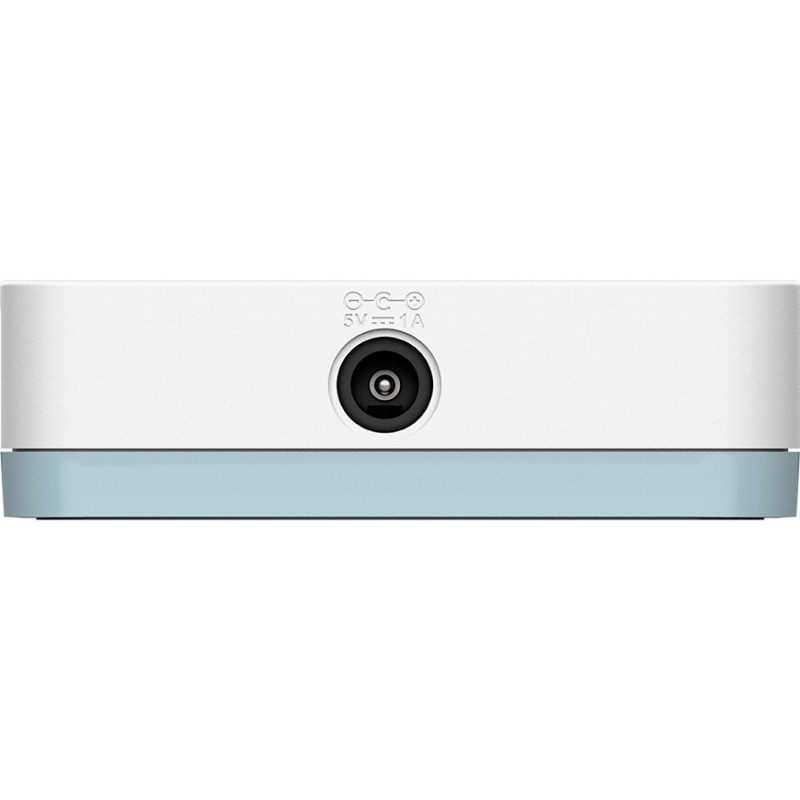

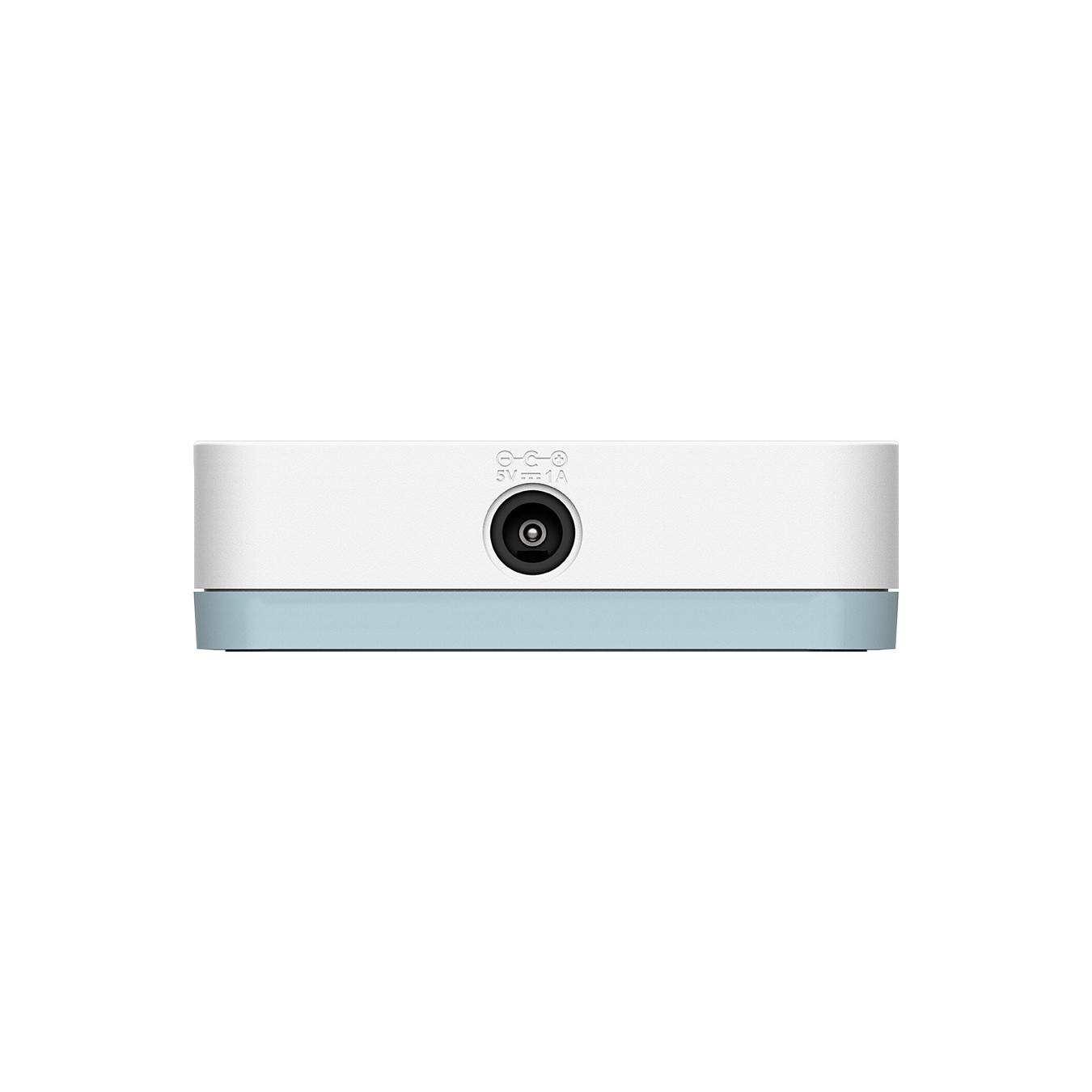

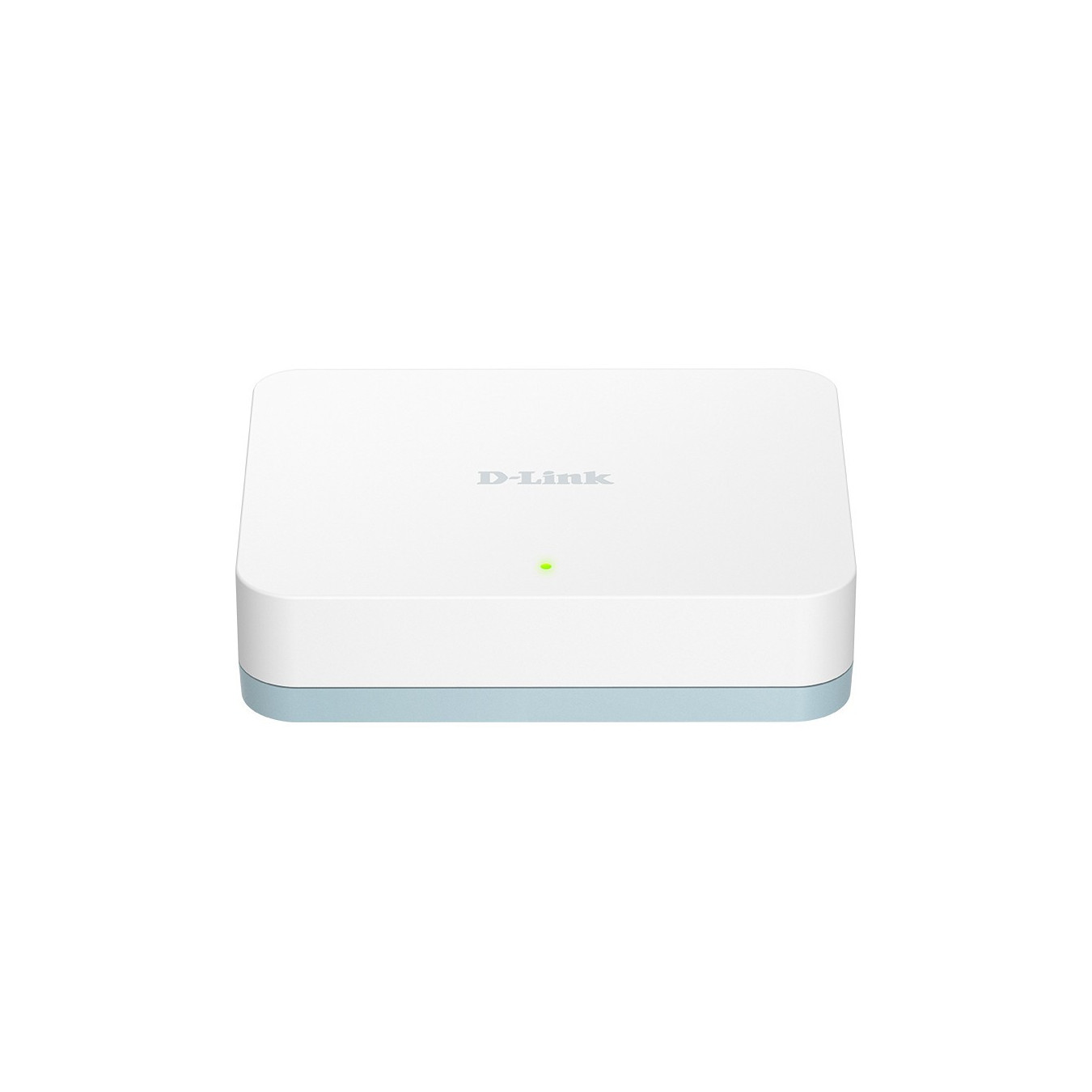

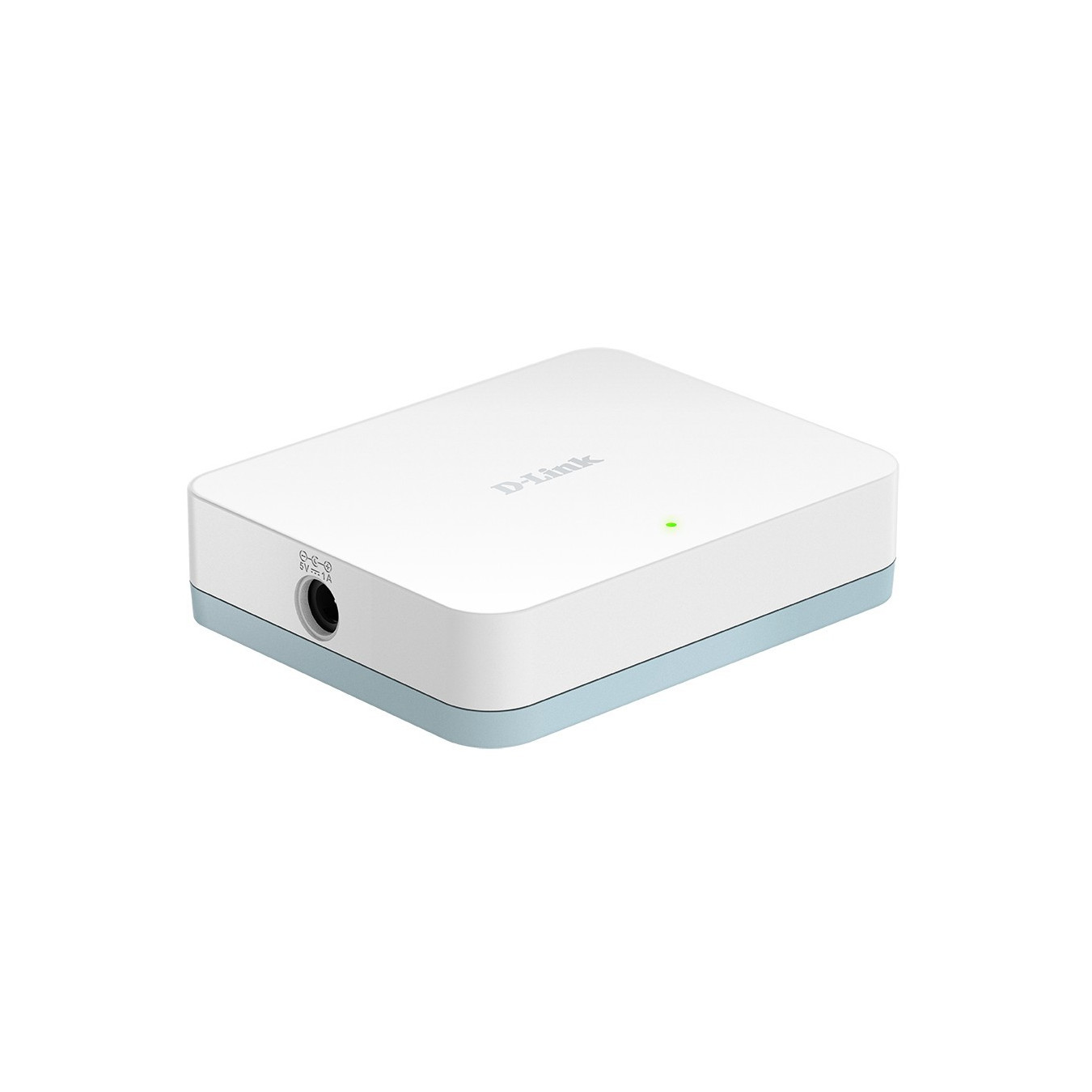

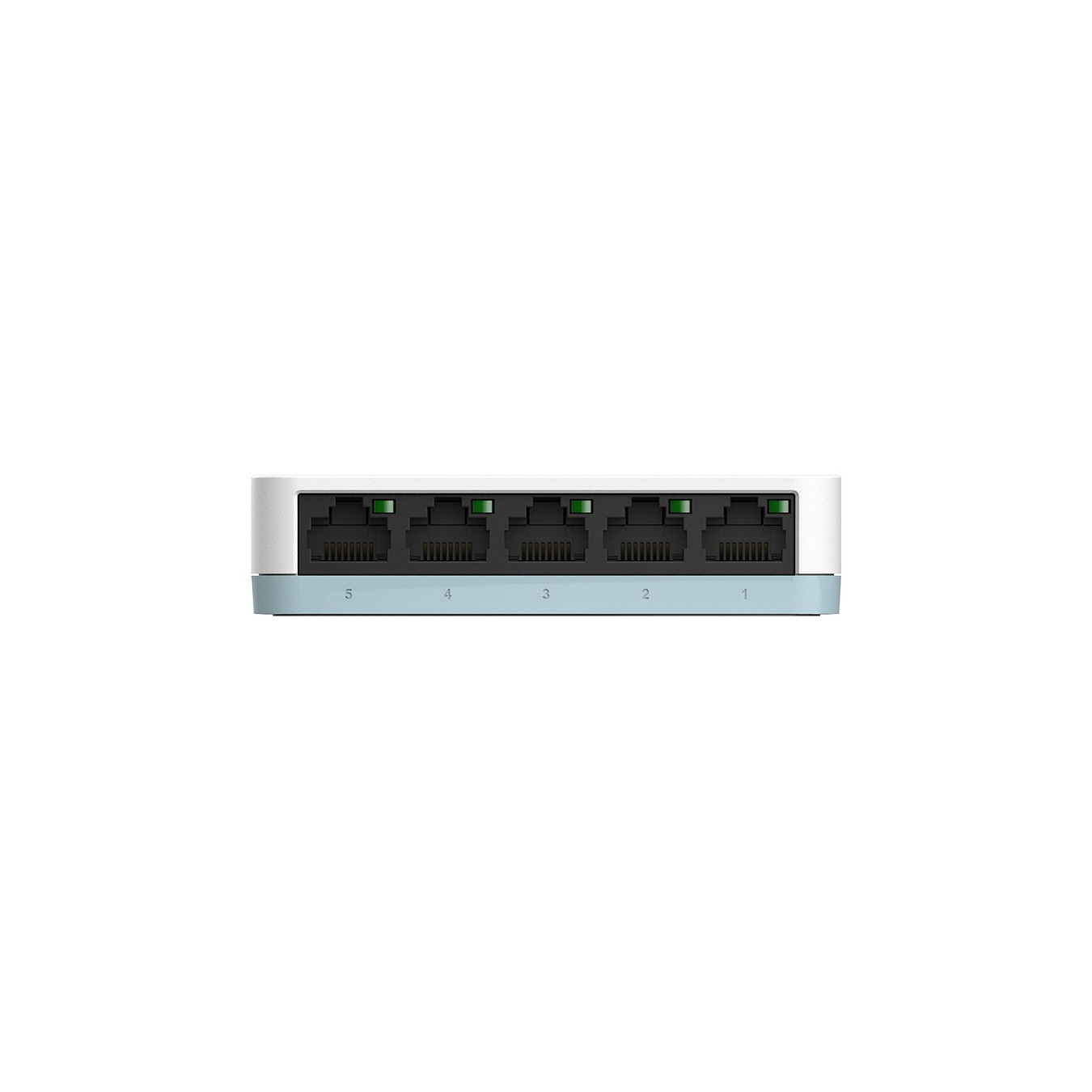

D-Link DGS-1005D - 5-Port Gigabit Unmanaged Switch - Black, Fanless
D-Link DGS-1005D — Unmanaged L2 5-port Gigabit switch (10/100/1000). Fanless, plug-and-play, 10 Gbps switching capacity, 5V DC input.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
D-Link DGS-1005D/E. Switch type: Unmanaged. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. DC input voltage: 5 V
| Switch type | Unmanaged |
| Switch layer | L2 |
| Feature | Manual |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.128 MB |
| Product colour | Black |
| Housing material | Plastic |
| Mean time between failures (MTBF) | 1142330 h |
| DC input voltage | 5 V |
| Input current | 1 A |
| Power consumption (max) | 2.01 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 111 mm |
| Depth | 75 mm |
| Height | 30 mm |
| Weight | 80 g |
| Harmonized System (HS) code | 85176990 |
