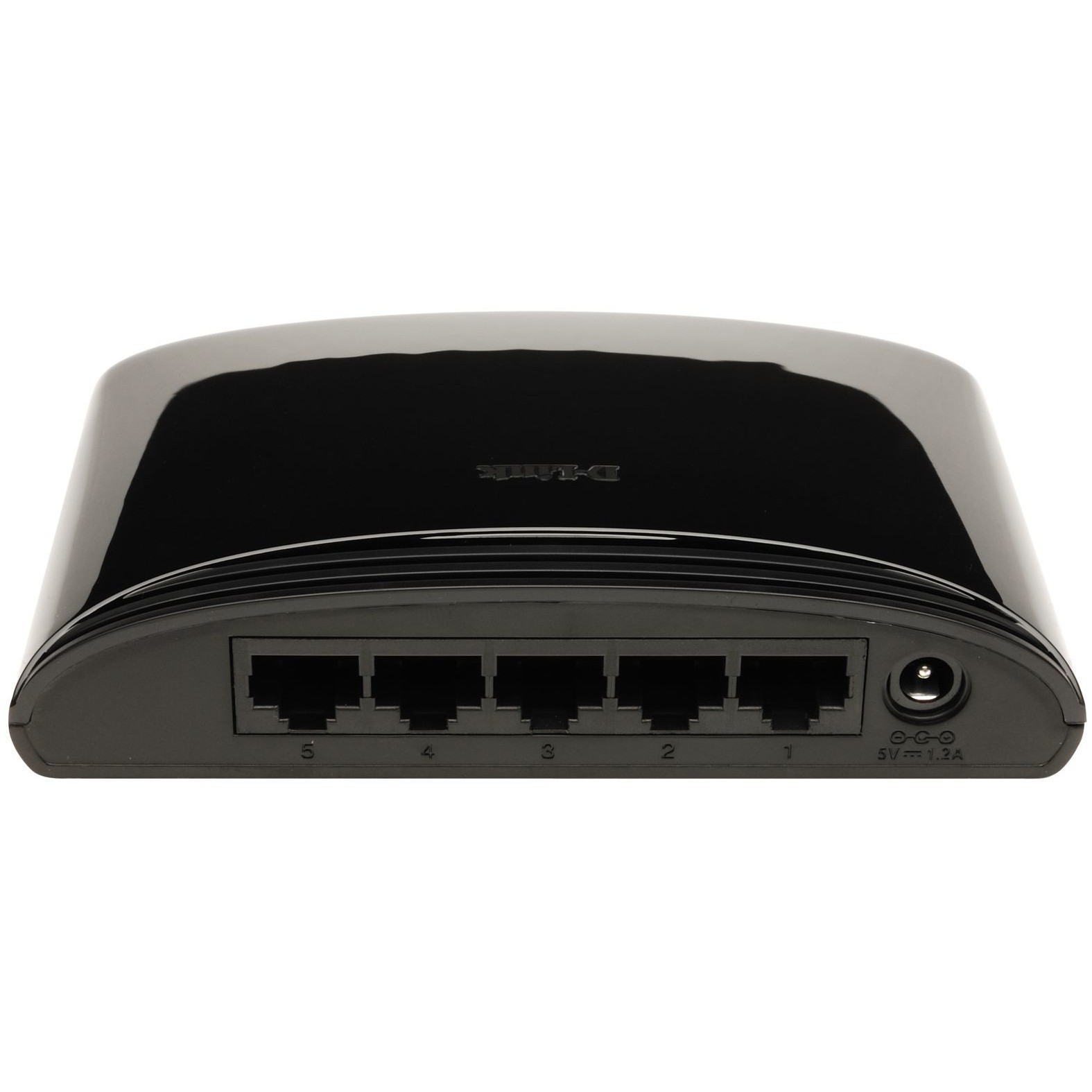

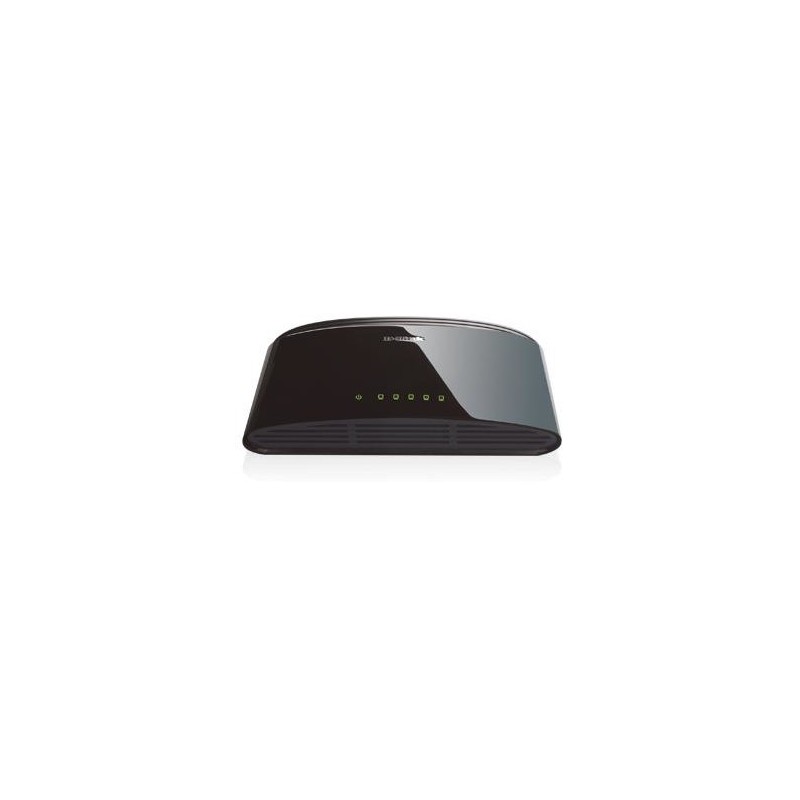

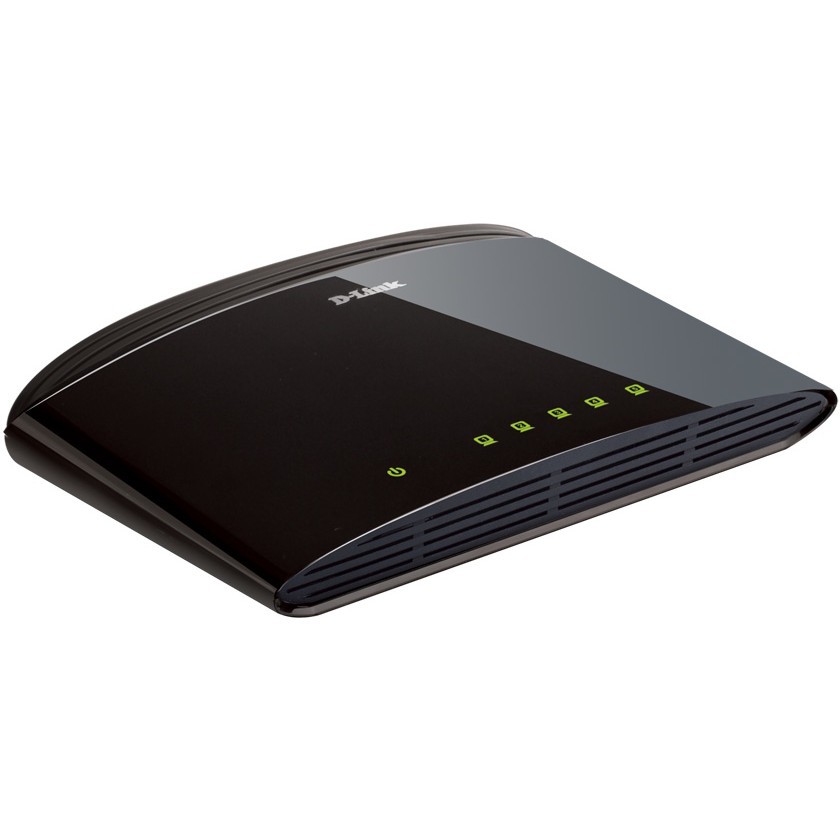

Fast Ethernet Switch - D-Link DES-1005D - 5-Port 10/100 Mbps Unmanaged, Black, Fanless
D-Link DES-1005D 5-port unmanaged Fast Ethernet switch (10/100 Mbps), full-duplex, 2000 MAC entries, 1 Gbit/s switching capacity, low power (~2.5W), plug-and-play.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | 10/100 (Fast Ethernet) |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
D-Link DES-1005D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3u. IEEE 802.3x. Power connector: DC-in jack
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 100Base-TX. 10Base-T |
| Cable types supported | Cat3. Cat4. Cat5. Cat5e |
| Feature | Manual |
| Supported data transfer rates | 10/20/100/200 Mb/s |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 0.1488 Mpps |
| MAC address table | 2000 entries |
| Maximum data transfer rate | 0.2 Gbit/s |
| Packet buffer memory | 0.046875 MB |
| Product colour | Black |
| LED indicators | LAN. Power |
| Power consumption (typical) | 2.5 W |
| Packet transfer speed | 14880 - 148800 p/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 8.528 BTU/h |
| Width | 125.3 mm |
| Depth | 83.4 mm |
| Height | 29.1 mm |
| Cables included | AC |
| Package width | 65 mm |
| Package depth | 105 mm |
| Package height | 98 mm |
| Package weight | 170 g |
| Shipping (inner) case height | 23 cm |
| Shipping (inner) case width | 35 cm |
| Shipping (inner) case length | 51.5 cm |
| Shipping (inner) case net weight | 8.5 kg |
| Products per shipping (inner) case | 50 pc(s) |
| Pallet gross weight (air) | 465.2 kg |
| Master (outer) cases per pallet (air) | 48 pc(s) |
| Products per pallet (air) | 2400 pc(s) |
| Pallet gross length | 110 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 197.5 cm |
| Pallet gross weight (sea) | 465.2 kg |
| Master (outer) cases per pallet (sea) | 48 pc(s) |
| Products per pallet (sea) | 2400 pc(s) |
| Pallet height (sea) | 197.5 cm |
| Shipping (inner) case gross weight | 9.25 kg |
| Certification | RoHS. FCC. CE |
| Harmonized System (HS) code | 85176990 |
