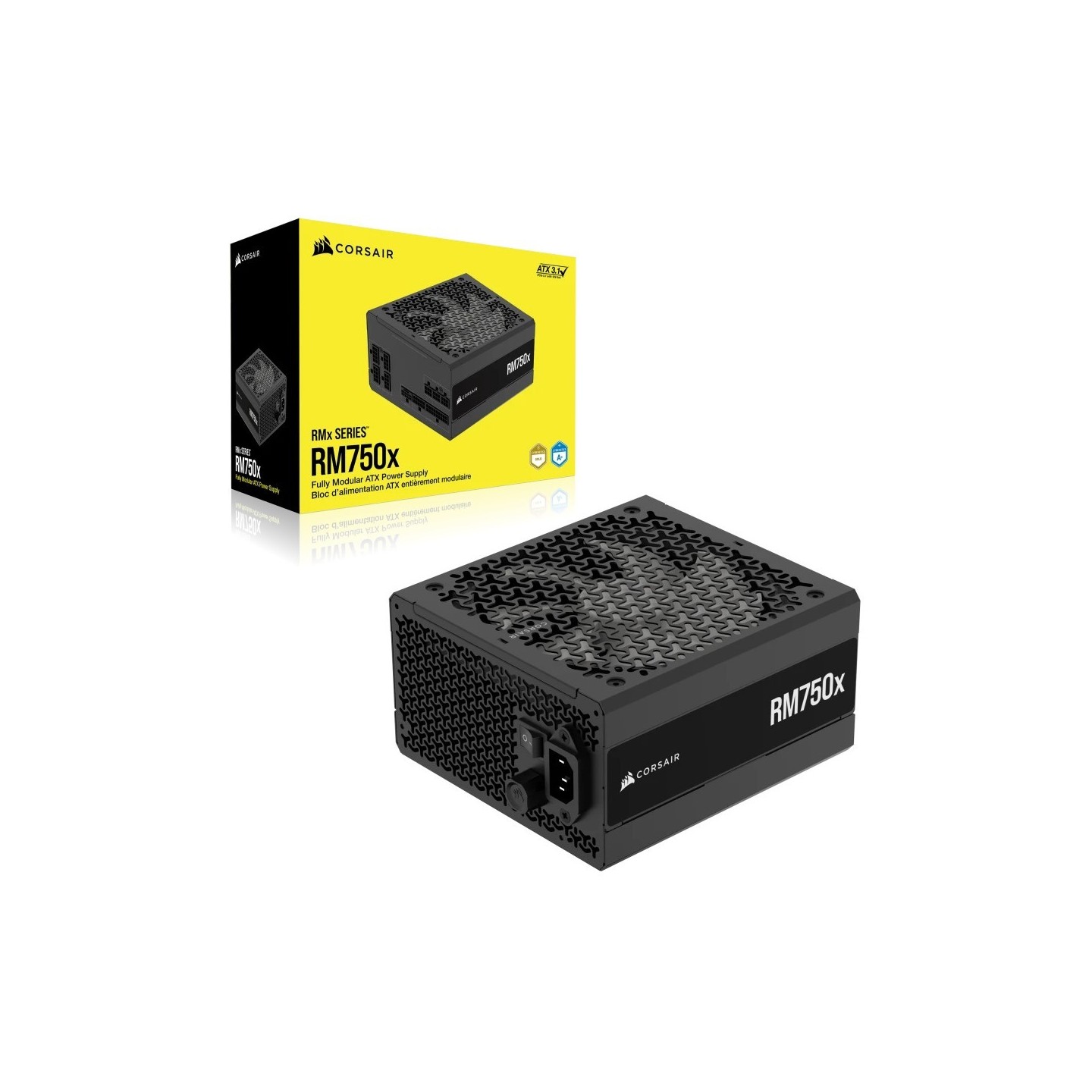

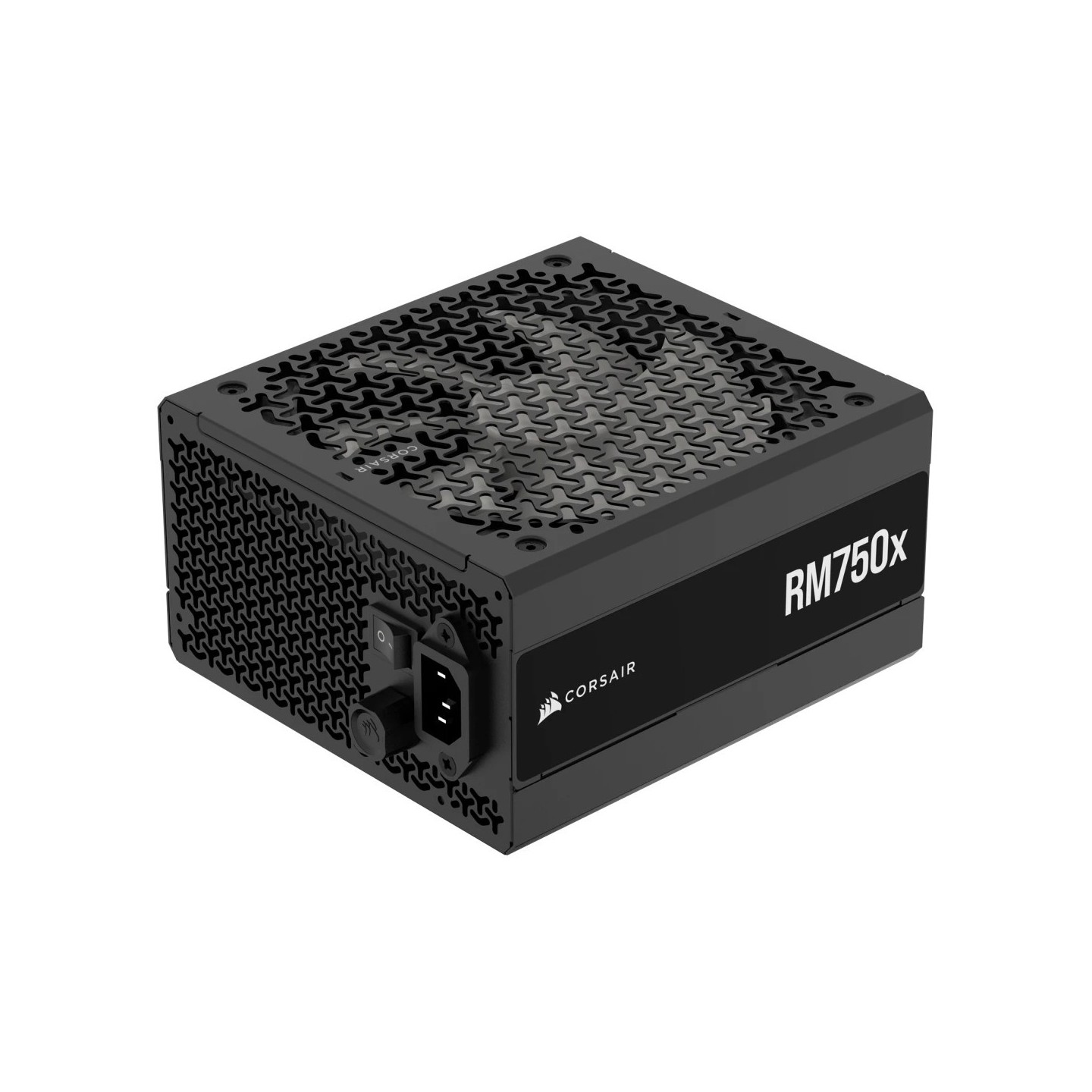

Corsair RM750x 750W 80 PLUS Gold Fully Modular ATX Power Supply - RM750x (2024) (Boxed)
Corsair RM750x 750W ATX PSU: 80 PLUS Gold efficiency, fully modular cables, ATX 3.1/PCIe 5.1 compliant with 12VHPWR, Zero RPM 140mm fan, Japanese capacitors, 10-year warranty for reliable PC builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12VHPWR 16-pin 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Corsair RM750x (2024) is a premium 750W fully modular ATX power supply designed for high-performance gaming and workstation PCs. Certified 80 PLUS Gold for up to 90%+ efficiency at typical loads, it minimizes heat and energy waste while delivering stable power across all rails. Compliant with modern ATX 3.1 and PCIe 5.1 standards, it includes a native 12+2 pin (12VHPWR) connector rated for 600W GPUs, plus 4x 6+2 pin PCIe cables.

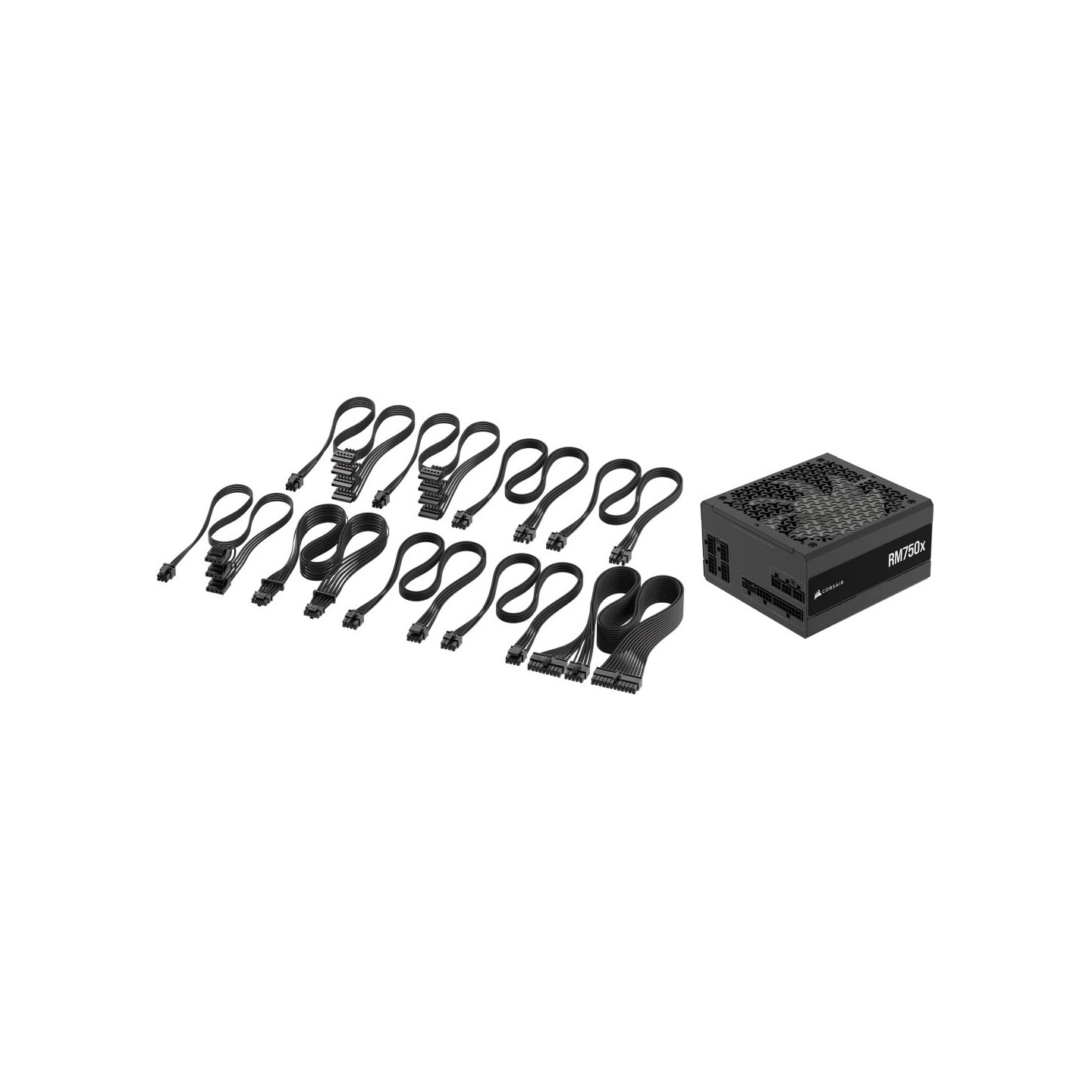

Featuring a quiet 140mm rifle bearing fan with Zero RPM mode for silent operation under light loads, adjustable fan speed knob, and premium Japanese 105°C-rated capacitors for long-term reliability. Fully modular Type 5 micro-fit cables simplify installation and airflow. Includes comprehensive protections (OVP/UVP/OCP/OPP/SCP) and fan failure detection. Backed by a 10-year warranty.
- Key Connectors: 2x EPS/ATX12V 4+4 pin, 4x PCIe 6+2 pin, 1x 12VHPWR 12+2 pin, 8x SATA, 7x Molex 4-pin
- Performance: Excellent voltage regulation (<1% deviation), low ripple, Cybenetics Gold efficiency & A- noise[1][4]
- Dimensions (unit): 150x86x160mm, 3.19kg
- Input: 100-240V universal, active PFC
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+12V) | 750 W |
| Max output current (+12V) | 62.5 A |
| Motherboard power connector | 24-pin ATX |
| CPU power connector | 2x 4+4-pin EPS/ATX12V |
| PCIe power connectors | 4x 6+2-pin + 1x 12+2-pin (12VHPWR) |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| PCIe version | 5.1 |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Zero RPM Mode | Yes |
| Japanese Capacitors | 105°C rated |
| Warranty period | 10 year(s) |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.19 kg |
| Compliance certificates | RoHS |
