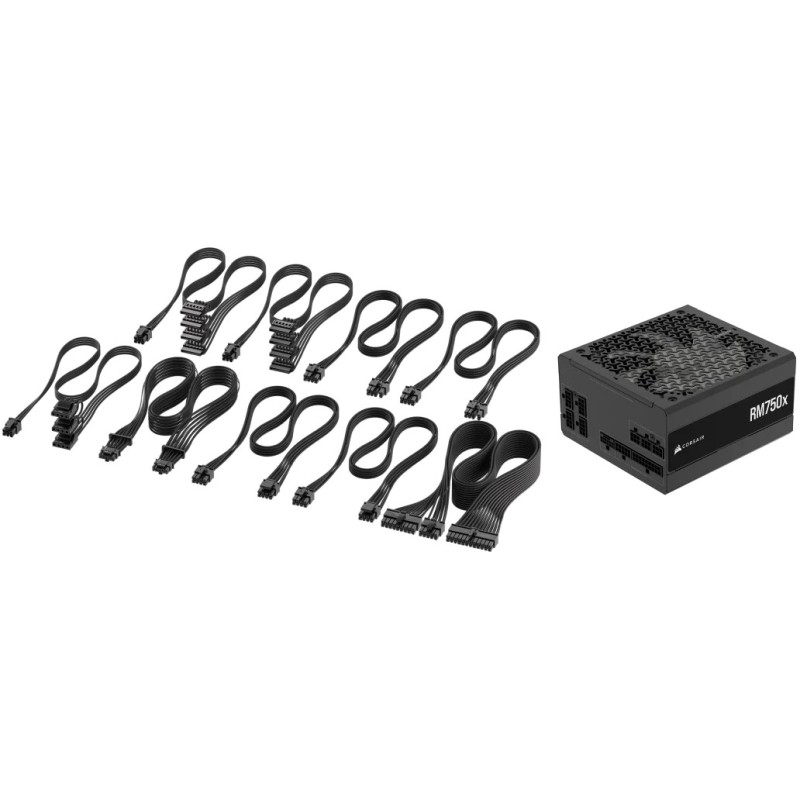

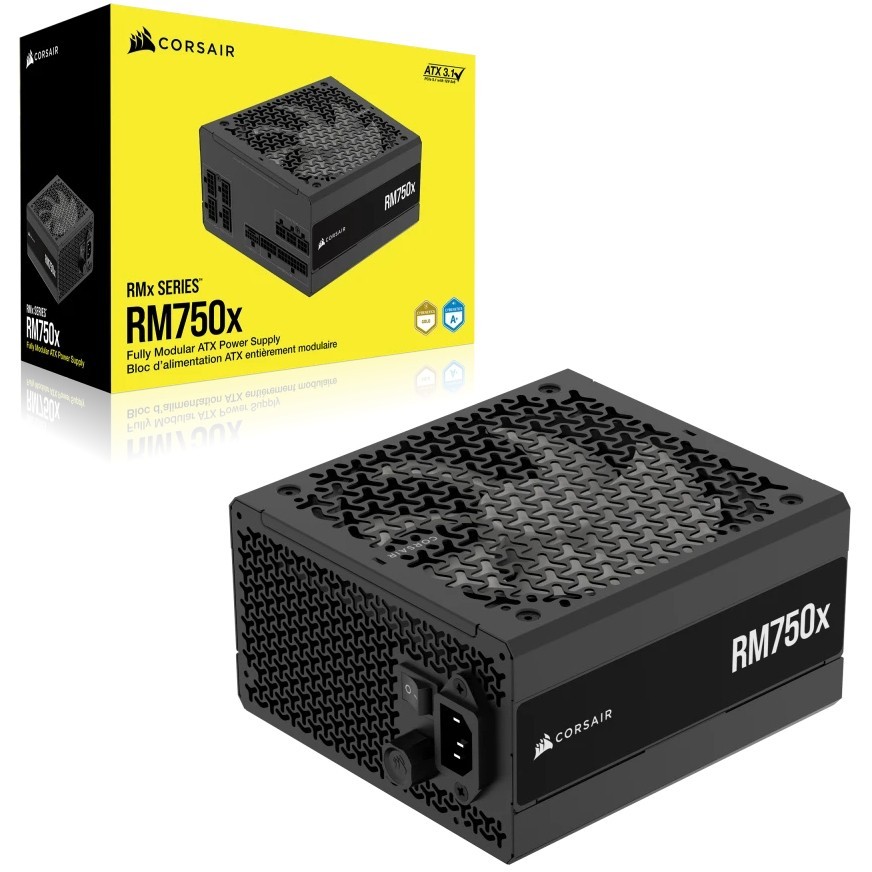

Corsair RMx RM750x - RM750x - 750W 80 PLUS Gold, Fully-Modular, 140mm Fan, Black
750W ATX power supply, 80 PLUS Gold efficiency, fully-modular cables, 140mm active fan, 100–240V input, reliable OEM components for high-performance PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - Fan Size | 140 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
Corsair RMx Series RM750x. Total power: 750 W. AC input voltage: 100 - 240 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Cabling type: Fully-Modular. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 14 cm. Compliance certificates: RoHS
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| Feature | On/off switch |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Compliance certificates | RoHS |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.19 kg |
| Package type | Box |
| Warranty period | 10 year(s) |
