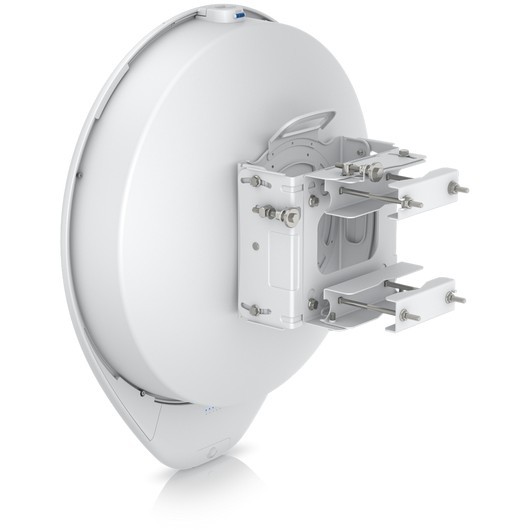

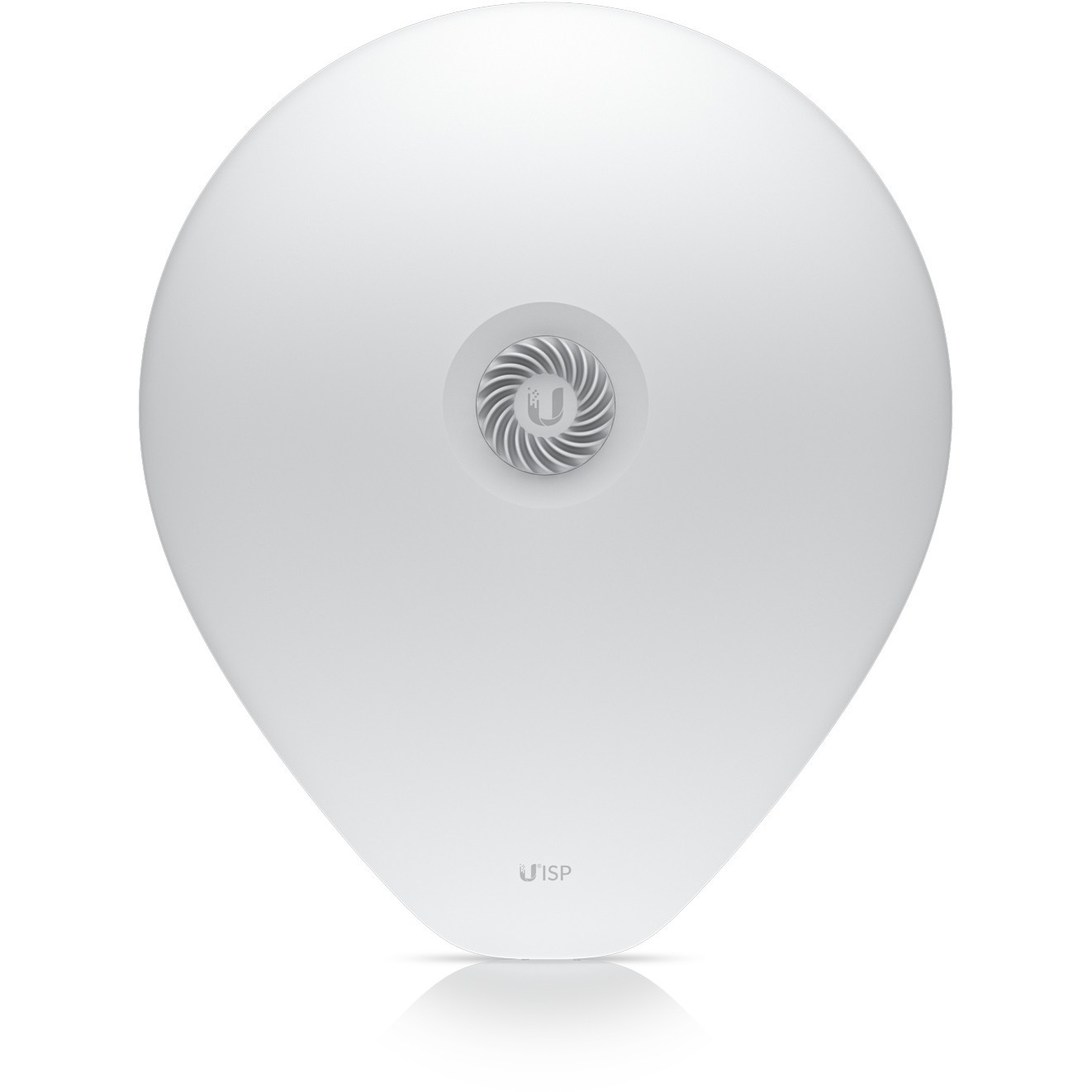

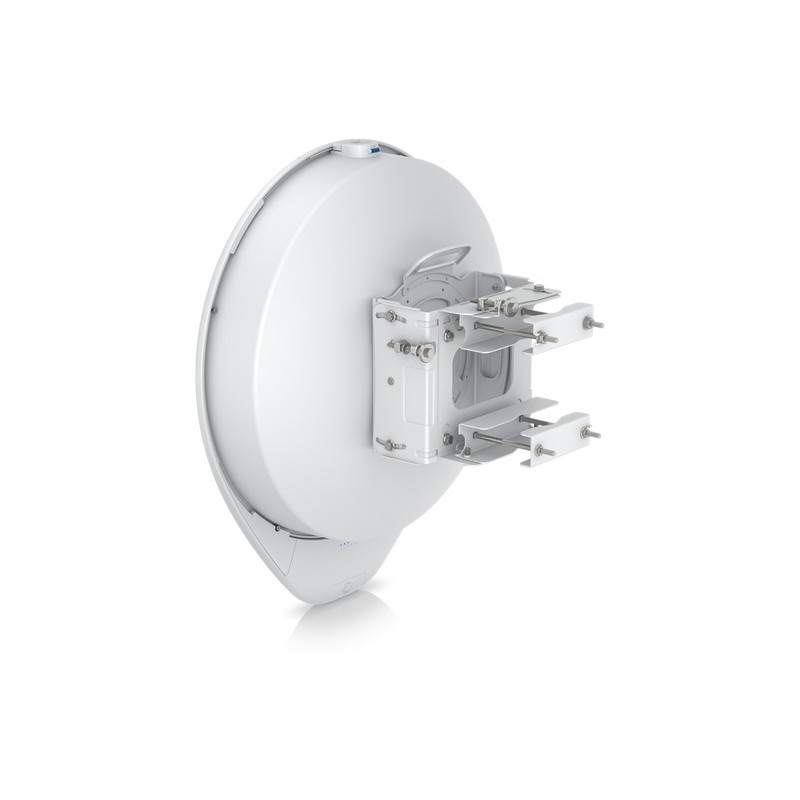

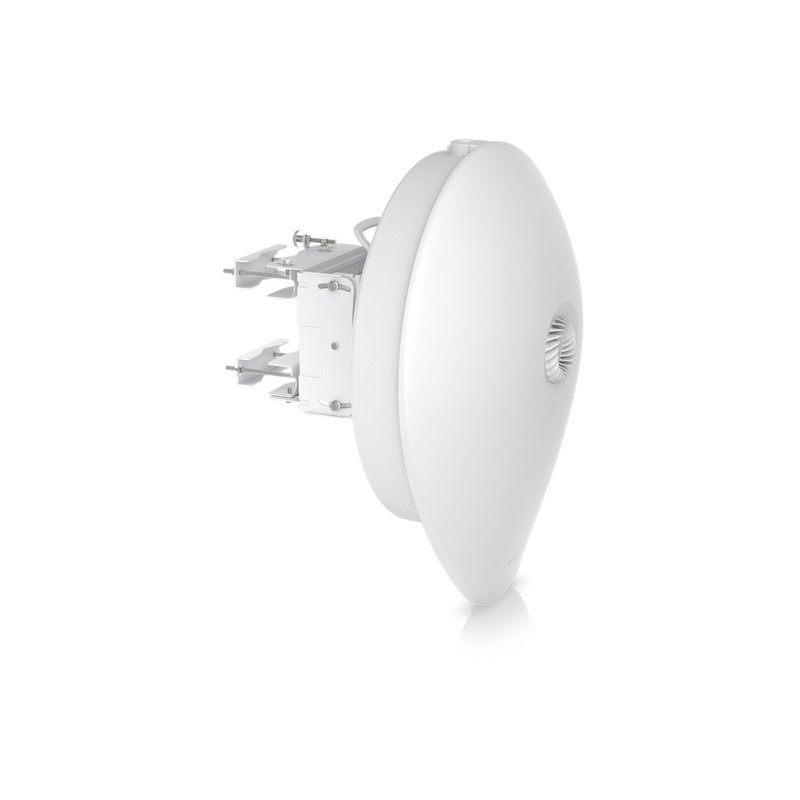

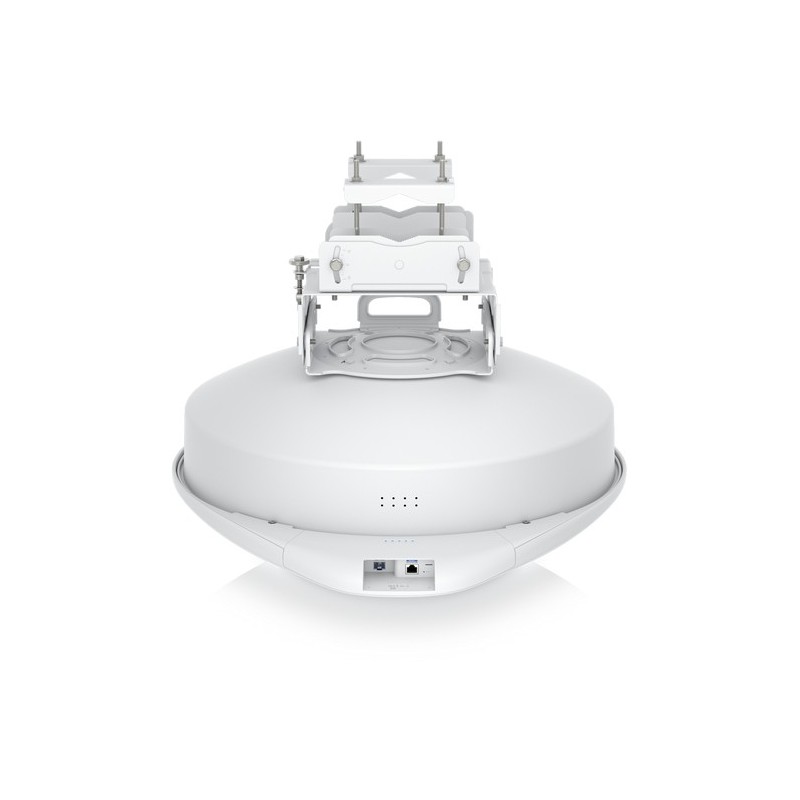

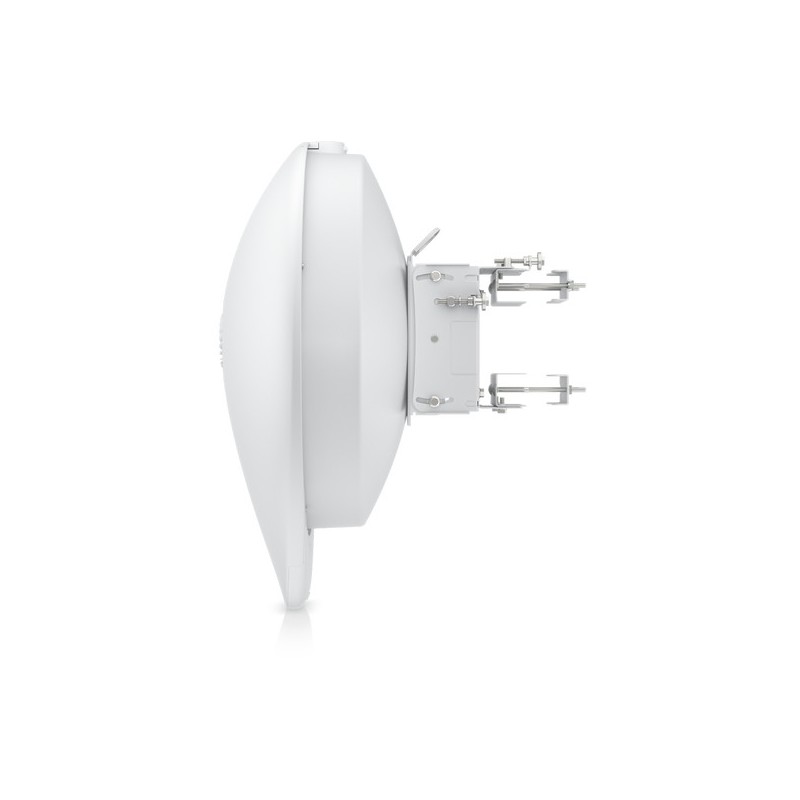

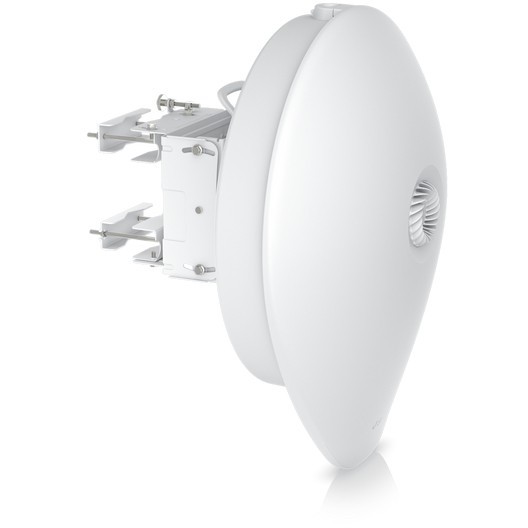

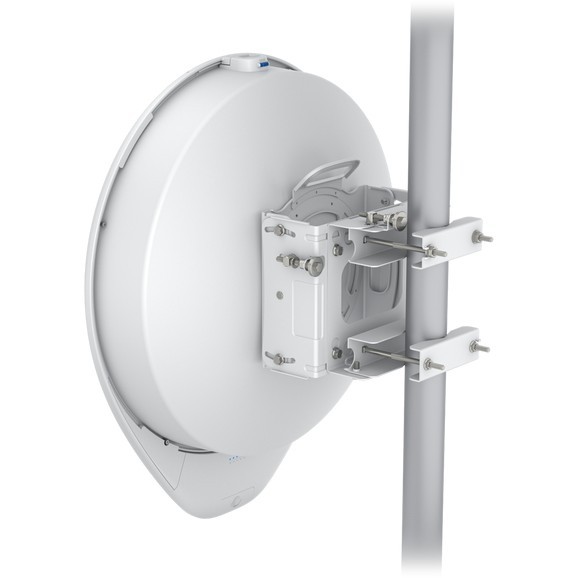

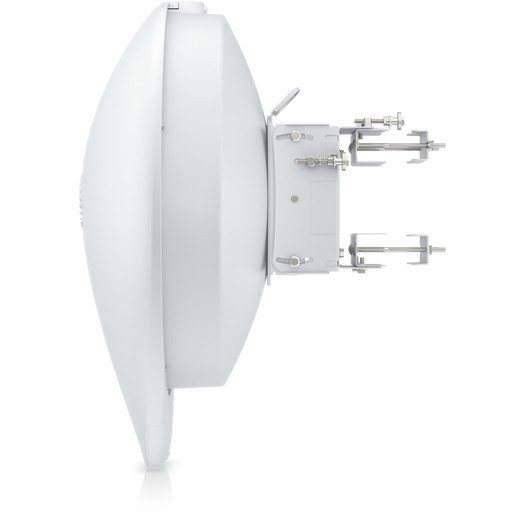

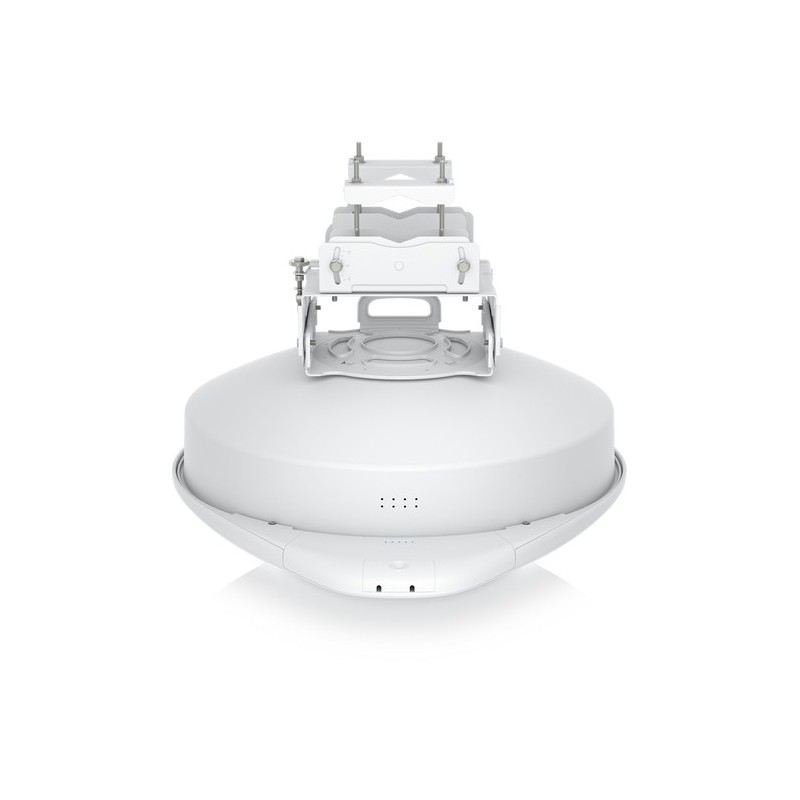

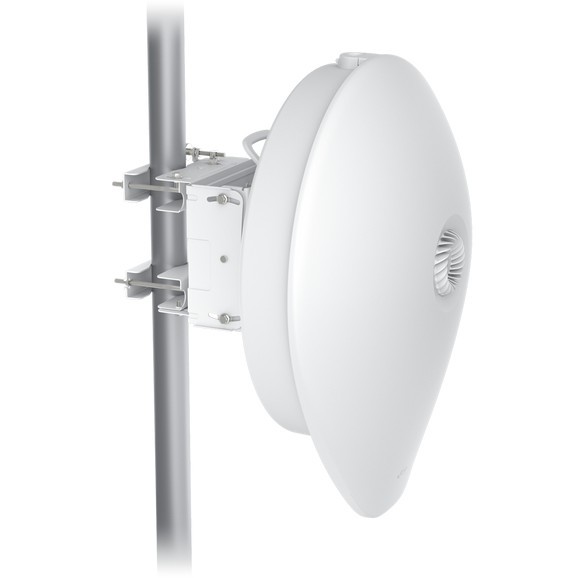

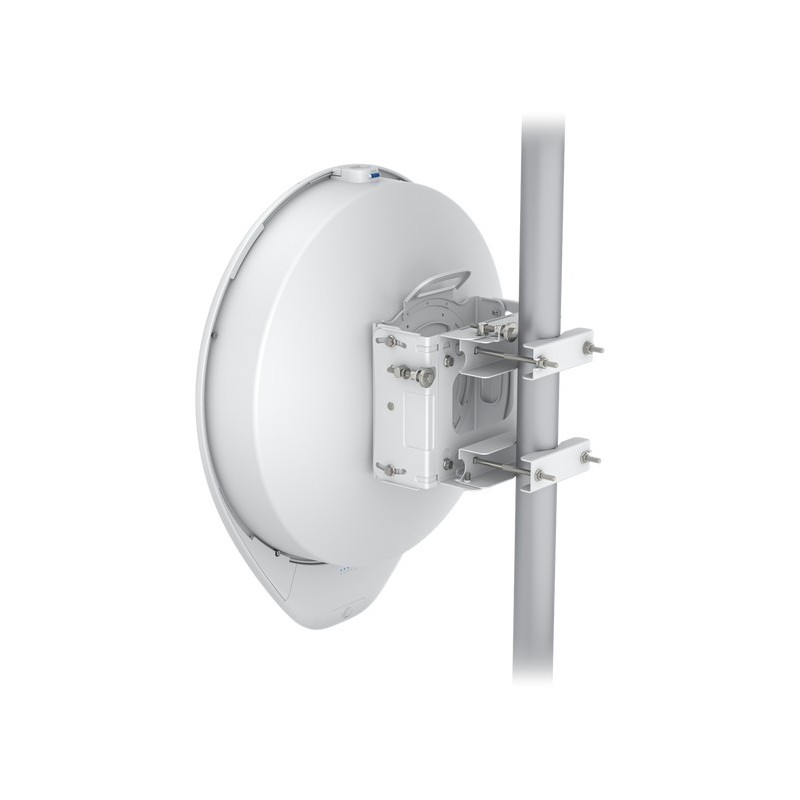

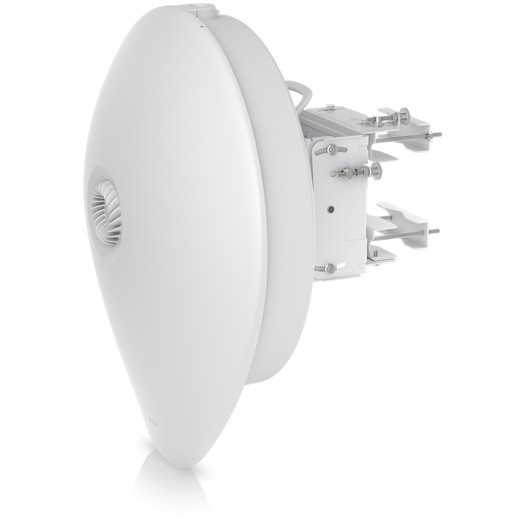

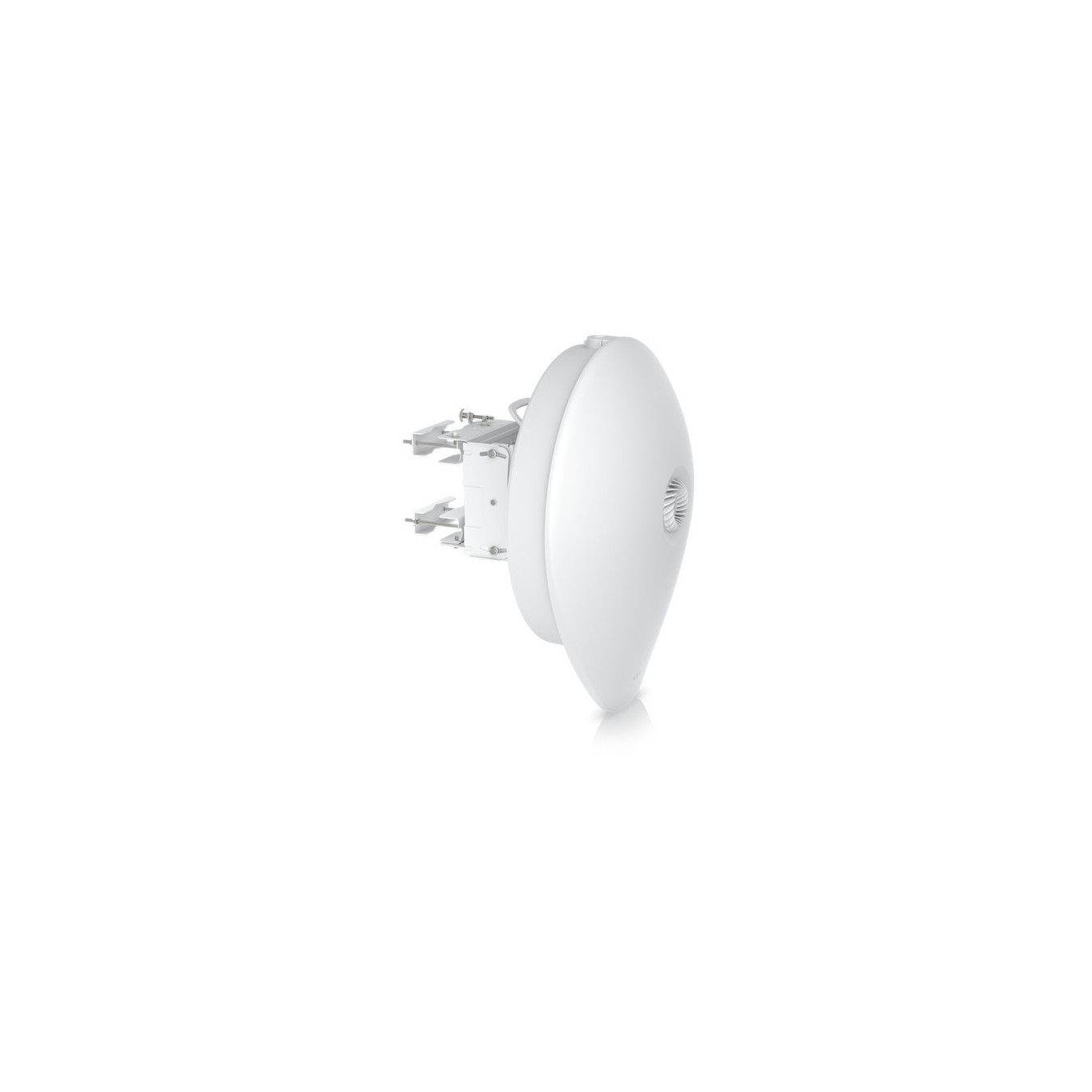

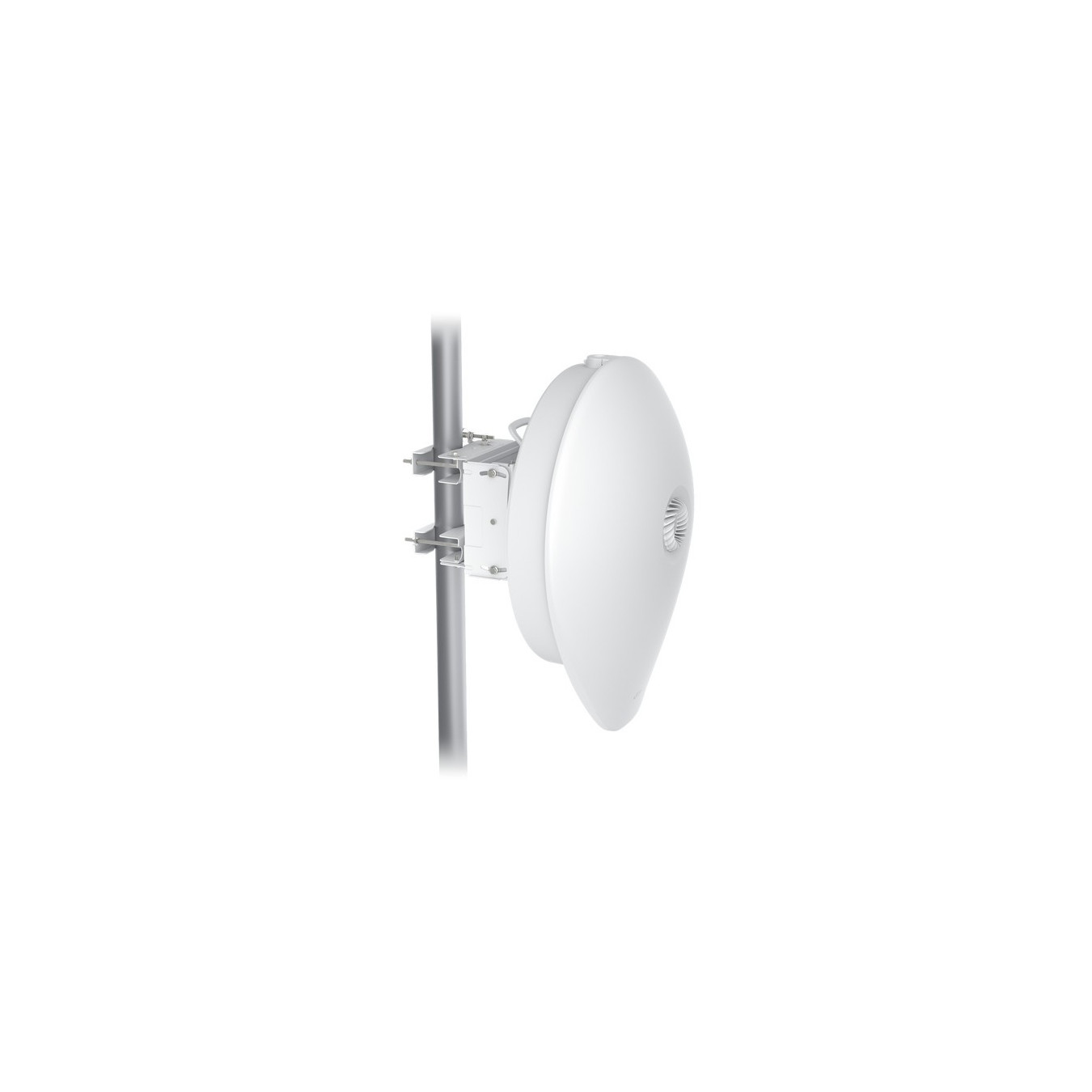

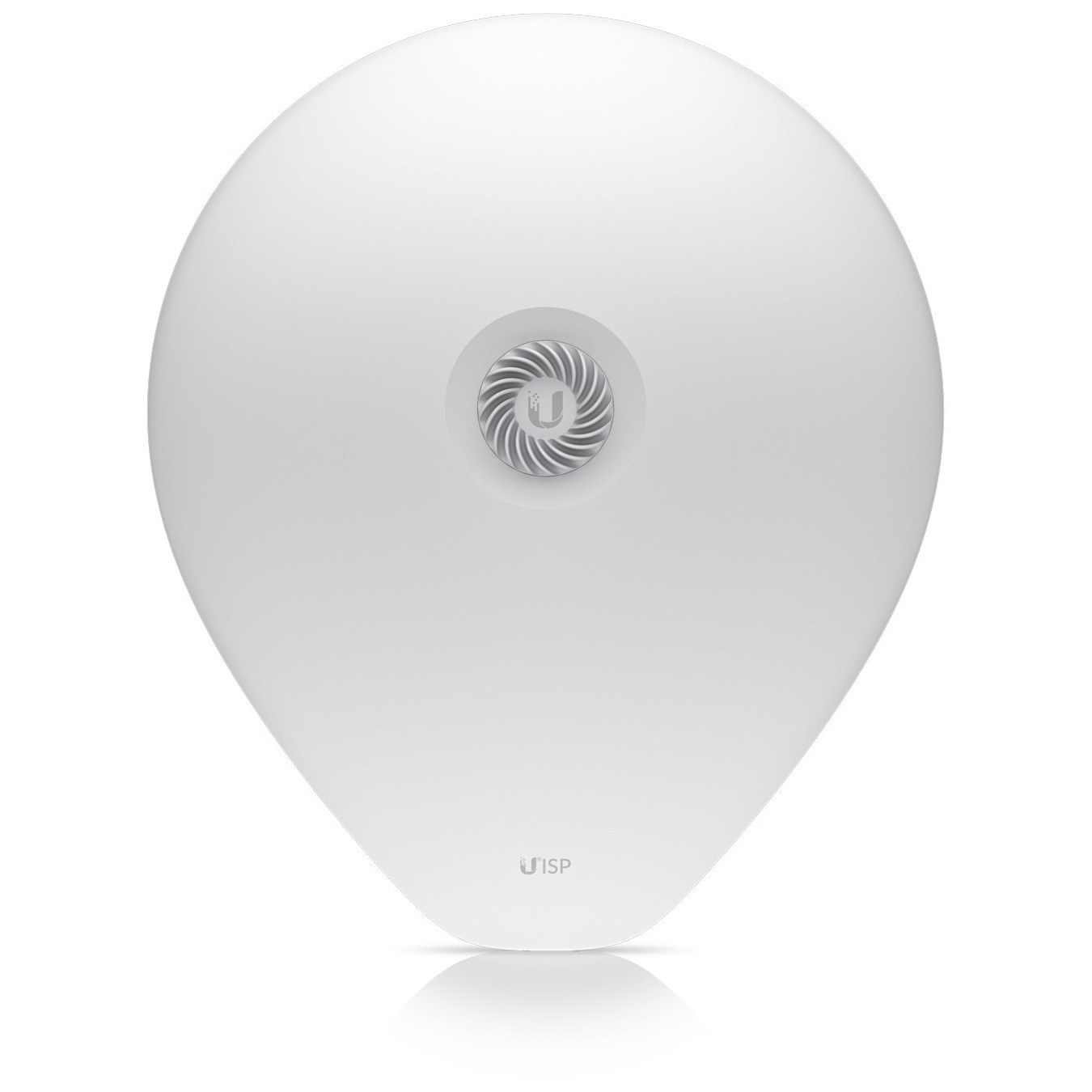

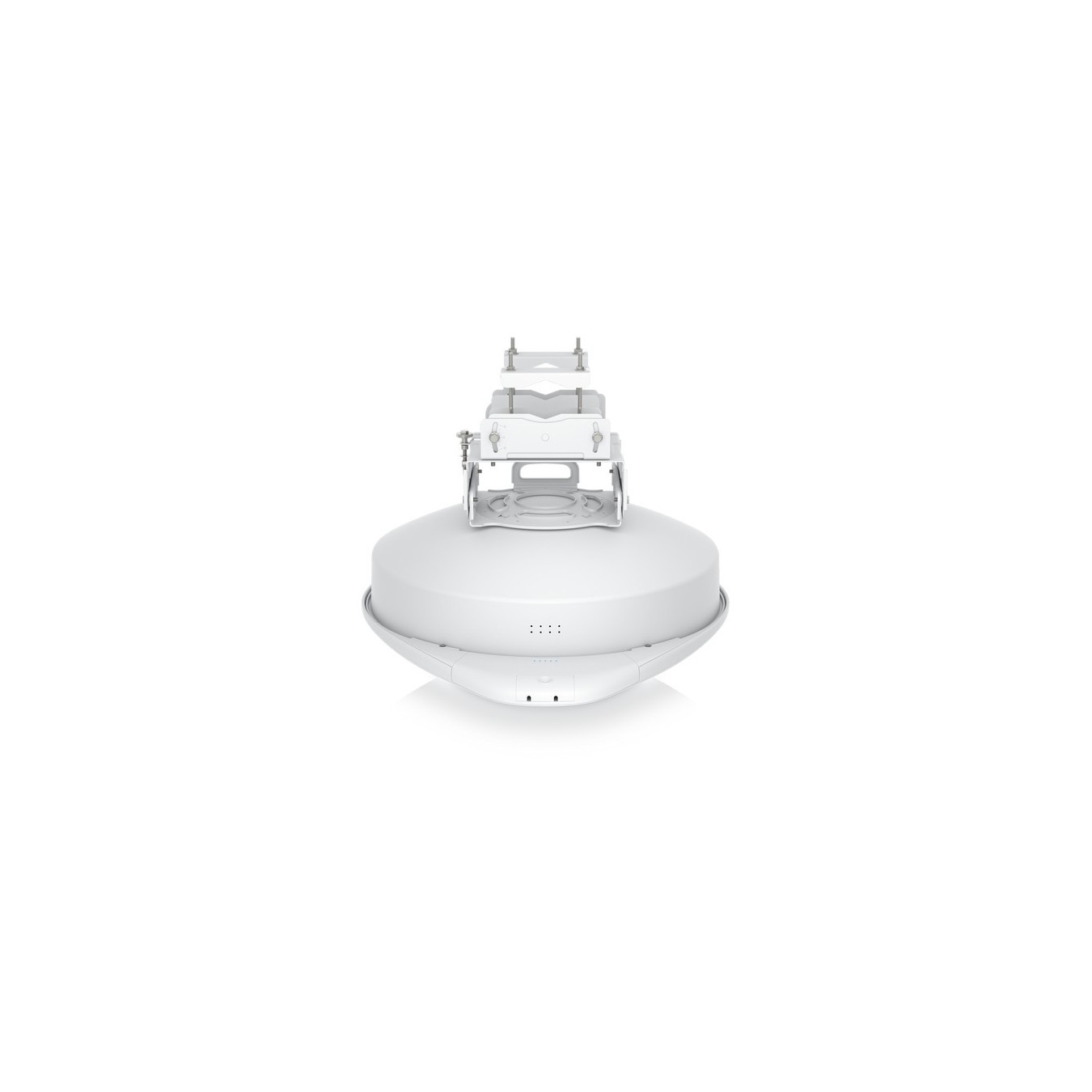

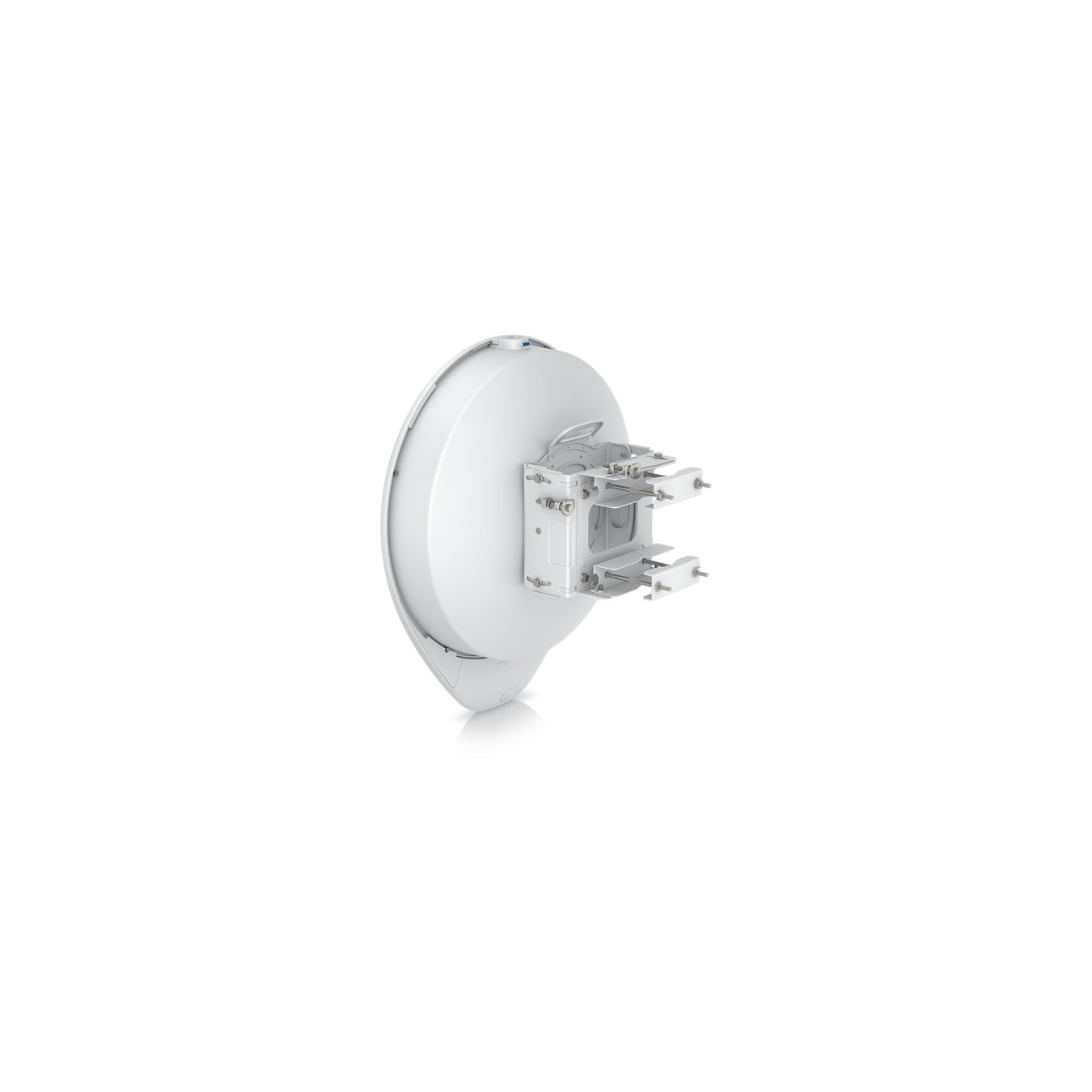

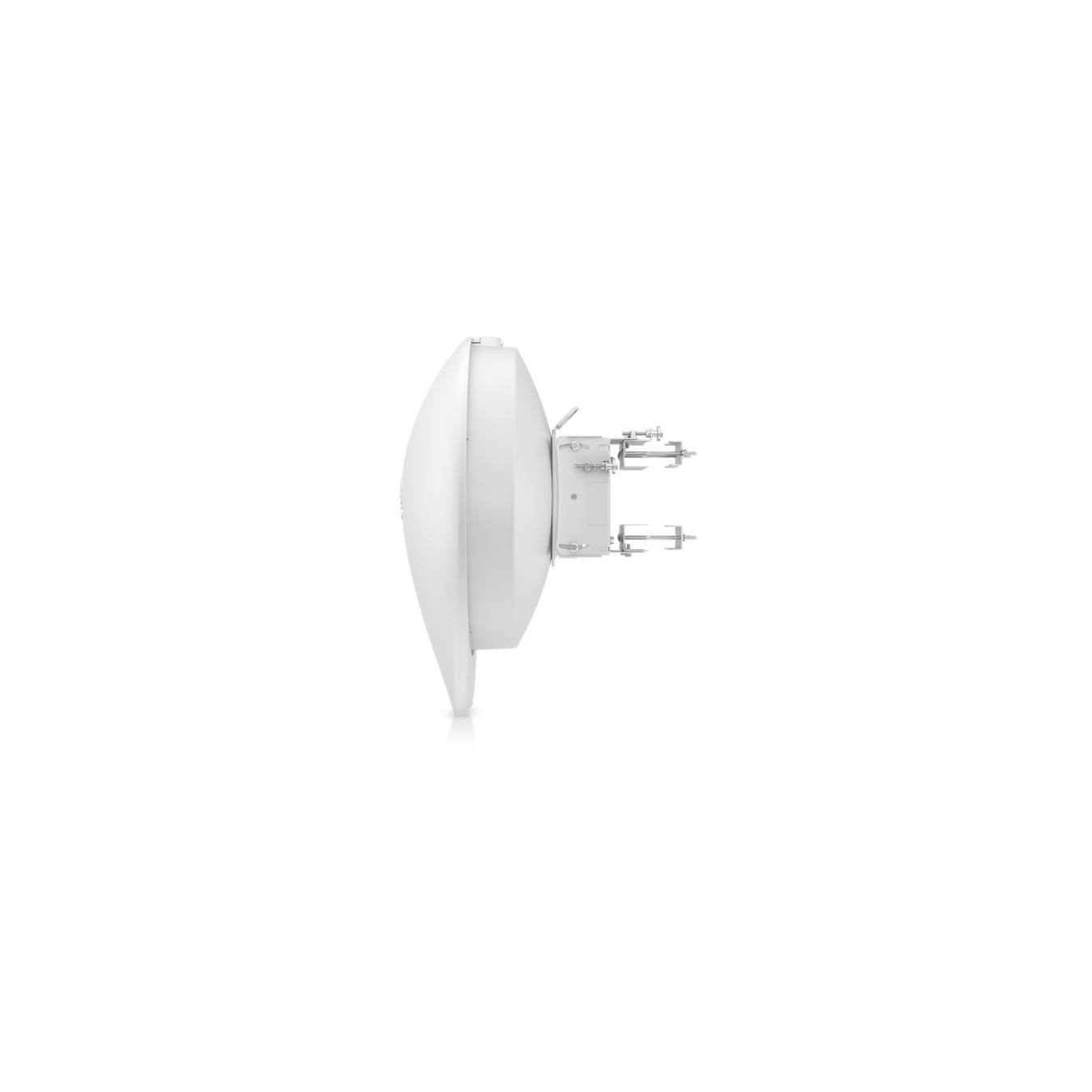

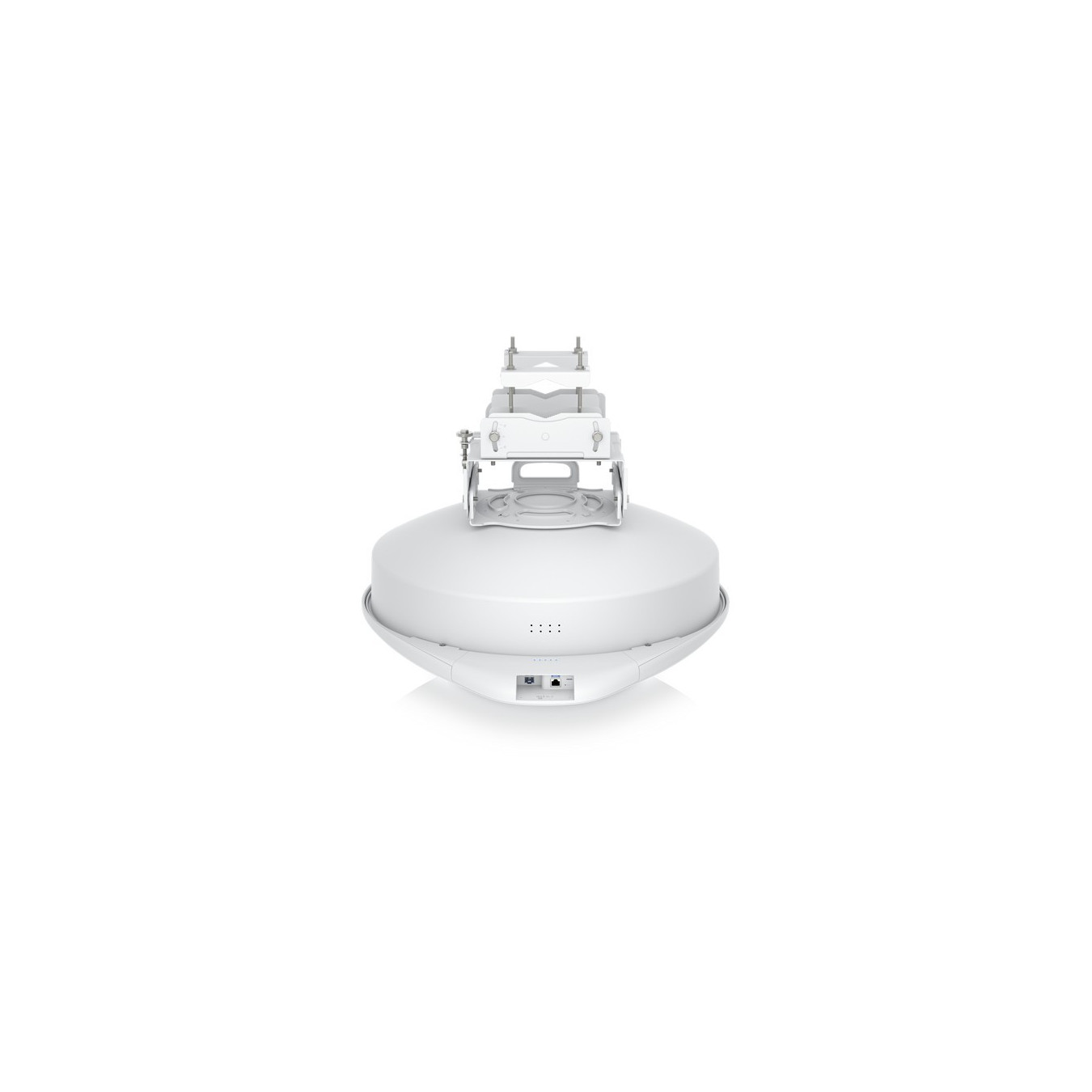

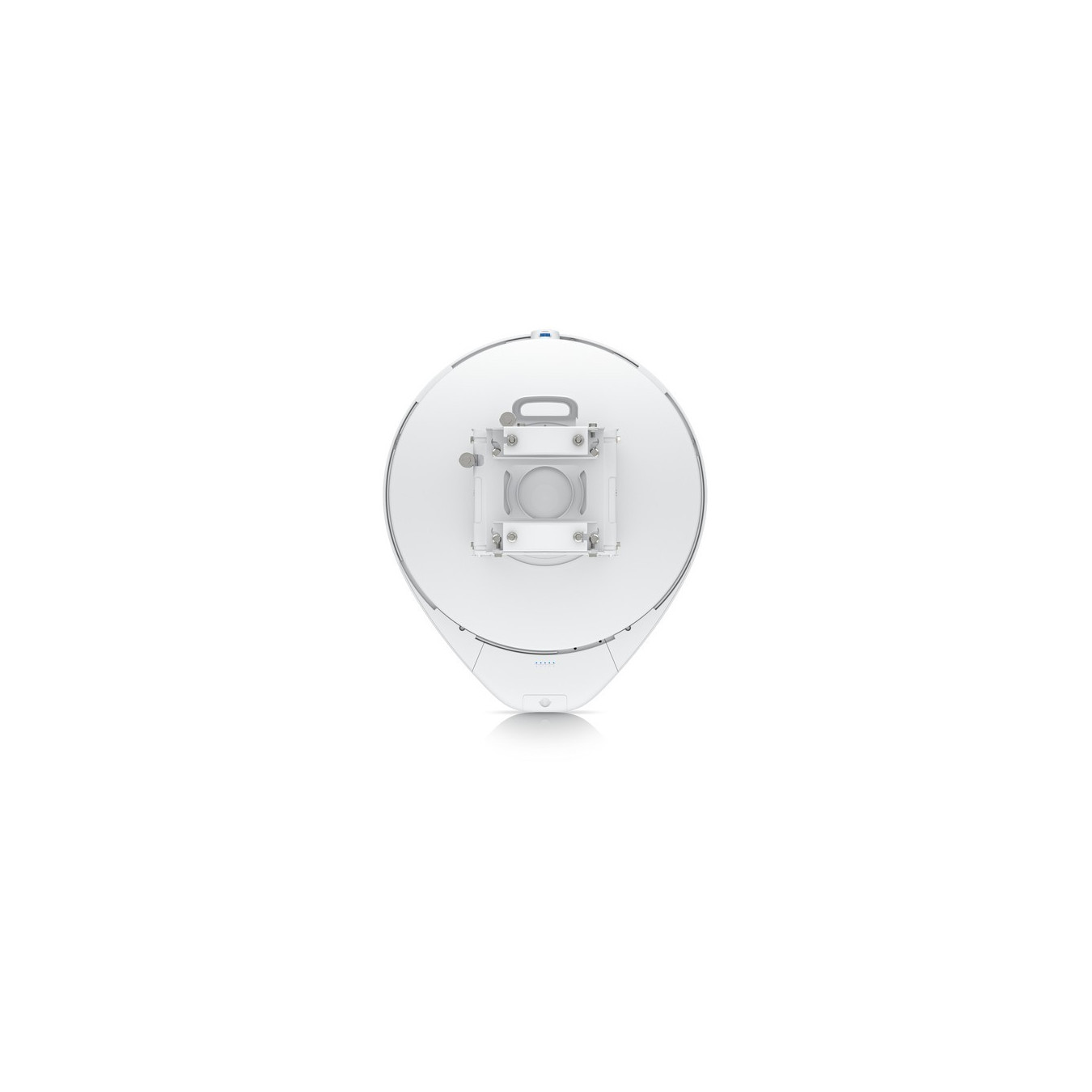

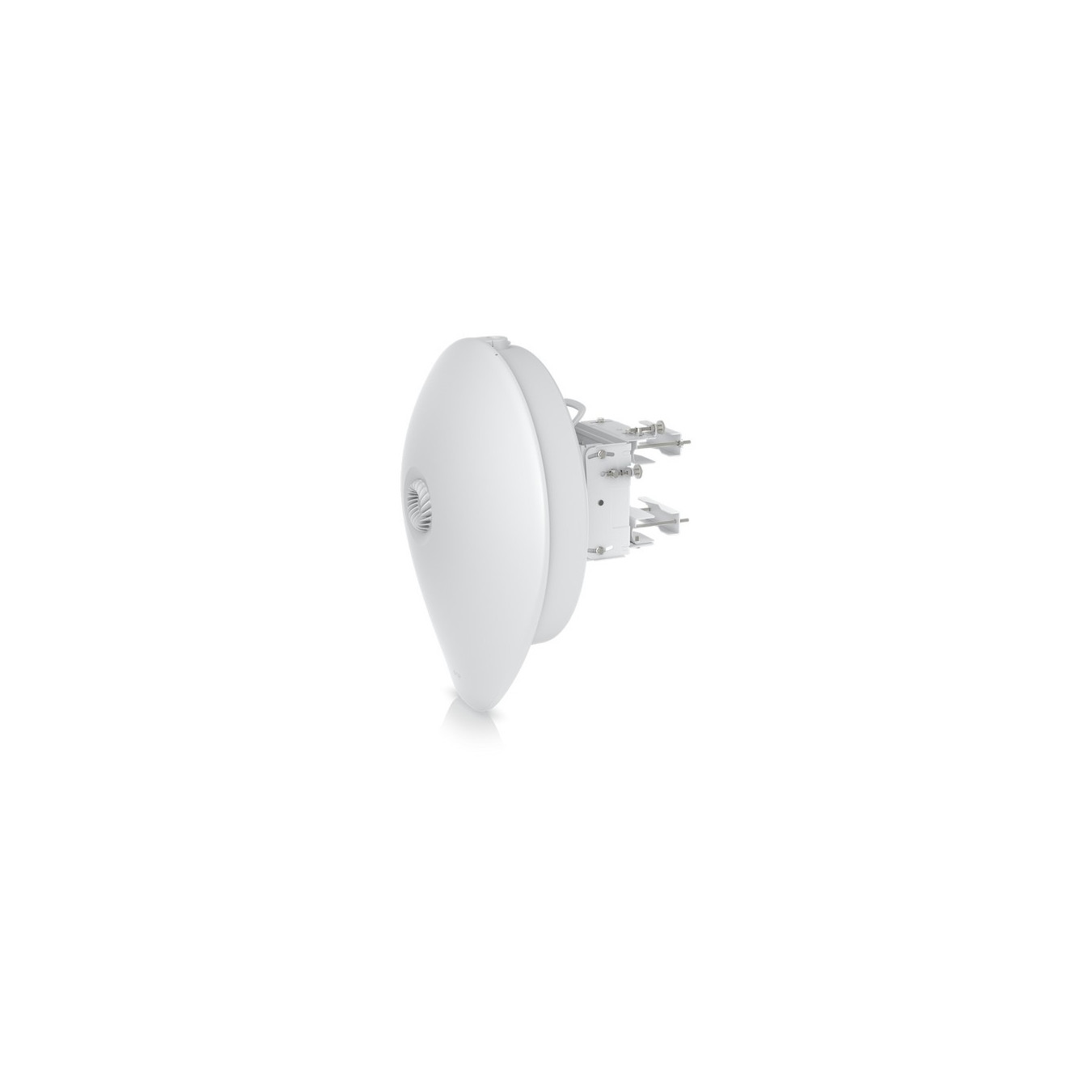

Ubiquiti airFiber AF60-XR - 60 GHz PtP Bridge, White, 1GB RAM, 1400 MHz CPU, GigE
High-performance 60 GHz Ubiquiti airFiber AF60-XR point-to-point bridge with up to 4 km range, 26 dBi antenna gain, Gigabit Ethernet and PoE power (IPX6 rated).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Wireless Bridges - Type | Point-to-Point (PtP) |
|---|---|
| Wireless Bridges - Frequency | 60 GHz (mmWave) |
| Wireless Bridges - Range | 1-5 km |

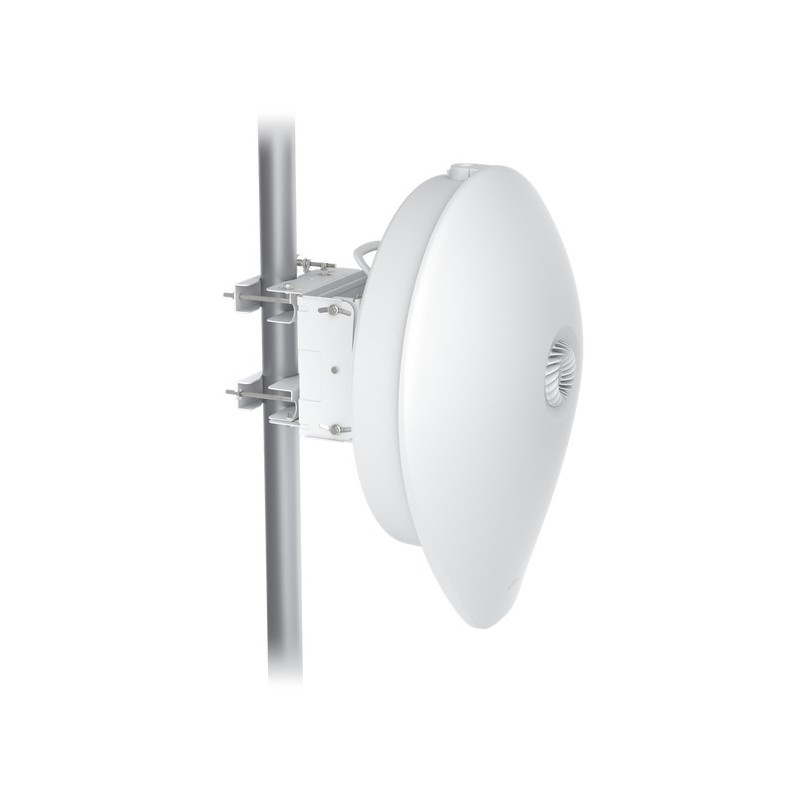

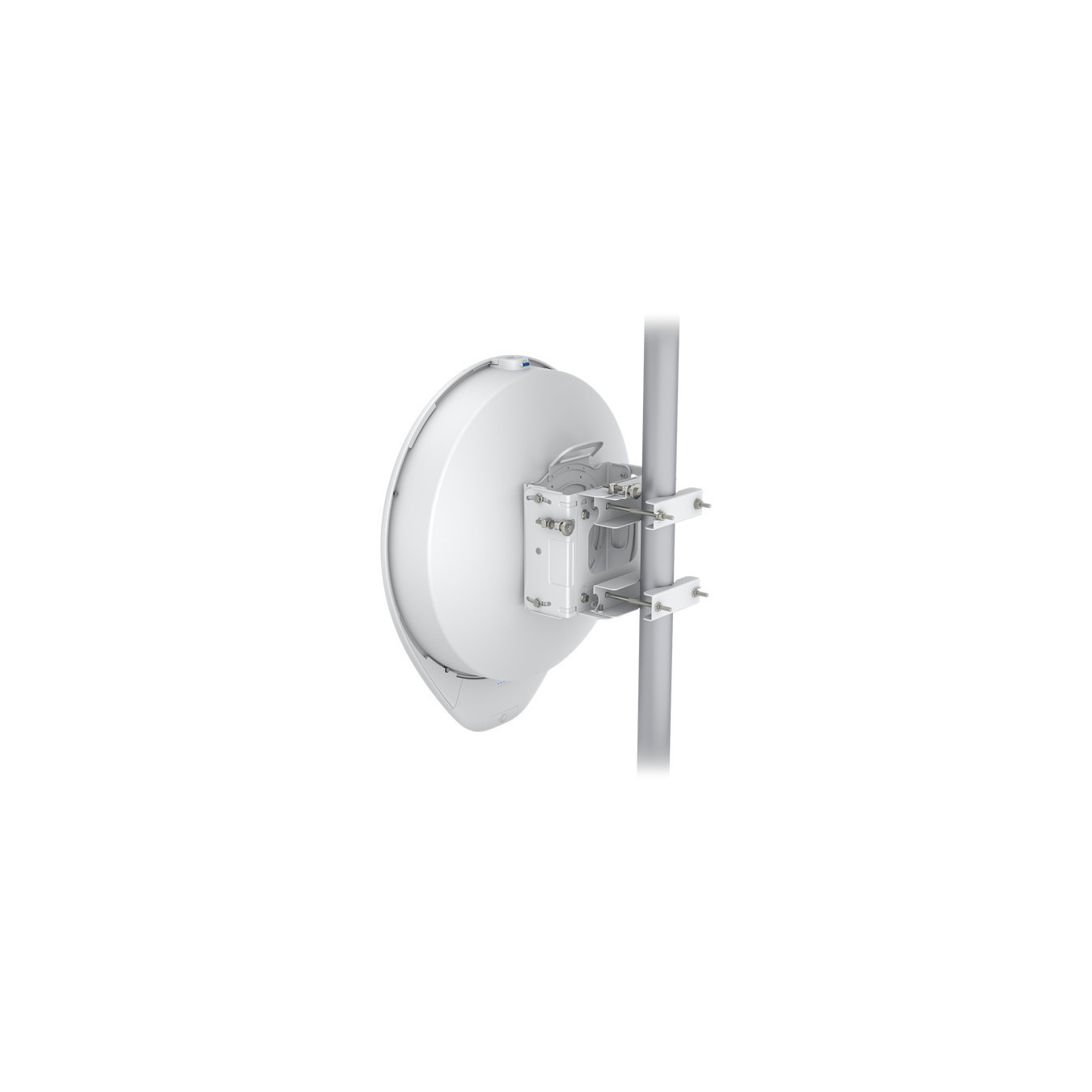

| Wireless Bridges - Mounting | Pole |
Ubiquiti UISP airFiber 60 XR. Maximum transfer distance: 4000 m. Antenna design: External. Antenna gain level (max): 26 dBi. Modulation: 16-QAM. BPSK. QPSK. Ethernet LAN interface type: Gigabit Ethernet. Ethernet LAN data rates: 1000 Mbit/s. Connectivity technology: Wired
| Maximum transfer distance | 4000 m |
| Antenna design | External |
| Antenna gain level (max) | 26 dBi |
| Modulation | 16-QAM. BPSK. QPSK |
| Feature | Manual |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Security algorithms | WPA2-PSK |
| Product type | Network bridge |
| Material | Polycarbonate (PC). Steel |
| Mounting type | Pole |
| Product colour | White |
| LED indicators | LAN. Power |
| International Protection (IP) code | IPX6 |
| Processor frequency | 1400 MHz |
| Processor manufacturer | Qualcomm |
| Internal memory | 1024 MB |
| RAM type | DDR3 |
| Compatible operating systems | Any modern web browser/iOS™ or Android™ based smartphone |
| Power source type | PoE |
| Power consumption (max) | 24 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Operating temperature (T-T) | -40 - 131 °F |
| Operating relative humidity (H-H) | 5 - 95% |
| Certification | FCC. IC. CE |
| Width | 779 mm |
| Depth | 664 mm |
| Height | 383 mm |
| Weight | 8.6 kg |
| Quantity per pack | 1 pc(s) |
