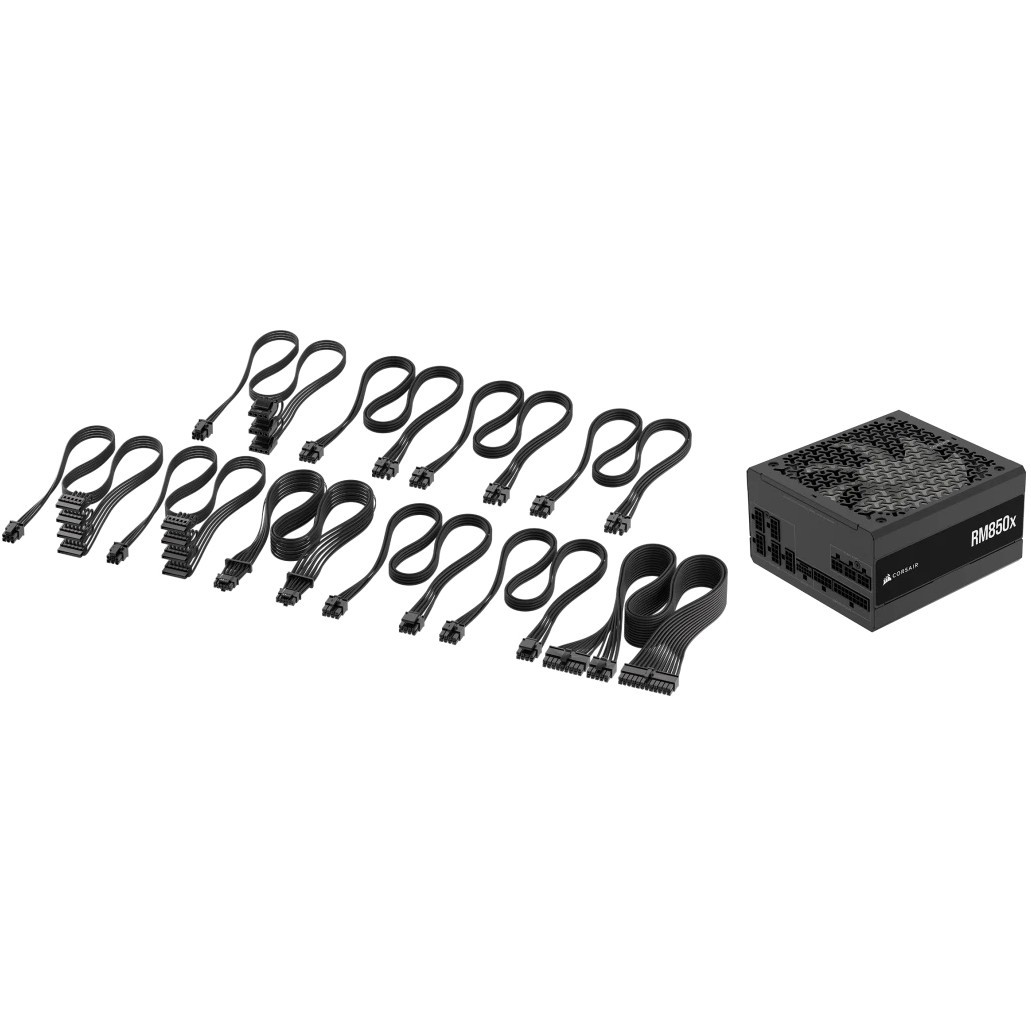

Corsair RMx RM850x - 850W 80 PLUS Gold ATX Power Supply - Black, 140mm Fan
850W ATX PSU, 80 PLUS Gold efficiency, 100–240 VAC (47–63 Hz), 140mm active fan, 24-pin ATX connector, multi-protection (OCP/OPP/OVP/OTP/SCP).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 850 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - Fan Size | 140 mm |
Corsair RMx Series RM850x. Total power: 850 W. AC input voltage: 100 - 240 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 61 cm. SATA power cable length: 455.570.685.800 mm. Purpose: PC/Server. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 14 cm. Cables included: AC. DC
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 150 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 455.570.685.800 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 450.550.650.750 mm |
| Feature | Cable tie(s) included |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 75 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Cables included | AC. DC |
| Compliance certificates | Low Voltage Directive (LVD). RoHS. UKCA |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.28 kg |
