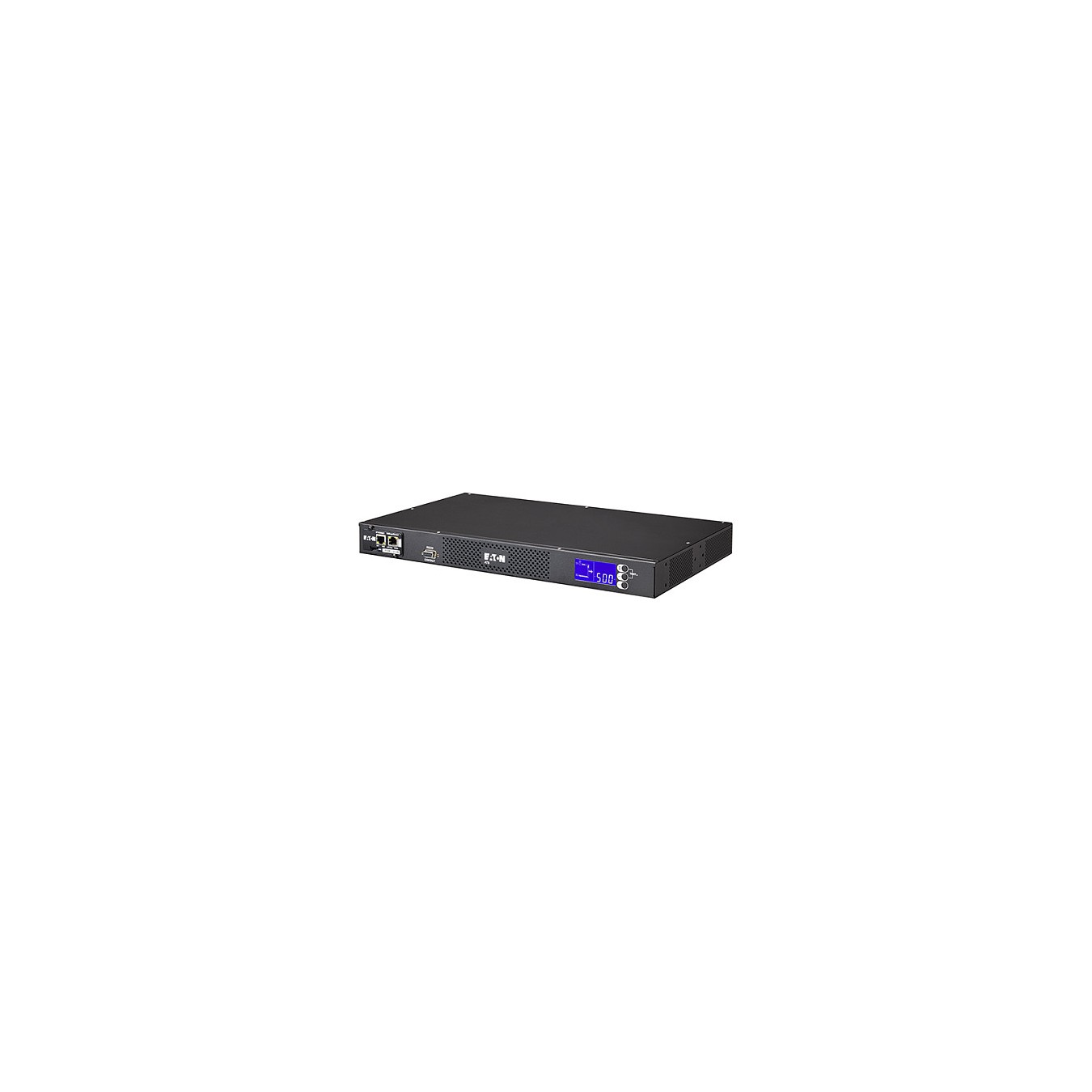

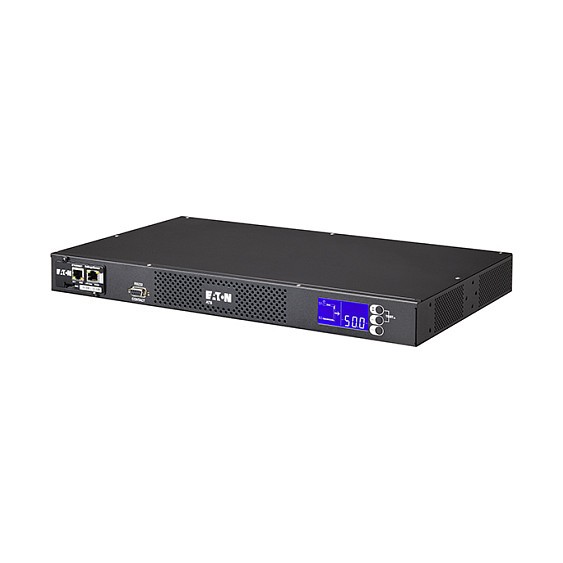

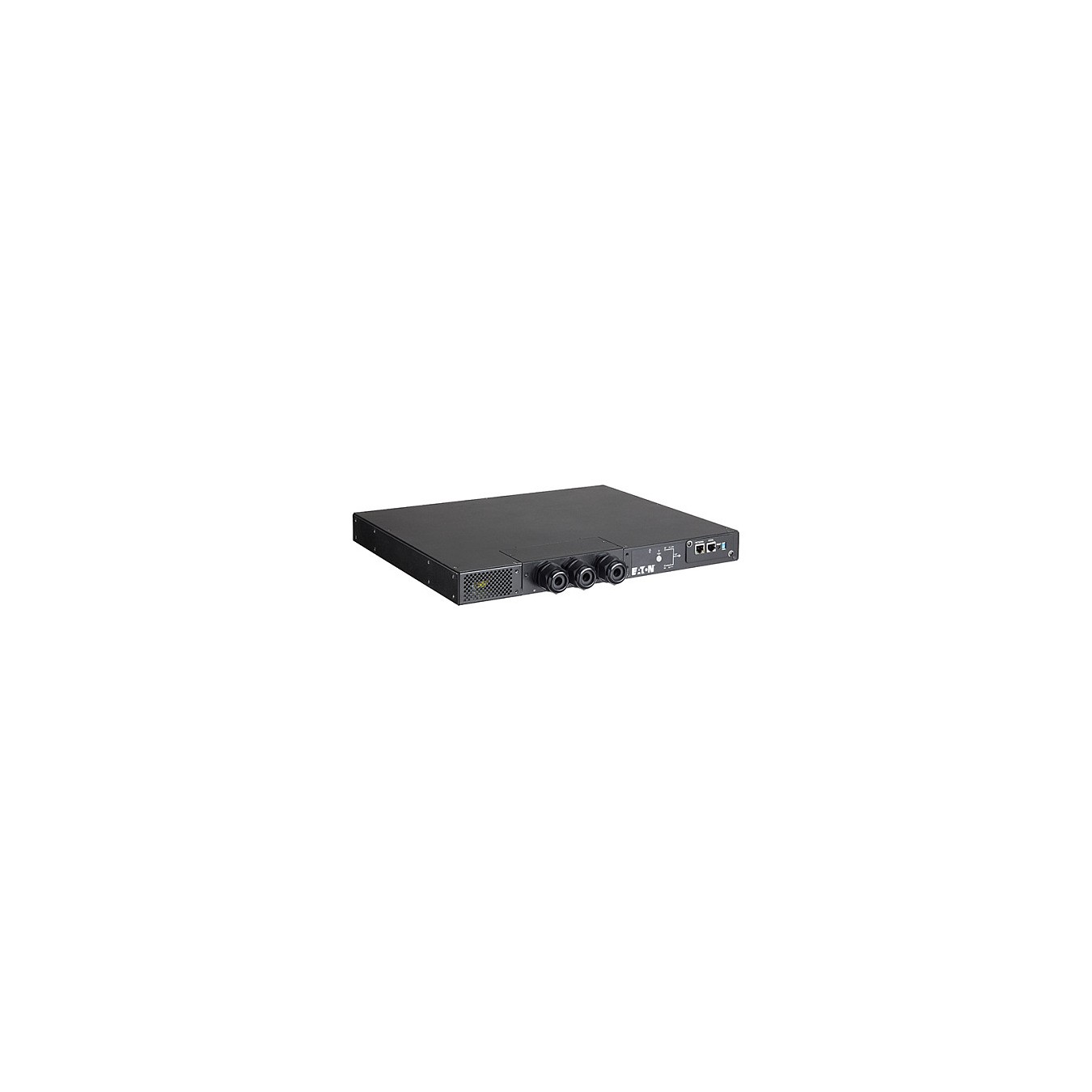

EATON Rack ATS 16A 230V 2 C20 in 8 C13 1 C19 out Network Rackmount Transfer Switches
Eaton ATS16N, 208 V, 240 V, 50/60 Hz, 50/60 Hz, 16 A, 8 ms
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Eaton ATS16N. Eingangs-Betriebsspannung (min): 208 V, Eingangs-Betriebsspannung (max): 240 V, Eingangsfrequenz: 50/60 Hz. AC-Steckertypen: C13-Koppler, C19-Koppler, Stecker: C20-Koppler, Anzahl der AC-Ausgänge: 9 AC-Ausgänge. Formfaktor: Rackmount, Produktfarbe: Schwarz, Rack-Kapazität: 1U. Zertifizierung: IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE. Sicherheit: IEC/EN 62310-1, IEC/EN 60950-1
| Eingangs-Betriebsspannung (min) | 208 V |
| Eingangs-Betriebsspannung (max) | 240 V |
| Eingangsfrequenz | 50/60 Hz |
| Output Frequenz | 50/60 Hz |
| Stromstärke (maximal) | 16 A |
| Reaktionszeit | 8 ms |
| Anzahl der Eingangs-Phasen | 1 |
| Anzahl der Ausgangs-Phasen | 1 |
| Web-basiertes Management | Ja |
| AC-Steckertypen | C13-Koppler, C19-Koppler |
| Stecker | C20-Koppler |
| Anzahl der AC-Ausgänge | 9 AC-Ausgänge |
| Anzahl der Output IEC Jumper | 8 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Formfaktor | Rackmount |
| Rack-Kapazität | 1U |
| Produktfarbe | Schwarz |

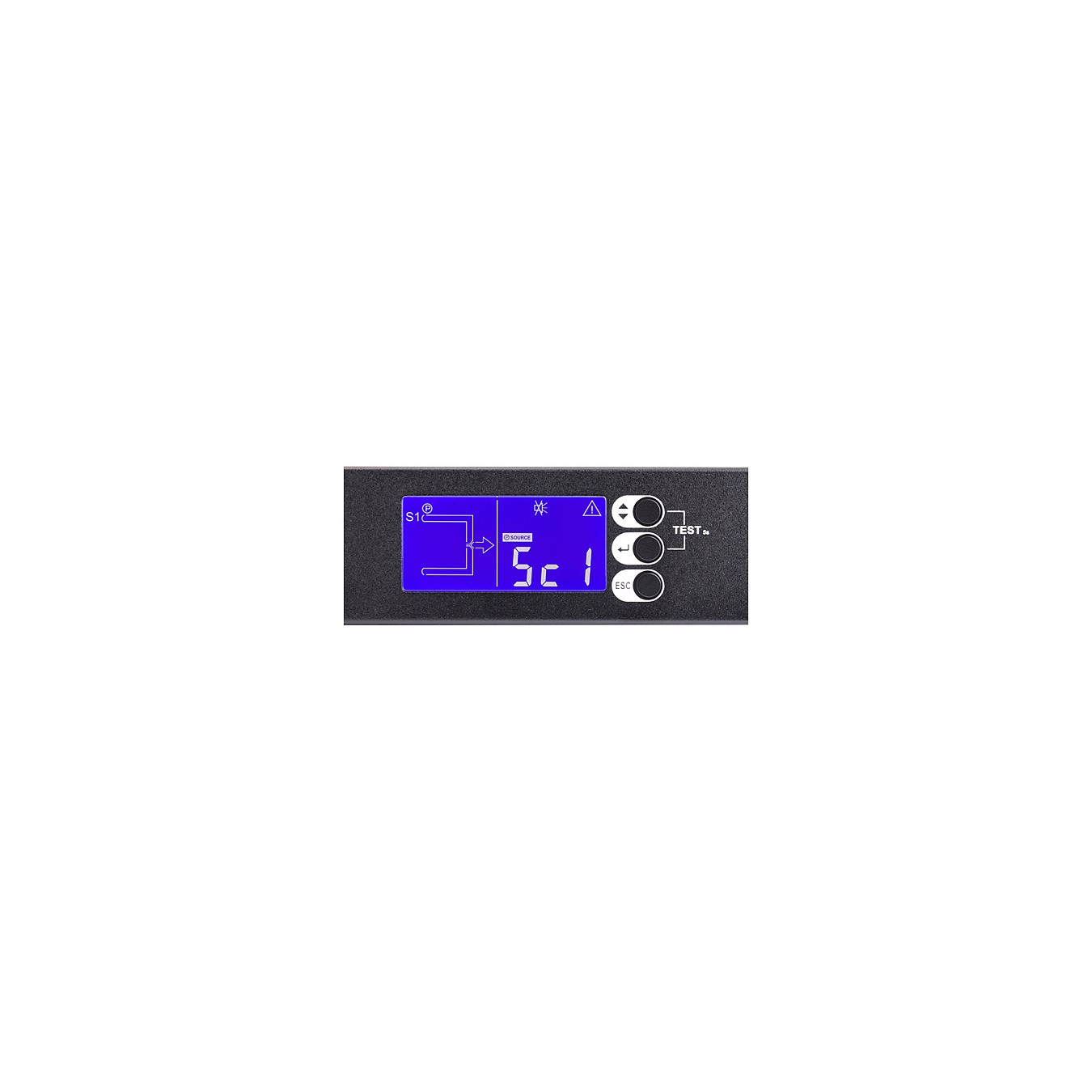

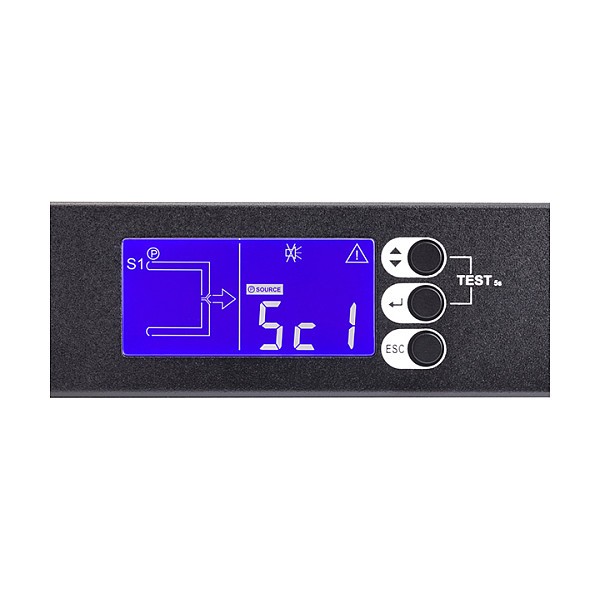

| Display-Typ | LED |
| LED-Anzeigen | Ja |
| Zertifizierung | IEC/EN 62310-1, IEC/EN 60950-1, IEC/EN 62310-2, CE |
| Rackmontageset | Ja |
| Sicherheit | IEC/EN 62310-1, IEC/EN 60950-1 |
| Breite | 440 mm |
| Tiefe | 250 mm |
| Höhe | 43 mm |
| Gewicht | 3,5 kg |
| Warentarifnummer (HS) | 85078000 |
| Anzahl der Phasen | 1 |
| Nominale Eingang Spannung | 230 V |
| Montage | Horizontal |
