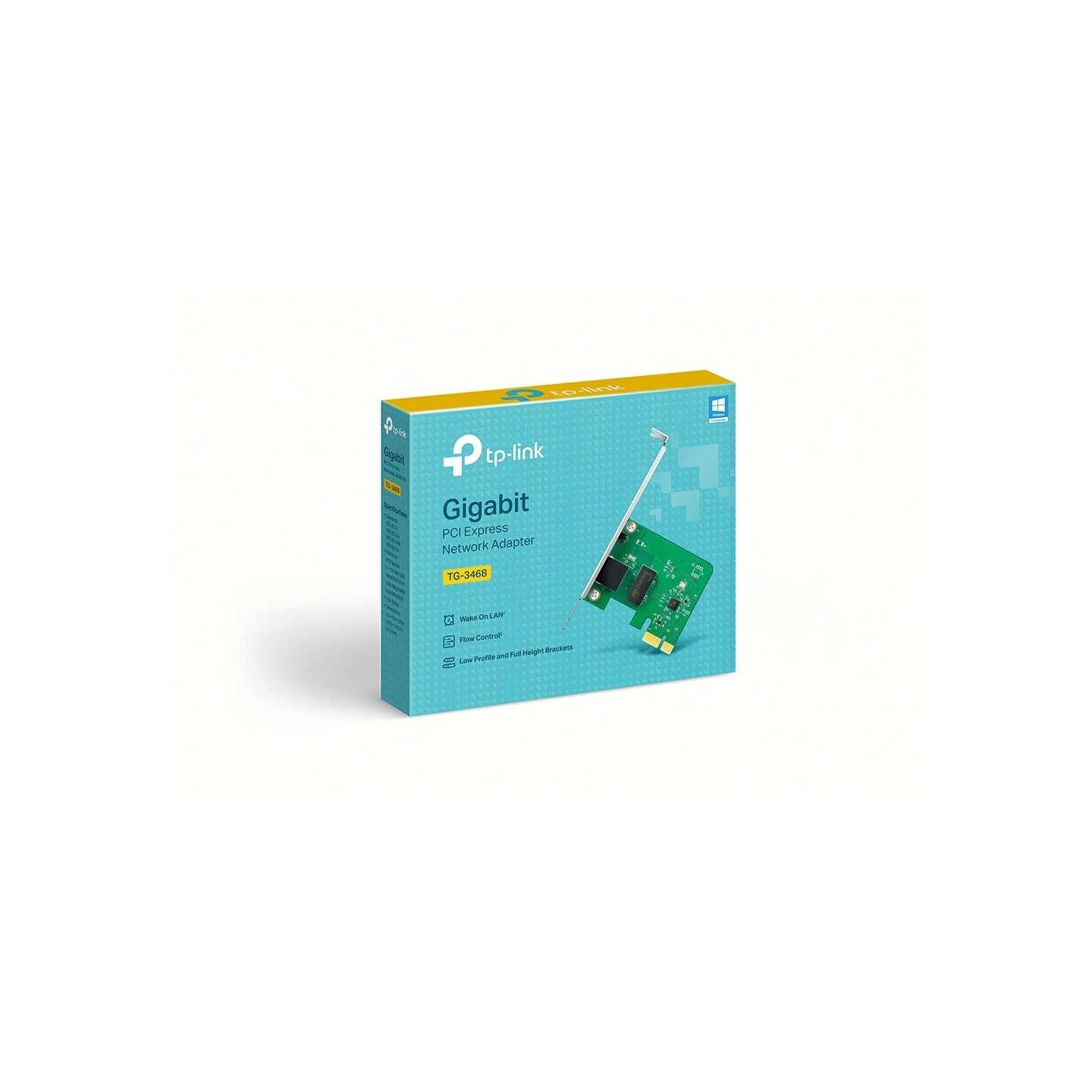

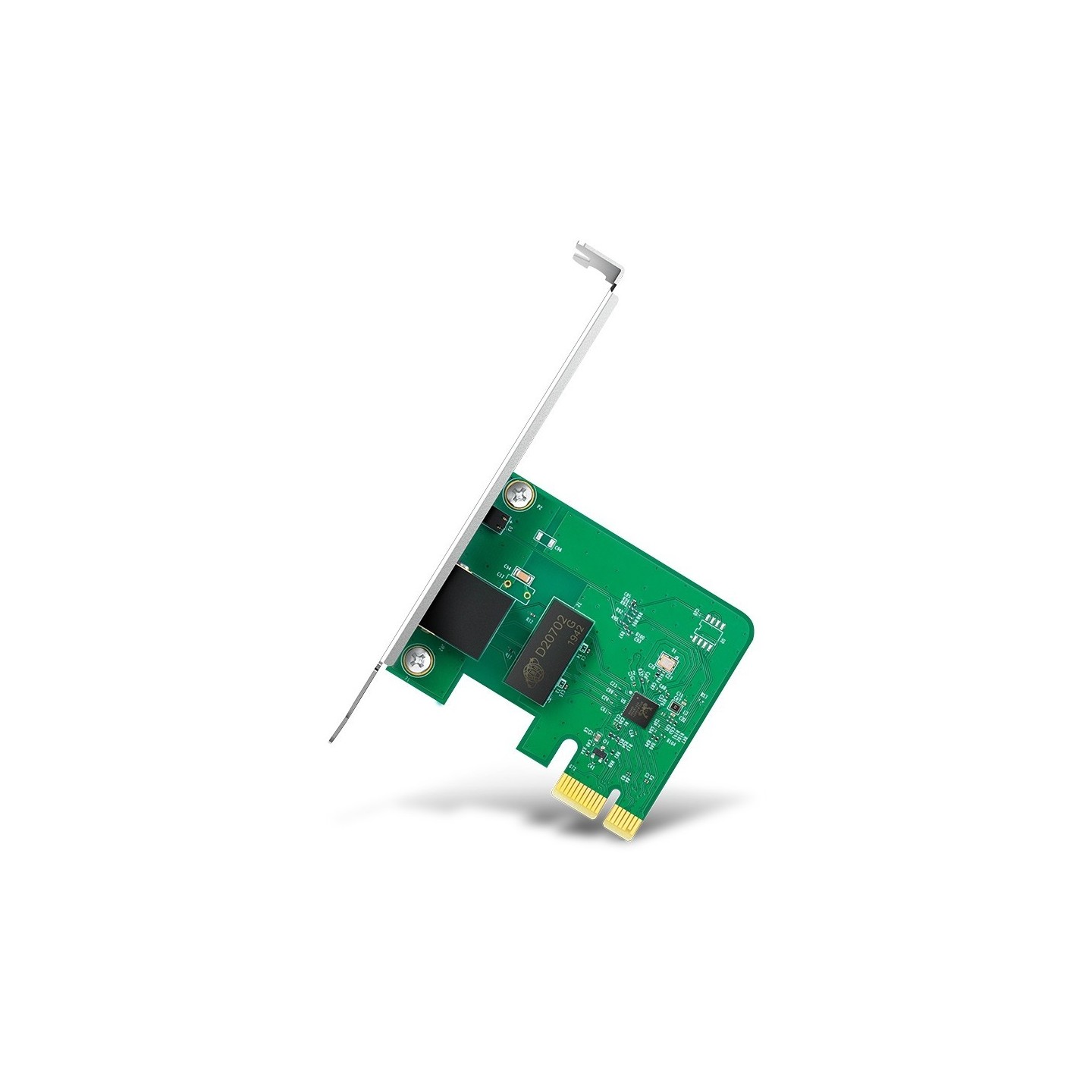

TP-Link TG-3468 PCIe x1 Network Card - RTL8168B, 1GbE, 1xRJ45, VLAN & WoL, Green/Grey
Internal PCIe x1 wired Ethernet card TG-3468 (RTL8168B), 1Gbps (10/100/1000), single RJ45 port, VLAN and Wake-on-LAN support, green/grey.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PCIe Network Cards - Port Speed | 1GbE |
|---|---|
| PCIe Network Cards - Ports | 1xRJ45 |
| PCIe Network Cards - PCIe Lanes | x1 |
TP-Link TG-3468. Internal. Connectivity technology: Wired. Host interface: PCI Express. Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s. Product colour: Green. Grey
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 2000 Mbit/s |
| Networking standards | IEEE 802.1Q. IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x |
| Feature | Flow control support |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Maximum operating distance | 100 m |
| Component for | PC |
| Product colour | Green. Grey |
| LED indicators | Status |
| Certification | FCC. BSMI. VCCI |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 78.5 mm |
| Depth | 120.8 mm |
| Height | 21.5 mm |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Compliance certificates | BSMI. CE. Federal Communications Commission (FCC). RoHS |
| Harmonized System (HS) code | 85176990 |
