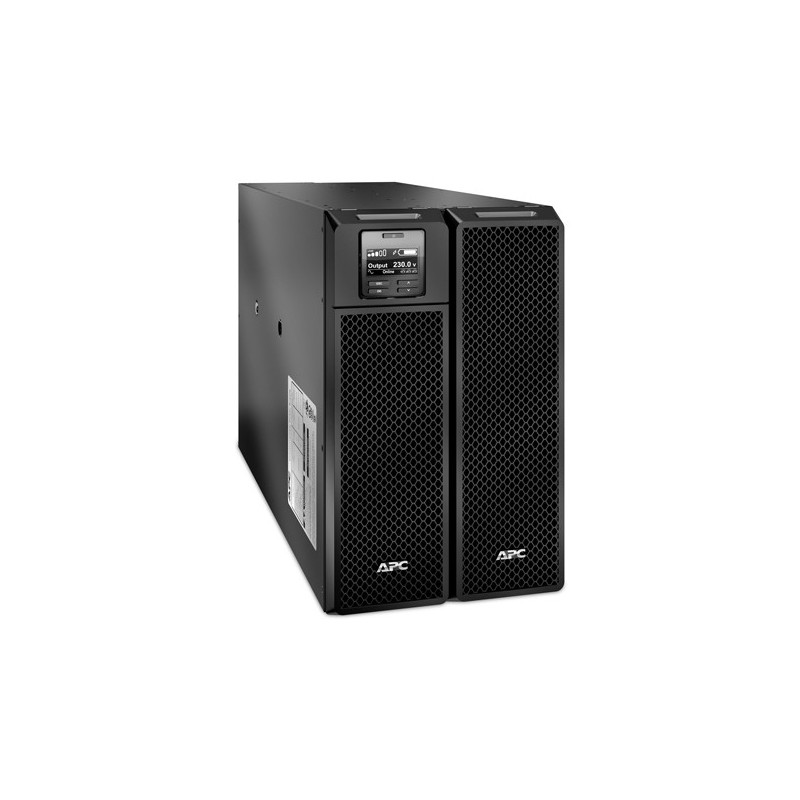

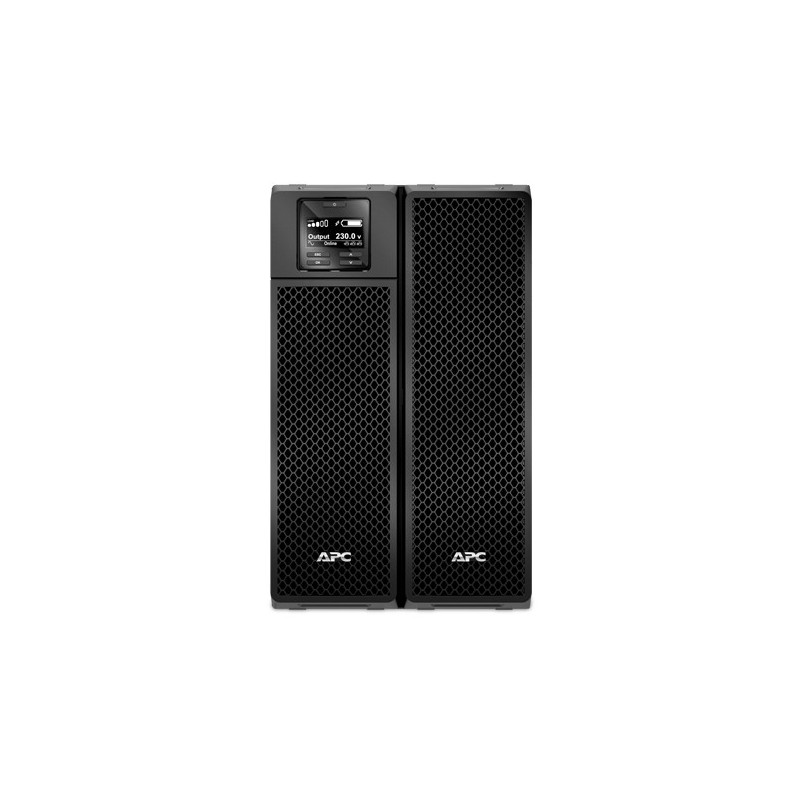

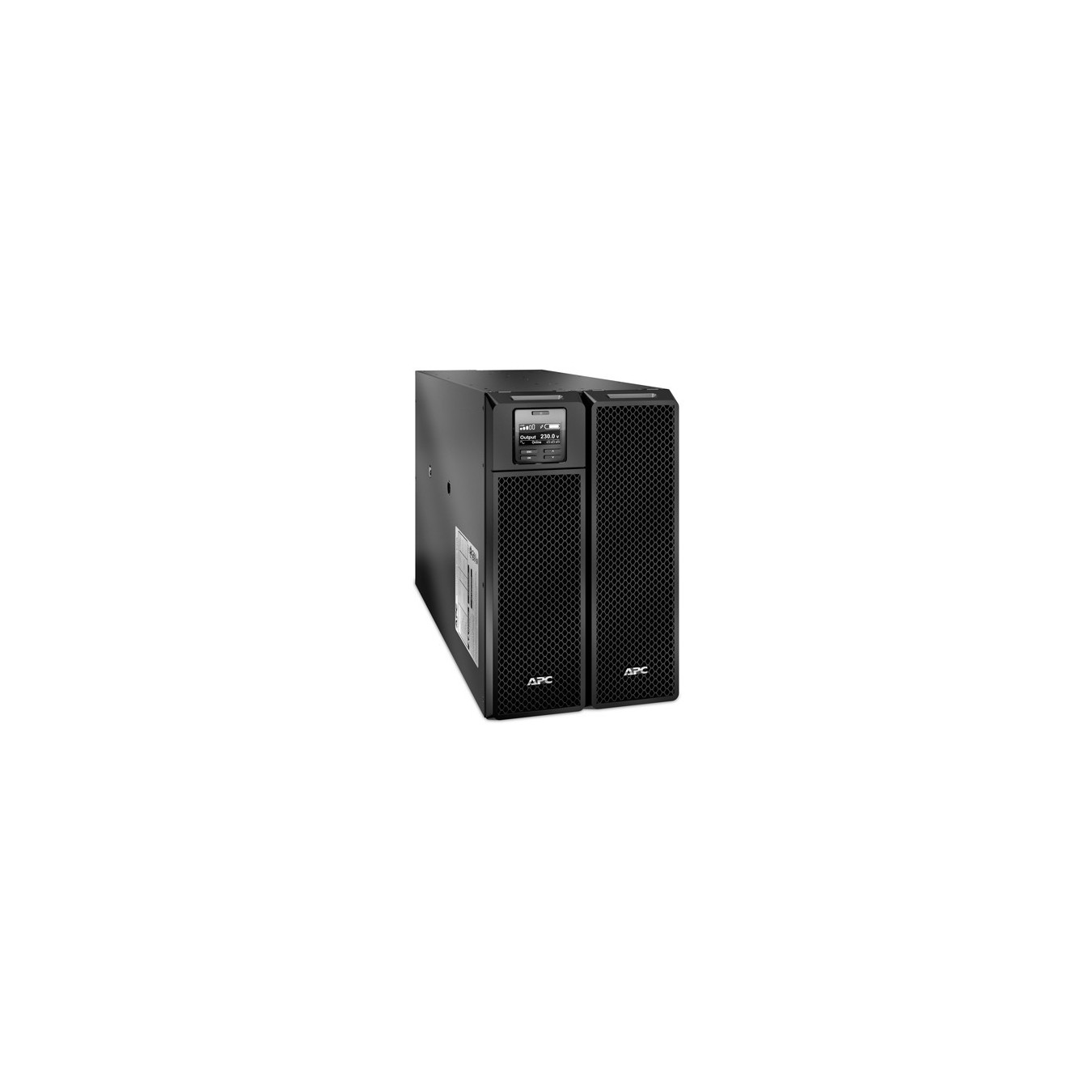

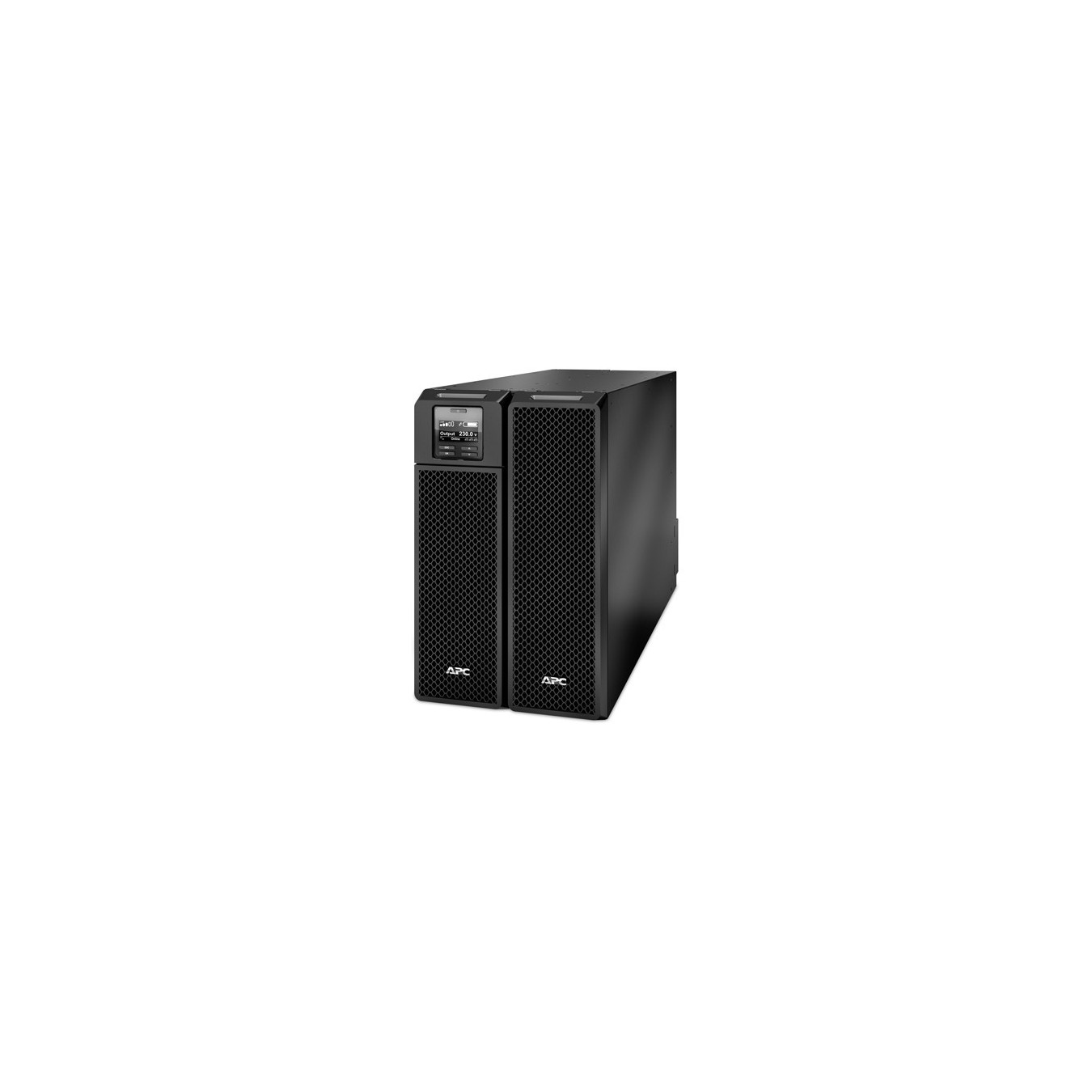

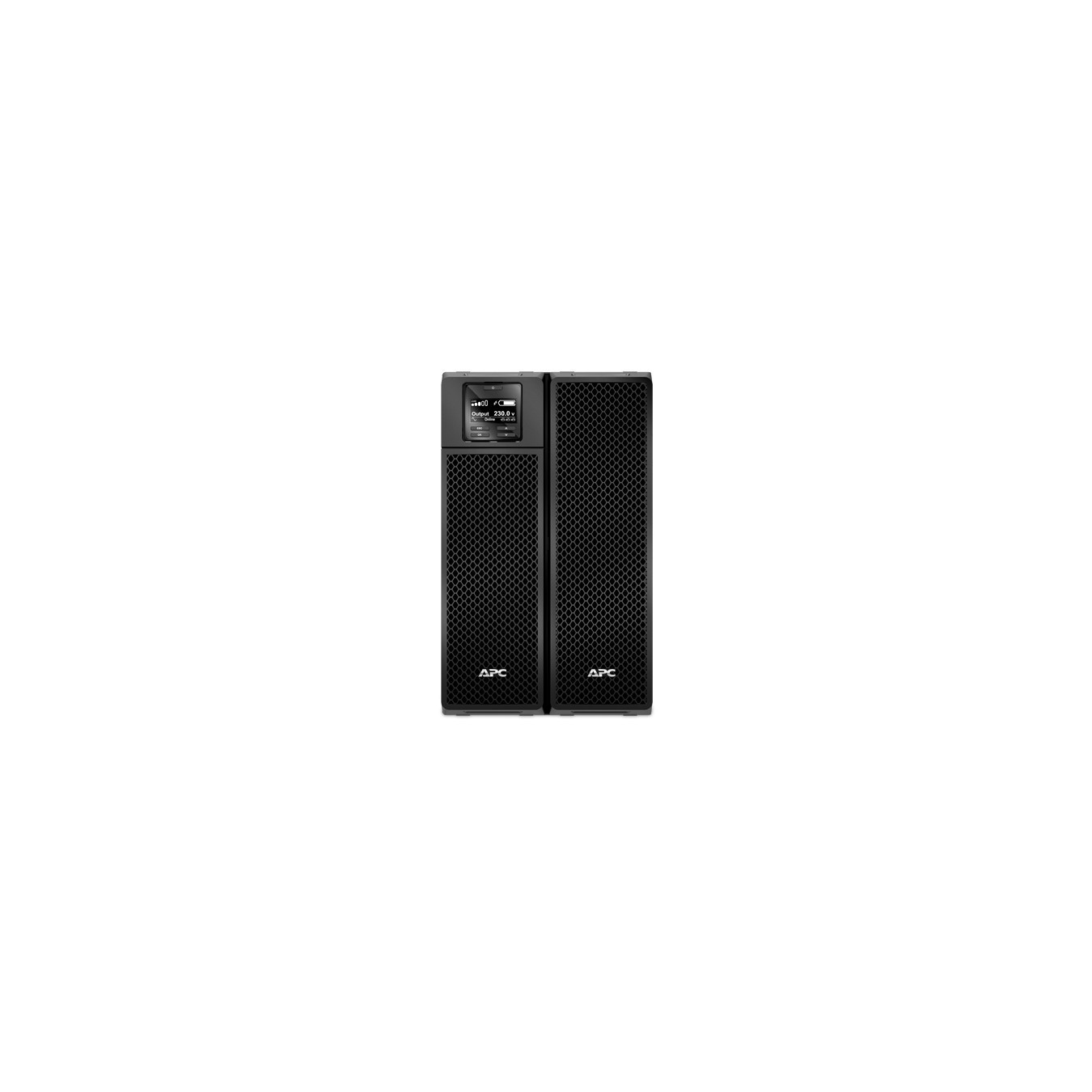

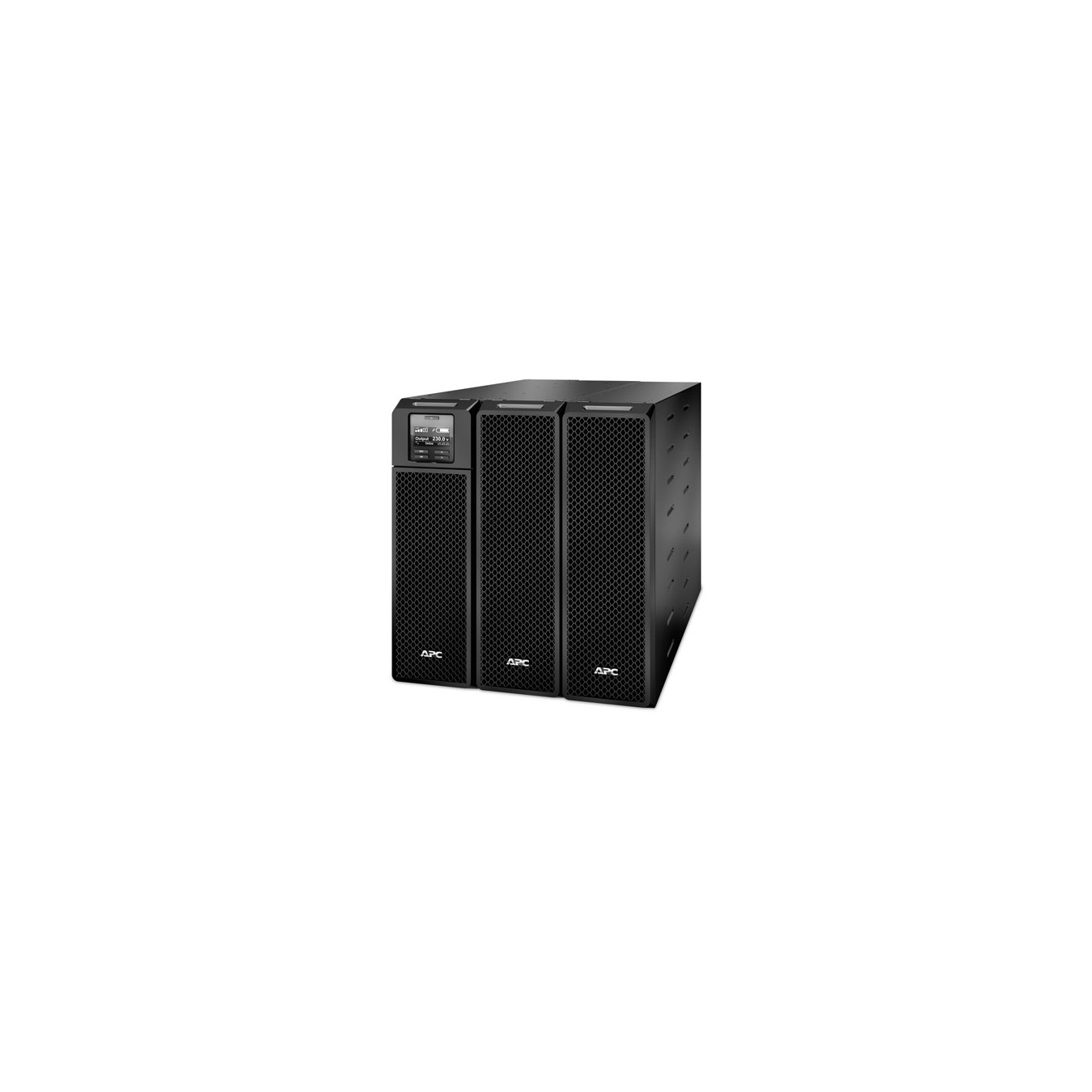

APC Smart-UPS SRT10KXLI - 10kVA/10kW On-Line UPS - Rack/Tower Convertible, 230V, 10 IEC outlets, Black
10kVA/10kW double-conversion (On-Line) UPS, 230V nominal, 6× C13 + 4× C19 outlets, hardwired input, Network Card + SmartSlot, VRLA batteries, extended runtime, 94.6% eff.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| UPS & Power Backup - Type | Online (Double-Conversion) |
|---|---|
| UPS & Power Backup - Capacity (VA) | 10000 VA |
| UPS & Power Backup - Output Power (W) | greater than3000 W |
| UPS & Power Backup - Form Factor | Rack/Tower Convertible |
| UPS & Power Backup - Input Plug | Hardwired |
| UPS & Power Backup - Output Receptacles | Mixed |
| UPS & Power Backup - Outlets (Qty) | 10 |
APC Smart-UPS On-Line. 10kVA/10kW. Tower. 230V/400V. 6x C13+4x C19 IEC outlets. Network Card+SmartSlot. Extended runtime. W/O rail kit. UPS topology: Double-conversion (Online). Output power capacity: 10 kVA. Output power: 10000 W. AC outlet types: C13 coupler. C19 coupler. Power plug: Hardwire. AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Battery capacity: 1805 VAh. Typical backup time at full load: 3.8 min. Form factor: Rackmount/Tower. Product colour: Black. International Protection (IP) code: IP20. Compliance certificates: RoHS. Certification: CE. CE Mark. EAC. EN/IEC 62040-1. EN/IEC 62040-2. IRAM. RCM. VDE. REACH
| UPS topology | Double-conversion (Online) |
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 476 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Surge energy rating | 480 J |
| Number of output phases | 1 |
| Efficiency | 94.6% |
| Crest factor | 3:1 |
| Feature | Software CD |
| Noise level | 55 dB |

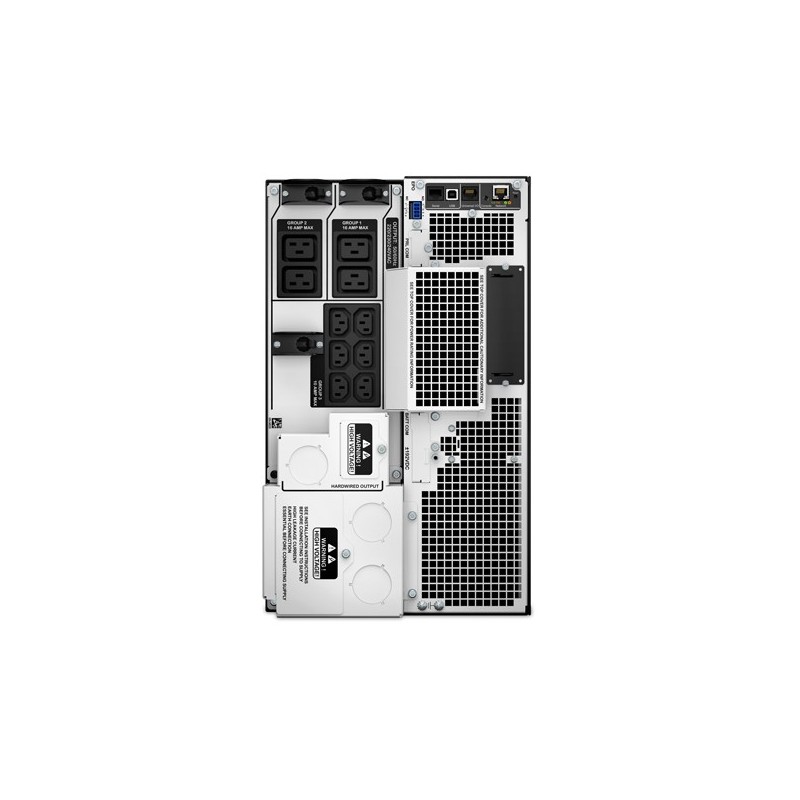

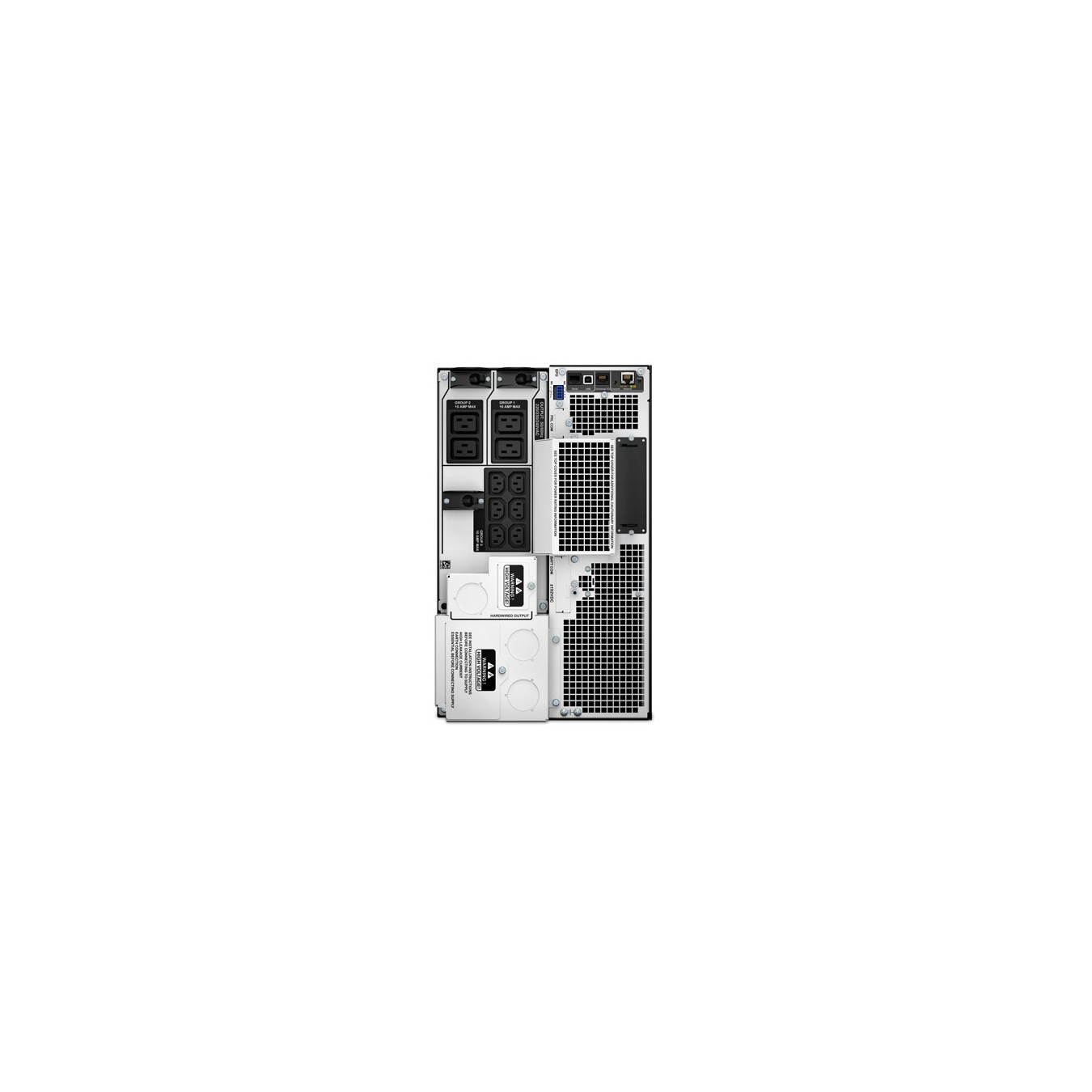

| AC outlet types | C13 coupler. C19 coupler |
| Power plug | Hardwire |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 3 |
| Serial interface type | RJ-45 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1805 VAh |

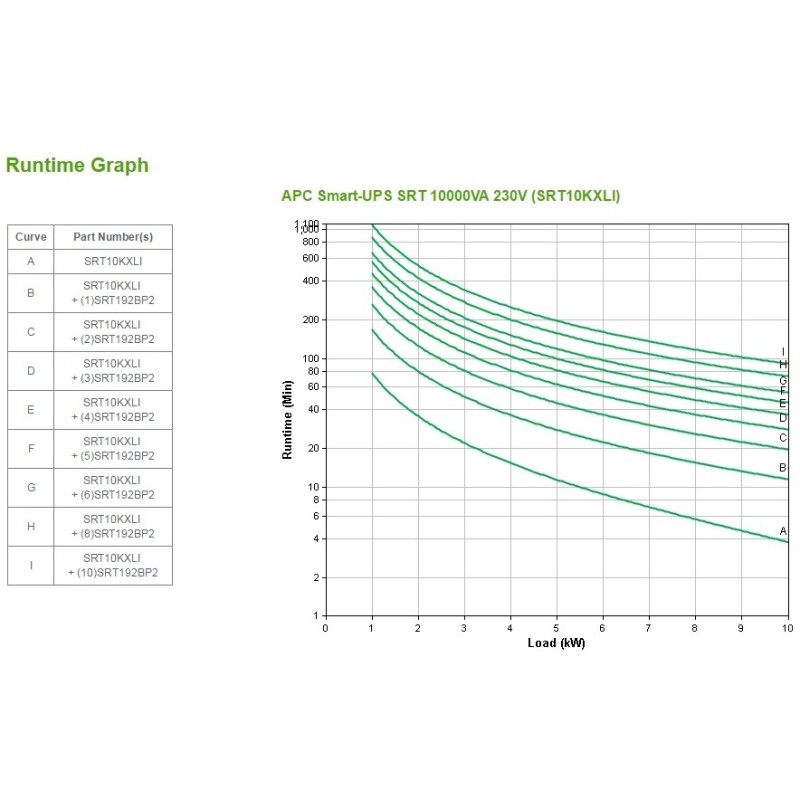

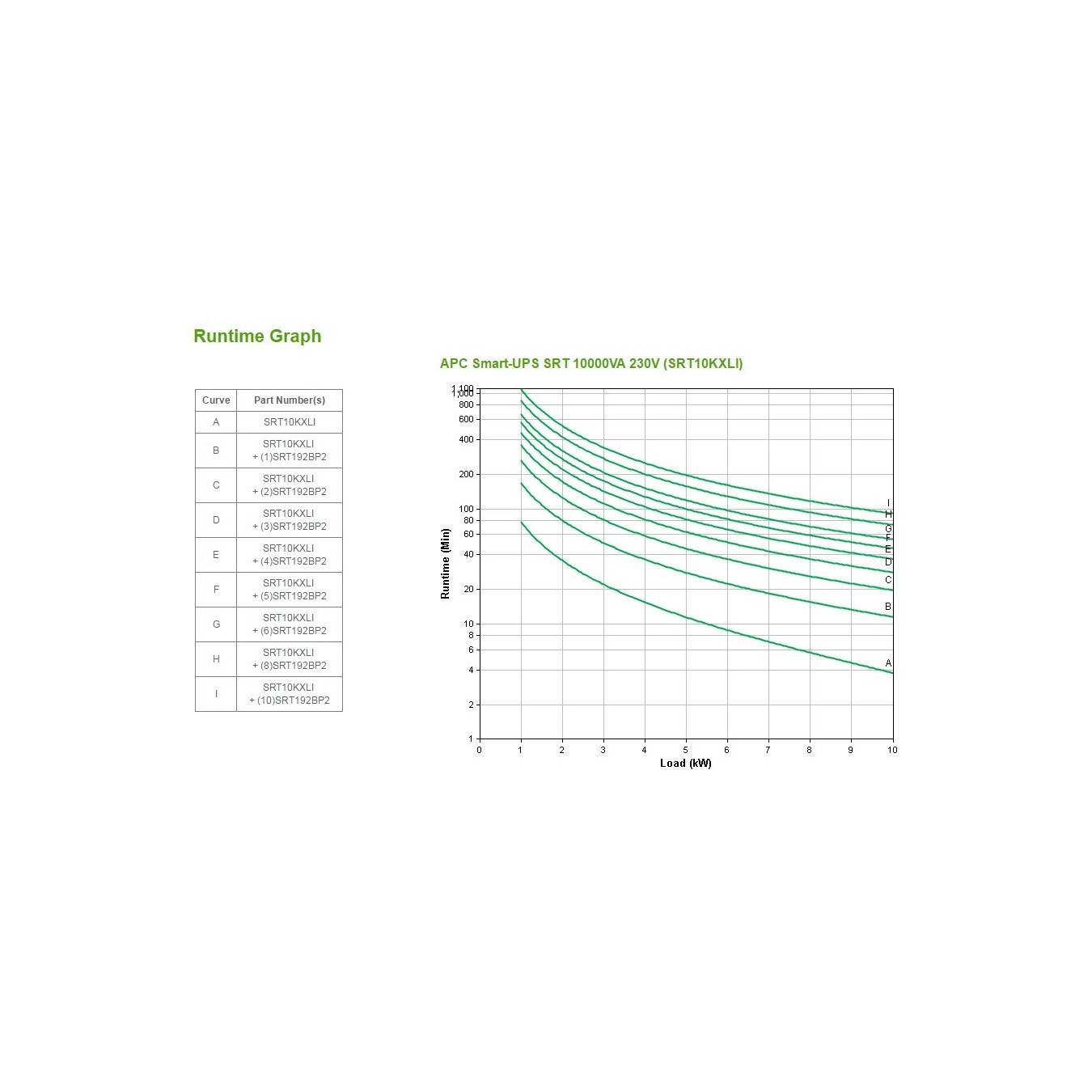

| Typical backup time at full load | 3.8 min |
| Typical backup time at half load | 11.5 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 1.5 h |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | CE. CE Mark. EAC. EN/IEC 62040-1. EN/IEC 62040-2. IRAM. RCM. VDE. REACH |
| Cables included | USB cable |
| Sustainability certificates | ENERGY STAR |
| Width | 263 mm |
| Depth | 715 mm |
| Height | 432 mm |
| Weight | 111.8 kg |
| Package width | 600 mm |
| Package depth | 1000 mm |
| Package height | 461 mm |
| Package weight | 126.8 kg |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 22851.99 |
| Interface | RJ-45 10/100 Base-T |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
