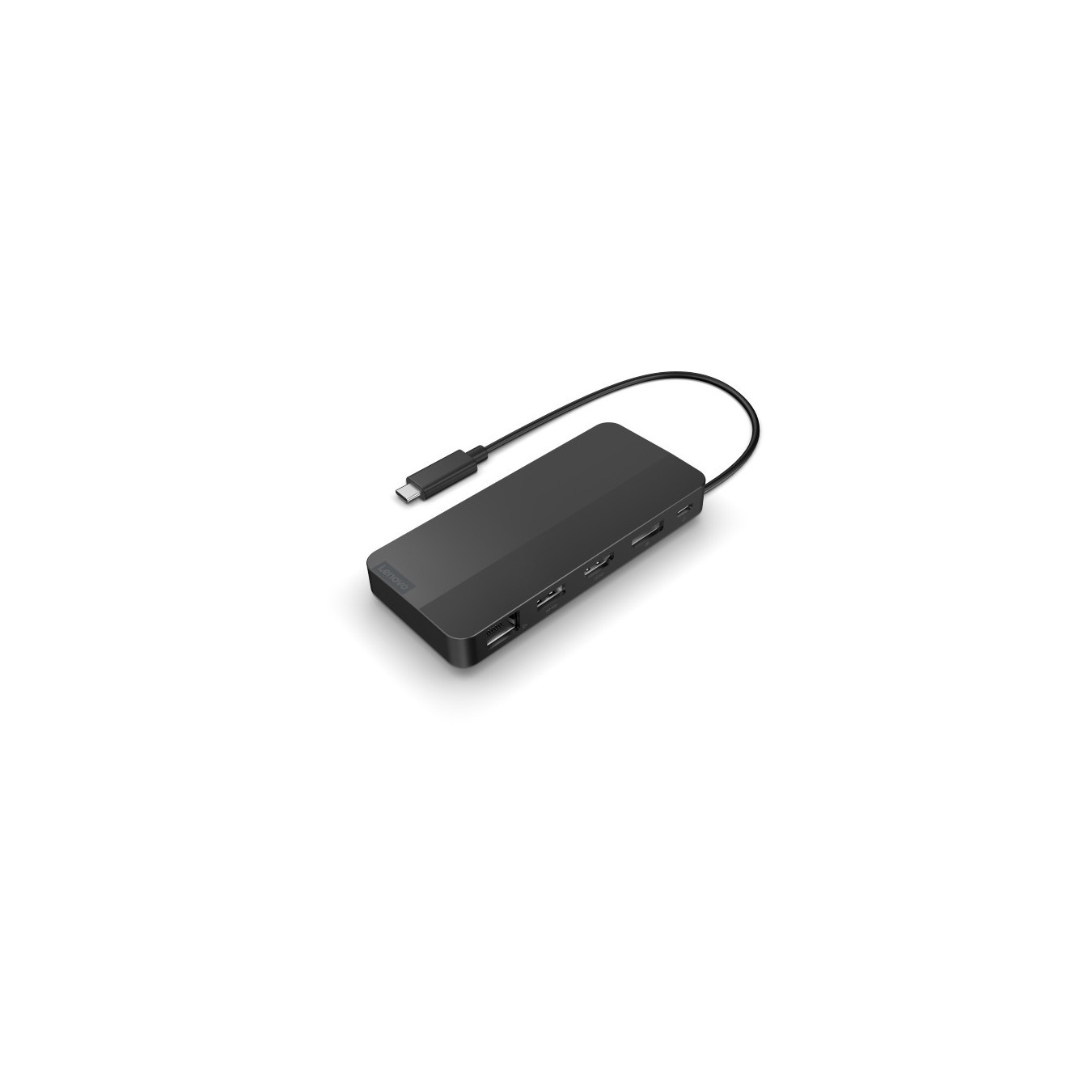

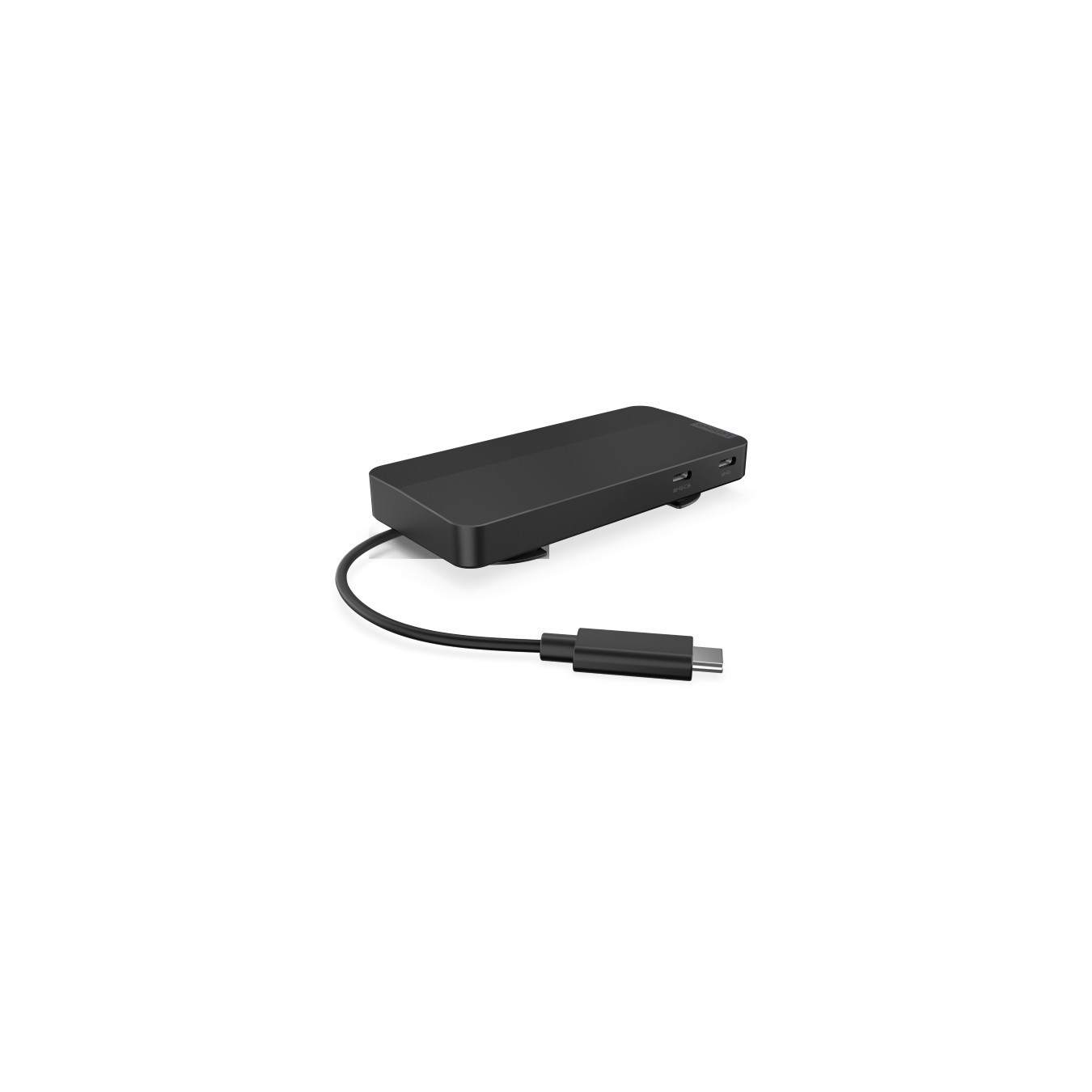

Lenovo USB-C Dual Display Travel Dock 40B90000WW Eclipse Black Dual 4K@60Hz (Retail)
Lenovo 40B90000WW USB-C Dual Display Travel Dock: dual 4K@60Hz (HDMI 2.1+DP1.4), 1xUSB-A 3.2Gen2, 2xUSB-C 3.2Gen2 (10Gbps), 1xGigabit Ethernet, integrated 47cm cable, USB-powered w/100W PD pass-thru. Eclipse Black, 66% recycled. Plug&Play.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 6 |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Bus Powered Compact Design Plug and Play |
The Lenovo USB-C Dual Display Travel Dock (40B90000WW) is a compact, portable docking solution designed for modern professionals. Featuring an integrated 47cm USB-C cable, it connects effortlessly to any USB-C laptop, delivering dual 4K@60Hz displays via HDMI 2.1 and DisplayPort 1.4. With 7 ports total—including 1x USB-A 3.2 Gen 2 (10Gbps), 2x USB-C 3.2 Gen 2 (10Gbps, one with always-on 5V/2.4A charging), 1x USB-C power input, and Gigabit Ethernet—this dock transforms your workspace on the go.
Crafted in Eclipse Black with 66% post-consumer recycled content, it emphasizes sustainability without compromising performance. Supports up to 100W Power Delivery pass-through (requires separate 135W USB-C adapter for full capability). Management features like Wake-on-LAN, MAC Address Pass-through, and Fast Role Swap ensure seamless enterprise integration. Plug-and-Play—no drivers needed for Windows 10/11.
- ✅ Dual 4K@60Hz (3840x2160) on external displays
- ✅ SuperSpeed USB 10Gbps data transfer
- ✅ 1Gbps Ethernet for stable wired connection
- ✅ Compact: 120x55x20mm, 137g
- ✅ Certifications: FCC, CE, CB, cULus & more
| Part Number | 40B90000WW |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 Type-C (integrated cable) |
| USB 3.2 Gen 2 Type-A ports | 1 (10 Gbps) |
| USB 3.2 Gen 2 Type-C ports | 2 (10 Gbps) + 1 (Power only, always-on 5V/2.4A) |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Number of displays supported | 2 |
| Maximum resolution | 3840 x 2160 @ 60 Hz (dual) |
| Colour name | Eclipse Black |
| Product colour | Black (66% post-consumer recycled content) |
| Power source type | USB |
| Power Delivery | Up to 100W pass-through (requires 135W USB-C adapter) |
| Docking cable | Integrated USB-C, 47 cm (18.5 inches) |
| Windows operating systems supported | Windows 10, Windows 11 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Width | 120 mm |
| Depth | 55 mm |
| Height | 20 mm |
| Weight | 137 g |
| Certifications | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV-Mark, LoA, Ukraine DoC, NOM |
| Management Features | PXE, MAC Address Pass-through, Wake-on-LAN, Fast Role Swap |
| Feature | Plug and Play |
