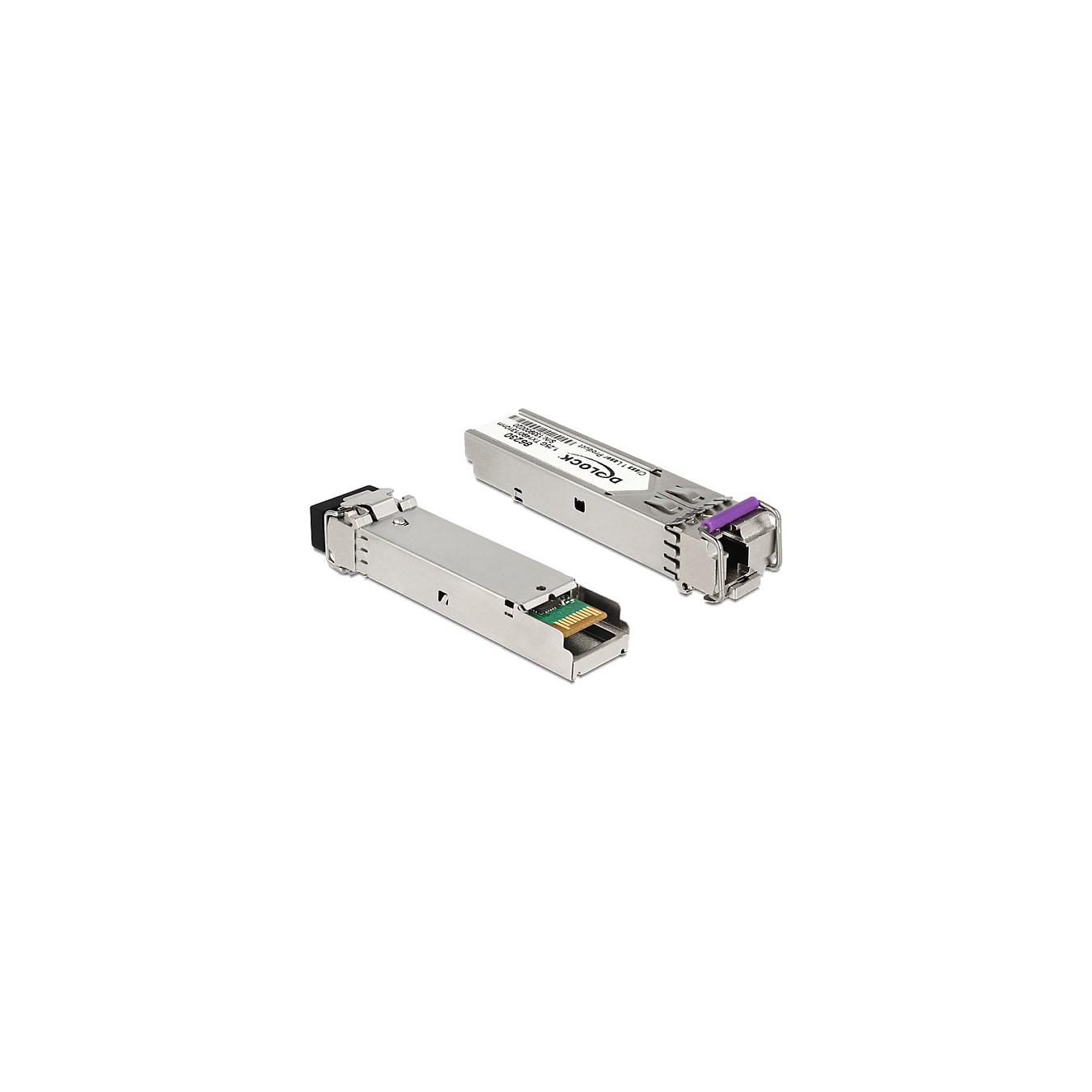

SFP Modul 1000Base-BX SM TX 1490 RX 1310 nm DDM
DeLOCK 86230, Faseroptik, 1000 Mbit/s, SFP, LC, 9/125 µm, BX
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
DeLOCK 86230. SFP Transceiver-Typ: Faseroptik, Maximale Datenübertragungsrate: 1000 Mbit/s, Schnittstelle: SFP. Produktfarbe: Edelstahl. Eingangsspannung: 3.3 V, Maximale Spannung: 3,6 V. Menge pro Packung: 1 Stück(e). Verpackungsart: Box
| SFP Transceiver-Typ | Faseroptik |
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Schnittstelle | SFP |
| Single-Mode-Faser (SMF) unterstützt | Ja |
| Optischer Kabelverbinder | LC |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 9/125 µm |
| SFP-Transceiver-Standard | BX |
| Maximal mögliche Übertragungsstrecke | 10000 m |
| Tx-Wellenlänge (max.) | 1490 nm |
| Rx-Wellenlänge (max.) | 1310 nm |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE |
| Digitale Diagnose-Überwachung (DDM) | Ja |
| Produktfarbe | Edelstahl |
| Eingangsspannung | 3.3 V |
| Maximale Spannung | 3,6 V |
| Betriebstemperatur | 0 - 70 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Menge pro Packung | 1 Stück(e) |
| Verpackungsart | Box |
| Ursprungsland | China |
