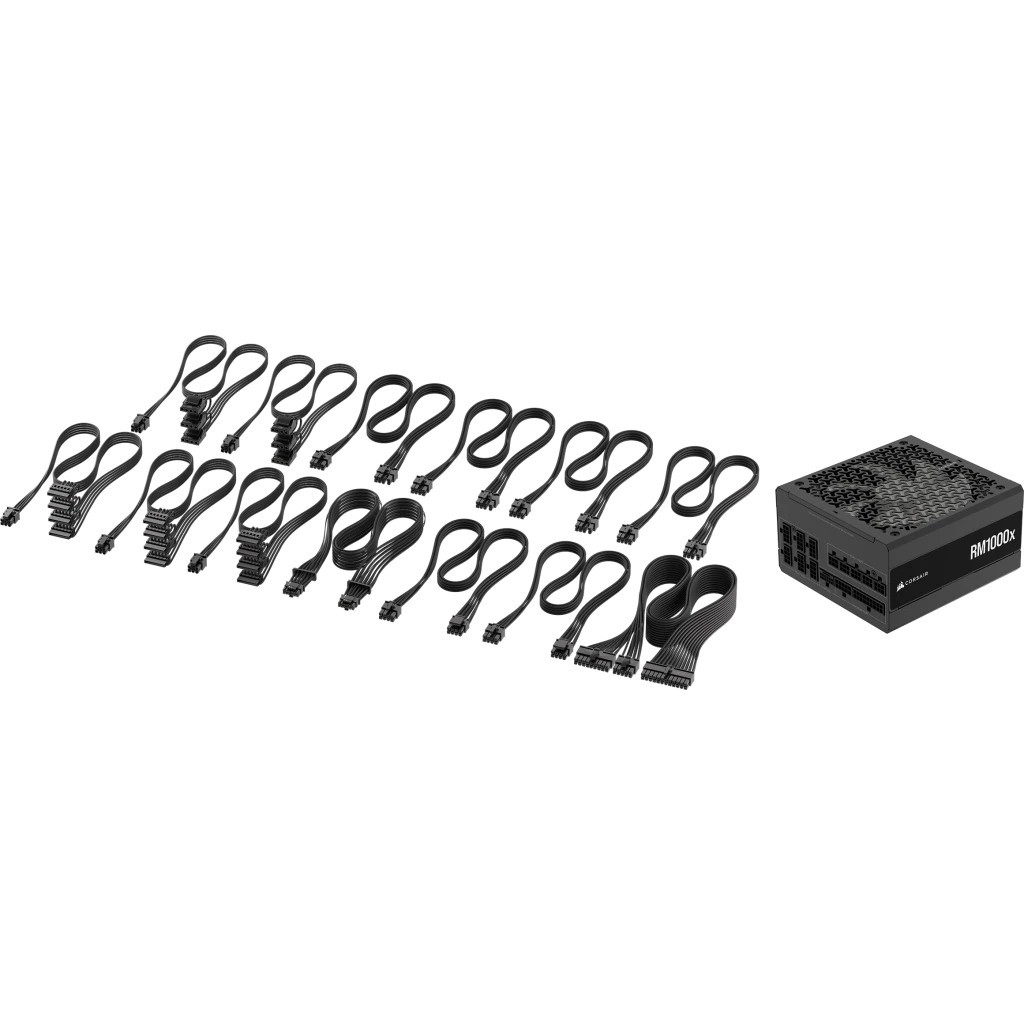

Corsair RM1000x - 1000W Fully-Modular 80 PLUS Gold ATX Power Supply - Black, 140mm Fan, 10-Year Warranty
Corsair RM1000x 1000W fully-modular ATX PSU, 80 PLUS Gold efficiency, 140mm rifle-bearing fan, 24-pin ATX, 11 SATA & 12 Molex connectors, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - ATX Standard | ATX 2.x |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - Fan Size | 140 mm |
| PSU (Power Supplies) - Length | 141-160 mm |
Corsair RMx Series RM1000x. Total power: 1000 W. AC input voltage: 100 - 240 V. AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX. Cabling type: Fully-Modular. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Gold. Product colour: Black. Cooling type: Active. Fan diameter: 14 cm. Compliance certificates: RoHS
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12 - 5 A |
| Maximum input current (@110V) | 12 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 11 |
| Peripheral (Molex) power connectors (4-pin) | 12 |
| Feature | On/off switch |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Compliance certificates | RoHS |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.65 kg |
| Package type | Box |
| Warranty period | 10 year(s) |
