Fractal Meshify 3 XL Black RGB TG Light Tint Full-Tower E-ATX Case (Boxed)
Black full-tower E-ATX PC case with light-tint TG, 3x Momentum 14 RGB PWM fans. Supports 512mm GPU, 182mm CPU cooler, up to 420mm top radiator. USB-C 20Gbps + 2x USB-A. Net wt 10.9kg.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Combo Jack USB A USB C Gen2 |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Full Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

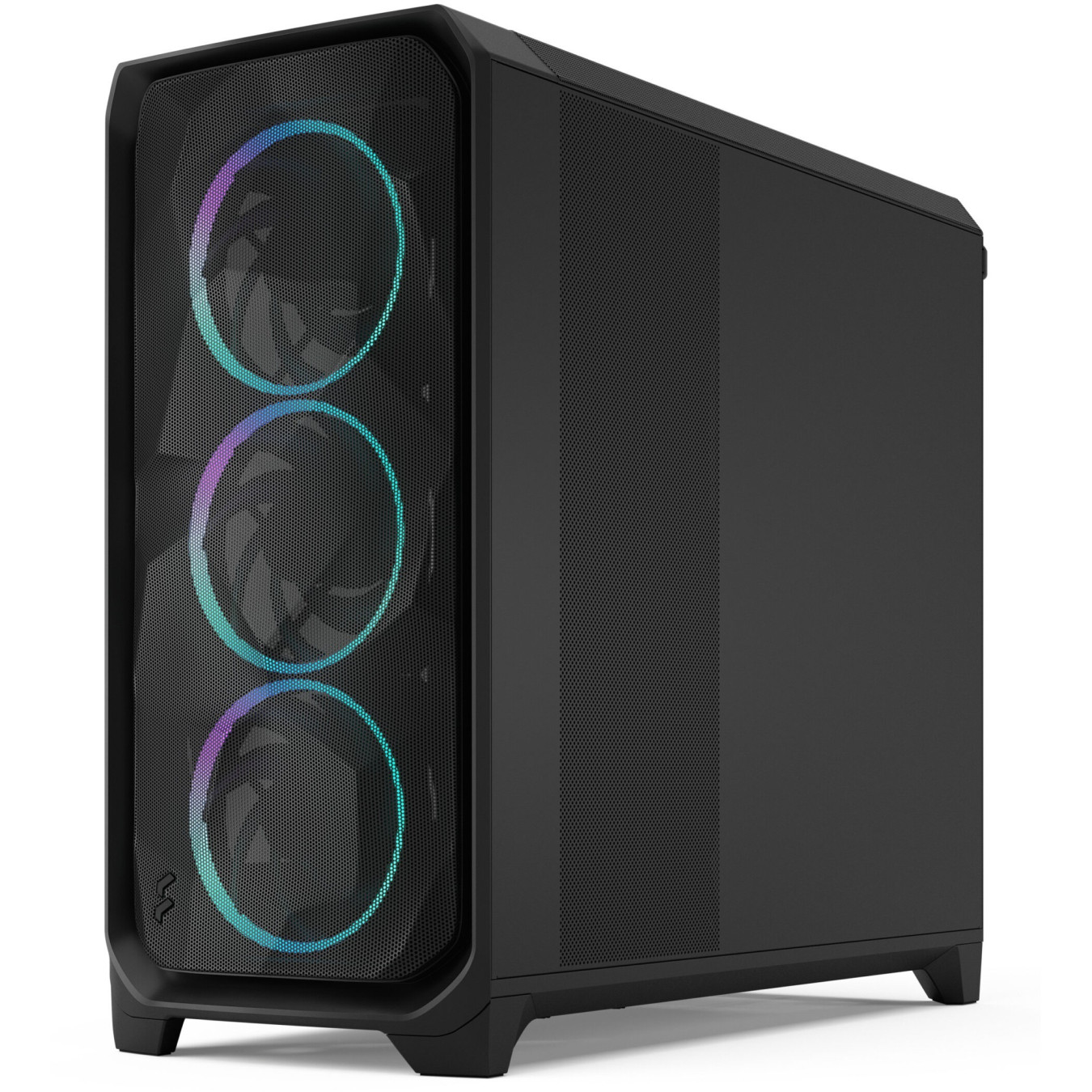

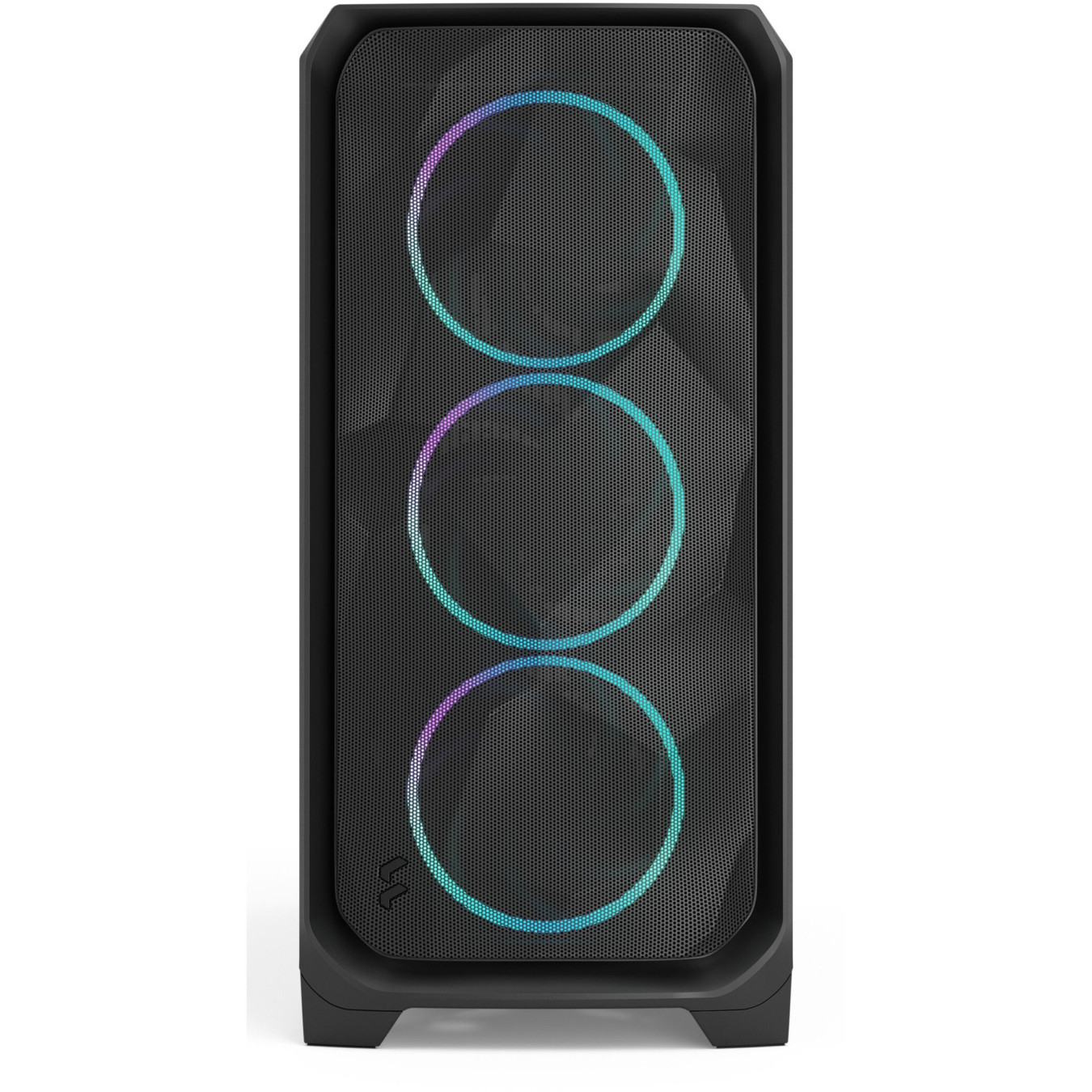

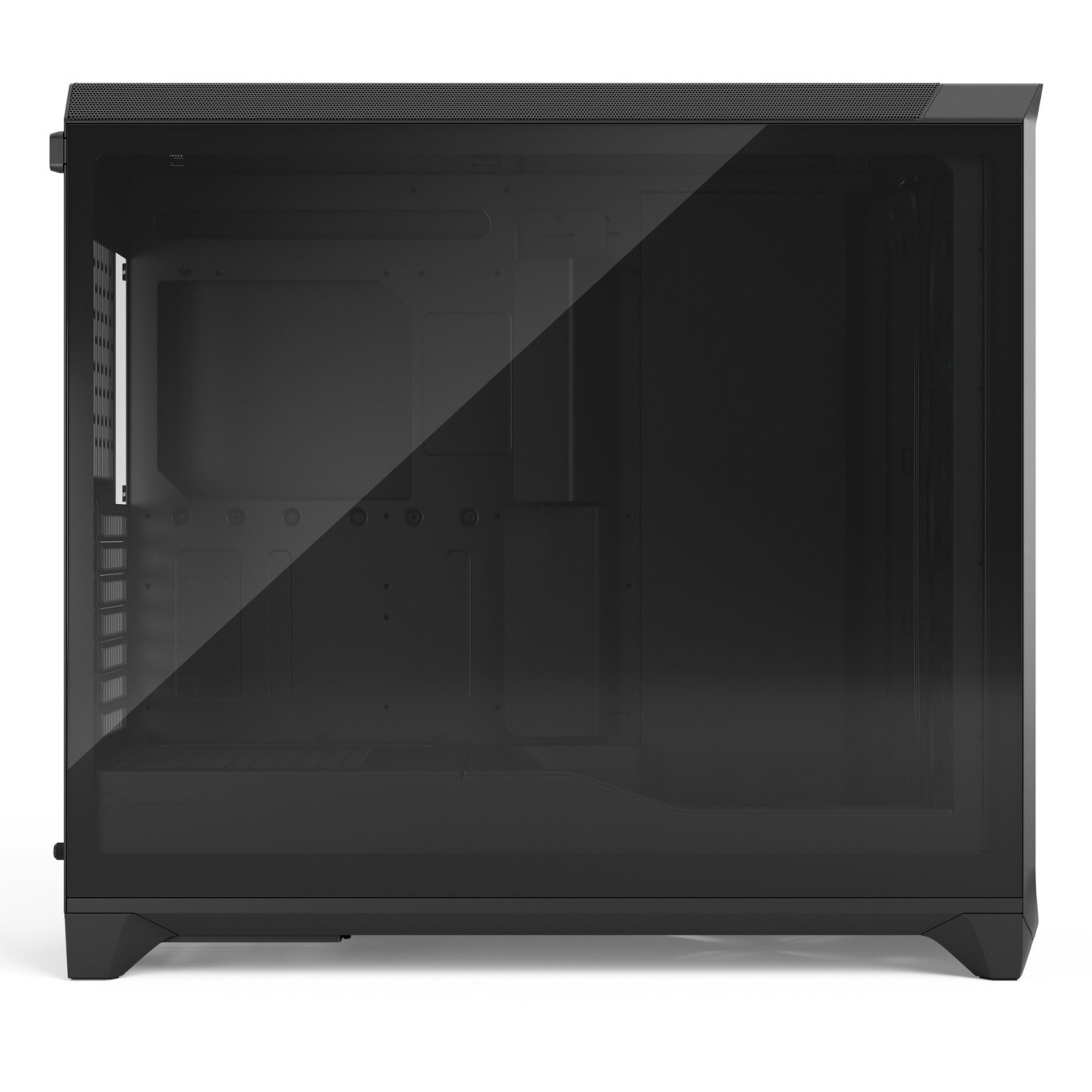

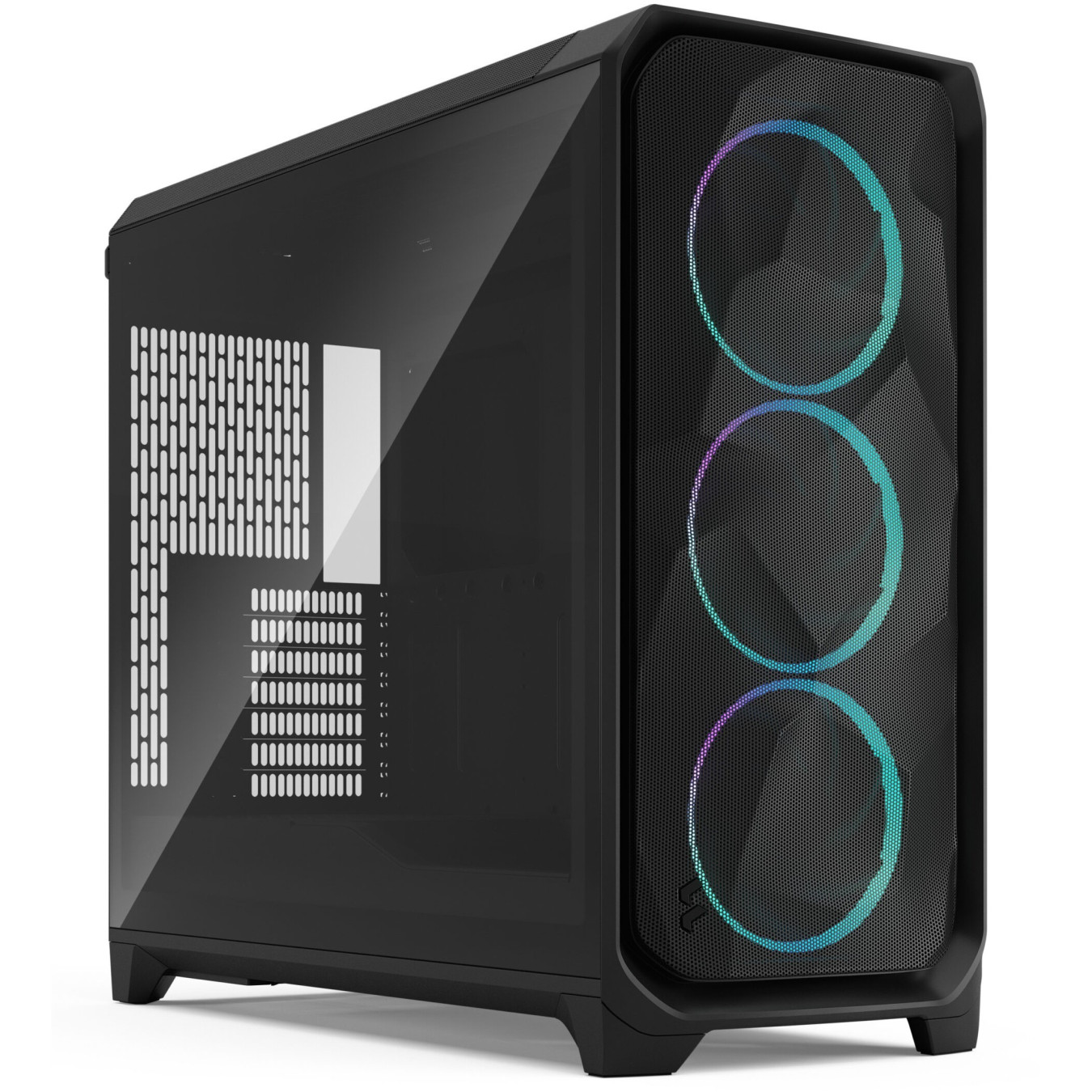

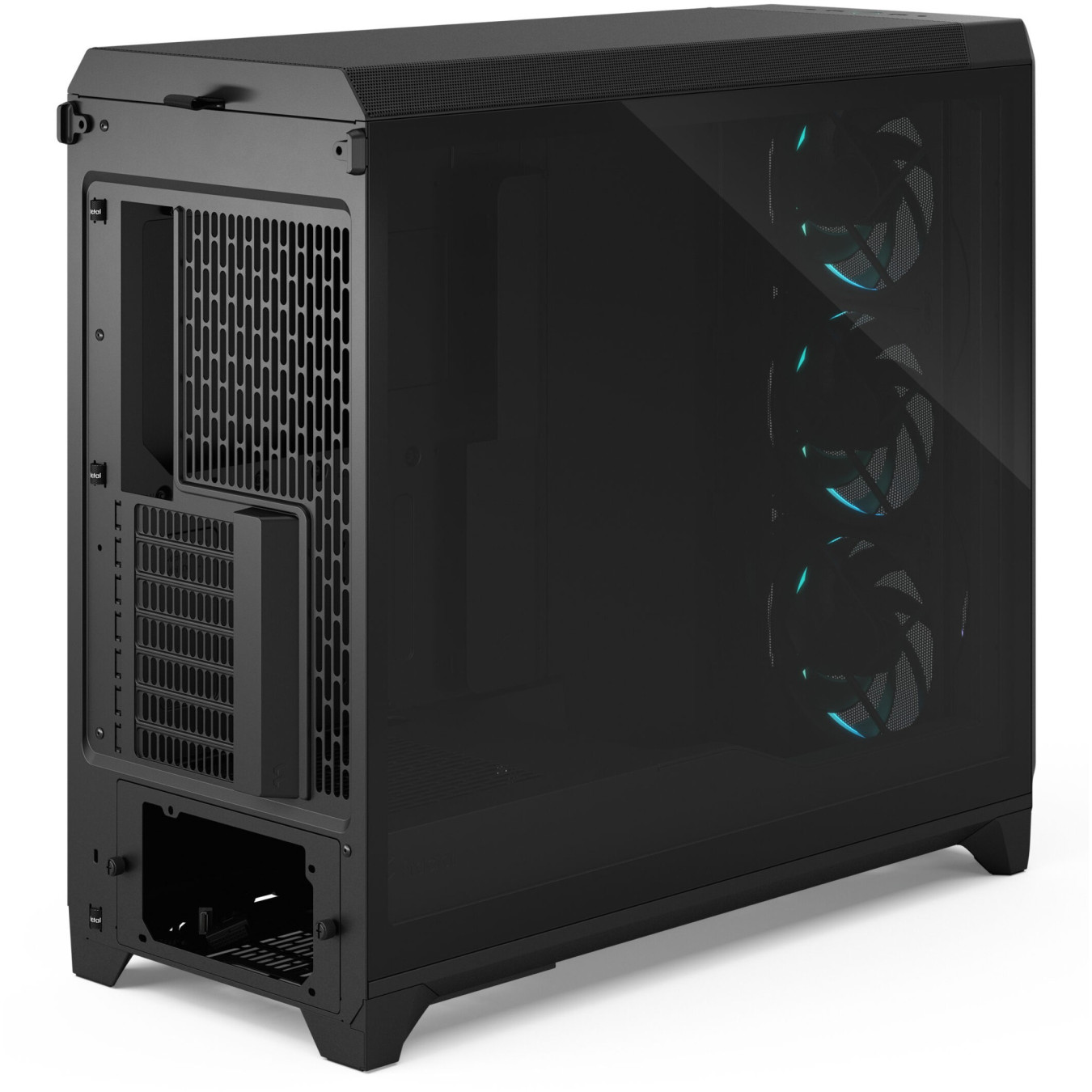

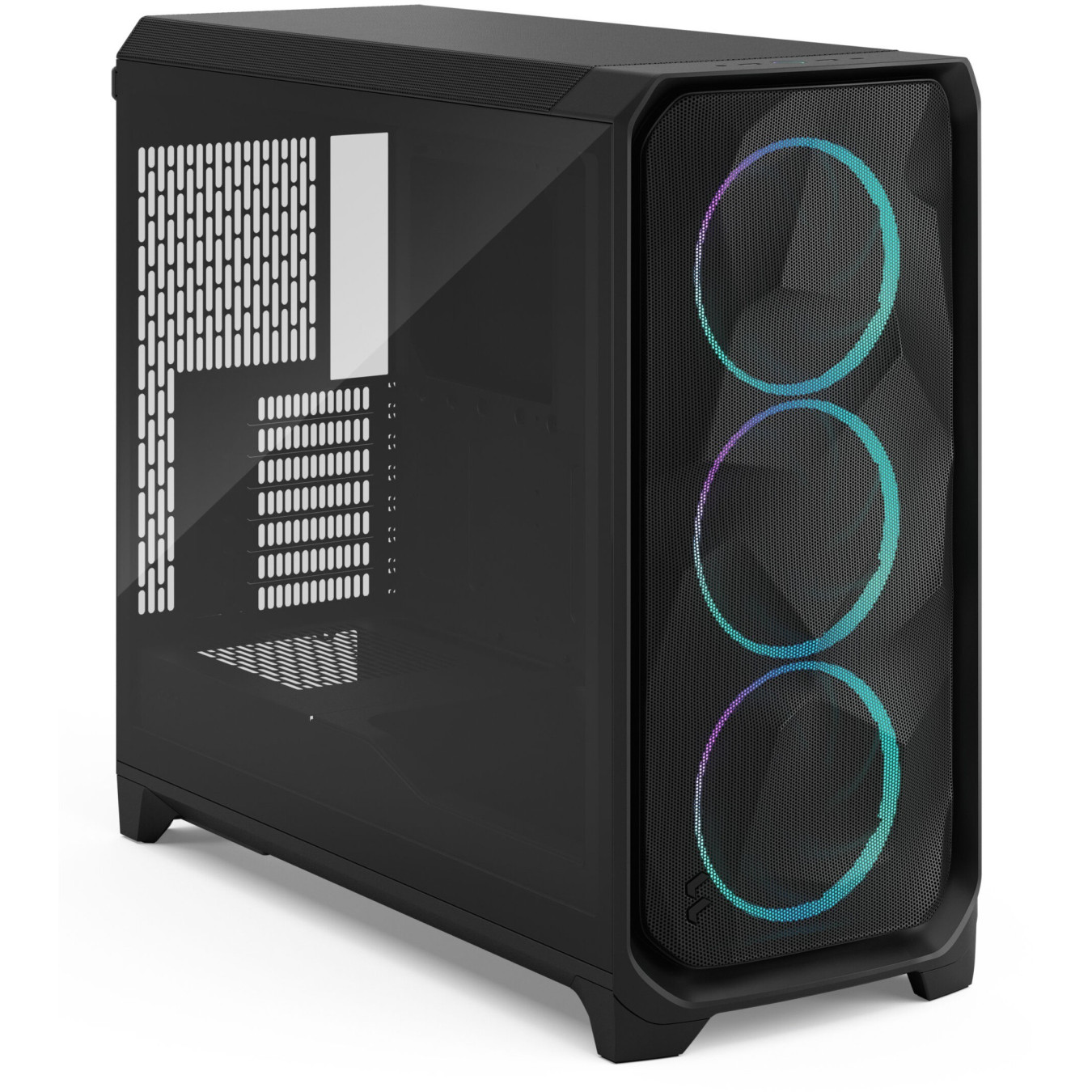

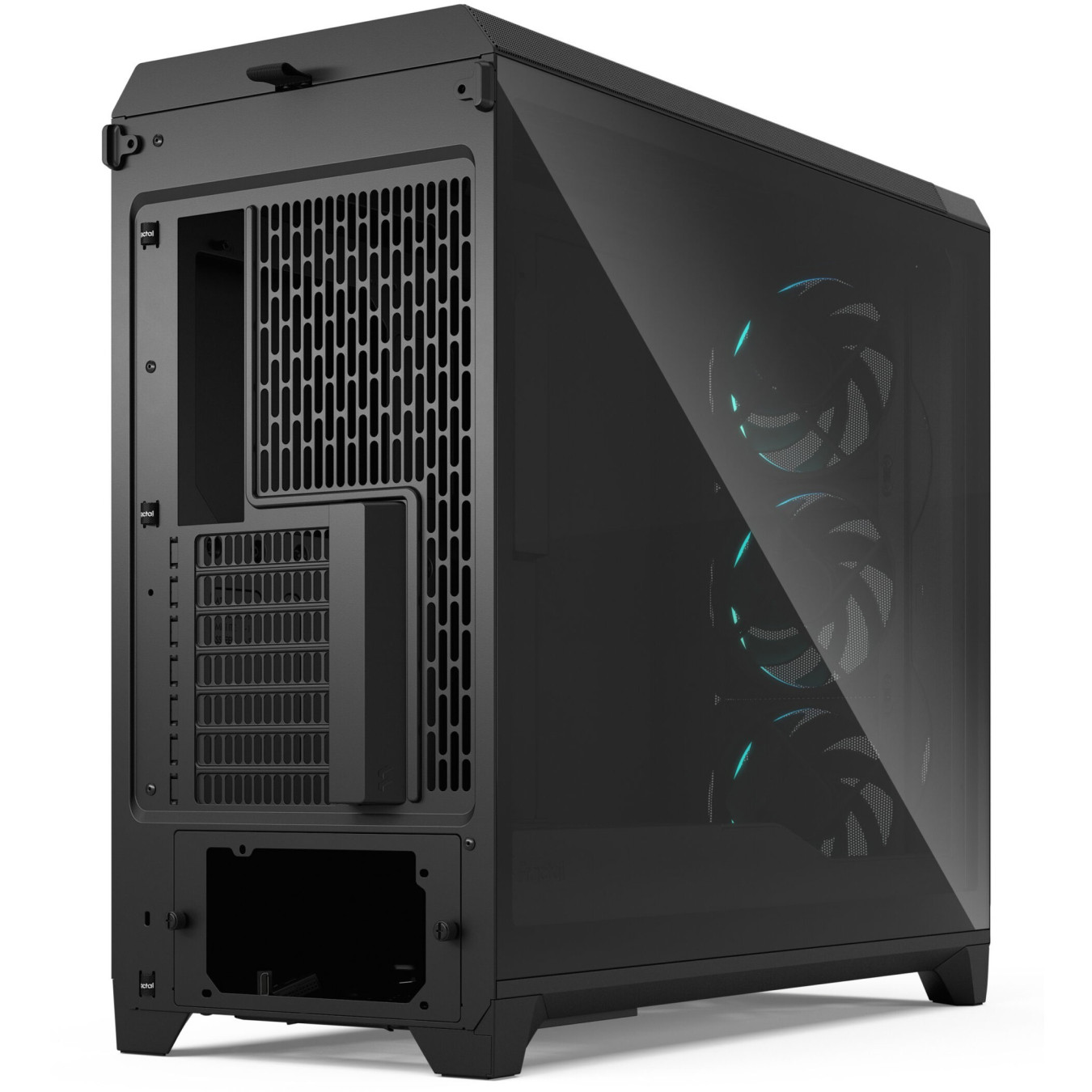

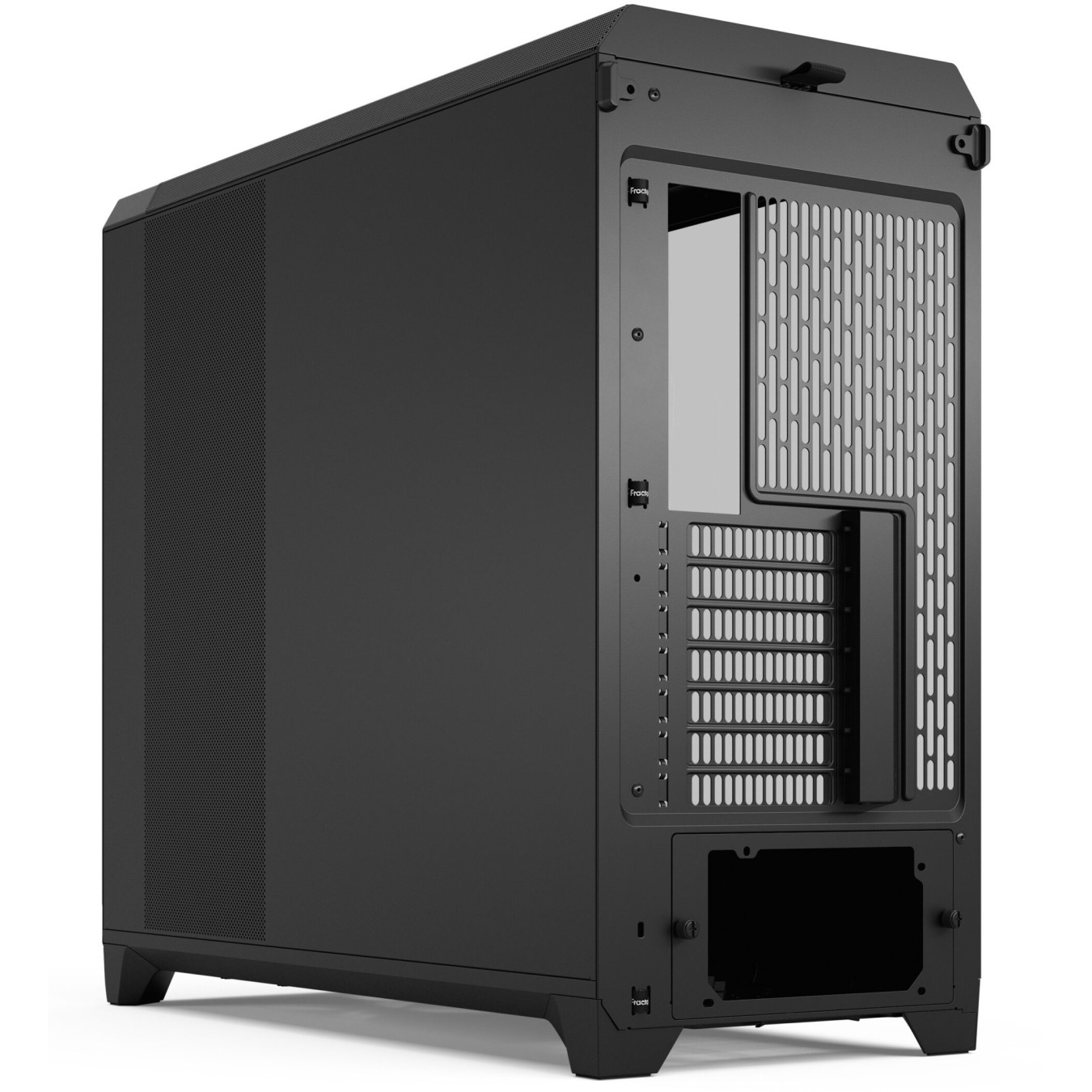

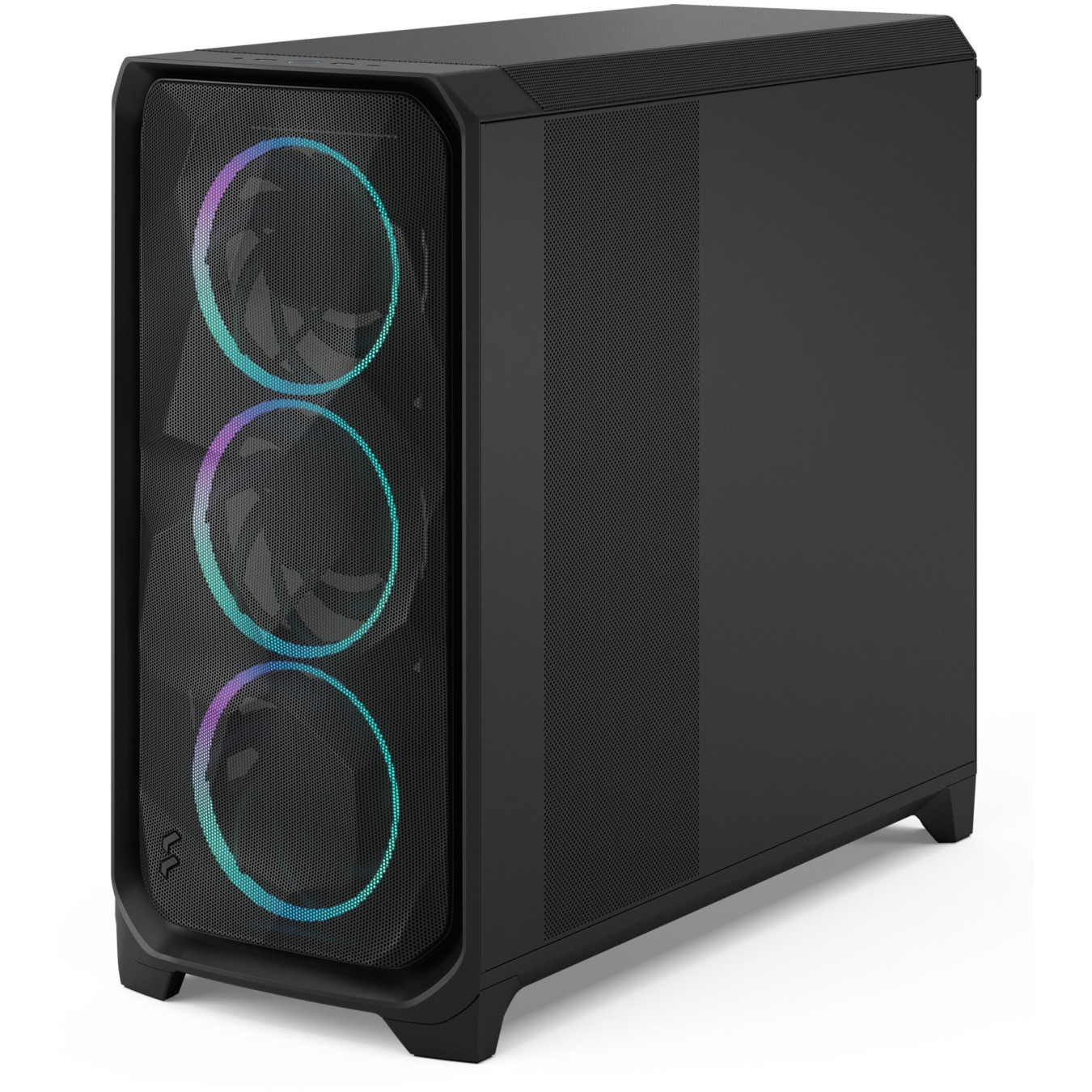

The Fractal Design Meshify 3 XL Black RGB TG Light Tint (MPN: FD-C-MES3X-04) is a premium full-tower PC case designed for superior cooling and expansive builds. Featuring a ventilated mesh front panel and light-tinted tempered glass side for showcasing RGB components, it includes three Momentum 14 RGB PWM fans pre-installed at the front for immediate high-performance airflow.

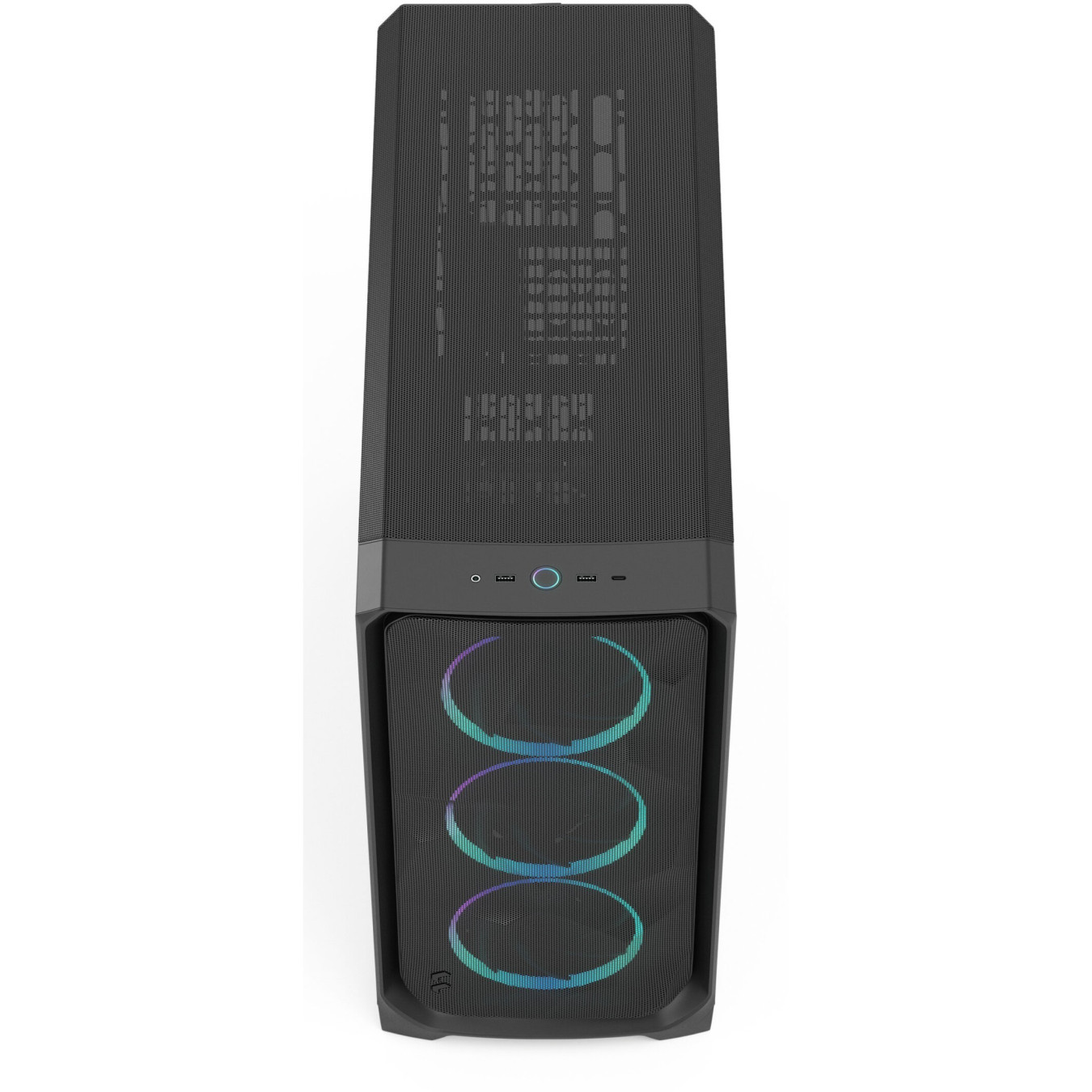

This spacious chassis supports E-ATX, ATX, mATX, ITX, SSI CEB, and SSI EEB motherboards, with room for GPUs up to 512 mm long and CPU coolers up to 182 mm tall. It accommodates up to 10x 140 mm fans across front, top, rear, and side mounts, plus extensive radiator support: 360/420 mm top, 360 mm front/side, 140 mm rear. Drive bays include 2x 3.5" or 4x 2.5" SSD/HDD. Front I/O: 1x USB 3.2 Gen2x2 Type-C (20Gbps), 2x USB 3.2 Gen1 Type-A, audio combo jack. Bottom PSU mount up to 230 mm ATX.
- ✅ 3x 140 mm RGB fans included (front)
- ✅ Max GPU length: 512 mm
- ✅ Max CPU cooler height: 182 mm
- ✅ Radiator support up to 420 mm (top)
- ✅ 7 expansion slots, dust filters (bottom)
- ✅ Dimensions: 575 x 245 x 515 mm (10.9 kg net)
| MPN | FD-C-MES3X-04 |
| Material | Steel, Tempered glass |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |
| Number of 3.5 | 2 |
| Number of 2.5 | 4 |
| Number of internal 3.5 | 2 |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 182 mm |
| Maximum graphics card length | 512 mm |
| Maximum PSU length | 230 mm |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Front fans installed | 3x 140 mm Momentum RGB PWM |
| Front fans diameters supported | 120, 140, 180 mm |
| Side fans diameters supported | 140 mm |
| Rear fans diameters supported | 120, 140 mm |
| Top fans diameters supported | 120, 140 mm |
| Front radiator sizes supported | 280, 360 mm |
| Side radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120, 140 mm |
| Top radiator sizes supported | 360, 420 mm |
| Supported HDD sizes | 2.5, 3.5 |
| SSD form factor | 2.5 |
| Warranty period | 2 year(s) |
| Width | 245 mm |
| Depth | 575 mm |
| Height | 515 mm |
| Weight | 10.9 kg |
| Package width | 350 mm |
| Package depth | 688 mm |
| Package height | 596 mm |
| Package weight | 13 kg |
