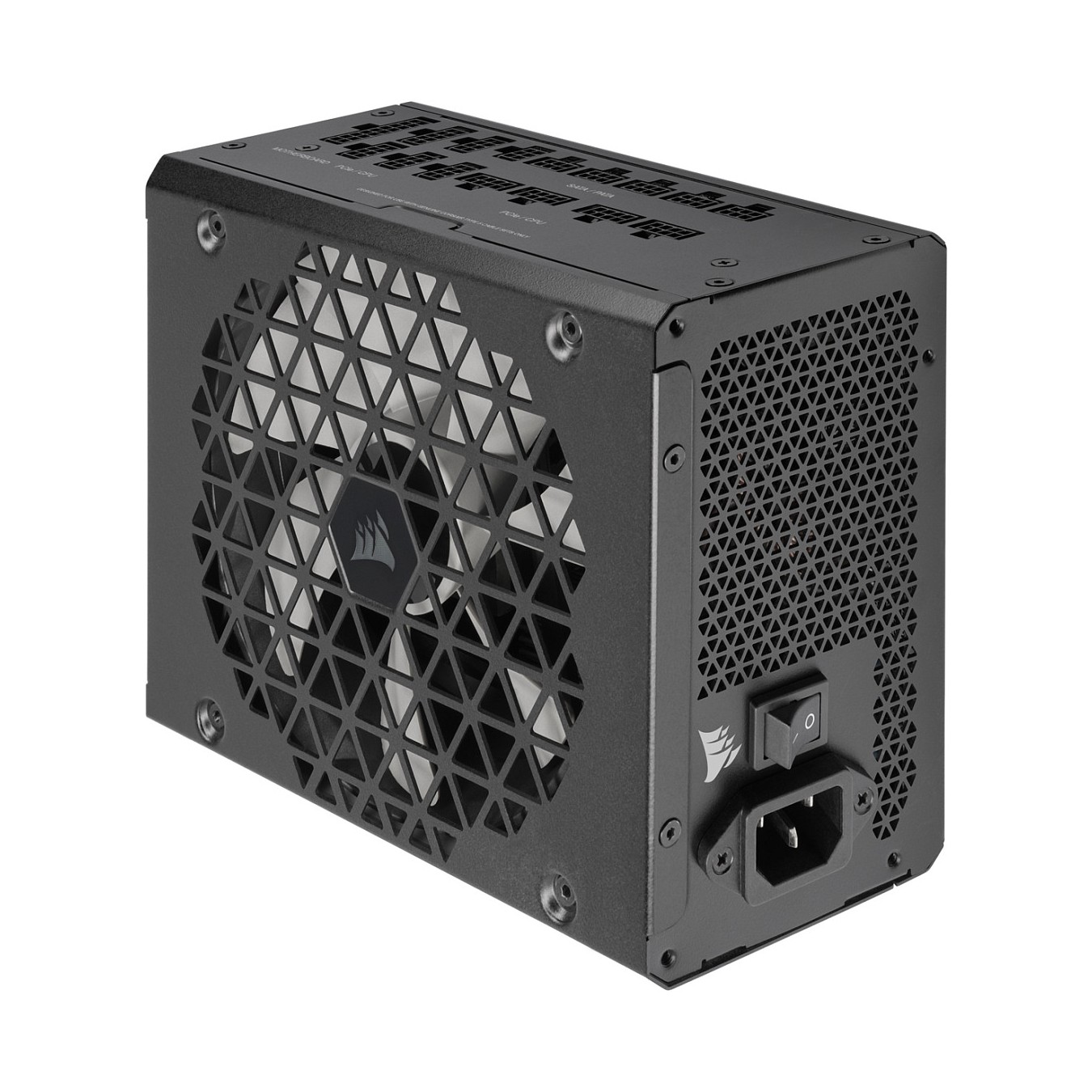

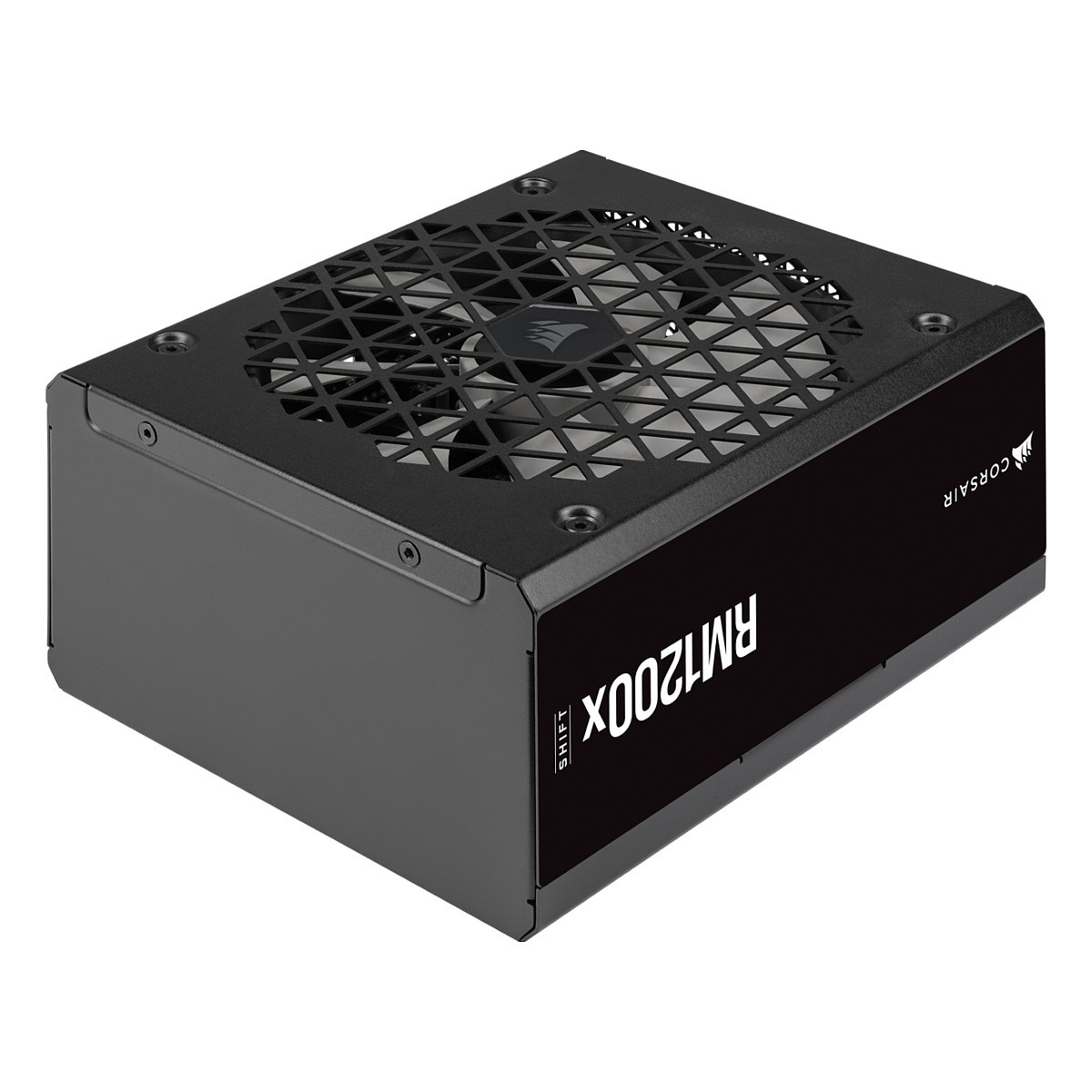

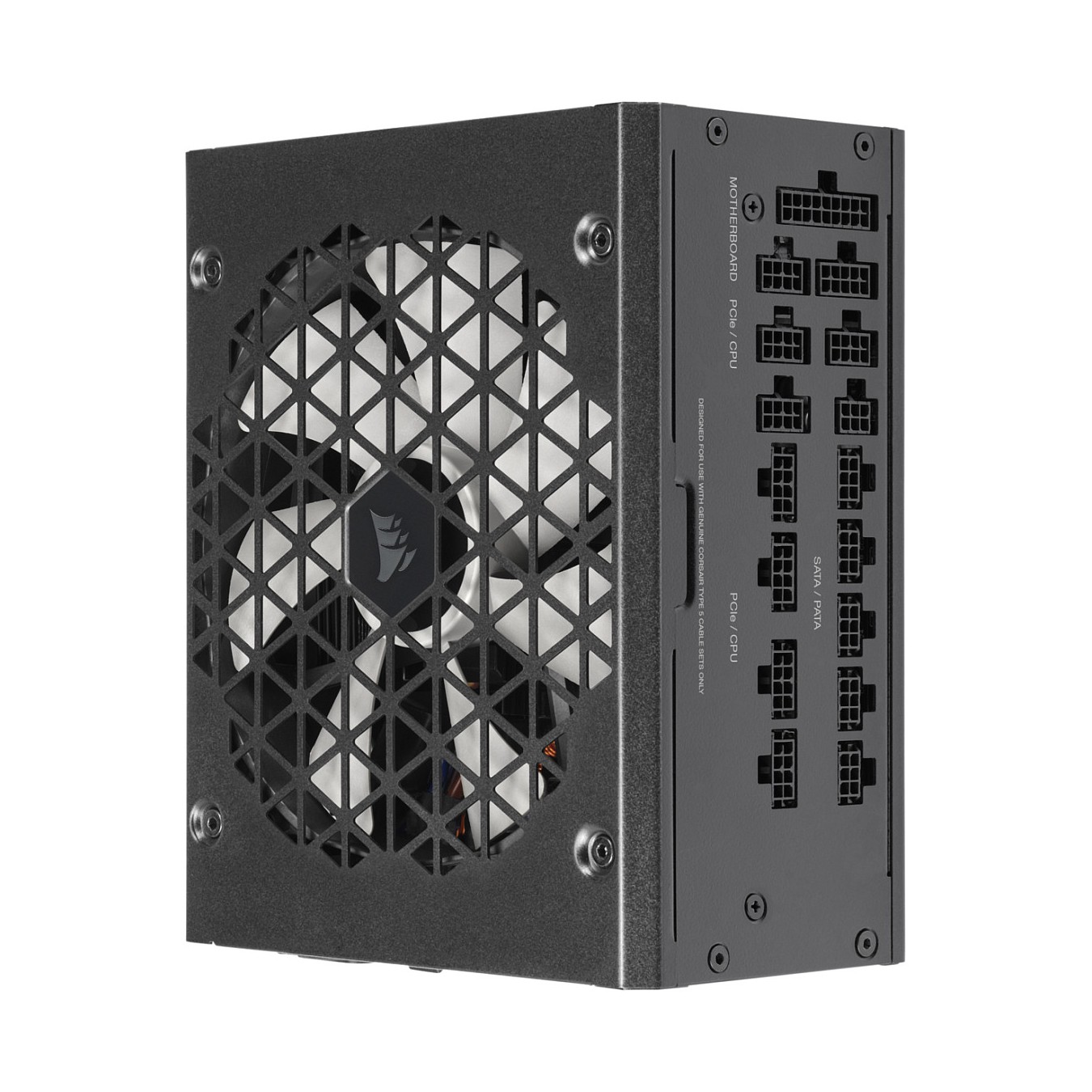

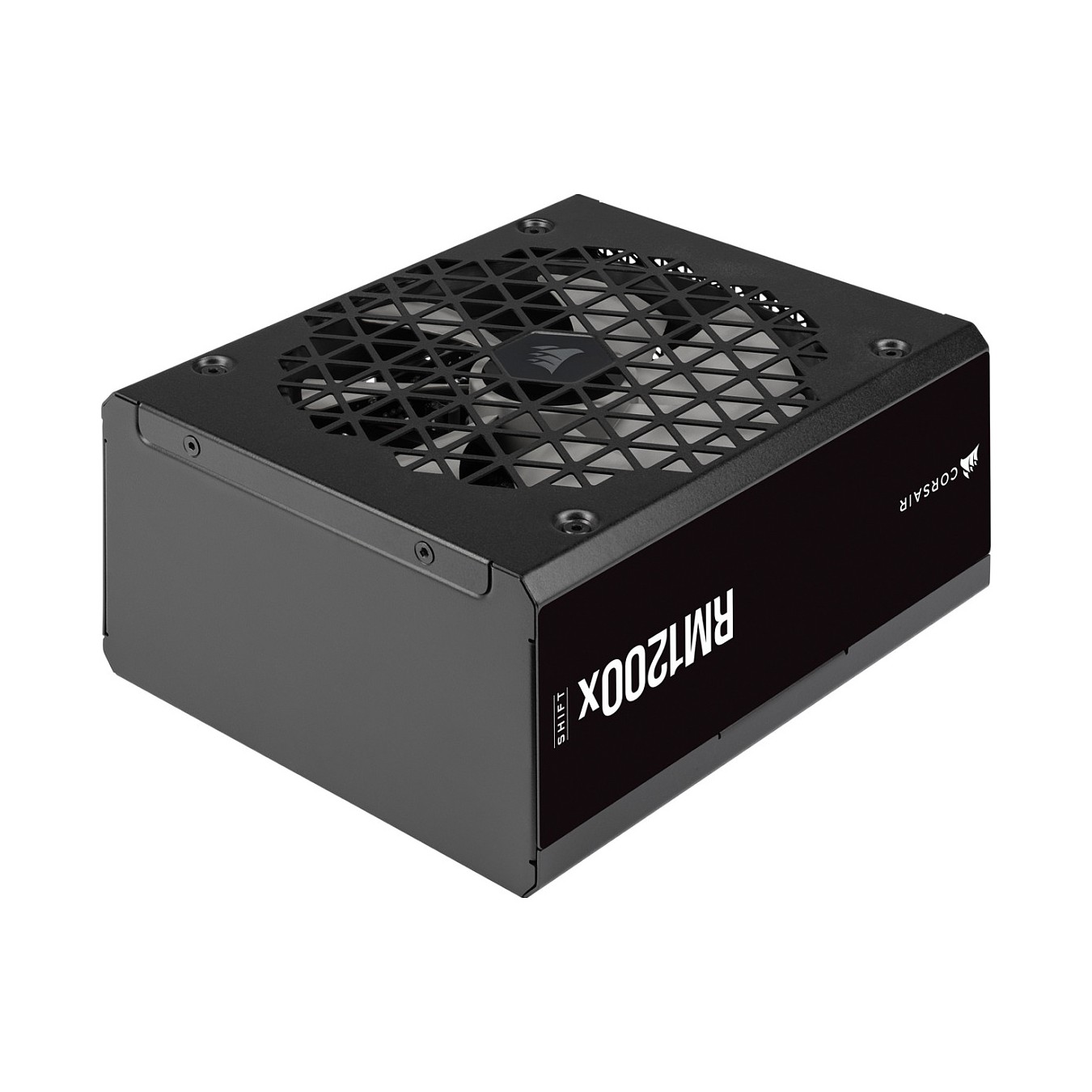

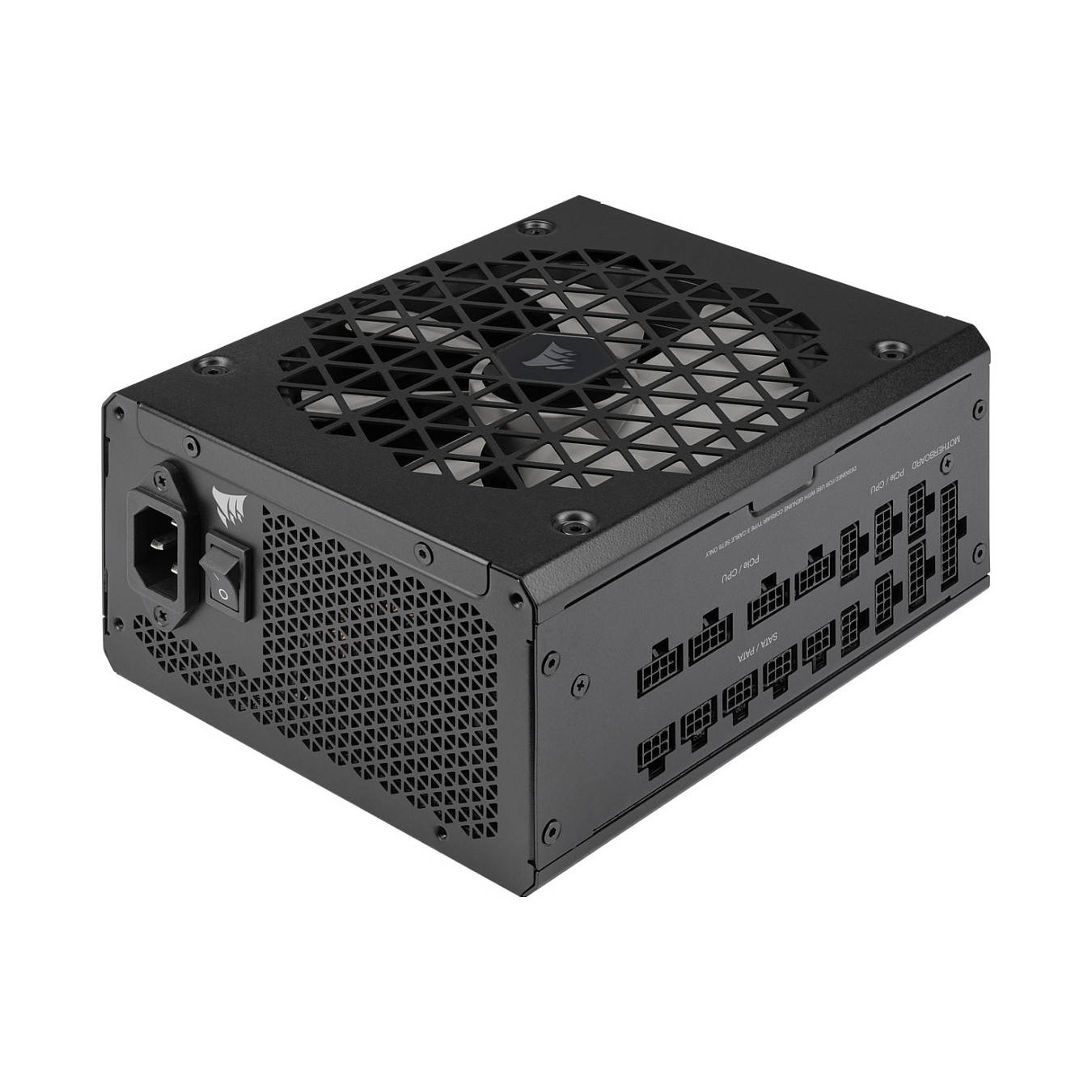

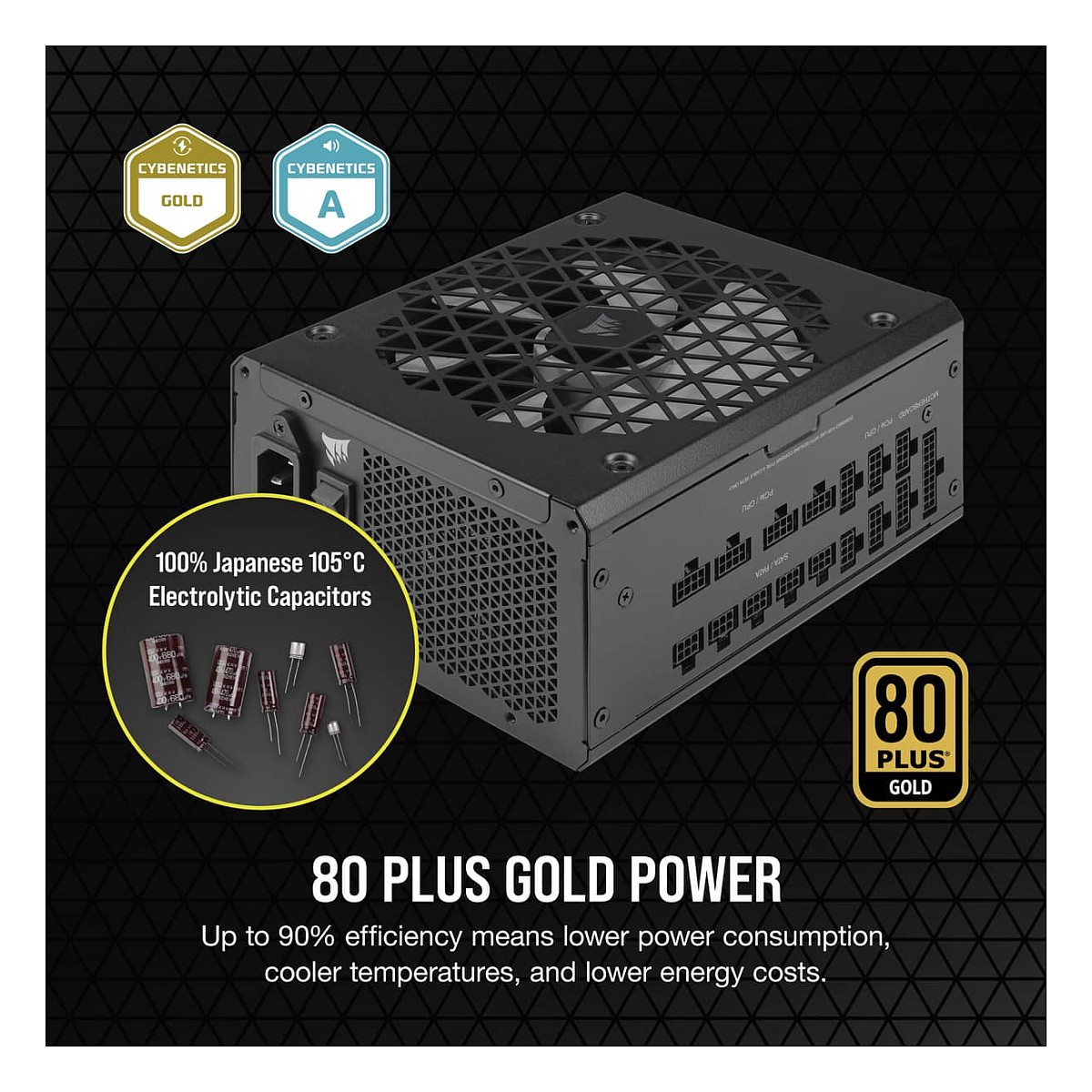

1200W Corsair RM1200X SHIFT CP-9020254-EU
Corsair RMx Shift Series RM1200x SHIFT, 1200 W, 100 - 240 V, 47 - 63 Hz, 7.5 - 15 A, 150 W, 1200 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Corsair RMx Shift Series RM1200x SHIFT. Gesamtleistung: 1200 W, AC Eingangsspannung: 100 - 240 V, AC Eingangsfrequenz: 47 - 63 Hz. Motherboard Anschlussstecker: 24-pin ATX, Stromkabellänge Motherboard: 61 cm, SATA-Netzkabellänge: 455,570,685,800 mm. Zweck: PC / Server, Stromversorgungseinheit (PSU) Formfaktor: ATX, 80 Plus Zertifizierung: 80 PLUS Gold. Produktfarbe: Schwarz, Kühlung: Aktiv, Lüfterdurchmesser: 14 cm. Mitgelieferte Kabel: AC, Gleichstrom
| Gesamtleistung | 1200 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 47 - 63 Hz |
| Eingangsstrom | 7.5 - 15 A |
| Kombinierter Strom (+3.3V) | 150 W |
| Kombinierter Strom (+12V) | 1200 W |
| Kombinierter Strom (+5V) | 150 W |
| Kombinierter Strom (+5Vsb) | 15 W |
| Max. Ausgangsstrom (+3.3V) | 20 A |
| Max. Ausgangsstrom (+12V) | 100 A |
| Max Ausgangsstrom (+5V) | 20 A |
| Max. Ausgangsstrom (+5Vsb) | 3 A |
| Effizienz | 90% |
| Energieschutzeigenschaften | Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß |

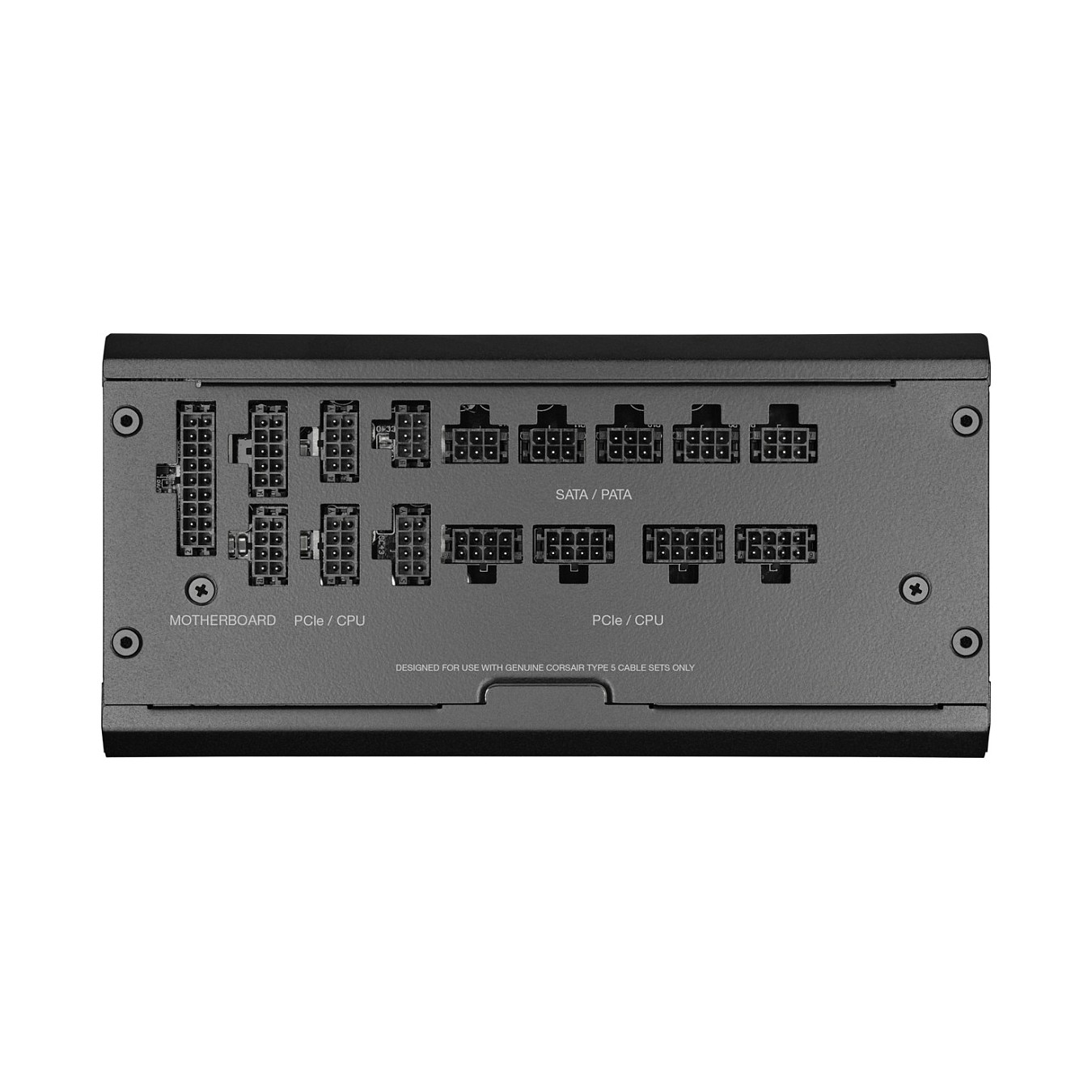

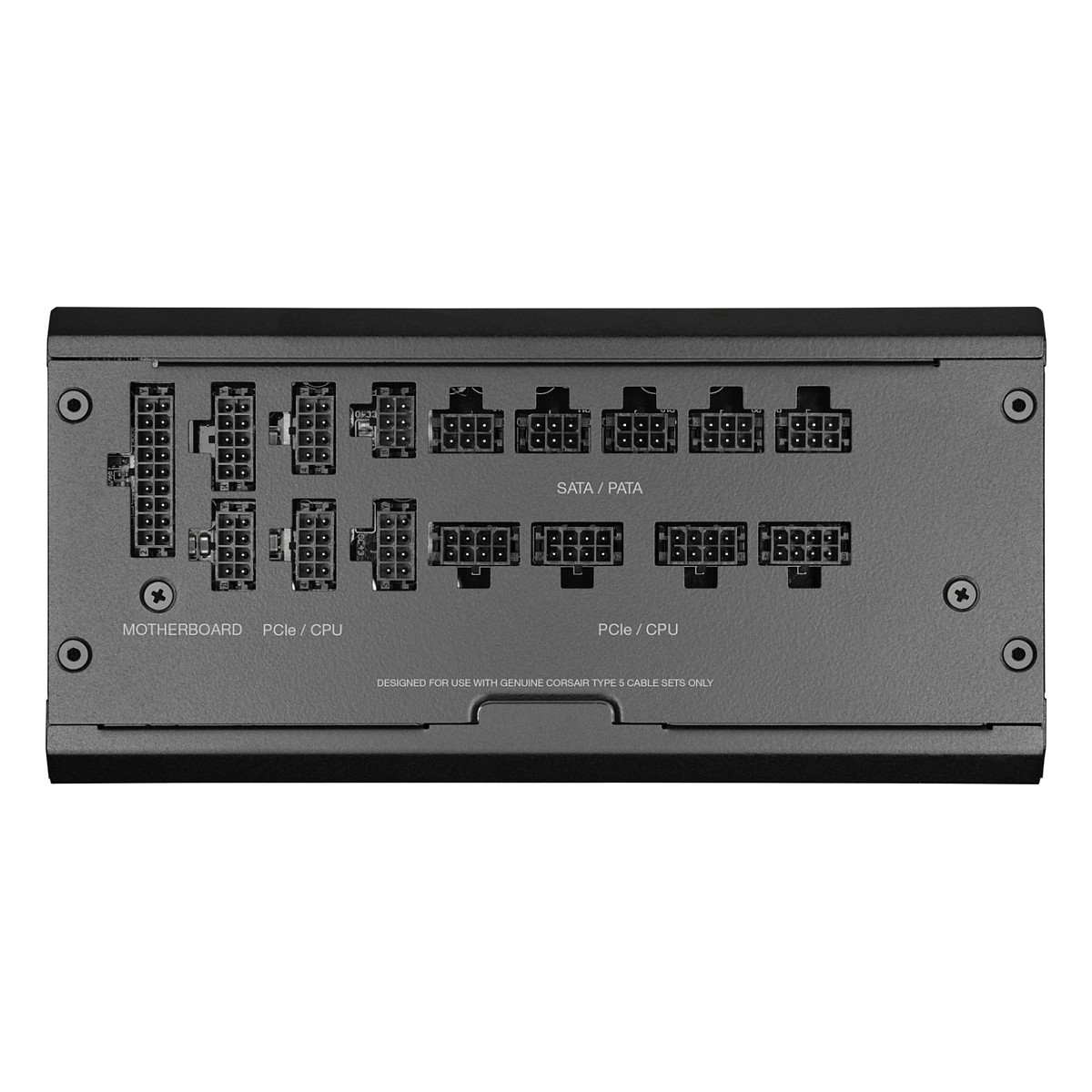

| Motherboard Anschlussstecker | 24-pin ATX |
| Stromkabellänge Motherboard | 61 cm |

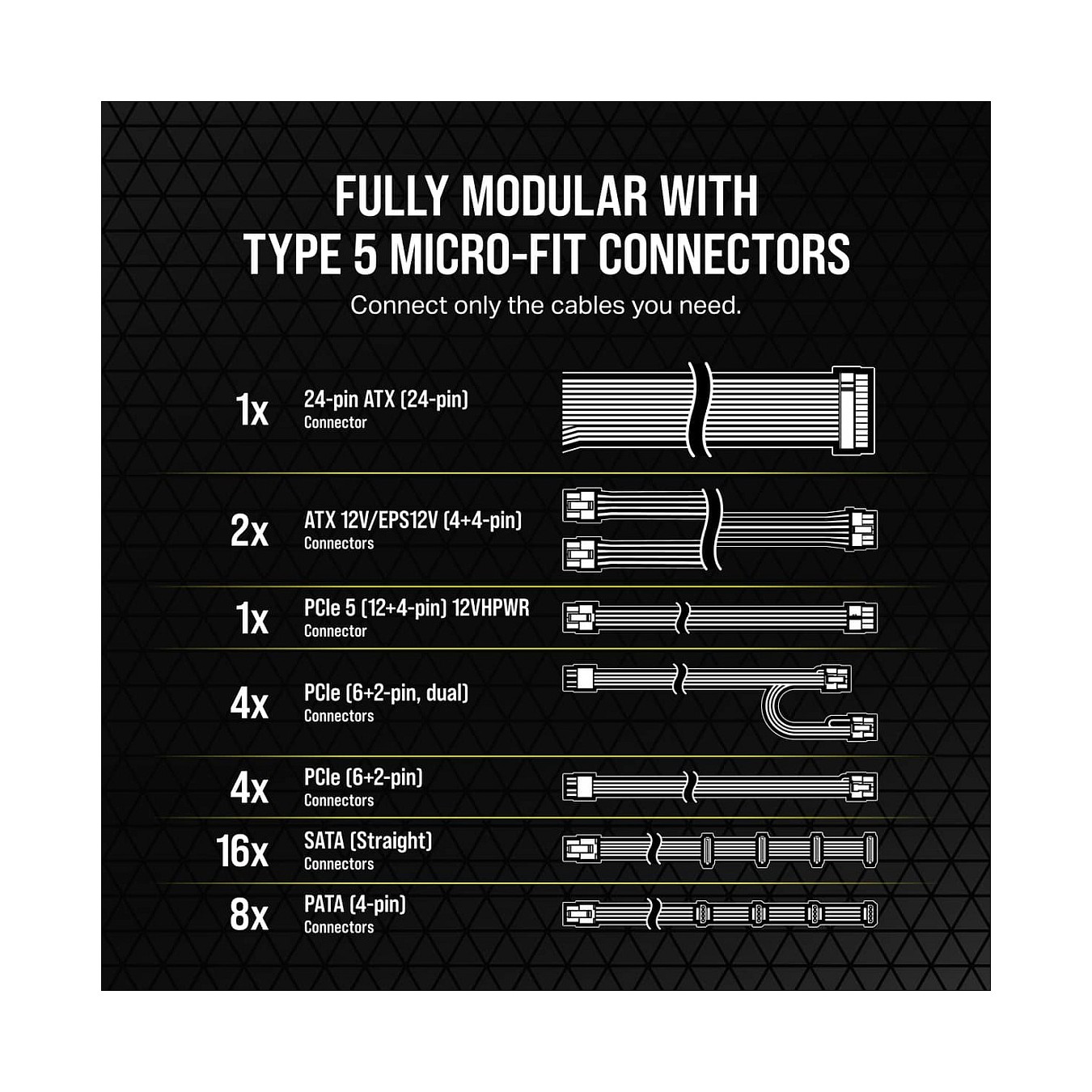

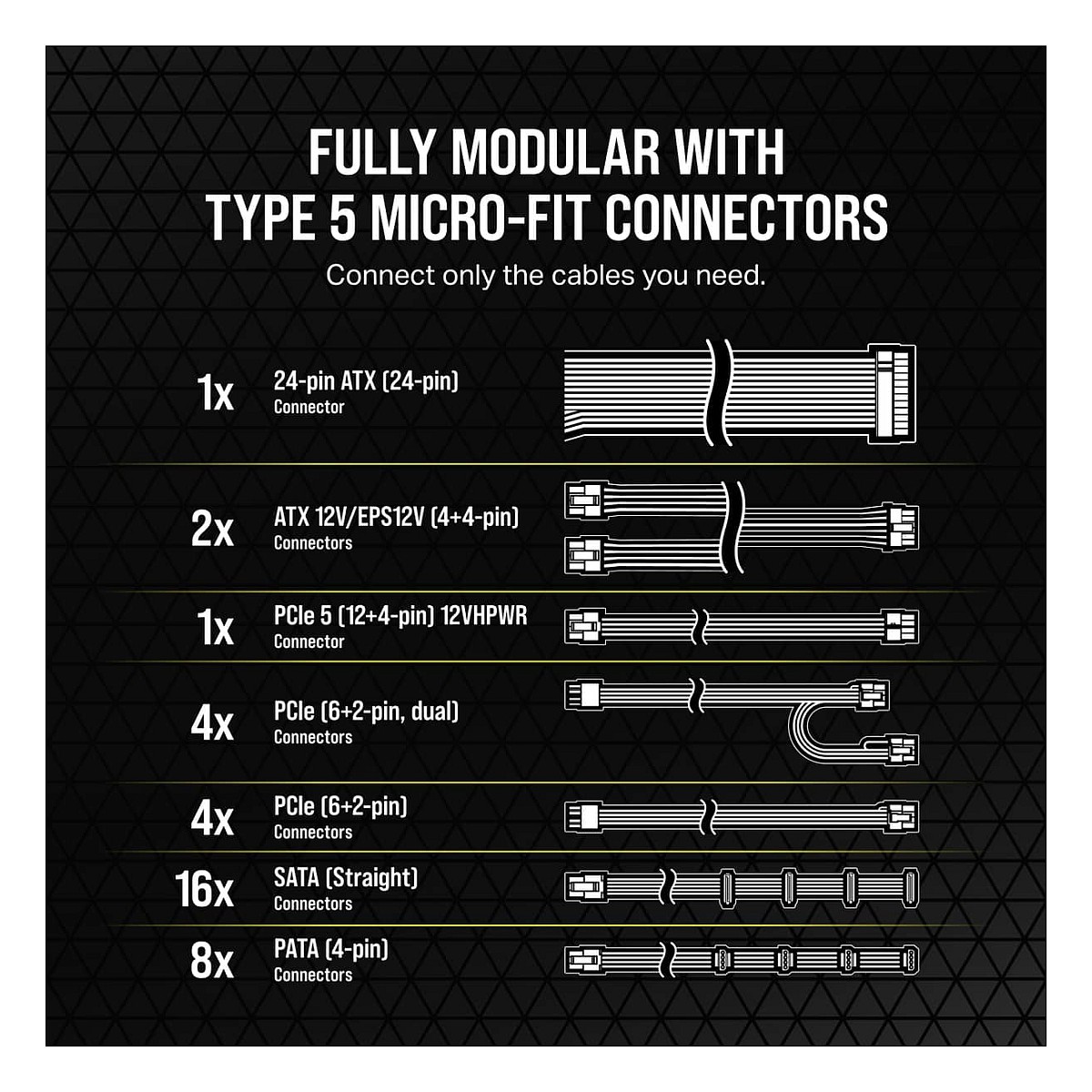

| Anzahl SATA Stromstecker | 16 |
| SATA-Netzkabellänge | 455,570,685,800 mm |
| Anzahl Molex Anschlüsse 4pin | 8 |
| Periphere (Molex) Netzkabellänge | 450,550,650,750 mm |
| EPS-Stromanschluss (4+4-polig) | Ja |
| Anzahl PCI Express Stromstecker 6+2pin | 8 |
| PCI Express-Stromanschlüsse (16-polig) | 1 |
| PCI Express Netzkabellänge | 75 cm |
| Kabeltyp | Vollständig modular |
| 80 Plus Zertifizierung | 80 PLUS Gold |
| Zweck | PC / Server |
| Stromversorgungseinheit (PSU) Formfaktor | ATX |
| ATX-Version | 3.0 |
| EPS-Version | 2.92 |
| Lagertyp | FDB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 100000 h |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |

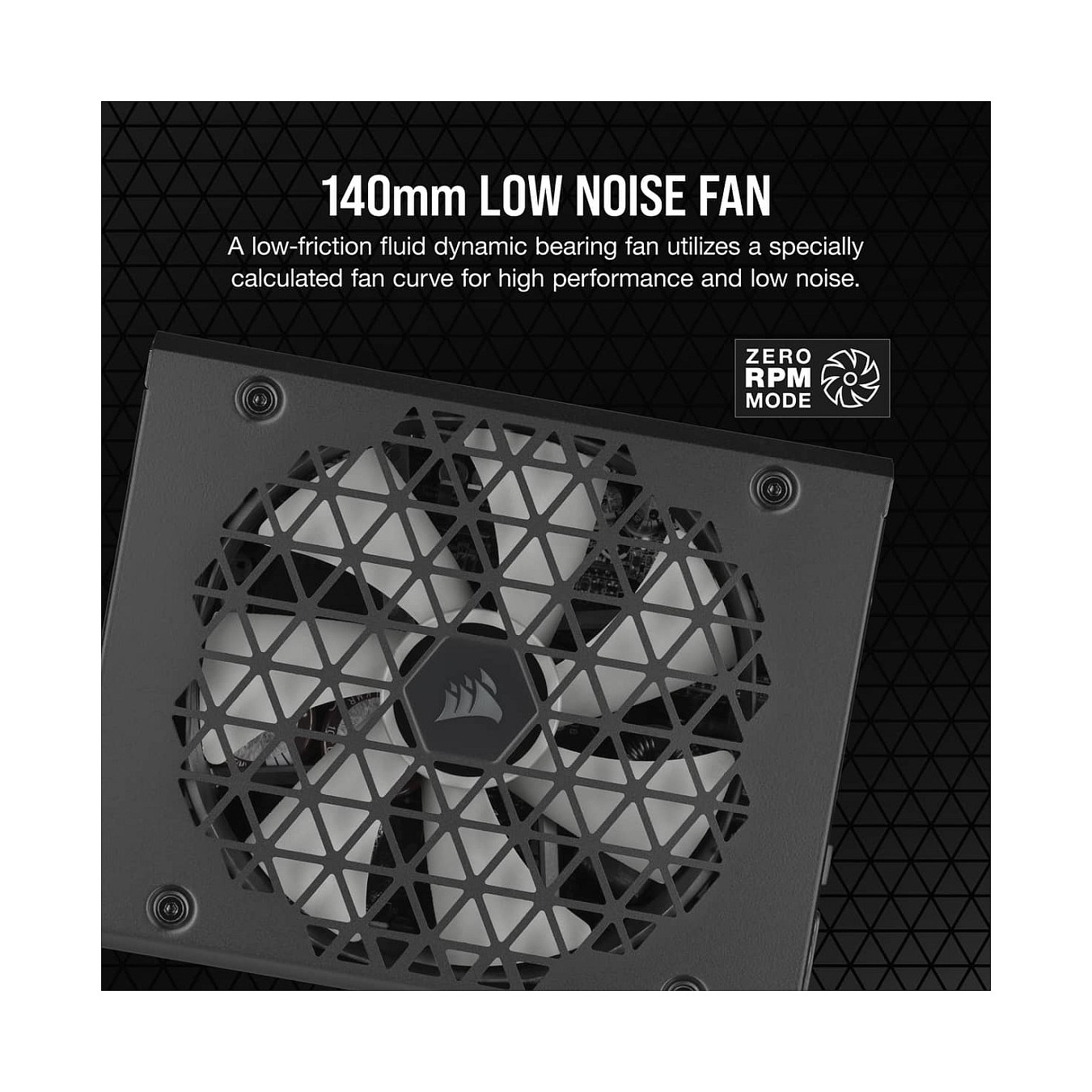

| Lüfterdurchmesser | 14 cm |
| Anzahl Lüfter | 1 Lüfter |
| Ein-/Ausschalter | Ja |
| Mitgelieferte Kabel | AC, Gleichstrom |
| Kabelbinder enthalten | Ja |
| Konformitätsbescheinigungen | Niederspannungsrichtlinie (LVD), RoHS, UKCA |
| Breite | 150 mm |
| Tiefe | 180 mm |
| Höhe | 86 mm |
| Gewicht | 2 kg |
| Nachhaltigkeitskonformität | Ja |
| EPS-Kabellänge | 65 cm |
| Schrauben enthalten | Ja |
