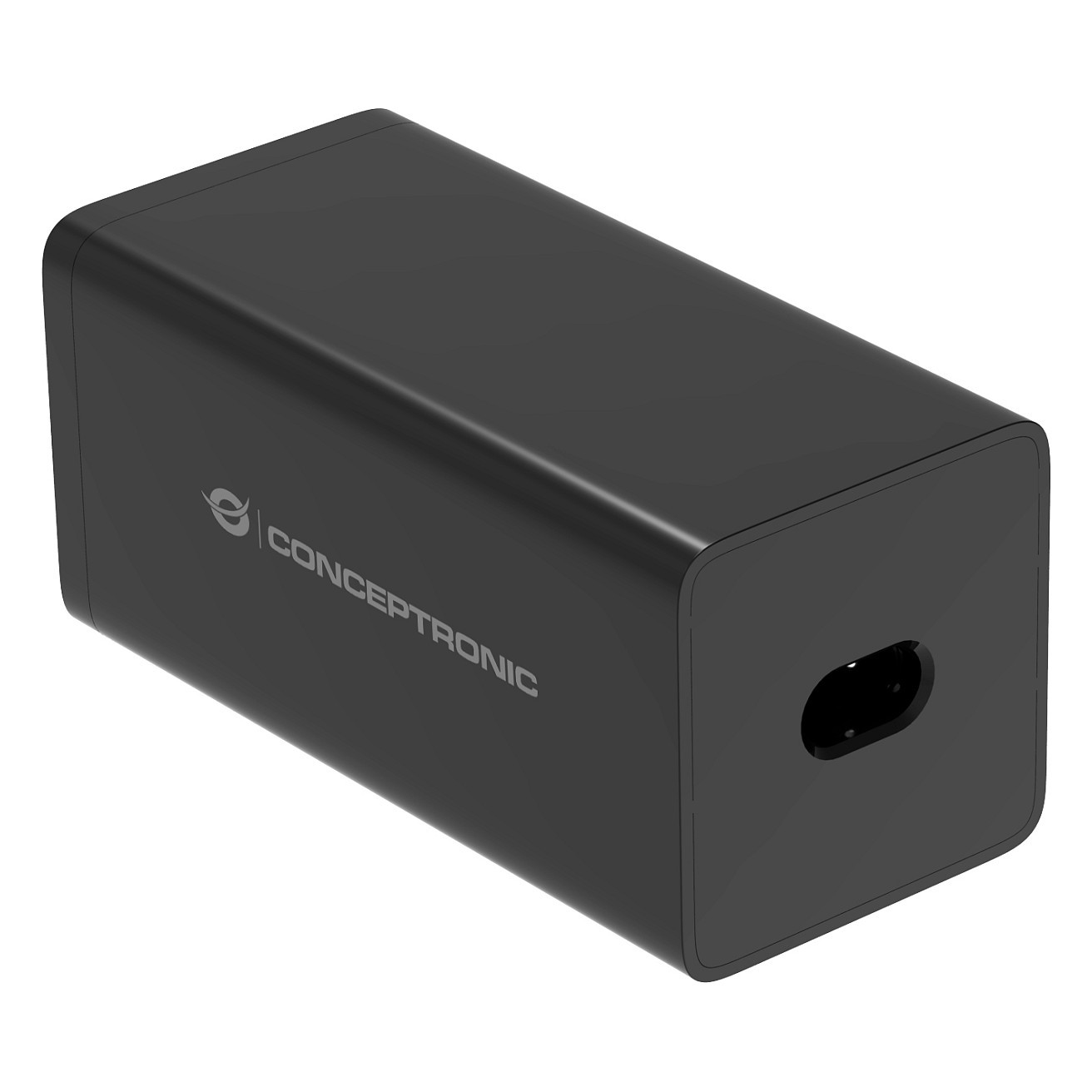

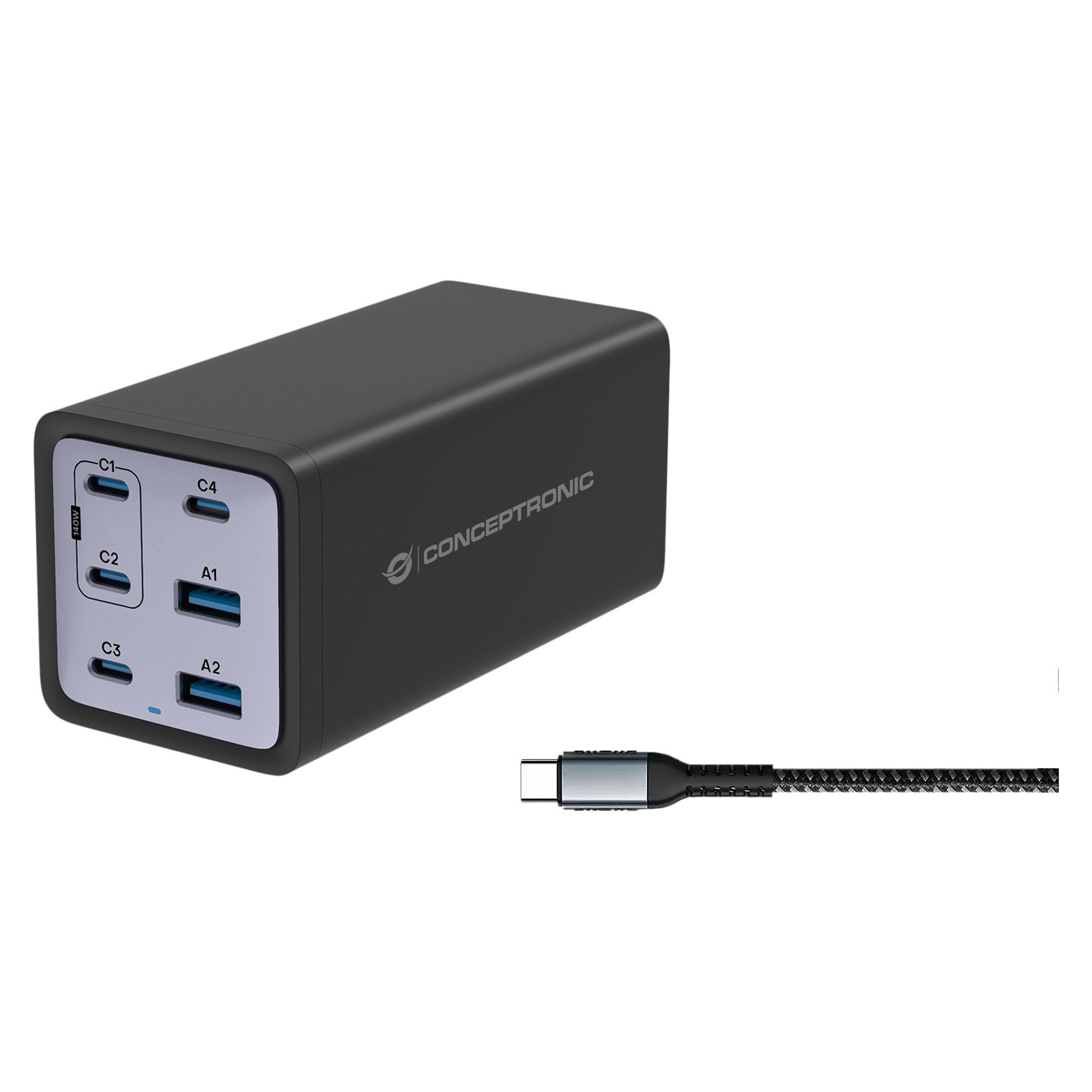

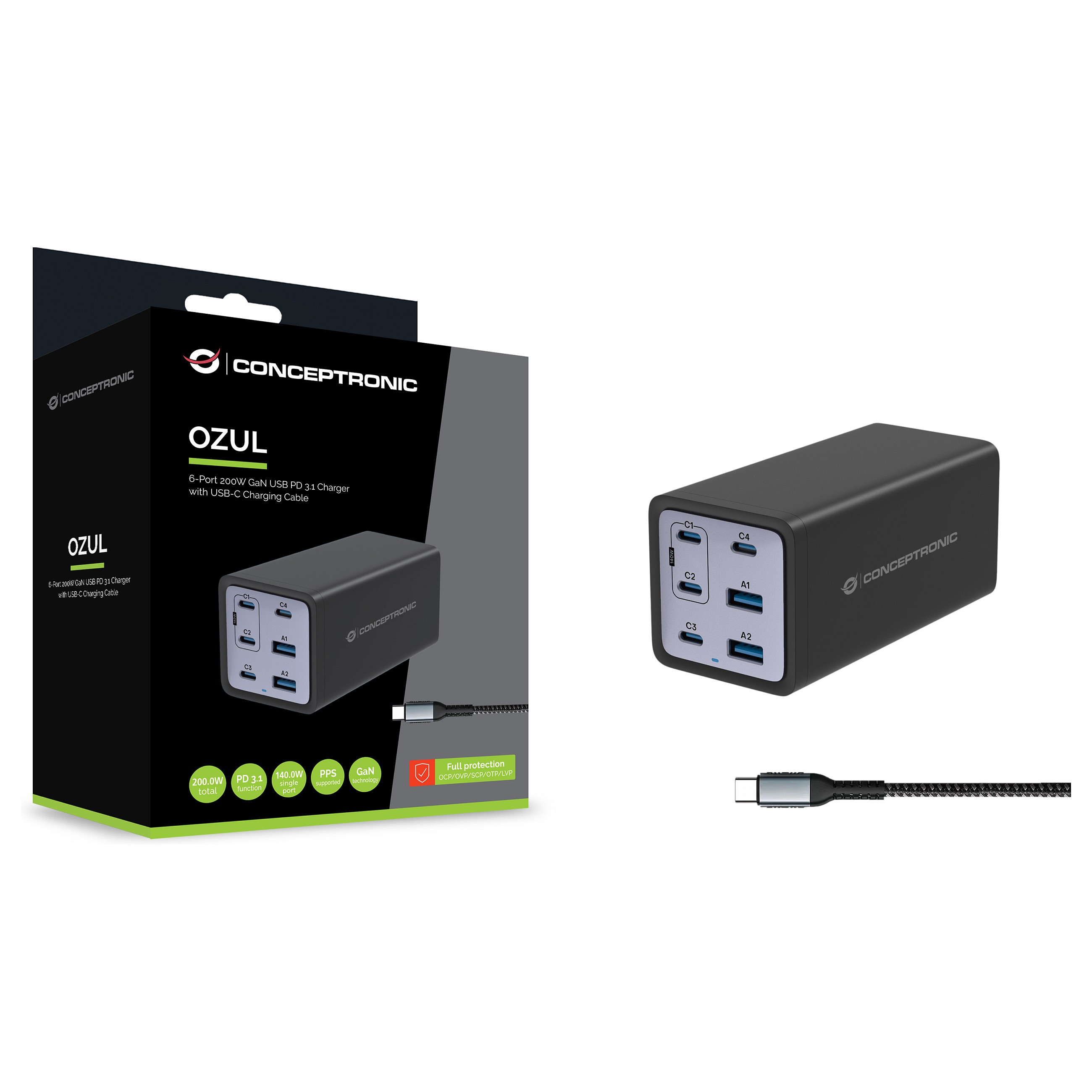

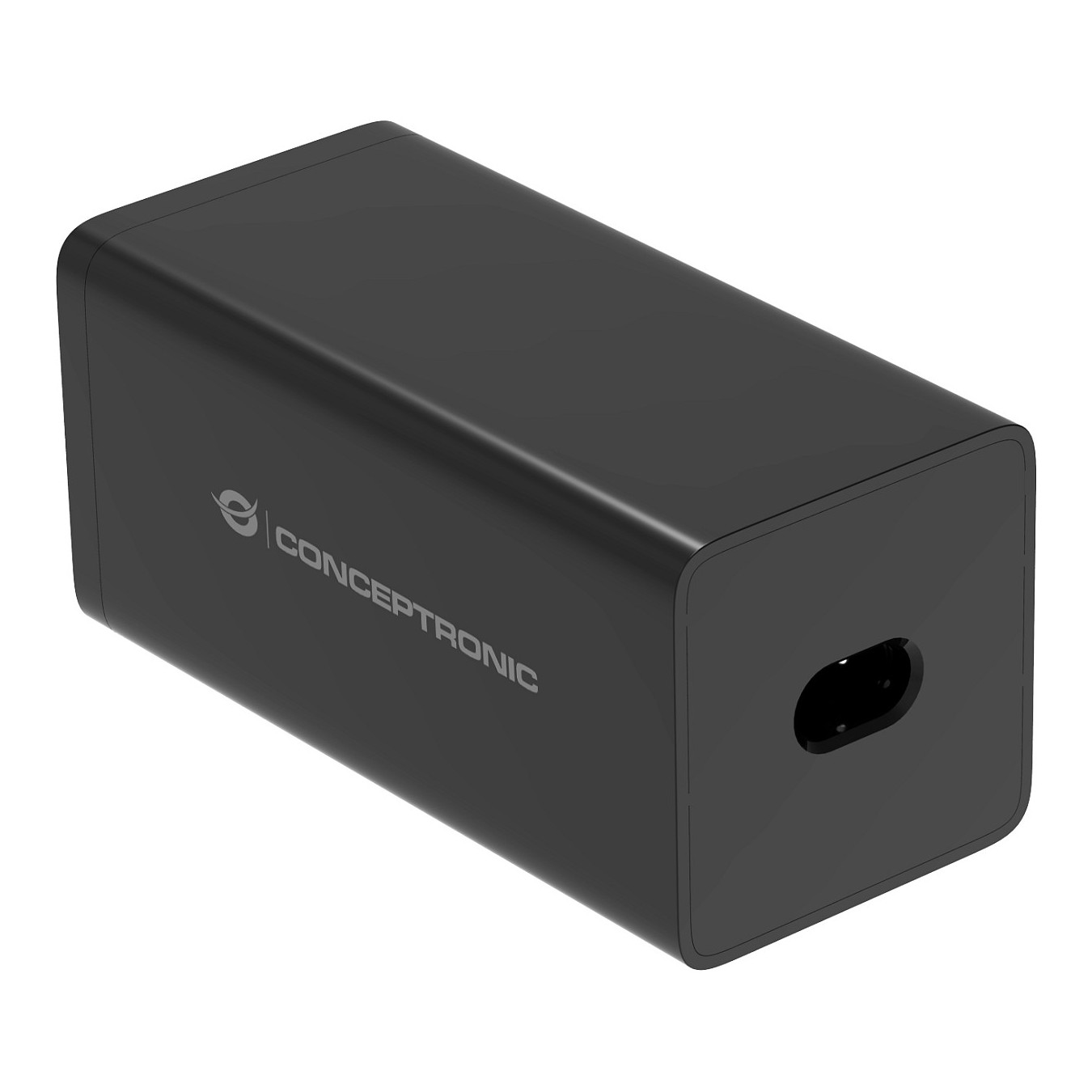

CONCEPTRONIC Ladegerät 6Port GaN 4xUSB-C 2xA200WPD3.1 PPS sw
Conceptronic 6-Port 200W GaN USB-PD 3.1-Ladegerät mit USB-C-Ladekabel, USB-C x 4, USB-A x 2, QC 3.0, PD 3.1, Drinnen, AC, 55 V, Schwarz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Conceptronic 6-Port 200W GaN USB-PD 3.1-Ladegerät mit USB-C-Ladekabel, USB-C x 4, USB-A x 2, QC 3.0, PD 3.1. Aufladetyp: Drinnen, Energiequelle: AC, Aufladekompatibilität: Universal. Eingangsspannung: 100 - 240 V, Maximale Ausgangsspannung: 55 V. USB Typ-C Anzahl Anschlüsse: 4, Schnellladung, Energieschutzeigenschaften: Überhitzung, Überlastschutz, Kurzschluß. Produktfarbe: Schwarz
| Aufladekompatibilität | Universal |
| Energiequelle | AC |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| USB Typ-C Anzahl Anschlüsse | 4 |
| Schnellladung | Ja |
| Schnellladetechnik | Power Delivery, Quick Charge 3.0 |
| Aufladetyp | Drinnen |
| Anzahl simultan anschließbarer Geräte (max) | 6 |
| USB Power Delivery | Ja |
| USB-Stromversorgung Revision | 3.1 |
| USB-Stromversorgung bis zu | 140 W |
| Energieschutzeigenschaften | Überhitzung, Überlastschutz, Kurzschluß |
| Produktfarbe | Schwarz |
| Galliumnitrid (GaN)-Transistoren | Ja |
| Eingangsspannung | 100 - 240 V |
| Eingangsfrequenz | 50 - 60 Hz |
| Eingangsstrom | 2.5 A |

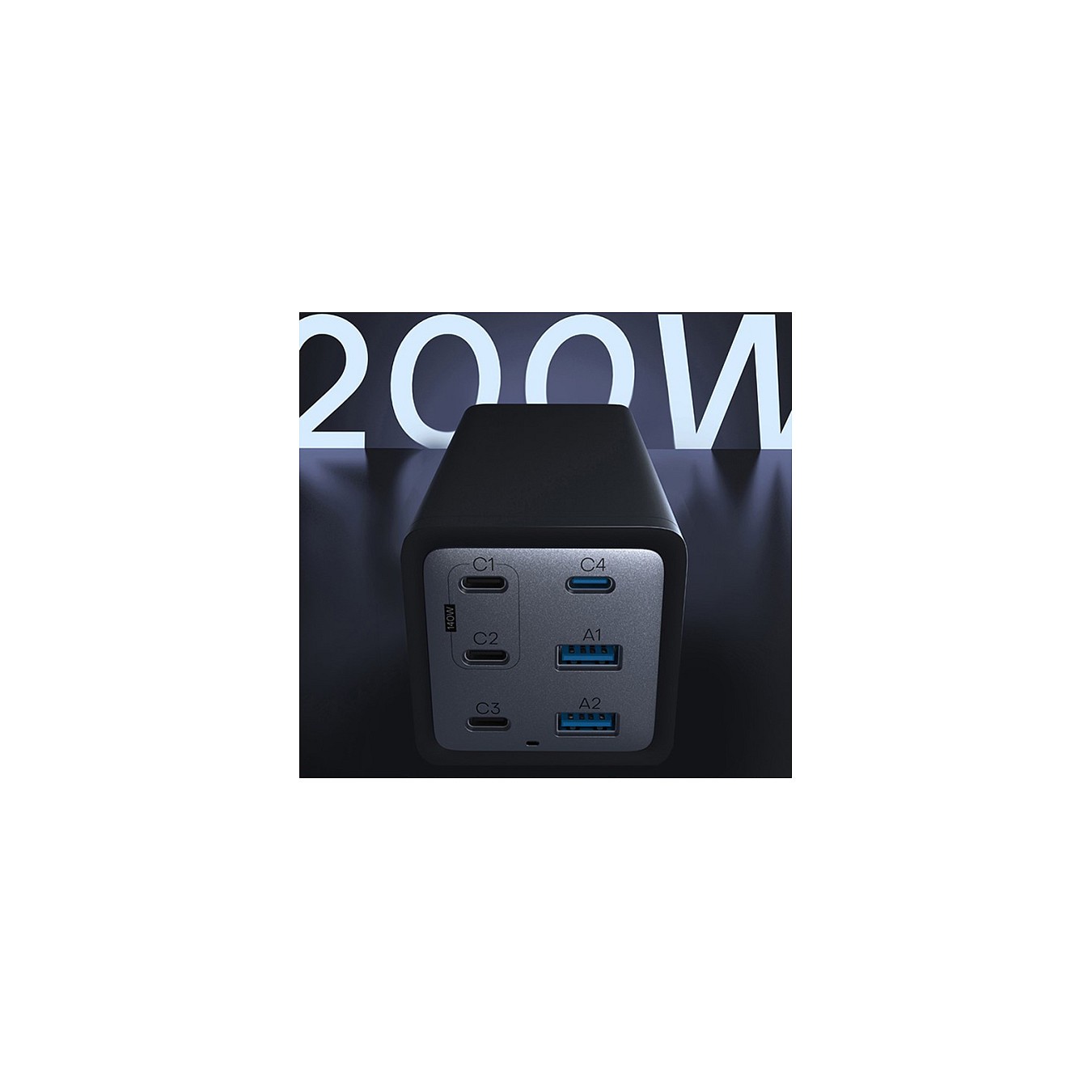

| Max. Leistung | 200 W |
| Maximale Ausgangsspannung | 55 V |
| Minimale Ausgangsspannung | 3,3 V |

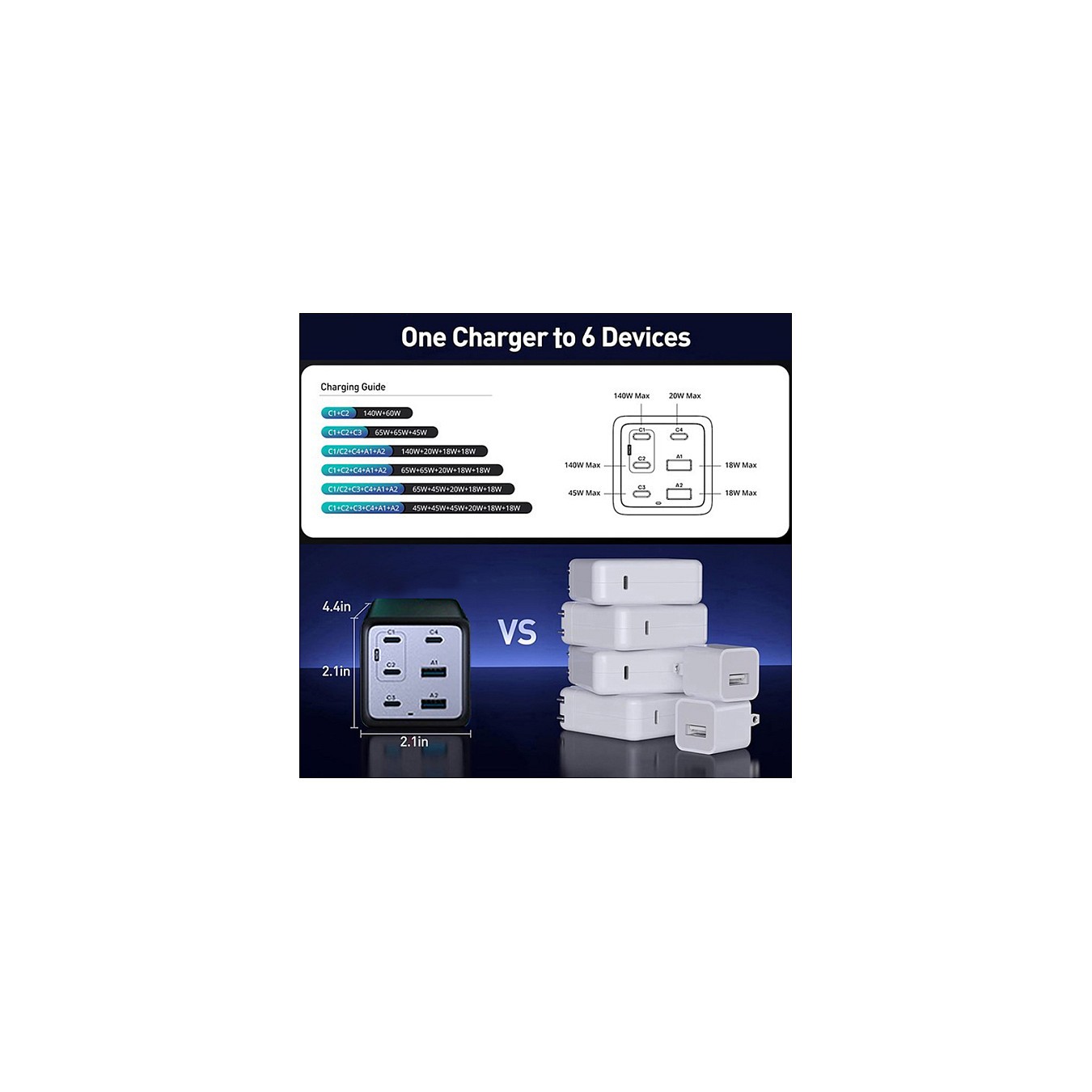

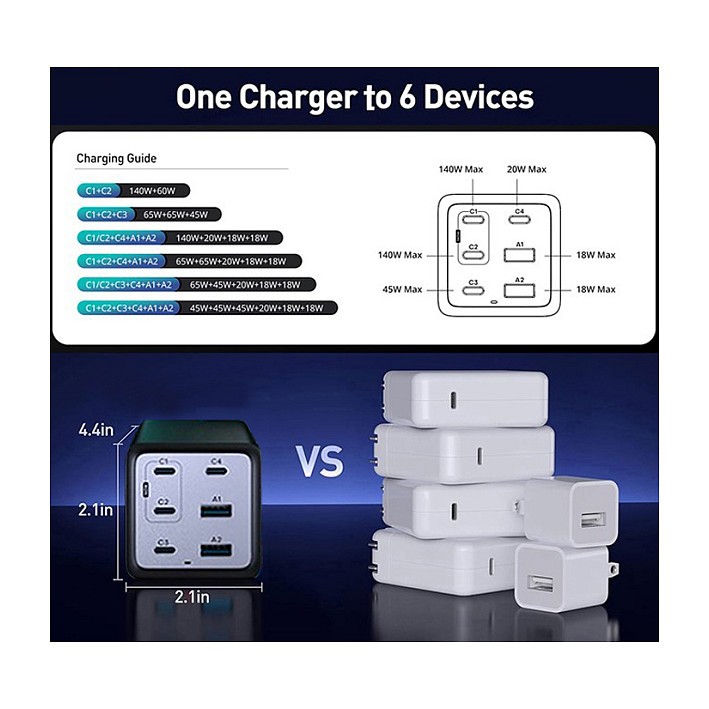

| Anschluss 1 Ausgangsleistung | 140 W |
| Anschluss 2 Ausgangsleistung | 140 W |
| Anschluss 3 Ausgangsleistung | 45 W |
| Anschluss 4 Ausgangsleistung | 20 W |
| Anschluss 5 Ausgangsleistung | 18 W |
| Anschluss 6 Ausgangsleistung | 18 W |
| Ausgangsstrom (5V) | 3 A |
| Ausgangsstrom (9V) | 3 A |
| Ausgangsstrom (12V) | 3 A |
| Ausgangsstrom (bei 15 V) | 3 A |
| Ausgangsstrom (bei 20 V) | 5 A |
| Ausgangsstrom Anschluss 1 | 5 A |
| Ausgangsstrom Anschluss 2 | 5 A |
| Anschluss 3 Ausgangsstrom | 4,05 A |
| Anschluss 4 Ausgangsstrom | 3 A |
| Anschluss 5 Ausgangsstrom | 3 A |
| Anschluss 6 Ausgangsstrom | 3 A |
| Breite | 53,5 mm |
| Tiefe | 112,5 mm |
| Höhe | 53,5 mm |
| Gewicht | 450 g |
| Verpackungsbreite | 160 mm |
| Verpackungstiefe | 57 mm |
| Verpackungshöhe | 150 mm |
| Paketgewicht | 735 g |
| Verpackungsart | Box |
| Betriebstemperatur | 0 - 35 °C |
| Temperaturbereich bei Lagerung | -20 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 80% |
| Luftfeuchtigkeit bei Lagerung | 10 - 90% |
| Mitgelieferte Kabel | AC, USB Typ-C auf USB Typ-C |
| Nachhaltigkeitskonformität | Ja |
| Warentarifnummer (HS) | 8504408390 |
| Palettenbreite (brutto) | 120 cm |
| Palettenlänge (brutto) | 80 cm |
| Palettenhöhe (brutto) | 152 cm |
| Breite des Versandkartons | 335 mm |
| Länge des Versandkartons | 320 mm |
| Höhe des Versandkartons | 300 mm |
| Gewicht Versandkarton | 15,2 kg |
| Anzahl Produkte pro Versandkarton | 20 Stück(e) |
| Ursprungsland | China |
| Anzahl enthaltener Produkte | 1 Stück(e) |
| Benutzerhandbuch | Ja |
