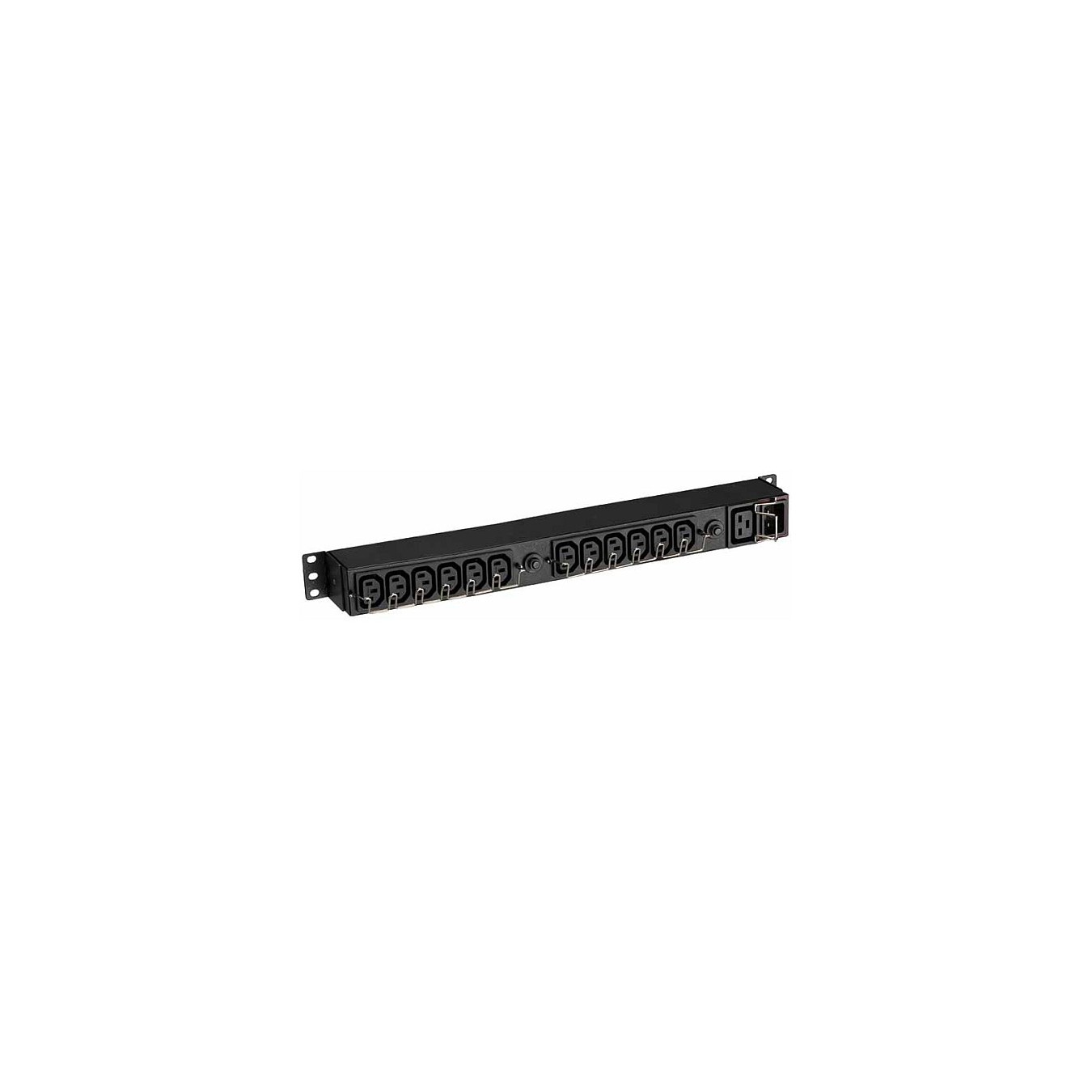

EATON Rack Flex PDU Basic 1U 16A 230V C20 Output 12 C13 1 C19 with 2 circuit breaker
Eaton EFLX12I, Standard, 1U, Einphasig, Rackmount, Horizontal/Vertikal, Schwarz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Eaton EFLX12I. PDU-Typen: Standard, Rack-Kapazität: 1U, Typ: Einphasig. Anzahl der AC-Ausgänge: 13 AC-Ausgänge, AC-Steckertypen: C13-Koppler, Stecker: C20-Koppler. Nominale Eingang Spannung: 230 V, Stromstärke (maximal): 13 A, AC Eingangsfrequenz: 50 - 60 Hz. Konformitätsbescheinigungen: RoHS, Zertifizierung: CE. Breite: 439 mm, Tiefe: 58,5 mm, Höhe: 43,4 mm
| PDU-Typen | Standard |
| Typ | Einphasig |
| Formfaktor | Rackmount |
| Rack-Einbau | Ja |
| Rack-Kapazität | 1U |
| Montage | Horizontal/Vertikal |
| Produktfarbe | Schwarz |
| Kabelfarbe | Schwarz |
| Anzahl der AC-Ausgänge | 13 AC-Ausgänge |
| Stecker | C20-Koppler |
| AC-Steckertypen | C13-Koppler |
| Ausgang Anschlüsse | 12 x C13 & 1 x C19 |
| Nominale Eingang Spannung | 230 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromstärke (maximal) | 13 A |
| Nominale Ausgang Spannung | 230 V |
| Ladekapazität | 3000 VA |
| Maximaler Eingang Strom pro Phase | 13 A |
| Max. Leistung | 3000 W |
| Konformitätsbescheinigungen | RoHS |
| Zertifizierung | CE |
| Betriebstemperatur | 0 - 45 °C |
| Breite | 439 mm |
| Tiefe | 58,5 mm |
| Höhe | 43,4 mm |
| Gewicht | 1,7 kg |
| Größe (Imperial) | 48,3 cm (19") |
| Rackmontageset | Ja |
| Paketgewicht | 9,5 kg |
| Verpackungsbreite | 180 mm |
| Verpackungstiefe | 448 mm |
| Verpackungshöhe | 58 mm |
