Fractal Meshify 3 XL Black Steel Full-Tower E-ATX PC Case 512mm GPU (Boxed)
Black steel full-tower PC case for E-ATX/ATX/mATX/ITX. Supports 512mm GPU, 182mm CPU cooler, 3x140mm front fans pre-installed, front I/O: 2x USB-A + 1x USB-C. Multi-radiator support, spacious build quality.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 140 mm 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Full Tower |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |

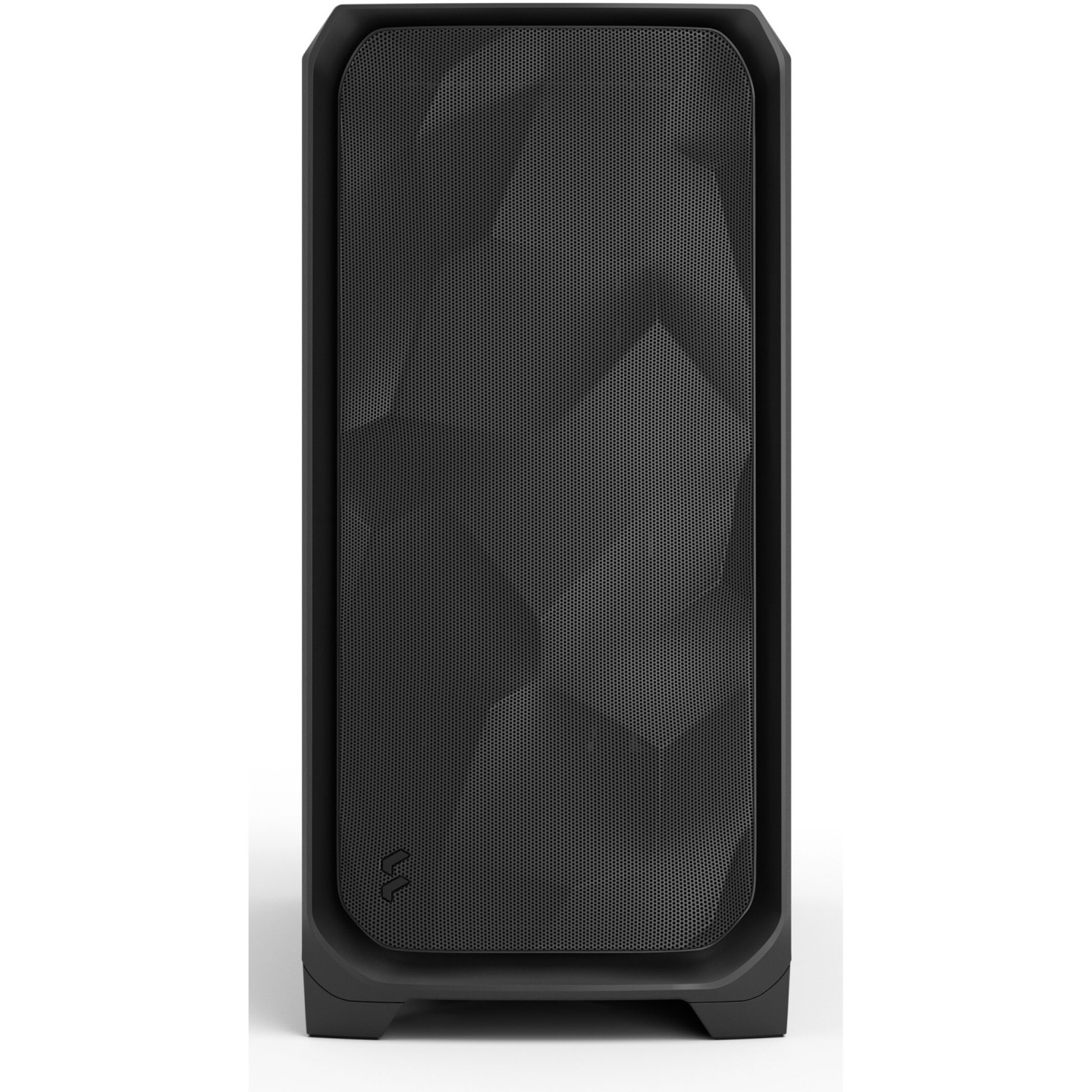

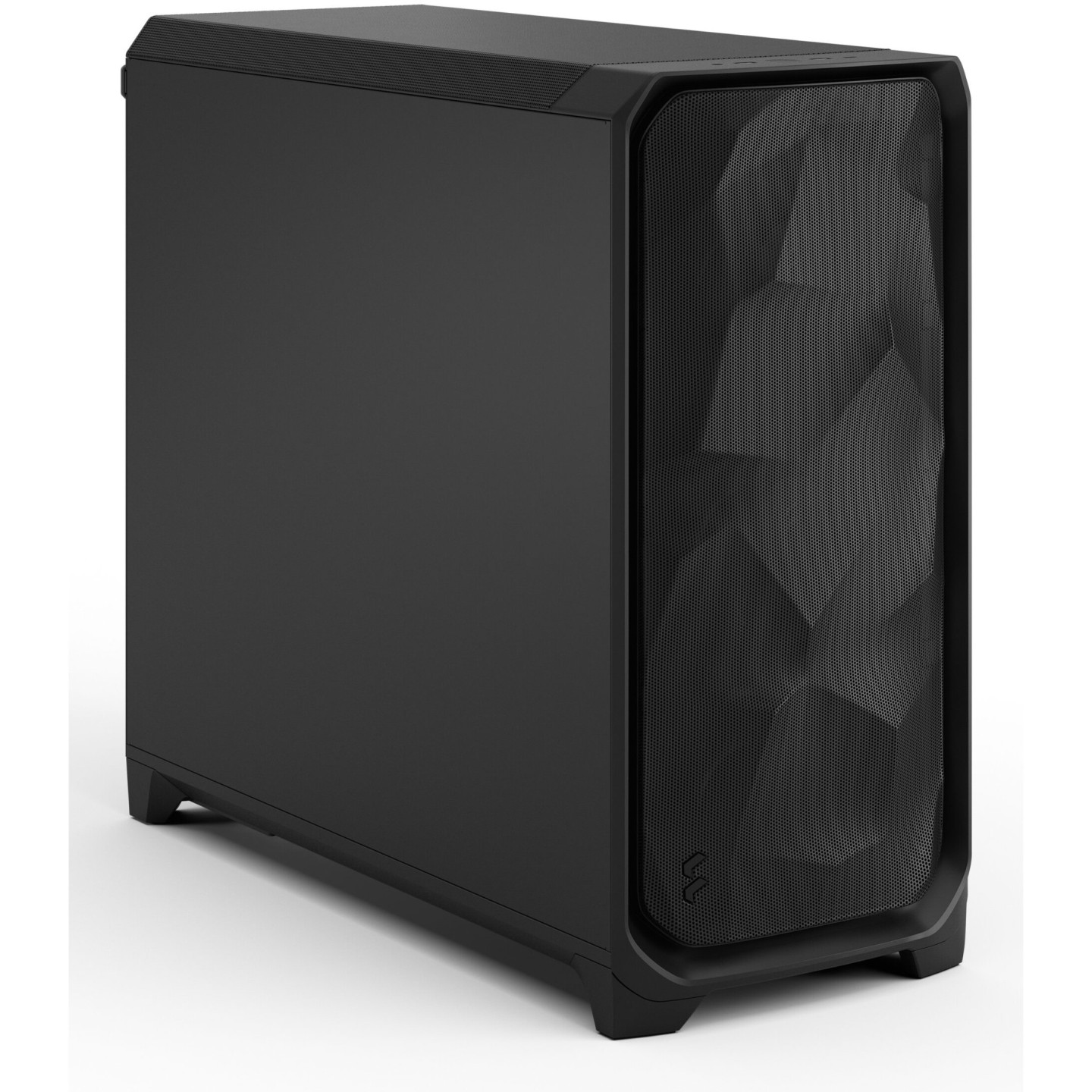

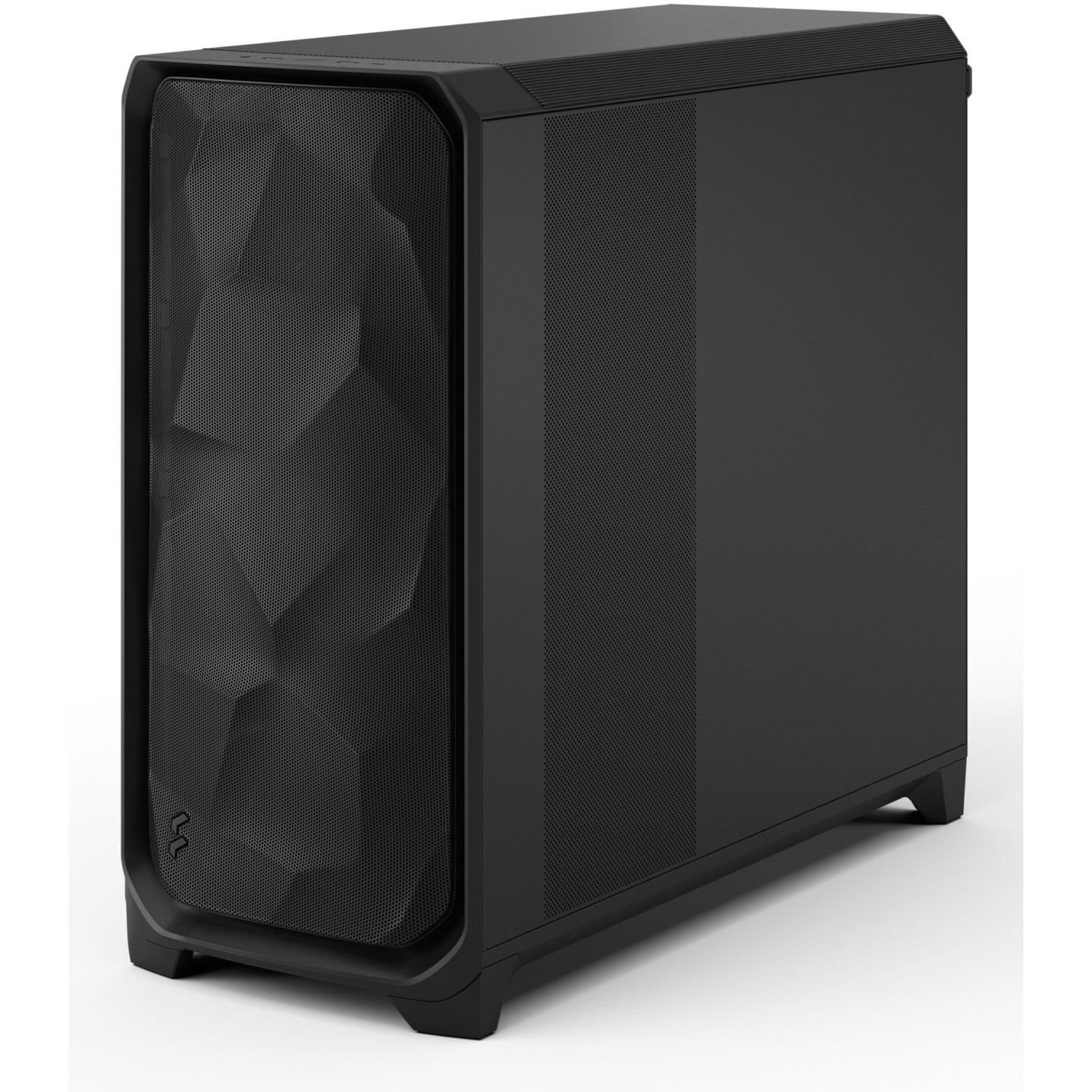

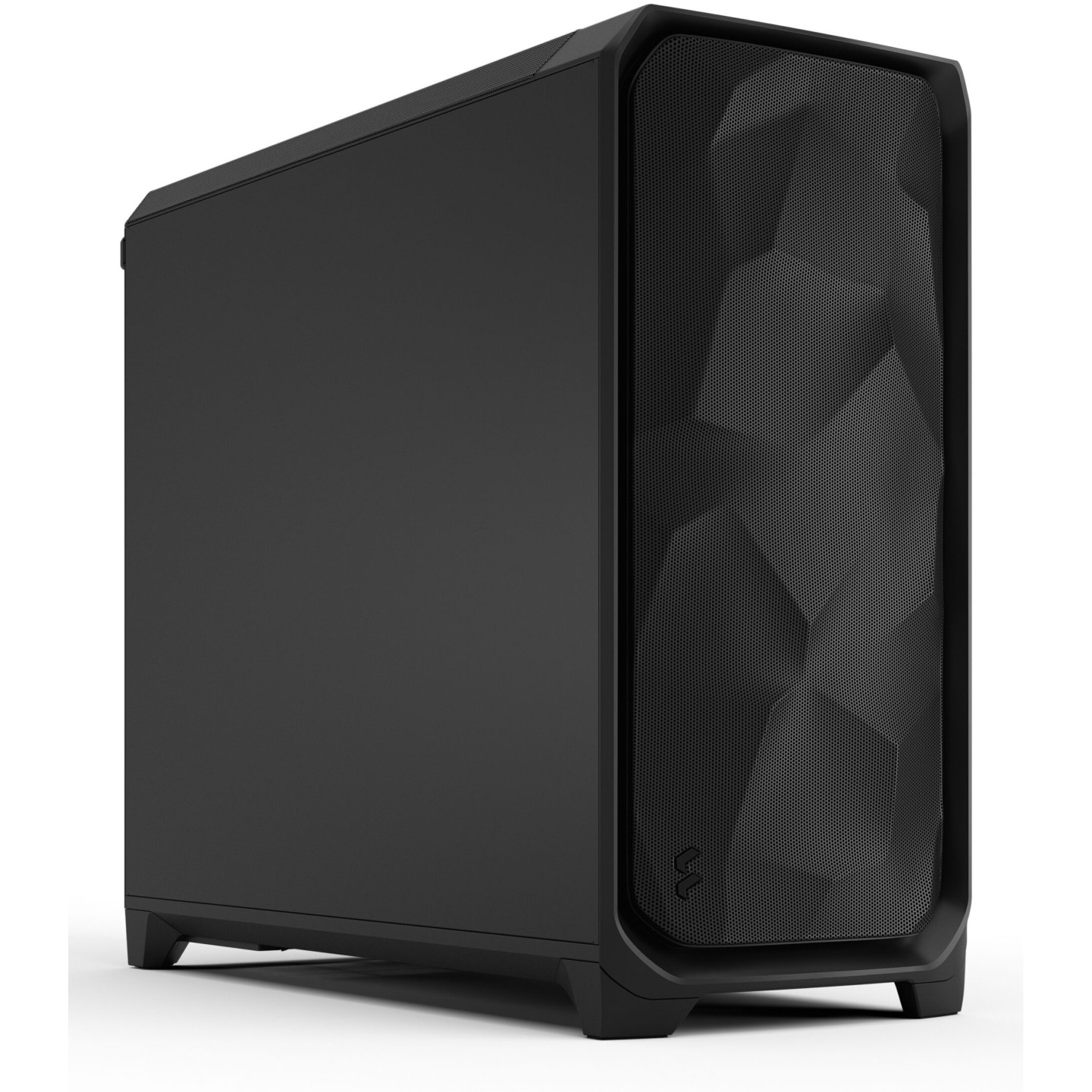

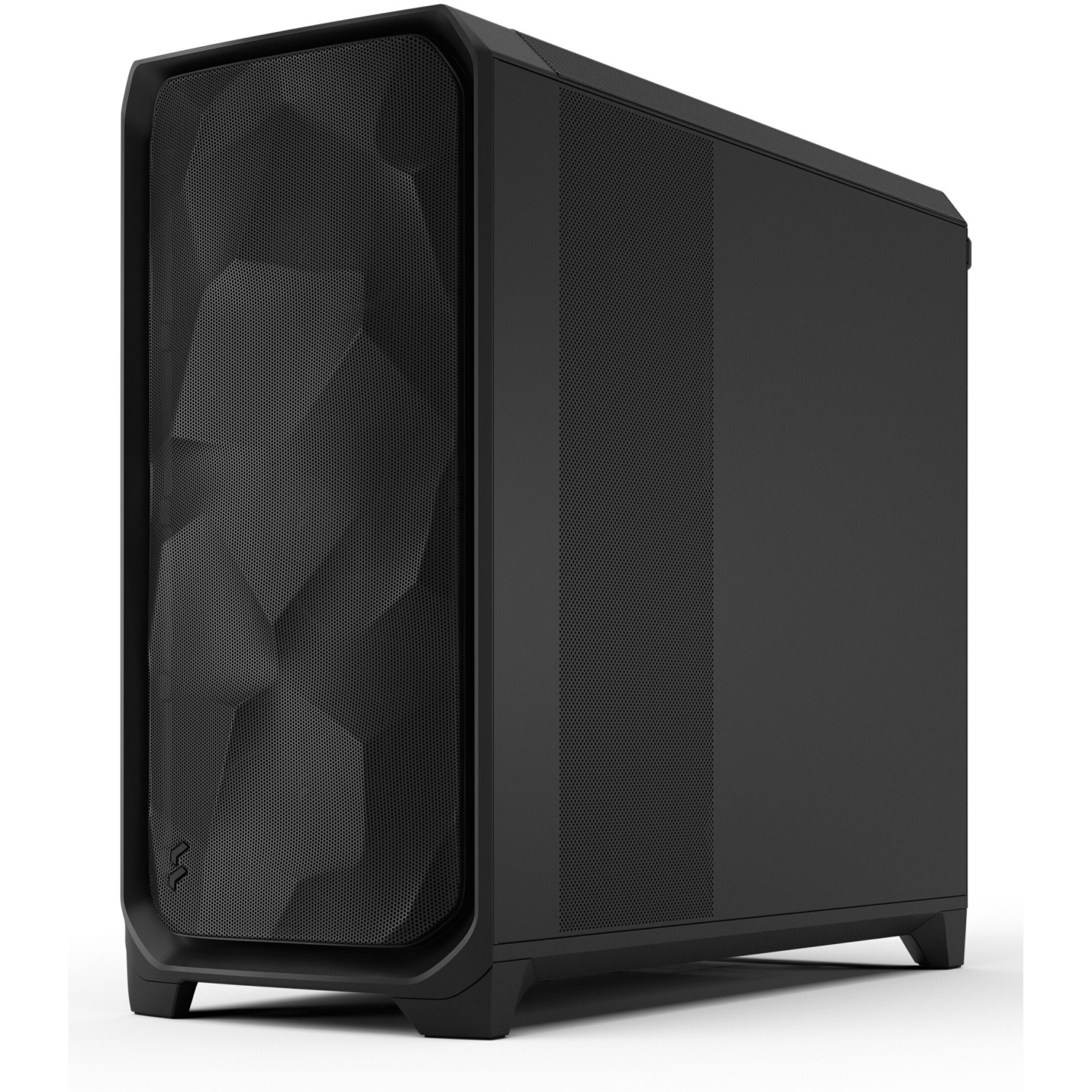

The Fractal Design Meshify 3 XL in black steel is a premium full-tower PC case designed for superior airflow and enthusiast builds. Featuring a ventilated mesh front panel with sculpted design, it includes three pre-installed 140mm Momentum fans for excellent cooling out of the box. The spacious interior accommodates E-ATX motherboards, GPUs up to 512mm, and CPU coolers up to 182mm, making it ideal for high-end gaming rigs and custom water cooling loops.

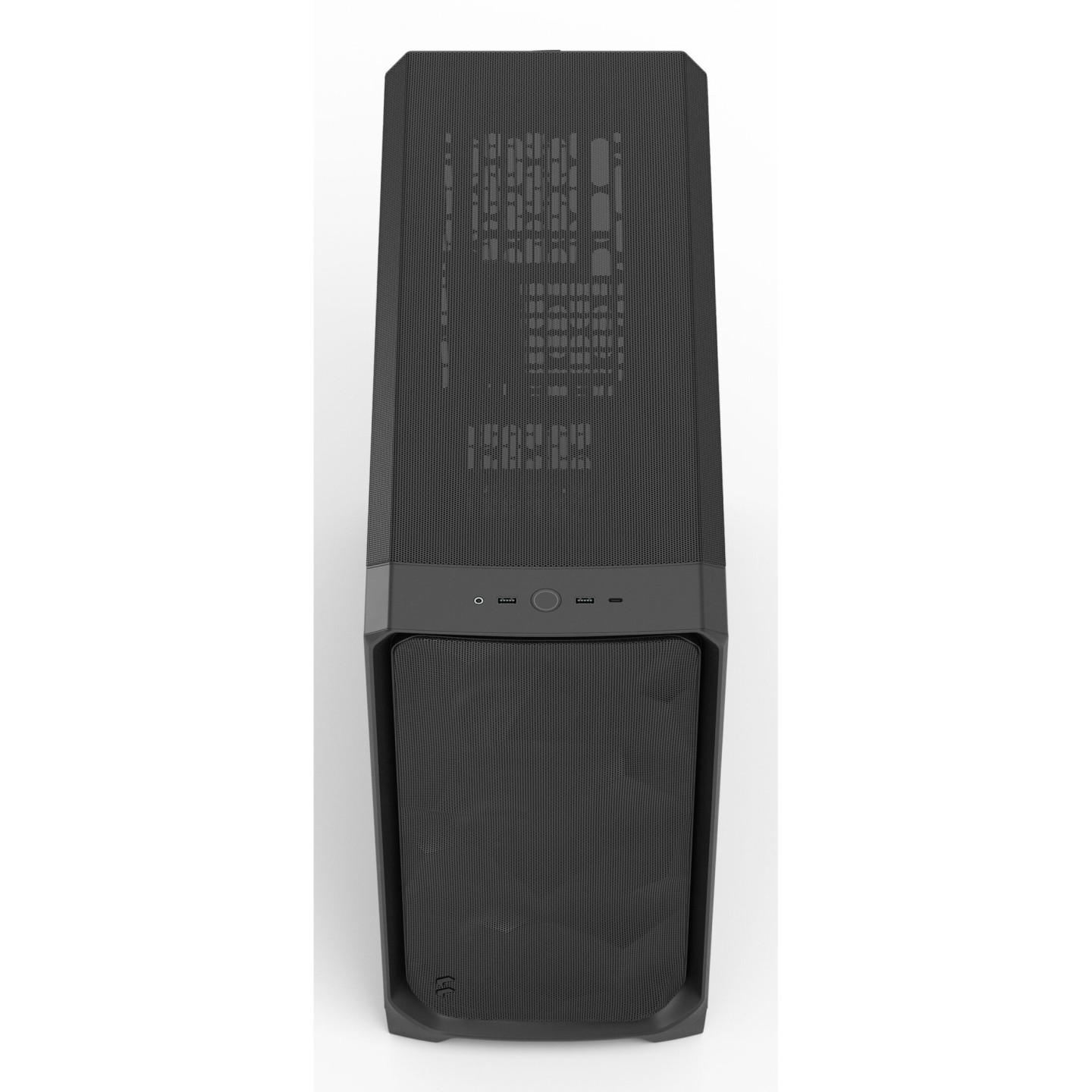

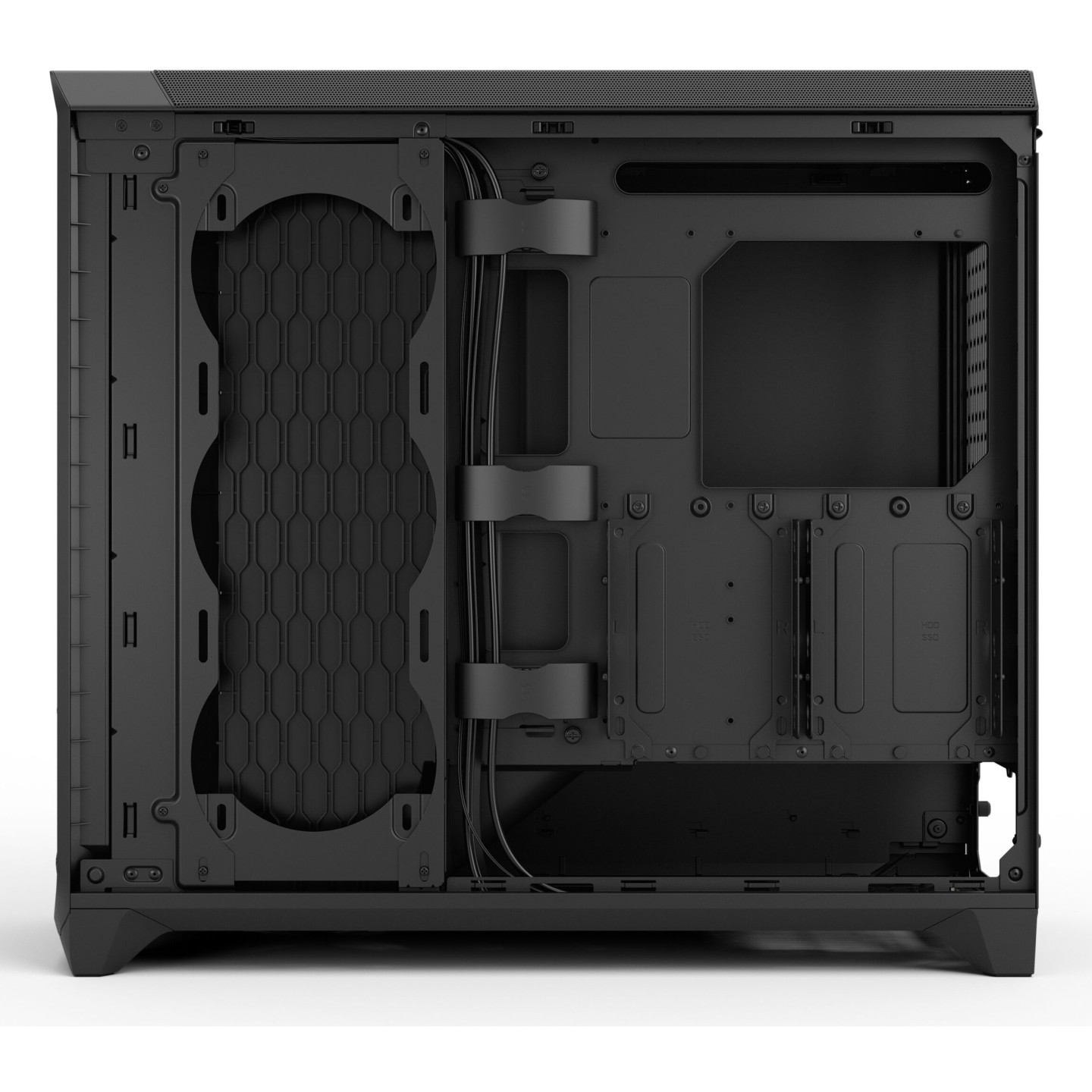

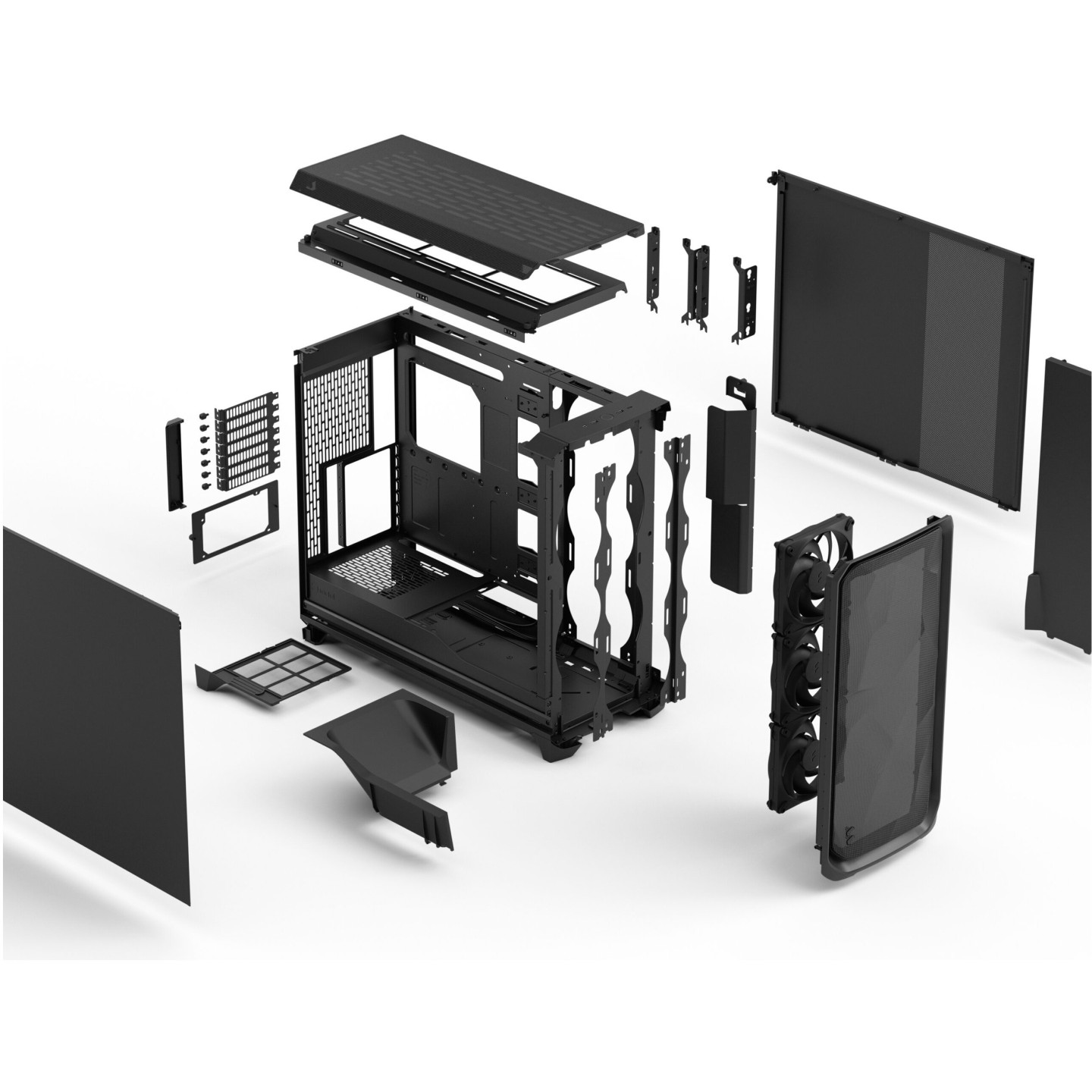

Builder-friendly features include extensive cable management with velcro straps and plastic aligners, removable top bracket for easy radiator installation, and support for up to 10x 140mm fans across front, side, top, and rear positions. Front I/O offers convenient access with two USB 3.2 Gen1 Type-A ports, one USB 3.2 Gen2x2 Type-C (20Gbps), and a combo audio jack. The steel frame provides rigidity while maintaining a sleek, modern aesthetic.
- Key Specs: Dimensions 245x515x575mm, weight 10.5kg
- Storage: 2x 3.5", 4x 2.5"
- Cooling: Front 3x140mm included, radiators up to 420mm top

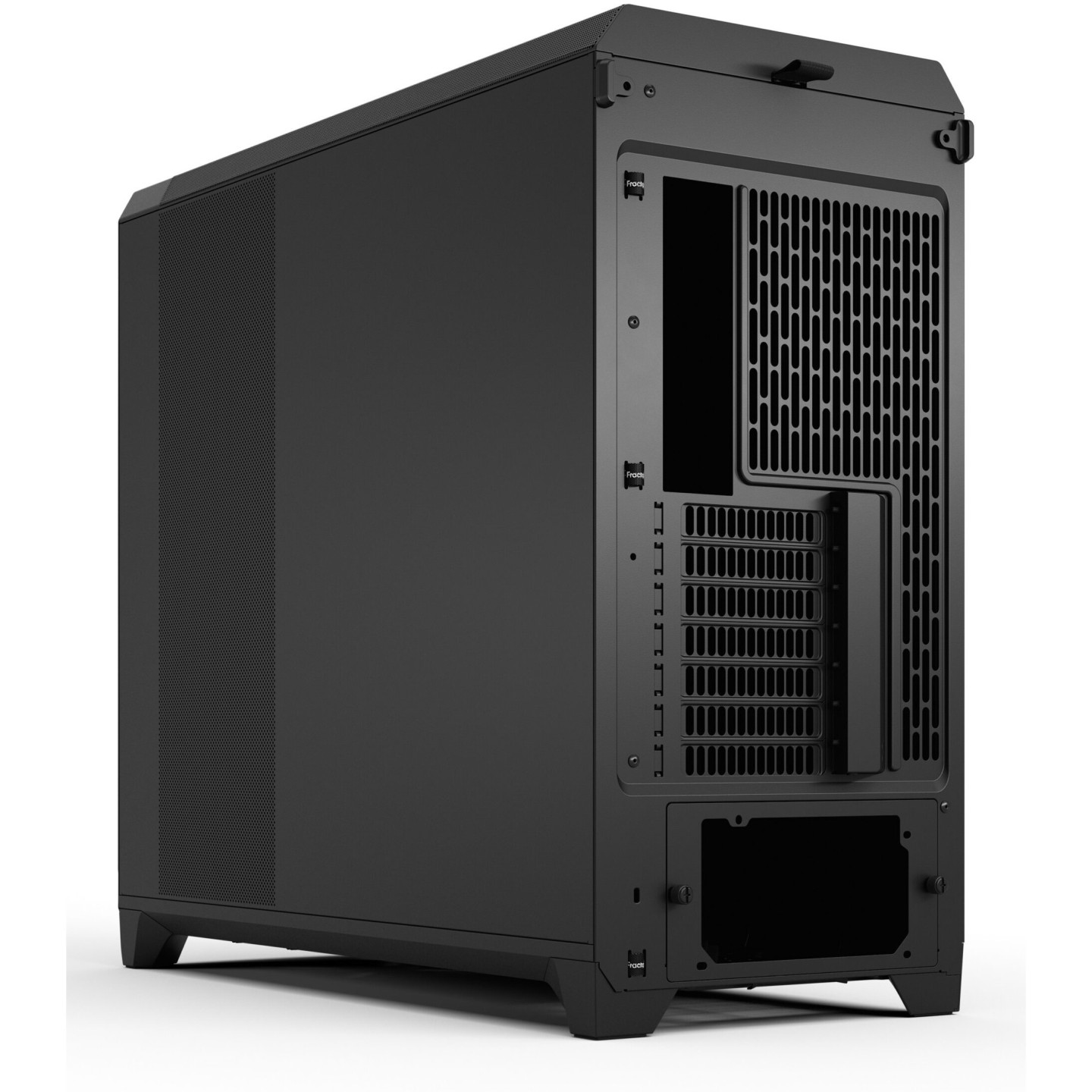

- Expansion: 7 slots, ATX PSU up to 230mm
| Material | Steel |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |
| Number of 3.5 | 2 |
| Number of 2.5 | 4 |
| Number of expansion slots | 7 |
| Suitable for | Gaming |
| Maximum CPU cooler height | 18.2 cm |
| Maximum graphics card length | 51.2 cm |
| Maximum PSU length | 23 cm |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140,180 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 280,360 mm |
| Side radiator sizes supported | 360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 360,420 mm |
| Supported HDD sizes | 2.5,3.5 |
| SSD form factor | 2.5 |
| Warranty period | 2 year(s) |
| Width | 245 mm |
| Depth | 575 mm |
| Height | 515 mm |
| Weight | 10.5 kg |
| Package width | 350 mm |
| Package depth | 688 mm |
| Package height | 596 mm |
| Package weight | 12.4 kg |
| MPN | FD-C-MES3X-01 |
