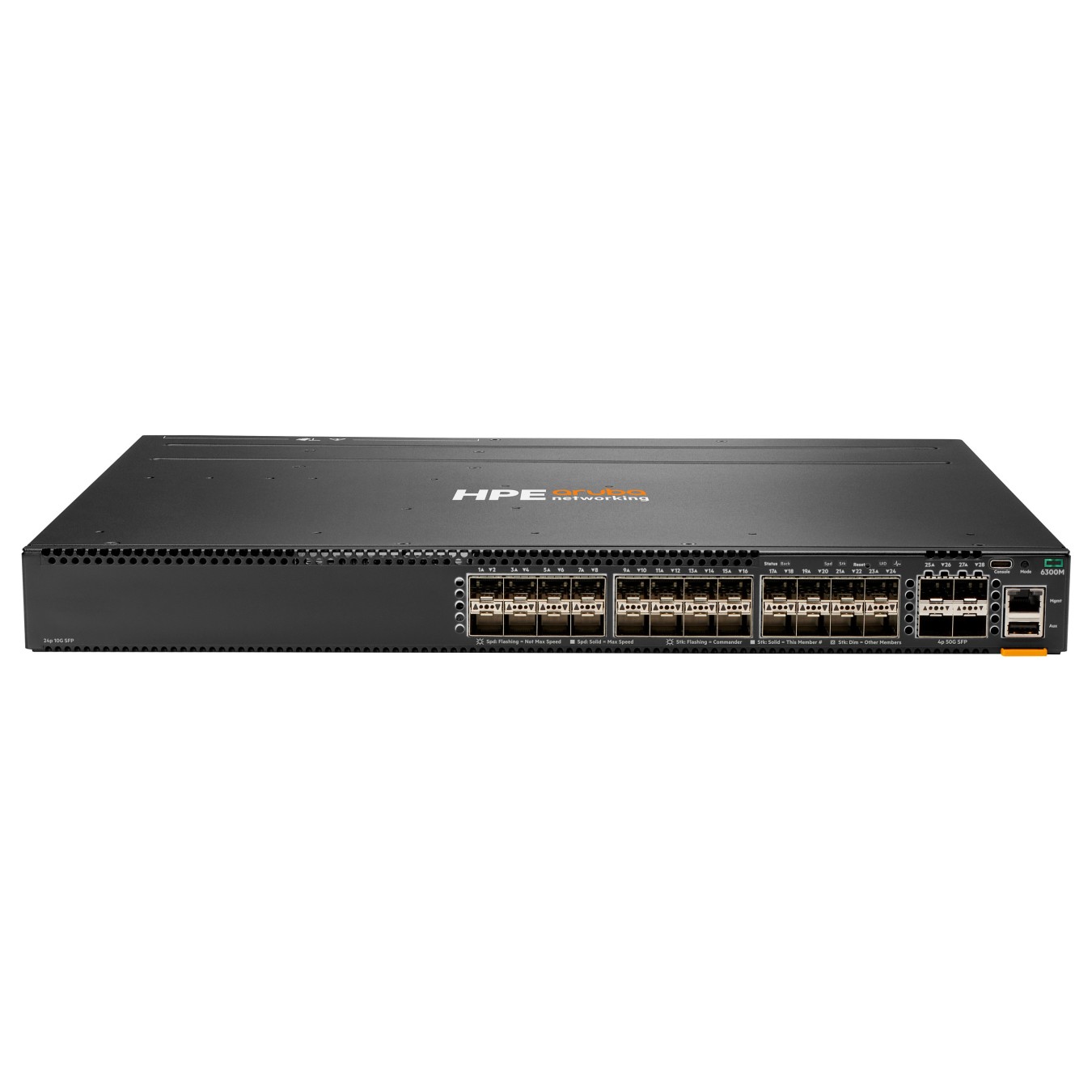

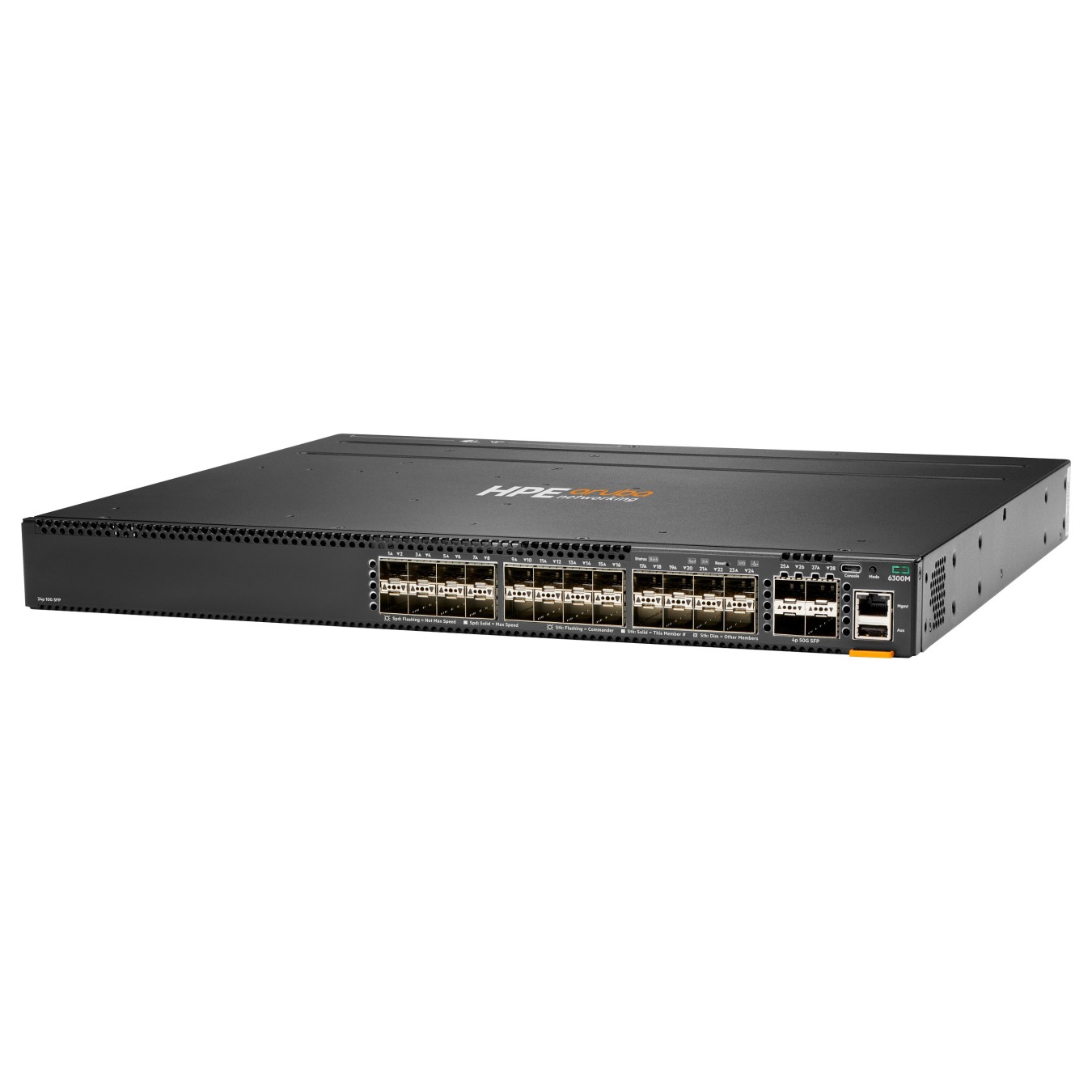

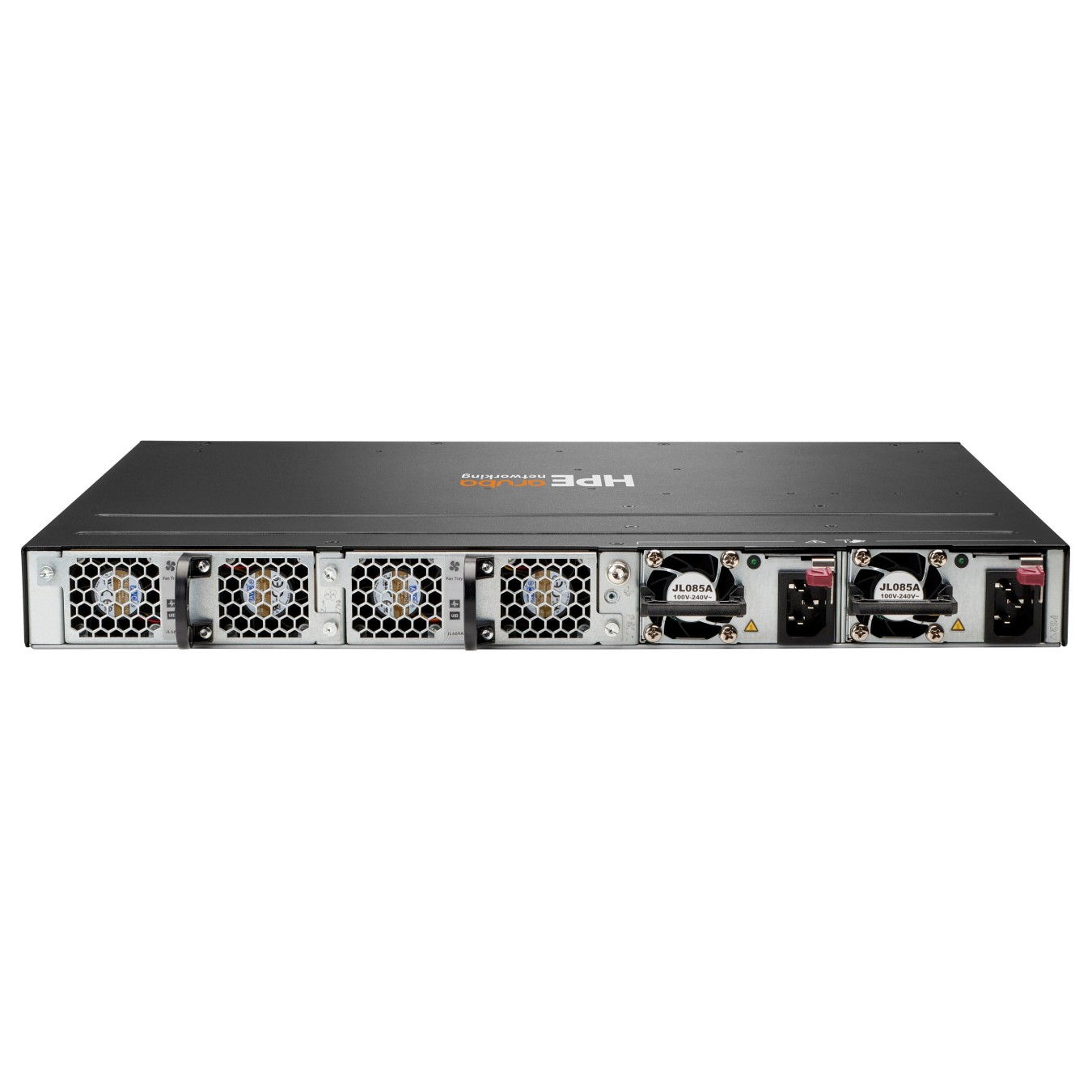

HPE Aruba 6300M Switch 24-port SFP+ and 4-port SFP56
HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch. Managed. L3. Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch. Switch-Typ: Managed. Switch-Ebene: L3. Anzahl USB 2.0 Anschlüsse: 1. Konsolen-Port: USB. MAC-Adressentabelle: 32000 Eintragungen. Routing-/Switching-Kapazität: 880 Gbit/s. Netzstandard: IEEE 802.1AX. IEEE 802.1D. IEEE 802.1ab. IEEE 802.1ak. IEEE 802.1p. IEEE 802.1s. IEEE 802.1v. IEEE.... Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Rackmontageset |
| Menge SFP-Modul-Steckplätze | 4 |
| Menge Modul-Steckplätze SFP+ | 24 |
| Konsolen-Port | USB |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Netzstandard | IEEE 802.1AX. IEEE 802.1D. IEEE 802.1ab. IEEE 802.1ak. IEEE 802.1p. IEEE 802.1s. IEEE 802.1v. IEEE 802.1w. IEEE 802.3ad. IEEE 802.3ae. IEEE 802.3bt |
| Transmissionsentfernung (max) | 10 km |
| Routing-/Switching-Kapazität | 880 Gbit/s |
| Durchgang | 654 Mpps |
| MAC-Adressentabelle | 32000 Eintragungen |
| Wartezeit (1 Gbps) | 1.99 µs |
| Wartezeit (10 Gbps) | 1.49 µs |
| Anzahl Queues | 8 |
| Datenpaket-Pufferspeicher | 8 MB |
| DHCP-Funktionen | DHCP relay. DHCP server |
| IGMP-Einträge | 8000 |
| IPv4 Multicast-Einträge | 8000 |
| IPv6 Multicast-Einträge | 8000 |
| Anzahl der gefilterten Multicast-Gruppen | 8000 |
| MLD-Einträge | 4000 |
| Router Protokoll | OSPF. OSPFv3 |
| Produktfarbe | Schwarz |
| Luftstromrichtung | Luftstrom von vorne nach hinten |
| Anzahl Lüfter | 2 Lüfter |
| Physisches Stacking (Einheiten) | 10 |
| Prozessor | ARM Cortex-A72 |
| Prozessortaktfrequenz | 1800 MHz |
| Speichertyp | DDR4-SDRAM |
| Speicherkapazität | 8000 MB |
| Flash-Speicher | 32000 MB |
| Geräuschpegel | 31 dB |
| AC Eingangsspannung | 100 - 240 V |
| Stromverbrauch (max.) | 85 W |
| Leistungsaufnahme Hinweis | Idle: 51W 100% Traffic Rate: 85W |
| Latenz | 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs |
| Speicher und Prozessor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4. 32 GB eMMC Flash: 8 MB. 16 MB. or 32 MB. depending on model and configuration |
| Weitere Anschlüsse | 24 x 1G/10G SFP+ ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Leistungsmanagementfunktionen - Beschreibung | Management flexibility with support for HPE Aruba Networking Central. easy-to-use Web GUI. CLI. and HPE Aruba Networking Switch Multi-Edit Software |
| Gewicht (imperial) | 5.11 kg (11.3 Pfund) |
| Abmessungen (B x T x H) (in Zoll) | 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2") |
| Betriebstemperatur | 0 - 45 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 15 - 95% |
| Luftfeuchtigkeit bei Lagerung | 15 - 90% |
| Höhe bei Betrieb | 0 - 3040 m |
| Höhe bei Lagerung | 0 - 4600 m |
| Breite | 44 mm |
| Tiefe | 442 mm |
| Höhe | 385 mm |
| Gewicht | 5.11 kg |
| Warentarifnummer (HS) | 85176990 |
