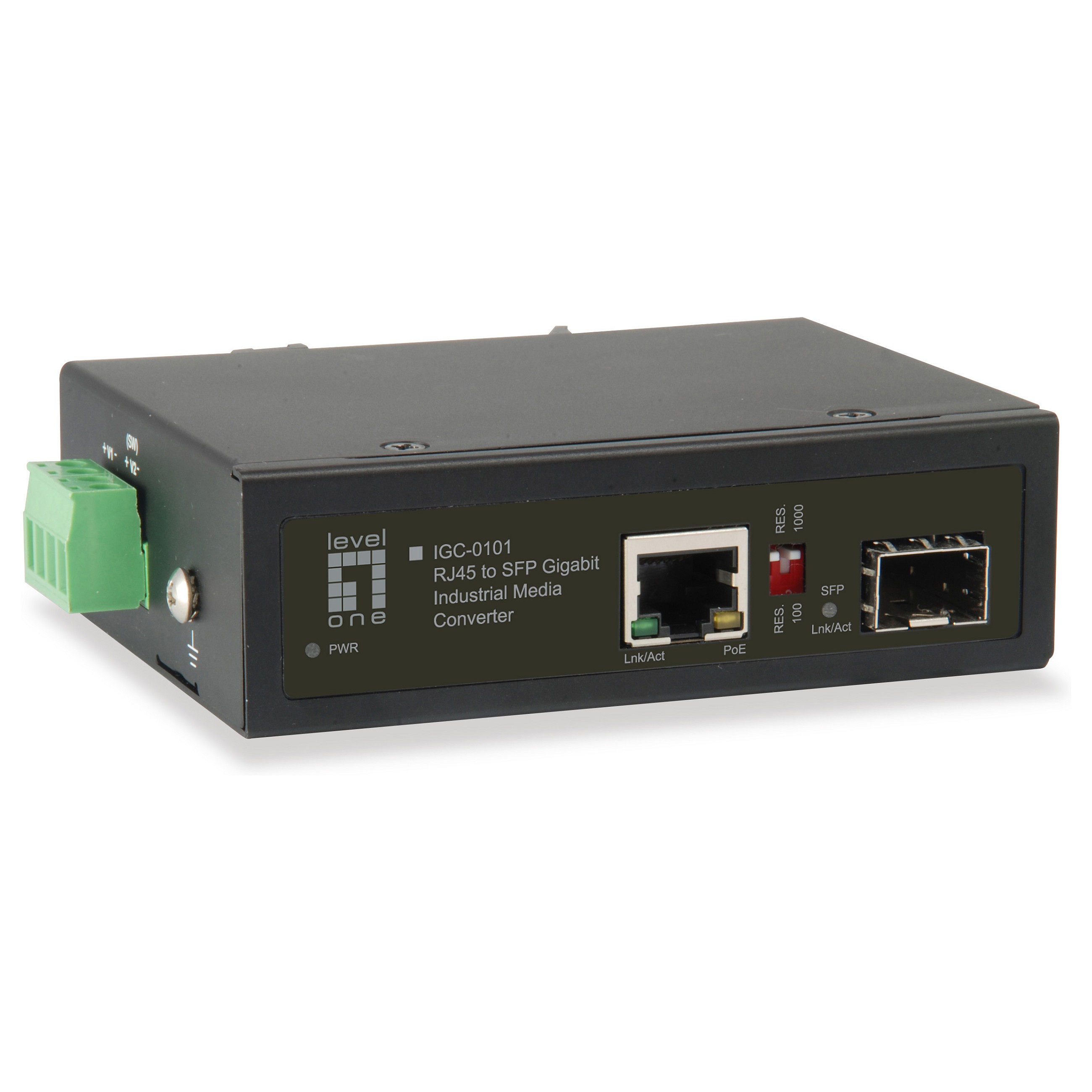

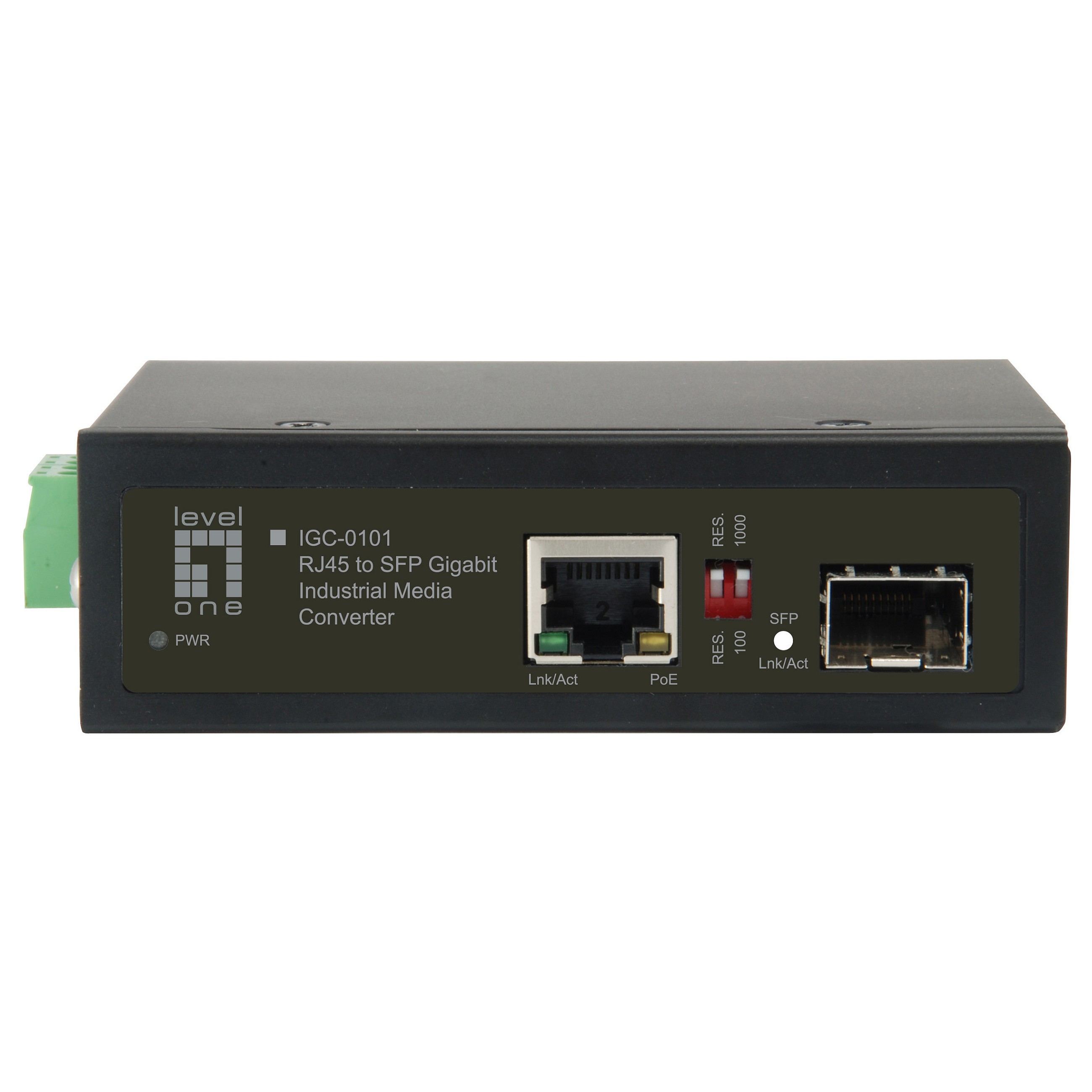

Konverter IGC-0101 10 100 1000T to 1000SX SFP
LevelOne IGC-0101. 1000 Mbit/s. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Gigabit Ethernet. 10.100.1000 Mbit/s. 10BASE-T. 100BASE-TX. 1000BASE-T. 500000 h
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne IGC-0101. Maximale Datenübertragungsrate: 1000 Mbit/s. Netzstandard: IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z. Ethernet Schnittstellen Typ: Gigabit Ethernet. Mittlere Betriebsdauer zwischen Ausfällen (MTBF): 500000 h. LED-Anzeigen: Aktivität. Link. Leistung. Optischer Kabelverbinder: SFP. Übertragungstechnik: Kabelgebunden. Eingangsspannung: 48 - 56 V. Stromverbrauch (Standardbetrieb): 2 W. Gesamtleistung Power over Ethernet (PoE): 30 W
| Maximale Datenübertragungsrate | 1000 Mbit/s |
| Netzstandard | IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3at. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Feature | Betriebsanleitung |
| Jumbo-Frames | 9000 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 500000 h |
| LED-Anzeigen | Aktivität. Link. Leistung |
| Übertragungstechnik | Kabelgebunden |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl Faseranschlüsse | 1 |
| Optischer Kabelverbinder | SFP |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 1 |

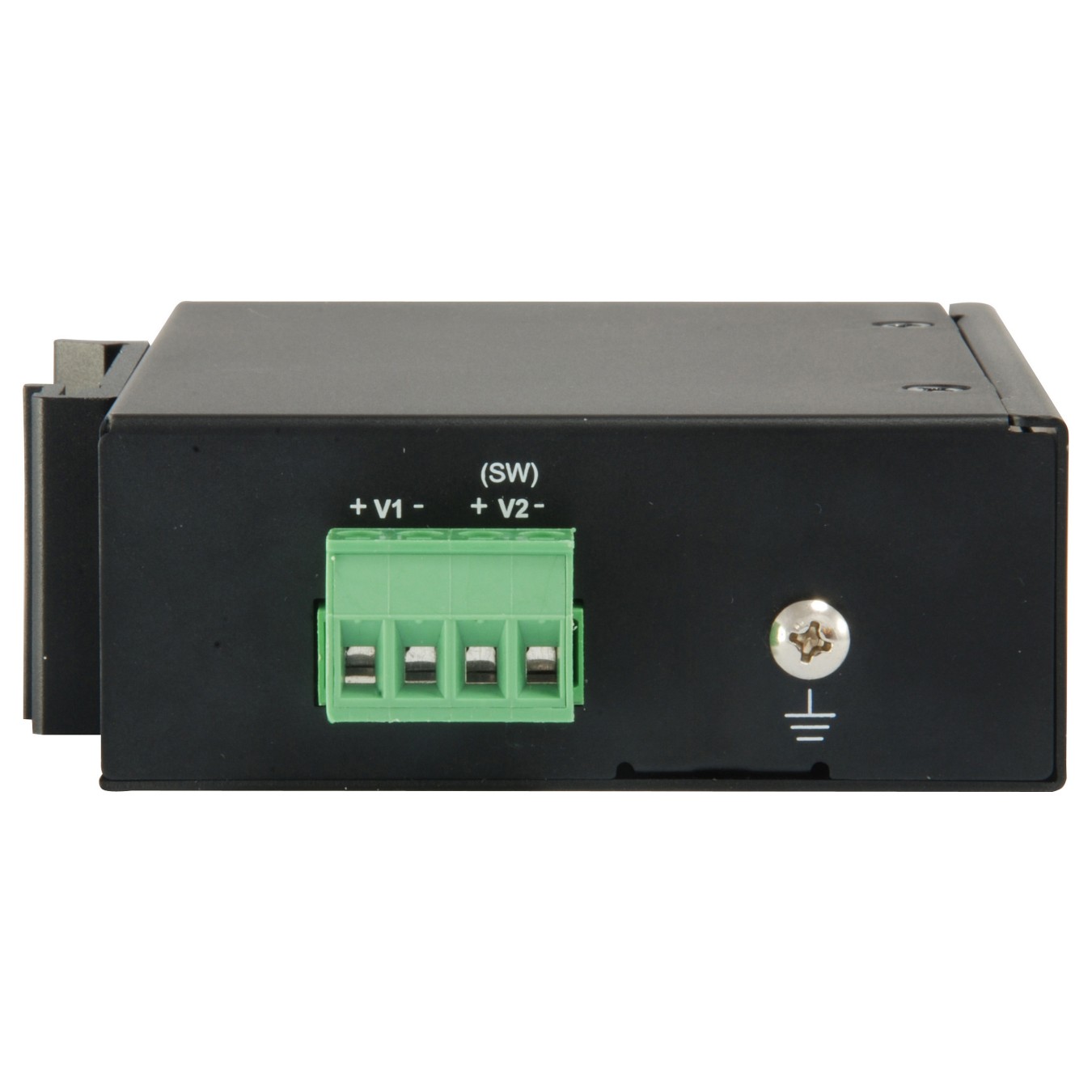

| Eingangsspannung | 48 - 56 V |
| Stromverbrauch (Standardbetrieb) | 2 W |
| Gesamtleistung Power over Ethernet (PoE) | 30 W |
| Breite | 32 mm |
| Tiefe | 81.5 mm |
| Höhe | 103.5 mm |
| Gewicht | 135 g |
| Betriebstemperatur | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Verpackungsbreite | 165 mm |
| Verpackungstiefe | 65 mm |
| Verpackungshöhe | 215 mm |
| Paketgewicht | 350 g |
| Sicherheit | IEC EN60950-1 |
| Zertifizierung | CE. FCC. VCCI. FCC Part 15 Subpart B Class A. CE EN 55022 Class A |
| Ursprungsland | Taiwan |
| Warentarifnummer (HS) | 85176990 |
| Breite des Versandkartons | 350 mm |
| Länge des Versandkartons | 240 mm |
| Höhe des Versandkartons | 560 mm |
| Gewicht Versandkarton | 6.6 kg |
| Anzahl Produkte pro Versandkarton | 16 Stück(e) |
