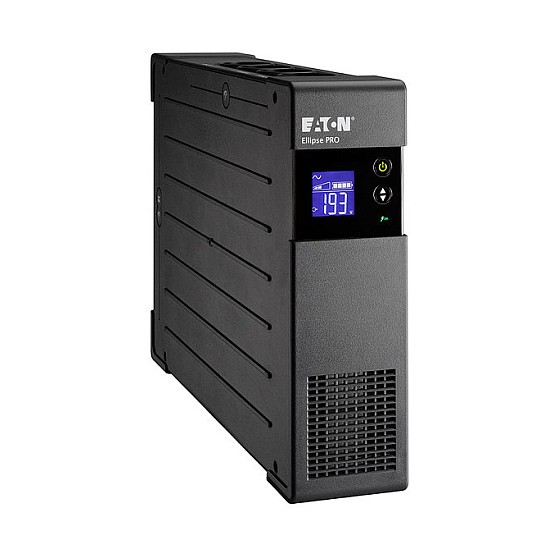

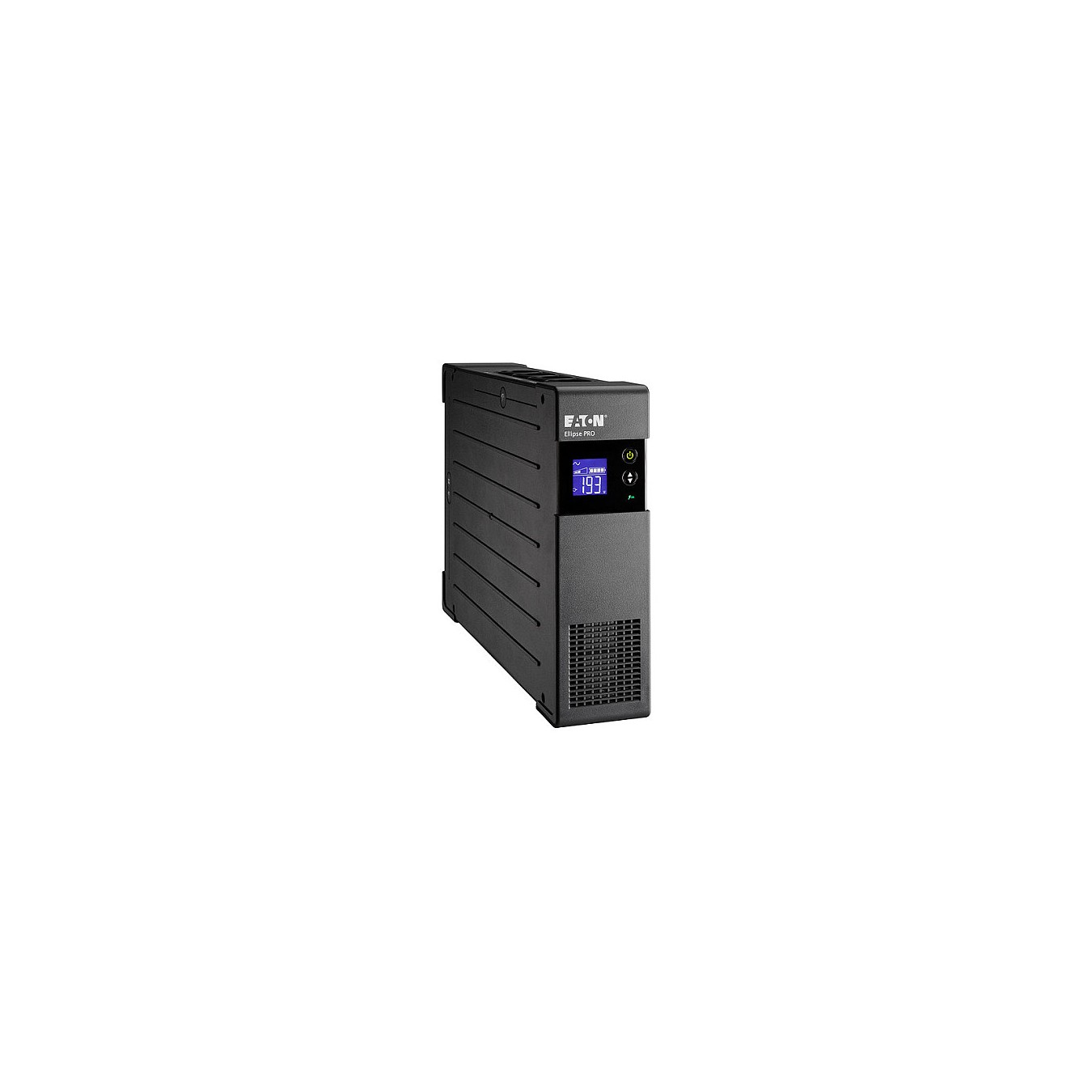

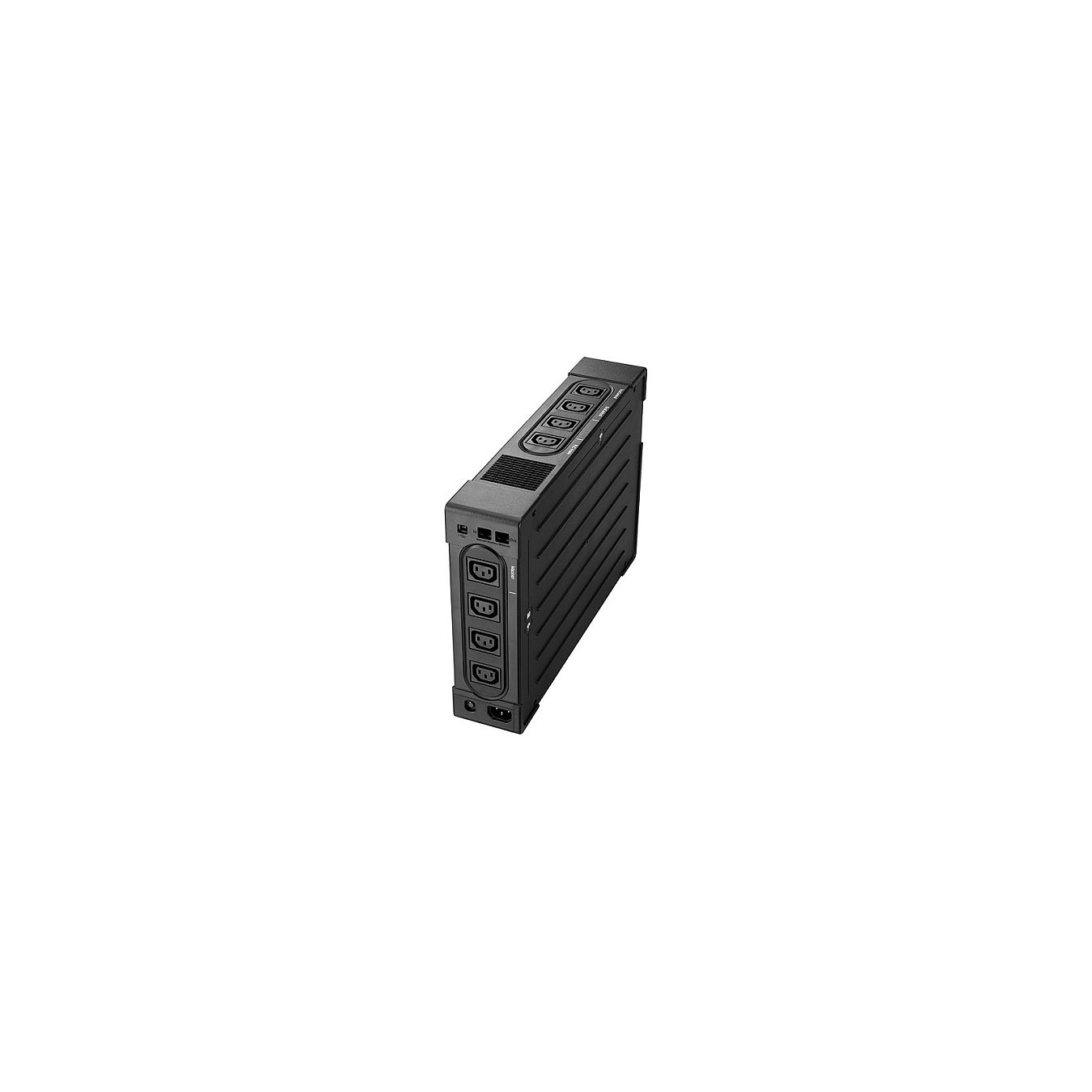

Eaton Ellipse PRO Tower ELP1200IEC Line-Interactive USB 8x IEC C13
Eaton Ellipse PRO 1200 IEC, Line-Interaktiv, 1,2 kVA, 750 W, 150 V, 285 V, 50/60 Hz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Eaton Ellipse PRO 1200 IEC. USV-Topologie: Line-Interaktiv, Ausgangskapazität: 1,2 kVA, Ausgangsleistung: 750 W. AC-Steckertypen: C13-Koppler, Stecker: C14-Koppler, Anzahl der AC-Ausgänge: 8 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäure (VRLA), Typische Backup-Zeit bei halber Belastung: 9 min. Formfaktor: Tower, Produktfarbe: Schwarz, Rack-Kapazität: 2U. Sicherheit: IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
| USV-Topologie | Line-Interaktiv |
| Ausgangskapazität | 1,2 kVA |
| Ausgangsleistung | 750 W |
| Eingangs-Betriebsspannung (min) | 150 V |
| Eingangs-Betriebsspannung (max) | 285 V |
| Eingangsfrequenz | 50/60 Hz |
| Ausgangs-Betriebsspannung (min) | 220 V |
| Ausgangs-Betriebsspannung (max) | 240 V |
| Output Frequenz | 50 Hz |
| Notstrom Aus (EPO) | Ja |
| Druckanstiegsschutz | Ja |
| Überspannungsschutz-Funktionen | Faxen, Modem, Netzwerk, Telefon |
| AC-Steckertypen | C13-Koppler |
| Stecker | C14-Koppler |
| Anzahl der AC-Ausgänge | 8 AC-Ausgänge |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Modem (RJ-11) Port | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Akku-/Batterietechnologie | Plombierte Bleisäure (VRLA) |
| Typische Backup-Zeit bei halber Belastung | 9 min |
| Hot-Swap-Batterie | Nein |
| Automatischer Batterietest | Ja |
| Kaltstart | Ja |
| Formfaktor | Tower |
| Rack-Kapazität | 2U |
| Produktfarbe | Schwarz |

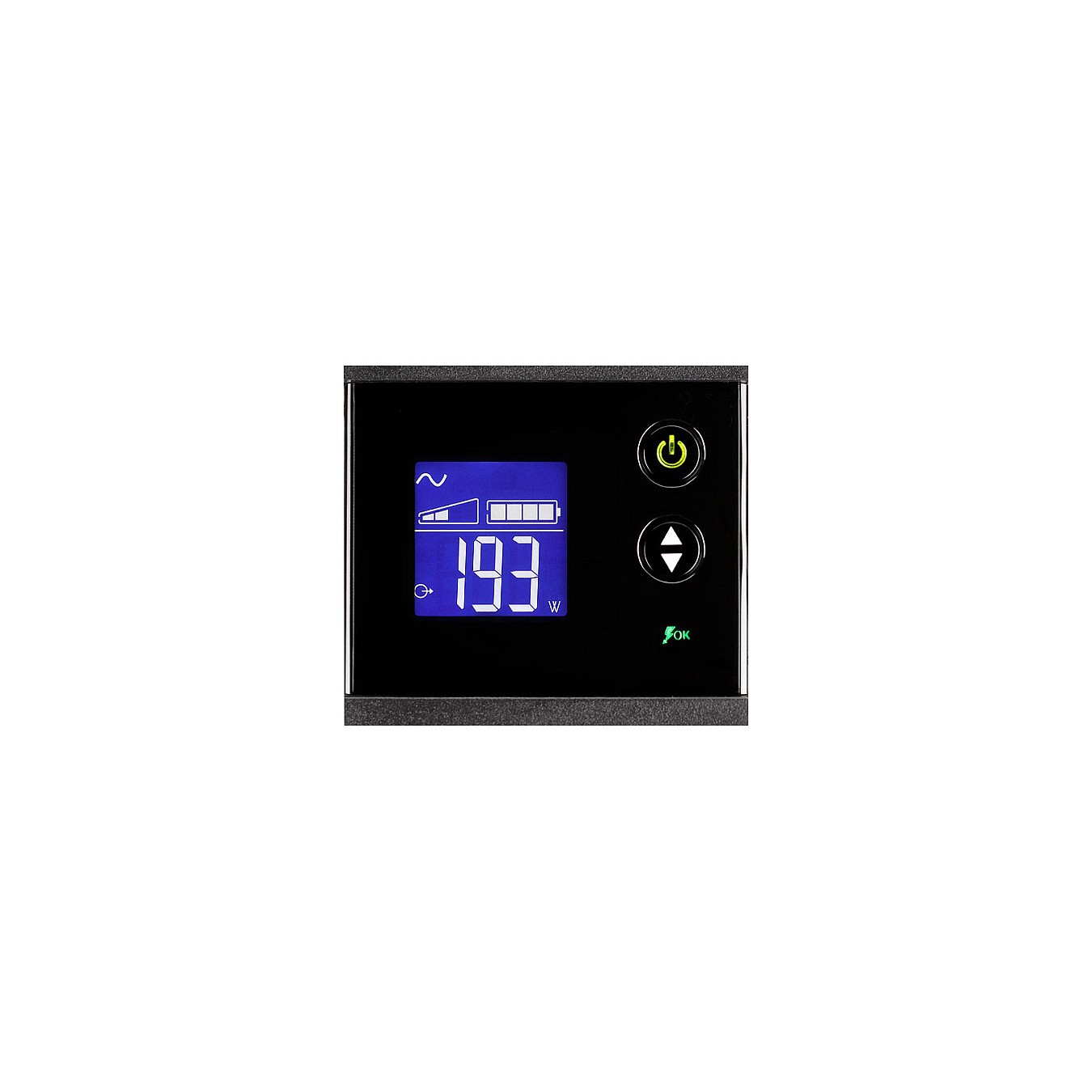

| Display-Typ | LCD |
| LED-Anzeigen | Ja |
| Sicherheit | IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE |
| Breite | 82 mm |
| Tiefe | 390 mm |
| Höhe | 275 mm |
| Gewicht | 9,9 kg |
| Warentarifnummer (HS) | 85078000 |
| Nominale Eingang Spannung | 230 V |
