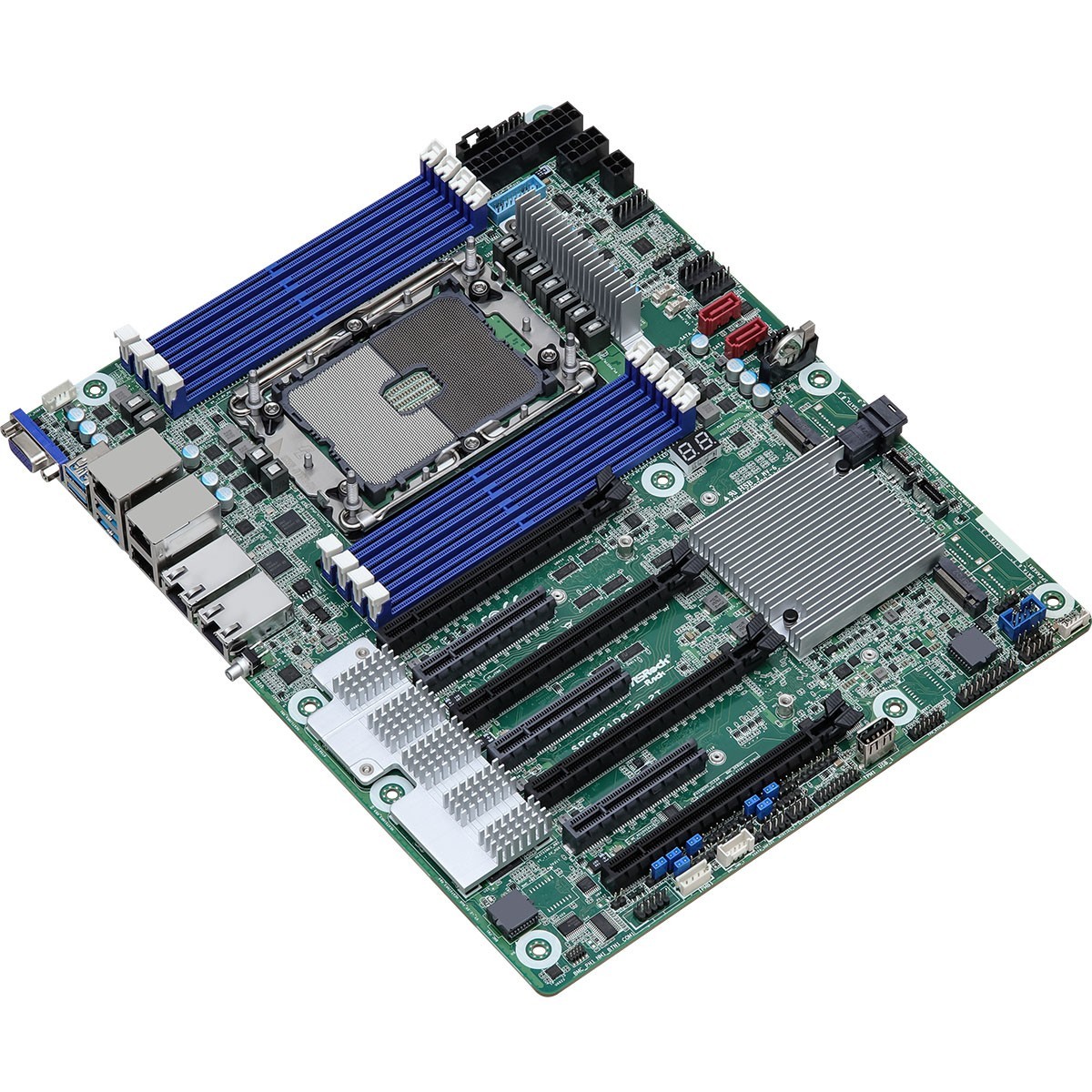

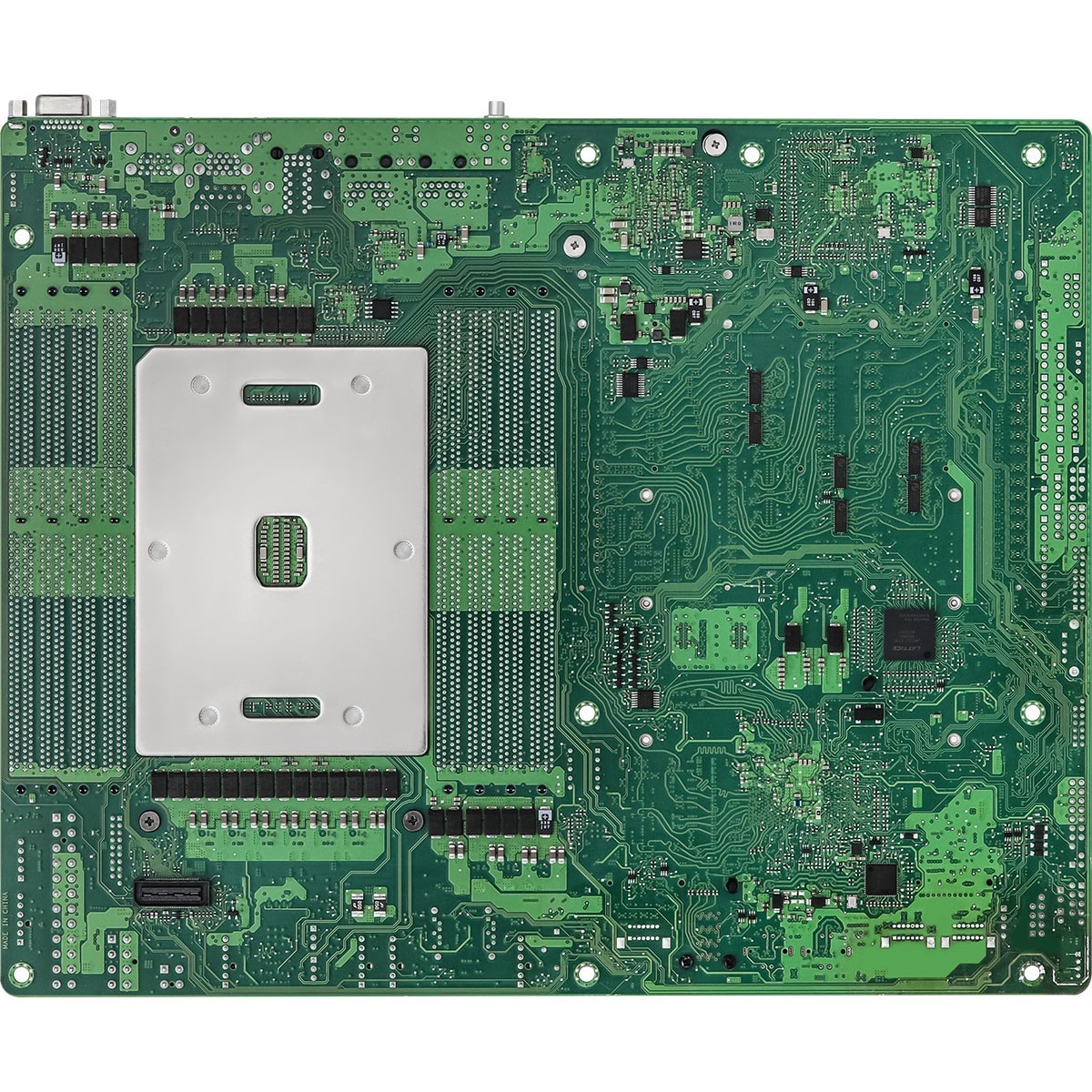

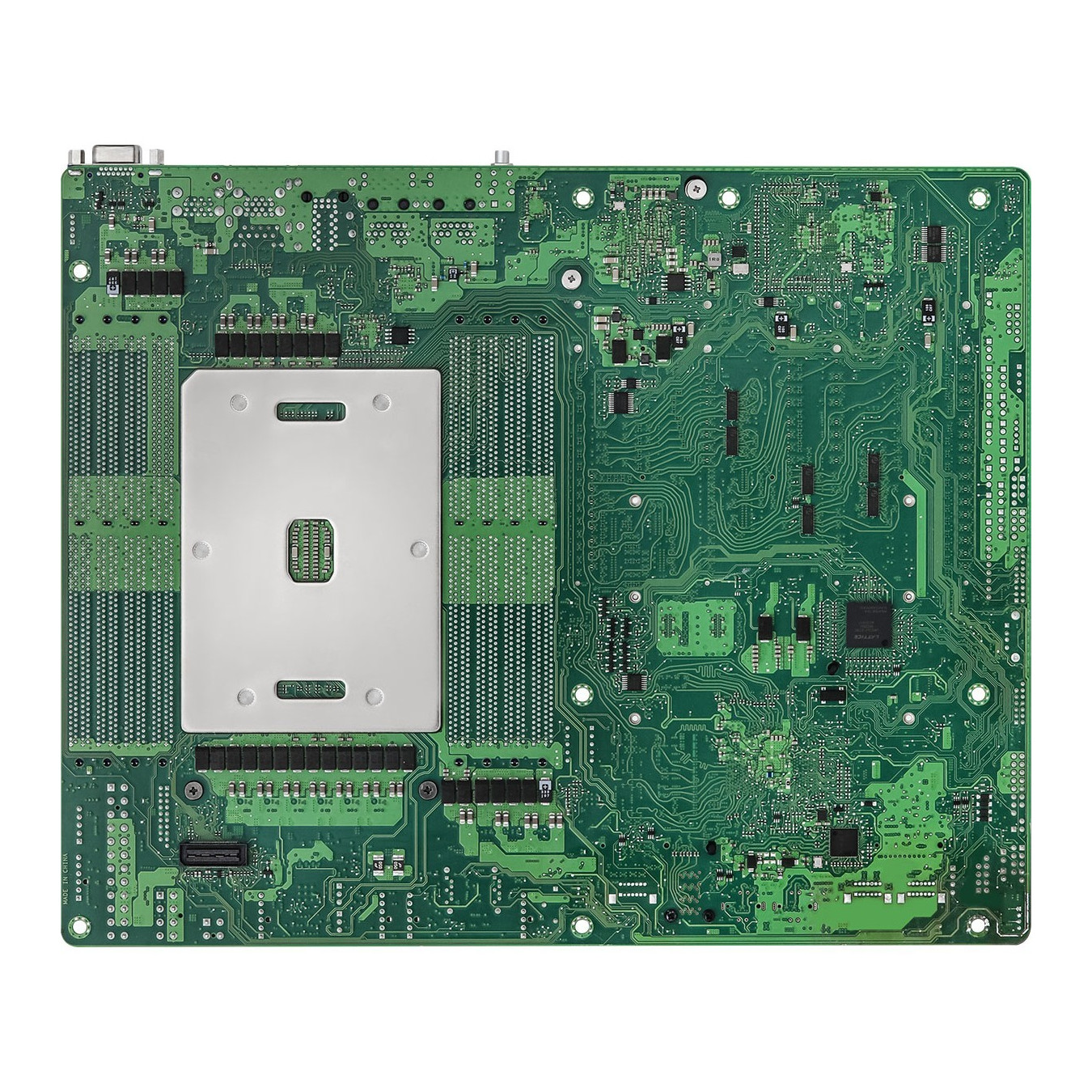

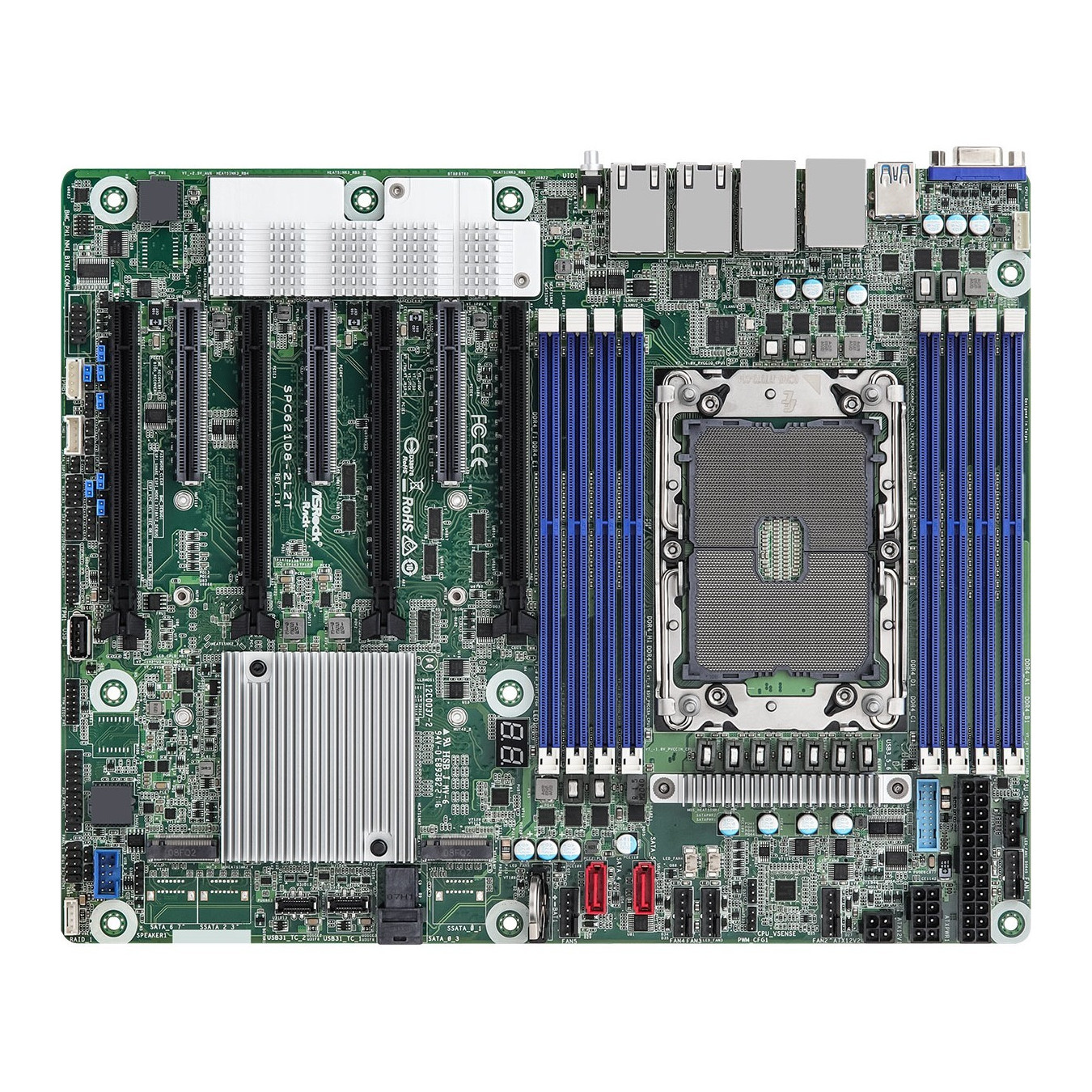

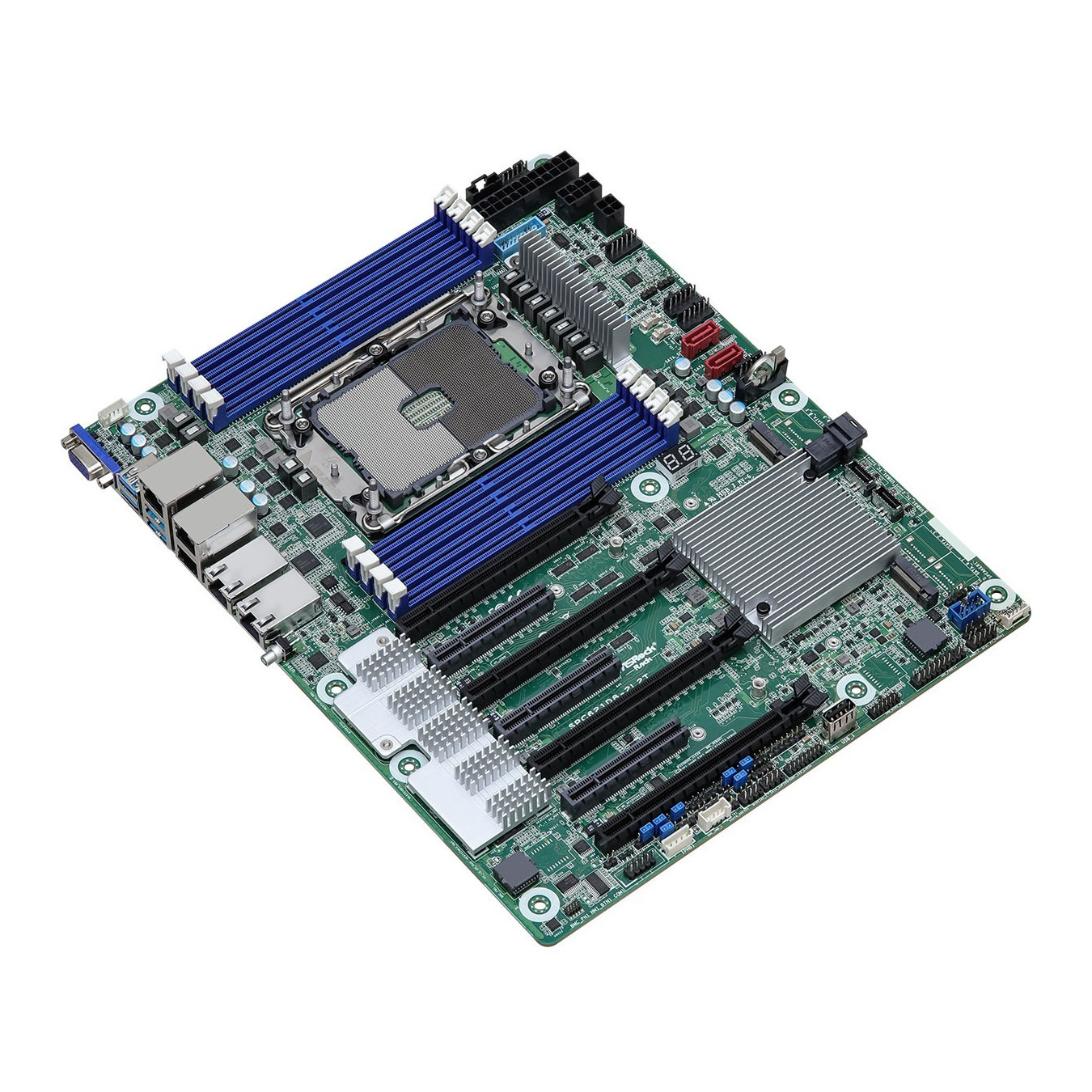

ASRock C621A SPC621D8-2L2T - ATX Server Motherboard, LGA4189, 8x DDR4 DIMM, 8x SATA, PCIe4.0
Server ATX motherboard (ASRock SPC621D8-2L2T) for Intel Xeon LGA4189. C621A chipset, 8x DDR4 DIMM (RDIMM up to 64 GB), 8x SATA III, 4x PCIe4.0 x16, multi-LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 8 (HEDT) |
|---|---|
| Motherboards - Max Memory Capacity | 64 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - SATA Ports | 8 |
Asrock SPC621D8-2L2T. Processor manufacturer: Intel. Processor socket: LGA 4189. Compatible processor series: Intel® Xeon®. Supported memory types: DDR4-SDRAM. Memory slots type: DIMM. Memory voltage: 1.2 V. Supported storage drive interfaces: M.2. SATA III. RAID levels: 0. 1. 5. 10. On-board graphics card model: Aspeed AST2500. On-board graphics card memory: 16 MB. LAN controller: Intel I210. Intel X710-AT2. Realtek RTL8211E
| Processor manufacturer | Intel |
| Processor socket | LGA 4189 |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory voltage | 1.2 V |
| Maximum RDIMM memory | 64 GB |
| Supported storage drive interfaces | M.2. SATA III |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 5. 10 |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 16 MB |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA III connectors | 8 |

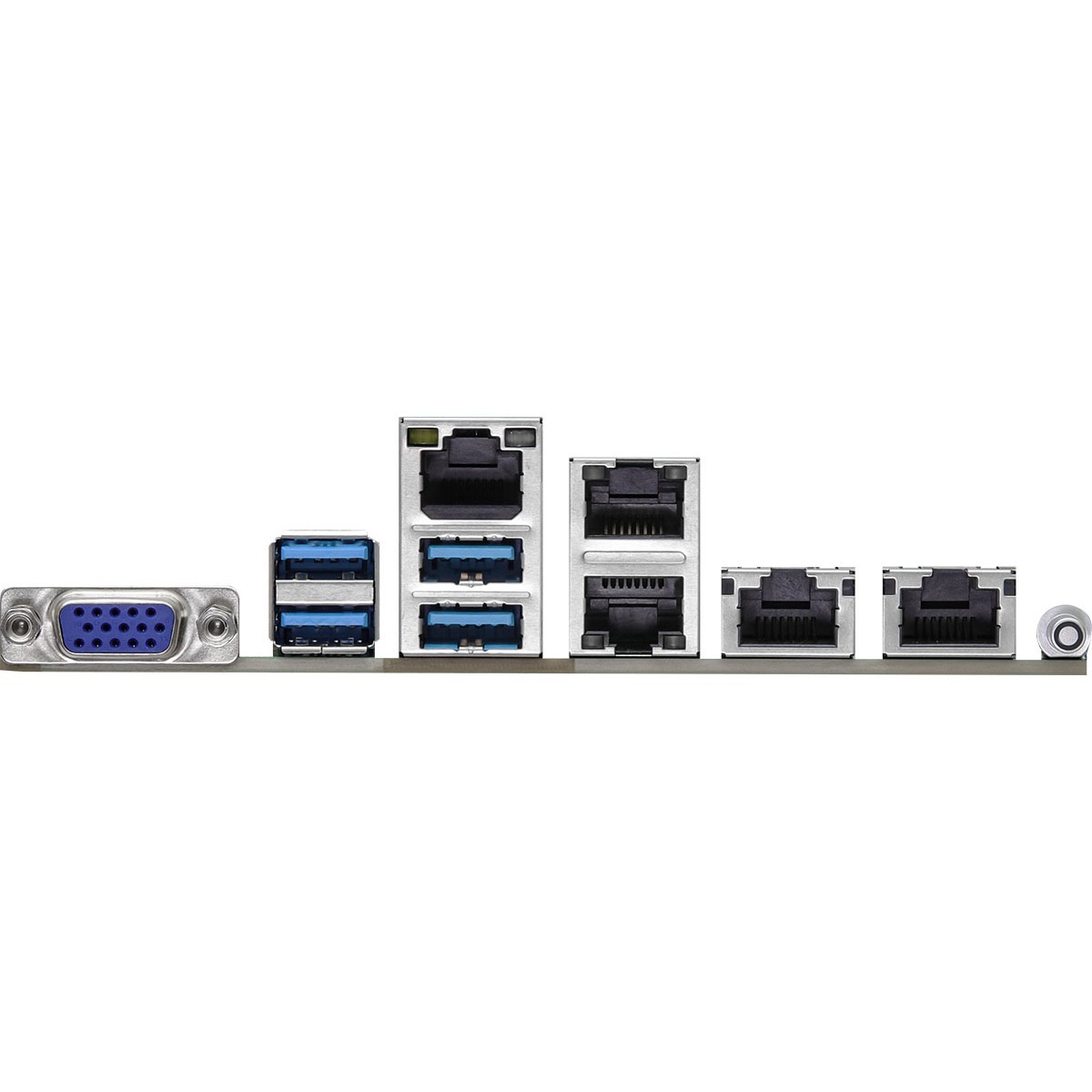

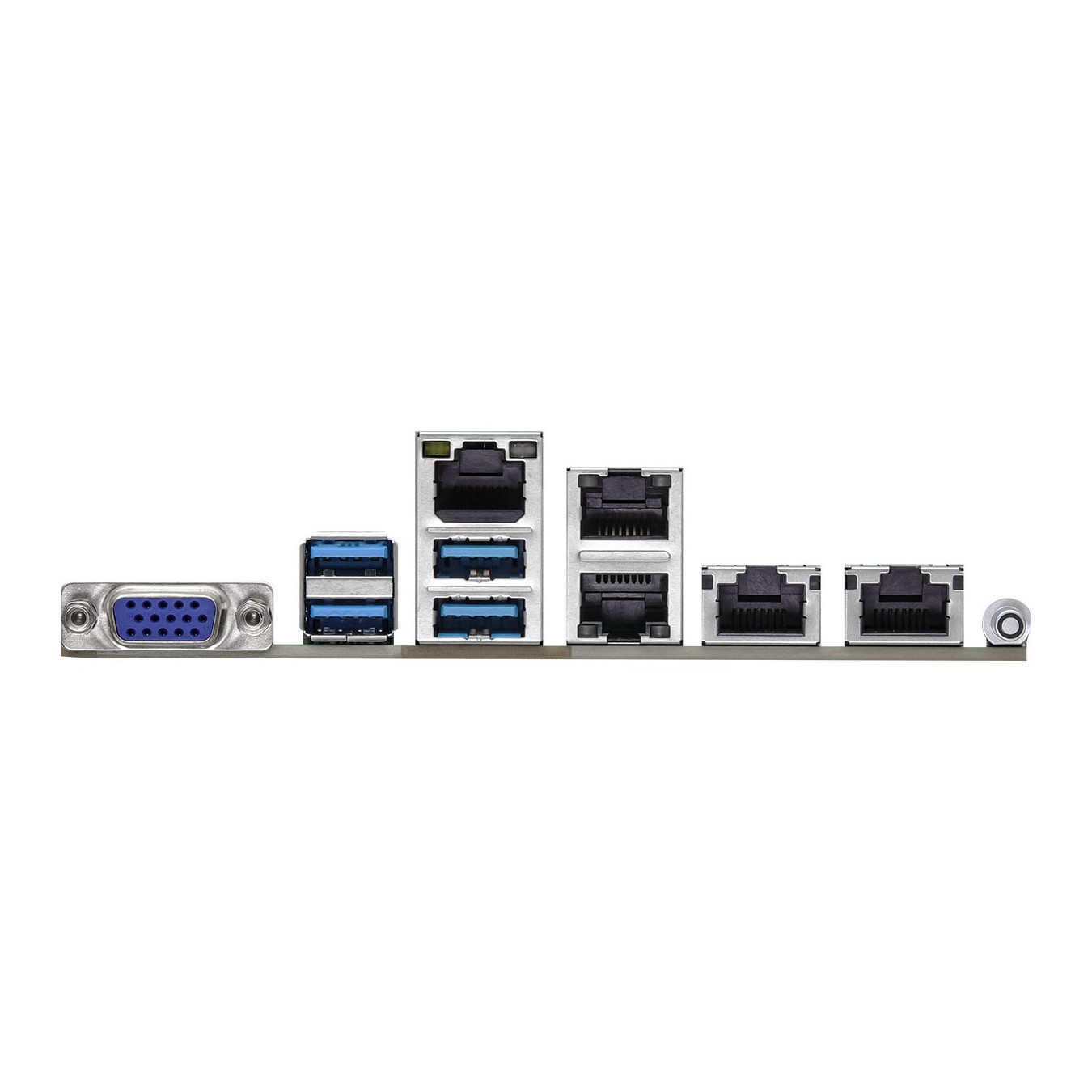

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| LAN controller | Intel I210. Intel X710-AT2. Realtek RTL8211E |
| Motherboard chipset | Intel C621A |
| PC health monitoring | Fan. Temperature. Voltage |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| PCI Express x16 (Gen 4.x) slots | 4 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Width | 304.8 mm |
| Depth | 243.8 mm |
