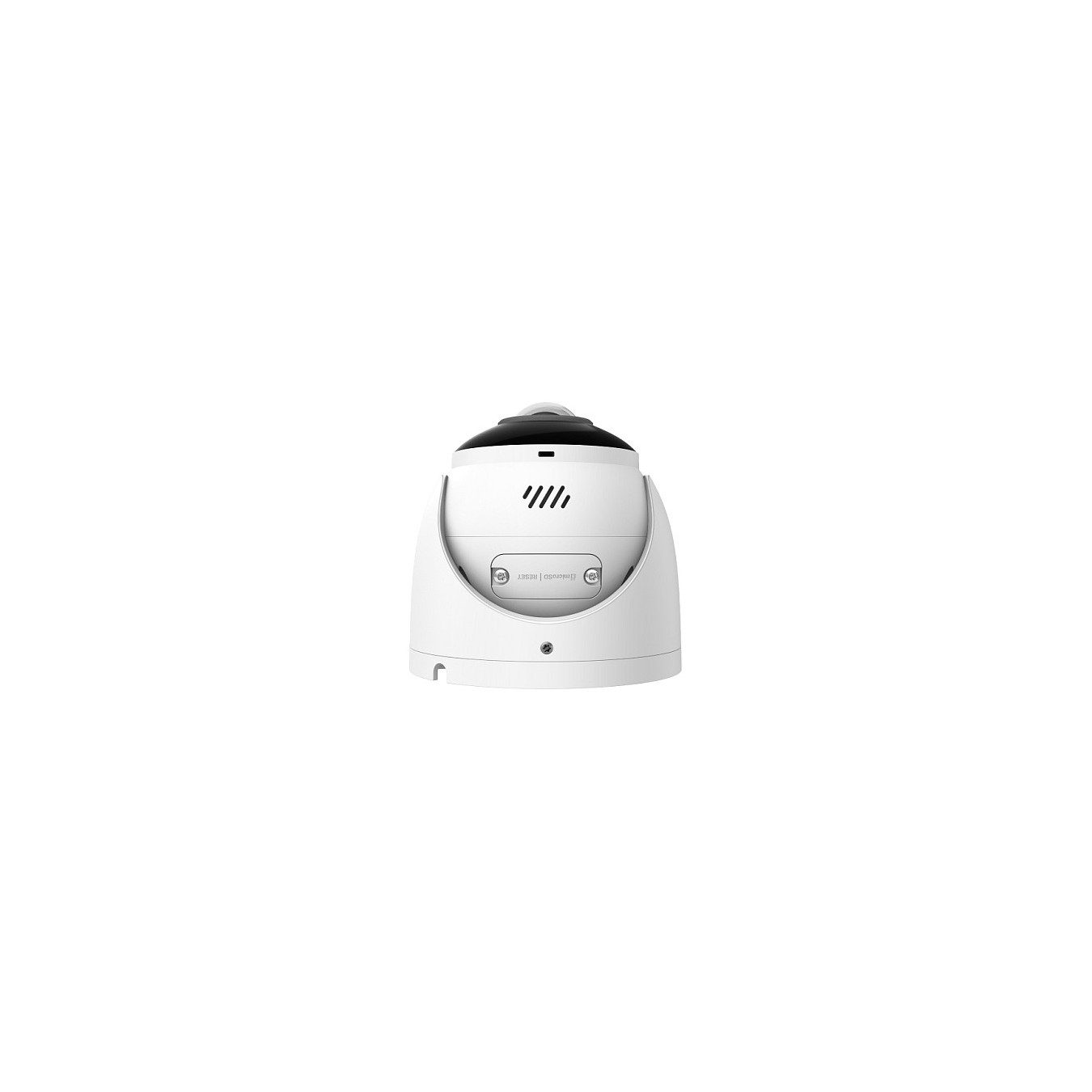

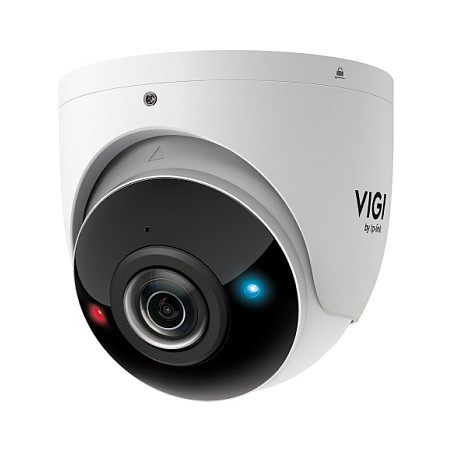

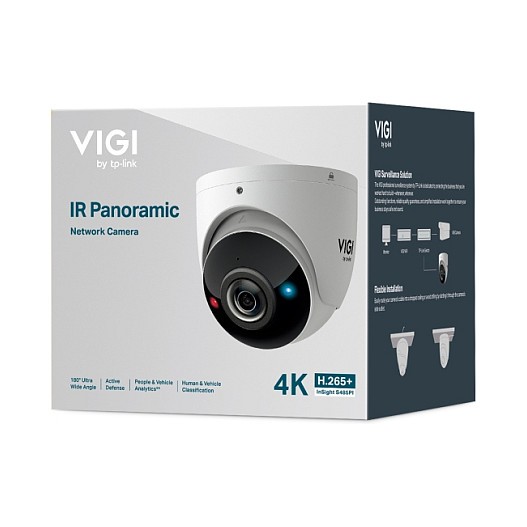

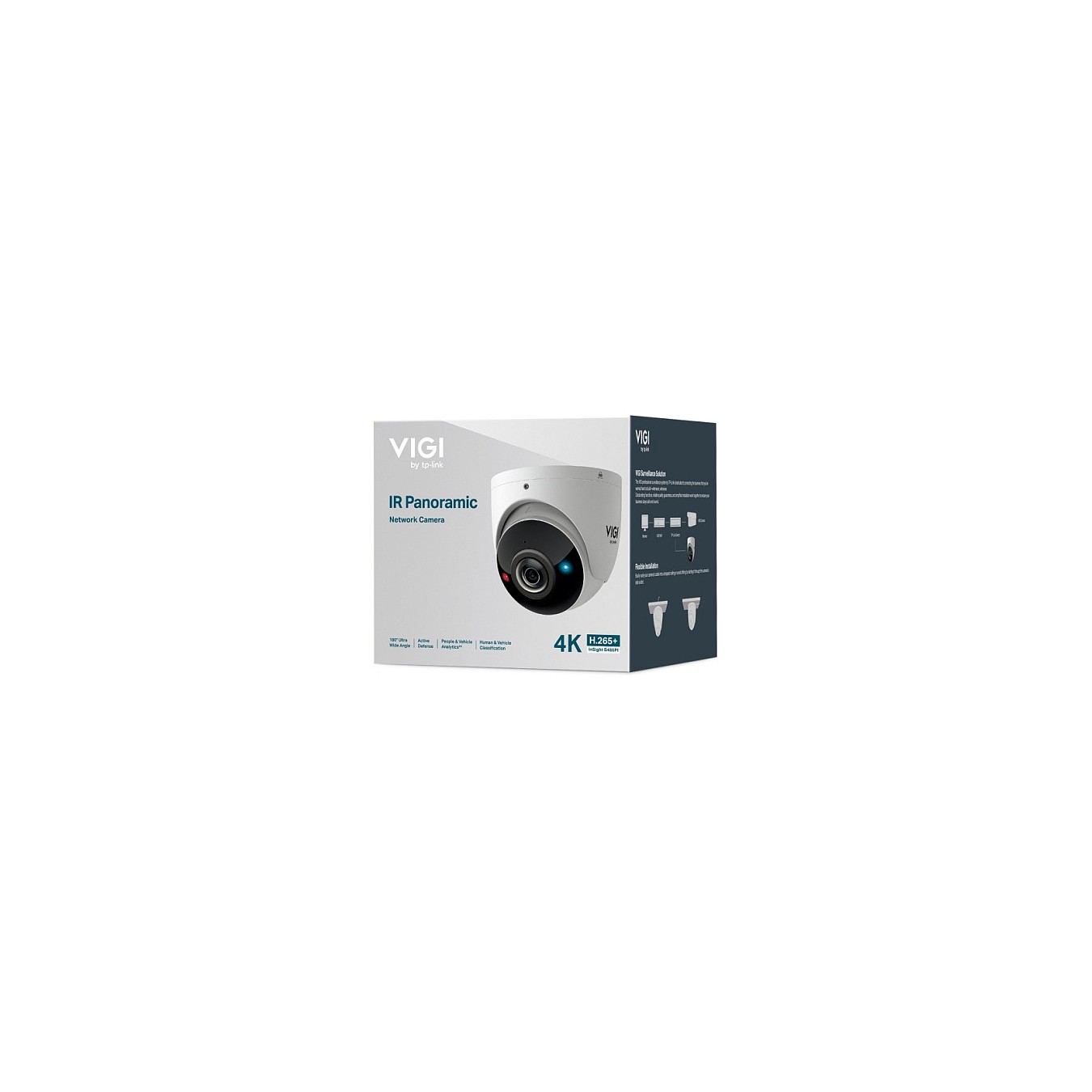

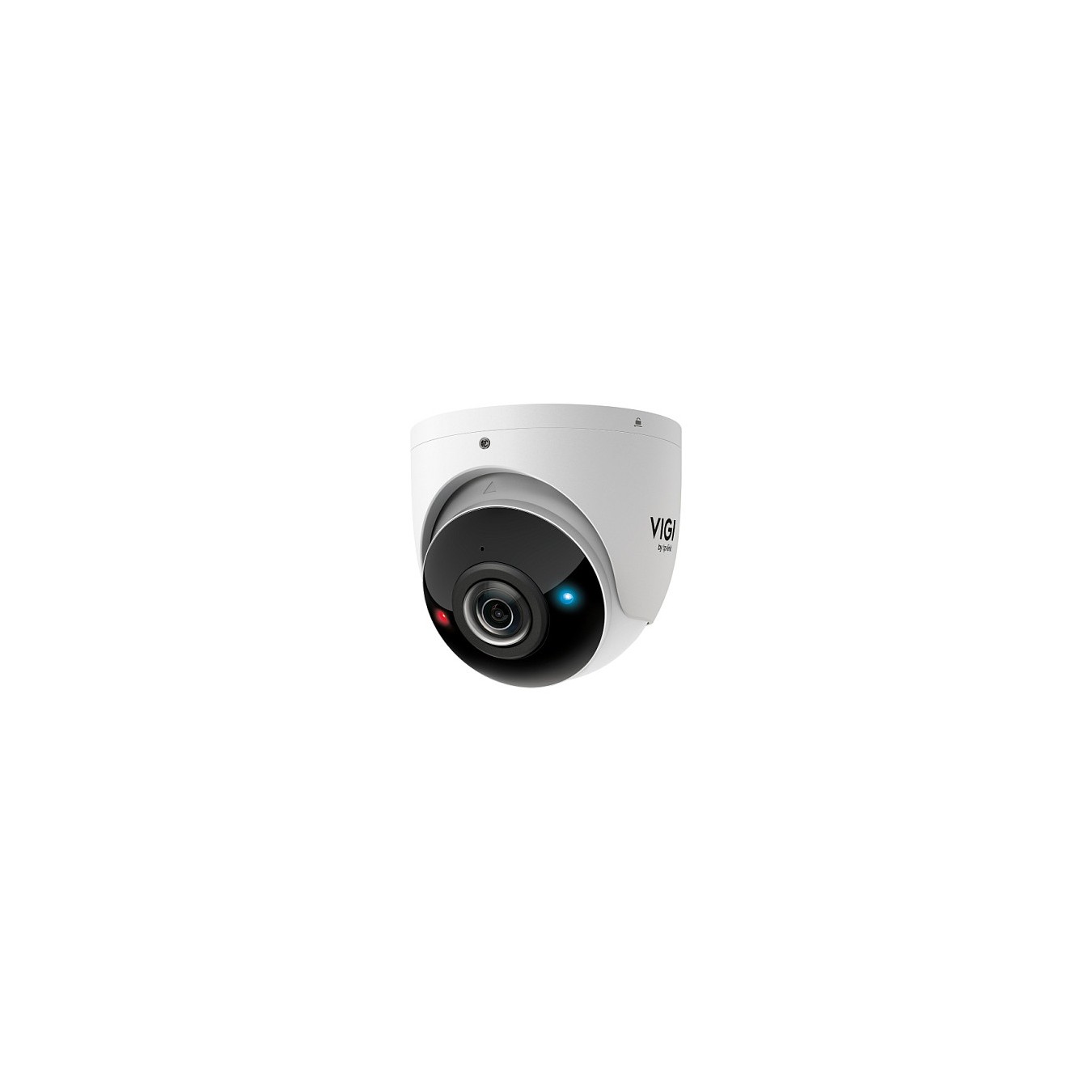

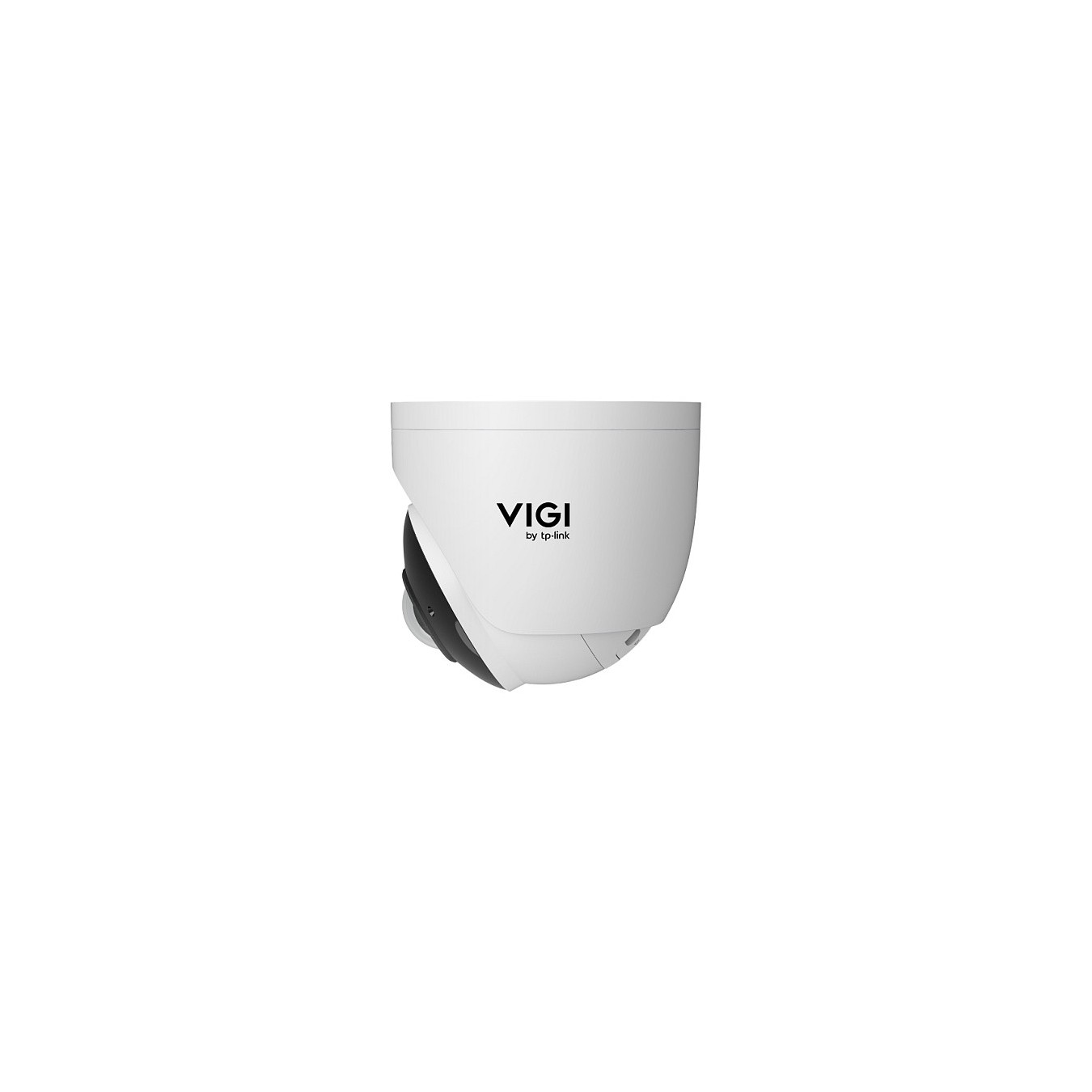

VIGI Insight S485PI 8MP IR Panorama Netzwerkkamera
TP-Link InSight S485PI. IP-Sicherheitskamera. Draußen. Kabelgebunden. 44 m. 120 dB. Wand
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link InSight S485PI. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Draußen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand. Produktfarbe: Weiß. Formfaktor: Turret. Betrachtungswinkel (horizontal): 180°. Betrachtungswinkel (vertikal): 86°. Betrachtungswinkel des Objektivs. diagonal: 180°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 2.7 mm (1 / 2.7"). Sensortyp (Panoramakamera): CMOS
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| Maximaler Arbeitsabstand | 44 m |
| Feature | Betriebsanleitung |
| Dynamischer Bereich | 120 dB |
| Formfaktor | Turret |
| Befestigungstyp | Wand |
| Produktfarbe | Weiß |
| Gehäusematerial | Metall |
| Schutzfunktion | Wasserdicht |
| Internationale Schutzart (IP-Code) | IP67 |
| Mindestbeleuchtung | 0 Lux |
| Betrachtungswinkel (horizontal) | 180° |
| Betrachtungswinkel (vertikal) | 86° |
| Betrachtungswinkel des Objektivs. diagonal | 180° |
| Neigungswinkelbereich | 0 - 90° |
| Kamera Verschlusszeit | 1/3 to 1/10000 |
| Größe des Bildsensors | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor-Typ | CMOS |
| Sensortyp (Panoramakamera) | CMOS |
| Abstandsfeststellung | 44 m |
| Abstandsbeobachtung | 18.33 m |
| Abstandserkennung | 8.8 m |
| Maximale Blendenzahl | 2 |
| Abstandsermittlung | 4.4 m |
| Feste Brennweite | 1.65 mm |
| LED Typ | IR/Weiß |
| Maximale Auflösung | 3840 x 2160 Pixel |
| Megapixel insgesamt | 8 MP |
| Videokompressionsformate | H.264. H.264+. H.265. H.265+ |
| Unterstützte Grafik-Auflösungen | 1280 x 720 (HD 720). 1920 x 1080 (HD 1080). 2048 x 1280. 2304 x 1296. 2560 x 1440. 2688 x 1520. 2880 x 1620. 3840 x 2160 |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Spiegel. Farbsättigung. Schärfe |
| Bitratenkontrolle | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Übertragungsgeschwindigkeit | Main Stream: 256 Kbps to 8 Mbps. Sub-Stream: 64 Kbps to 1024 Kbps |
| Audio-System | 2-Wege |
| Audio input Kanäle | 1.0 Kanäle |
| Audio Kanäle | 1.0 Kanäle |
| Unterstützte Audioformate | G.711 A-law |
| Samplerate | 8 kHz |
| Mikrofonanzahl | 1 |
| Bereich der Bitrate | 0 - 64 Kbit/s |
| Netzstandard | IEEE 802.3at |
| Unterstützte Netzwerkprotokolle | TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. DNS. RTSP. NTP. UPnP UDP. SSL/TLS. FTP/SFTP. RTP. IPv4. IPv6. ARP |
| SIM-Kartentyp | MicroSIM |
| Kompatible Speicherkarten | MicroSD (TransFlash) |
| Max. Speicherkartengröße | 512 GB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Distanzerfassung | 120 m |
| Warnbenachrichtigungstyp | Push-Benachrichtigung |
| Energiequelle | Gleichstrom. PoE |
| Stromverbrauch (max.) | 18 W |
| Stromverbrauch (Power over Ethernet (PoE)) | 21 W |
| DC-Ausgang Volt | 12 |
| Betriebstemperatur | -30 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Luftfeuchtigkeit bei Lagerung | 0 - 95% |
| Breite | 112.3 mm |
| Tiefe | 112.3 mm |
| Höhe | 110.2 mm |
| Gewicht | 760 g |
| Anzahl der Kameras | 1 |
