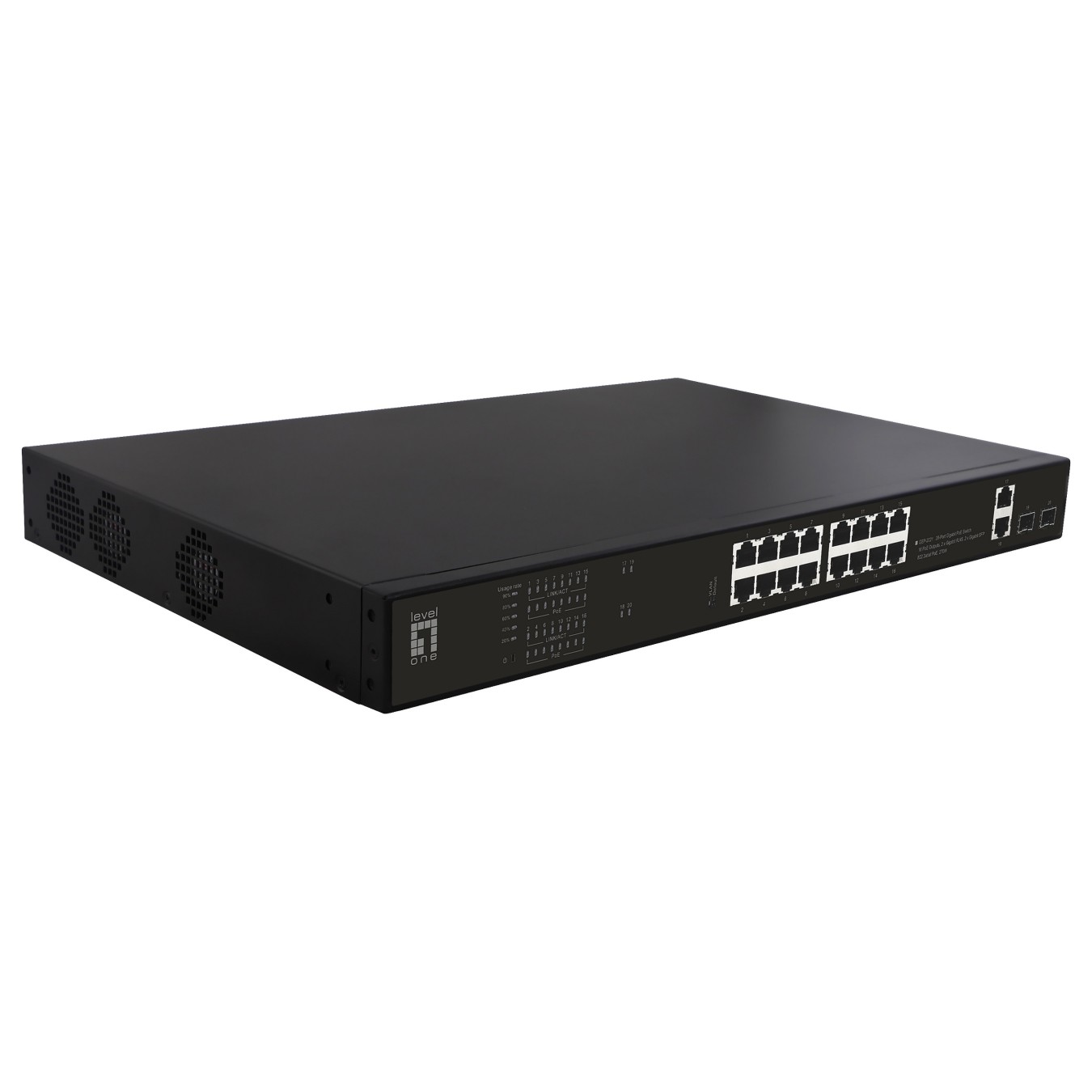

Switch 16x GE GEP-2021 2xGE 2xGSFP 19' 270W 16xPoE+
LevelOne GEP-2021. Unmanaged. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GEP-2021. Switch-Typ: Unmanaged. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 20. MAC-Adressentabelle: 8000 Eintragungen. Netzstandard: IEEE 802.1ab. IEEE 802.1af. IEEE 802.3. IEEE 802.3at. IEEE 802.3u. IEEE 802.3z. Power over Ethernet (PoE). Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Unmanaged |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 20 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (Kupfer)-Anschlüsse | 16 |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 2 |
| Menge SFP-Modul-Steckplätze | 2 |
| Netzstandard | IEEE 802.1ab. IEEE 802.1af. IEEE 802.3. IEEE 802.3at. IEEE 802.3u. IEEE 802.3z |
| Feature | Rackmontageset |
| Transmissionsentfernung (max) | 0.25 km |
| MAC-Adressentabelle | 8000 Eintragungen |
| Datenpaket-Pufferspeicher | 29.8 MB |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Prozessor | Realtek RTL8382L |
| Flash-Speicher | 4 MB |
| MTBF (PoE) | 250000 h |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Druckanstieg-Schutzspannung | 6 kV |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 16 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 15.4 W |
| Gesamtleistung Power over Ethernet (PoE) | 270 W |
| Betriebstemperatur | -10 - 85 °C |
| Temperaturbereich bei Lagerung | -40 - 90 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 90% |
| Wärmeableitung | 86.435 BTU/h |
| Breite | 285 mm |
| Tiefe | 442 mm |
| Höhe | 44 mm |
| Gewicht | 4 kg |
| Mitgelieferte Kabel | AC |
| Verpackungsart | Box |
| Verpackungsbreite | 395 mm |
| Verpackungstiefe | 90 mm |
| Verpackungshöhe | 530 mm |
| Paketgewicht | 4.8 kg |
| Palettenhöhe netto | 140.4 cm |
| Pallettenlänge netto | 80 cm |
| Pallettenbreite netto | 120 cm |
| Zertifizierung | CE. RoHS |
| Ursprungsland | China |
| Warentarifnummer (HS) | 85176990 |
