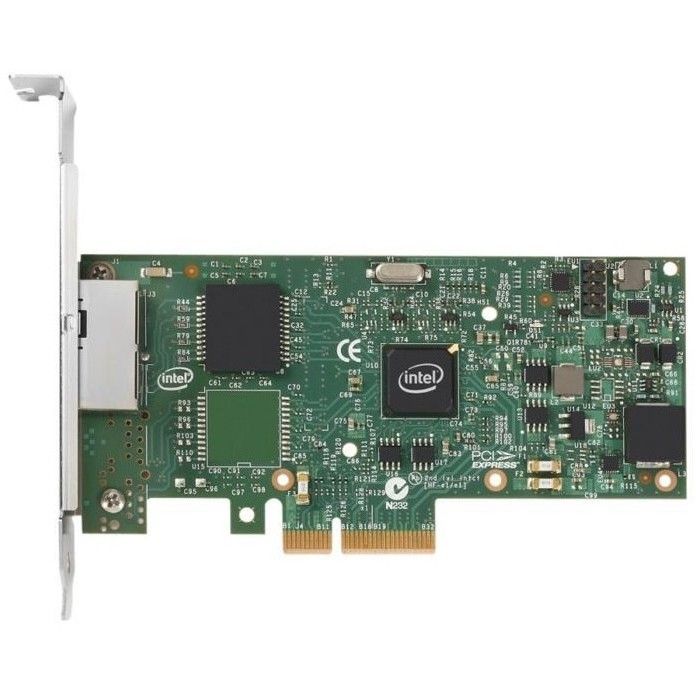

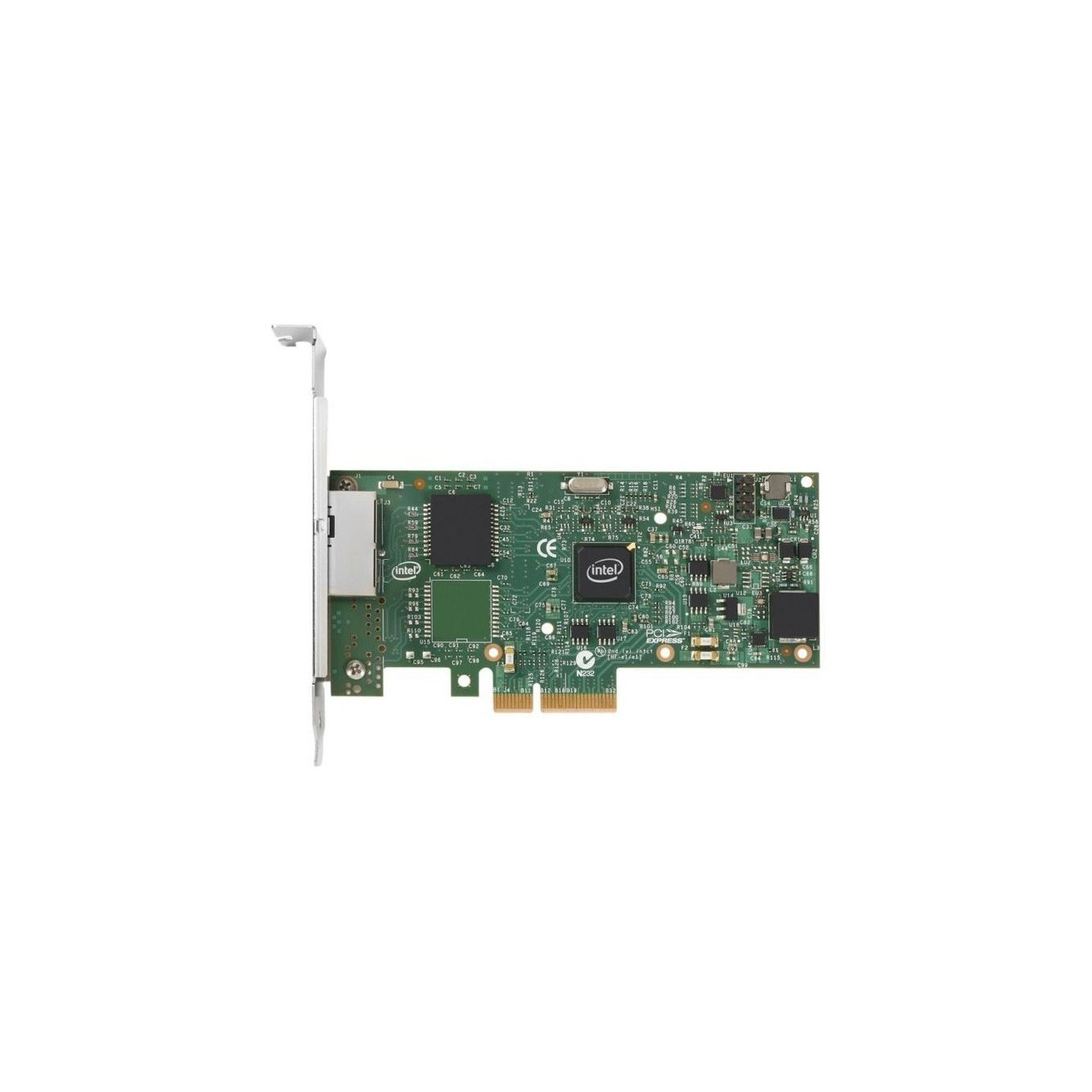

Intel I350-T2 V2 Server Network Card - 2x RJ45 1GbE, PCIe x4 (v2.1), Low-Profile/Full-Height
Intel I350-T2 V2 internal PCIe x4 server NIC — 2x RJ45 Gigabit ports (10/100/1000Base-T), PCIe v2.1, low-profile/full-height bracket, typical power 5W.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PCIe Network Cards - Port Speed | 1GbE |
|---|---|
| PCIe Network Cards - Ports | 2xRJ45 |
| PCIe Network Cards - PCIe Version | 2.0 |
| PCIe Network Cards - PCIe Lanes | x4 |
| PCIe Network Cards - Low-Profile Bracket | Included |
| PCIe Network Cards - OS Compatibility | Multi-OS |
Intel I350T2V2BLK. Internal. Connectivity technology: Wired. Host interface: PCI Express. Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 2.1 |
| PCI Card form factor | Full-height (low-profile) |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1as. IEEE 802.1Q. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Feature | Intel Virtualization Technology for Connectivity (VT-c) |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Supported network protocols | TCP. UDP. IP |
| Maximum operating distance | 100 m |
| LAN controller | Intel® I350 |
| Component for | Server |
| Chipset | Intel® I350 |
| Power consumption (typical) | 5 W |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 35 - 90% |
| Width | 68.9 mm |
| Depth | 135.4 mm |
| Harmonized System (HS) code | 8517620090 |
| Cable type | Cat 5 up to 100m |
| Market segment | Server |
| Speed & slot width | 5.0 GT/s. x4 Lane |
| Interface type | PCIe v2.1 (5.0 GT/s) |
| Product type | Network Interface Card |
| Thermal Design Power (TDP) | 4.4 W |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Launch date | Q3'14 |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
| Status | Launched |
| Last change | 63903513 |
| Ethernet adapter ARK ID | 84804 |
| Storage Over Ethernet | iSCSI. NFS |
| Export Control Classification Number (ECCN) | 5A991.B.4.A |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel I350 |
| Cabling type | Cat 5 up to 100m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product family | Intel Gigabit server adapter |
| Product series | Intel® I350 |
| Product codename | Powerville |
