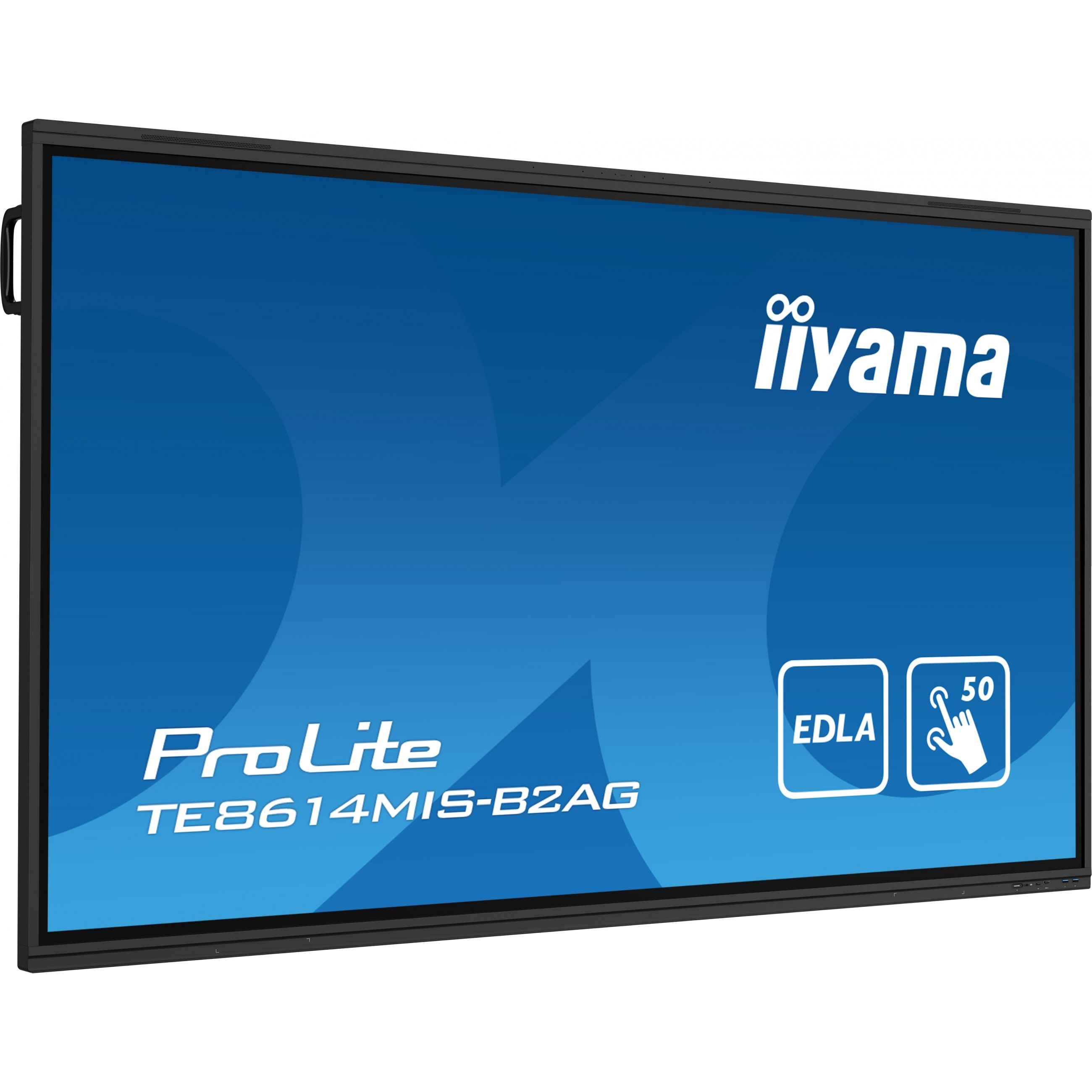

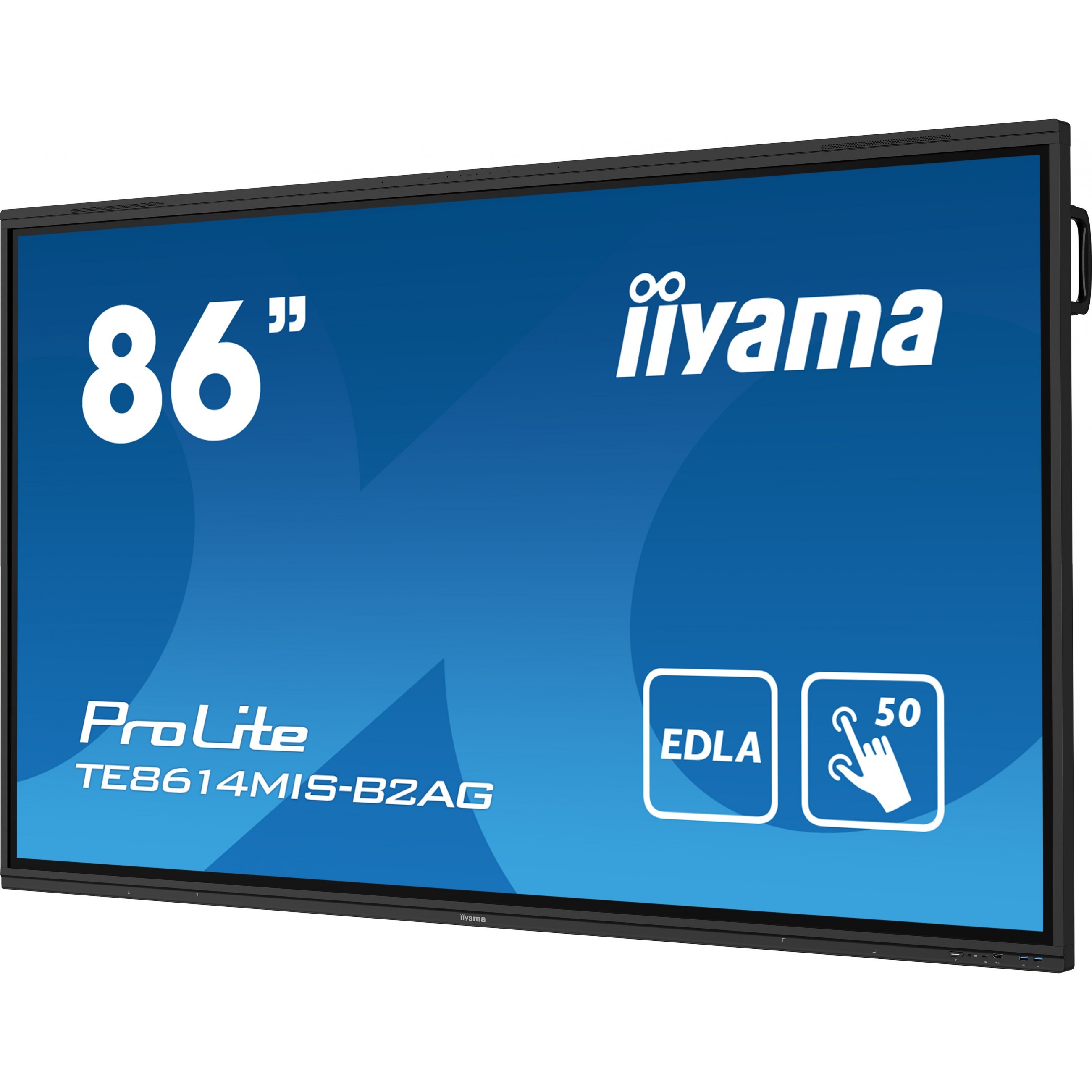

iiyama ProLite TE8614MIS-B2AG - 86-inch 4K UHD Touch Display, VA, Android 13, 8 GB, USB-C 100W, Wi-Fi, Black
86-inch 4K UHD interactive display with PureTouch-IR 50-point touch, VA panel, Android 13 (8 GB), USB-C PD 100W, Wi‑Fi, 4x HDMI, DP 2.1, 24/7 use
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Resolution | 3840x2160 (4K) |
|---|---|
| Monitors - Panel Type | VA |
| Monitors - Refresh Rate | 60 Hz |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | DisplayPort 2.1 |
iiyama 86" Google EDLA Certified Interactive display for seamless integration and collaboration in education and enterprise. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"). Display technology: LCD. Display resolution: 3840 x 2160 pixels. Display brightness: 435 cd/m². HD type: 4K Ultra HD. Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
| Panel type | VA |
| Display diagonal | 2.18 m (86") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 435 cd/m² |
| HD type | 4K Ultra HD |
| Feature | Batteries included |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 50 |
| Number of simultaneous touchpoints (Android) | 40 |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.494 x 0.494 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Glass thickness | 3 mm |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 2.1 |
| USB ports quantity | 8 |
| USB connector type | USB Type-C |
| USB Power Delivery up to | 100 W |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| Number of built-in speakers | 4 |
| RMS rated power | 52 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |
| Screen shape | Flat |
| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 4.1 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Purpose | Universal |
| Number of OSD languages | 14 |
| On Screen Display (OSD) languages | CAT. Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Polish. Russian. Swedish |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 267 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 246 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Processor manufacturer | ARM |
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Processor cores | 4 |
| Internal memory | 8 GB |
| Operating system installed | Android |
| Operating system version | 13 |
| Display width | 1957 mm |
| Display depth | 86 mm |
| Display height | 1171 mm |
| Display weight | 63.6 kg |
| Package width | 2110 mm |
| Package depth | 225 mm |
| Package height | 1291 mm |
| Package weight | 80.2 kg |

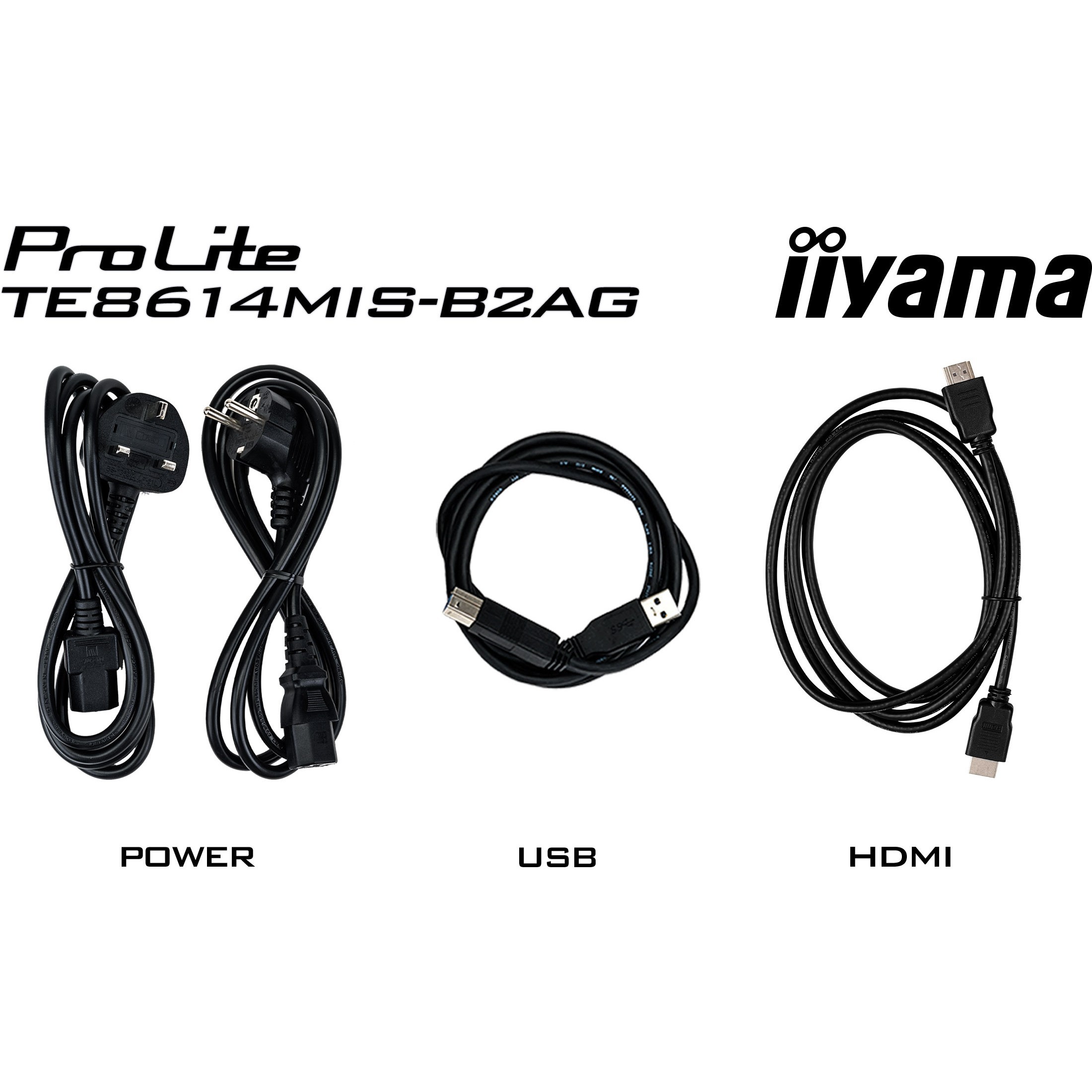

| Cables included | AC. HDMI. USB |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB. CE. TÜV-Bauart. EAC. RoHS. WEEE. REACH |
