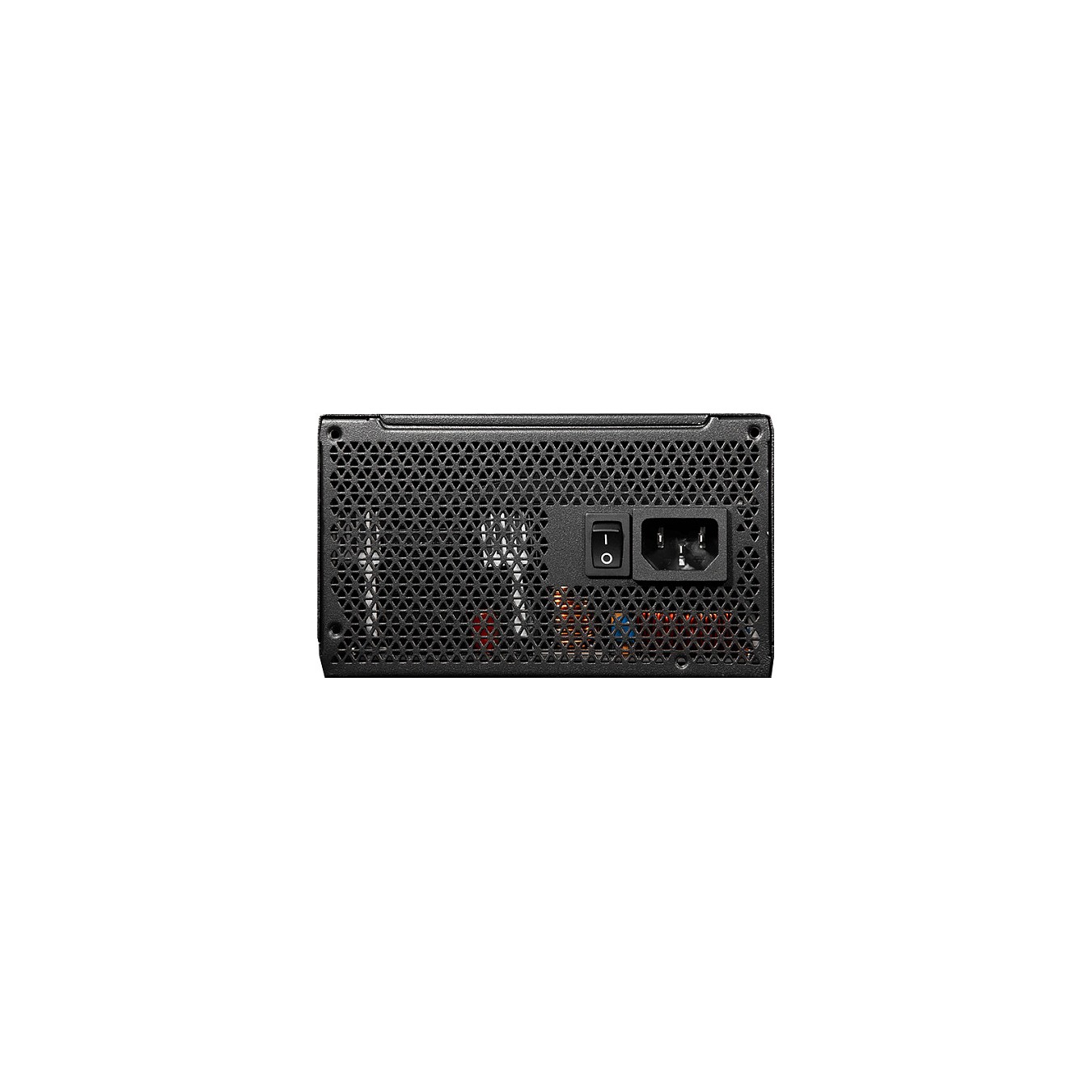

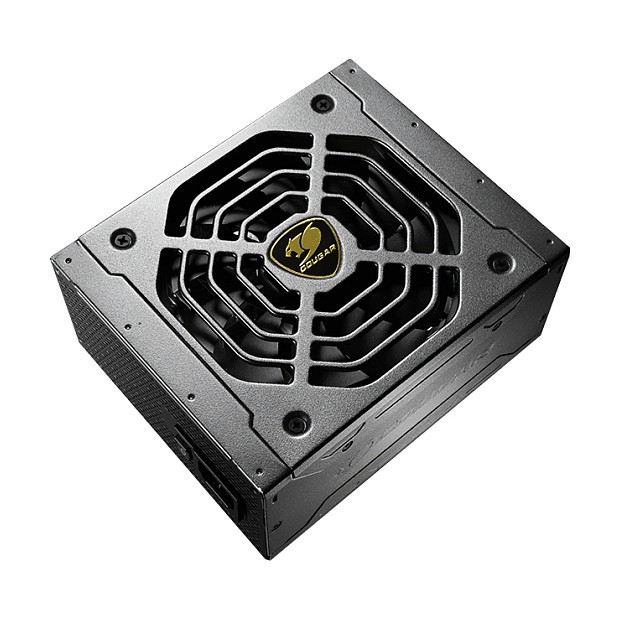

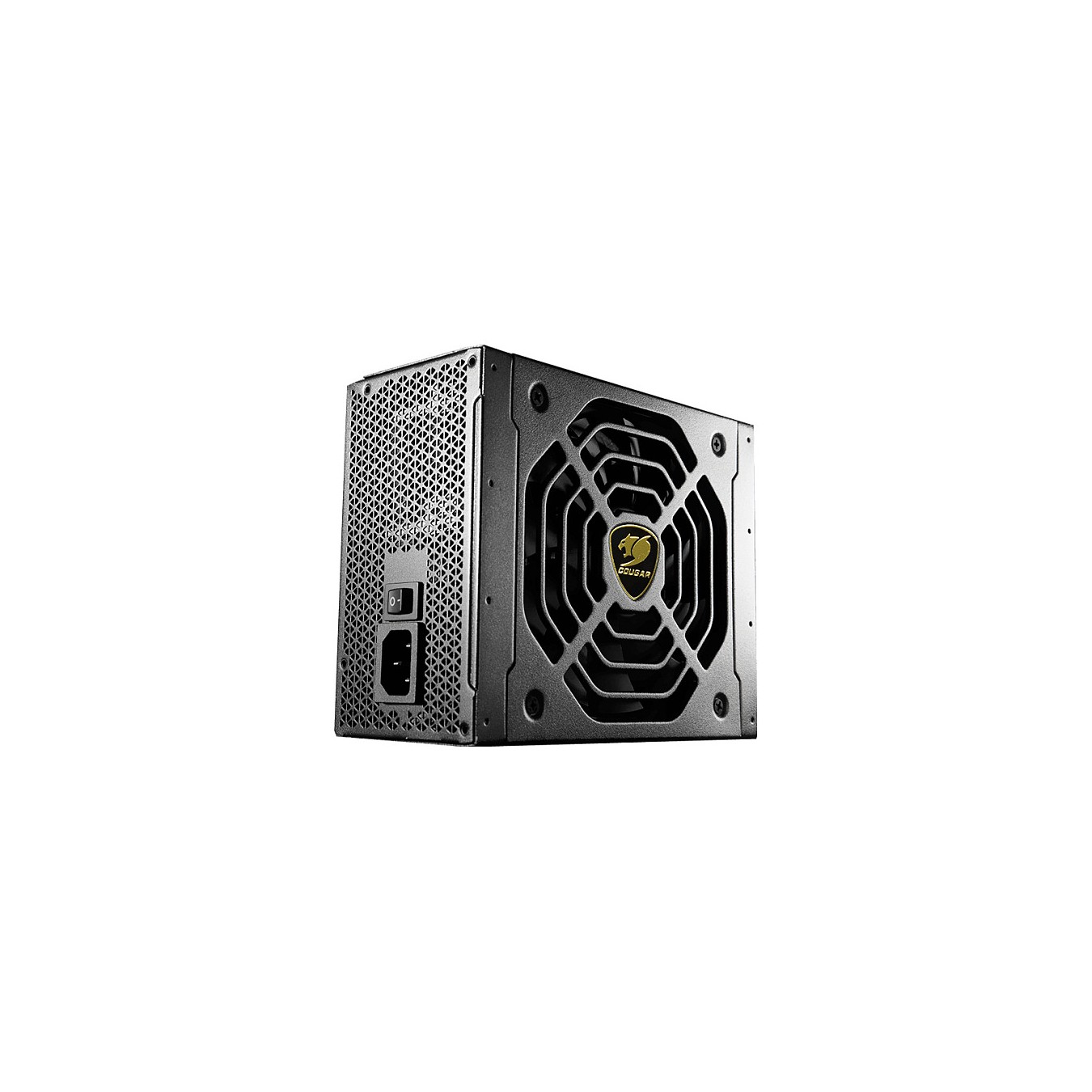

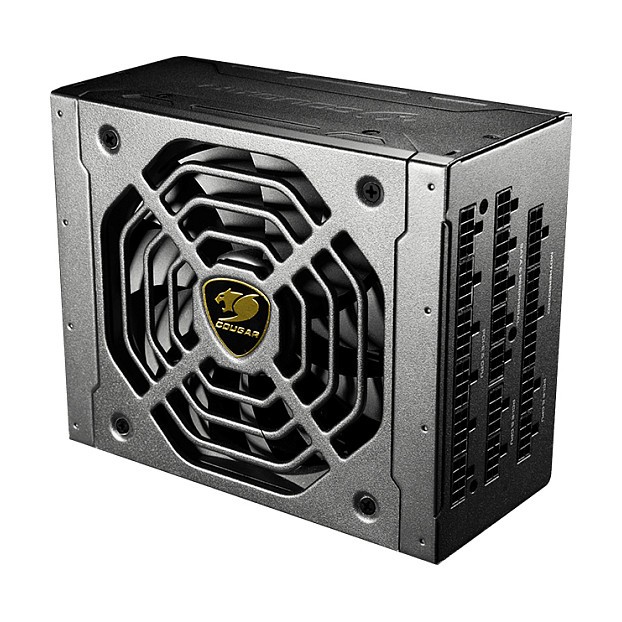

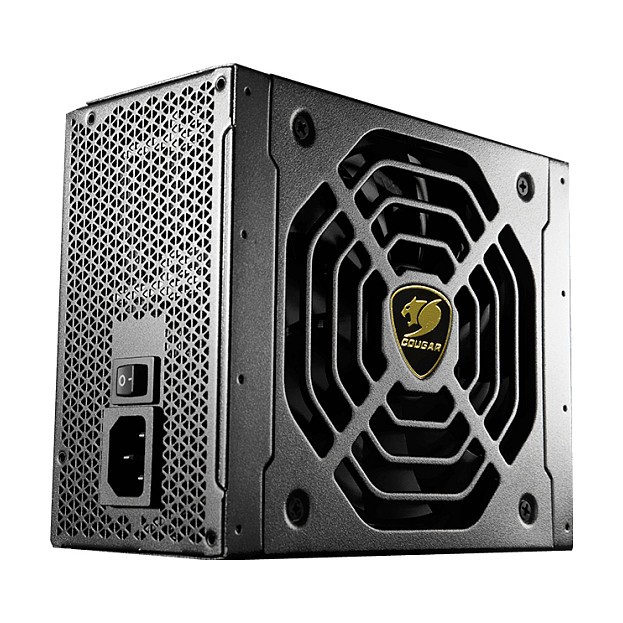

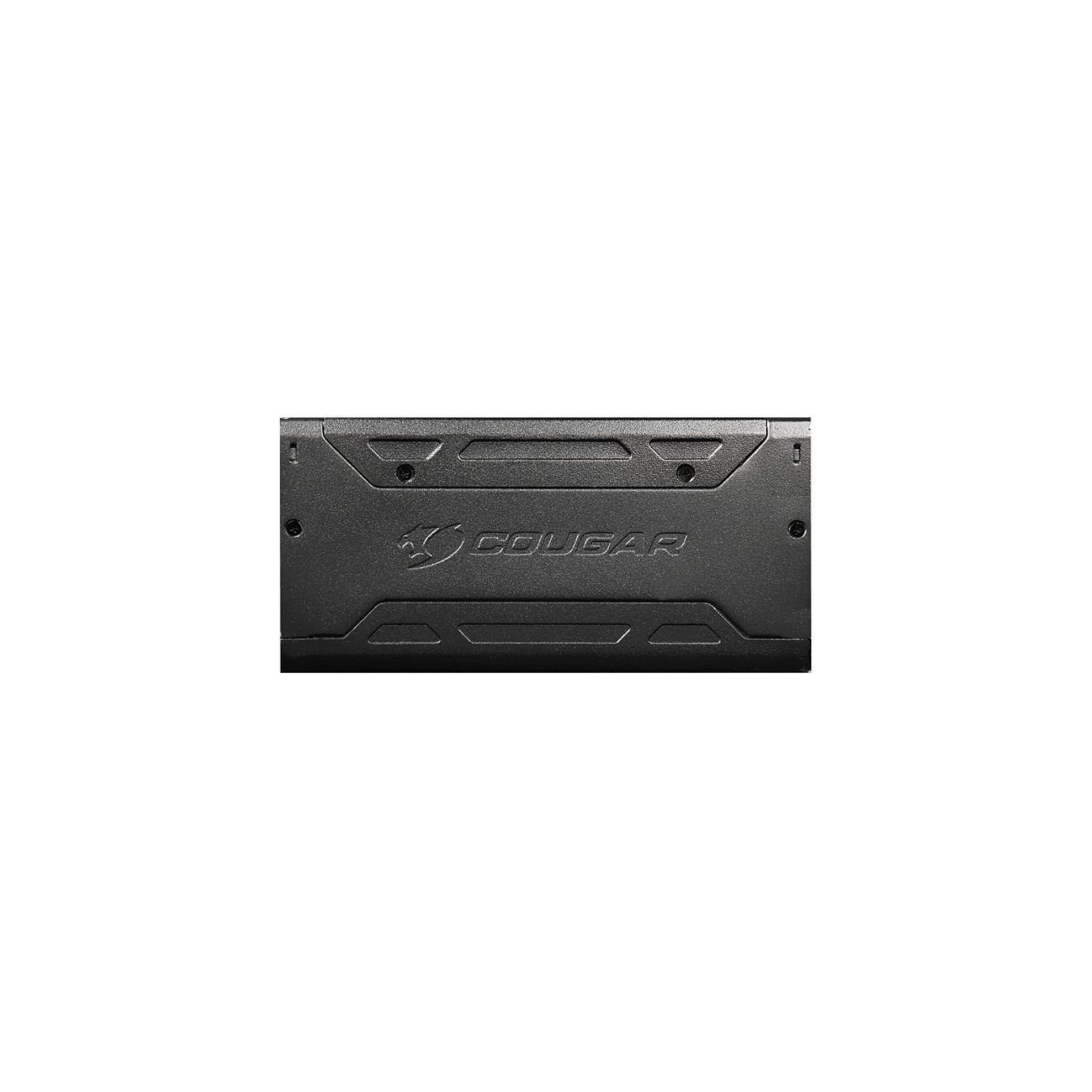

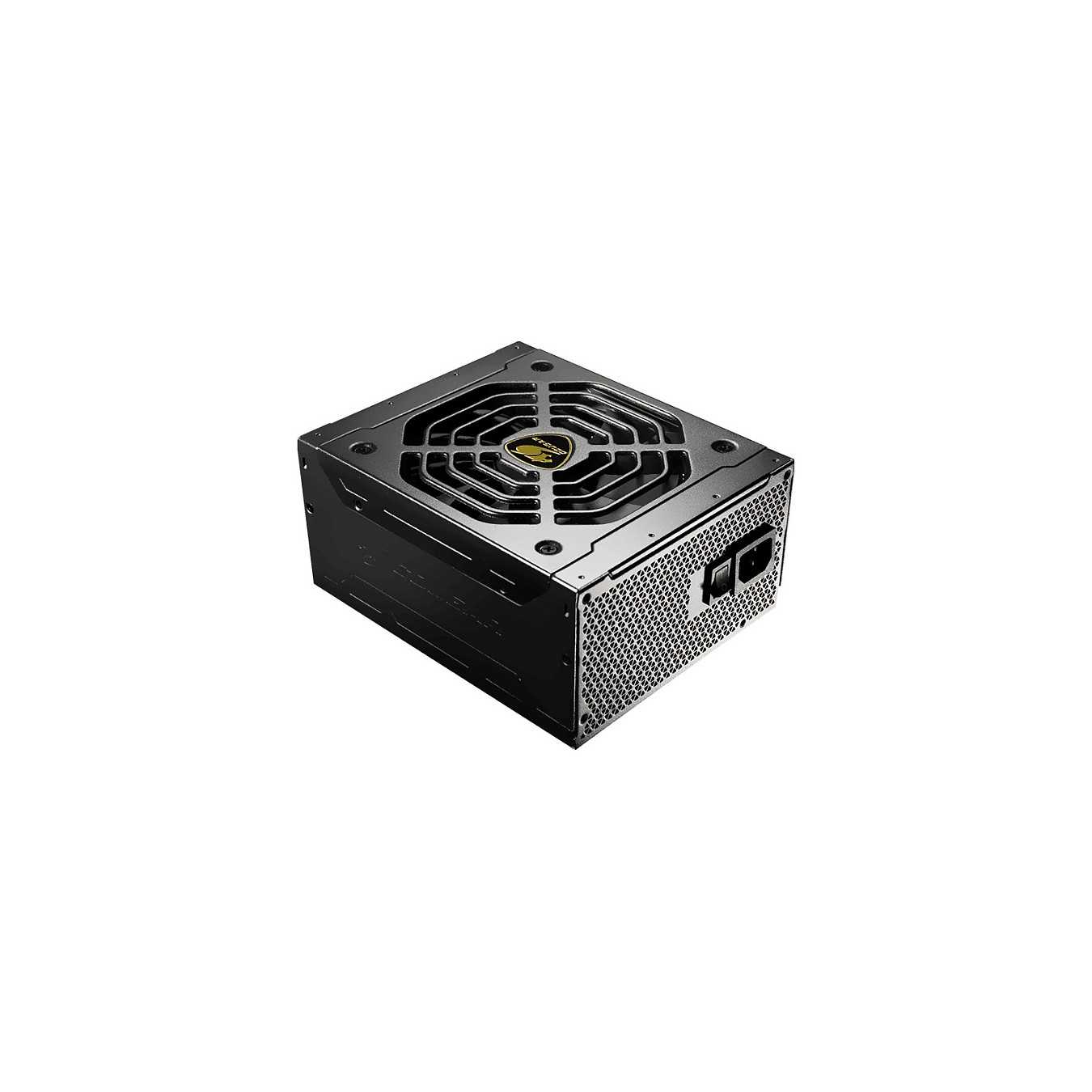

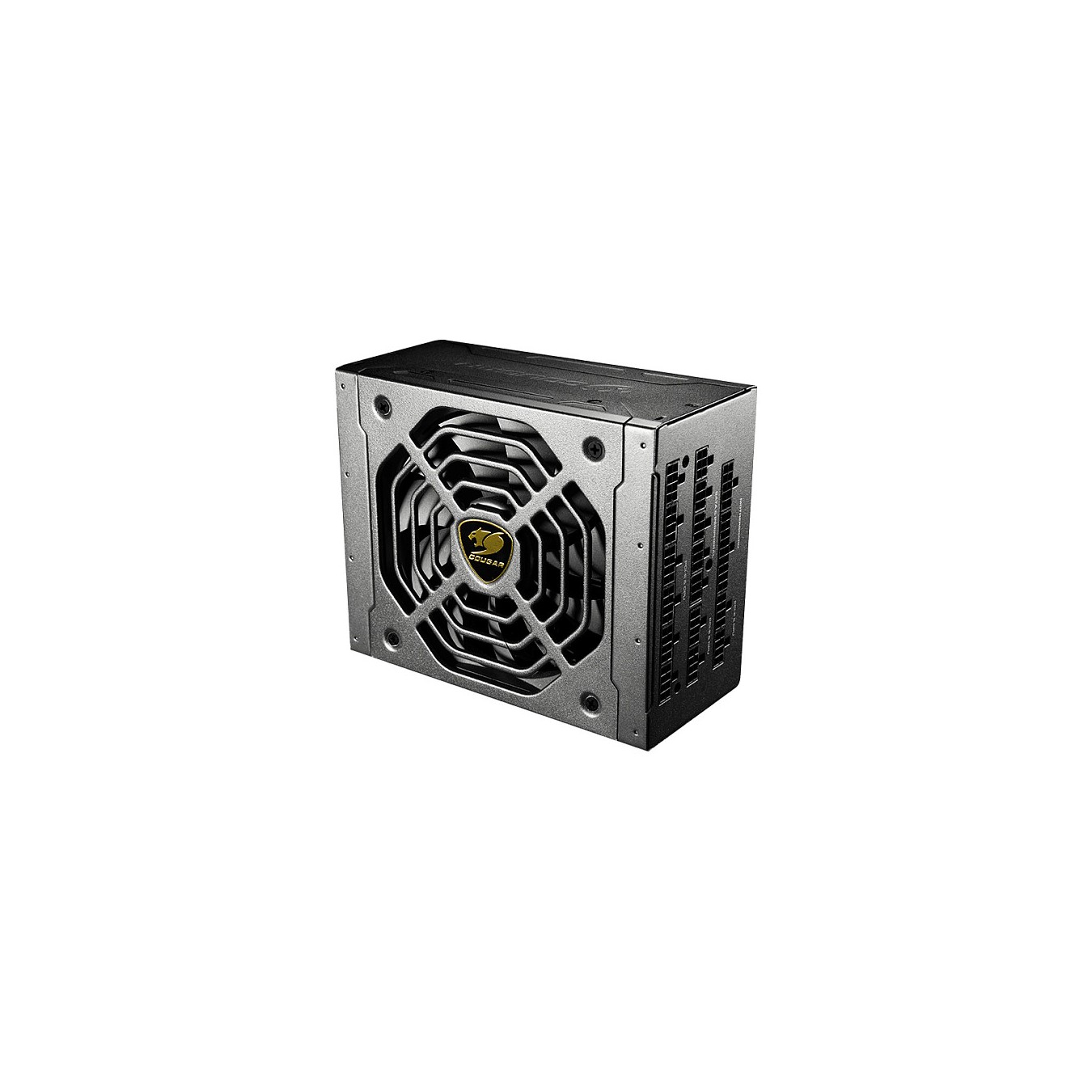

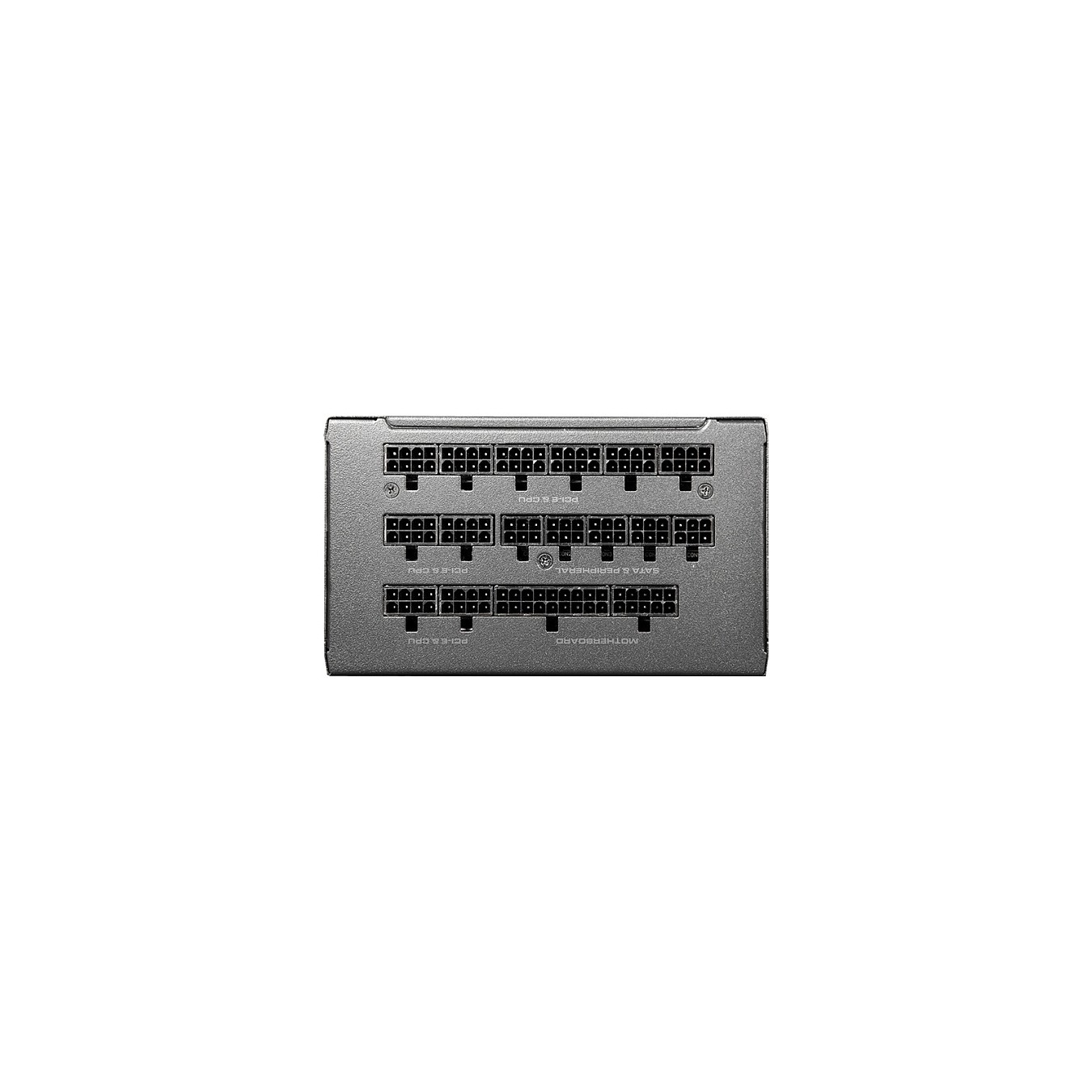

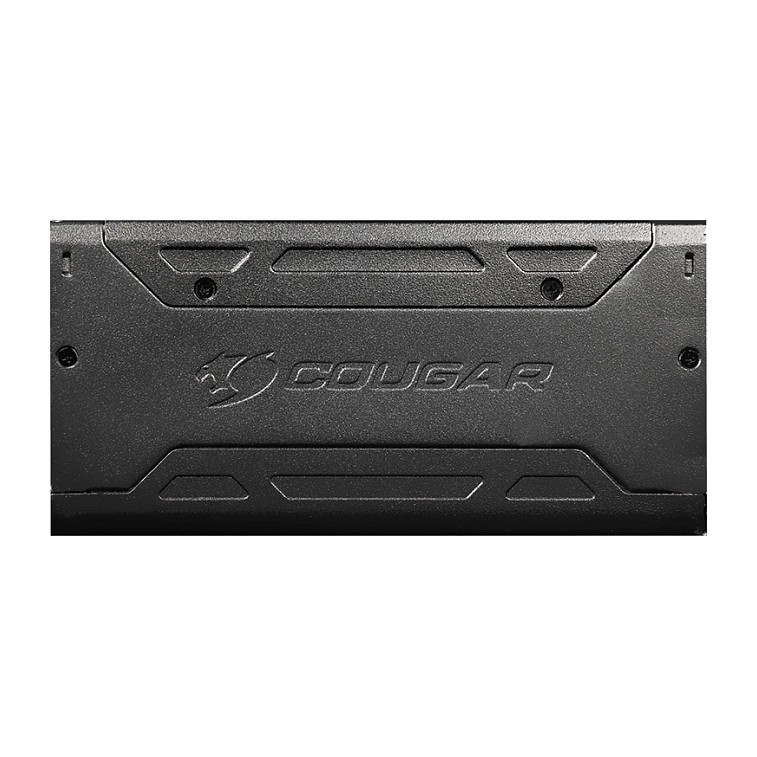

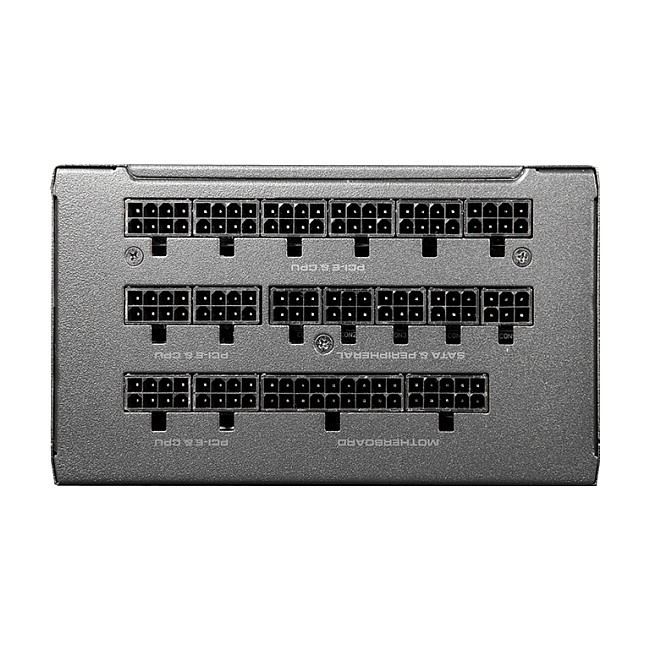

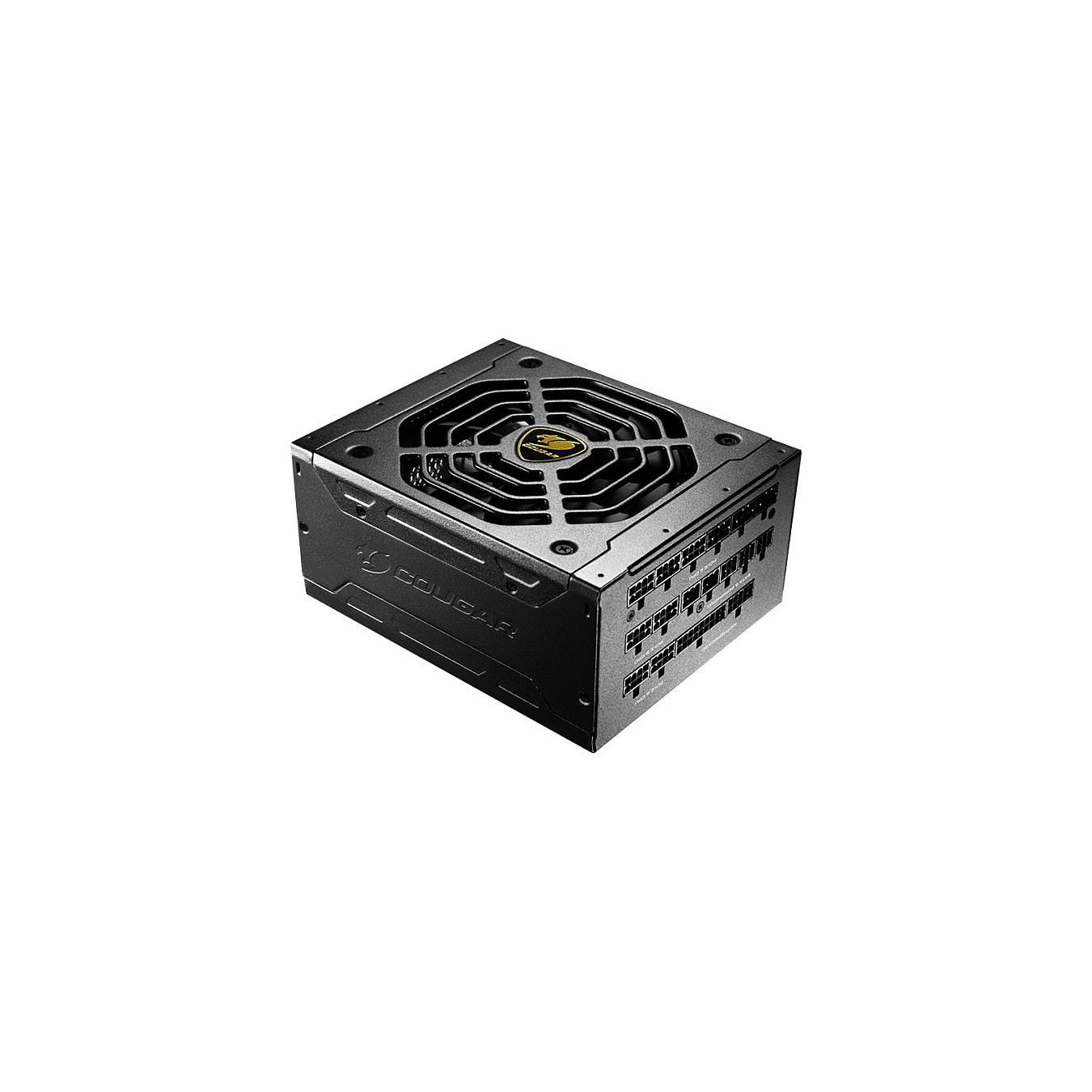

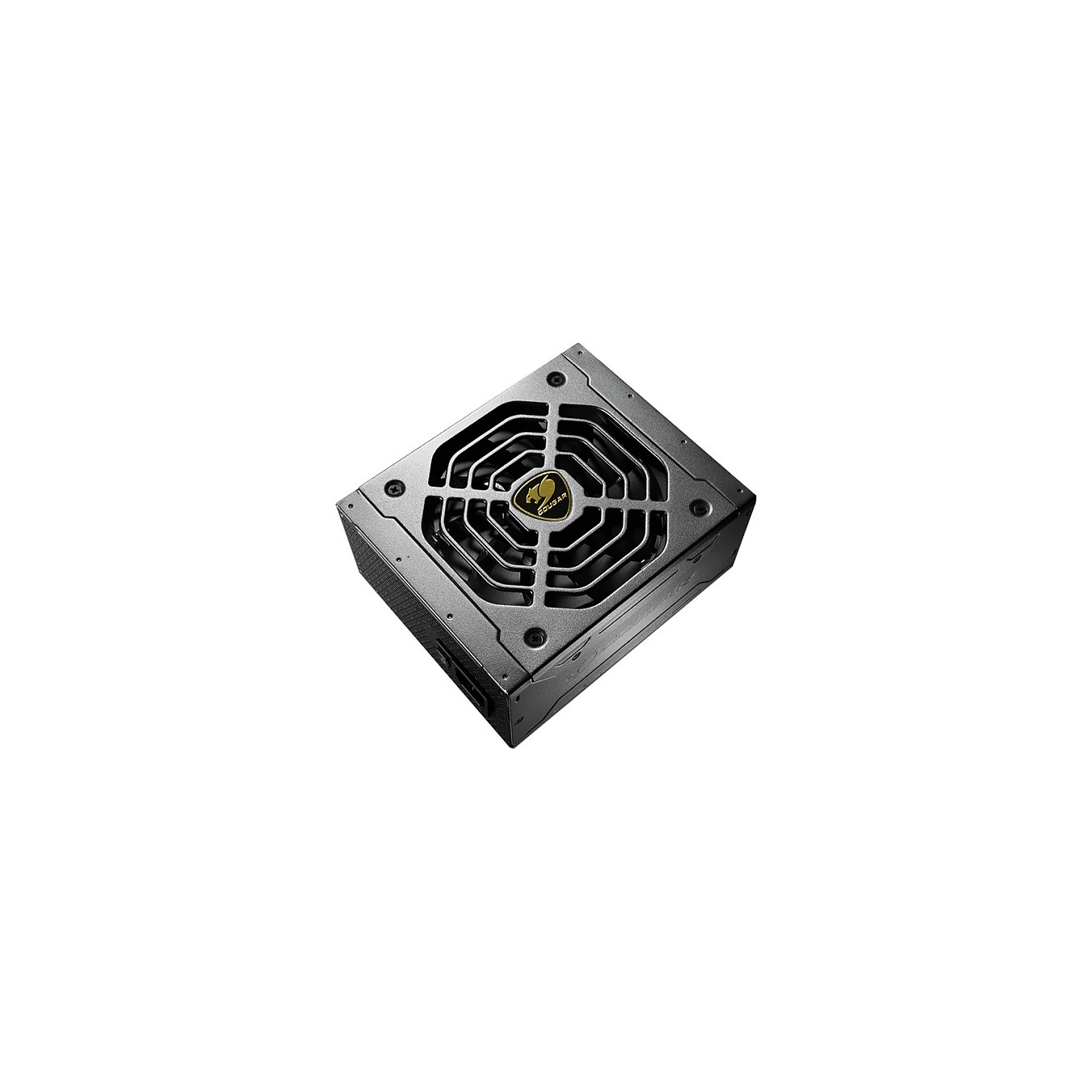

1050W COUGAR Netzteil GEX 1050W ATX3.0 80 Plus Gold Modular
COUGAR Netzteil GEX 1050W ATX3.0 / 80 Plus Gold / Modular, 1050 W, 100 - 240 V, 47 - 63 Hz, 13 - 6 A, 120 W, 1050 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
COUGAR Netzteil GEX 1050W ATX3.0 / 80 Plus Gold / Modular. Gesamtleistung: 1050 W, AC Eingangsspannung: 100 - 240 V, AC Eingangsfrequenz: 47 - 63 Hz. Motherboard Anschlussstecker: 20+4 pin ATX, Stromkabellänge Motherboard: 65 cm, SATA-Netzkabellänge: 120,500 mm. Zweck: PC, Stromversorgungseinheit (PSU) Formfaktor: ATX, 80 Plus Zertifizierung: 80 PLUS Gold. Produktfarbe: Schwarz, Kühlung: Aktiv, Lüfterdurchmesser: 13,5 cm. Mitgelieferte Kabel: CPU, PATA, PCIe
| Gesamtleistung | 1050 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 47 - 63 Hz |
| Eingangsstrom | 13 - 6 A |
| Kombinierter Strom (+3.3V) | 120 W |
| Kombinierter Strom (+12V) | 1050 W |
| Kombinierter Strom (+5V) | 120 W |
| Kombinierter Strom (-12V) | 3,6 W |
| Kombinierter Strom (+5Vsb) | 15 W |
| Max. Ausgangsstrom (+3.3V) | 20 A |
| Max. Ausgangsstrom (+12V) | 87,5 A |
| Max Ausgangsstrom (+5V) | 20 A |
| Max. Ausgangsstrom (-12V) | 0,3 A |
| Max. Ausgangsstrom (+5Vsb) | 3 A |
| Effizienz | 92% |
| Energieschutzeigenschaften | Überstrom, Überlastung, Überspannung, Überhitzung, Kurzschluß, Unterspannung |
| Motherboard Anschlussstecker | 20+4 pin ATX |
| Stromkabellänge Motherboard | 65 cm |
| Anzahl SATA Stromstecker | 12 |
| Anzahl der PATA power Verbindungen | 1 |
| SATA-Netzkabellänge | 120,500 mm |
| Anzahl Molex Anschlüsse 4pin | 4 |
| Periphere (Molex) Netzkabellänge | 120,500 mm |
| Anzahl PCI Express Stromstecker 6+2pin | 4 |
| PCI Express Netzkabellänge | 65 cm |
| CPU Stecker (4+4 pin) | Ja |
| CPU-Leistung Kabellänge | 65 cm |
| ATX Stromstecker (20+4 pol.) | Ja |
| PCI Express Stecker | Ja |
| Kabeltyp | Vollständig modular |
| 80 Plus Zertifizierung | 80 PLUS Gold |
| Zweck | PC |
| Stromversorgungseinheit (PSU) Formfaktor | ATX |
| Ruhemodus | Ja |
| Lagertyp | HDB |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |
| Lüfterdurchmesser | 13,5 cm |
| Anzahl Lüfter | 1 Lüfter |
| Lüfterplatzierung | Oben |
| Ein-/Ausschalter | Ja |
| Betriebstemperatur | 10 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 85% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Mitgelieferte Kabel | CPU, PATA, PCIe |
| Konformitätsbescheinigungen | CCC, CE, EAC, Eidgenössische Kommunikationskommission (FCC), RoHS, TÜV mark |
| Breite | 150 mm |
| Tiefe | 180 mm |
| Höhe | 86 mm |
| Gewicht | 2,09 kg |
| Verpackungsbreite | 229 mm |
| Verpackungstiefe | 331 mm |
| Verpackungshöhe | 107 mm |
| Paketgewicht | 3,59 kg |
| Nachhaltigkeitskonformität | Ja |
| Garantiezeit | 5 Jahr(e) |
