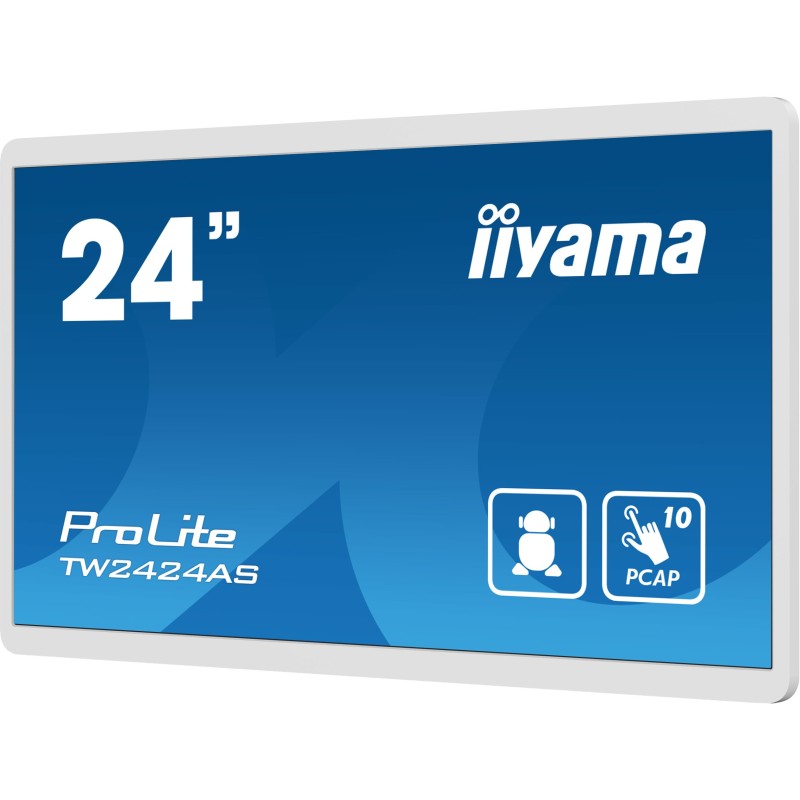

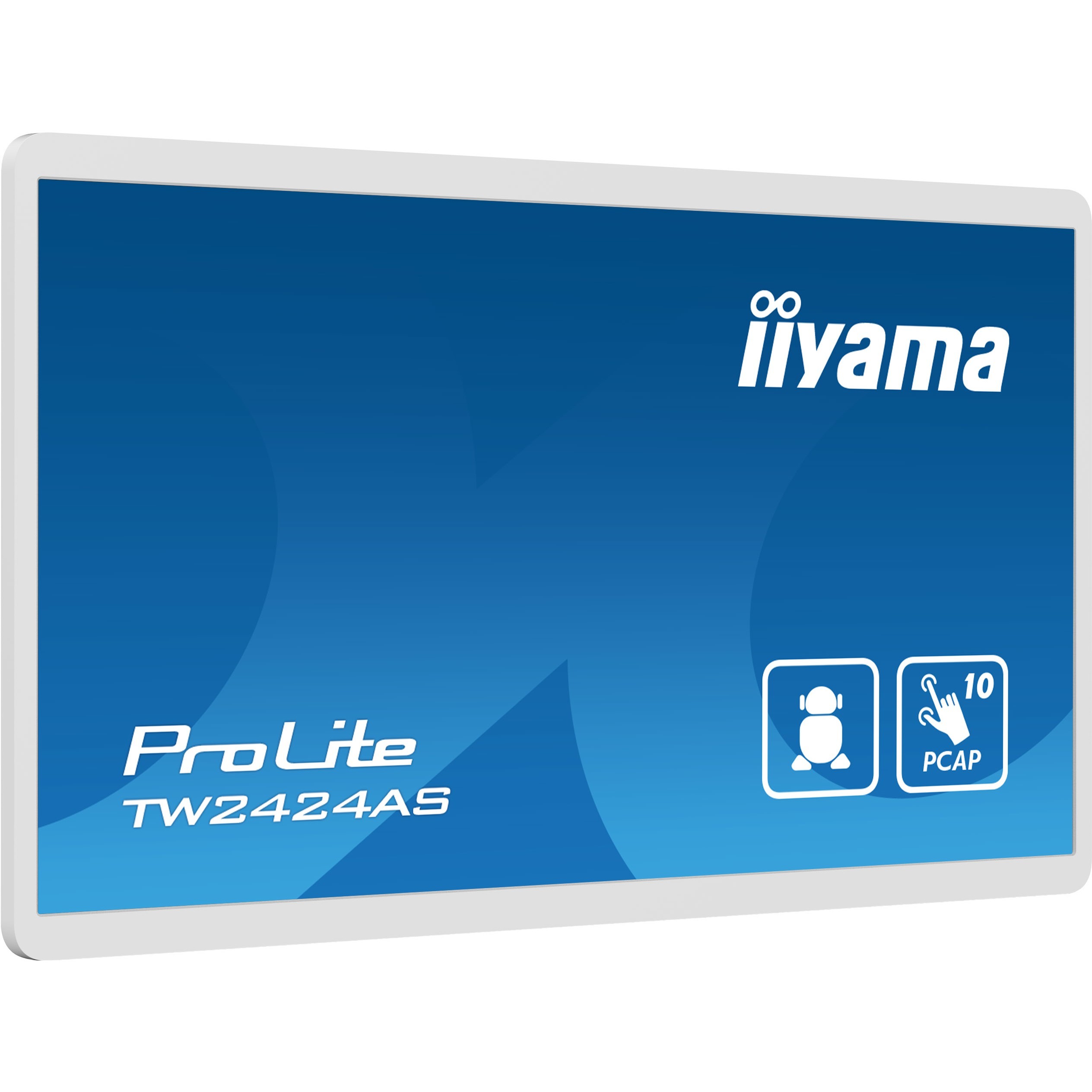

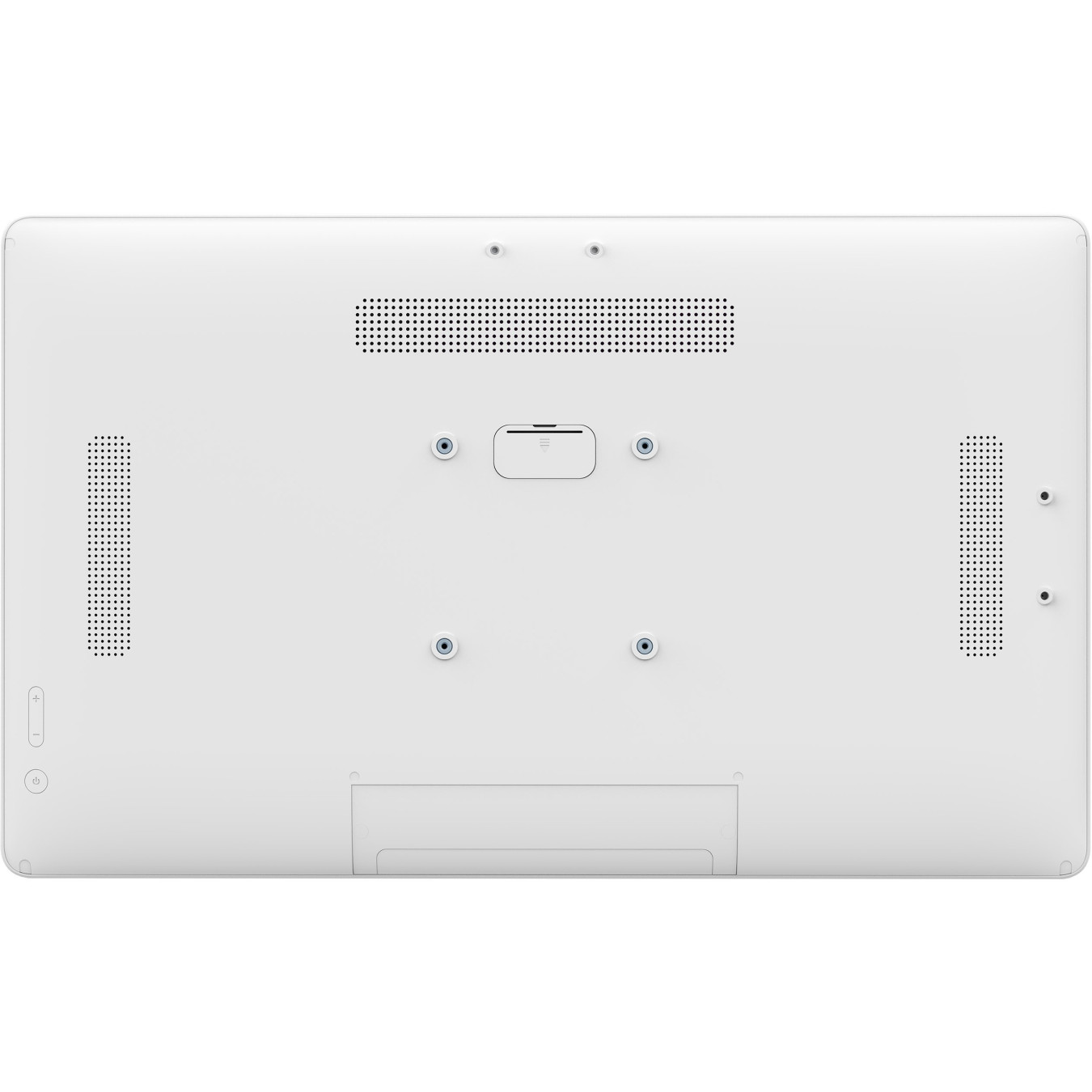

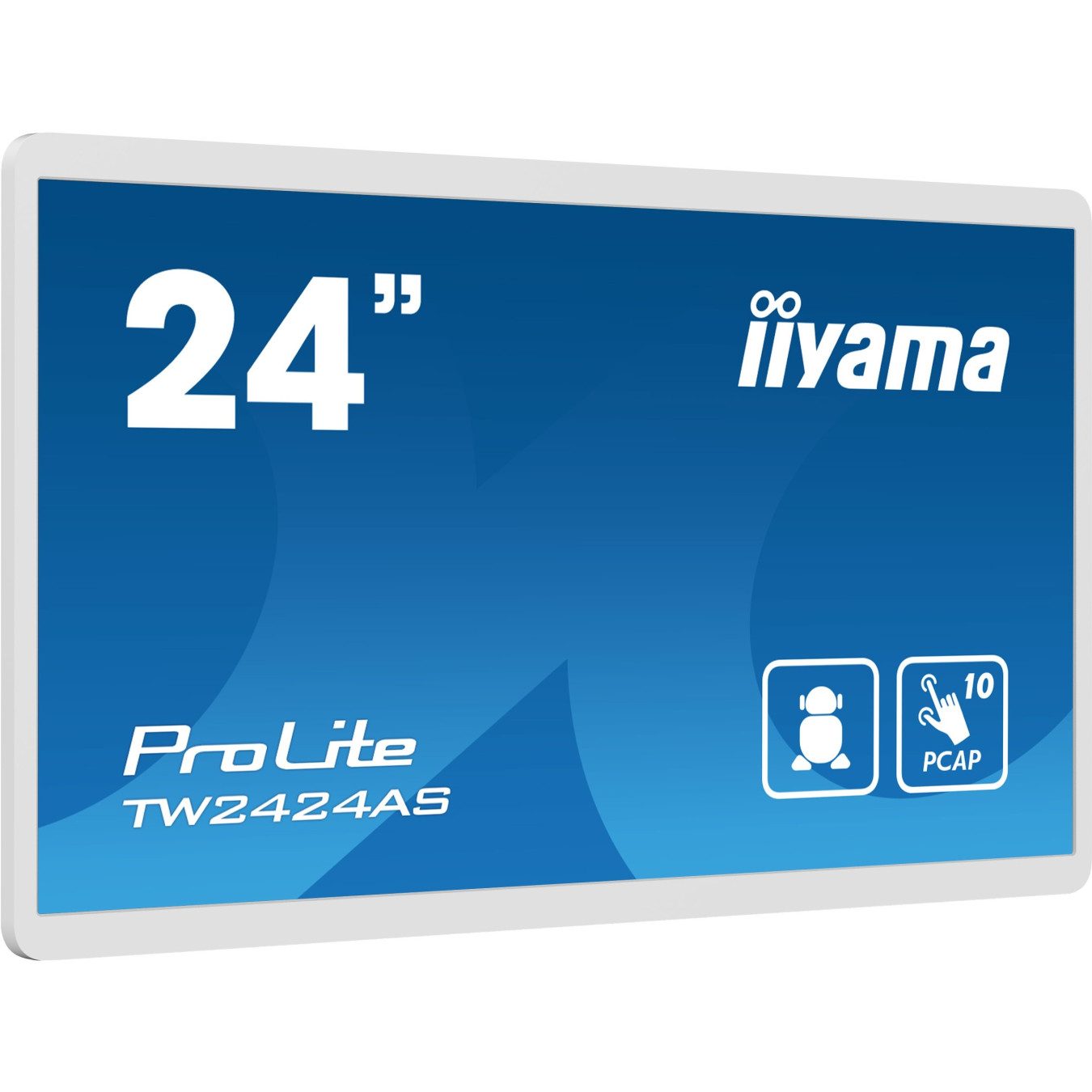

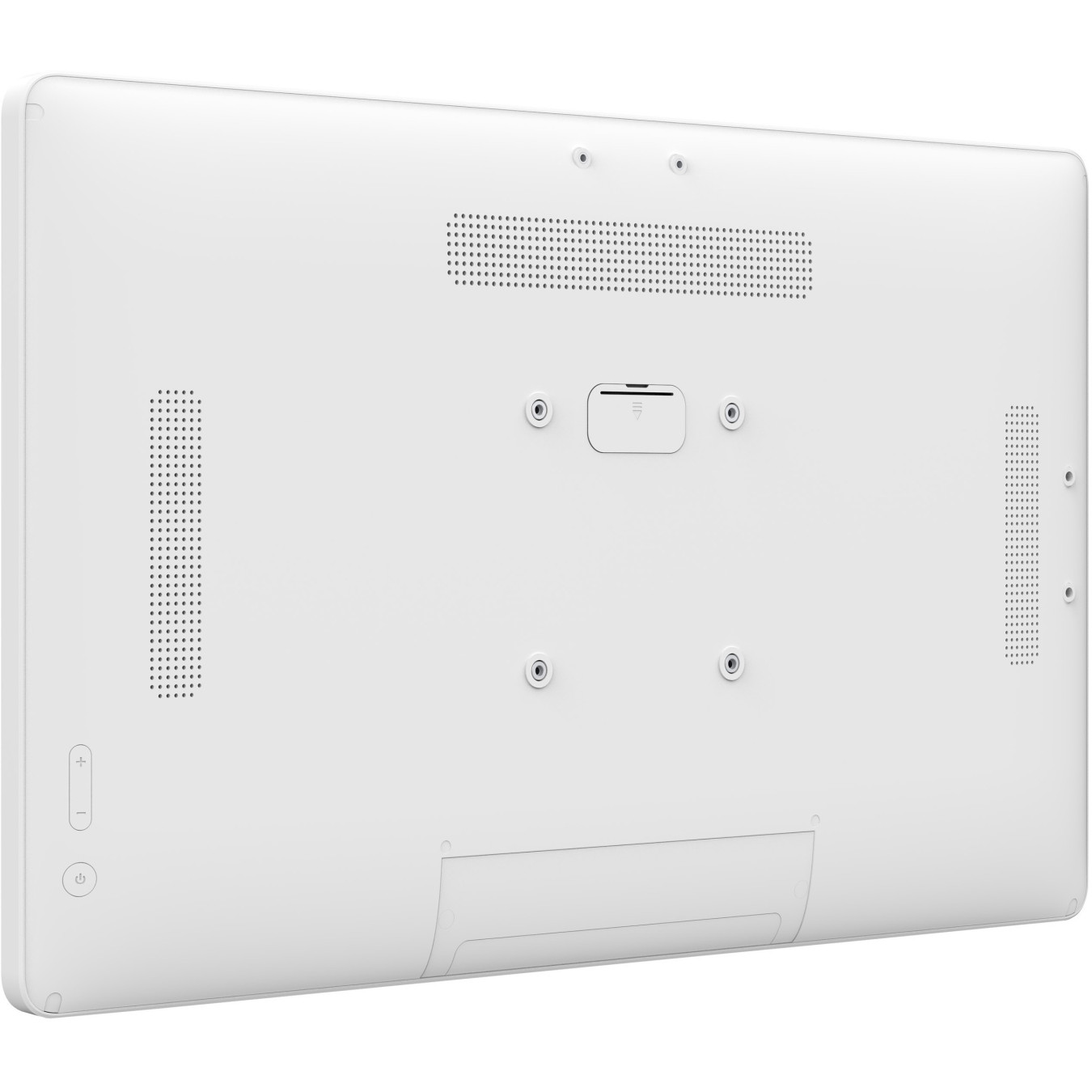

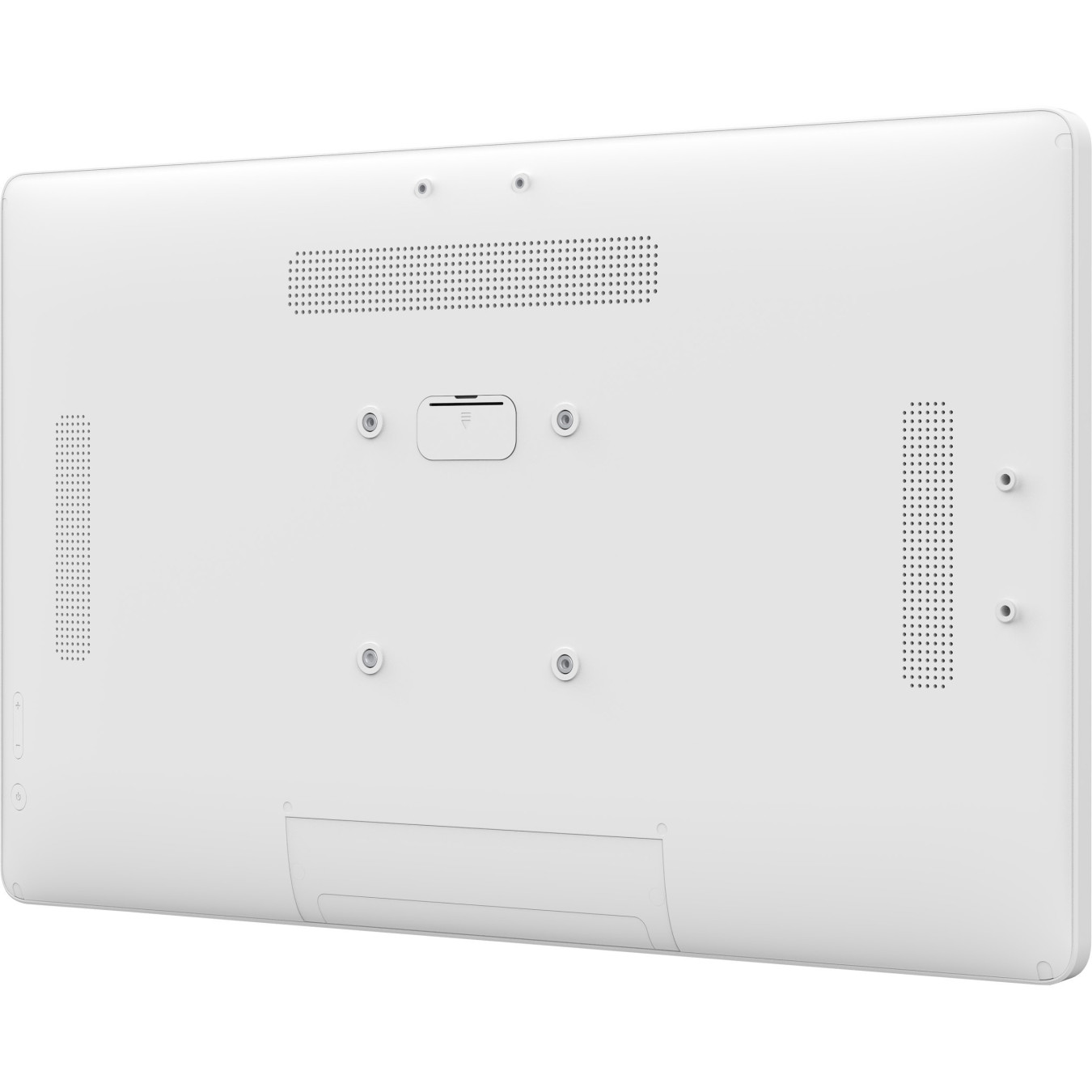

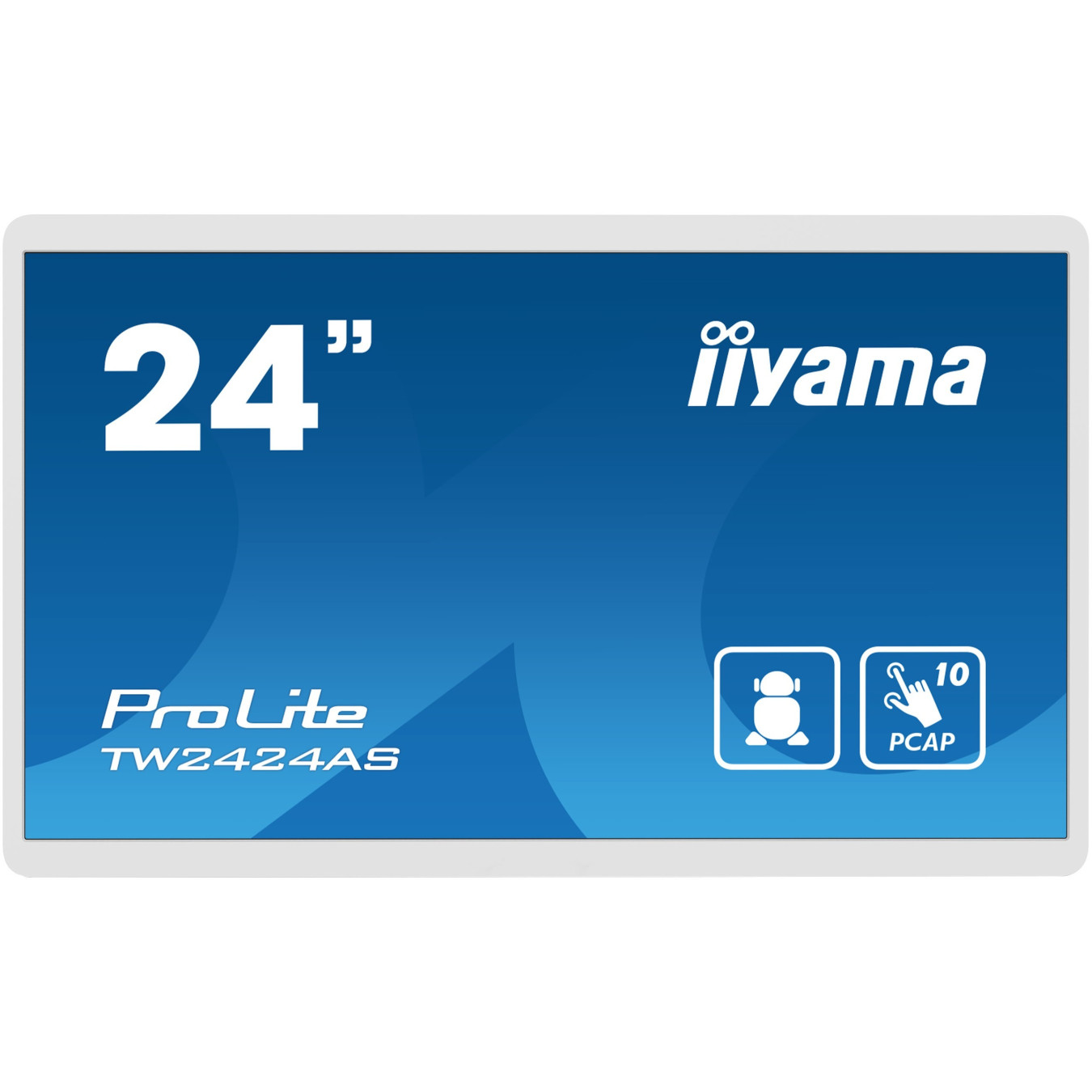

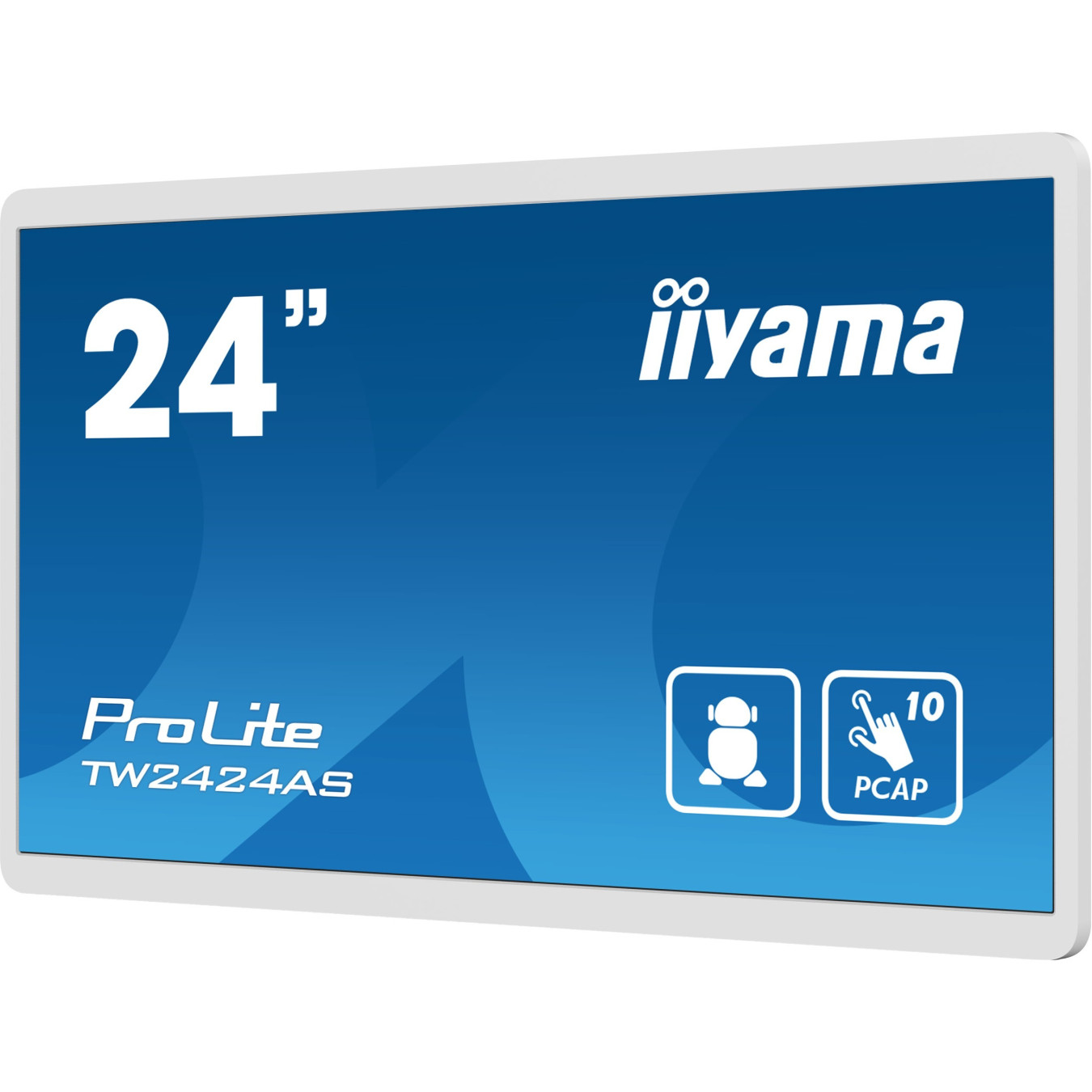

iiyama TW2424AS-W1 - 23.8-inch FHD IPS PCAP Touch Monitor, Android 12, RK3399 1.8GHz, 4GB RAM, 32GB, Black
23.8-inch FHD IPS 10-point PCAP touch display with Android 12 (RK3399 1.8GHz), 4GB RAM, 32GB storage, HDMI, Wi-Fi, VESA 100x100, 24/7 commercial use
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | IPS |
|---|---|
| Monitors - Curvature | Flat |
iiyama 23.8” Full HD In-cell PCAP 10pt interactive Touch Panel PC with Android OS. IPS panel technology and anti glare coating. Product design: Digital signage flat panel. Display diagonal: 60.5 cm (23.8"). Display resolution: 1920 x 1080 pixels. Display brightness: 250 cd/m². HD type: 4K Ultra HD. Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | 4K Ultra HD |
| Feature | Plug and Play |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal (metric) | 60.5 cm |
| Panel life | 50000 h |
| Horizontal scan range | 31 - 83 kHz |
| Surface hardness | 3H |
| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| Number of built-in speakers | 2 |
| RMS rated power | 5 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3399 |
| Processor frequency | 1.8 GHz |
| Processor cores | 2 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 12 |
| Display width | 549.5 mm |
| Display depth | 28 mm |
| Display height | 336 mm |
| Display weight | 4.23 kg |
| Package width | 580 mm |
| Package depth | 126 mm |
| Package height | 375 mm |
| Package weight | 6.15 kg |
| Number of stylus pens | 4 |
| Cables included | HDMI. Power. USB |
| Certification | CE. EAC. RoHS support. ErP. WEEE. REACH. UKCA |
| Base colour | Black |
| Base material | Metal |
| OPS slot | 1 |
| Bluetooth version | 5.2 |
| Power supply type | Internal |
