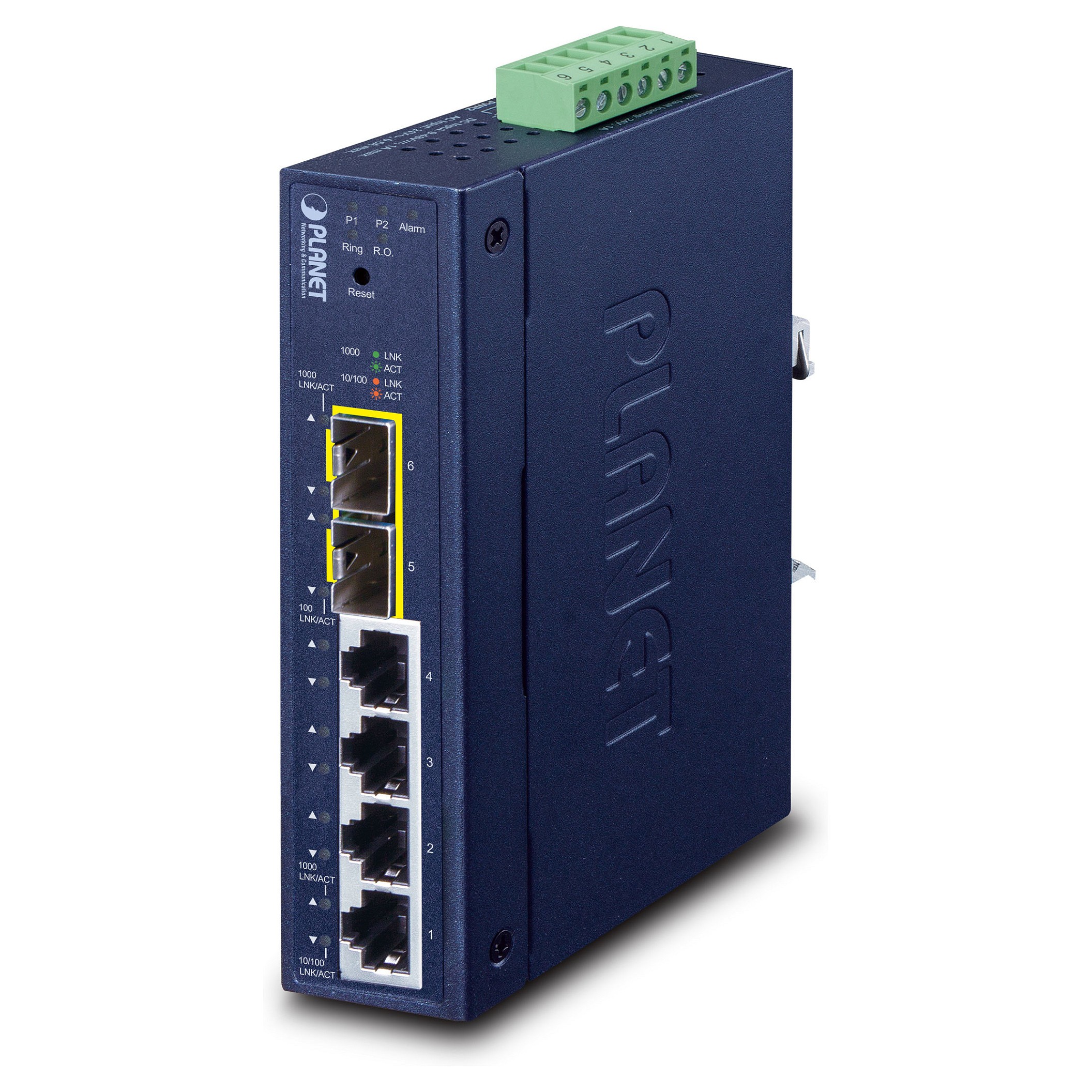

Planet IGS-4215-4T2S 4-Port Industrial Managed Switch
PLANET Industrial L2/L4 4-Port, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Vollduplex, Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET Industrial L2/L4 4-Port. Switch-Typ: Managed, Switch-Ebene: L2/L4. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4, Anzahl installierten SFP Module: 2. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 12 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L2/L4 |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| Cloud-verwaltet | Ja |
| ARP-Inspektion | Ja |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl installierten SFP Module | 2 |
| Netzstandard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Vollduplex | Ja |
| Halb-Duplex | Ja |
| Auto MDI/MDI-X | Ja |
| Spannbaum-Protokoll | Ja |
| Selbstlernen von MAC-Adressen unterstützt | Ja |
| Auto-Alterung von MAC-Adressen unterstützt | Ja |
| VLAN-Unterstützung | Ja |
| Anzahl der VLANs | 4096 |
| Routing-/Switching-Kapazität | 12 Gbit/s |
| Durchgang | 8,9 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9000 |
| MAC Adressen Filtern | Ja |
| Multicast Unterstützung | Ja |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| Reset-Knopf | Ja |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Energiequelle | AC/DC |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 32 mm |
| Tiefe | 87,8 mm |
| Höhe | 135 mm |
| Gewicht | 400 g |
| Zertifizierung | FCC Part 15 Class A, CEIEC 60068-2-32 (free fall)IEC 60068-2-27 (shock)IEC 60068-2-6 (vibration) |
