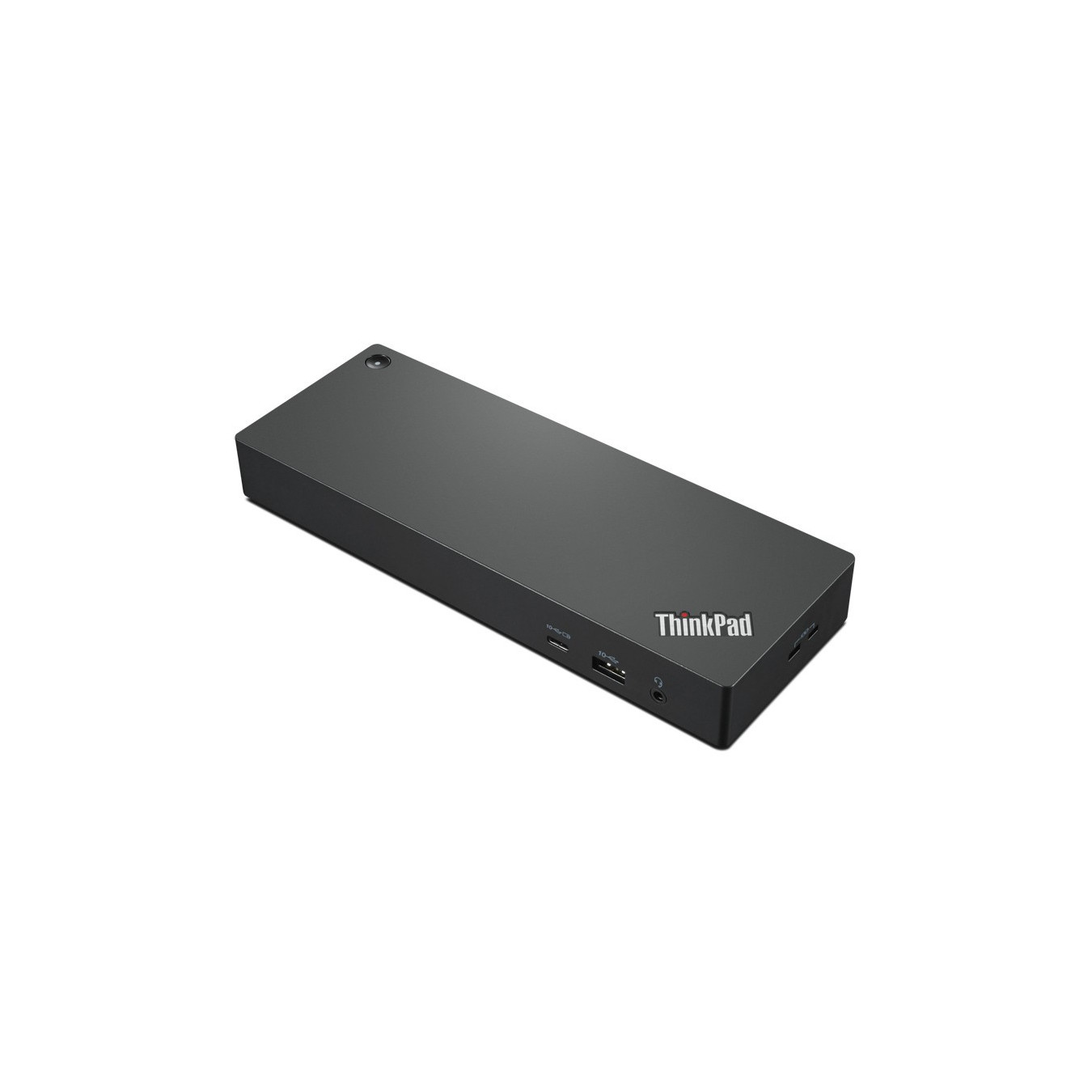

Lenovo ThinkPad Universal Thunderbolt 4 Dock 40B00135US 135W (Boxed)
Lenovo ThinkPad Universal Thunderbolt 4 dock with 135W adapter. Supports 8K@30Hz or 4x4K@60Hz displays. Features 100W power delivery, 40Gbps data transfer, Gigabit Ethernet, and comprehensive connectivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | Thunderbolt 4 |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 11+ |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Audio Jack Driver Required External Power Supply Kensington Lock Slot |
The Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135US) is a premium docking solution engineered for Windows-based systems with Thunderbolt 4 connectivity. This universal dock delivers industry-leading video, data, and power connectivity through a single Thunderbolt 4 cable, enabling seamless expansion of your laptop's capabilities without cluttering your workspace.
With lightning-fast 40 Gbps transfer speeds and dynamic power charging up to 100W, this dock supports either one 8K display at 30Hz or up to four 4K displays at 60Hz simultaneously. The comprehensive port selection includes two DisplayPort 1.4 connections, one HDMI 2.1 port, four USB 3.2 Gen 2 Type-A ports (with one always-on port), one USB-C port, Gigabit Ethernet for high-speed network connectivity, and a 3.5mm audio jack. The dock also features Intel vPro pass-through support for enhanced security and remote manageability on compatible systems.

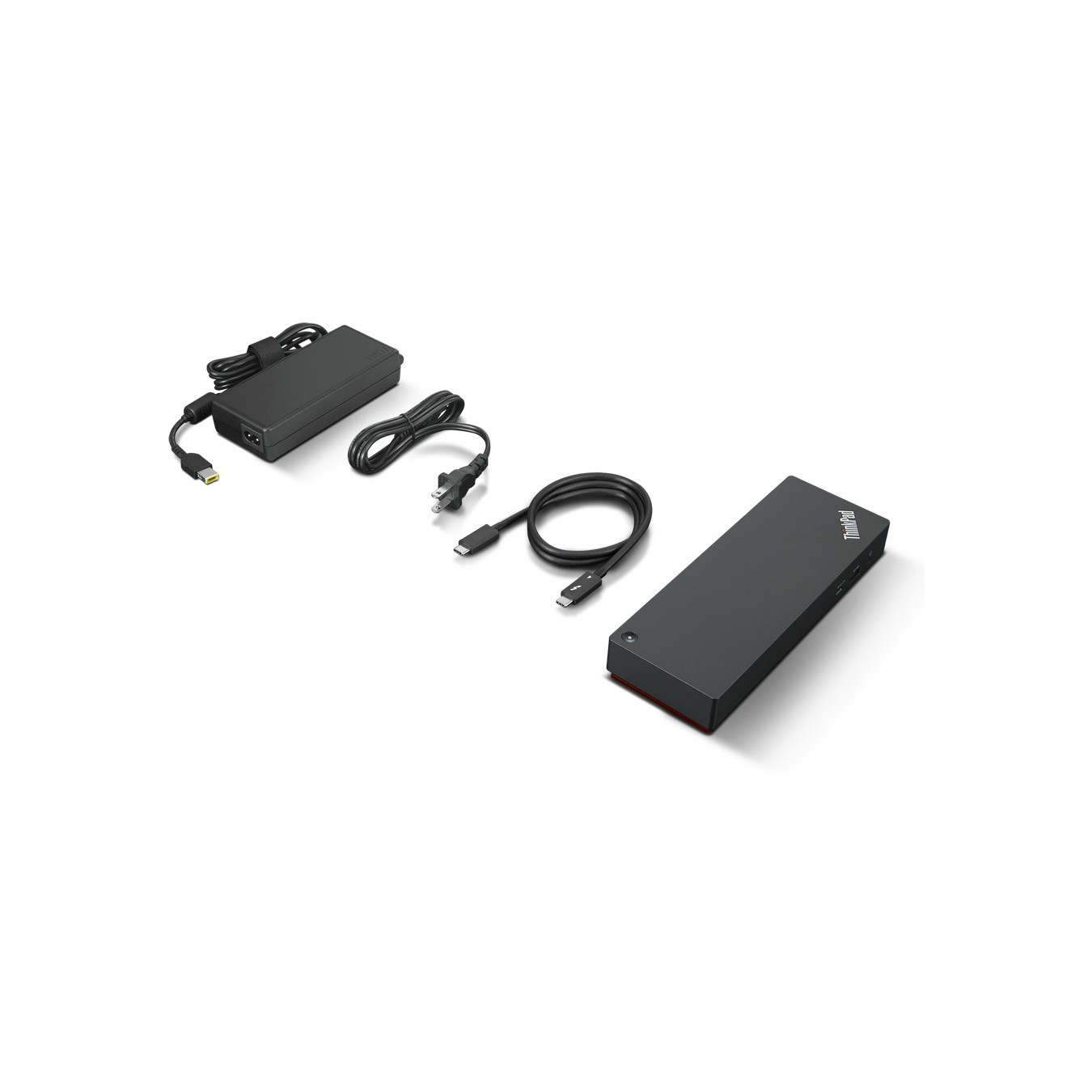

The package includes the dock station, a 135W slim-tip power adapter with cord, a 0.7m standard Thunderbolt 4 passive cable, and comprehensive documentation. Measuring 220mm x 80mm x 30mm and weighing approximately 450g, the dock features a compact design with physical security options including NanoSaver and MicroSaver lock slots for added protection in shared environments.
- Single Thunderbolt 4 cable connection for all connectivity needs
- Supports 8K@30Hz single display or 4x4K@60Hz multi-display configurations
- 100W dynamic power delivery for notebook charging
- 40 Gbps data transfer speeds via Thunderbolt 4
- Comprehensive port selection: 4xUSB-A, 1xUSB-C, 2xDisplayPort 1.4, 1xHDMI 2.1, Gigabit Ethernet
- Intel vPro and AMT pass-through support
- Compact design with security lock slots
- Compatible with Thunderbolt 3, Thunderbolt 4, USB 4, and USB-C Windows systems
| Host Interface | Thunderbolt 4 |
| Docking Cable Length | 0.7 m |
| USB 3.2 Gen 2 Type-A Ports | 4 (1x always-on) |
| USB-C Port | 1x USB-C 3.2 (10 Gbps, 5V/3A) |
| DisplayPort Connections | 2x DisplayPort 1.4 |
| HDMI Connection | 1x HDMI 2.1 |
| Thunderbolt 4 Downstream Port | 1x Thunderbolt 4 |
| Audio Jack | 1x 3.5 mm combo audio jack |
| Ethernet Port | 1x Gigabit Ethernet (RJ45) |
| Power Adapter | 135W slim-tip power adapter |
| Power Delivery | Up to 100W dynamic power charging to notebook |
| Data Transfer Speed | 40 Gbps |
| Maximum Display Resolution | 1x 8K@30Hz or 4x 4K@60Hz |
| Video Output Options | HDMI 2.1 (4K@60Hz), DisplayPort 1.4 (4K@60Hz), Thunderbolt 4 (8K@30Hz) |
| Input Power | 20V 6.75A |
| Dock Dimensions | 220 mm (W) x 80 mm (D) x 30 mm (H) |
| Dock Weight | Approximately 450 g |
| Package Dimensions | 270 mm (W) x 195 mm (D) x 85 mm (H) |
| Package Weight | 1.2 kg |
| Operating Temperature | 0 - 40 °C |
| Operating Humidity | 5 - 95% |
| Certifications | cULus, FCC, ICES, NOM |
| Security Features | 1x NanoSaver lock slot, 1x MicroSaver lock slot |
| Special Features | Intel vPro pass-through support, AMT pass-through support, silent firmware upgrades |
| Compatibility | Thunderbolt 3, Thunderbolt 4, USB 4, and USB-C Windows-based systems |
| Box Contents | Dock station, 135W power adapter with cord, 0.7m Thunderbolt 4 passive cable, setup poster, warranty poster |
| Model Number | 40B00135US |
| Color | Black |
