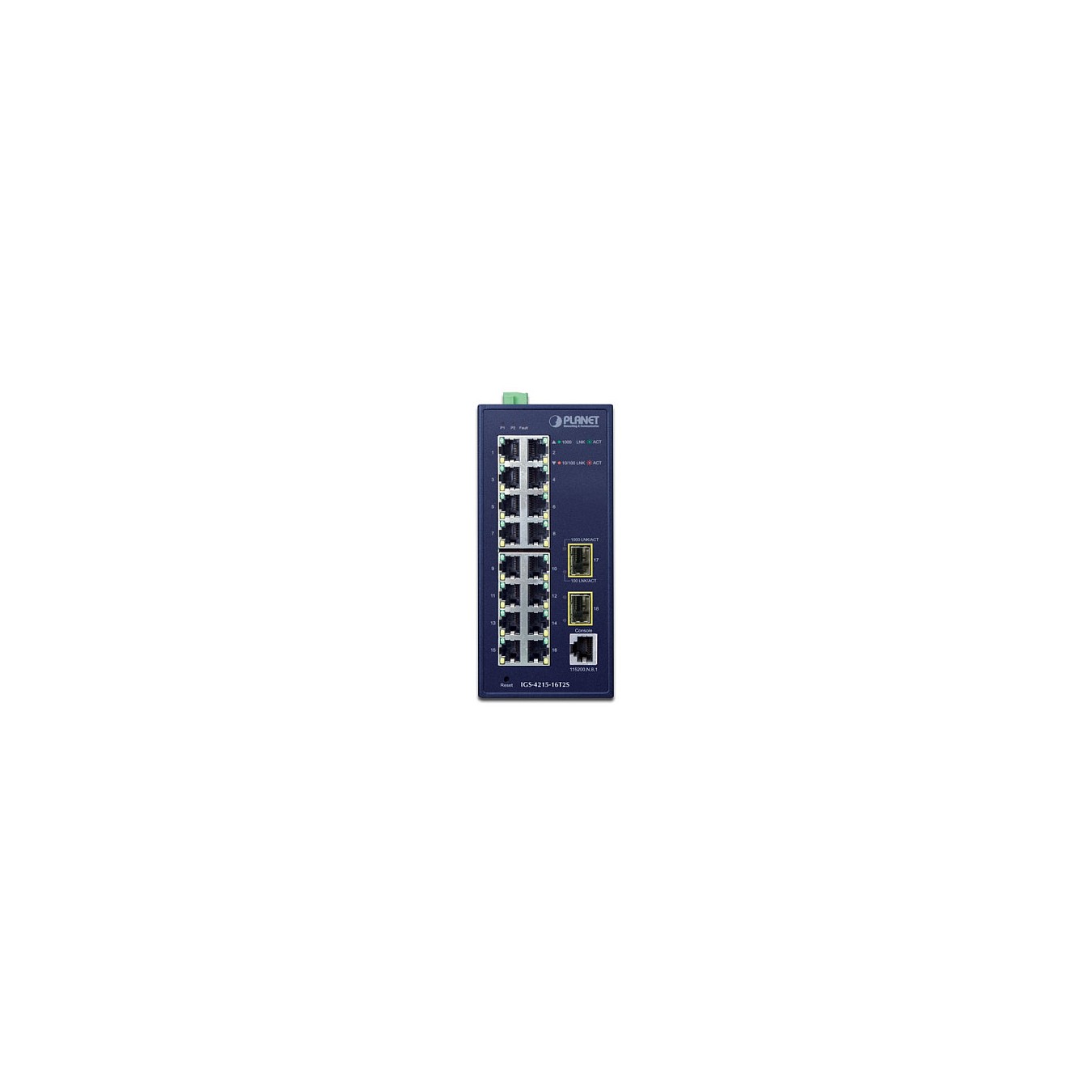

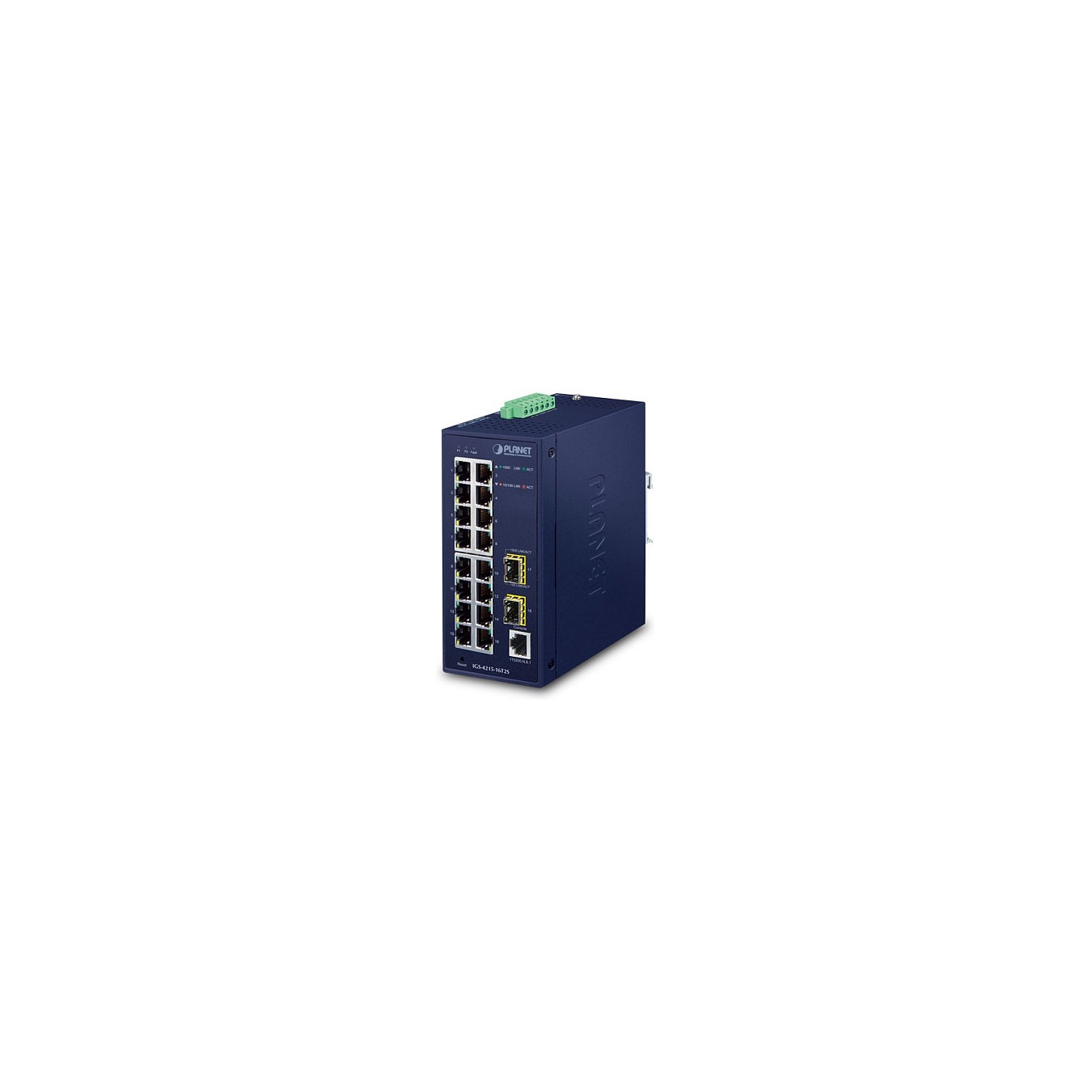

PLANET Industrial 16-Port Managed Switch IGS-4215-16T2S
PLANET IGS-4215-16T2S, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Vollduplex, Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IGS-4215-16T2S. Switch-Typ: Managed, Switch-Ebene: L2/L4. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 16, Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 36 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input Spannung: 12 - 48 V. Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L2/L4 |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| ARP-Inspektion | Ja |
| MIB Unterstützung | RFC 1213 MIB-II, RFC 1493, RFC 1643, RFC 2863, RFV 2665, RFC 2819, RFC 2737, RFC 2618, RFC 2863, RFC 2933, RFC 3411, RFC 4292, RFC 4836 |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| Halb-Duplex | Ja |
| Link Aggregation | Ja |
| Auto MDI/MDI-X | Ja |
| Spannbaum-Protokoll | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | Private VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| Anzahl der VLANs | 4094 |
| Routing-/Switching-Kapazität | 36 Gbit/s |
| Durchgang | 26,79 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 4,1 MB |
| DHCP-Funktionen | DHCP relay |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Unterstützte Sicherheitsalgorithmen | SNMPv3, SSH, SSH-2, SSL/TLS |
| MAC Adressen Filtern | Ja |
| Statische Anschlusssicherheit | Ja |
| BPDU-Filterung/Schutz | Ja |
| IP-MAC-Portbindung | Ja |
| Authentifizierung | Port-basierte Authentifizierung |
| Multicast Unterstützung | Ja |
| GARP VLAN Registration Protocol (GVRP) | Ja |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| Reset-Knopf | Ja |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Upgradefähige Firmware | Ja |

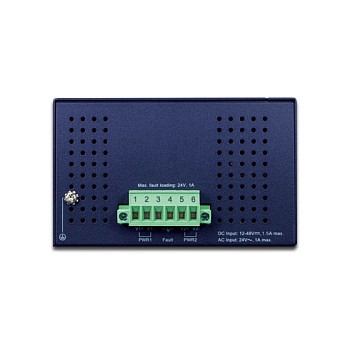

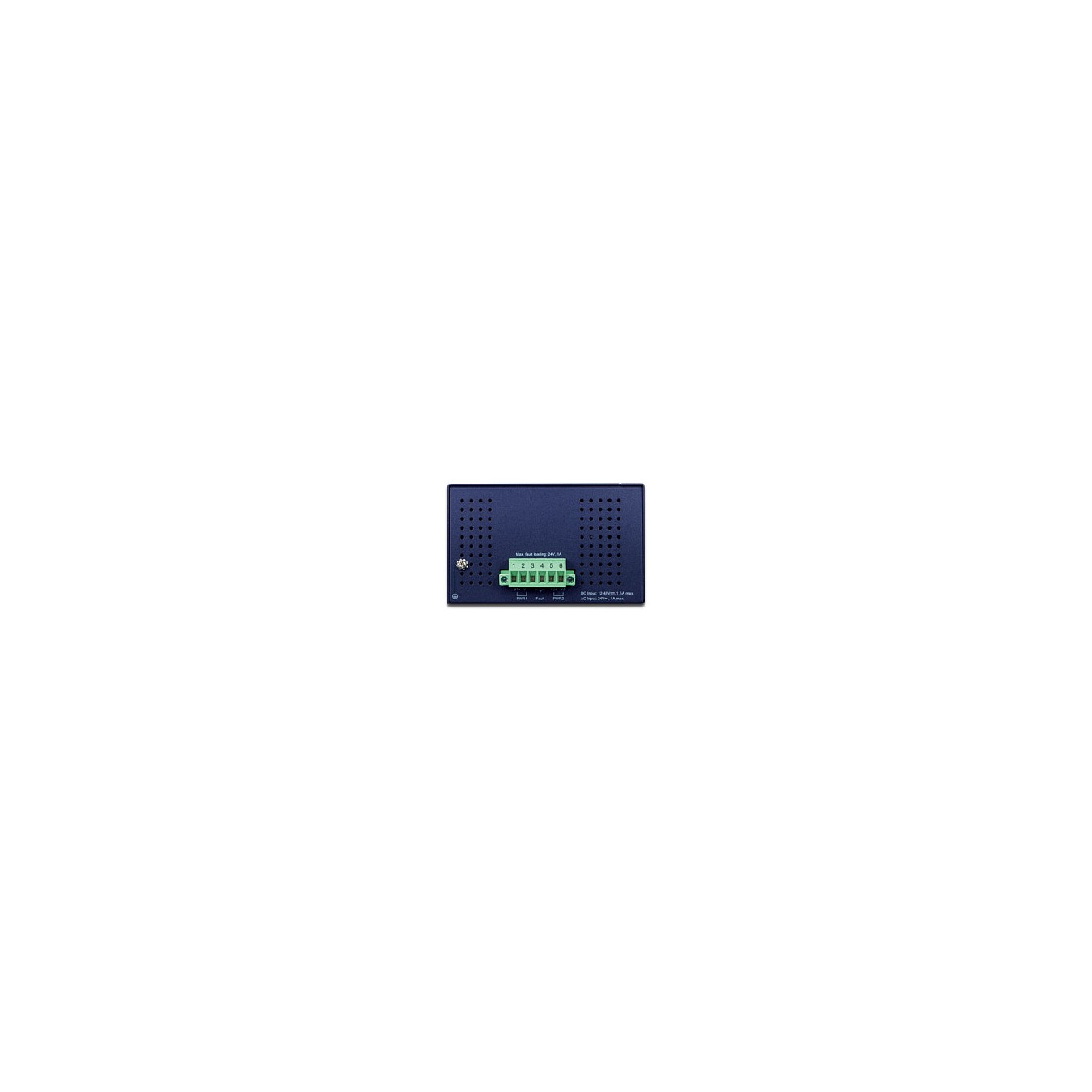

| DC input Spannung | 12 - 48 V |
| Stromverbrauch (max.) | 15 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Wärmeableitung | 51,2 BTU/h |
| Breite | 66 mm |
| Tiefe | 107 mm |
| Höhe | 152 mm |
| Gewicht | 813 g |
| Zertifizierung | FCC 15 A, CEIEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6 |
