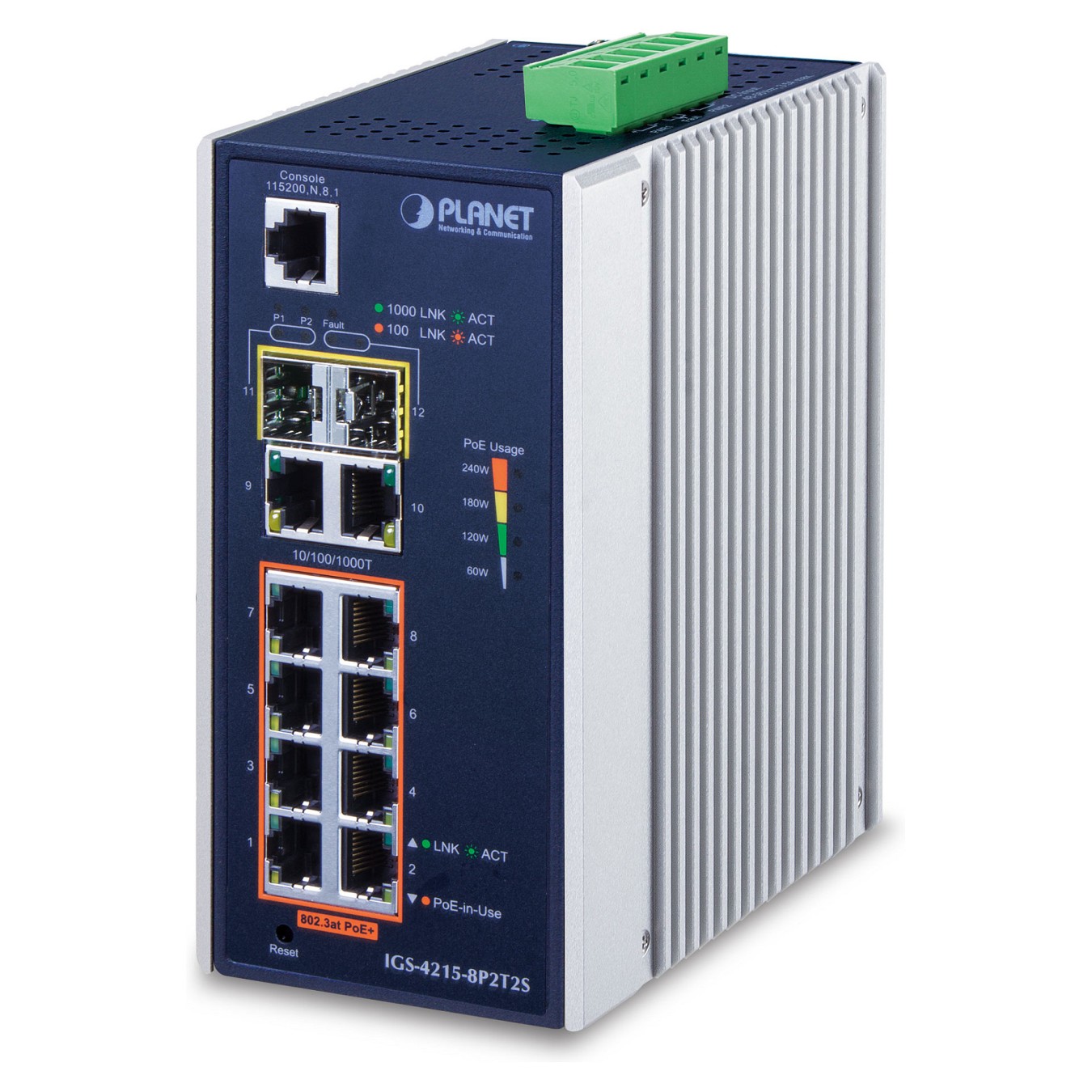

Planet IGS-4215-8P2T2S Industrie 8-Port SFP Managed Switch
PLANET IGS-4215-8P2T2S, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Vollduplex, Power over Ethernet (PoE), Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IGS-4215-8P2T2S. Switch-Typ: Managed, Switch-Ebene: L2/L4. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 10, Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 24 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input Spannung: 48 - 56 V. Power over Ethernet (PoE). Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L2/L4 |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| ARP-Inspektion | Ja |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 10 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Optischer Kabelverbinder | SFP |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| Halb-Duplex | Ja |
| Link Aggregation | Ja |
| Auto MDI/MDI-X | Ja |
| Spannbaum-Protokoll | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Anzahl der VLANs | 4094 |
| Ethernet-Kabel Verkablungstechnologie | 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX |
| Routing-/Switching-Kapazität | 24 Gbit/s |
| Durchgang | 17,85 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Anzahl Queues | 8 |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 4,1 MB |
| DHCP-Funktionen | DHCP snooping |
| Zugriffkontrollliste | Ja |
| Unterstützte Sicherheitsalgorithmen | SNMP, SNMPv3, SSH, SSL/TLS |
| Loop Protection | Ja |
| Autentifizierungstyp | IEEE 802.1x, RADIUS |
| Multicast Unterstützung | Ja |
| Produktfarbe | Blau, Silber |
| Gehäusematerial | Aluminium |
| Reset-Knopf | Ja |
| LED-Anzeigen | Aktivität, Link, PoE, Leistung, System |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| DC input Spannung | 48 - 56 V |
| Stromverbrauch (max.) | 242 W |
| Druckanstiegsschutz | Ja |
| Druckanstieg-Schutzspannung | 6 kV |
| Power over Ethernet (PoE) | Ja |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 8 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 36 W |
| Gesamtleistung Power over Ethernet (PoE) | 240 W |
| Terminalblock-Anschluss | Ja |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 76,8 mm |
| Tiefe | 107,3 mm |
| Höhe | 152 mm |
| Gewicht | 1,04 kg |
| Zertifizierung | FCC Part 15 Class A, CEIEC 60068-2-32 (free fall)IEC 60068-2-27 (shock)IEC 60068-2-6 (vibration) |
| Warentarifnummer (HS) | 85176990 |
