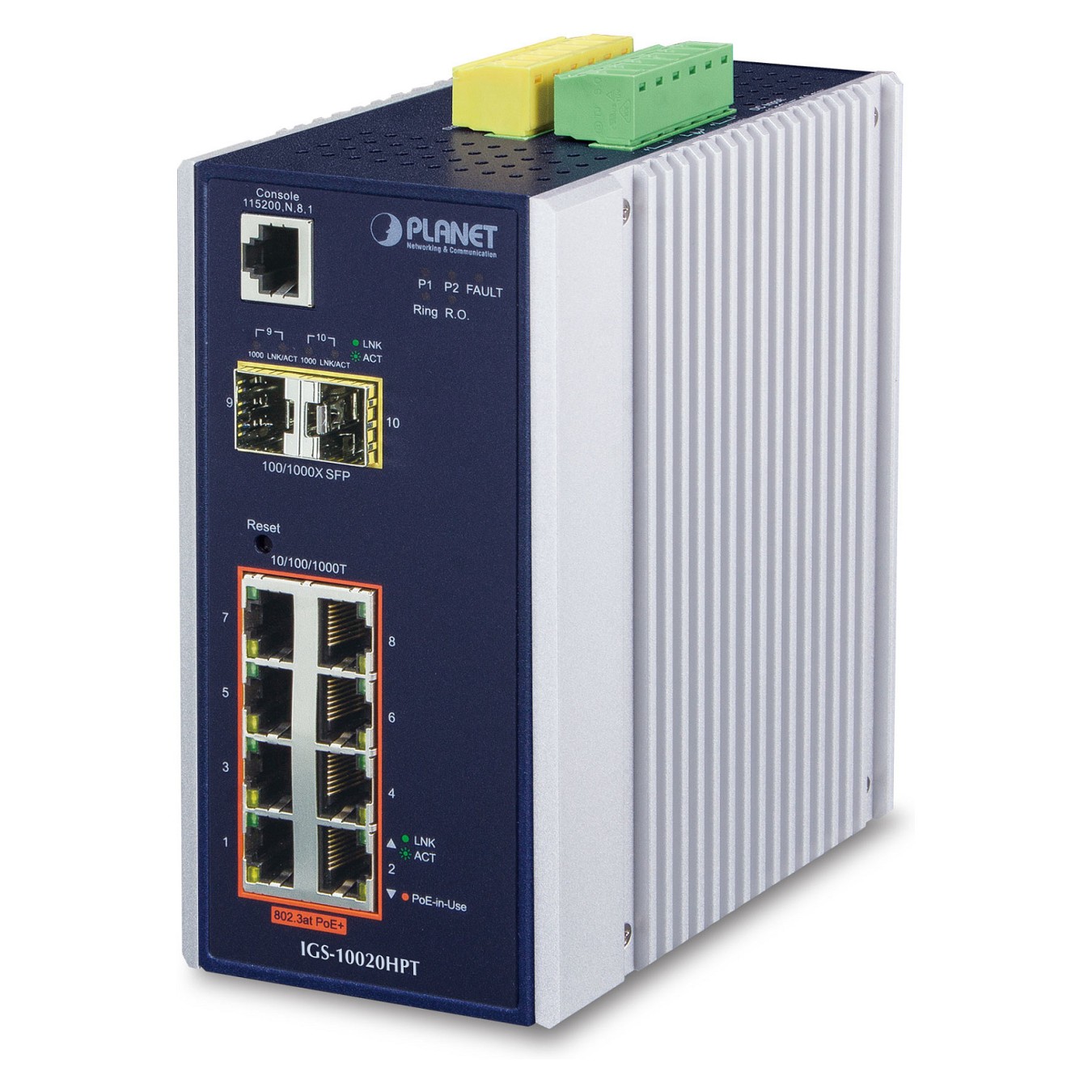

PLANET Industrial 8-Port 10 100 1000T 802.3at PoE + 2
PLANET IP30 Industrial 8* 1000TP PoE +, Managed, L2+, Gigabit Ethernet (10/100/1000), Vollduplex, Power over Ethernet (PoE), Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IP30 Industrial 8* 1000TP PoE +. Switch-Typ: Managed, Switch-Ebene: L2+. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8, Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 26 Gbit/s. Netzstandard: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L2+ |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| Traffic-Klassifizierung | Ja |
| ARP-Inspektion | Ja |
| Systemereignisprotokoll | Ja |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Optischer Kabelverbinder | MiniGBIC |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Link Aggregation | Ja |
| Broadcast-Sturmkontrolle | Ja |
| Auto MDI/MDI-X | Ja |
| Spannbaum-Protokoll | Ja |
| Auto-Negotiation-Funktion | Ja |
| Selbstlernen von MAC-Adressen unterstützt | Ja |
| Auto-Alterung von MAC-Adressen unterstützt | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | Stacked VLAN, Private VLAN, Tagged VLAN, Protocol-based VLAN |
| Anzahl der VLANs | 4094 |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-FX, 1000BASE‑BX, 1000BASE‑LX, 1000BASE‑SX |
| Routing-/Switching-Kapazität | 26 Gbit/s |
| Durchgang | 14,8 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Anzahl Queues | 8 |
| Anzahl IP-Schnittstellen | 8 |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9000 |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Unterstützte Sicherheitsalgorithmen | SNMP, SSH, SSL/TLS |
| Loop Protection | Ja |
| BPDU-Filterung/Schutz | Ja |
| Authentifizierung | MAC-basierte Authentifizierung, Port-basierte Authentifizierung |
| Multicast Unterstützung | Ja |
| Management-Protokolle | Telnet, SNMP v1/v2c |
| Unterstützte Netzwerkprotokolle | IPv4 / IPv6 |
| Rack-Einbau | Nein |
| Produktfarbe | Schwarz, Weiß |
| Gehäusematerial | Aluminium |
| Reset-Knopf | Ja |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Upgradefähige Firmware | Ja |
| Unterstützung für redundantes Netzteil | Ja |
| Eingangsspannung | 48 V |
| Stromverbrauch (Standardbetrieb) | 31,9 W |
| Power over Ethernet (PoE) | Ja |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 8 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 36 W |
| Gesamtleistung Power over Ethernet (PoE) | 270 W |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Breite | 152 mm |
| Tiefe | 107 mm |
| Höhe | 72 mm |
| Gewicht | 1,68 kg |
| Zertifizierung | FCC Part 15 Class A, CE |
| Warentarifnummer (HS) | 85176990 |
