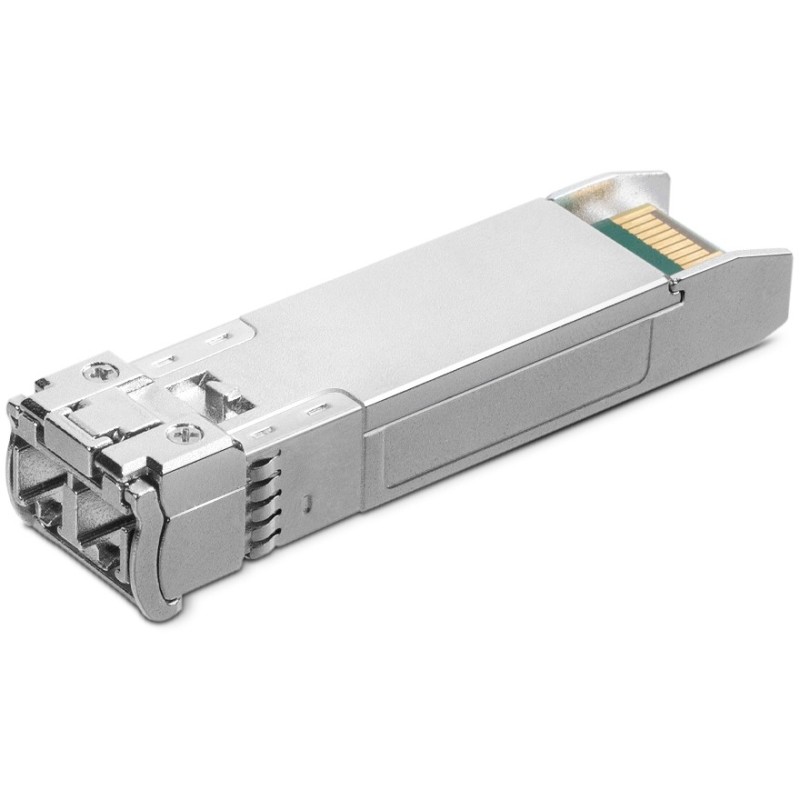

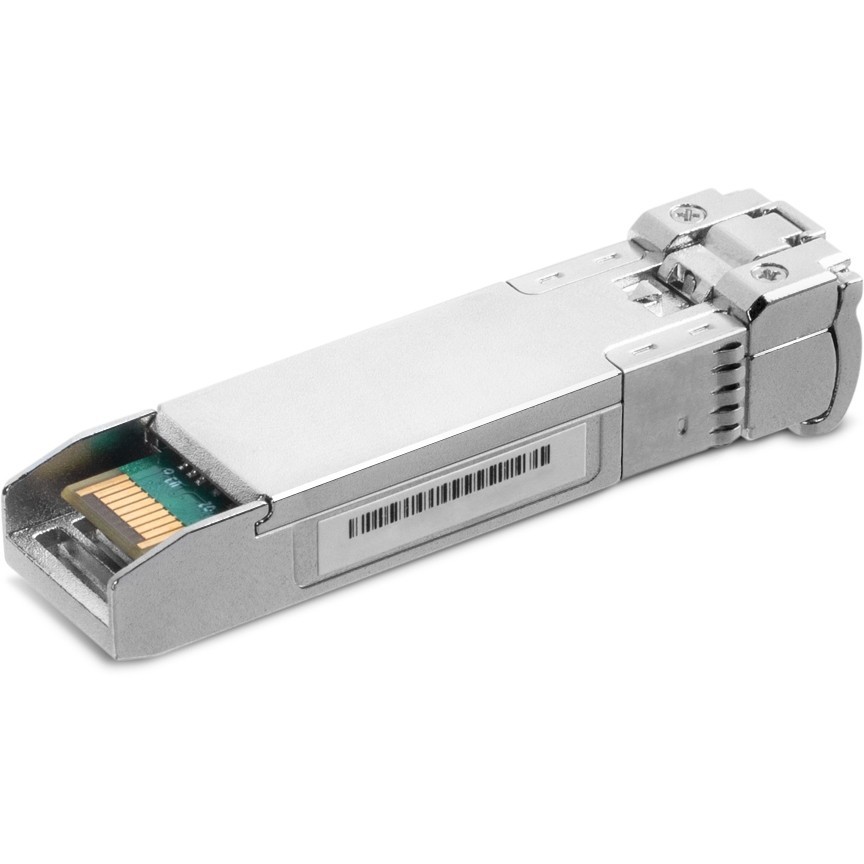

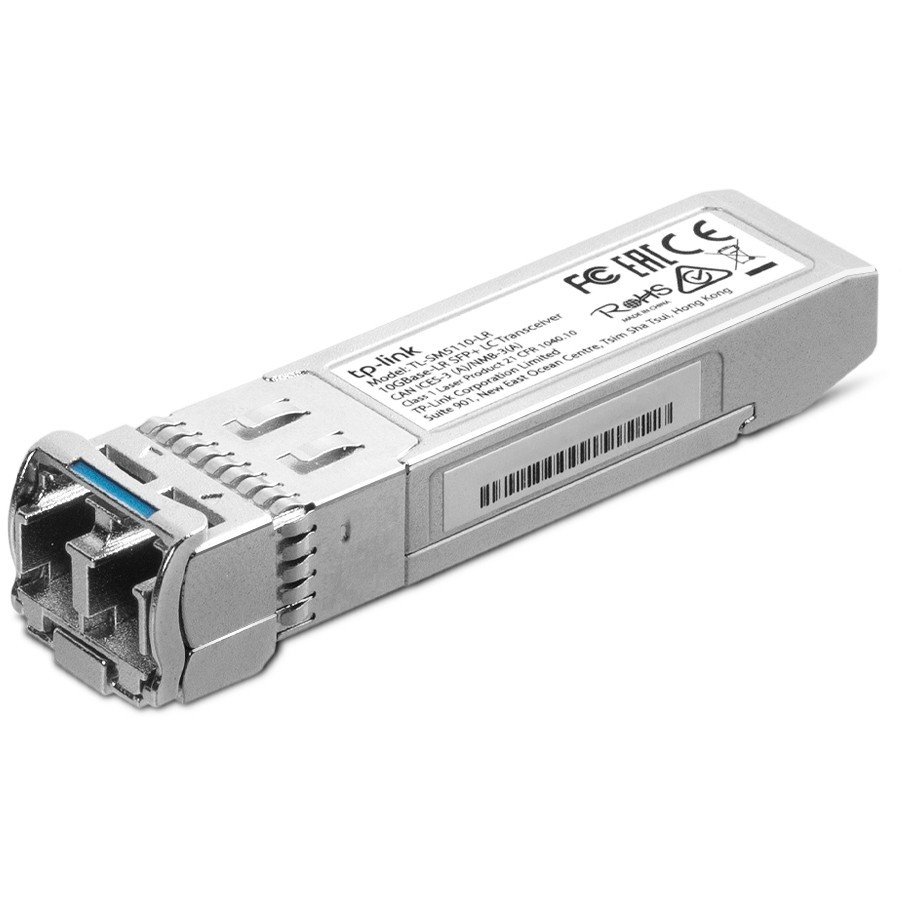

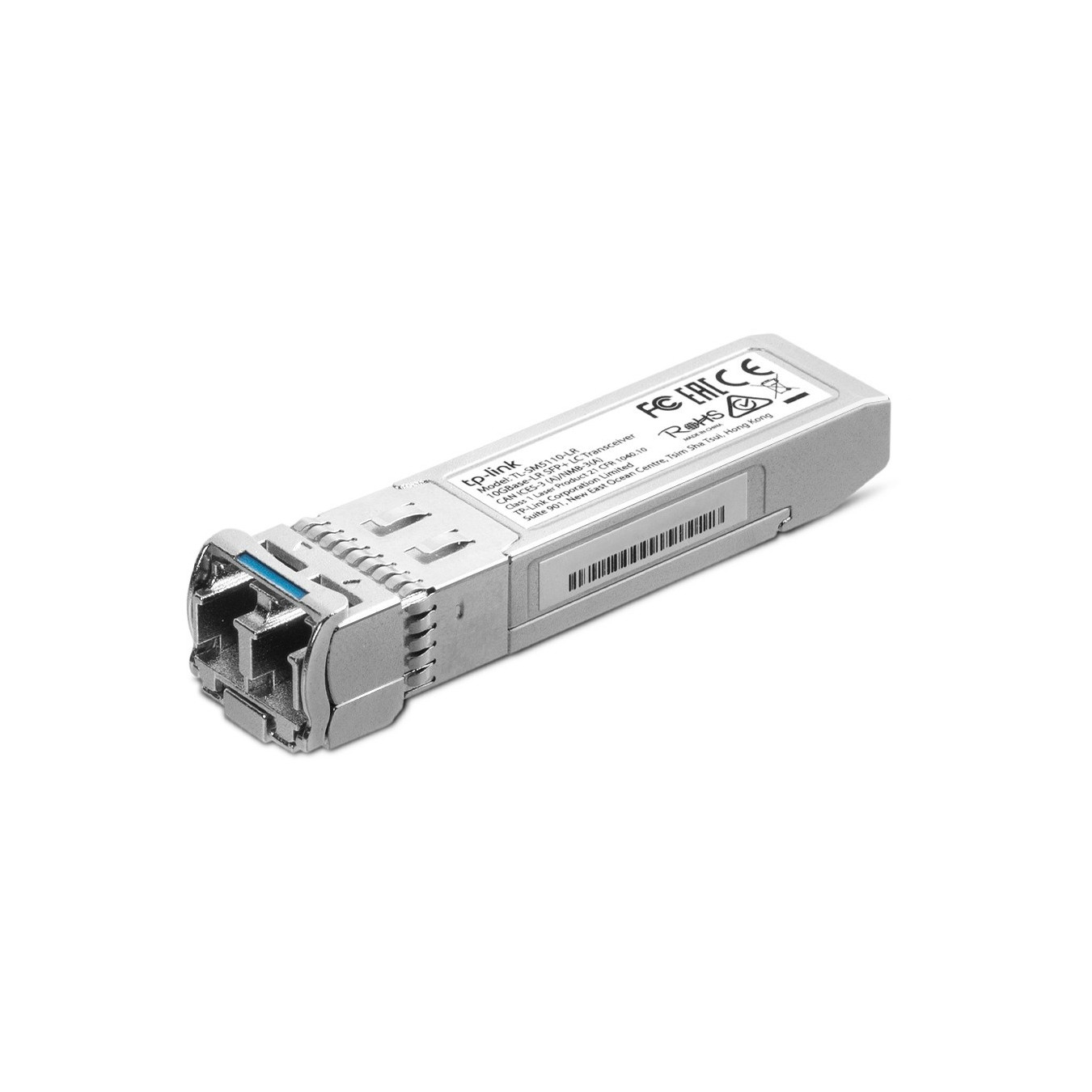

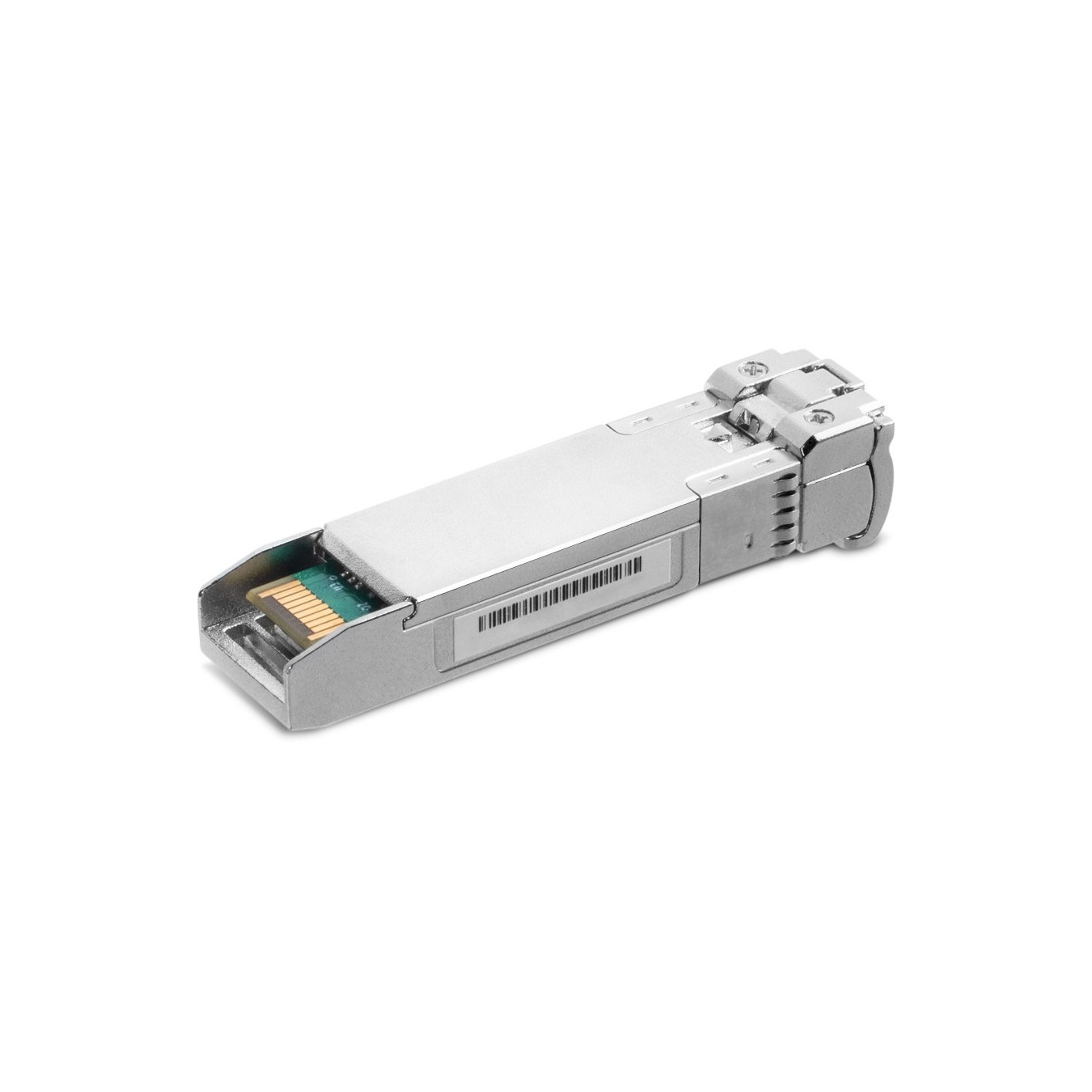

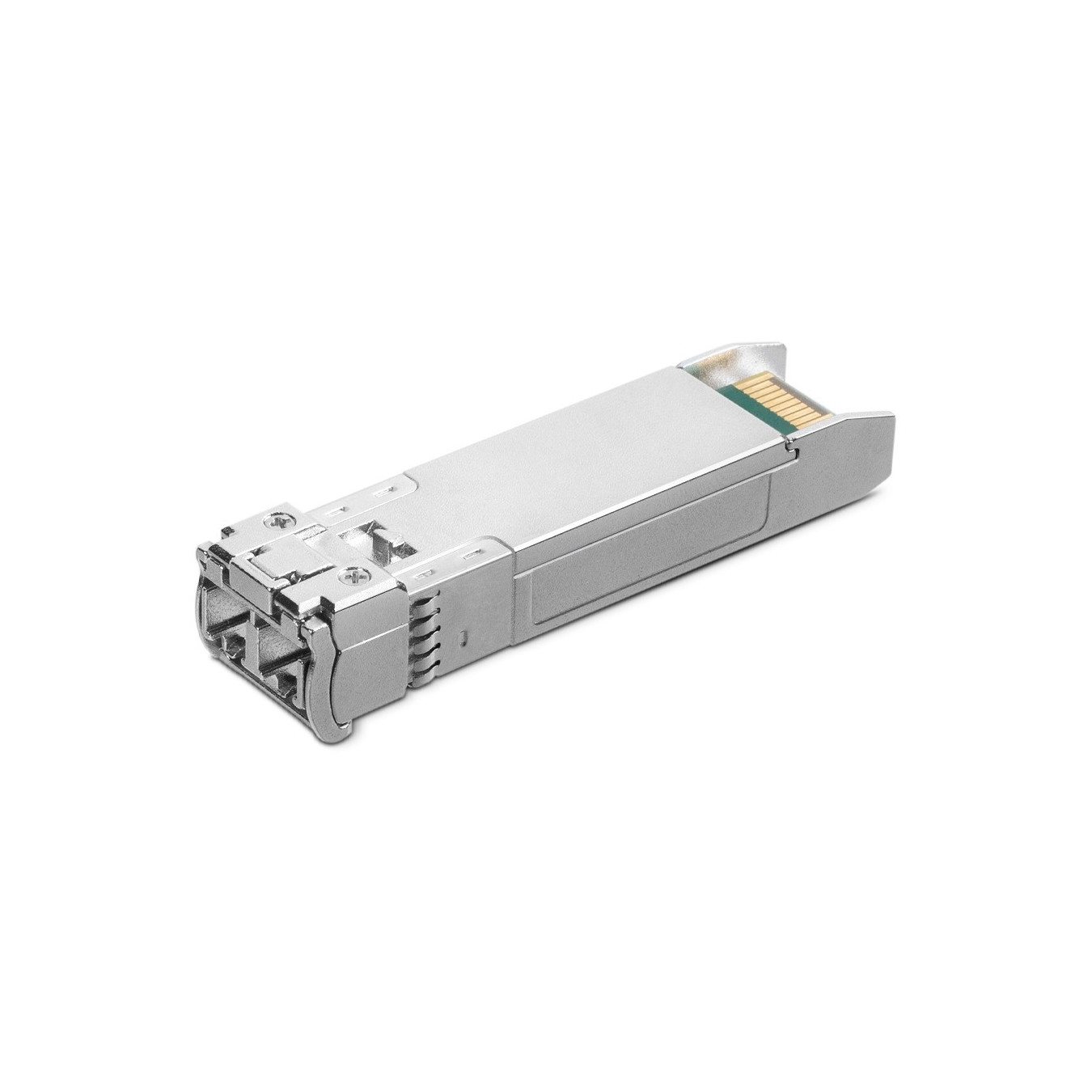

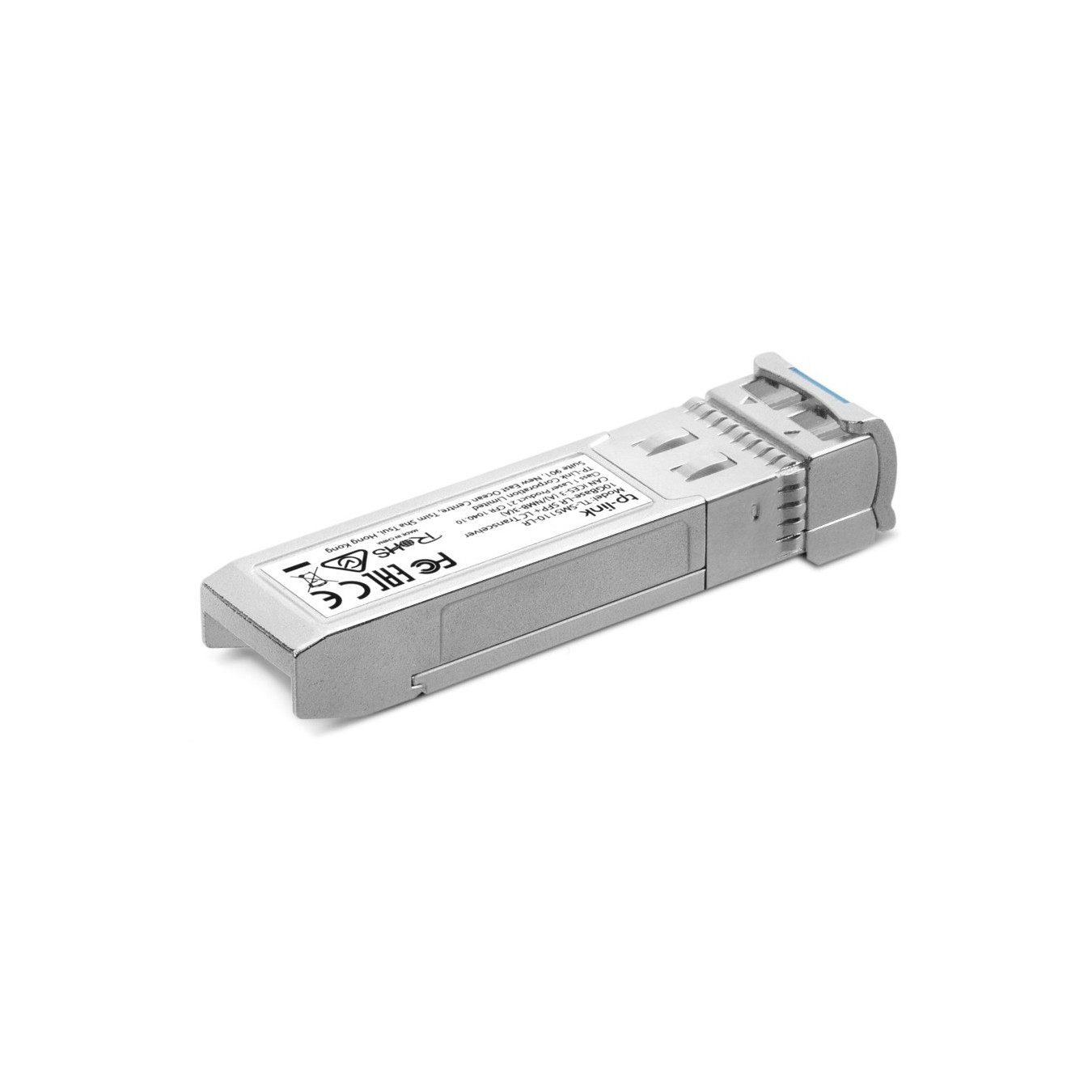

TP-Link Omada SM5110LR - 10G SFP+ LR LC Singlemode Transceiver, 1310nm, up to 10km
10GBase-LR SFP+ LC singlemode transceiver (9/125 µm), 1310nm wavelength, hot-plug, up to 10,000 m reach, 3.3V input. Compatible with TP-Link 10G SFP+ switches.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| SFP/SFP+ Modules - Interface | SFP+ |
|---|---|
| SFP/SFP+ Modules - Fiber Type | Singlemode (SMF) |
| SFP/SFP+ Modules - Coding/Brand | Generic |
TP-Link 10GBase-LR SFP+ LC Transceiver. SFP transceiver type: Fiber optic. Maximum data transfer rate: 10000 Mbit/s. Interface type: SFP+. Brand compatibility: TP-Link. Compatible products: Switches with 10G SFP+ ports. like JetStream TL-SG3428X. TL-SG3428XMP. and more.. Input voltage: 3.3 V. Certification: FCC. CE. Quantity per pack: 1 pc(s)
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Feature | Hot-Plug support |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3ae |
| Brand compatibility | TP-Link |
| Compatible products | Switches with 10G SFP+ ports. like JetStream TL-SG3428X. TL-SG3428XMP. and more. |
| Input voltage | 3.3 V |
| Certification | FCC. CE |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Quantity per pack | 1 pc(s) |
| Package width | 81.5 mm |
| Package depth | 122.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Harmonized System (HS) code | 85369010 |
