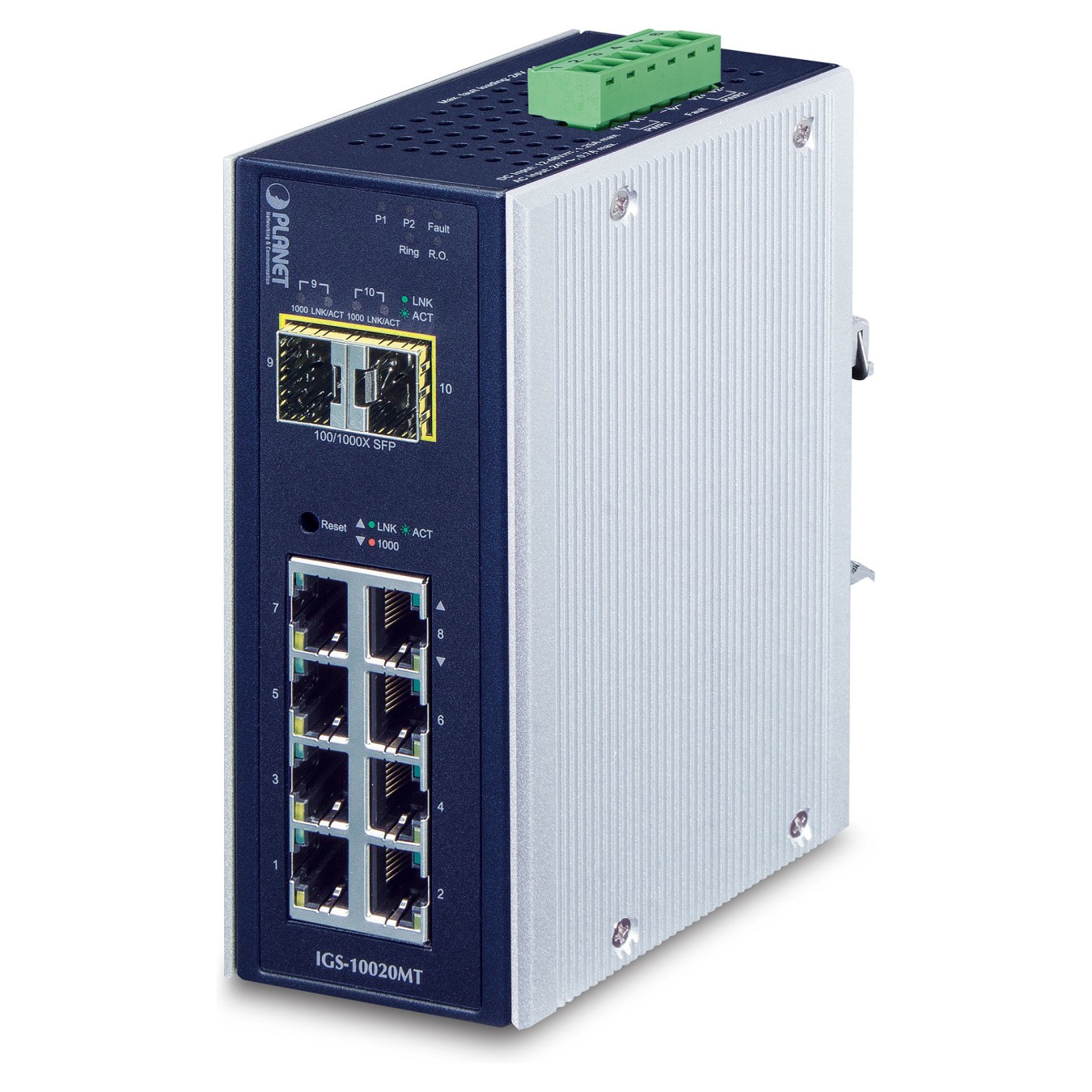

Planet IGS-10020MT 8-Port Managed Switch
PLANET IP30 industrieller 8x 1000TP + 2x 100/1000F SFP Full Managed Ethernet Switch (-40 bis 75ø C), Managed, L2+, Gigabit Ethernet (10/100/1000), Vollduplex, Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET IP30 industrieller 8x 1000TP + 2x 100/1000F SFP Full Managed Ethernet Switch (-40 bis 75ø C). Switch-Typ: Managed, Switch-Ebene: L2+. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen, Routing-/Switching-Kapazität: 26 Gbit/s. Netzstandard: IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... Wandmontage
| Switch-Typ | Managed |
| Switch-Ebene | L2+ |
| Quality of Service (QoS) Support | Ja |
| Web-basiertes Management | Ja |
| MIB Unterstützung | MIB, MIB-II |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Netzstandard | IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Kupfer Ethernet Verkabelungstechnologie | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Port-Spiegelung | Ja |
| Vollduplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Link Aggregation | Ja |
| Auto MDI/MDI-X | Ja |
| Spannbaum-Protokoll | Ja |
| VLAN-Unterstützung | Ja |
| Anzahl der VLANs | 255 |
| Routing-/Switching-Kapazität | 26 Gbit/s |
| Durchgang | 14,8 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Store-and-Forward | Ja |
| Anzahl Queues | 8 |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9000 |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Unterstützte Sicherheitsalgorithmen | 802.1x RADIUS, SSH, SSL/TLS |
| Multicast Unterstützung | Ja |
| Management-Protokolle | SSH, SSL, SNMP, Telnet |
| Rack-Einbau | Nein |
| Produktfarbe | Schwarz |
| Gehäusematerial | Aluminium |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Upgradefähige Firmware | Ja |
| Puffergröße | 512 KB |
| Stromverbrauch (Standardbetrieb) | 10 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Wärmeableitung | 34 BTU/h |
| Breite | 56 mm |
| Tiefe | 87,8 mm |
| Höhe | 135 mm |
| Gewicht | 720 g |
| Zertifizierung | FCC Part 15 Class A, CE |
| Warentarifnummer (HS) | 85176990 |
