PLANET Industrial 4-Port 10 100 1000T + 2 1000X SFP
PLANET 4 Port 10/100/1000MbpsBase-T + 2 SFP Industrial Ehternet Switch, (-40øC - 75øC), Unmanaged, Gigabit Ethernet (10/100/1000), Vollduplex, Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.

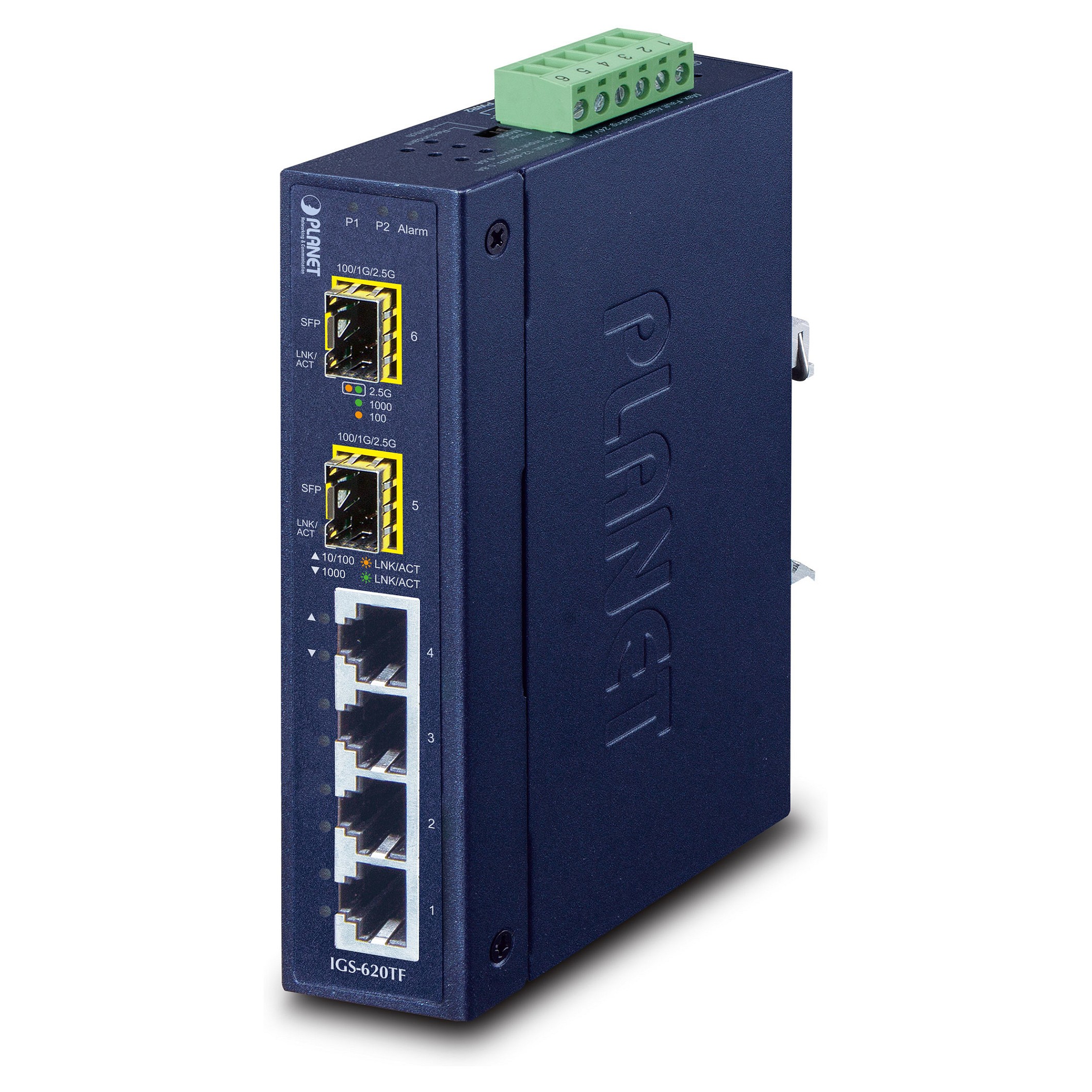

PLANET 4 Port 10/100/1000MbpsBase-T + 2 SFP Industrial Ehternet Switch, (-40øC - 75øC). Switch-Typ: Unmanaged. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4. Vollduplex. MAC-Adressentabelle: 4000 Eintragungen, Routing-/Switching-Kapazität: 18 Gbit/s. Netzstandard: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input Spannung: 12 - 48 V. Wandmontage
| Switch-Typ | Unmanaged |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Optischer Kabelverbinder | SFP |
| Netzstandard | IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T, 100BASE-T, 1000BASE-T |
| unterstütze Kabeltypen | Cat5, Cat5e, Cat6 |
| Vollduplex | Ja |
| Halb-Duplex | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-Negotiation-Funktion | Ja |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
| Fibertyp | Multi-Modus |
| Transmissionsentfernung (max) | 60 km |
| Routing-/Switching-Kapazität | 18 Gbit/s |
| Durchgang | 13,39 Mpps |
| MAC-Adressentabelle | 4000 Eintragungen |
| Store-and-Forward | Ja |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 9216 |
| Rack-Einbau | Nein |
| Stapelbar | Nein |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| LED-Anzeigen | Ja |
| Internationale Schutzart (IP-Code) | IP30 |
| Wandmontage | Ja |
| DIN-Schienen-Montage | Ja |
| Netzteil enthalten | Nein |
| DC input Spannung | 12 - 48 V |
| Stromverbrauch (Standardbetrieb) | 7,5 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 32 mm |
| Tiefe | 87 mm |
| Höhe | 135 mm |
| Gewicht | 425 g |
| Zertifizierung | FCC Part 15 Class A, CE |
| Warentarifnummer (HS) | 85176990 |
