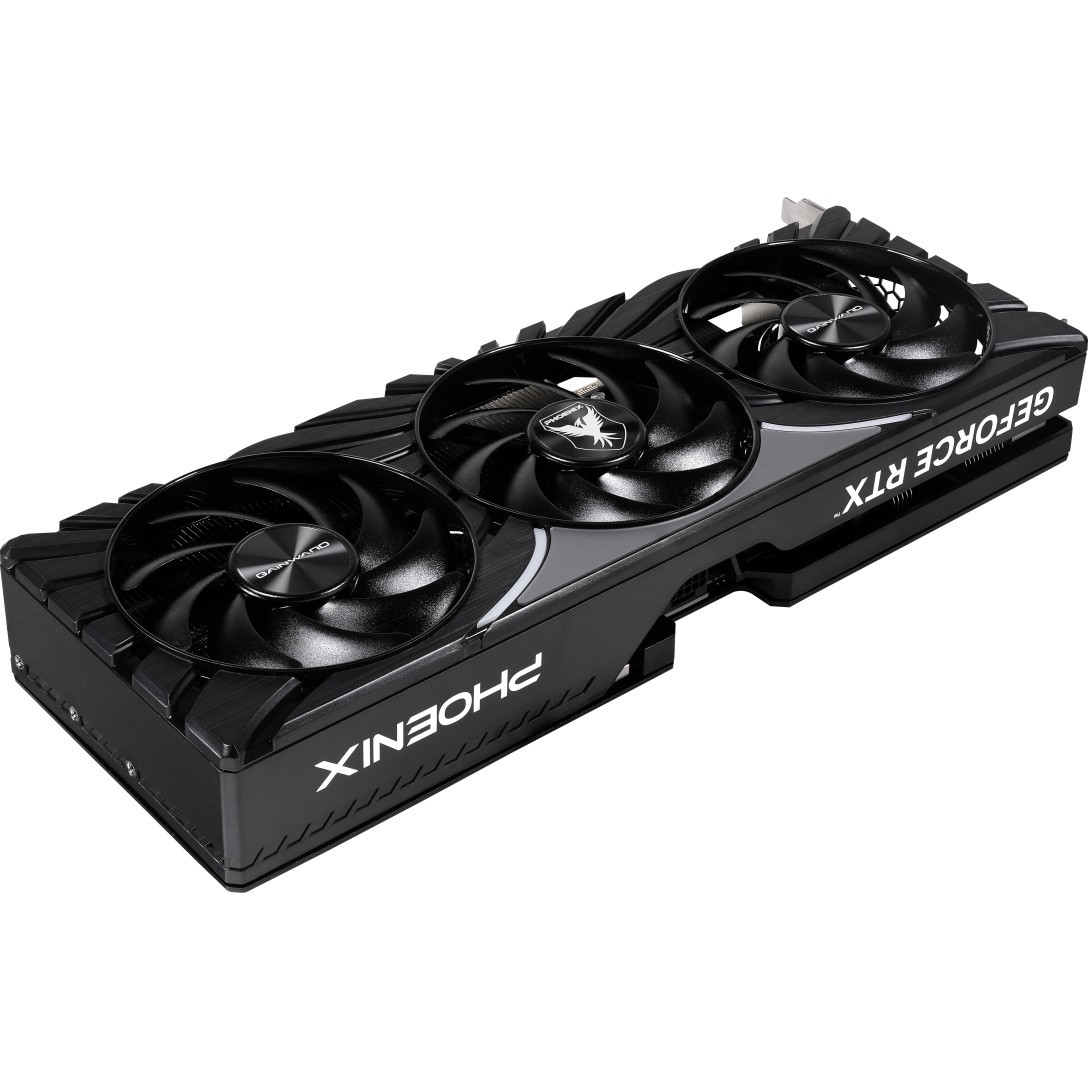

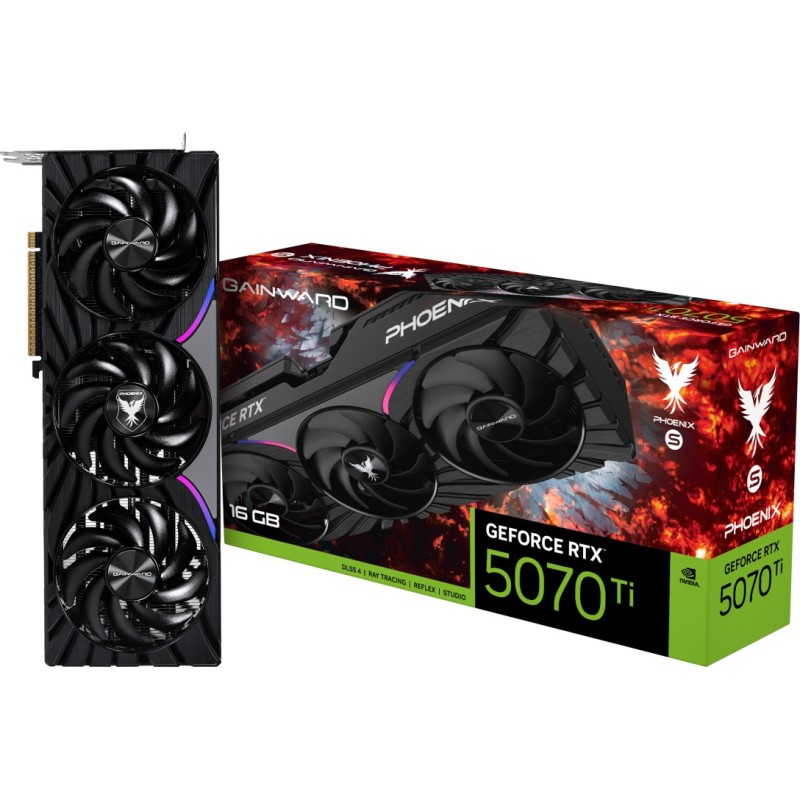

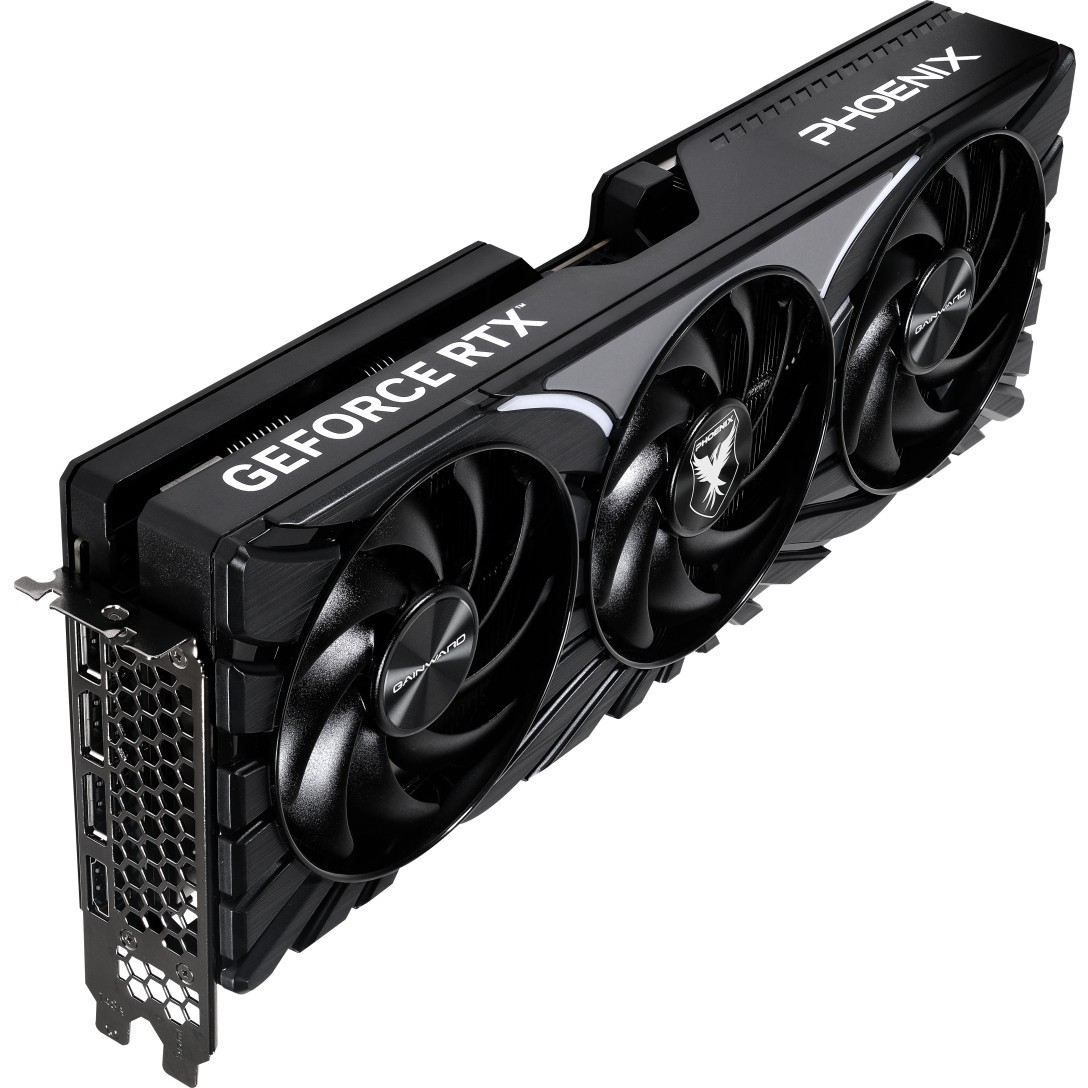

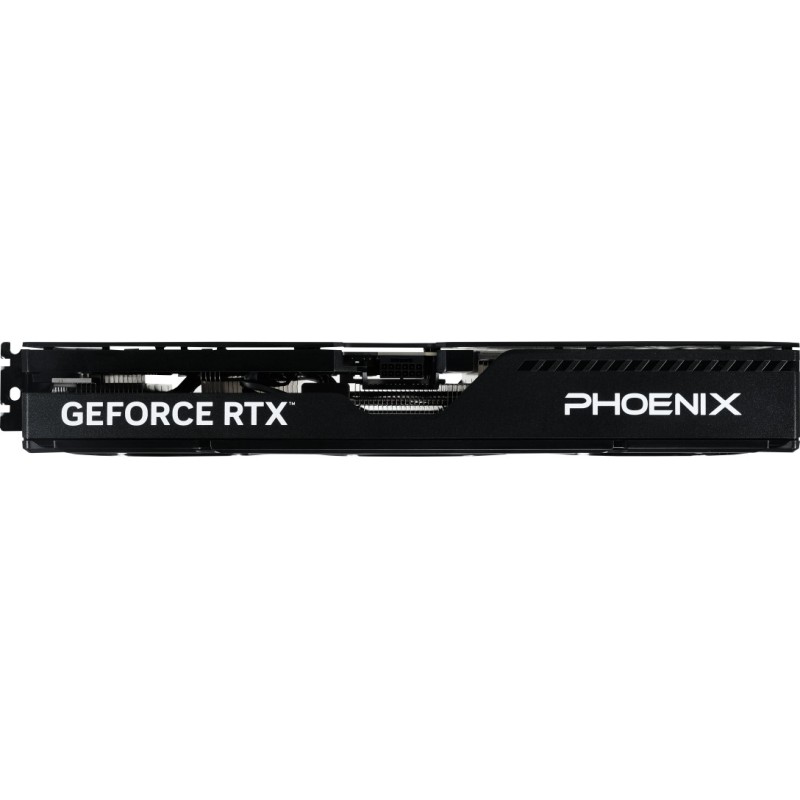

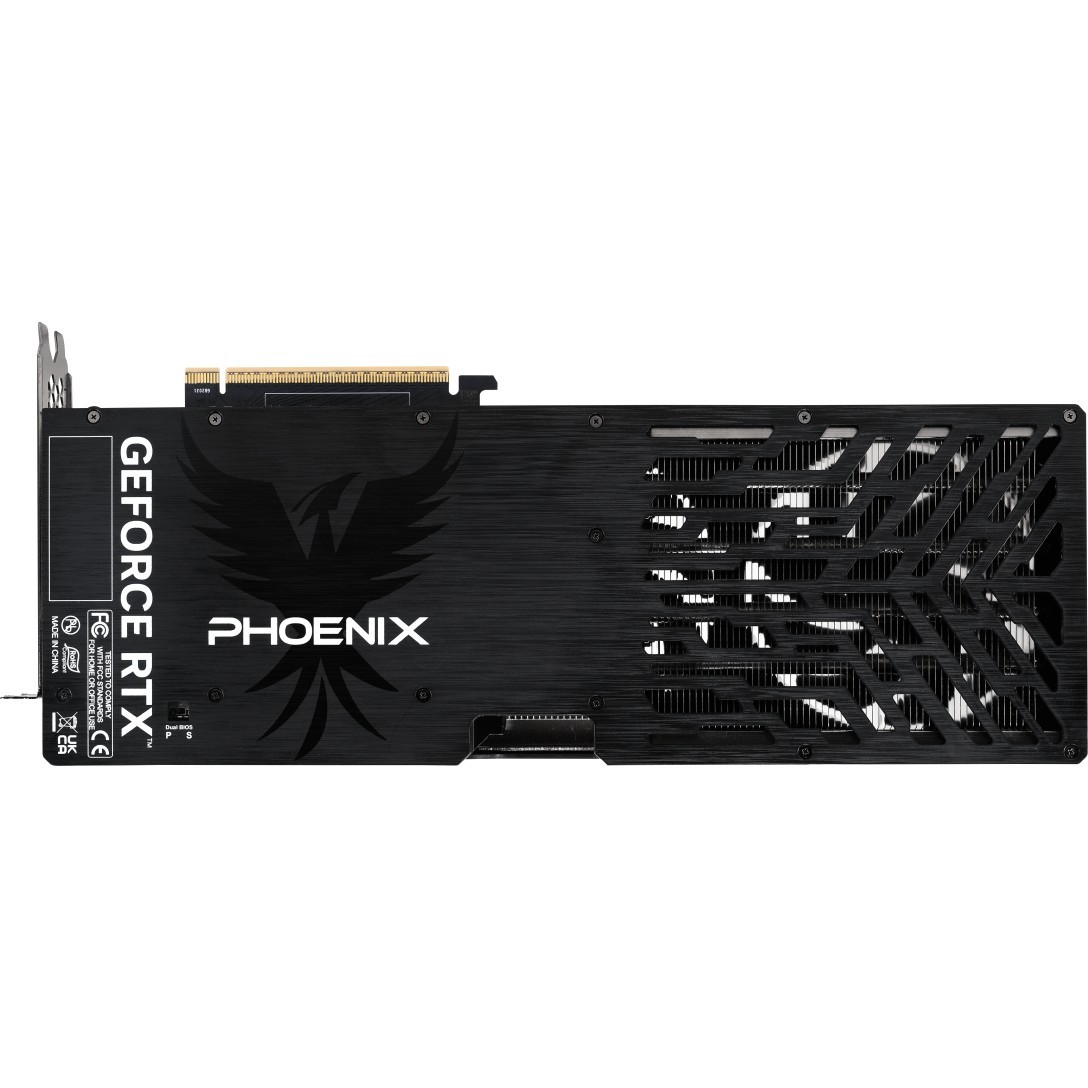

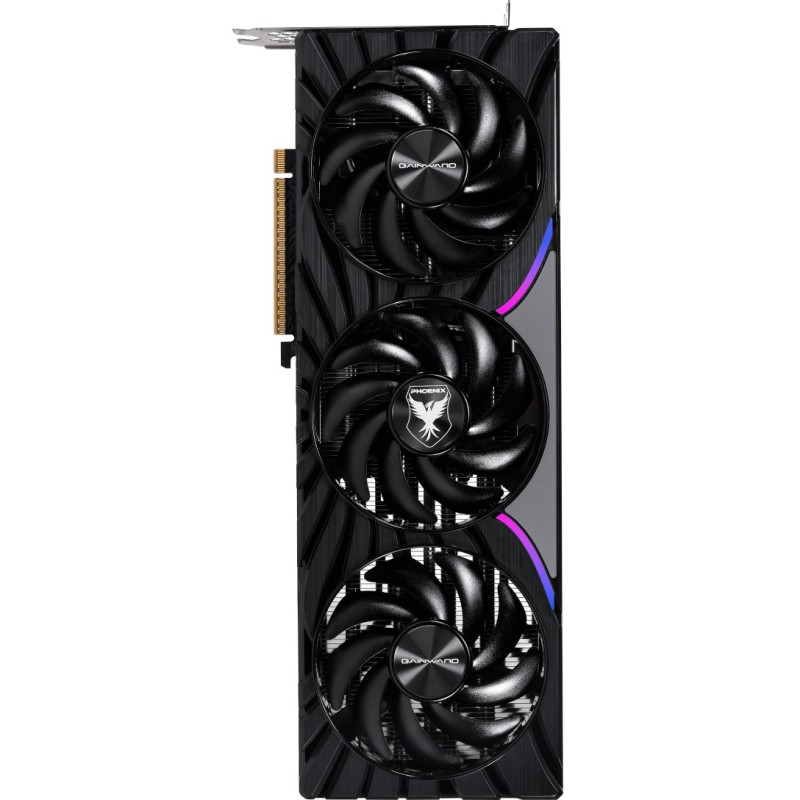

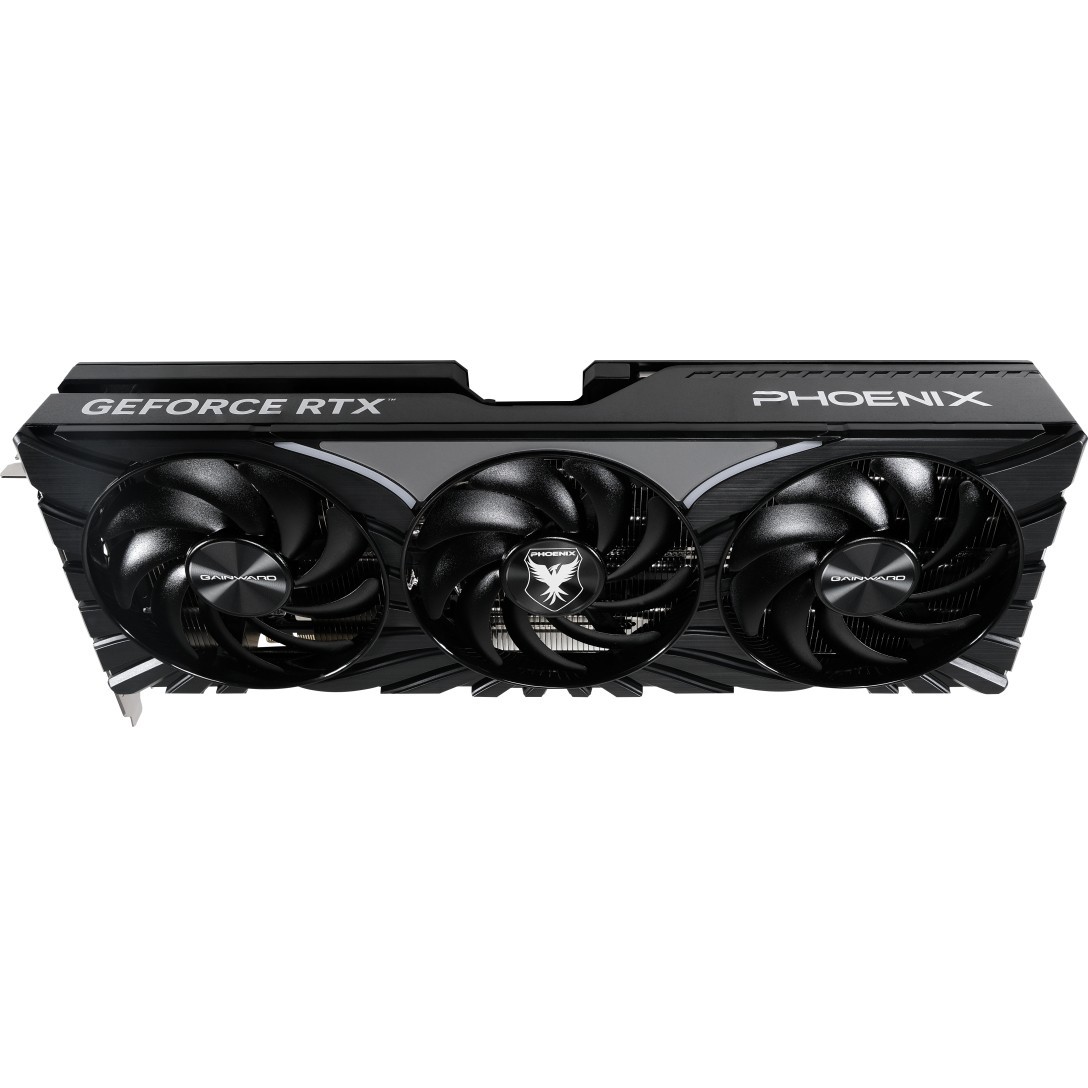

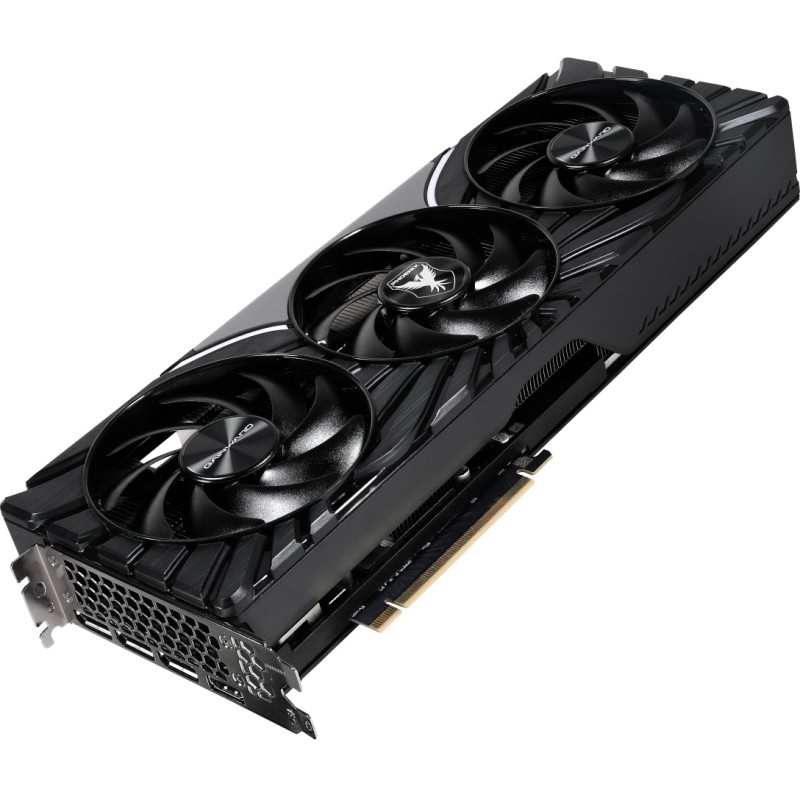

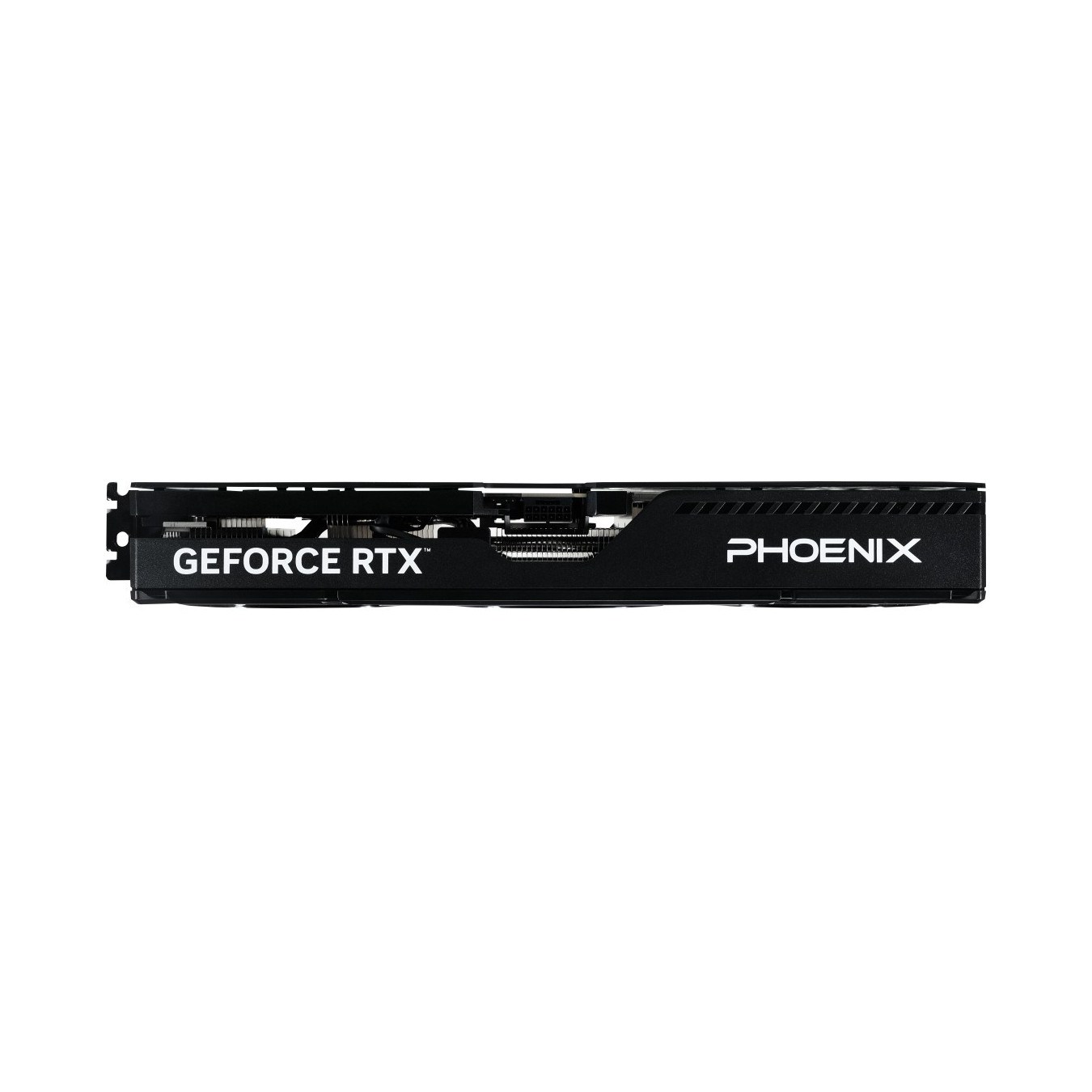

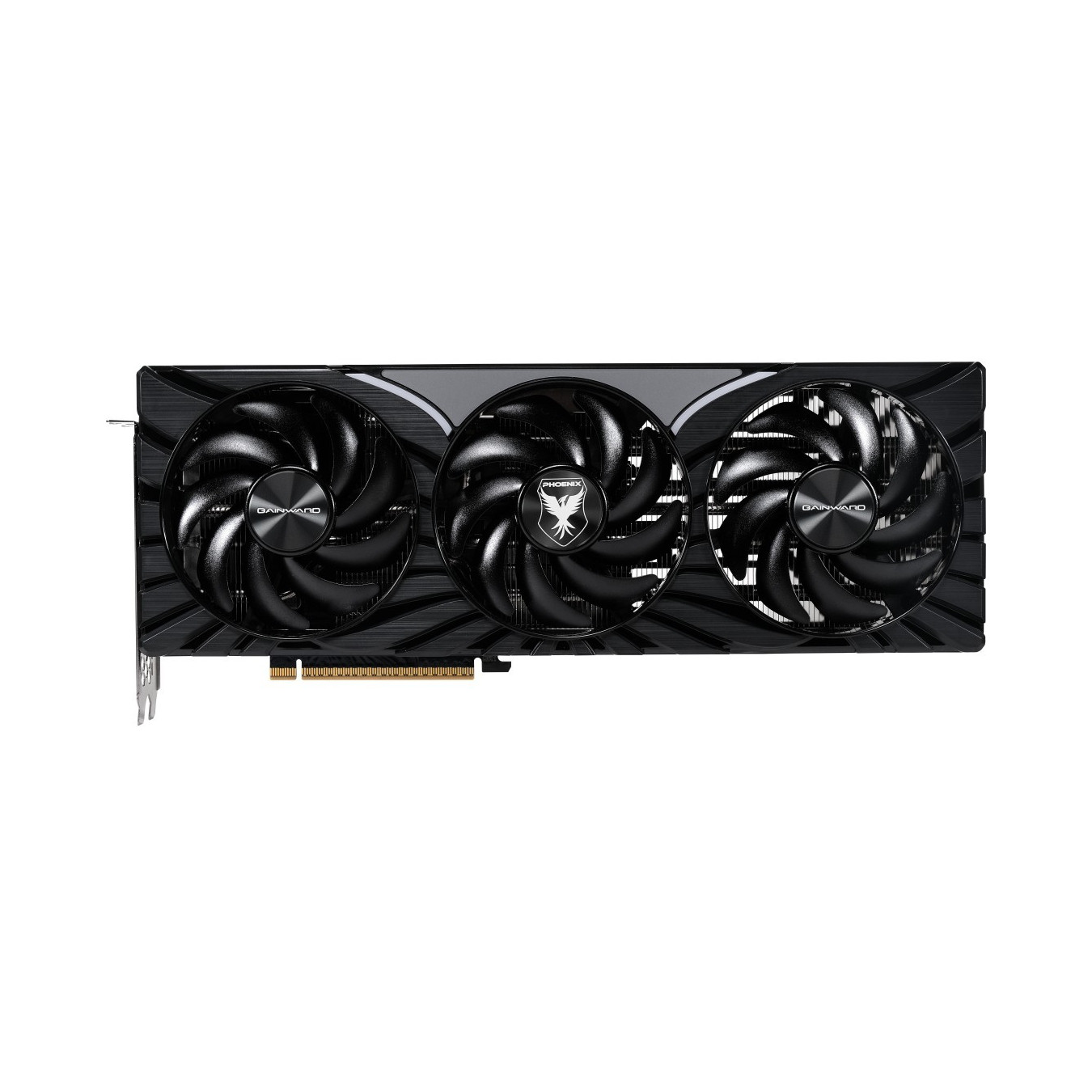

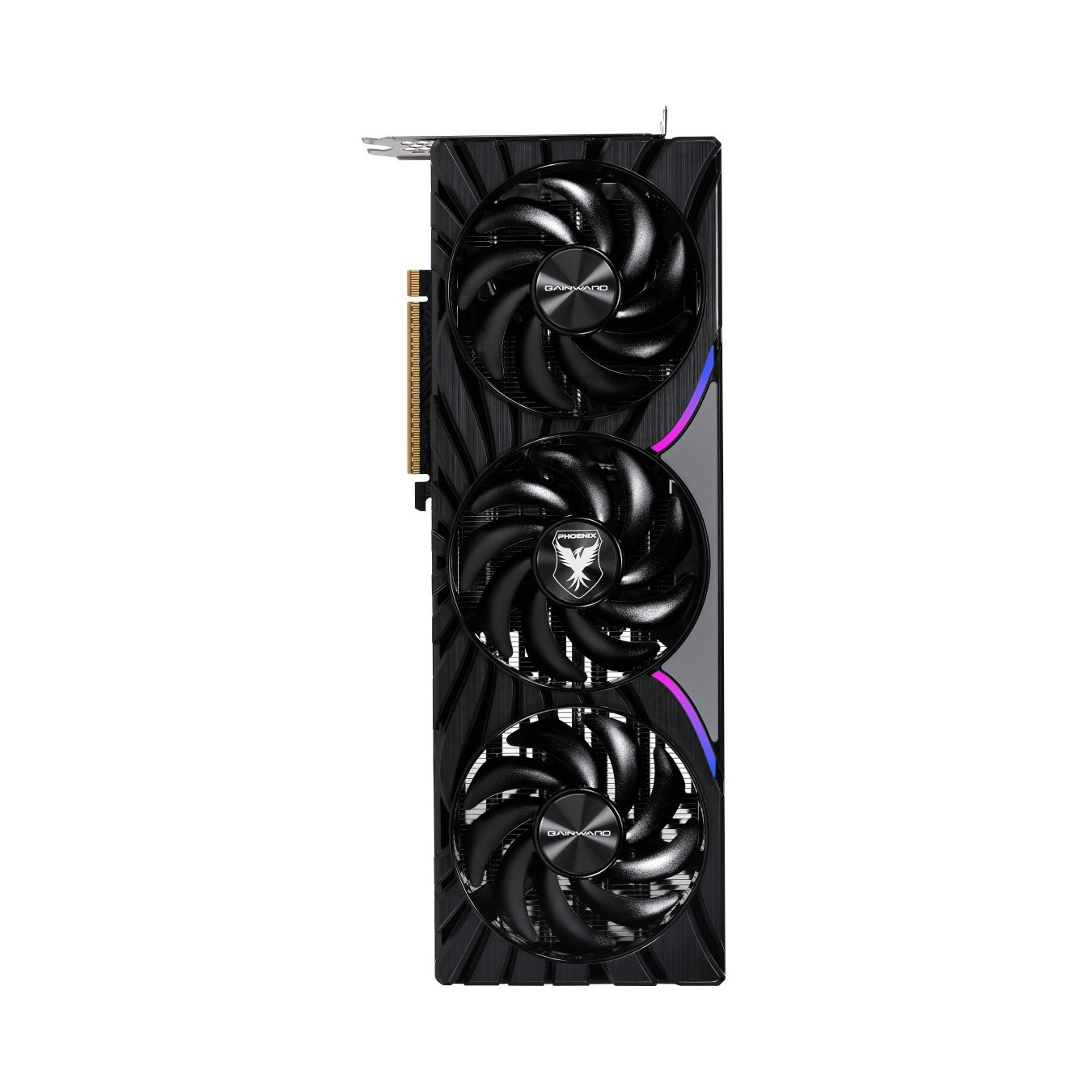

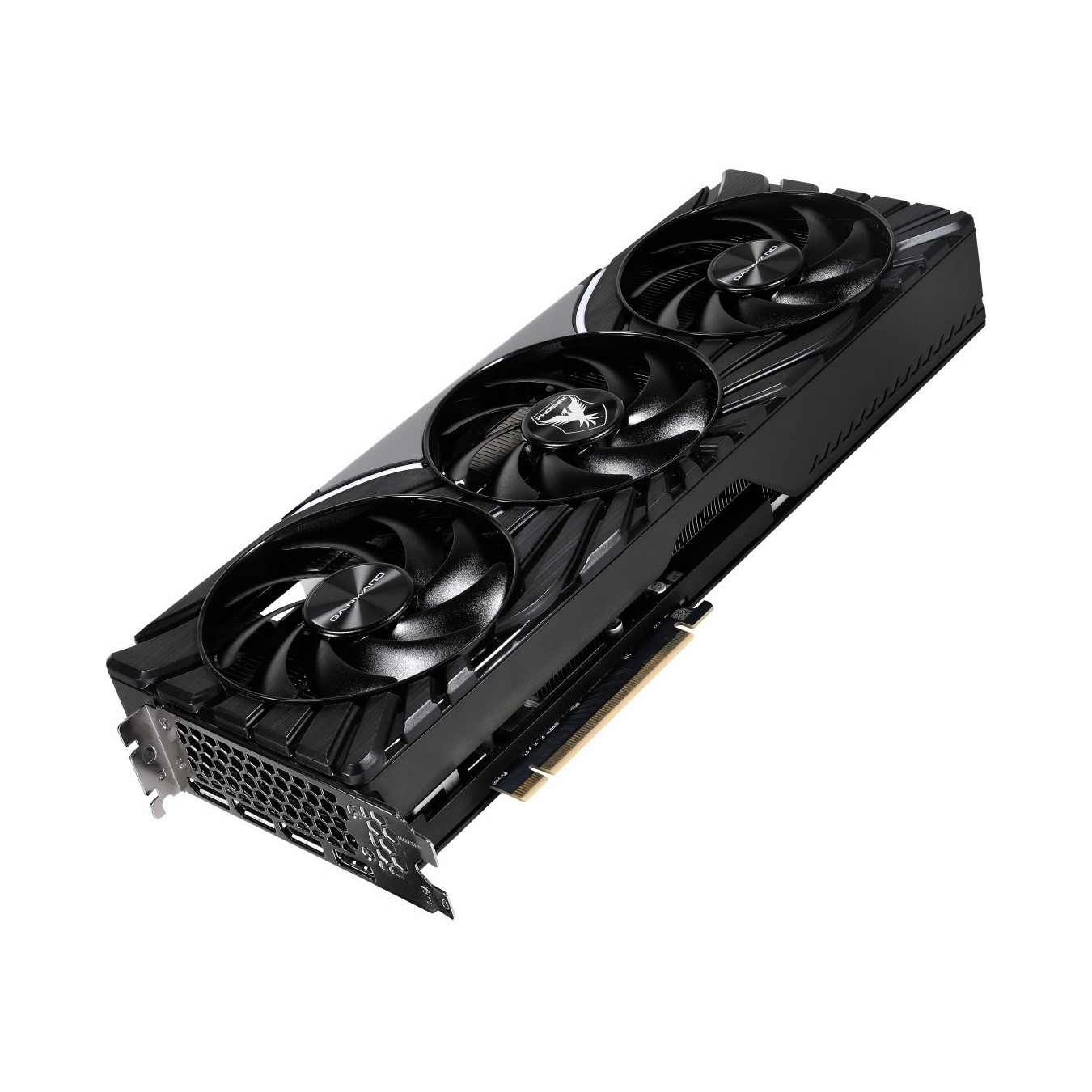

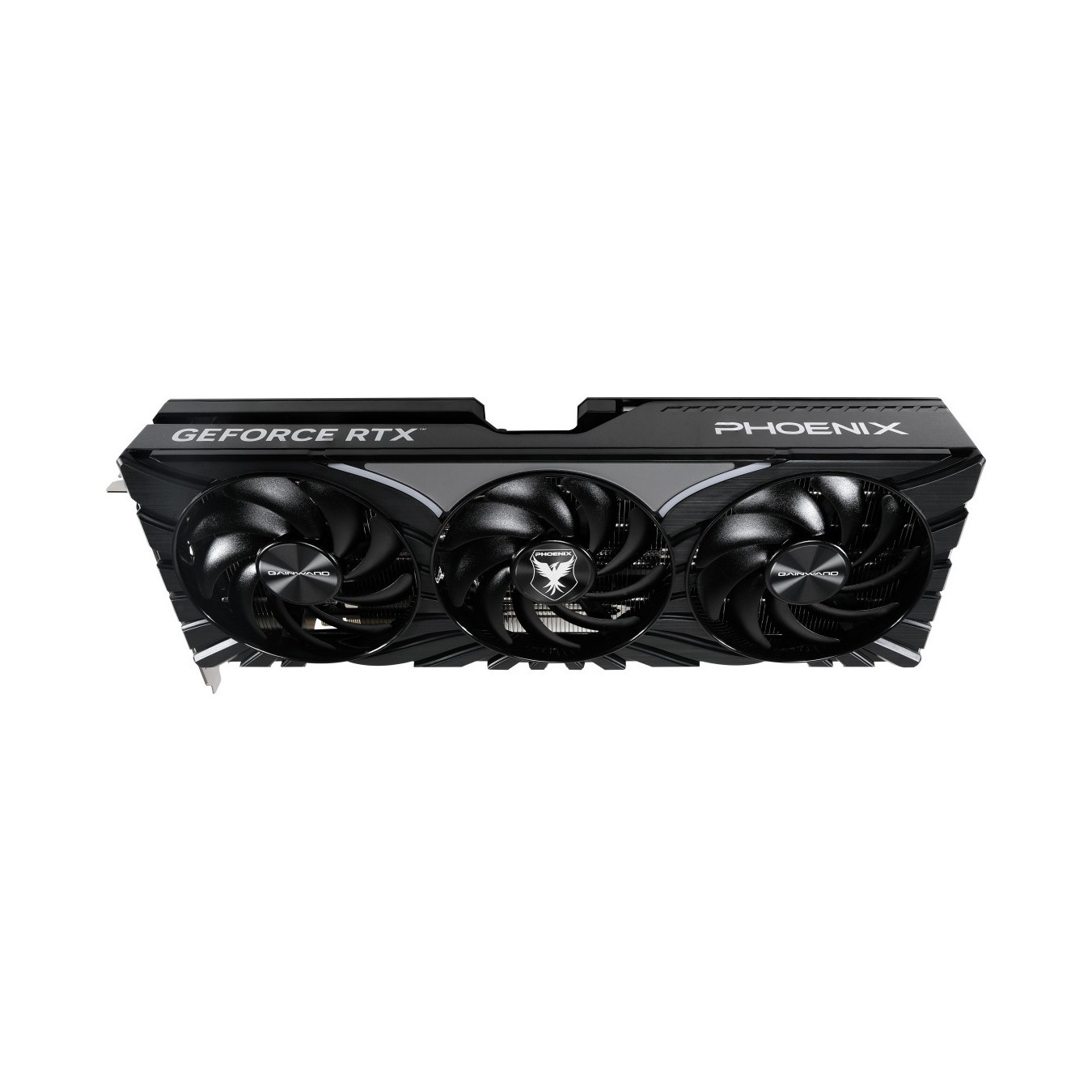

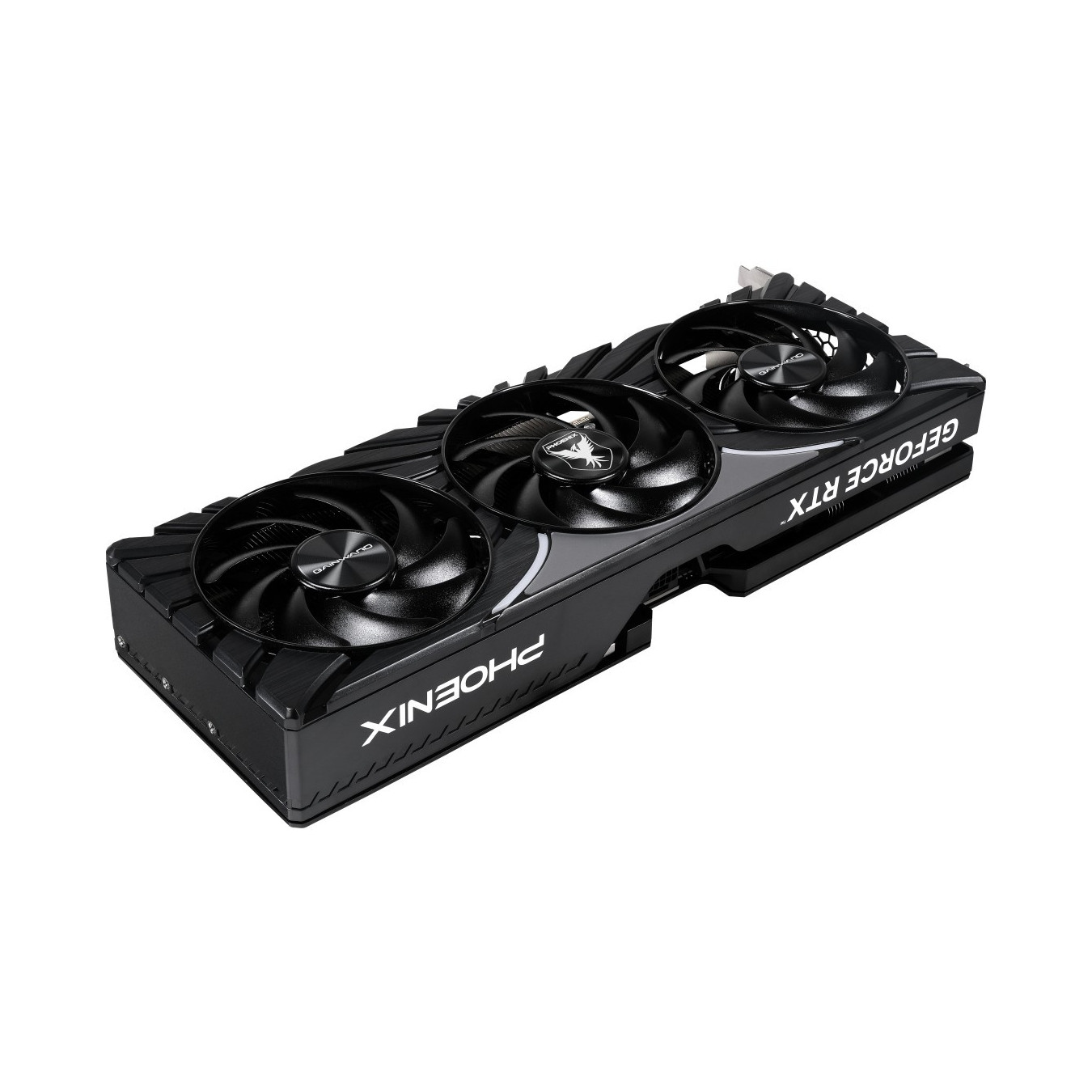

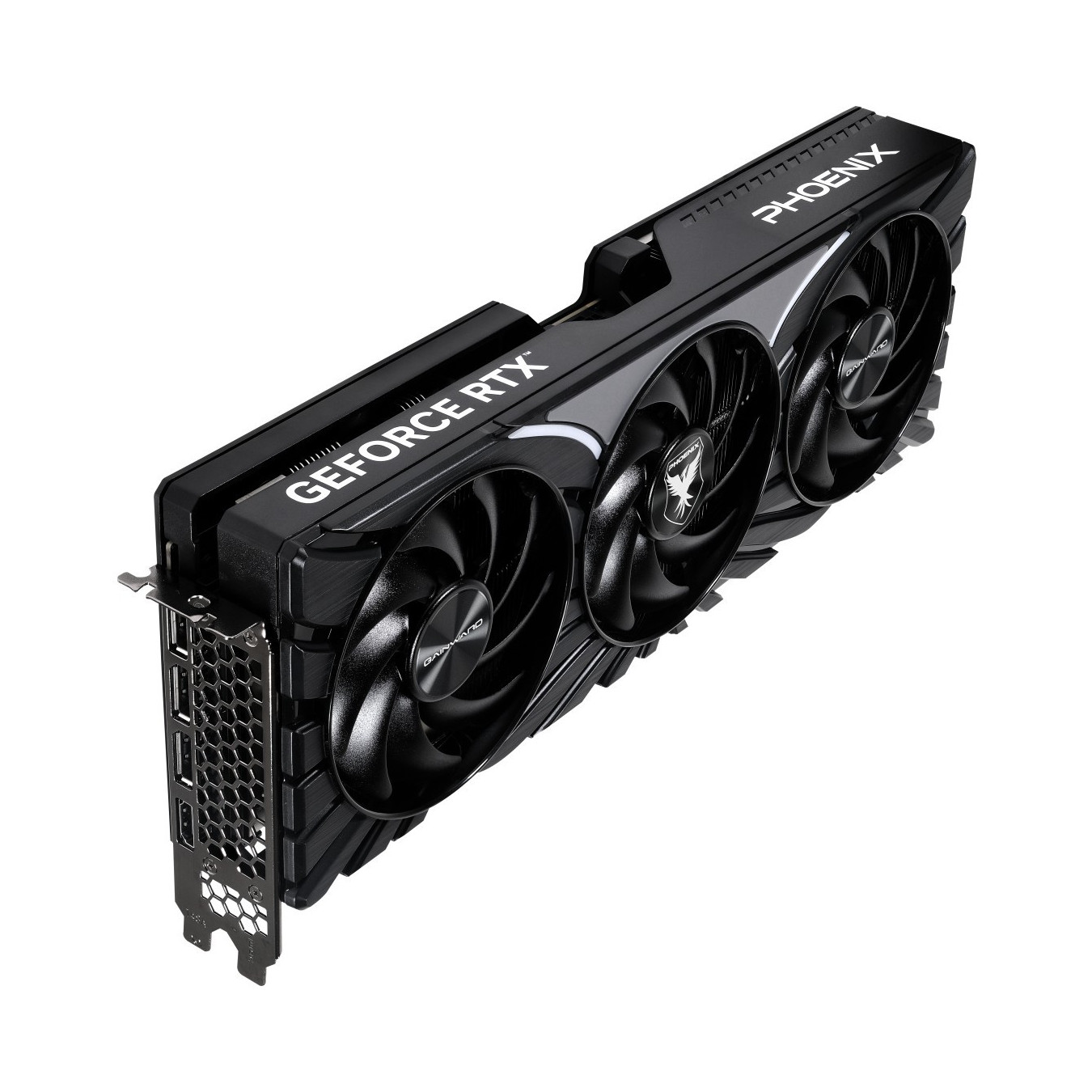

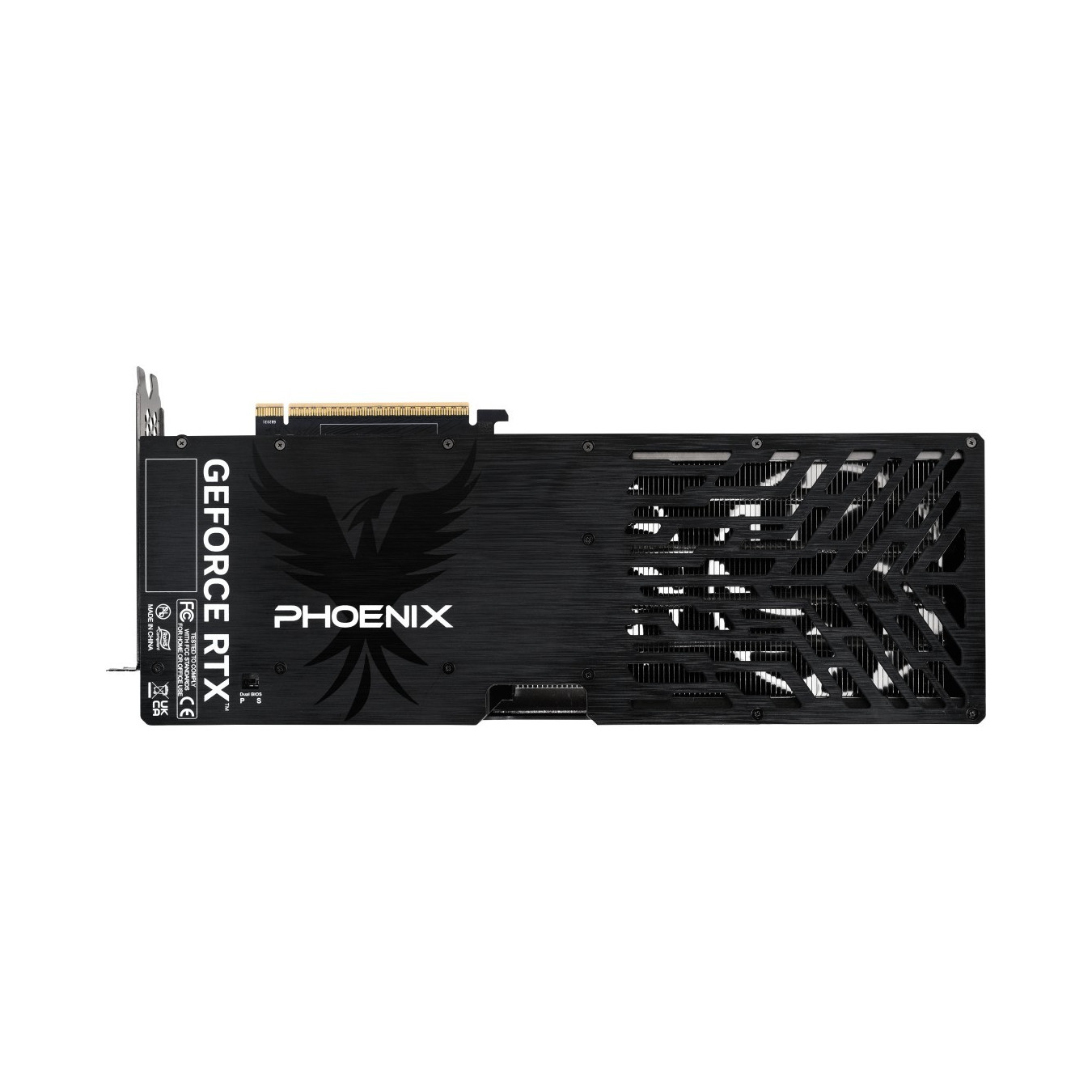

Gainward GeForce RTX 5070 Ti Phoenix-S - Black/Grey - 16GB GDDR7, 2452MHz Boost, PCIe 5.0, 3-Fan
Gainward GeForce RTX 5070 Ti Phoenix-S: 16GB GDDR7 (256-bit), 8960 CUDA cores, Boost 2452MHz, PCIe 5.0, HDMI 2.1b, 3x DP 2.1b, 3-fan cooling, 300W TDP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
|---|---|
| GPU (Graphics Cards) - Power Connector | 12VHPWR (16-pin) |
| GPU (Graphics Cards) - Card Length | 321-360 mm |
| GPU (Graphics Cards) - Slot Thickness | 2.5-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
Gainward GeForce RTX 5070 Ti Phoenix-S. Graphics processor family: NVIDIA. Graphics processor: GeForce RTX 5070 Ti. Processor frequency: 2295 MHz. Discrete graphics card memory: 16 GB. Graphics card memory type: GDDR7. Memory bus: 256 bit. Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active. Number of fans: 3 fan(s). Illumination colour: Multi
| Feature | Manual |
| CUDA cores | 8960 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Processor frequency | 2295 MHz |
| Processor boost clock speed | 2452 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 14000 MHz |
| Data transfer rate | 28 Gbit/s |
| Memory bandwidth (max) | 896 GB/s |
| Interface type | PCI Express 5.0 |

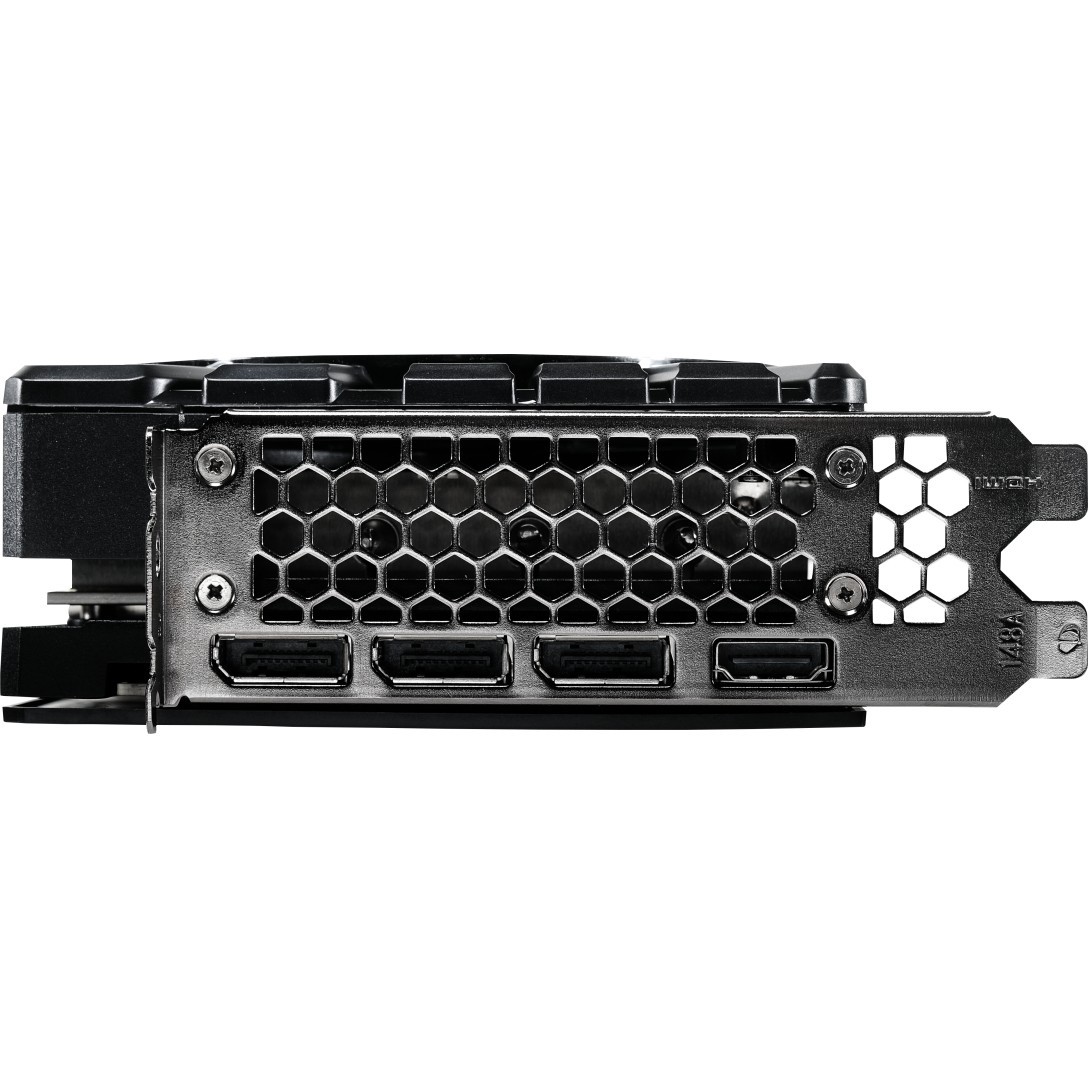

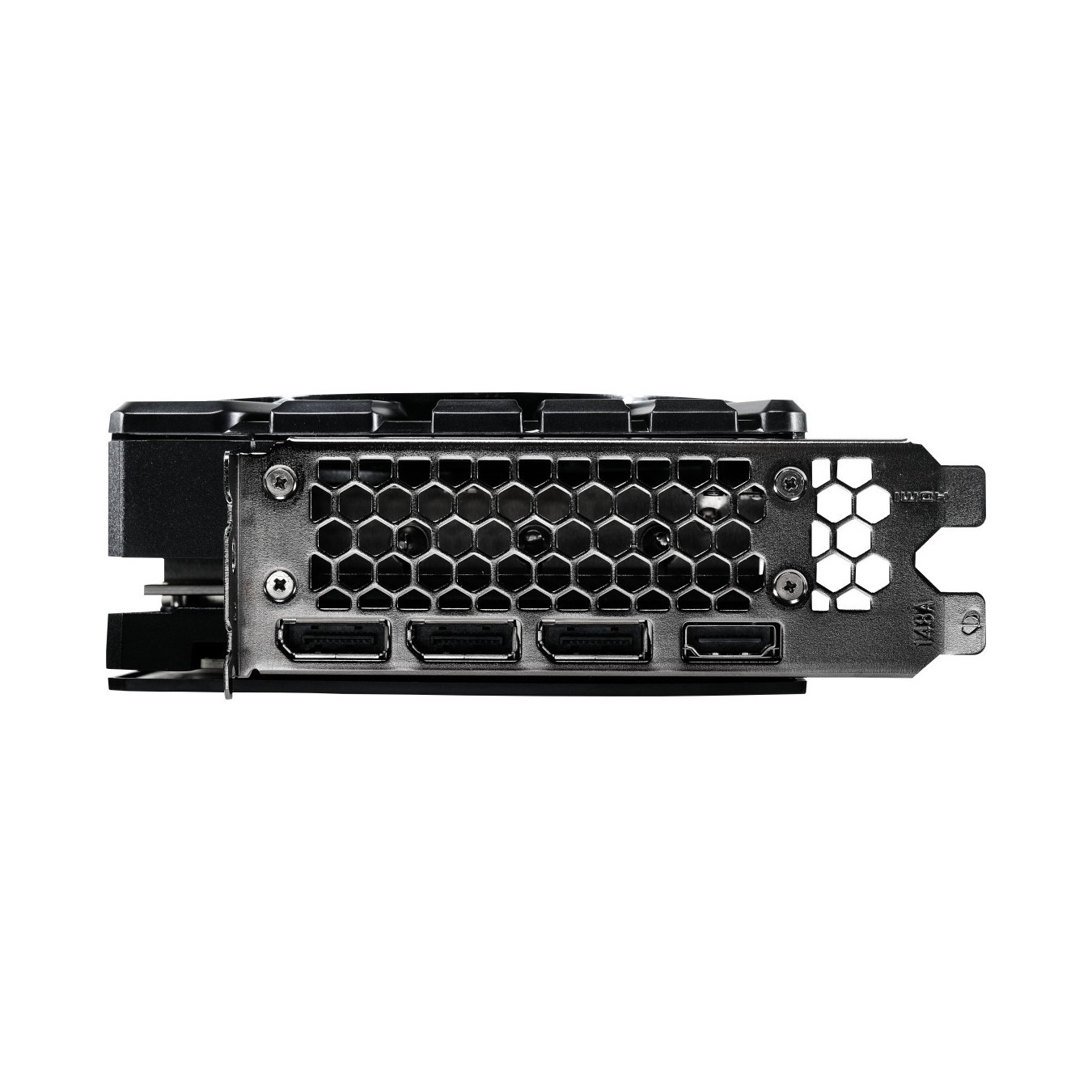

| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP version | 2.3 |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 2.5 |
| Illumination colour | Multi |
| Product colour | Black. Grey |
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 300 W |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| Length | 331.9 mm |
| Depth | 49.4 mm |
| Height | 127.1 mm |

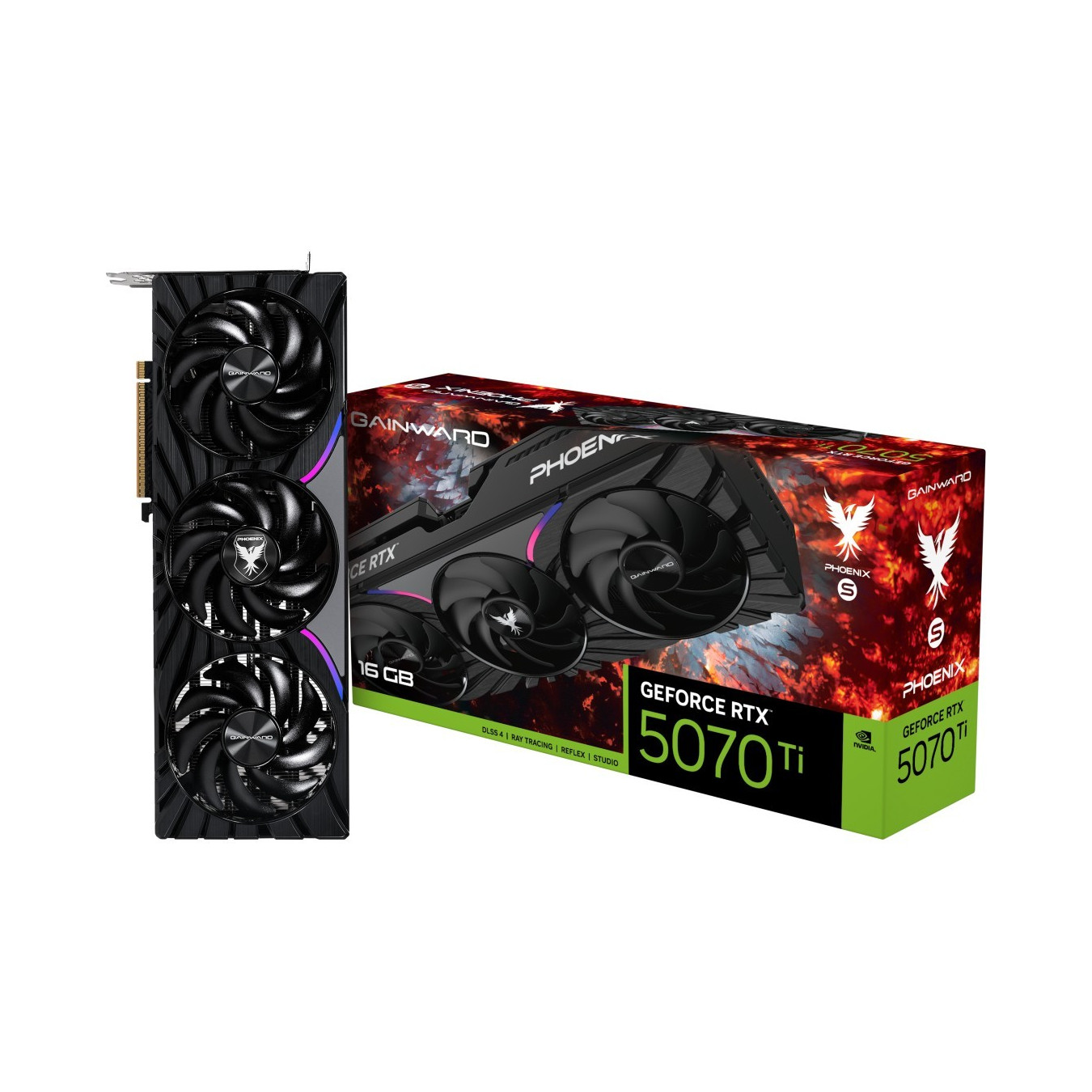

| Package type | Box |
