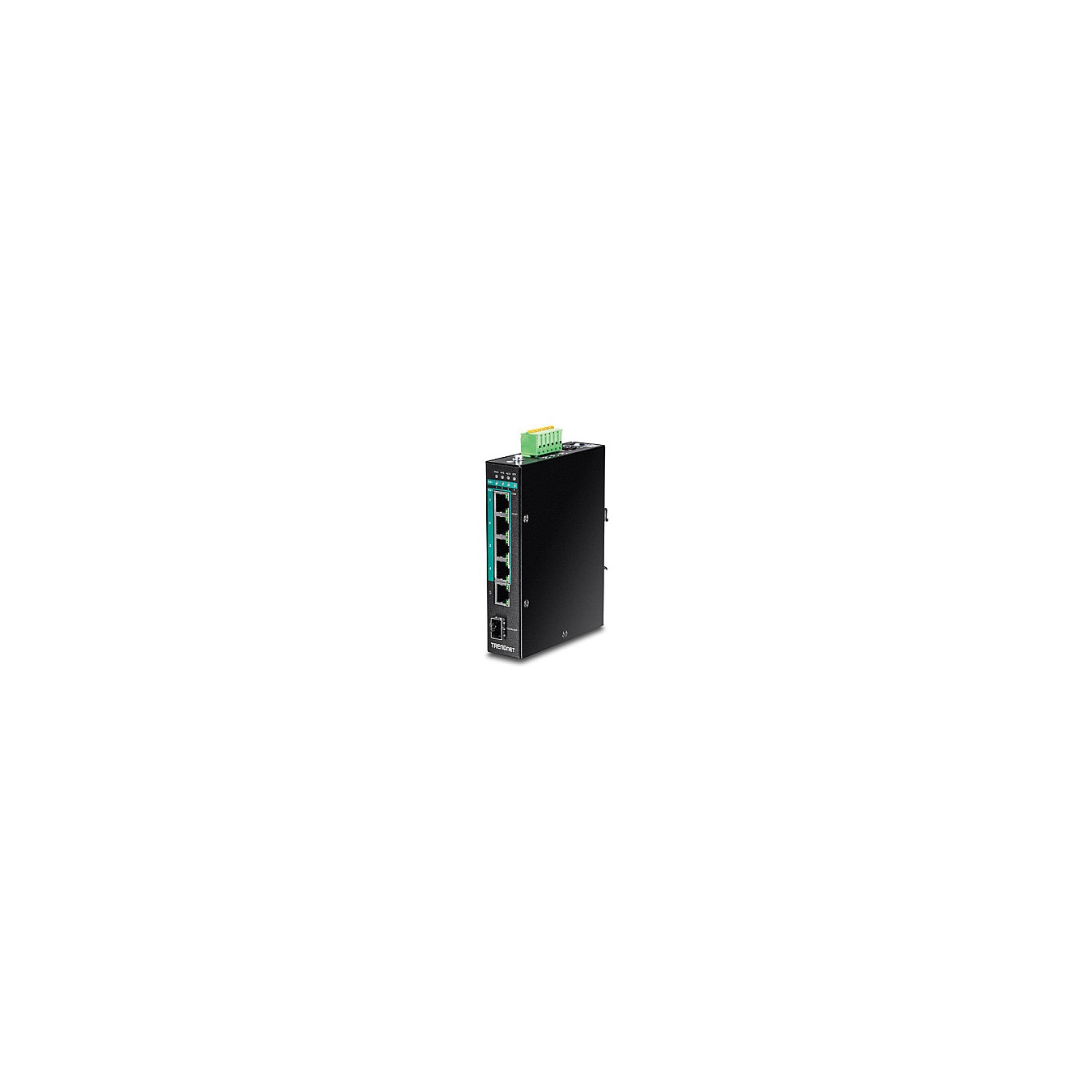

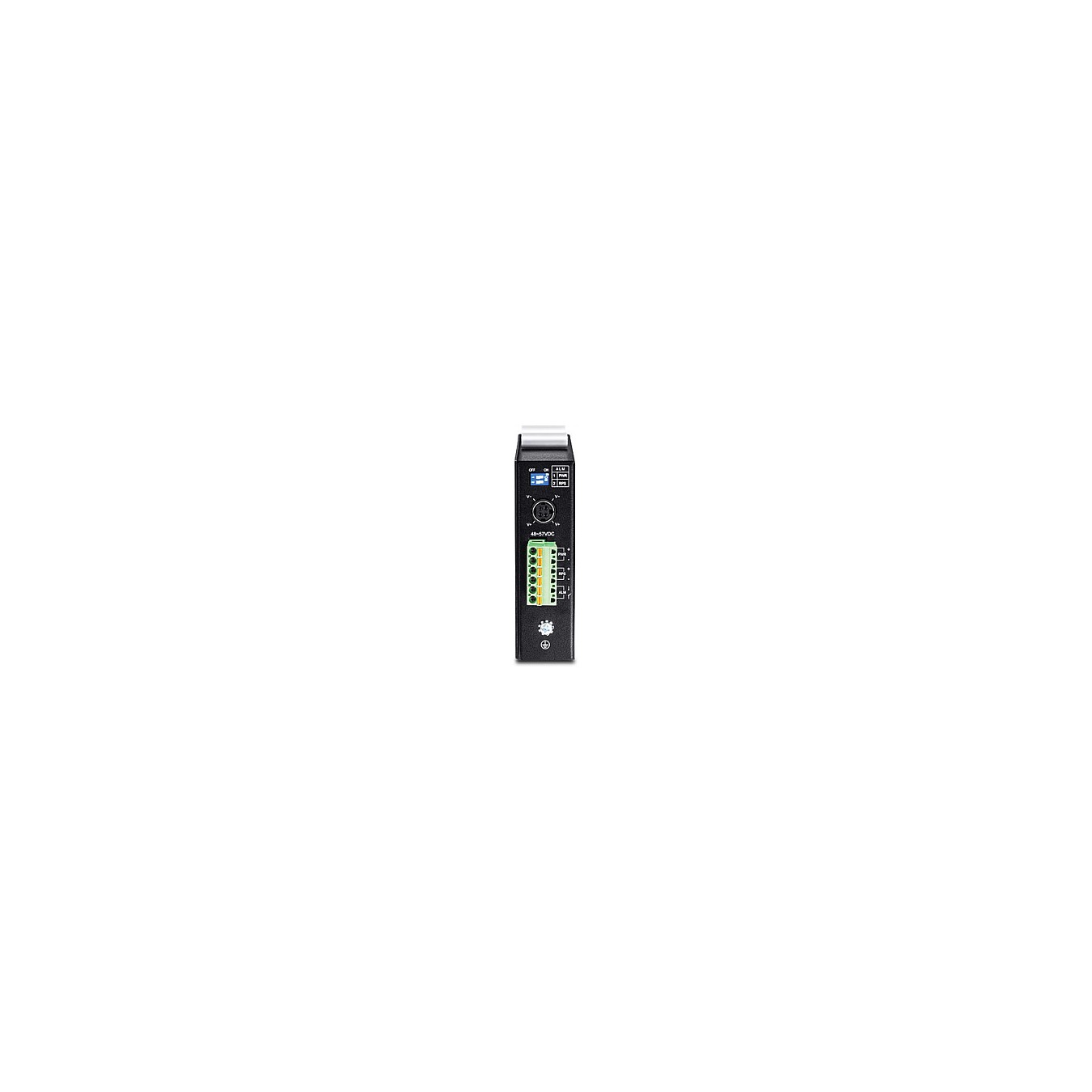

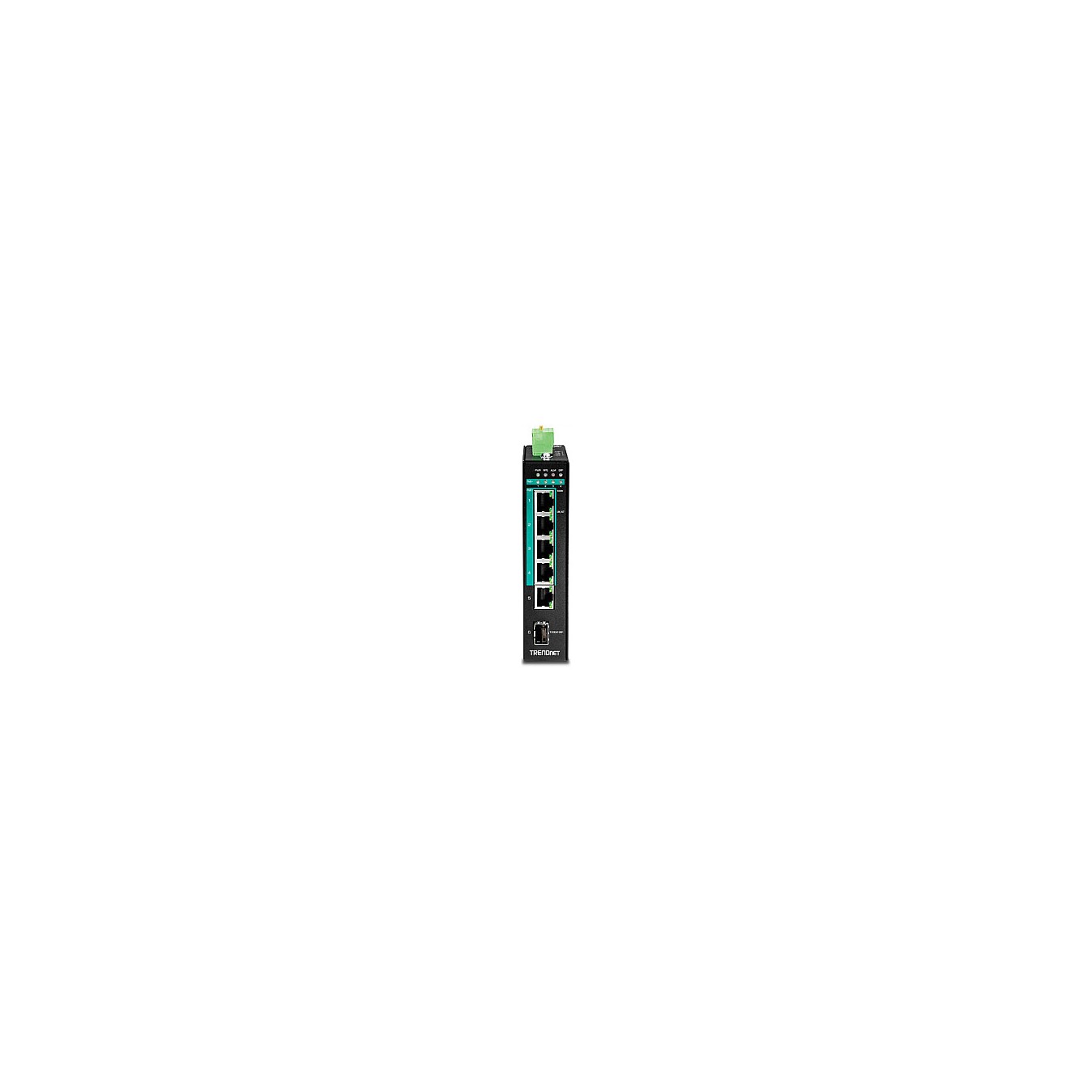

TRENDnet TI-PG541i 6-Port Switch PoE+ Industrial Gigabit Layer 2 DIN-Rail
Trendnet TI-PG541i. Managed. L2+. Gigabit Ethernet (10/100/1000). Vollduplex. Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Trendnet TI-PG541i. Switch-Typ: Managed. Switch-Ebene: L2+. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 5. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 12 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.3. IEEE.... Power over Ethernet (PoE)
| Switch-Typ | Managed |
| Switch-Ebene | L2+ |
| Feature | Ressourcen-CD |
| MIB Unterstützung | RFC 1213. RFC 1493. RFC 1643. RFC 1757 |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 5 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 1 |
| Virtuelle LAN-Funktionen | Tagged VLAN. Protocol-based VLAN |
| Anzahl der VLANs | 256 |
| Routing-/Switching-Kapazität | 12 Gbit/s |
| Durchgang | 8.93 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 128 MB |
| DHCP-Funktionen | DHCP server |
| Unterstützte Sicherheitsalgorithmen | 802.1x RADIUS. HTTPS. SNMP |
| Authentifizierung | Port-basierte Authentifizierung |
| Multicast MAC-Adresstabelle | 256 Eintragungen |
| Produktfarbe | Schwarz |
| Internationale Schutzart (IP-Code) | IP30 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 435905 h |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Ausgangsspannung | 48 V |
| Ausgangsstrom | 5 A |
| Stromverbrauch (max.) | 130 W |
| Anzahl Power over Ethernet plus (PoE+) Anschlüsse | 4 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 120 W |
| Betriebstemperatur | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Breite | 135 mm |
| Tiefe | 120 mm |
| Höhe | 31 mm |
| Gewicht | 528 g |
| Verpackungsart | Box |
| Warentarifnummer (HS) | 85176990 |
