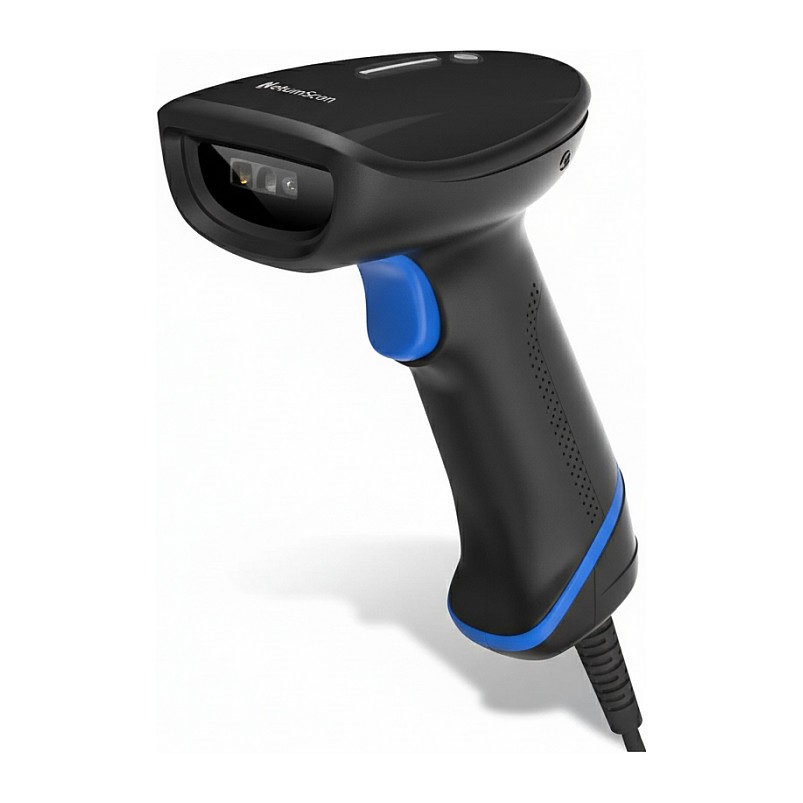

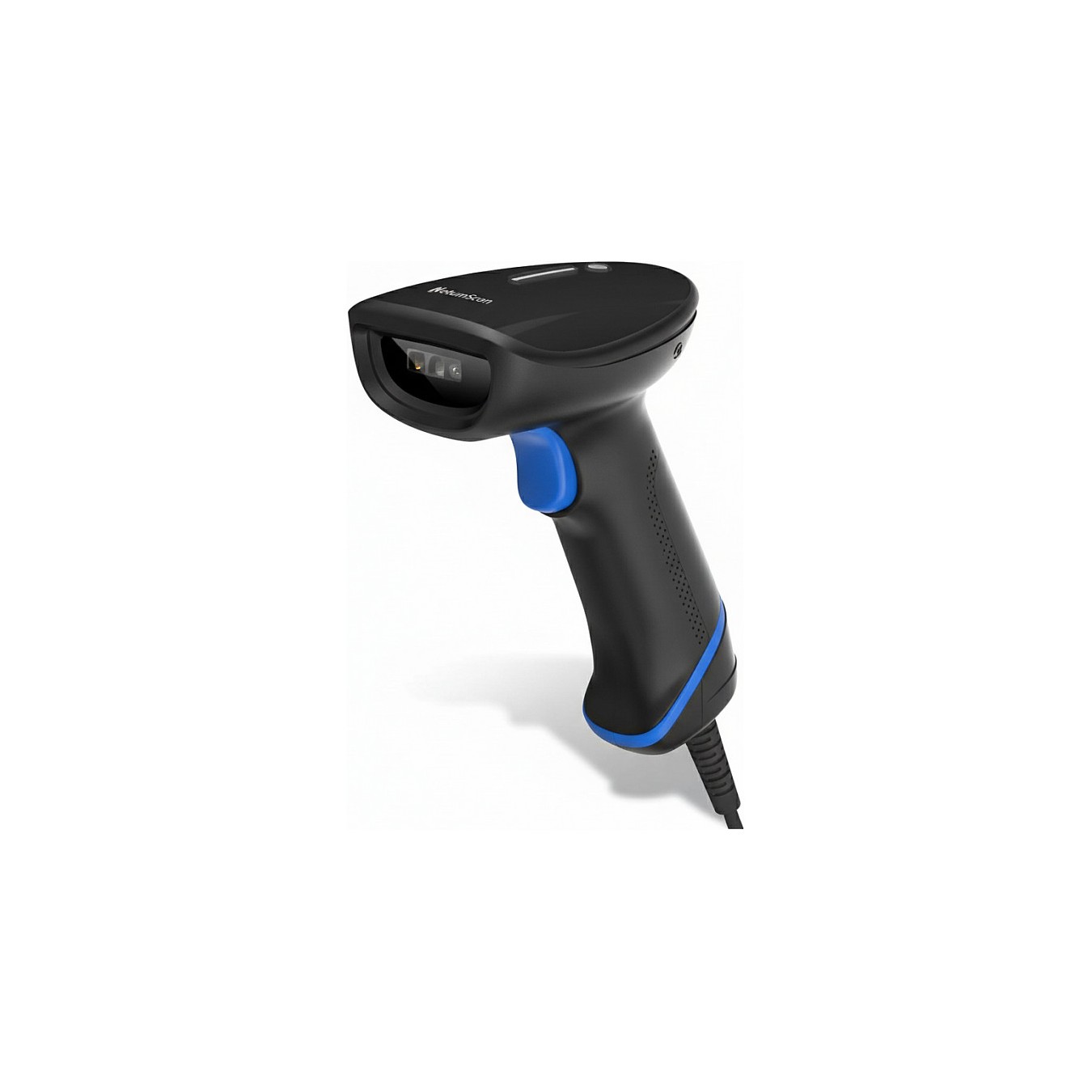

HR23 Dorada 2D CMOS Handheld Reader 3.5m coiled USB
Newland HR23 Dorada Corded, Tragbares Barcodelesegerät, 1D/2D, CMOS, AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Databar..., Aztec Code, Datenmatrix, Micro QR Code, MicroPDF417, PDF417, QR Code, 640 x 480 Pixel
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Newland HR23 Dorada Corded. Typ: Tragbares Barcodelesegerät, Scanner-Typ: 1D/2D, Sensor-Typ: CMOS. Übertragungstechnik: Kabelgebunden, Standard-Schnittstellen: USB. Produktfarbe: Schwarz, Internationale Schutzart (IP-Code): IP52, Druckkontrast: 20%. Energiequelle: USB, Akku-/Batteriespannung: 5 V, Eingangsspannung: 5 V. Gewicht: 137 g, Breite: 95 mm, Tiefe: 68 mm
| Typ | Tragbares Barcodelesegerät |
| Scanner-Typ | 1D/2D |
| Sensor-Typ | CMOS |
| Lineare (1D) Barcodes unterstützt | AIM-128, China Post, Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI-Plessey, Matrix 2 of 5, Plessey, Standard 2 of 5, UPC-A, UPC-E |
| 2D (Matrix & gestapelte) Barcodes unterstützt | Aztec Code, Datenmatrix, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Optische Sensorauflösung (B x H) | 640 x 480 Pixel |
| Horizontales Blickfeld | 45° |
| Vertikales Blickfeld | 34° |
| Neigungslesewinkel | 0 - 360° |
| Steigungslesewinkel | 0 - 60° |
| Übertragungstechnik | Kabelgebunden |
| Standard-Schnittstellen | USB |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Internationale Schutzart (IP-Code) | IP52 |
| LED-Anzeigen | Ja |
| Alarm | Ja |
| Druckkontrast | 20% |
| Produktfarbe | Schwarz |
| Vibrationsfunktion | Ja |
| Zertifizierung | IEC62471 |
| Energiequelle | USB |
| Akku-/Batteriespannung | 5 V |
| Eingangsspannung | 5 V |
| Energieverbrauch | 190 mA |
| Breite | 95 mm |
| Tiefe | 68 mm |
| Höhe | 161 mm |
| Gewicht | 137 g |
| Betriebstemperatur | -20 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Fallbeständigkeit | 1,5 m |
| Konformitätsbescheinigungen | CE, Eidgenössische Kommunikationskommission (FCC), RoHS |
